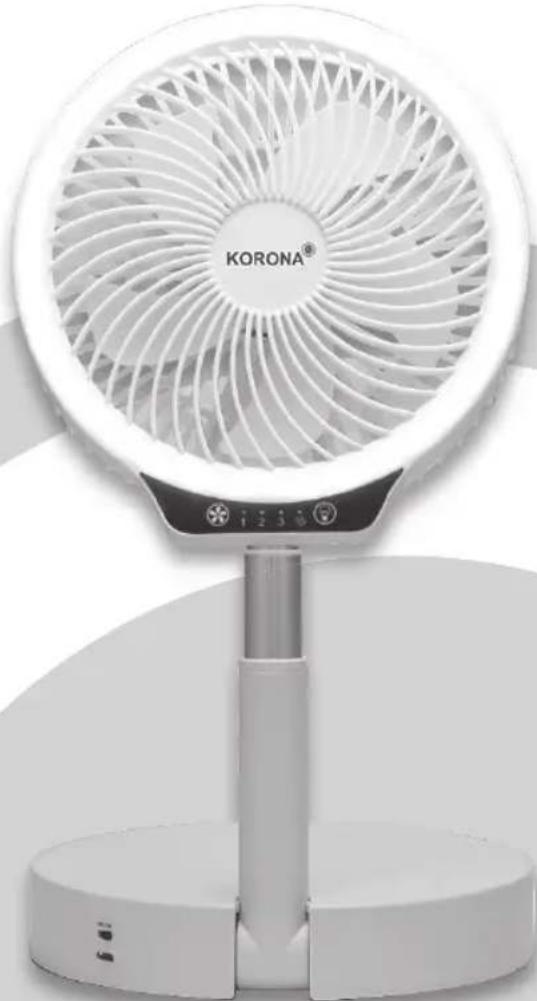

USER MANUAL 81010 KORONA

Foldable Stand Fan with battery and LED light

Nederlands

Gebruiksaanwijzing

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

White KORONA® air conditioner fan with circular blades and a stand (no text or symbols visible on the fan body)

Bedienungsanleitung

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

Electric soldering iron with coiled cable and terminal connector (no visible text or symbols)

Diagram of a layered structure with an upward arrow, no text or symbols present

Simple line drawing of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Diagram of a fan or propeller with multiple blades and directional arrows indicating rotation (no text or symbols)

Diagram showing two vertical supports with an upward arrow, no text or symbols present

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical device with spring and lever mechanism, showing rotational motion (no text or symbols)

Circular mechanical or electrical component diagram with radial lines and arrows, no visible text or symbols

Illustration of a hand cleaning a circular fan with a three-blade fan (no text or symbols)

USB output: 5,0 V DC = 2,0 A

Schutzklasse: II (Adapter/ Charger), III (Ventilator)

Read these instructions carefully before assembling and/or operating the appliance. Keep these instructions including warranty, receipt and, if possible, the box with the internal packing.

When passing on the appliance to a third party, make sure to include these instructions for use.

Intended Use

This appliance is intended for household use only and not for commercial, industrial or outdoor use. Other use not recommended may cause fire, electric shock or injury.

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

This symbol identifies tips and information.

Important Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of fire.

Danger of injury and damage to the appliance!

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.
• Do avoid contact with all moving parts. Always wait until all moving parts have come to stand still before touching them.
• Do not insert fingers or allow foreign objects to enter the grill.
• Do not operate without the fan grills properly in place or if the grill becomes damaged or loose.
• Make sure the fan is not placed near drapes, curtains, or any objects that may be drawn (including hair and clothes) into the fan.

• Never place or operate the unit where it could be subject to:

• Heat sources such as radiators, heat registers, stoves or other products that produce heat.

• Direct sunlight
• Excessive dust
• Mechanical vibration or shock
• Lack of ventilation

- Do not operate the appliance in the presence of explosive and/or flammable fumes.

- Uneven surfaces, to avoid the tipping of the fan during use

- Always turn OFF and unplug the fan when not in use or when moving it from one location to another.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
  • Do not use the appliance outdoors.
• Do not place the appliance close to an open window. Rain splashing on the fan could cause an electric shock hazard.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
- This appliance can be used by children aged from 8 and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 supervised.
- Keep the appliance and its cord out of reach of chi less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug – not the cord.
- Keep the appliance and the cord well away from any surfaces to avoid any damage to the appliance.
- Do not run cord under carpeting. Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use.
- Do not allow the cord to hang over sharp edges.
- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  • in case of malfunction.
• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• WARNING! Mains adapter/battery charger: Only use the original, dedicated mains adapter/battery charger (output 5V DC, 2.0 A) supplied with this appliance to charge the fan; do not charge the appliance with a different adapter. It must only be supplied at SELV. Using the wrong adapter can cause fire or explosion of the battery. Do not use the supplied charger for charging a different appliance.

Rechargeable Battery Hazards

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

This product contains rechargeable batteries! Do not throw the batteries into a fire and do not subject the appliance to high temperatures. Risk of explosion!

• The batteries are non replaceable.
- Do not disassemble or modify the fan's batteries.
- Leaks in the battery may occur under extreme conditions. In the event that battery fluid comes into contact with skin or eyes, immediately rinse the affected area with clear water and contact your physician.
• Do not use the adapter for other purposes.
• After its life cycle, dispose the batteries responsibly and according to your local environmental guidelines.

Product Description

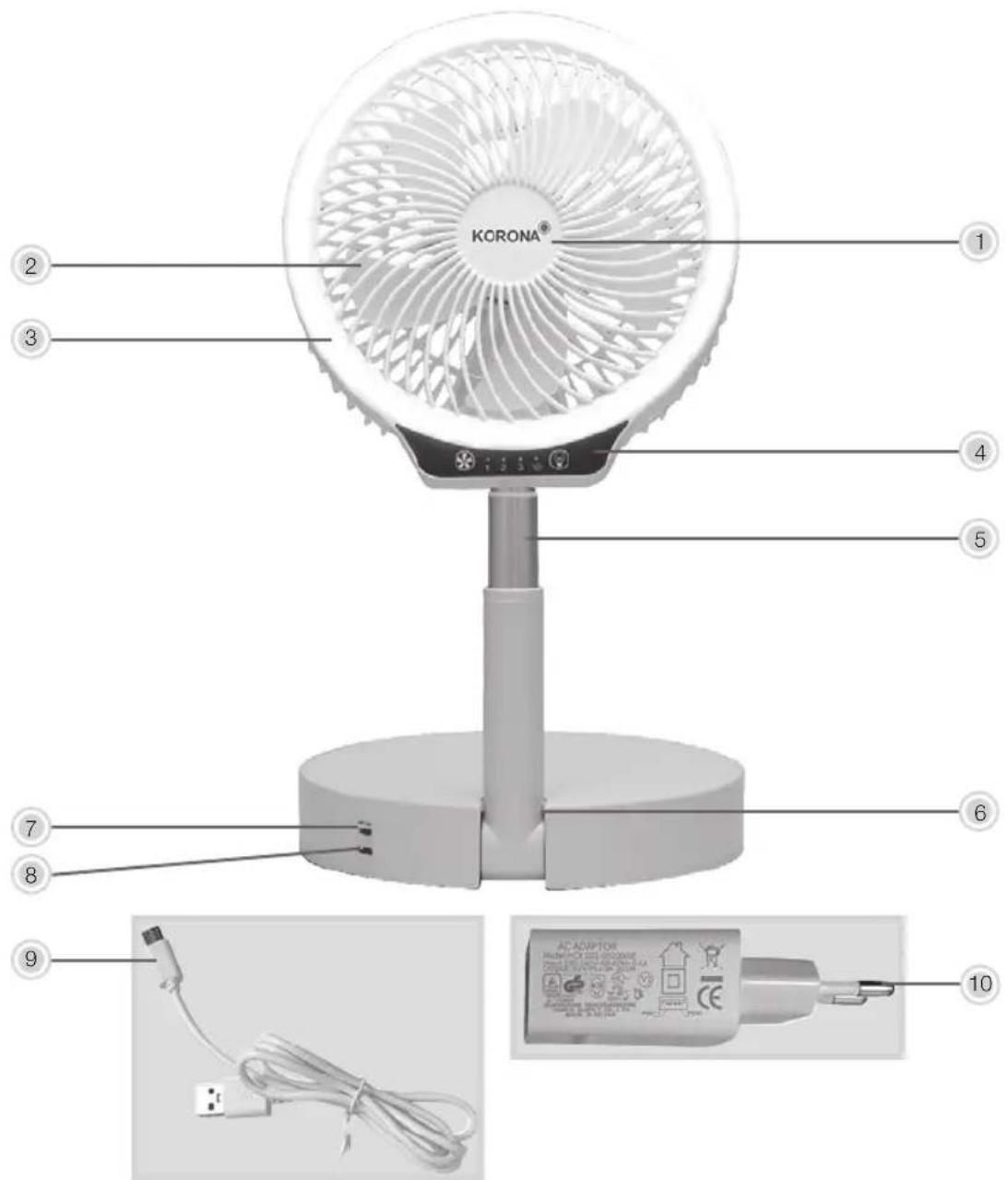

KORONA® 1 2 3 4 5 6 7 8 9 10 ACADVERTOR

1. Grill
2. Blade
3. LED light
4. Control Panel

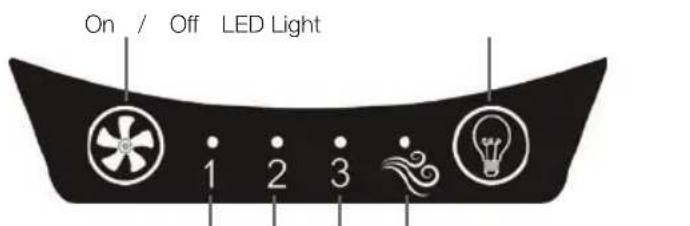

On / Off LED Light 1 2 3

Natural WindHighMediumLow

1. Telescopic pole
2. Locking position
3. Main On / Off switch
4. USB Port
5. USB Cable
6. AC Adapter

Before First Use

- Remove all packaging material and check whether the appliance is complete and that all accessories are included.

• Fully unwind the power cord.

- Clean the appliance as described under Cleaning and Care.

If any items are damaged or missing, contact your dealer or customer service.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid on.

Your foldable fan 81010 comes fully assembled and can be used as a stand and table fan

Charging the Battery

Place your fan on an even, dry and stable surface, close to a mains socket and well away from heat sources and excessive moisture.

1. Make sure that the fan is switched OFF (7).
2. Connect the USB cable (9) to the AC adapter (10).

Electric soldering tool with coiled cable and terminal connector (no visible text or symbols)

1. Insert the AC Adapter (10) plug into a properly installed power socket.
2. Switch on the appliance by switching the main On/Off switch (7) to ON.

Battery Power Status

While charging the battery or operating the fan, the status light blinks every 10 seconds.

0 - 25% power, the indicating light blinks 1 x
26 - 50% power, the indicating light blinks 2 x
51 - 75% power, the indicating light blinks 3 x
76 - 99% power, the indicating light blinks 4 x
100% power, the indicating light stays on.

Indicating light

A full charge of the battery approximately takes approx. 4.5 hours.

The fan should only be charged indoors.

How to operate the control panel

Switch ON / OFF

Press the (ON / Off) button on the control panel to turn the appliance on or off.

Fan Speed

Press the (ON / Off) button on the control panel repeatedly to adjust the fan speed from

1 = Low
2 = Medium and
3 = High

Natural Wind

In this mode the fan runs according to a pre-determined program which varies according to which speed is selected and will enable you to enjoy a nice, natural breeze.

LED Light

Press the 📷 button on the control panel to either switch the LED light on or off.

Note: Once the LED light is switched on while the fan is in operation, the fan speed will automatically switch to "Low" speed.

Operation

Easily adjustable from table to stand fan.

Once, the fan is fully charged, it can either run cordless on battery power or plugged in, using the power adapter.

The appliance is not supposed to be used outdoor!

If you are using the fan with the mains adapter (battery charger), always connect the charger to before inserting the power plug into an appropriate electrical outlet.

Make sure your local voltage matches the technical data of the appliance. Otherwise the appliance heat and get damaged.

1. To unfold the fan, pull it upward.

Diagram of a layered structure with an upward arrow, no text or symbols present

1. Extend the fan by following the direction of the arrow.

Simple line drawing of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Note: When opening the fan, you will see the rear side of the base.

Base rear side

1. Move the fan head to a vertical position at a 90° degree angle.

3. Base rear side 90°

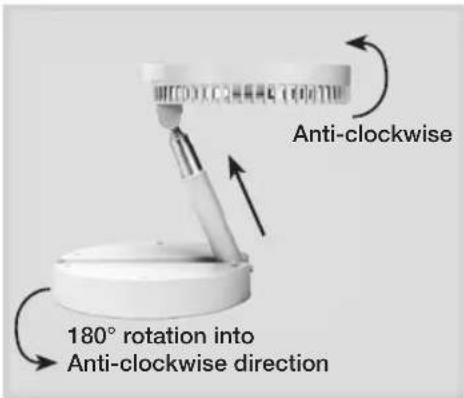

1. Flip the fan base 180^ backwards according to the arrow direction and lock the pole into position.

Diagram of a mechanical or fan-like structure with radial blades and directional arrows, no text or symbols present.

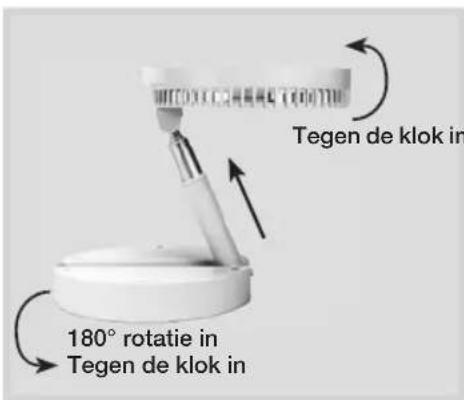

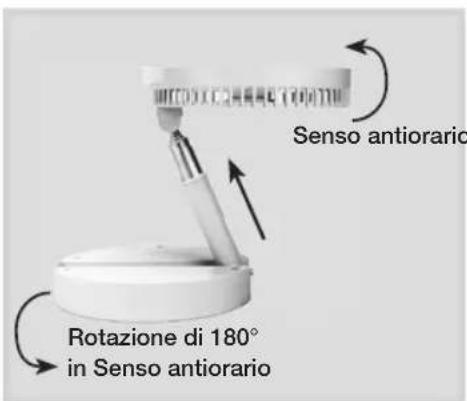

Anti-clockwise 180° rotation into Anti-clockwise direction

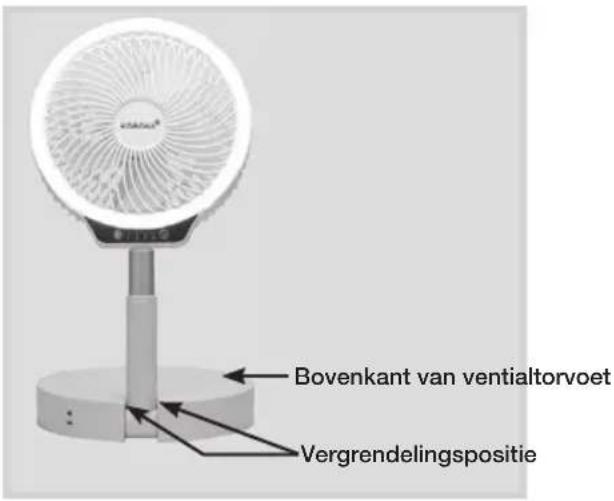

Top side fan base Locking position

1. The height can be adjusted up and down as needed.

Diagram showing two vertical supports with an upward arrow, no text or symbols present

1. The fan head tilting angle is 180^ .

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

1. To return the fan to its original position, fold it in reverse order.

Diagram of a mechanical device with spring and lever mechanism, showing rotational motion (no text or symbols)

Caution: The fan should always be switched off before connecting it to the mains

and before making any adjustments!

Never leave the appliance unattended during use.

Charging your Mobile Phone

You can charge your mobile phone by inserting the adapter cable into the USB port.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Never

immerse the appliance in water. Danger! Electric Shock!

- For cleaning purpose, the front grille can be removed.

Circular mechanical or electrical component diagram with radial slots and central hub (no text or symbols)

Open the front grille by turning the fan guard into anti-clockwise direction.

Illustration of a hand holding a fan next to a circular fan with radial blades (no text or symbols)

- Clean the appliance using a soft damp cloth.

- Never spray the appliance with liquids or submerge it in water or other liquid.

After the cleaning process is finished make sure that all parts are dry and that the front grille is properly reassembled.

Never use alcohol, gasoline, and/or any other aggressive cleaning agents/hard objects.

CAUTION: The Fan Blade may have sharp edges. Handle with extreme care.

Cleaning and user maintenance shall not be made by children without supervision.

Stroage

Keep the appliance away from children and store it in a clean and dry place, best in its original box or cover it to protect it from dust.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Foldable Stand Fan with battery and LED light 81010 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Disposal Instructions For Batteries

Standard and rechargeable batteries should not be thrown into regular household waste. As a consumer, you are legally obliged to return used batteries for proper disposal. You can hand in your used batteries at your local recycling centre in your district or sales outlets where batteries of this type are sold.

Only dispose fully discharged batteries.

Note: The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead

Cd = Battery contains cadmium

Hg = Battery contains mercury

Technical Data

Fan Power:

-52VAD6.5W

Adaptor input:

100 - 240 V 50 - 60 Hz, 0.4 A

Adaptor output:

5.0 V DC=2.0 A, 10.0 W

Average active efficiency: 80.19%

Efficiency at low load (10%): 74.49%

No-load power consumption: 0.086

Battery:

Lithium-ion Battery 3.7 V DC, 8000 mAh

Battery life time:

approx. 8.5 hours (high speed)

approx. 25 hours (low speed)

USB output:

-5.②VDC

Protection class:

II (Adapter/ Charger), III (Fan)

Technical data subject to change!

CE

Description Symbol Value Unit
Maximum fan flow rate F 4.44 m^3/min
Fan power input P 12.4 W
Service value SV 0.35 ( m^3/min )/W
Standby power consumption P	SB 0.06 W
Fan sound power level L	WA 50.2 dB(A)
Maximum air velocity c 3.68 meter/sec
Measurement standard for service value	IEC 60879:2019

NOTE: As a result of continual improvements, the design and specifications of the product within may differ slightly to the unit illustrated on the packaging.

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to t instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Handleiding

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

Dit product bevat oplaadbare

Electric soldering iron with coiled cable and terminal connector (no visible text or symbols)

Diagram of a layered structure with an upward arrow, no text or symbols present

Simple line drawing of a mechanical lever system with no text or symbols

Diagram of a fan or propeller with radial blades and directional arrows indicating rotation (no text or symbols)

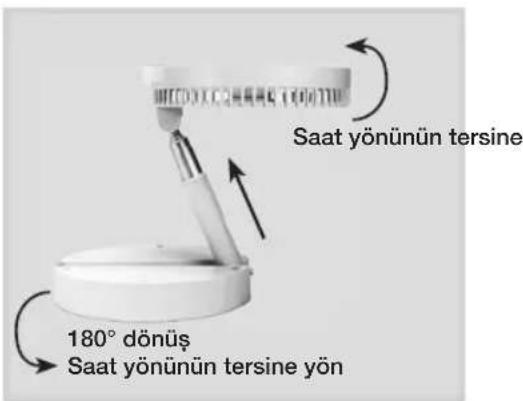

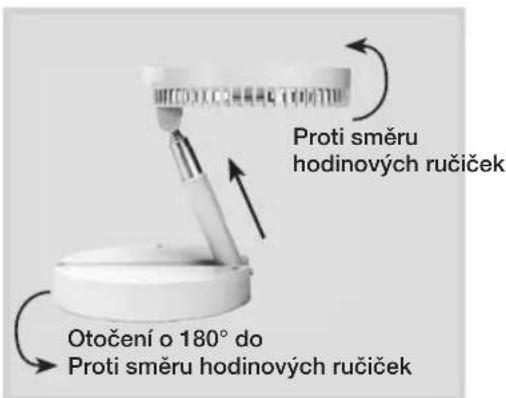

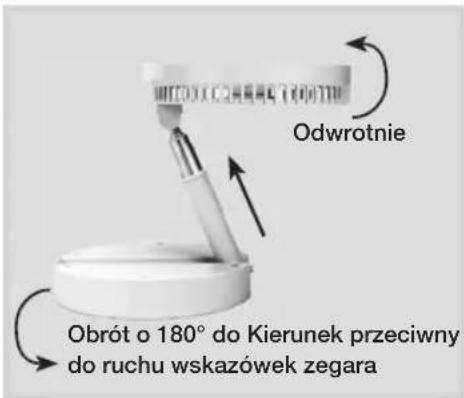

Tegen de klok in 180° rotatie in Tegen de klok in

Diagram showing two vertical supports with an upward arrow, no text or symbols present

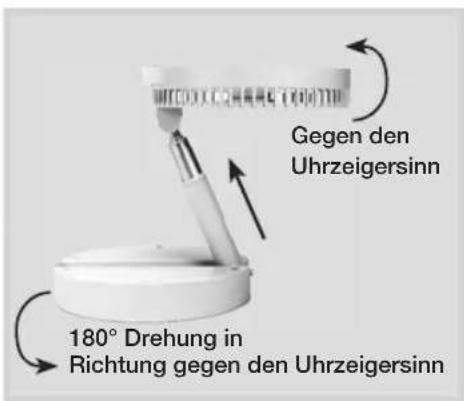

1. De kantelhoek van de ventilatorkop is 180°.

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Circular mechanical or electrical component diagram with radial lines and arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a circular object with a lid (no text or symbols)

Dangers Lies Aux Batteries Rechargeables

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazardous status.

Electric soldering iron with coiled cable and terminal connector (no visible text or symbols)

Diagram of a rectangular object with internal segmented structure and an upward arrow, no text or symbols present

Simple line drawing of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Diagram showing two vertical supports with an upward arrow, no text or symbols present

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Circular mechanical or electrical component diagram with radial slots and central hub (no text or symbols)

Illustration of a hand cleaning a circular object with a lid and a fan (no text or symbols)

Warning sign depicting a flame symbol in a triangular frame, indicating hazard or hazard status.

Electric soldering tool with coiled cable and terminal connector (no visible text or symbols)

Diagram of a layered structure with an upward arrow, no text or symbols present

Simple line drawing of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Diagram of a fan or propeller with rotating blades and a mounted device (no text or symbols)

Diagram showing two vertical supports with an upward arrow, no text or symbols present

Diagram of a mechanical device with rotating arms and a base, showing no text or symbols

Diagram of a mechanical device with spring and rotating arrows indicating motion (no text or symbols)

Circular mechanical or electrical component diagram with radial slots and central hub (no text or symbols)

Illustration of a hand holding a fan next to a circular fan with blades (no text or symbols)

Uscita USB: 5,0 V DC = 2,0 A

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

Electric soldering iron with coiled cable and terminal connector (no visible text or symbols)

Diagram of a rectangular object with internal segmented structure and an upward arrow, no text or symbols present

Simple line drawing of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Diagram showing two vertical supports with an upward arrow indicating motion or force (no text or symbols)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Circular mechanical or electrical component diagram with radial slots and central hub (no text or symbols)

Illustration of a hand holding a fan next to a circular fan with blades (no text or symbols)

Salida USB: 5,0 V DC = 2,0 A

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

KORONA® 1 2 3 4 5 6 7 8 9 10 ACADAPTOR WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS

Electric soldering iron with coiled cable and terminal connector (no visible text or symbols)

Diagram of a layered structure with an upward arrow, no text or symbols present

Simple line drawing of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Diagram of a fan or propeller with radial blades and directional arrows indicating rotation (no text or symbols)

Diagram showing two vertical supports with an upward arrow, no text or symbols present

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical device with spring and rotating arrows indicating motion (no text or symbols)

Circular mechanical or electrical component diagram with radial slots and central hub (no text or symbols)

Illustration of a hand cleaning a circular fan and a circular object (no text or symbols)

USB çıkış: 5,0 V DC = 2,0 A

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

Ten produkt zawiera akumulatory!

KORONA® 1 2 3 4 5 6 7 8 9 10 ACADAPTOR WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOOD S WATER HOLD WOOD S WATER HOLD WOOD S WATER HOLD WOOD S WATER HOLD WOOD S WATER HOLD WOOD S

Electric soldering iron with coiled cable and terminal connector (no visible text or symbols)

Diagram of a layered structure with an upward arrow, no text or symbols present

Simple line drawing of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Diagram of a fan or antenna structure with directional arrows indicating rotation (no text or symbols)

Diagram showing two vertical supports with an upward arrow, no text or symbols present

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Diagram of a mechanical device with spring and rotating arrows indicating motion (no text or symbols)

Circular mechanical or electrical component diagram with radial slots and central hub (no text or symbols)

Illustration of a hand cleaning a circular fan with a handle, next to a circular fan with a blade (no text or symbols)

Warning sign depicting a flame symbol in a triangular shape, indicating hazard or hazard status.

KORONA® 1 2 3 4 5 6 7 8 9 10 ACADAPTOR WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATERHOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOODS WATER HOLD WOOD S WATER HOLD WOOD S WATER HOLD WOOD S WATER HOLD WOOD S WATER HOLD WOOD S WATER HOLD WOOD S

Electric soldering iron with coiled cable and terminal connector (no visible text or symbols)

Diagram of a cylindrical object with internal layered structure and an upward arrow, no text or symbols present

Simple line drawing of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Diagram of a fan or propeller with radial blades and directional arrows indicating rotation (no text or symbols)

Diagram showing two vertical supports with an upward arrow, no text or symbols present

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Diagram of a mechanical device with rotational arrows indicating motion (no text or symbols)

Circular mechanical or electrical component diagram with radial slots and central hub (no text or symbols)

Illustration of a hand holding a cloth next to two circular objects with internal patterns (no text or symbols)

Abstract geometric shape with curved and angular gray segments, no text or symbols present

Ref: 81010/2021.10
