3. SAFETY

Read carefully the guidelines and instructions in the instruction manual. Use you use the appliance.

The instruction manual contains general information on how to safely use and maintain the appliance. Retain the manual for future reference.

Electric installation conforms to CEI EN

60335-1 and 60335-2-36 regulation.

To prevent any hazard, the damaged power cable may be replaced by the manufacturer or service personnel only.

The manufacturer took extra care when designing and manufacturing to prevent any safety or health hazard to the personnel operating the appliance.

Please read carefully the guidelines in the instruction manual and instructions placed directly onto the appliance. Above all, observe all the safety instructions.

Do not intervene in or remove the protective devices installed in the appliance. Noncompliance may lead to severe safety and health hazard against people. We recommend to perform a few tests to know the layout and main functions of the control panel, particularly those to switch the appliance on and off.

The appliance is intended only for the use it has been designed for and any other use is considered as the use not in compliance with the intended use.

The manufacturer is not liable for material damage or damage to person caused by misapplication or incorrect application of the appliance.

Any maintenance work that requires special technical license or special skills may be performed by qualified personnel only.

To provide hygiene and protect foods from dirt, all the elements that have direct or indirect contact with the foods and all border areas must be thoroughly cleaned. Use only the cleaning agents intended for use in contact with food and avoid using flammable agents or harmful to health.

After each use of the appliance make sure that all the heating elements and control elements have been switched off and the cable unplugged.

In case of prolonged interval in using the appliance disconnect all power supply cables and thoroughly clean the inside and outside elements of the appliance.

In direct connection to the mains safety switch should be supplied

where wire joints dilation is large enough to secure disconnection in category III overvoltage, which is in accordance with the installation rules.

The device requires some safety

measures during installation, positioning, fixing, and connecting to the power supply (section 8 "INSTALLATION").

Do not clean the device with direct

stream of water.

When the cooker surface is cracked

immediately disconnect it from the power supply.

Do not place any plastic containers on

hot surface of the cooker.

Avoid using the aluminium foil for

protecting the surfaces during the device operation.

4. GENERAL INFORMATION AND WARNINGS

4.1. General guidelines

The manual has been edited by the manufacturer to provide the authorized personnel with the information necessary to work with the appliance. We recommend the intended readers to read the manual carefully and comply with the information. By reading the information contained in the manual, hazards against people health and safety may be prevented.

Retain the manual in an easily available place throughout the time of use of the appliance to have access and refer to the required information at any time.

Special symbols, described below, have been used to stress important information or draw attention to essential data:

Warning

Indicate important safety

instructions. You should acquire the proper conduct to prevent hazard against people health and safety or not to cause any damage.

Caution

Indicate essentials technical data that

you cannot ignore.

4.2. Description of the appliance

The electric cooker with infrared ceramic heating plate has been designed and manufactured for preparing and cooking of food products in the professional gastronomy sector.

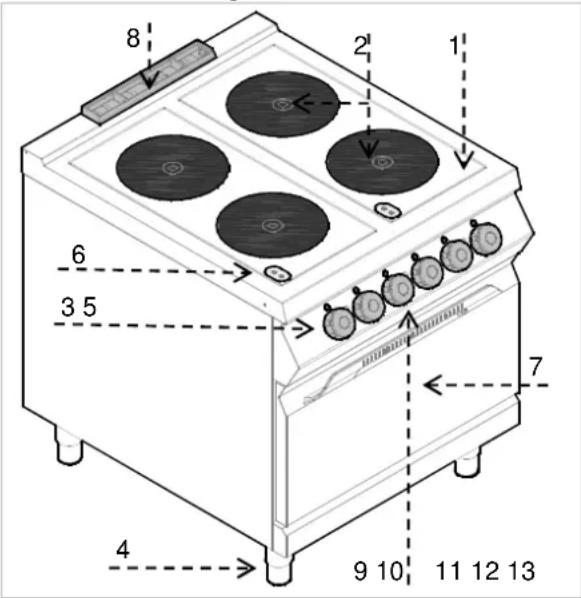

1) Cooker: with ceramic heating plate and infrared heating coil;
2) Hob;
3) Temperature controller: adjusts power of electric heating plate;
4) Feet of adjustable height;
5) Power supply indicator light: indicates activation of supply voltage.
6) Heating plates indicator light: Indicates activation of the heating plates and is on when their temperature exceeds 50^
7) Electric oven (static);
8) Oven smoke extraction;
9) Oven thermostat controller: adjusts temperature of the electric oven
10) Oven switch: turns on or off the oven heating coils.
11) Thermostat indicator light: indicates activation of the safety thermostats.

12) Power supply indicator light: indicates activation of supply voltage.
13) Temperature indicator light: indicates oven heating.

4.3. Index plate

The index plate indicated in the drawing is mounted directly onto the appliance. There are all guidelines and information on the plate required for safe use.

1) EAN-No.
2) Code-No. / Model-No.
3) Connection: power / supply frequency / supply voltage
4) Date of production
5) Serial-No.
6) WEEE symbol
7) CE-marking

4.4. Exchange of components (service technician)

Before exchange of the components on all the existing protection fees.

In particular, switch off the electric

supply with the electrical potential switch. If necessary, exchange the used components to the original spare parts.

We are not liable for personal injury or

damage to the components that arise due to application of other spare parts than original or intervention into the appliance without the manufacturer's consent that may have altered the safety requirements.

4.5. Protection devices

The device is equipped with the following protection systems:

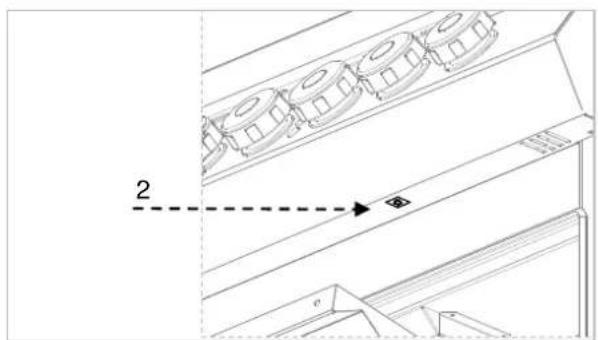

1. Heating plates - safety thermostat: It is the device inside each heating plate which reduces power in case of overheating. When the reason is removed and temperature drops, the operation is automatically restored.
2. Oven - safety thermostat: Cuts off the oven power supply in case of overheating.

Safety thermostat activation is indicated by appropriate indicator light. Figure shows position (2) of oven safety thermostats.

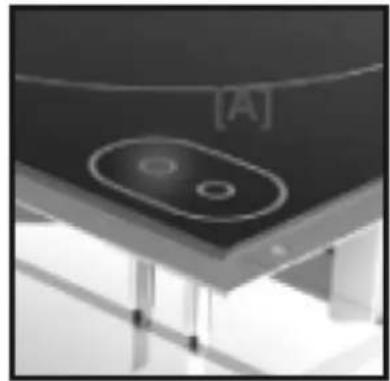

The ceramic cooker is equipped IN STANDARD with RESIDUAL HEAT INDICATOR LIGHT on the cooker, which indicates that temperature of the cooking surfaces exceeds 70^ and warns the user to NOT TO TOUCH the cooking surfaces to avoid burns. The indicator light becomes on after few minutes from the activation of cooker heating coils and remains on during the normal operation. After deactivation of the heating plates it remains on until the temperature drops below 50^ .

Keep in mind that in case of sudden

power supply failure there is the risk of burns as the cooking surfaces may be still hot.

Check every day that the protection

devices are mounted correctly and

operational.

GB

5. USE AND OPERATION

5.1. Description of the use the device.

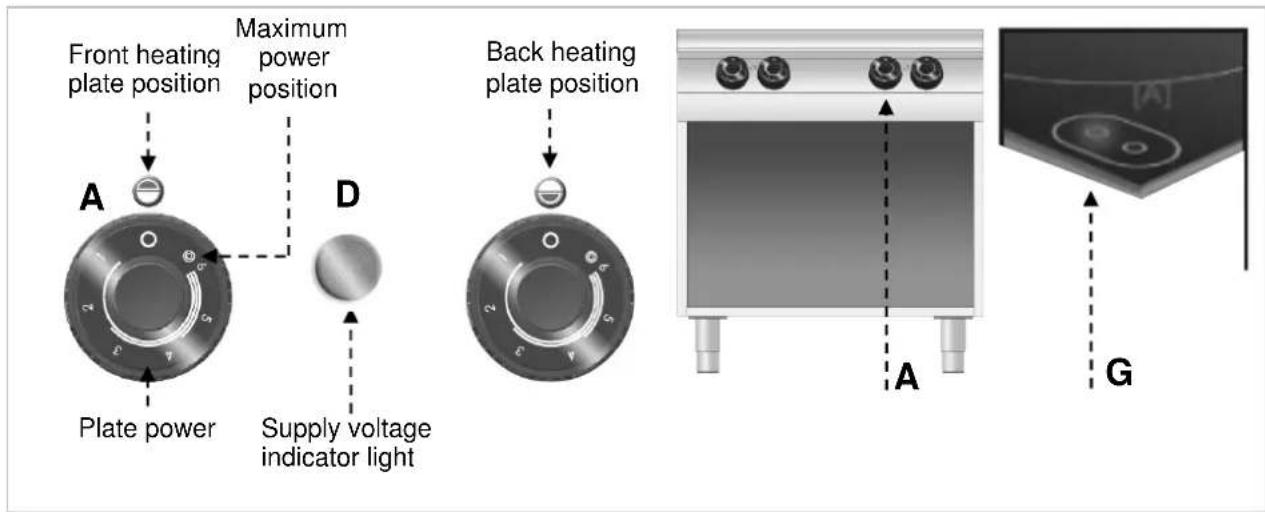

The elements controlling the essential functions are located on the control panel of the device.

A) Temperature controller: adjusts power of electric heating plates

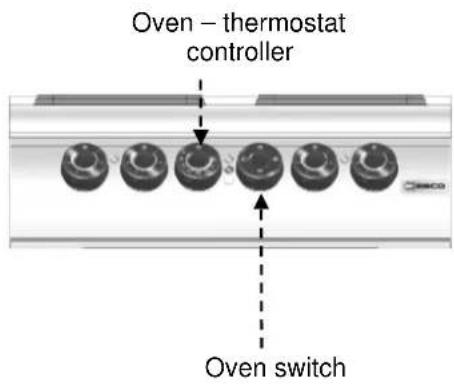

B) Oven thermostat controller: adjusts temperature of the electric oven
C) Oven switch: activates upper, lower, or both heating coils.
D) Green indicator light: indicates activated power supply

E) White indicator light: indicates oven heating
F) Red indicator light: indicates activation of safety thermostats.
G) Indicator light of heating plates: indicates activation of electric heating plates.

5.2. Heating plate switching on and off

During the first activation leave the heating plates for heating without pots.

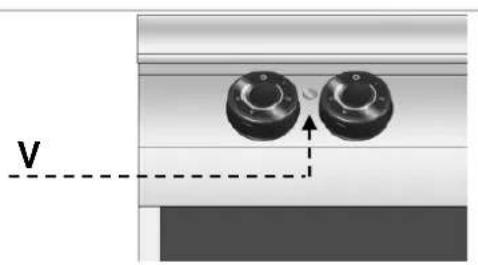

A) Start the automatic switch-off to turn on the electrical connection.
B) Turn the temperature controller to position 1 to set the heating plate to minimum power. The green control light (V) will come on.
C) Then turn the temperature controller to desired position.

D) Turn the temperature controller to position A to set the heating plate to maximum power.
E) Turn the temperature controller to position 0 to switch off the heating plate. The green control light (V) will go off.
F) Start the automatic switch-off to turn off the electrical connection, when needed.

Pos 0

Pos A

5.3. Oven switching on and off

A) Start the automatic switch-off to turn on the electrical connection.
B) Turn switch A to activate the oven heating coils. The green control light (L) will come on.
C) Turn the oven temperature controller and set it between 70^ and 300^ . When the heating coils are activated, the white indicator light (W) will come on.

When the oven reaches required temperature the white indicator light goes off.

D) Turn switch (A) to activate or deactivate the upper, lower, or both heating coils.
E) To switch the oven off turn the switch (A) to position 0. Then turn the thermostat controller (B) to position 0.

Temperature °C 70	100 130	160 200	240 270	300
Time in minutes	1' 30"	3'	4' 30'	6'	8'	11'	14'	17'

GB

Pos 0

A

Pos 1

Pos 0

Pos 1

5.4. Guidelines on how to use the appliance

Longer interval in the use of the appliance

When you plan not to use the appliance for the prolonged time, follow the instructions below:

1. Turn on the automatic switch-off to disconnect from the mains;
2. Thoroughly clean the appliance and surrounding areas;
3. Apply the vaseline oil on the stainless steel surfaces;
4. Perform all maintenance works.

Guidelines on regular use of the appliance

To ensure correct use of the device follow the guidelines below:

Use only accessories provided by the manufacturer:
Use the heating plates only for heating pots, do not heat food products directly on the plates.
The device and its vicinity should be always kept clean.
Use containers of diameter not lower than diameter of the heating plates.

Use only pots with flat bottom.

Cast iron steak frying pans and other metal alloys are not suitable for use on the ceramic cooker as high bottom thickness may cause dangerous heat concentration on the cooker. Besides, rough bottom may scratch the surface and the metal alloy may leave permanent stains.
Use only food grade cleaning agents.

Check if the oven door is properly installed.
Heat the oven before use.

Do not use the oven with partially d door.

In order to brown the product surface

put in on the upper grill and switch the upper coil on.

Do not use the heating plates

without pots. Switch the heating plate off when not in use.

Avoid using the aluminium foil for cutting the surfaces during the device operation.

Before putting the pots on the cooker clean and dry their bottoms. Corrugated bottoms of pots and frying pans may leave marks and grooves when moved on the cooker.

6. CLEANING AND MAINTENANCE

6.1. Guidelines on cleaning and maintenance

Before you start maintenance

works, turn on all the mounted protective devices.

In particular, disconnect the electric power supply by means of the automatic switch-off.

6.2. Correct maintenance

Proper maintenance includes daily cleaning of all components which have contact with food products, and regular maintenance of drain pipes.

Careful maintenance ensures the best performance, longer life of the appliance and proper operation of the protective devices.

Never direct the water stream or high pressure jet towards the appliance.

To clean the stainless steel, do not use iron wool or iron brush as they may leave iron particles on the surface that form rust in result of oxidation.

In the case of prolonged intervals in the use of the appliance, apply the vaseline oil onto all the stainless steel surfaces.

Do not use any clearing agents that can substances hazardous or harmful inth (solvents, petrol. etc.).

At the end of the working day clean:

heating plates and oven (when used)
device.

Regularly instruct the specialist personnel to perform the following maintenance works:

check the electric installation;
check the safety thermostats.

6.3. Cleaning of ceramic plate

Follow the instructions below:

Turn off the heating plates and leave to cool down.

Start the automatic switch-off to turn off the electrical connection.
Thoroughly clean the heating plate with use of sponge and neutral cleaning agent.
Deposits and stains must be removed quickly, best when the plate is still warm.
Wash the cooking surface with clean water and dry.

Do not direct the water jet on the heating plate, particularly when it is still hot.

Do not pour water directly heating plate.

Do not use any abrasive cleaning as they may scratch the surface.

In order to remove stubborn stains the cooker may be covered with cloth soaked in the cleaning agent for the night. Repeat cleaning the next day.

GB

6.4. Cleaning of the oven

When the oven is cold remove bottom and guides. After cleaning switch the empty oven to avoid corrosion.

Follow the instructions below:

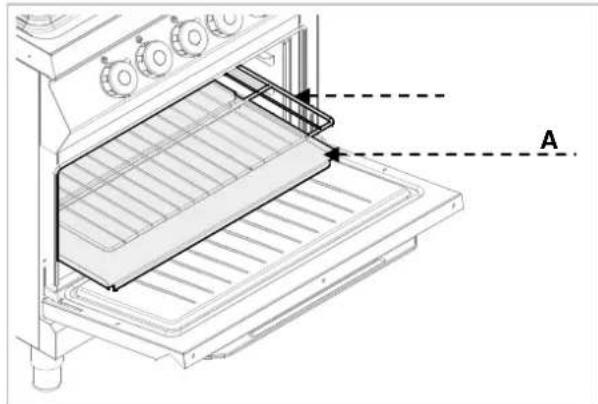

Remove the oven bottom (A) and grill (B) and clean them thoroughly.
Clean the oven interior from any burnt residuals which may disturb correct operation.
Clean the surface and replace the oven elements.

7. PROBLEMS DURING OPERATION

The information below is provided to recognize and repair any failures that may occur when operating the appliance.

Some of the failures can be repaired by the user, others require thorough specialist knowledge. Such problems may be solved exclusively by the qualified personnel.

Problem Cause Solution
The heating plates do not work.	The electrical connection is not correct.	Check connection of supply cable. × Contact the service company.
	Activation of temperature limiter.	Wait until the thermostat in the heating plates restores normal operation.
	Damaged energy controller.	Replace the part. × Contact the service company.
The heating plates remain hot. Damaged heating plate.		× When problem persists contact the service company.
The oven heating coils do not work.	The electrical connection is not correct.	Check connection of supply cable. × Contact the service company.
	Activation of temperature limiter.	Wait for the oven to cool down. Then reset the thermostat (see special section).
	Damaged switch.	Replace the part. × Contact the service company.
The oven does not reach the preset temperature.	Damaged operational thermostat.	Replace the part. × Contact the service company.

8. INSTALLATION

8.1. Packaging and unpacking

During unloading and when installing the appliance follow the information from the manufacturer placed directly on the packaging and in this manual.

To lift and transport the product plan to use a fork lift or stacker, and pay attention to even weight distribution to avoid a risk of tilting of the packaging (avoid excessive incline!).

When using the lifting equipment pay attention to the mains cable and discharge pipes and feet position.

The packaging consists of the carton packaging and wooden pallet. There are symbols printed on the carton packaging that according to the international agreements inform about the regulations to follow when loading and unloading, transporting and storing the appliance.

THIS SIDE UP

CAUTION GLASS

KEEP DRY

When collecting the goods check if the packaging is complete and has not been damaged during transport.

Any damage should be immediately reported to the shipping company.

Unpack the appliance as soon as possible to check if the appliance is not damaged.

Do not use a sharp object to cut the carton box. It may damage the stainless steel inside the box.

Remove the carton packaging from bottom to top.

When unpacked check if the appliance is according to the order.

In case of any difference inform the sales agent immediately.

Do not store the packaging bags (nylon bags, polystyrene foam,) in the reach of children!

Remove the protective PVC layer from the out and inner surfaces. If possible, do not use any metal tools.

8.2. Installation (service technician)

All the stages of the installation must be carefully planned.

The location should be equipped with all supply connections and production waste outlet. The location should also be properly lit and comply with all hygiene and sanitary requirements according to the binding regulations.

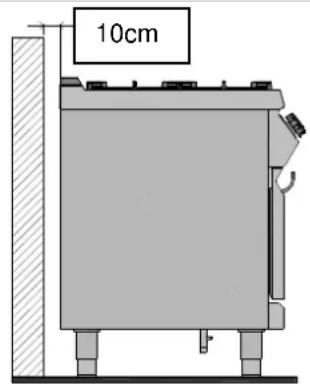

The appliance should be installed with the minimum 10cm clearance from the wall.

The devices with the oven must be

installed at least 50~cm from the wall.

Locate the device in the horizontal position by adjusting the individual feet.

To ensure the correct operation of appliance, the appliance must be used and operated in the thoroughly rated room only.

When the device is to be installed the walls, partitions, kitchen cabinets, native elements, etc., they must be from non-flammable materials or used with suitable non-flammable seals.

The device IR091M00 must be fixed to the floor.

8.3. Installation of the appliance in a line

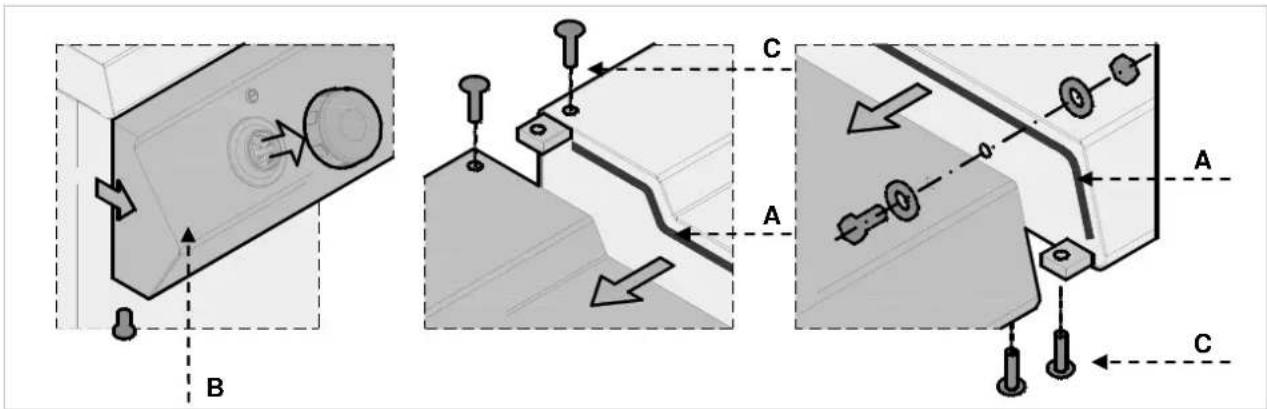

To fix the appliance in a line (neighboring) follow the steps:

1. Dismantle the control panel, and remove the cast iron frame from the chimney if necessary.

2. Apply the sealing tape (A) onto the joining sides.

3. Place the appliances next to each other and in a horizontal position (by adjusting the feet).

4. Connect the appliances with the joining elements.

8.4. Connection to the mains (service technician)

The device may be connected to the power supply only by the authorized and qualified personnel, when the valid regulations are followed and when appropriate material is used in accordance to the regulations.

Depending on the model the devices are designed for connection to the following networks:

230 V 3~/380-415 V 3N~

During the installation follow the data on the rating plate.

For direct connection to the network install the device assuring disconnection from the network, having spacing of contact large enough for disconnection in conditions of overvoltage category III, which conforms to the installation principles.

To correctly connect the device, follow the guidelines below.

Version without the oven

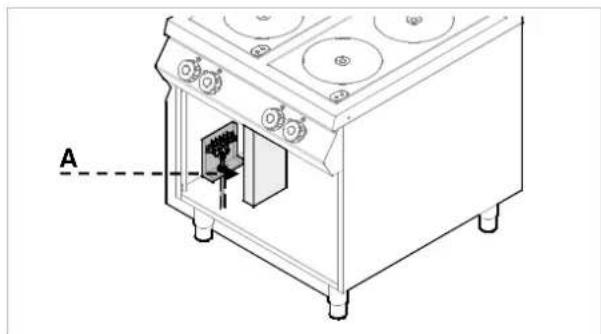

Remove the cover from the terminal strip (A).

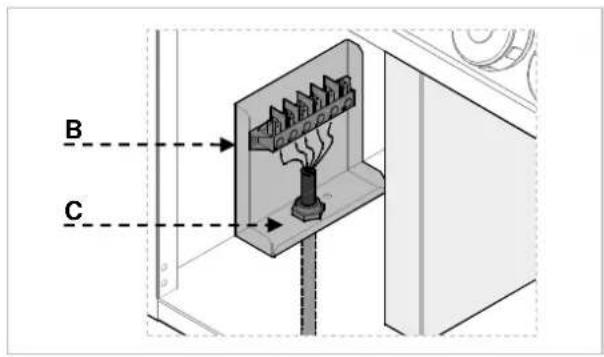

Connect the switch-off to the terminal strip (B) of the device, as shown in the drawing and block diagram (see the attachment). Use the H07RN-F cable or better.

ENGLISH

Tighten the cable endings (C).
Replace the terminal strip cover.

Version with the oven

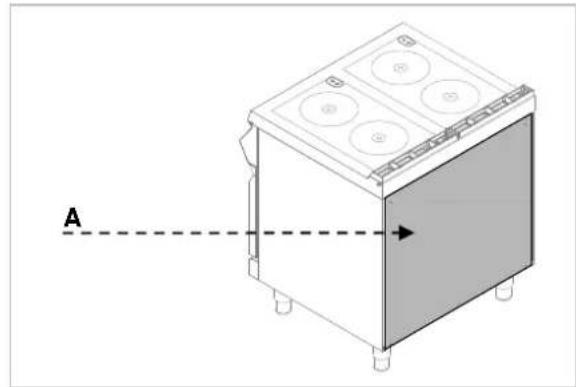

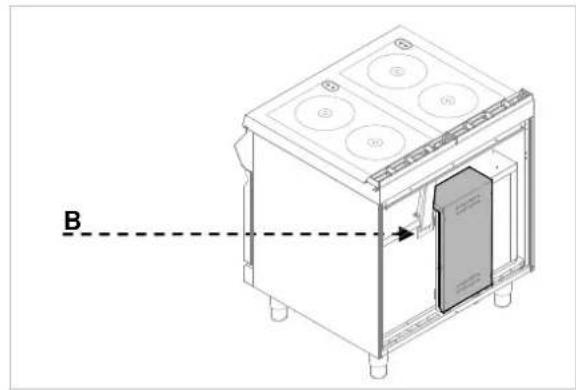

Remove the cover from the terminal strip (A) (B).

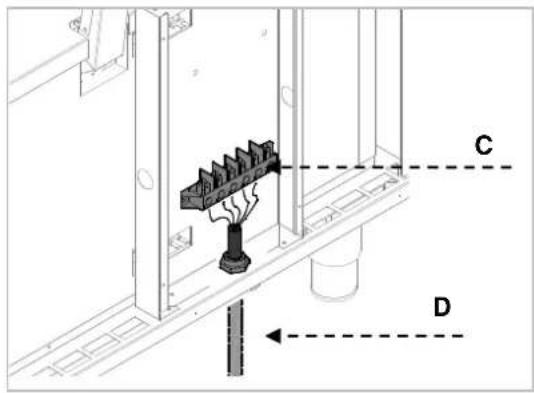

Connect the switch-off to the terminal strip (C) of the device as shown in the drawing and block diagram (see the attachment). Use the H07RN-F cable or better.

Tighten the cable ending (D).
Replace the terminal strip cover.

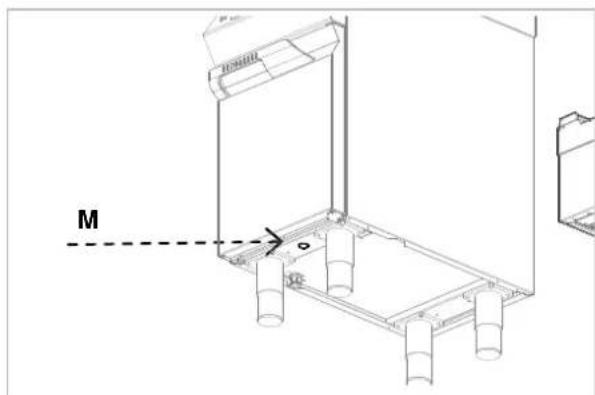

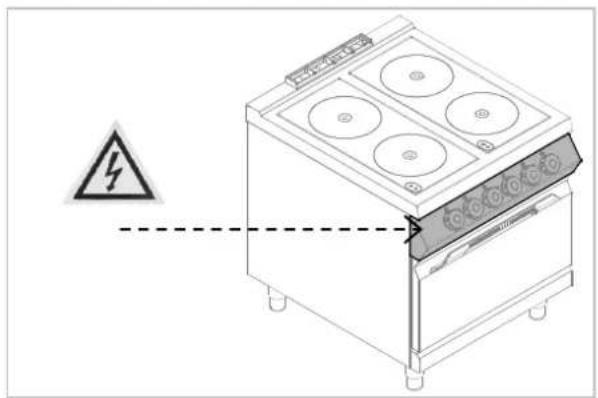

The device is equipped with the equipotential clamp (M). The terminal is marked with

appropriate sticker:

Designation

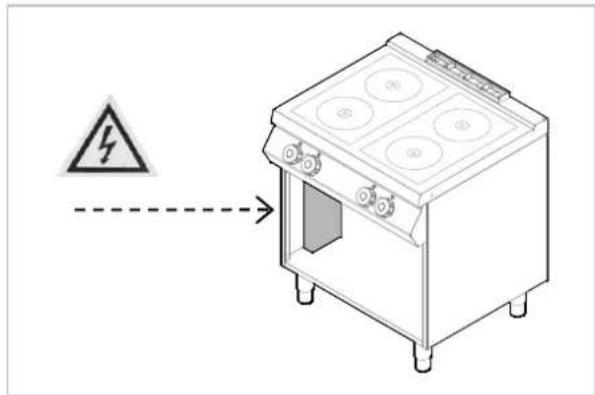

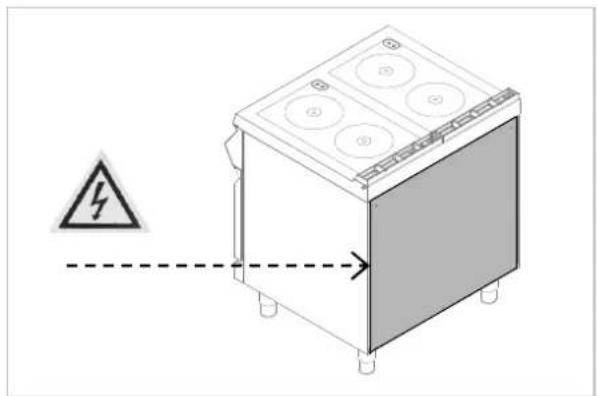

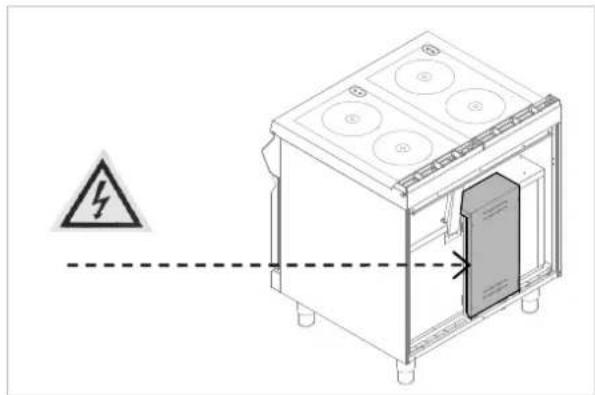

The following symbol "Electric voltage hazard" indicates that there are live elements under the cover.

8.5. Check-up (service technician)

Before starting the appliance the installation check-up should be run to evaluate the working conditions of every single component and recognize any errors.

It is recommended to run the following check-ups:

1. Check that the energy supply voltage is the same as of the appliance voltage.
2. Turn on the automatic switch-off to check the electrical connections.

Check that the protection devices work correctly.

9. APPLIANCE DISPOSAL

The appliance is marked in conformity with the European Directive 2002/96/EG WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).

By disposing the appliance in

accordance with the regulations the user contributes towards prevention of adverse effects on environment and health.

The symbol on the product or attached manual indicates that the product cannot be considered as ordinary household waste and should be transferred to a special collection point for electrical and electronic appliances for recycling.

Local waste management regulations should be observed.

Further information on procedure, reusing and recycling of the product is available in local offices, waste management unit or with the product sales agent.

Bartscher GmbH

7. DYSFUNCTIONNEMENTS

1. LIMPEZA E MANUTENÇA 9

6. LIMPEZA E MANUTENÇA

IN COMPLIANCE WITH THE LAW IN FORCE,IT IS PROHIBITED TO REPRODUCE AND/OR DISTRIBUTE THIS MANUAL IN ANY WAY WITHOUT THE AUTHORISATION OF THE PROPRIETOR!

FR

AUX TERMES DE LA LOI, LA PROPRIÉTE DE CETTE NOTICE EST RESERVEE. IL EST DONC INTERDIT DE LA REPRODUIRE ET/OU DE LA DISTRIBUTUER SOUS QUELQUE FORME QUE CE SOIT SANS NOTRE AUTORISATION!

IT

A TERMINI DI LEGGE É RISERVATA LA PROPRIÉTÀ DI QUESTO MANUALE CON DIVIETO DI RIPRODURLO E/O DISTRIBUTION IN QUALSIASI FORMA SENZA NOSTRA AUTORIZAZIONE!

ES
