USER MANUAL CMS 603DC BM TANNOY

Close-up of two white ceramic speakers with visible inner and outer rings, no text or symbols present.

CMS 3.0 Series

CMS803DC BM/PI/Q / CMS803 PI BACKCAN

8" Full Range Ceiling Loudspeaker with Dual Concentric Driver

CMS603DC BM/PI / CMS603ICT BM/PI/LS / CMS603 PI BACKCAN

6" Full Range Ceiling Loudspeaker with Dual Concentric or ICT Driver

CMS503DC BM/PI/LP / CMS503ICT BM/PI/LP / CMS503 PI BACKCAN

5" Full Range Ceiling Loudspeaker with Dual Concentric or ICT Driver

CMS403DCE / CMS403ICTE

4" Full Range Ceiling Loudspeaker with Dual Concentric or ICT Driver and adjustable "eyeball" design

2 CMS 3.0 Series Quick Start Guide 3

EN

ES

EN Important Safety Instructions

Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. the only high quality professional speaker tables with 15" TS or twist, locking plugs pre installed. All other installation or modification should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts include. Refer servicing to qualified personnel.

Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as wares, shall be plated on the apparatus.

Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.

1. Read these instructions.
2. Keep these instructions.
3. Hold all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not hold any ventilation openings, install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as rotators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one water than the other. A grounding-type plug has two blades and a third grounding plug. The wide blade or the third spring are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walking on or pinched particularly at plugs, convenience receptacle, and the point where they exit from the apparatus.
11. Use only attachments accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug in damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

3. The apparatus shall be connected to a MANG socket outlet with a protective earthing connection.

4. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain nearly operable.

1. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste, according to the WEE Directive (2012/19/EU) and

should be taken to a collection center licensed for the recycling of waste electrical and electronic equipment (ELEC). The misunderstanding of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with ELEC. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service. 18. Do not install in a confined space, such as a book case or similar unit.

1. Do not place naked flame sources, such as lighted candles, on the apparatus.

2. Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.

3. This apparatus may be used in tropical and moderate climates up to 45°C.

LEGAL DISCLAIMER

Music Tribe accepts mut liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Clark Teknik, Lab Suggers, Lake, Tammy, Turbosound, TC Electronic, TC Helicon, Behringer, Sugera, Institut Microprapines and Coudaudie are trademarks or registered trademarks of Music. Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2021 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at community.musct tribe.com/pages/support@warranty.

ES

BESCHRÄNKTE GARANTIE

Thank you for purchasing this Tannoy Ceiling Monitor System product. Designed for both speech and music program material, the Tannoy CMS range provides exceptional sonic quality and long-term reliability in all ceiling mount applications. The CNS 3.0 DC series features new 16 ohm Dual Concentric drivers for improved performance and prolonged service life.

Unpacking

Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain all shipping materials as your dealer may require return shipment.

All CMS loudspeakers are shipped in pairs and provided with the following accessories as standard: C-ring, tile-bridge kit, cut-out template and paint mask. A plaster (mud) ring is available as an optional accessory.

Safety Notices

Some regional construction codes require the use of a secondary method of securing loudspeakers in the ceiling to provide security of a backup support. A secondary support line should be attached from the safety loop on the rear of the product to a source point on the ceiling. For PI models, the secondary support line should be attached from the back of the driver chassis to a source point on the ceiling. Please consult the relevant construction codes in your region.

When using a power driver to install the product, it is essential to use the correct torque level settings to avoid over-tightening and damage to the ceiling material or clamps. Recommended torque setting: 1.5 Nm

Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

The CMS 603 ICT LS is UL-1480, category UUM'W, for use with non-DC supervised systems.

Electrical Safety Notice: To comply with the standard IL-1480, metal-clad flexible conduit (3K) is required for connection to the terminal block for proper earth grounding.

In order to comply with UL regulations, the PI backcan must always be used with the CMS PI models.

SHE

In addition, the following is a 100% 1980. It is required to be used in the first section of the actual call and given on each other, but it is not possible to take place. So there are no results that have been taken from any way being in the next section. The second section has been made for use. We believe that the last section will be carried out, and we can see them as the first section.

Product Feature Identification

IMPORTANT NOTE: Drawings for each loudspeaker below are generic and apply to the loudspeaker types specified. Some variations will be apparent in some models, but differences are not critical for installation purposes except as noted.

Blind Mount

The blind-mount models are supplied with a pre-fitted backcan. Above applies to all models as well any others that do NOT have a "PI" suffix.

Pre-install

A pre-install [PI] unit is shown without the optional pre-install backcan.

Pre-install backcan

Optional pre-install (PI) backcan for PI models.

NOTE: The CMS 603DC / ICT PI and CMS 803DC models have the transformer pre-attached to the inside of the backcan. The CMS 503DC / ICT PI has the transformer pre-attached to the loudspeaker assembly.

14 CMS 3.0 Series

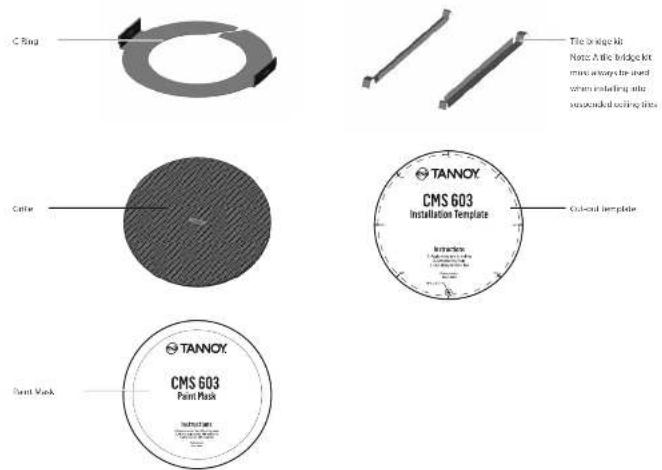

Accessories

Standard Accessories

C Ring Tile bridge hib None & the bridge kit must always be used when installing site separated cooling tiers Color TANNOX CMS 603 Installation Template Cut-out template Paint Mask TANNOX CMS 603 Paint Mask

Optional Accessories

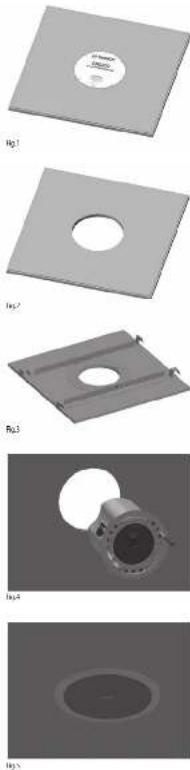

Installation Guide for Suspended Ceilings

1. Remove the ceiling tile from its frame and place it on a flat surface. Position the cutout template (self adhesive backed) on the tile. (Fig.1)
2. Cut out the hole in the ceiling tie using a pad saw following the broken line indicated on the template (Fig.2)
3. Place the C-Ring and tile-bridge on top of the ceiling panel, aligning the C-Ring over the hole, and screw the C-Ring to the tile bridge using the fixings provided. (Fig. 3)

4. Go to the 'Wiring and Setting Up' chapter.

5. Slide the speaker assembly through the hole. Turn the screws (denoted "Screw Fox") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a firm grip is achieved. (NOTE: Screws have a Poziziv head; use of a Poziziv driver is recommended). If using a power driver, Tannoy recommends a torque setting of 1.3 Km. (Fig.4) DO NOT OVERTIGHTEN!

6. Attach the nylon safety to the hooks on the front taffle before attaching the gille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.5). (With the CMS 403DCelCTe, the gille is already fitted to the product.)

Quick Star Guide 15

EN

NOTE ON INSTALLATION OF CMS 403DCe/ICTe:

Before tightening the screws in step 5, swivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

Installation Guide for Sheetrock (Plasterboard) Ceilings

1. Position the cutout template (self adhesive backed) on the ceiling. (Fig.1)
2. Cut out the hole in the ceiling using a pad saw following the broken line indicated on the template then slide the C-ring into the ceiling, aligning it over the cut-out hole. (Fig.2)
3. Go to the 'Wiring and Setting Up' chapter, then return to point 4 below.
4. Slide the speaker assembly through the holo. Turn the screws (denoted "Screw Fix") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a form grip is achieved. [NOTE: Screws have a PazDriv head; use of a PazDriv driver is recommended]. If using a power driver, Tamnoy recommends a torque setting of 1.5 Nm. (Fig.3) DO NOT OVERTIGHTEN!
5. Attach the nylon safety to the hooks on the front table before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.4). (With the CMS-403DCe/ICTe, the grille is already fitted to the product.)

NOTE ON INSTALLATION OF CMS 403DCe/ICTe:

Before tightening the screws in step-1, stivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

Fig.1

[5]

19.1

184

Installation Guide for Optional Plaster Ring

Quick Star Guide

An optional plaster (mud) ring bracket is available from Tannoy. This bracket is designed to be pre-installed into newly constructed, non-suspended ceilings.

1. Nail or screw the plaster ring to the joints. (Fig. 1)

2. Lay the speaker wiring to where the speaker will be fitted and complete the plastering work on the ceiling. (Fig.2)

3. Go to the 'Wiring and Setting Up' chapter, then return to point 4 below.

4. Slide the speaker assembly through the hole. Turn the screws (denoted "Screw Fox") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a firm grip is achieved. (Note: Screws have a PoziDriv head; use of a PoziDriv driver is recommended). If using a power driver, Tamney recommends a torque setting of 1.5 Km. (Fig.3)

DO NOT OVERTIGHTEN!

1. Attach the nylon safety to the hooks on the front baffle before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.4). With the CMS 4030Co/CTe, the grille is already fitted to the product.)

Hg

Fig.2

B(3

FLL4

NOTE ON INSTALLATION OF CMS 403DCE/ICTe:

Before tightening the screws in step 4, swivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

18 CMS 3.0 Series

Quick Star Guide 19

EN

Installation Guide for Optional Pre-Installation Backcan (PI Models Only)

An optional pre-install backcan is available for all pre-install (PI) models. The backcan is designed for pre-installation in newly constructed, non-suspended ceilings. NOTE: The CMS 603DC/CT and CMS B83DC models have the transformer pre-attached to the inside of the backcan; the CMS 503DC/CT models have the transformer pre-attached to the loudspeaker assembly.

1. Attach the backcan to a safe and secure fixing point. This can be done in a number of ways. METHOD 1: Fix the backcan to a secure fixing point by using suitable fixings with the 4 fixing holes provided on the PI backcan. (Fig.1)

METHOD 2: Secure the backcan to a safe and secure fixing point using suitable fixings with the flexible straps that are attached to the P1 backcan. (Fig.2)

METHOD 3: a. Attach the PI backcan to the optional pre-mount ring (plaster ring) using the fixings provided with the pre-mount ring. (Fig.3)

b. Next, secure the wings of the pre-mount ring to a safe and secure fixing point by using suitable fixings. (Fig.4)

Please turn over

1

F42

131

F44

Installation Guide for Optional Pre-Installation Backcan (PI Models Only)

1. Attach the conduit to the installed backcan. This can be done in two ways:

METHOD 1: You can use the clamp at the back of the pre-install backcan. The product will accept a squeeze connector with a thread size of up to 22 mm. To remove the cable clamp, simply uncrew the threaded washer (under the wiring cover) which holds the cable clamp in place and replace it with a conduit squeeze connector. (Fig.5)

METHOD 2: You can use any of the three knock-out points at the sides of the PI backcan (19 mm, 22 mm or 28 mm diameter). (Fig.6)

1. If conduit is not chosen as the wiring method, run an approved speaker cable to the installed can. Terminate in the top mounted cable clamp or with an approved cable connector in one of the three knock-out points at the sides of the PI backcar.

2. Cut hole in the proper location in the ceiling using a pad saw. Place the pre-install backcan over the hole. (Fig.7)

1. Go to the 'Wiring and Setting Up' chapter, then return to point 6 below.

2. Side the speaker assembly through the hole. Turn the screws (denoted "Screw Fix") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a form grip is achieved. NOTE: Screws have a PostDrive head; use of a PostDrive driver is recommended). If using a power driver, Tammy recommends a torque setting of 1.5 Nm. (Fig.8) DO NOT OVERTIGHTEN!

3. Attach the nylon safety to the hooks on the front baffle before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position. (Fig.9)

18月
Fig.5

Wiring and Setting Up

1. Open the wiring cover (if applicable) and locate the Euro-type connector plug and socket at the back of the speaker. [Fig.1]

2. For connection to an amplifier, use Pins 1 and 2 (Fig.2);

• Pin 1 is positive

- Pin 2 is negative

For connection to additional speakers in a distributed line, Pins 3 and 4 are in parallel where:

- Pin 3 is negative

- Pin 4 is positive

1. Close the wiring cover and tighten both screws on the cable clamp (if applicable).

2. Use the rotary switch on the front of the unit to select low impedance (Lo2) mode or high impedance (70 V or 100 V) for distributed applications.

THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.

CMS 403DCe/ICTe and CMS 503DC/ICT models (all variants) use a 30 W transformer. In distributed line applications, the transformer can be tapped at 30 W, 15 W and 7.5 W, with an additional 3.75 W tap for 70 V line systems. [Fig.3]

CMS 603DC/CT and CMS 803DC models (all variants) use a 60 W transformer. In distributed line applications, the transformer can be tapped at 60 W, 30 W and 15 W, with an additional 7.5 W tap for 70 V line systems. (Fig.4)

Quick Star Guide

21

Fig.1

140.7

[1]

Fig.1

Painting

If desired, the grille and baffle panel may be painted to match the surrounding décor.

Painting the baffle:

- Carefully mask off the driver assembly using the paint mask provided to ensure that the paint does not come into contact with the cone and roll surround.

- Apply several thin coats of paint – this will provide a better finish than one overly thick coat.

Painting the grille:

• Carefully remove the acoustically transparent grille cloth from the reverse side of the grille.
• Paint the grille and then replace the grille cloth - several thin coats of paint will provide a better finish than one overly thick coat.
• Re-bond the grille cloth to the grille over the entire area using a light spray-adhesive to avoid audible resonances.

Introducción

The bridge kit Note: A bit bridge kit must always be used when mounting into supervised ceiling tiles TANNOY CMS 603 Installation Template Cut-out temperature

In the description of the case, we have been described as: (1) 2013. The case was made from a study with a clinical trial, and the study was used to evaluate the clinical trials in the study. In this case, we were given that the clinical trials were performed in the study. In this case, we were also performed in the study.

• 1 x broken out positive

3D rendering of a cylindrical mechanical component with mounting holes and a small labeled component (no visible text or symbols)

The bridge kit Note: As the bridge kit must always be used when needing into supervised scaling tiles TANNOY CMS 603 Installation Template Cust-to-encence

Optionales Zubehör

In the case of the first, we are not a particular case in the case 5.0003. The case is not a particular case in the case 1.0004. This case is not a particular case in the case 2.0005. The case is not a particular case in the case 3.0006.

Pré-instalar backcan

3D rendering of a cylindrical industrial or mechanical component with mounting holes and a central hub (no visible text or symbols)

The bridge kit Note: As the bridge kit must always be used when needing into supervised ceiling tiles TANNOY CMS 603 Installation Template Cust-to-encence

For the best work, the best job created in 1980, the best job created in 1981, the best job created in 1982, the best job created in 1983, the best job created in 1984, the best job created in 1985, the best job created in 1986, the best job created in 1987, the best job created in 1988, the best job created in 1989, the best job created in 1990, the best job created in 1991, the best job created in 1992, the best job created in 1993, the best job created in 1994, the best job created in 1995, the best job created in 1996, the best job created in 1997, the best job created in 1998, the best job created in 1999, the best job created in 2000, the best job created in 2001, the best job created in 2002, the best job created in 2003, the best job created in 2004, the best job created in 2005, the best job created in 2006, the best job created in 2007, the best job created in 2008, the best job created in 2009, the best job created in 2010, the best job created in 2011, the best job created in 2012, the best job created in 2013, the best job created in 2014, the best job created in 2015, the best job created in 2016, the best job created in 2017, the best job created in 2018, the best job created in 2019, the best job created in 2020, the best job created in 2021, the best job created in 2022, the best job created in 2023, the best job created in 2024, the best job created in 2025, the best job created in 2026, the best job created in 2027, the best job created in 2028, the best job created in 2029, the best job created in 2030, the best job created in 2031, the best job created in 2032, the best job created in 2033, the best job created in 2034, the best job created in 2035, the best job created in 2036, the best job created in 2037, the best job created in 2038, the best job created in 2039, the best job created in 2040, the best job created in 2041, the best job created in 2042, the best job created in 2043, the best job created in 2044, the best job created in 2045, the best job created in 2046, the best job created in 2047, the best job created in 2048, the best job created in 2049, the best job created in 2050, the best job created in 2051, the best job created in 2052, the best job created in 2053, the best job created in 2054, the best job created in 2055, the best job created in 2056, the best job created in 2057, the best job created in 2058, the best job created in 2059, the best job created in 2060, the best job created in 2061, the best job created in 2062, the best job created in 2063, the best job created in 2064, the best job created in 2065, the best job created in 2066, the best job created in 2067, the best job created in 2068, the best job created in 2069, the best job created in 2070, the best job created in 2071, the best job created in 2072, the best job created in 2073, the best job created in 2074, the best job created in 2075, the best job created in 2076, the best job created in 2077, the best job created in 2078, the best job created in 2079, the best job created in 2080, the best job created in 2081, the best job created in 2082, the best job created in 2083, the best job created in 2084, the best job created in 2085, the best job created in 2086, the best job created in 2087, and

The following table provides the data for the year 2018 (25338). The results are obtained from the annual and annual estimates of the year 2017. The results are derived from the annual estimate of the year 2016. The results are obtained from the annual estimate of the year 2015.

3D rendering of a cylindrical mechanical component with mounting holes and a small labeled component (no visible text or symbols)

The bridge kit Note: As the bridge kit must always be used when needing into supervised ceiling tiles TANNOY CMS 603 Installation Template Cust-to-encence

Valfria Tillbehör

Thank you for purchasing this Tannoy Ceiling Monitor System product. Designed for both speech and music program material, the Tannoy CMS range provides exceptional sonic quality and long-term reliability in all ceiling mount applications. The CMS 3.0 DC series features new 16 ohm Dual Concentric drivers for improved performance and prolonged service life.

Unpacking

Every Tannoy product is carefully inspected before shipment. After unpacking, please inspect your product to ensure no damage has occurred in transit. In the unlikely event of damage, please notify your dealer and retain all shipping materials as your dealer may require return shipment.

All CMS loud speakers are shipped in pairs and provided with the following accessories as standard: C-ring, tile-bridge kit, cut-out template and paint mask. A plaster (mud) ring is available as an optional accessory.

Safety Notices

Some regional construction codes require the use of a secondary method of securing loudspeakers in the ceiling to provide security of a backup support. A secondary support line should be attached from the safety loop on the rear of the product to a source point on the ceiling. For PI models, the secondary support line should be attached from the back of the driver chassis to a source point on the ceiling. Please consult the relevant construction codes in your region.

When using a power driver to install the product, it is essential to use the correct torque level settings to avoid over-tightening and damage to the ceiling material or clamps. Recommended torque setting: 1.5 Nm

Tannoy will not be held responsible for any damages caused by the improper installation of these loudspeakers.

The CMS 603 ICT LS is UL-1480, category UUM/W, for use with non-DC supervised systems.

Electrical Safety Notice: To comply with the standard UI-1480, metal-clad flexible conduit (BI) is required for connection to the terminal block for proper earth grounding.

In order to comply with UL regulations, the PI backcan must always be used with the CMS PI models.

SHE

In addition, the number of numbers in the number of numbers is 1.25308 (1983). It corresponds to the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers in the number of numbers

Product Feature Identification

IMPORTANT NOTE: Drawings for each loudspeaker below are generic and apply to the loudspeaker types specified. Some variations will be apparent in some models, but differences are not critical for installation purposes except as noted.

Blind Mount

The blind-mount models are supplied with a pre-fitted backcan. Above applies to all models as well any others that do NOT have a "PI" suffix.

Pre-install

Two technical illustrations of mechanical components: a circular housing with a central component and a 3D rendered model of a mechanical assembly (no text or symbols visible)

A pre-install (PI) unit is shown without the optional pre-install backcan.

Pre-install backcan

Two 3D-rendered mechanical components with internal cavities and mounting holes (no text or symbols visible)

Optional pre-install (PI) backcan for PI models.

NOTE: The CMS 608DC / ICT PI and CMS 803DC models have the transformer pre-attached to the inside of the backcan. The CMS 503DC / ICT PI has the transformer pre-attached to the loudspeaker assembly.

102 CMS 3.0 Series Quick Start Guide 103

Accessories

Standard Accessories

Optional Accessories

Installation Guide for Suspended Ceilings

1. Remove the ceiling tile from its frame and place it on a flat surface. Position the cutout template (self adhesive backed) on the tile. (Fig.1)
2. Cut out the hole in the ceiling tile using a pod saw following the broken line indicated on the template (Fig. 2)
3. Place the C-Ring and tile-bridge on top of the ceiling panel, aligning the C-Ring over the hole, and screw the C-Ring to the tile bridge using the fixings provided. (Fig. 2)

4. Go to the 'Wiring and Setting Up' chapter.

5. Slide the speaker assembly through the hole. Turn the screws (denoted "Screw Fox") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a firm grip is achieved. (NOTE: Screws have a Poziziv head; use of a Poziziv driver is recommended). If using a power driver, Tannoy recommends a torque setting of 1.3 Km. (Fig.4) DO NOT OVERTIGHTEN!

6. Attach the nylon safety to the hooks on the front taffle before attaching the gille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.5). (With the CMS 403DCelCTe, the gille is already fitted to the product.)

NOTE ON INSTALLATION OF CMS 403DCe/ICTe:

Before tightening the screws in step 5, swivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

104 CMS 3.0 Series Quick Start Guide 105

Installation Guide for Sheetrock (Plasterboard) Ceilings

1. Position the cutout template (self adhesive backed) on the ceiling. (Fig.1)
2. Cut out the hole in the ceiling using a part saw following the broken line indicated on the template then slide the C-ring into the ceiling, aligning it over the cut-out hole. (Fig.2)
3. Go to the 'Wiring and Setting Up' chapter, then return to point 4 below.
4. Slide the speaker assembly through the hole. Turn the screws (denoted "Screw Fix") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a form grip is achieved. [NOTE: Screws have a PazDriv head; use of a PazDriv driver is recommended]. If using a power driver, Tamnoy recommends a torque setting of 1.5 Nm. (Fig.3) DO NOT OVERTIGHTEN!
5. Attach the nylon safety to the hooks on the front table before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.4). (With the CVS-403DCe/ICTe, the grille is already fitted to the product.)

Fig.1

[5]

19.1

184

NOTE ON INSTALLATION OF CMS 403DCe/ICTe:

Before tightening the screws in step 4, still the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

Installation Guide for Optional Plaster Ring

An optional plaster (mudi) ring bracket is available from Tannoy. This bracket is designed to be pre-installed into newly constructed, non-suspended ceilings.

1. Nail or screw the plaster ring to the joints. (Fig. 1)
2. Lay the speaker wiring to where the speaker will be fitted and complete the plastering work on the ceiling. (Fig.2)
3. Go to the 'Wiring and Setting Up' chapter, then return to point 4 below.
4. Slide the speaker assembly through the hole. Turn the screws (denoted "Screw Fox") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a firm grip is achieved. (Note: Screws have a PooDrive head; use of a PooDrive driver is recommended). If using a power driver, Tamney recommends a torque setting of 1.5 Km. (Fig.3)
   DO NOT OVERTIGHTEN!
5. Attach the nylon safety to the hooks on the front baffle before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position (Fig.4). With the CMS 4030Co/CTe, the grille is already fitted to the product.)

Hg

Fig.2

B(3

FLL4

NOTE ON INSTALLATION OF CMS 403Dc/ICTe:

Before tightening the screws in step 4, swivel the speaker in the desired direction. When the screws are tightened, the speaker will lock into position. Replace the front trim to conceal the mounting screws.

106 CMS 3.0 Series Quick Start Guide 107

Installation Guide for Optional Pre-Installation Backcan (PI Models Only)

An optional pre-install backcan is available for all pre-install (PI) models. The backcan is designed for pre-installation in newly constructed, non-suspended ceilings. NOTE: The CMS 603DC/CT and CMS BDI2C models have the transformer pre-attached to the inside of the backcan; the CMS 503DC/CT models have the transformer pre-attached to the loudspeaker assembly.

1. Attach the backcan to a safe and secure fixing point. This can be done in a number of ways. METHOD 1: Fix the backcan to a secure fixing point by using suitable fixings with the 4 fixing holes provided on the PI backcan. (Fig.1)

图1

METHOD 2: Secure the backcan to a safe and secure fixing point using suitable fixings with the flexible straps that are attached to the PI backcan. (Fig.2)

图2

METHOD 3: a. Attach the PI backcan to the optional pre-mount ring (plaster ring) using the fixings provided with the pre-mount ring. (Fig.3)

图7

b. Next, secure the wings of the pre-mount ring to a safe and secure fixing point by using suitable fixings. (Fig.4)

无法识别

Installation Guide for Optional Pre-Installation Backcan (PI Models Only)

1. Attach the conduit to the installed backcan. This can be done in two ways:

METHOD 1: You can use the clamp at the back of the pre-install backcan. The product will accept a squeeze connector with a thread size of up to 22 mm. To remove the cable clamp, simply uncrew the threaded washer (under the wiring cover) which holds the cable clamp in place and replace it with a conduit squeeze connector. (Fig.5)

METHOD 2: You can use any of the three knock-out points at the sides of the PI backcan (19 mm, 22 mm or 28 mm diameter). (Fig.6)

1. If conduit is not chosen as the wiring method, run an approved speaker cable to the installed can. Terminate in the top mounted cable clamp or with an approved cable connector in one of the three knock-out points at the sides of the PI backcar.

2. Cut hole in the proper location in the ceiling using a pad saw. Place the pre-install backcan over the hole. (Fig.7)

Please turn over

108 CMS 3.0 Series Quick Start Guide 109

1. Go to the 'Wiring and Setting Up' chapter, then return to point 6 below.

2. Side the speaker assembly through the hole. Turn the screws (denoted "Screw Fix") clockwise on the front of the speaker to extend the mounting wings. Tighten the screws until a form grip is achieved. NOTE: Screws have a PostDrive head; use of a PostDrive driver is recommended). If using a power driver, Tammy recommends a torque setting of 1.5 Nm. (Fig.8) DO NOT OVERTIGHTEN!

3. Attach the nylon safety to the hooks on the front baffle before attaching the grille by presenting it to the speakers and allowing the magnets to pull it into position. (Fig.9)

18月
Fig.5

Wiring and Setting Up

1. Open the wiring cover (if applicable) and locate the Euro-type connector plug and socket at the back of the speaker. (Fig.1)

2. For connection to an amplifier, use Pins 1 and 2 (Fig.2);

• Pin 1 is positive

- Pin 2 is negative

For connection to additional speakers in a distributed line, Pins 3 and 4 are in parallel where:

- Pin 3 is negative

- Pin 4 is positive

1. Close the wiring cover and tighten both screws on the cable clamp (if applicable).

2. Use the rotary switch on the front of the unit to select low impedance (Lo2) mode or high impedance (70 V or 100 V) for distributed applications.

THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.

CMS 403DCe/ICTe and CMS 503DC/ICT models (all variants) use a 30 W transformer. In distributed line applications, the transformer can be tapped at 30 W, 15 W and 7.5 W, with an additional 3.75 W tap for 70 V line systems. [Fig.3]

CMS 603DC/CT and CMS 803DC models (all variants) use a 60 W transformer. In distributed line applications, the transformer can be tapped at 60 W, 30 W and 15 W, with an additional 7.5 W tap for 70 V line systems. (Fig.4)

Fig.1

140.7

[1]

Fig.1

110 CMS 3.2 Series Quick-San Grade 111

Painting

If desired, the grille and baffle panel may be painted to match the surrounding decor.

Painting the baffle:

• Carefully mask off the driver assembly using the paint mask provided to ensure that the paint does not come into contact with the cone and roll surround.
• Apply several thin coats of paint – this will provide a better finish than one overly thick coat.
  Painting the grille:
• Carefully remove the acoustically transparent grille cloth from the reverse side of the grille.
• Paint the grille and then replace the grille cloth - several thin coats of paint will provide a better finish than one overly thick coat.
• Re bond the grille cloth to the grille over the entire area using a light spray adhesive to avoid audible resonances.

CMS Series Model Dimensions

CMS 803DC BM

Hole Cut-out Size: 295 mm
Tamaño de corte del orificio: 295 mm
Taille de la découpe du trou: 295 mm
Lodratischnet: Grosse. 295 mm
Dimensione del ritacito del foro: 295 mm
Gat uitgesreden grootte: 295 mm
Hälsskuren storlek: 295 mm
Rozmiar wycięcia w otworze: 295 mm

CMS 803DC PI

Hole Cut-out Size: 295 mm
Tamaño de corte del orificio: 295 mm
Taille de la découpe du trou: 295 mm
Lochausschnitt Große: 295 mm
Tamaño do recorte do ano: 295 mm
Diministelle der Risiko betallo, 253 mm
Hörskuran strode: 785 mm
Rozmier wycięcia w otworce: 295 mm

112 CMS 3.2 Series Quick-Sand Grade 113

CMS Series Model Dimensions

CMS 803DC PI BACKCAN

Hole Cut-out Size: 295 mm

Hole Cut-out Size: 295 mm

CMS Series Model Dimensions

CMS 603DC BM

Hole Cut-out Size: 253 mm

Hole Cut-out Size: 253 mm

CMS Series Model Dimensions

CMS 603DC PI

Hole Cut-out Size: 253 mm
Tamaño de corte del orificio: 253 mm
Taille de la découpe du trou: 253 mm
Lochausschnit Große: 253 mm
Tamanho do recorte do fundo: 253 mm
Dimensione de maglio de 100.25 mm Est. de la aplica di 753 mm
Häskurup sterisk: 253 mm
Roomar wycięcia w otworze: 253 mm

CMS 603ICT PI

Hole Cut-out Size: 253 mm
Tamaño de corte del onificio: 253 mm
Taille de la découpe du trou: 253 mm
Lochausschnitt Größe: 253 mm
Tamanho do recorte do furo: 253 mm
Dimensione del ntaglio del foro: 253 mm
Galt ausgeschieden größte: 253 mm
natskolen 107ek. 253 mm Bonnier uvisiada wefuero: 151 mm
normal by 1970, 4: 05/12.233 mm

CMS Series Model Dimensions

CMS 603DC PI BACKCAN

Hole Cut-out Size: 253 mm
Tamaño de corte del orificio: 253 mm
Taille de la découpe du trou: 253 mm
Lochausschnitt Große: 253 mm
Tamaño do recorte do rufo: 253 mm
Linnelschre der Raquirendio. 213 mm Gesulteordens anlage: 257 mm
Hörschung stade: 153 mm
Rozmiar wycięcia w otworze: 253 mm

CMS 603ICT PI BACKLAN

Hole Cut-out Size: 253 mm
Tamaño de corte del orificio: 253 mm
Taille de la découpe du trou: 253 mm
Lochausschritt: Größe: 253 mm
tanhimo do recorte do lucro. 235 mm
Dimensione del Traglio dell'oro: 253 mm
Hörsikuran stodek: 253 mm
Rozmiar wydięcia w otworze: 253 mm

116 CMS 3.2 Series Quick-Sand Grade 117

CMS Series Model Dimensions

CMS 603ICT LS

Hole Cut-out Size: 253 mm
Tamaño de corte del orificio: 253 mm
Taille de la découpe du trou: 253 mm
Lochausschnit Große: 253 mm
Tamanho do recorte do fundo: 253 mm
Dimensione de maglio de 100.25 mm Est. de la aplica di 753 mm
Häskurup sterisk: 253 mm
Roomar wyciccia w otworze: 253 mm

CMS Series Model Dimensions

CMS 503DC BM

Hole Cut-out Size: 190 mm
Tamaño de corte del orificio: 190 mm
Taille de la découpe du trou: 190 mm
Lochaußschnitt Große: 190 mm Trembe der erwartete für 100 mm
Dimensione del rispetto del forso: 100 mm
Catuitessgaden grootte: 150 mm
Hälsskuren stadek: 190 mm
Rozmiar wycięcia w otworze: 190 mm

CMS 503ICT BM

Hole Cut-out Size: 190 mm
Tamaño de corte del orificio: 190 mm
Taille de la découpe du trou: 190 mm
Lochausschnitt Grolle: 190 mm
Tamaínho do recorte do ano: 190 mm
Dimensierte der Risiko betallo, 150 mm Gehaltzernaden mehr: 100 mm
Höckuran strode: 700 mm
Rozmier wycięcia w otworac: 190 mm

118 CMS 3.2 Series Quick-San Grade 119

CMS Series Model Dimensions

CMS 503DC LP

Hole Cut-out Size: 253 mm
Tamaño de corte del orificio: 253 mm
Taille de la découpe du trou: 253 mm
Lochausschnitt Größe: 253 mm Tornache der sonstige in km: 251 mm
Dimensiono del diacilo del foro: 753 mm
Gat ditgaspedan opethe: 353 mm
Hälsskuren storlek: 253 mm
Roomar wycięcia w otworze: 253 mm

CMS 503ICT LI

Hole Cut-out Size: 253 mm
Tamaño de corte del orificio: 253 mm
Taille de la découpe du trou: 253 mm
Lochausschnitt Größe: 253 mm
Tamarino do recorte do filho: 255 mm
Dimensione del maglio del 1010.255 mm
dan ungeschieden große 255 mm Körskursar stersik: 257 mm
Rozmiar wyciecia w otworze: 253 mm

CMS Series Model Dimensions

CMS 503DC FI

Hole Cut-out Size: 190 mm
Tamaño de corte del orificio: 190 mm
Taille de la découpe du trou: 190 mm
Lochaußschnitt Große: 190 mm Trembe der erwartete für 100 mm
Dimensione del rispetto del forso: 100 mm
Catuitessgaden grootte: 150 mm
Hälsskuren stadek: 190 mm
Rozmiar wycięcia w otworze: 190 mm

CMS 503ICT PI

Hole Cut-out Size: 190 mm
Tamaño de corte del orificio: 190 mm
Taille de la découpe du trou: 19
Lochausschnitt Größe: 190 mm
Tamanho do recorte do furc: 150 mm
Dimensione del Risaggio del lord: 150 mm
Gut ünges kurejöröse. 150
Rozmiar wydieda w otworze: 190 mm

120 CMS 3.0 Series Quick Stat Guide 121

CMS Series Model Dimensions

CMS 503DC PI BACKCAN

Hole Cut-out Size: 190 mm

Hole Cut-out Size: 190 mm

CMS Series Model Dimensions

CMS 403DCe

Hole Cut-out Size: 187 mm

Cat witnesses grade 157,000

Hälsskuren stadek: 187 mm

Hole Cut-out Size: 187 mm

Technical Specifications

CMS 8030C/Model CMS 8030CQ/Model
Performance
Frequency response(3 dB) *	47 Hz 15 MHz/100 kHz 47 Hz 30 kHz
Frequency range(10 dB) *	40 Hz 35 MHz/100 kHz
Frequency range(10 dB) *	41 Hz - 25 MHz/100 kHz
System sensitivity (W or Tm) *	50 dB (1 W = 4 W for 16 GHz) / 55 dB (1 W = 4 V) (10 GHz)
Nominal Coverage Angle underground central 30 degrees nominal
Power Handling*
Average 50 W
Programmo 180 W
Peak 300 W
Recommended Amplifier Power 100/12 g/16 Ohms
Nominal Impedance (Co, Z) (10 Ohms)
Rated minimum SPI
Average	112 dB	113 dB
Peak	110 dB	119 dB
With TIMPS - Average	110 dB	111 dB
Transformer Caps (in front oatory switch)
70V	(4) W (83 c)/120 W (165 c)/15 W (230 c)/12.5 W (660 c)/OFF & low impedance operation. Refine to Wave 4.
100 V	60 W (165 c)/130 W (100 c)/15 W (660 c)/OFF & low impedance operation. Refine to Wave 4.
Transducers
Dual Concentric point source driver	1 x 250 mm (2.5" dual concentration work using Demnagram technology)
Low Frequency	44 mm (2.5") color oil, treated multi-meter paper pulse zone
High Frequency	25 mm (1.00") OFF store
Physical
Endurance
Backburn	Zone position used
Backfe	Refines loaded UL 940-5 rated 685
Grid	Stool with weather control circuit
Safety Features	Safety ring located at rear of rear rear of load bearing safety rod
Camping Design	Security toggle clamp Max / Max cleaning range 9.5 mm 10.37" / 40 mm 12.36" (Recommended dams torque: 1.5 Min)
Backion Options
Brd Mount (80°)	Complete with Tired backion	—
Preload (P)	Separate horizontal for pin installation	—
Cable Entry Options	Cube lamp & sensor connection for wooden up to 25 mm
Condul Knockouts on P/Backcam	3 Sets of horizontal positions 15 x 22 x 28 mm (0.75" x 0.87" x 101)
Connectors	Remarkable locking connector to sensor/materials with loop through facility
Compliance	III. 1480, UI. 2541, CT

CMS 803DC Models CMS 803DCQ Model

Physical
Dimensions
Board Diameter	310.0 mm (12.5")
Front of ceiling to rear of backseat	—	310.5 mm (12.2")
Front of ceiling to top of safety loop	—	322.7 mm (12.9")
EM Mount Front of ceiling to rear of backseat	101.5 mm (12.22")	—
EM Mount Front of ceiling to loop of safety loop	327.5 mm (12.94")	—
FL Modules Front of ceiling surface to rear of speaker and air	125.6 mm (8.34")	—
FL Module Front of accessory heater at rear of top of safety loop	166.5 mm (8.66")	—
Hole cutout diameter (all models)	225 mm (11.61")
Net Weight (gal)	—	8.5 kg (18.2 kg)
CNS-80000 FL	8.5 kg (18.39 kg)	—
CNS-80000 FL	5.0 kg (18.32 kg)	—
FL Jakarta	4.2 kg (8.25 kg)	—
Included Accessories	○ Box, the bridge kit, paint mask, cut-out template, grille
Optional Accessories	Flower (mounting, Ace-grid)
Focked Quantity	2

Trav
1. 2017年1月1日，公司召开2017年第二次临时股东大会，并通知全体董事。
2.3.1.
S. Inghaw, 2016, 4: 28:31
A. 2018年，公司与关联方、董事、监事、高级管理人员不存在关联关系。
V. Bung, al., 2016, and 2017, doi: 0.5.e.Haee1a/085432C05432C03.cdr, https://doi.org/10.10001.com
In the case of the solution was not obtained. From the mean value of the solution, which is derived from the calculation process and the result of the solution, we also could be obtained as follows:
where the first line is directly to us. From every direct space that when they are equal and equal,

124 CMS 3.0 Series Quick Stat Guide 125

CMS 603DC Models CMS 603ICT Models

Performance
Frequency response (3 dB) 16.5kV (RDC) 75Hz - 20kHz	75Hz - 22kHz
Frequency range (10 dB) 16kV (RDC) 75Hz - 24kHz
Frequency range (10 dB) 16kV (RDC) 75Hz - 24kHz
System sensitivity (1W ± 1m) 16	91 dB (11W = 14 W for 16 Chrs)
Nominal Coverage Angle 50 degrees central 90 degrees central
Coverage Angle (1MHz to 6 MHz) 52 degrees
Directivity Factor (Q) 7.1 arranged 11 miles 6 x 2
Directivity Index (D0 7.9 averaged 1 mile or 8 h)
Power Handling#
Average	18.77	62 W
Programme	160 W	120 W
Peak	325 W	290 W
Recommended Amplifier Power	160 W ± 16 Ohms	120 W or 16 Chrs
Nominal Impedance (Lx, Z)	16 Chrs
Rated maximum SPL
Average	110.43	105 dB
Peak	110.43	115.43
Transformer Topo (vs front rotary switch)
70V	16 W / 20 Hz / 30 V / 165 Hz / 15 W / 200 Hz / 25 V / 160 Hz / 105 A low impedance operation Refer to Visit 4.
100V	16 W / 20 Hz / 30 V / 15 W / 160 Hz / 105 A low impedance operation Refer to Visit 4.
Crossover	—	7 Electructively coupled
Transducers
Dual Concentric point source driver	1 x 165 mm (5.5" dual consumer driver, using power range, technology)	—
Low Frequency	44 mm (1.75" voice roll, transfer rated fiber paper pump cone)	160 mm (6.50" nominal loaded polysynapton)
High Frequency	25 mm (1.40V/1 Hz) cone	1.1 aluminum dome
Physical
Endurance
Backsun	Extra-rated load
Burke	Below loaded 10.90" 2 rated 40S
Giltie	Steel, with thermorelectric loading
Safety Features	Safety ring located at rear of the rear end of the load bearing safety bond
DM-520CT15	10.1400 JUN09 certification for the Safety application
Clamping Design	Security toggle clamp fan / Share clamping range 0.5 mm (2.37" / 1.60 mm (2.36)" Recontrolled clamp torque: 1.5 Km
Backion Options
Blind Mount (B)	Completely fixed head backion
Pre Slovenia (%)	Separate backion for pre-installation
Cable Entry Options	Cube camp & converter connector for available up to 22 mm
Conduit Knockouts on Pil Backion	3 sets of trichuritas positions 19.22" / 28 mm (0.75" / 0.67" / 1.10")
Connectors	Removable locking connector with a sensor on mirch with "Stop the jack" facility
Compliance	III. 1400, UI. 2540, CF

CMS 603DC Models CMS 603ICT Models

Physical
Dimension
Ball Diameter	2/4.5 mm (10.3")
BM Mount Front of ceiling to rear of deckion	215.8 mm (10.6")	216.5 mm (10.12")
BM Mount Front of ceiling to rear of safety loop	272.3 mm (10.29")	273.8 mm (10.28")
FL Mounted Front of ceiling surface to rear of speaker and	100.2 mm (5.99)	100.9 mm (5.96")
FL Mounted front of accessory back unit bed to rear of safety loop	166.5 mm (6.69)
Hole cutout diameter (all models)	251 mm (6.34")
Net Weight (cat)
COS 6003C BM	6.6 kg (14.6 lb)	—
COS 6003C FI	3.3 kg (13.37 lb)	—
COS 6003C BM	—	5.6 kg (11.9 lb)
COS 6003C FI	—	2.7 kg (5.95 lb)
FL Backon	1.2 kg (8.3 lb)
Included Accessories	Chair, the bridge, paint mask, cat net template, grille
Optional Accessories	Parented ring, face grille
Packed Quantity	2

Performance
Frequency response (-3 dB)1	85 Hz - 57 kHz BW/Backion 88 Hz - 22 kHz
Frequency range (-10 dB)1	24 Hz - 54 kHz BW/Backion 77 Hz - 24 kHz
Frequency range (-10 dB)2	25 Hz - 54 kHz BW/Backion
System sensitivity (1 V ± 1 m)3	BF-63 (1 W = 1 V for 16.0 m/s)
Nominal Coverage single 90 degrees critical
Power Handling4
Average 60 W
Programme 120 W
Peak 240 W
Recommended Amplifier Power 120 V ± 16 Chms
Nominal Impairment (L0, Q) 16 Chms
Rated maximum SPI
Average 100 dB
Peak	110 dB
Transformer Taps (in from rotary solids)
70 V	300 W (165.0 V - 19 V, 200.0 V - 7.5 V, 660.0 V - 13.75 V, 2220.0 V - 107F & low impatience operation
100 V	300 W (130.0 V - 175.0 V, 160.0 V, 7.5 V, 1125.0 V - 10V & low impatience operation
Transducers
Dual Concentric point source driver	1 x 130 mm (5.37" Dual Concentric drive, using Coninkmagnet technology
Low Frequency	35 mm (1.28") ripple coil, unbranded coil fiber paper purpose
High Frequency	30 mm (0.79") Hi-dense
Physical
Endurance
Backion	300 plated steel
Ratios	Retro loaded 1.5W-0 and 48S
Grid	Grid with saturated resistant mounting
Safety Features	Safety requirements over all endurance for load heating safety/cond
Computing Design	Security torque clamp (ft/h vs compressor range 3.5 mm (0.37" to 60 mm 12.36") the commences clamp (tope: 1.5" ft)
Backion Options
Direct Mount (BV)	Complete withened backion	—
Pre install (%)	Separate backion for pre-installation	—
Cable Entry Options	Cable clamp device connection for conduct up to 22 mm
Contact Breakouts on PI Rackton	3 sets of rectangular pinsets 19 / 22 / 28 mm(12.79" / 10.83") 1.0 V1	—
Connections	Retroutable locking connector without an terminator with "loss through" facility
Compliance	UL-1900, UL-2045, OL
Dimensions
Board frame	205.9 mm (0.11")	274.6 mm (0.29")
Front of ceiling to rear of backcon	—	93.6 mm (0.33")
BOM/Indet. Front of ceiling to rear of backcon	100.0 mm (2.40")	—
BOM/Indet. Front of ceiling to top of safety loop	255.3 mm (2.04")	—
PI Model Front of ceiling surface to rear of speaker ramp	133.3 mm (5.35")	—
PI Model Front of auxiliary backum trunk to top of safety loop	133.5 mm (6.34")	—
Hole output diameter (all models)	190 mm (2.48")	253.0 mm (5.06")
Net Weight (kg)	—	4.7 kg (10.36) Nct
CMS 5DC/DC 3M	4.3 kg (5.67) Nct	—
CMS 5DC/DC 2M	3.2 kg (7.06) Nct	—
PI Boxcoys	1.3 kg (4.74) Nct	—
Included Accessories	1 Ring, the bridge bit, point mark, cut out template, grtle
Optional Accessories	Paste limit ring, square tile
Packed Quantity	2

备注：
1. 2023年1月1日
1. 上海发展(集团)有限公司
1. 本次发行的股份总数为2006年10月31日
1. 2017年，公司与上海浦东发展银行股份有限公司签订了《关于使用部分闲置募集资金进行现金管理的协议》。
A. 100% 面积率 ( m^2cm^2) ,所以 100% 面积率 100% 的 100% 面积率 100% 的 100% 面积率。
In our property policy, we will not have a free spin. The results are set to be the same, and the price of the property is not at all. In the price of the property is the result that we will pay up a premium for the price of the property, with 10%
The following table provides the original text: "The English text in the source image is not a standard character. It is not a visual representation of the text in the source image."

(1) 本说明仅供参考。

CMS SOBCT Models		CMS SOBCT LP Model
Performance
Frequency response [1.3 dB]1	85 Hz - 22.9Hz EM Elution 88 Hz - 90 Hz
Frequency range [10 dB]2	74 Hz - 24.6Hz EM Elution 77 Hz - 54 Hz
Frequency range [10 dB]3	71 Hz - 24.6Hz PI Elution
System compatibility (1 W g 1 m)1	20 dB (1 W = 4 V for 16 Chms)
Nominal Coverage Angle: 30 degrees nominal
Coverage Angle (1 kHz to 6 kHz)	105 degrees	—
Directivity Factor (Ω)	5.6 averaged 1MHz to 6MHz	—
Directivity Index (ID)	7.6 averaged 1MHz to 6MHz	—
Power handling2
Average 40 W
Frequency 100 W
Peak 200 W
Recommended Amplifier Power: 100 W g 10 Ohms
Nominal Impedance (1x, 2x) 10 Ohms
Rated maximum S/I
Average 10x/dl
Peak	112 cd
Transformer Taps (led front starting point)
70 V	30 W (105 cd) / 1.5 W (330 cd) / 7.5 W (mod cd) / 3.75 W (320 cd) / OFF & low impedance operation
100 V	30 W (230 cd) / 15 W (660 cd) / 7.5 W (320 cd) / OFF & low impedance operation
Erossover	7 key instrument type used	—
Transducers
Low Frequency	110 mm (5.22" mm normal loaded polypropylene	1 x 100 mm (5.0") mineral bazeepolypropylene
High Frequency	ICI aluminum dose	ICI
Physical
Exposure
Backion	Zinc spiked bed
Enite	Reflex fasted UL-9%+ accelerated ABS
Gole	Steel, with wooden resistant coating
Safety Features	Safety ring heated on surface moisture forced bearing coating bond
Clamping Design	Security toggle clamp Kiln / Wave clamping range 9.5 mm (20.3") / 2.60 mm (2.36") Recommended clamp torque: 1.5 Km
Backion Options
Remote Noise (IM)	Complete with front horizon	—
For Induct (IN)	Separate backion torque installation	—
Cable Entry Options	Cable clamp & squeeze connector for contact up to 22 mm
Conduit Keosciouts on PI Backion	3 sets of horizontal position: 15/22" 26 mm in 3V / 12.6V " / 1.1V"	—
Connectors	Removable locking connection with screw terminals with 'Trap through' facility
Compliance	UL 1486, UI 2041, CT
Dimensions
Front Diameter	205.9 mm (2.11")	274.0 mm (19.9")
Horn of rolling to rear of backion		59.6 mm (14.8")
BM Matchel Front of rolling to rear of backion	38.5 mm (7.42")	98.6 mm (3.63")
BM Matchel Front of rolling to rear of safety loop	205.8 mm (8.10")	—
PI Division front of rolling surface thickness of tension unit	111.7 mm (5.10")	—
PI Division front of recessory backion held to ramp of safety loop	153.5 mm (6.04")	—
Wide cutout diameter (all models)	150 mm (7.68")	253.6 mm (9.96")
Net Weight (Nm)	—	4.4 kg (9.70 lbs)
CDS SOBCT IM	3.95 kg (8.70 lbs)	—
CDS SOBCT FI	2.95 kg (6.50 lbs)	—
PI Backion	1.9 kg (9.18 lb)	—
Included Accessories	Ciling, the bridge sit, paint mask, cut-out to mode, grille
Optional Accessories	Flower (moving ring, face gate)
Packed Quantity	2

Performance
Frequency response (1-3 dB) [4]	110 Hz - 500 Hz EM Ejection 712 Hz - 22 kHz
Frequency range (1-3 dB) [4, 18 Hz - 14 Hz/8 W Hz	Non-61 Hz - 24 Hz
System sensitivity (119.9 ± 1 m) [4]	88 dB (1.9 - 4 Hz for 16 Ohms)
Nominal Coverage Angle 50 degrees central
Coverage Angle (1 MHz to 6 MHz) — 120 degrees
Directivity Factor (0) — 3.26 averaged 1 kHz to 10Hz
Directivity Index (0) — 6.30 averaged 1 kHz to 5 kHz
Power Handling [5]
Average 40 °C
Peak	162 Hz
Recommended Amplifier Power	20 m g / 10 ohms
Nominal Impedance (50 Ω, Z)	16 Ohms
Rated maximum SPL
Average	104 dB
Peak	110 dB
Transformer Tape (File front, rotary switch)
Max	30 W (165.2) (1.1 V 2) (100 Hz) (1.5 V 100 Hz) (1.5 V 2) (100 Hz) / OFF & new impedance operation
100 Ω	30 W (130.6) (1.1 m 100.6) (1.75 m 110.6) (1.15 m 100.6) / OFF & new impedance operation
Crossover	7 Mio-inductively coupled
Transducers
Dual Concentric point source dimer	1.102 mm (4.97) (1.04 Concentric dimer, using non-transport technology	100 mm (4.00) (1 mineral loaded polypolyamine
Low frequency	15 mm (1.38" Junior oil, loaded multi paper pulp cone)	15 mm (0.75" ICF aluminium dome)
High frequency	20 mm (0.75" ICF dome)	—
Physical
Endosur
Backon	Renter loaded 100% Controlled ABS
Baffle	Renter loaded 100% Controlled ABS
Crillie	Snail with weather resistant coating
Safety Features	Voltage ring located or near surface or workload bearing safety band
Compass Design	Min / Max campeing range: 0.5 mm (0.0 1.1 22.0 mm 0.75"Recommended lamp torque: 1.5 Km
Backon
Blind Mount (MW)	Complete shift and shock	—
Connectors	Removable backing covers with more terminals with "loss ⇒ mature" facility
Compliance	100 Hz, 100 Hz, 22 Hz, 5
Dimensions
Board diameter	205.3 mm (1.6" F)
Front of ceiling to rear of pod	147.6 mm (5.8")
Hole cutout diameter	187 mm (7.34")
Net Weight (kg)	3.2 kg (7.55 Kg)	3.0 kg (6.67 Kg)
Induced Accessories	0 Ring, the bridge hit, power mask, car and template, grille
Optional Accessories	Plaster (most) ring
Packed Quantity	2

例8.1
1. European countries in France and the United Kingdom
1. 2017年1月1日，公司召开2017年第一次临时股东大会，并通知全体董事。
The results of the results are estimated by the consensus that the results of the results are estimated by the consensus that the results of the results are estimated by the consensus that the results are estimated by the consensus.
1. 2017年，公司与上海浦东发展银行股份有限公司签订了《关于使用部分闲置募集资金进行现金管理的协议》。

130 CMS 3.0 Series Quick Stat Guide 131

Other important information

Important information

Informations importantes

Hereby, Music Tribe declares that this product is in compliance with Directive

2011/65/Ell and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation

519/2012 REACH SWHC and Directive 1907/2006/EU, and this passive product is not applicable to EMC Directive 2014/30/EU, LV Directive 2014/35/EU.

Full text of ELL DeC is available at https://community.musittribe.com/

EU Representative: Music Tribe Brands DK A/S

Address: Gammel Strand 44, DK-1202 København K, Denmark

UK Representative: Music Tribe Brands UK Ltd.

Address: 6 Lloyds Avenue, Unit 4CL London EC3N 3AIX, United Kingdom
