Loop amplifier for inductive audio transmission

These instructions are intended for installers with technical knowledge in inductive signal transmission. Please read the instructions carefully prior to operation and keep them for later reference.

All operating elements and connections described can be found on the fold-out page 3.

Contents

1 Overview 8
1.1 Front panel .....8
1.2 Rear panel 8
2 Safety Notes 8
3 Applications....9
4 Setting Up. 9
4.1 Rack installation 9
5 Installation 9
5.1 Induction loop 9
5.1.1 Cable cross section ..... 9
5.1.2 Connection of the induction loop . . 9
5.1.3 Operation with two loop amplifiers . 9
5.2 Microphones ..... 10
5.3 Units with line level ..... 10
5.4 External switch for alarm announcements ..... 10
5.5 Application in a PA system ..... 10
5.6 Power supply ..... 10
6 Before Operation ..... 10
6.1 First-time operation....10
6.2 Metal loss correction ..... 11
7 Operation....11
7.1 Protective circuit ..... 11
8 Specifications ..... 11

1 Overview

1.1 Front panel

1 3.5 mm jack for headphones; can be used to monitor the signal for the induction loop
2 Controls to adjust the volume of the input channels (INPUT 1 to INPUT 3)
3 Tone controls BASS = for the low frequencies TREBLE = for the high frequencies
4 Control MASTER for the field strength within the induction loop (maximum volume)
5 ON power LED SIG signal LED with 3 LED level indicators above PROT fault LED
6 POWER switch

1.2 Rear panel

7 Mains jack for connection to a socket (230 V/50 Hz) via the mains cable provided
8 Support for the mains fuse Always replace a blown fuse by one of the same type!
9 Screw terminals LOOP OUTPUT to connect the induction loop
10 Screw terminals MESSAGE TRIGGER for an external switch to replay the MP3 files (alarm announcements) from the memory card (18)
11 Control METAL LOSS CORRECTION (function only available with jumper J2 in position ON, refer to chapter 6.2)
12 Jack SLAVE IN / OUT to connect another loop amplifier (refer to fig. 4)
13 RCA input jacks INPUT 3 LINE to connect a (stereo) audio unit with line level output (CD/MP3 player, radio, mixer etc.)
14 XLR input jack INPUT 3 MIC for a microphone
15 DIP switches: 1 = phantom power for INPUT 3
2 = phantom power for INPUT 2
3 = input sensitivity for INPUT 2: micro-phone level or line level
16 XLR input jacks INPUT 1 and 2 for microphones or audio units
17 DIP switches for INPUT 1: 1 = priority function (INPUT 2 and 3 will be muted when a signal is applied)
2 = phantom power (40 V)
3 = input sensitivity of microphone level or line level
18 Slot for a memory card to replay alarm announcements (refer to item 10)

2 Safety Notes

The unit corresponds to all relevant directives of the EU and is therefore marked with €€

WARNING

The unit uses dangerous mains voltage. Leave servicing to skilled personnel and do not insert anything into the air

vents! Inexpert handling may result in electric shock.

Always switch off the induction loop system before making or changing any connections.

• The unit is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity. The admissible ambient temperature range is 0 – 40 °C.
• Do not place any vessel filled with liquid on the unit, e. g. a drinking glass.
• The heat produced inside the unit must be dissipated by air circulation; never cover the air vents of the housing.

• Do not operate the unit or immediately disconnect the mains plug from the socket 1. if the unit or the mains cable is visibly damaged,

• if a defect might have occurred after the unit was dropped or suffered a similar accident,

• if malfunctions occur. In any case, the unit must be repaired by skilled personnel.

• Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.

• For cleaning only use a dry, soft cloth; never use water or chemicals.
• No guarantee claims for the unit and no liability for any resulting personal damage or material damage will be accepted if the unit is used for other purposes than originally intended, if it is not correctly connected or operated, or if it is not repaired in an expert way.
• Likewise, no liability will be accepted for any data loss as a result of operating errors or a defect or for any consequential damage caused by this data loss.

If the unit is to be put out of operation definitively, take it to a local recycling plant for a disposal which is not harmful to the environment.

3 Applications

LA-202 / LA-402 is a constant current loop amplifier with dynamic compressor. It is used for setting up an audio induction loop system. The amplifier is able to transmit audio signals to hearing aids with a "telephone coil" and to induction receivers (e.g. LR-202 from MONACOR). Wireless audio transmission is a great advantage of audio induction loop systems, allowing users total freedom of movement within the loop.

Audio induction loop systems are used for various applications, e. g. to provide assistance to people who are hard of hearing in churches, theatres, cinemas, waiting rooms and lounges, as interpreting systems, for lectures in museums, exhibitions etc.

In induction loop systems, a constant current amplifier will drive an induction loop. An induction loop consists of a loop of wire laid into the floor, wall or ceiling. Within this loop, a magnetic field is created which will induce a voltage in the induction receiver. The receiver will reconvert this voltage into an audio signal. Any number of receivers can be operated within an induction loop.

In ideal conditions, the induction loop of the amplifier will be able to cover an area of 200 m^2 (LA-202) 750 m^2 (LA-402)

In practice, however, this size may be reduced due to loss of field strength caused by metal in ceilings and floors.

4 Setting Up

The loop amplifier is designed for installation into a rack (482 mm / 19"), but it can also be placed on a table. To ensure sufficient cooling of the power amplifier, air must always be able to flow freely through all air vents.

4.1 Rack installation

Before installing the amplifier into a rack, use the jumper J2 to enable the metal loss correction, if required. Open the amplifier for this purpose (chapter 6.2).

For installation into a rack, fasten the two mounting brackets provided to the sides of the housing. In the rack, the loop amplifier requires a height of 2 RS (2 rack spaces = 89 mm).

To prevent the rack from becoming top-heavy, insert the amplifier into the lower section of the rack. The front panel alone is not sufficient for fixing it safely; additionally use lateral rails or a bottom plate to secure the unit.

5 Installation

CAUTION! Connections must be made by skilled personnel only. Always switch off the amplifier before making connections.

Hints

1. Before installing the induction loop system, always use a receiver (e.g. LR-202) to check the desired place of installation for magnetic interference which may impair operation or even make operation impossible. Sources of interference are, for example, transformers, high-power cables, fluorescent lamps with conventional ballast and data cables.
2. Apart from magnetic noise fields, reinforced concrete floors or underfloor heating with copper pipes may cause interference in induction loop systems. In this case, the magnetic field will not spread evenly and in the worst case, operation of an induction loop system will not be possible. In case of minor interference due to reinforced concrete, the control METAL LOSS CORRECTION (refer to chapter 6.2) can be used to match the frequency response accordingly.
3. When laying the induction loop in tubes, make sure to use plastic tubes. Metal tubes may strongly affect the magnetic field of the loop.

5.1 Induction loop

The loop is laid around the perimeter of the sound reproduction area. The distance to ear level should be approx. 1 m. It is strongly recommended to lay the loop at the same height. For the induction loop, a basic cable is used.

If local conditions make it impossible to lay the loop as a rectangle, a special loop design is required which must be calculated by an expert.

When the dimensions of the induction loop have been defined, calculate the cross section of the cable:

5.1.1 Cable cross section

The resistance of the loop must be 0.2 - 2 Ω. When the length of the loop has been measured, determine the cable cross section. Please refer to figs. 5 and 6 for the required cross section of the defined cable length:

Fig. 5 Required cable cross section for the induction loop

		cable cross section in mm ^2
		0.5	0.75	1.0	1.5	2.5
Loop length	min. at 0.2Ω	6m	9m	12m	17m	28m
	max. at 2.0Ω	56m	84m	110m	168m	280m

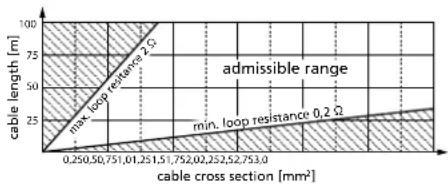

Fig. 6 Minimum and maximum loop lengths for certain cable cross sections (copper)

For calculating the loop resistance (R) of a copper cable, the following formula can be used:

$$ R = \frac {1}{A} \times \rho_ {c u} = \frac {1}{A} \times 0. 0 1 7 8 6 \frac {\Omega \times m m ^ {2}}{m} $$

A = Kcable cross section in mm ^4

I = loop length in m

_cu = specific resistance of copper

5.1.2 Connection of the induction loop

The loop amplifier must be outside the loop (figs. 3 and 4).

1) Twist the cable section between the amplifier and the loop.
2) Before connecting the induction loop to the amplifier, use an ohmmeter to check and make sure that the loop is not earthed.
3) Connect the cable ends of the loop to the terminals LOOP OUTPUT (9).

5.1.3 Operation with two loop amplifiers

If one loop amplifier is not sufficient for the area required, two loops may be installed which are driven by one amplifier each. In this case, the first amplifier will operate as a master (to which all signal sources are connected) and the second as a slave.

Feed the audio signal from the master amplifier to the slave amplifier. Fig. 4 shows an example with adapters from the MONACOR product range:

1) Connect an adapter 6.3 mm stereo jack/2 × RCA inline jack (e.g. NTA-178) to the jack SLAVE (12) of the master unit. The output signal to be fed to the second loop amplifier is available at the tip of the 6.3 mm plug.
2) When the jack SLAVE is used, the signal path between the mixer and the power amplifier will be disconnected. Therefore, use a Y-cable (e.g. CPR-25 / BL) to be placed on the adapter NTA-178 to reconnect the signal path.
3) From the Y-cable, feed the output signal via an adapter cable 2 × RCA/6.3 mm stereo jack (e.g. MCA-302) to the jack SLAVE of the slave amplifier. The signal must be available at the ring of the 6.3 mm stereo plug. Therefore, connect the red RCA plug of the cable MCA-302 to the Y-cable.
4) For first-time operation, use the controls MASTER (4) to adjust the current for the two induction loops separately on the master amplifier and on the slave amplifier (chapter 6.1).

5.2 Microphones

Up to three microphones can be connected to the XLR jacks INPUT 1 to INPUT 3 (14, 16). The microphone priority circuit can be activated for the microphone connected to the jack INPUT 1 (chapter 6.1, step 8).

1) When connecting a microphone to the channels INPUT 1 and 2, set the corresponding DIP switch 3 (15, 17) to the position MIC.
2) When using phantom-powered microphones, activate the 40 V phantom power.

CAUTION! Only activate the phantom power when the amplifier has been switched off (loud switching noise possible). Make sure that no microphone with unbalanced output is connected to the corresponding input; this type of microphone may be damaged.

Set the corresponding DIP switch PH.PWR to the lower position ON:

Channel	DIP switch
INPUT 1	Item 17, No. 2
INPUT 2	Item 15, No. 2
INPUT 3	Item 15, No. 1

INPUT 3 LINE L R INPUT 3 MIC INPUT 2 LINE/MIC R ON MCI ON MCI INPUT 1 LINE/MIC 1314151617

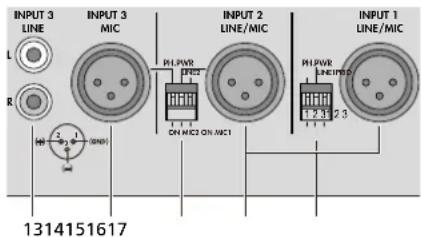

Fig. 7 Inputs and DIP switches

5.3 Units with line level

Up to three audio units with line output (e.g. CD/MP3 player, mixer, radio) can be connected to the XLR jacks (16) of the inputs 1 and 2 and to the RCA jacks (13) of input 3.

When using the XLR jacks, set No. 3 of the corresponding DIP switch (15, 17) to the position LINE. Make sure to set the corresponding DIP switch PH.PWR (No. 2) to the upper position (OFF); otherwise, the unit connected may be damaged.

5.4 External switch for alarm announcements

Alarm announcements previously recorded in MP3 format on an SD memory card (e. g. from a computer) can be replayed via the amplifier, if required.

1) Insert the memory card containing the announcement/s into the slot ALARM MESSAGE (18), notched corner to the right, until it engages. To remove the card, push the card into the slot until it disengages.
2) Connect a switch to the terminals MESSAGE TRIGGER (10).
3) For replaying, close the switch: The MP3 files on the memory card will be replayed one after another and the volume of all other audio signals will be automatically reduced.

5.5 Application in a PA system

For integrating the loop amplifier into a PA system already in existence:

1) Feed the audio signal from the PA system to one of the jacks INPUT 1 to INPUT 3 (13, 16). The signal should have line level (0.2 – 1 V) and be independent of the volume control of the PA amplifier.
2) When using one of the XLR jacks, set No. 3 of the corresponding DIP switch (15, 17) to the position LINE. Make sure to set the corresponding DIP switch PH.PWR (No. 2) to the upper position (OFF); otherwise, the unit connected may be damaged.

5.6 Power supply

Finally, connect the mains cable provided to the mains jack (7) first and then to a mains socket (230V/50Hz).

6 Before Operation

6.1 First-time operation

1) The signal for the induction loop can be monitored via headphones (minimum impedance: 32 Ω). Connect the headphones to the jack PHONES (1).
2) Before switching on, set the controls INPUT 1 to 3 (2) and MASTER (4) to zero.
3) Switch on the amplifier with the POWER switch (6). The red LED ON (5) will light up.
4) Replay an alarm message that has been stored (or, if applicable, a test signal of 1 kHz, 0 dB): Close the switch at the terminals MESSAGE TRIGGER (10).
5) Slightly turn up the control MASTER and use a field strength meter to measure the field strength within the loop. The European standard EN 60118-4 recommends a field strength of 100mA/m; the maximum field strength should not exceed 400mA/m. Both values are based on a reference frequency of 1 kHz. Use the control MASTER to set the field strength accordingly. The LED chain (5) will indicate the output level.

If no field strength meter is available, use an induction receiver (e.g. LR-202 from MONACOR) to make the setting. Set the control MASTER to the highest audio and reception quality.

6) Feed a signal (test signal, piece of music or microphone announcement) to the inputs connected and use the corresponding controls INPUT (2) to adjust the volume.

7) Use the tone controls BASS and TREBLE (3) to adjust an optimum sound.

8) The signal of channel 1 may take priority over the channels 2 and 3. For this purpose, set No. 1 of the DIP switch PRIO (17) to the position ON. This will mute the signals of channels 2 and 3 when, for example, an announcement is made via channel 1. It will be easier to understand the announcement.

6.2 Metal loss correction

In many buildings, the metal content in ceilings and floors is very high. This metal may cause frequency-dependent loss of field strength. At a lower limit frequency between 0.01 Hz and 100 Hz; the loss is 3 dB / octave.

The metal loss correction will counteract this loss: Frequencies below 1 kHz will be attenuated and frequencies above this value will be boosted by up to 3 dB / octave. Determining the effect of metal on the frequency response requires special equipment; it is difficult and involves a lot of effort. It is much easier to monitor the loop signal with an induction receiver (e. g. LR-202):

Activating and adjusting the correction feature

WARNING

For activating the metal loss correction, the unit must be opened. Therefore, only qualified personnel may do this. Risk of electric shock!

1) Disconnect the mains plug from the socket.
2) Unscrew the housing cover.
3) To activate the function, place the jumper J2 in position ON. The jumper can be found between the microfuse FU2 and the relay RY1.
4) Screw on the housing cover again.
5) For the time being, set the control METAL LOSS CORRECTION (11) to 0 dB.
6) Switch on the amplifier and, in case of an announcement, set the control METAL LOSS CORRECTION to optimum speech intelligibility.

7 Operation

It is not necessary to change the settings made in chapter 6. For normal operation, simply switch on the loop amplifier. Switch on the units of a PA system in the following order:

1. the audio units (signal sources)
2. the PA amplifier
3. the loop amplifier

To switch off the system, proceed in reverse order.

7.1 Protective circuit

In case of a fault (failure, overheating), the red LED PROT (5) will light up and the signal for the induction loop will be turned off. In this case, switch off the amplifier and consult skilled personnel to eliminate the problem.

If the amplifier is overheated due to insufficient ventilation or extreme ambient temperature, it may be operated again after it has cooled down. Improve the ventilation, if required.

8 Specifications

Induction loop

Loop current

LA-202:....7 A max.

LA-402:....14A max.

Admissible

loop resistance: . . . 0.2–2 Ω

Max. coverage area

LA-202:....200m ^2

LA-402:....750m ^2

Connection: ..... screw terminals

Inputs

Sensitivity/Impedance; connection

MIC: 1.5 mV/6.8 kΩ;

XLR, balanced

Phantom power: . . . 40 V, to be activated separately

LINE

XLR: 630 mV/10 kΩ; bal.

RCA: 630 mV/4.7 kΩ, unbalanced

Frequency range: .... 50–8000 Hz

Tone controls

BASS: ±10 dB at 100 Hz

TREBLE:....±10dB at 10kHz

THD: .... < 1 %

Ambient temperature: 0–40°C

Power supply: ..... 230V/50Hz

Power consumption

LA-202: 150VA max.

LA-402: 230VA max.

Dimensions

W × H × D: 482 × 88 × 280 mm

2 rack spaces

Weight: 7 kg

Subject to technical modification.
