OPERATOR'S MANUAL

56 VOLT LITHIUM-ION CORDLESS MOWER

MODEL NUMBER LM2000E

EN 56 Volt lithium-ion cordless mower 6

Line drawing of a mechanical housing or enclosure with internal components and an arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool or tool with a curved handle, no text or symbols present

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

H 15

I I-1 I-2 I-3 I-4

J ① ②

Line drawing of a hand pressing down on a mechanical component with an arrow indicating motion (no text or symbols)

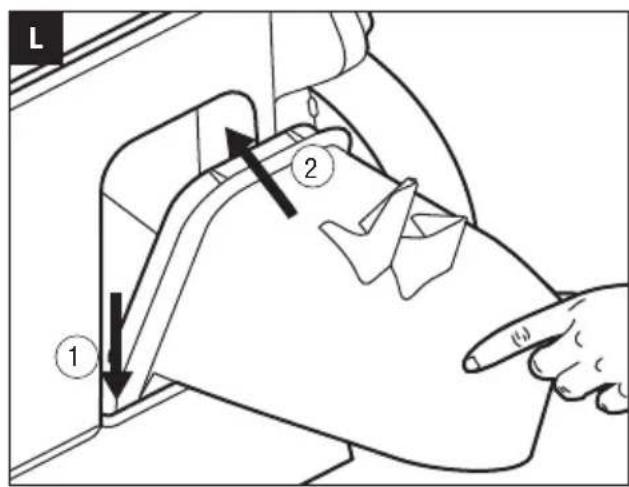

L ① ② ③

M ① ②

N 19

Line drawing of a lawn mower with motion arrows indicating cycle (no text or symbols)

P ② ①

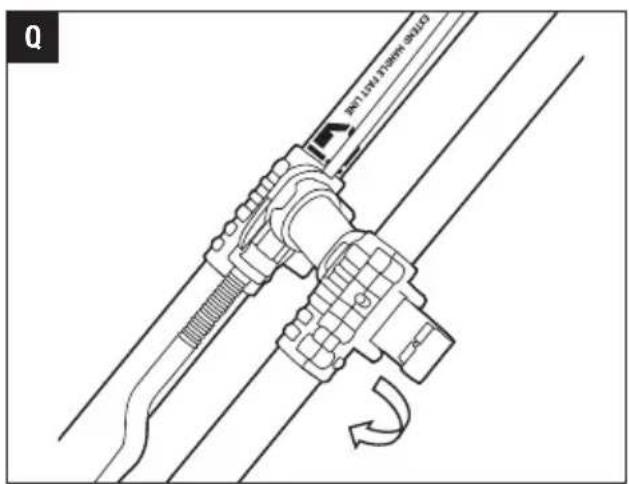

Q M11.124.200mm M11.124.200mm

R 1 2 3

S ② ①

Technical line drawing of a mechanical component with a tool inserted, showing internal structure and an arrow indicating direction (no text or symbols)

Three battery icons with warning symbols: battery, speaker, and exclamation mark (no text or labels)

Illustration of hands operating a mechanical component with a rotating arrow indicating rotational motion (no text or symbols)

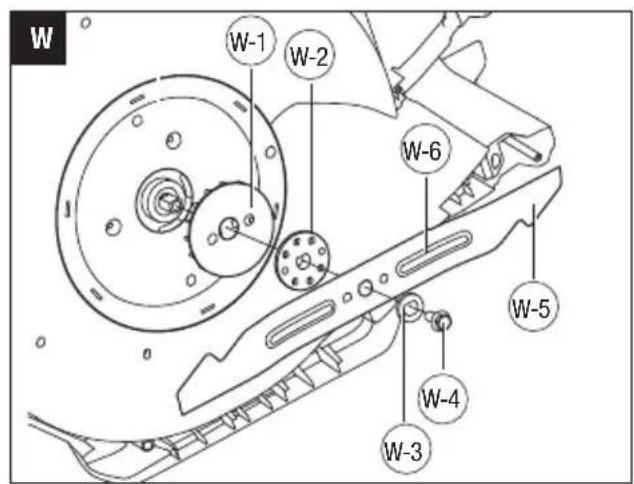

W W-1 W-2 W-6 W-5 W-4 W-3

Illustration of hands using a wrench to adjust the wheel rim (no text or symbols present)

Illustration of hands using a tool to adjust the wheel rim and handle (no text or symbols)

Technical line drawing of two vehicle chassis components, one front view and one side view (no text or symbols)

EN

READ ALL INSTRUCTIONS!

READ & UNDERSTAND INSTRUCTION MANUAL

Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.

WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.

Intended use & Foreseeable misuse: The product is intended for mowing grass in domestic gardens only. It must not be used to mow unusually high, dry or wet grass, e.g. pasture grass; or to shred leaves. The product is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

SAFETY SYMBOLS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER," "WARNING," and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. May be used in conjunction with other symbols or pictographs.

WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

	Safety Alert	Precautions that involve your safety.
	Wear Eye Protection	Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
	WARNING: Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Beware of Sharp Blades.	Blades continue to rotate after the motor is switched off – Remove disabling device before maintenance. Switch off and remove detachable battery pack(or disabling device) before adjusting or cleaning.
	Keep Bystanders Away	Ensure that other people and pets remain at least 30m away from the mower when it is in use.
	Class II Construction	Double-insulated Construction.
IPX4 IP	Symbol	Protection against ingress of water degree 4
V Volt	Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
~	Alternating Current	Type of current
---	Direct Current	Type or a characteristic of current
n_0	No Load Speed	Rotational speed, at no load
... /min Per Minute		Revolutions per minute

SAFETY RULES FOR CORDLESS LAWN

MOWER

DANGER: This machine was built to be operated according to the rules for safe operation included in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of injuring hands and feet and throwing objects. Failure to observe all safety instructions could result in serious injury or death.

WARNING: When using cordless lawn mowers, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury.

IMPORTANT

READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE.

SAFETY RULES FOR CORDLESS LAWNMOWERS:

CAUTION-DO NOT TOUCH ROTATING BLADE!

TRAINING

• Read the instructions carefully. Be familiar with the controls and the proper use of the appliance.
  ■ Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator.
  ■ Never mow while people, especially children, or pets are nearby.
  ■ The operator or user is responsible for accidents or hazards occurring to other people or their property.

PREPARATION

■ While mowing, always wear substantial footwear and long trousers.
■ Do not operate the appliance when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
■ Thoroughly inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
■ Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Replace damaged or unreadable labels.

OPERATION

■ Mow only in daylight or in good artificial light.

■ Avoid operating the appliance in wet grass, where feasible.
■ Always be sure of your footing on slopes.
■ Walk, never run.
■ For wheeled rotary mowers, mow across the face of slopes, never up and down.
■ Exercise extreme caution when changing direction on slopes.
■ Do not mow excessively steep slopes.
■ Use extreme caution when reversing or pulling the appliance towards you.
■ Stop the blade(s) if the appliance has to be tilted for transportation when crossing surfaces other than grass, and when transporting the appliance to and from the area to be mowed.
■ Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers, in place.
■ Switch on the motor according to instructions and with feet well away from the blade(s).
- Do not tilt the appliance when switching on the motor, except if the appliance has to be tilted for starting. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the appliance to the ground.
■ Do not start the machine when standing in front of the discharge opening.
■ Do not put hands or feet near or under rotating parts. For rotary mowers, keep clear of the discharge opening at all times.
■ Never pick up or carry an appliance while the motor is running.
■ Switch off and remove detachable battery pack (or disabling device) and make sure that all moving parts have come to a complete stop before adjusting or cleaning:

■ Whenever you leave the machine;

■ Before clearing a blockage and unclogging chute;

■ Before checking, cleaning or working on the appliance;

■ After striking a foreign object. Inspect the appliance for damage and make repairs as necessary.

■ If the appliance starts to vibrate abnormally (check immediately):

■ Inspect for damage;
■ Replace or repair any damaged parts;
■ Check for the tighten any loose parts.

EN

MAINTENANCE AND STORAGE

■ Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the appliance.
- Keep all nuts, bolts, and screws tight to be sure the appliance is in safe working condition.
■ Check the grass catcher frequently for wear or deterioration.
■ Replace worn or damaged parts for safety.
■ When servicing the blades be aware that, even though the power source is switched off, the blades can still be moved.
■ For rotary mowers, ensure that only replacement cutting means of the right type are used.

PERSONAL SAFETY

Tragic accidents can occur if operator is not alert to the presence of children. Children are often attracted to the mower and mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator.
  ■ Be alert and turn the mower off if a child enters the area.
  ■ Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your vision of a child who may run into the mower.
  ■ Children should be supervised to ensure that they are not playing with the mower.
  ■ Always turn the mower off when removing the battery pack from the tool. Stop the blade(s) if the appliance has to be tilted for transportation when crossing surfaces other than grass, and when transporting the appliance to and from the area to be mowed.

OPERATION

GENERAL OPERATION:

- Read this operator's manual carefully in its entirety before attempting to assemble this machine. Read, understand, and follow all instructions on the machine and in the manuals before operation. Be completely familiar with the controls and proper use of this machine before operating it. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.

- Use the right appliance – Do not use the lawn mower for any job except that for which it is intended.

- Don't overreach – Keep proper footing and balance at all times.

- Use the right appliance – Do not use the lawn mower for any job except that for which it is intended. - Don't overreach – Keep proper footing and balance at all times.

■ Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.
■ Before and while moving backwards, look behind and down for small children and other people.
This machine is not a plaything. Therefore, exercise extreme caution at all times. Your unit has been designed to perform one job: to mow grass. Do not use it for any other purpose.
- Don't force the lawn mower – it will do the job better and more safely at the rate for which it was designed.
■ Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts and any other components at the same time to preserve balance. Replace damaged or unreadable labels.
■ Use extreme caution when reversing or pulling the appliance towards you.
■ Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, toys and other foreign objects that could be tripped over or picked up and thrown by the blade. Thrown objects can cause serious personal injury. Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against walls or obstructions, which may cause discharged material to ricochet back toward the operator.
■ To help avoid blade contact or an injury from thrown objects, stay in the operator zone behind the handles and keep children, bystanders, helpers and pets at least 30m from the mower while it is in operation. Stop the machine if anyone enters the area.
■ Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects that ricochet can cause serious injury to the eyes. Always use a face or dust mask if the operation is dusty.
■ Dress properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and footwear is recommended when working outdoors. Wear sturdy, rough-soled work shoes and close-fitting trousers and shirts. Shirts and trousers that cover the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet, sandals, slippery or lightweight (e.g., canvas) shoes.
■ Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade can injure hands and feet.

EN

■ A missing or damaged discharge cover can cause blade contact or injuries from thrown objects.

■ Many injuries occur as a result of the mower being pulled over the foot during a fall caused by slipping or tripping. Do not hold onto the mower if you are falling; release the handle immediately.

■ Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or obstruction first look down and behind to avoid tripping and then following these steps:

■ Step back from mower to fully extend your arms.
■ Be sure you are well balanced with sure footing.
■ Pull the mower back slowly, no more than half way toward you.
■ Repeat these steps as needed.

■ Do not operate the mower while under the influence of alcohol or drugs.
■ Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers, in place.
- Stay alert – watch what you are doing. Use common sense. Do not operate the lawn mower when you are tired.
■he motor/blade control handle is a safety device. Never attempt to bypass its operation. Doing so makes the safety device inoperative and may result in personal injury through contact with the rotating blade. The motor/blade control handle must operate easily in both directions and automatically return to the disengaged position when released.

• Avoid dangerous environments – Don't use lawn mowers in damp or wet locations.
• Don't use in rain.
  ■ Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your footing, release the motor/blade control handle immediately and the blade will stop rotating within three seconds.
  ■ Stop the blade when crossing gravel drives, walks or roads.
  ■ If the equipment should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble.

■ Inspect for damage;
■ Replace or repair any user replaceable damaged parts;
■ Check for and tighten any loose parts.

■ Never operate the mower without the proper trailing shield, discharge cover, grass bag, mulching insert, side discharge chute, motor/blade control handle or

other safety protective devices in place and working. Never operate the mower with damaged safety devices. Failure to do so can result in personal injury.

■ If situations occur that are not covered in this manual, use care and good judgment. Contact EGO Customer Service for assistance.
■ Use only with the battery packs and chargers listed below:

BATTERY PACK CHARGER
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E

■ The battery pack must be removed from the appliance before it is scrapped.
■ The battery shall be disposed of safely.

Slopes are a major factor related to slip-and-fall accidents, which can result in severe injury. Always be sure of your footing on slopes. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

Do:

■ Mow across the face of slopes; never mow up and down. Exercise extreme caution when changing direction on slopes.
■ Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles.

Do not:

■ Do not mow near drop-offs, ditches or embankments; you could lose your footing or balance.
■ Do not mow slopes greater than 15 degrees.
■ Do not mow on wet grass. Unstable footing could cause slipping.

SERVICE

WARNING: Grass bag components, the discharge cover, side discharge chute, mulching insert and trailing shield are subject to wear and damage, which could expose moving parts or allow objects to be thrown and could increase the risk of injury. For safety protection, frequently check all components and replace damaged components immediately with identical replacement parts, listed in this manual. Contact EGO Customer Service or your closest EGO service center, and repairs or replacements shall be performed by a qualified service technician!

If the mower's built-in overload protection switch frequently trips, contact EGO Customer Service or your closest EGO service center.

EN

■ Do not wash the mower with a hose; avoid getting water in the motor and electrical connections.
■ Remove the key and store the idle lawn mower indoors when not in use. Allow the motor to cool before storing it in any enclosure. The lawn mower should be stored in a dry, high, or locked-up enclosure, out of reach of children.
■ When servicing, use only identical replacement parts listed in this manual. Use of parts that do not meet the original equipment specifications may lead to improper performance and compromised safety.
■ Remove or disconnect the battery pack before servicing, cleaning, or removing material from the lawn mower.
■ Follow instructions for changing accessories.
- Keep handles dry, clean and free from oil and grease.
■ To reduce a fire hazard, keep the motor cover free of grass, leaves and debris build-up.
- Check the blade and motor mounting bolts at frequent intervals for proper tightness. Also, visually inspect the blade for damage (e.g., bending, cracking and wear.). Replace the blade only with the identical replacement blade, listed in this manual.

- Maintain your mower with care – keep the mower blade sharp and clean for the best and safest performance. Mower blades are sharp and can cut. Wrap the blade or wear gloves and use extra caution when servicing it.

■ Never remove or tamper with safety devices. Regularly check their proper operation. Never do anything to interfere with the intended function of a safety device or to reduce the protection provided by a safety device.

■ Always stop the motor before making adjustments to wheel or a cutting-height adjustment.

■ After striking a foreign object, stop the motor, remove the key, and thoroughly inspect the mower for any damage. Repair the damage before operating the mower.

- Maintain or replace safety and instruction labels, as necessary. Contact EGO Customer Service or your closest EGO service center, and repairs or replacements shall be performed by a qualified service technician!

■ SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct others who may use this tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of the product and possibly injury.

BATTERY USE AND CARE

■ To preserve natural resources, please recycle or dispose of batteries properly. This product contains lithium-ion batteries. Local or national laws prohibit disposal of lithium-ion batteries in ordinary rubbish. Consult your local waste authority for information regarding available recycling and/or disposal options.
Upon removal of the battery pack for disposal or recycling, cover the battery pack's terminals with heavy-duty adhesive tape. Do not attempt to destroy or disassemble the battery pack or remove any of its components. Lithium-Ion batteries, must be recycled or disposed of properly. Also, never touch the terminals with metal objects and/or body parts as a short circuit may result. Keep away from children. Failure to comply with these warnings could result in fire and/or serious injury.
■ UNDER ABUSIVE CONDITIONS, LIQUID MAY BE EJECTED FROM THE BATTERY; AVOID CONTACT. IF CONTACT ACCIDENTALLY OCCURS, FLUSH WITH WATER. IF LIQUID CONTACTS EYES, ADDITIONALLY SEEK MEDICAL HELP. Liquid ejected from the battery may cause irritation or burns.

SPECIFICATIONS

Voltage		56 V---
No-Load Speed 3300 /min
Cutting Height 25 mm-80 mm
Cutting Height Positions 5
Deck Size 51 cm
Cutting Width 49 cm
a Grass Bag Volume 60 L
Mower Weight (without battery pack)		26.2 kg
Blade Model AB2000
Measured sound power level L_WA		93.40 dB(A)
Sound pressure level at operator's ear L_PA		83.3 dB(A)K=2.5 dB(A)
Guaranteed sound power level L_WA (according to 2000/14/EC)		94 dB(A)
Vibration a_h	Right Handle	1.590 m/s2K=1.5 m/s2
	Left Handle	1.613 m/s2K=1.5 m/s2
Blade brake Yes

■ The declared vibration total value has been measured 20. Power Indicator on the Mower

in accordance with a standard test method and may be used for comparing one tool with another;

1. Switch Button for LED Work Lights

■ The declared vibration total value may also be used in

1. Side Discharge Chute

a preliminary assessment of exposure.

1. Mulching Insert

NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.

PACKING LIST

PART NAME QUANTITY
Lawn mower 1
Grass bag 1
Grass bag frame 1
Mulching insert 1
Side discharge chute 1
Safety key 2
Operator's manual 1

DESCRIPTION

KNOW YOUR MOWER (Fig. A & B & C & D)

1. Handle

2. Safety Key Slot

3. Bail Switch (Switch Lever)

4. Handle Locking Clamp

5. Rear Discharge Door

6. Rear Storage Handle

7. Battery Pack Cover

8. LED Work Lights

9. Front Storage Handle

10. Front Wheel

11. Mower Deck

12. Rear Wheel

13. Cutting Height Adjustment Lever

14. Grass Bag

15. Quick Adjust Lever

16. Side Rail

17. Support for Stand-up Storage

18. Trailing Shield

19. Battery-release Button

OPERATION

WARNING: To prevent accidental starting that could cause serious personal injury, always remove the safety key and the battery pack from the tool when assembling parts.

ASSEMBLING THE GRASS BAG

1) Slide the grass bag onto the frame (Fig. E).

2) Assemble the top clips to the frame (Fig. F), then assemble the two side clips. Assemble the bottom clip last.

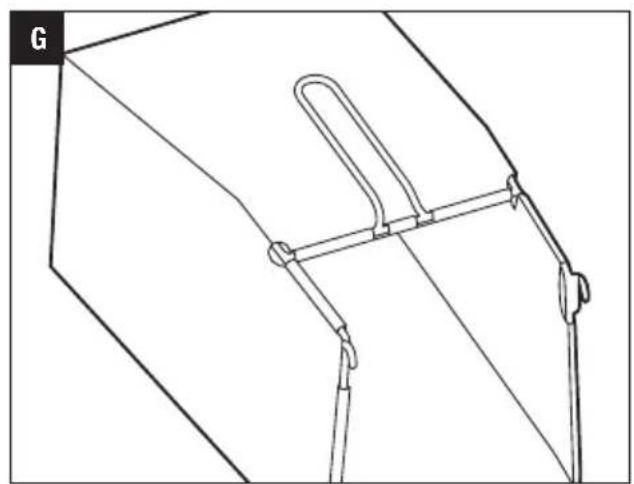

3) The completely assembled grass bag is shown in Fig. G.

NOTICE: Under normal usage, bag material is subject to wear. To reduce the risk of injury, frequently inspect the bag assembly and replace if there are any signs of wear or deterioration. Use only grass bags manufactured for this mower.

ADJUSTING THE FOLDABLE HANDLE

WARNING: Do not attempt to start the mower until the handle has been locked at one of the two preset operating positions (UPPER OPERATING POSITION or LOWER OPERATION POSITION).

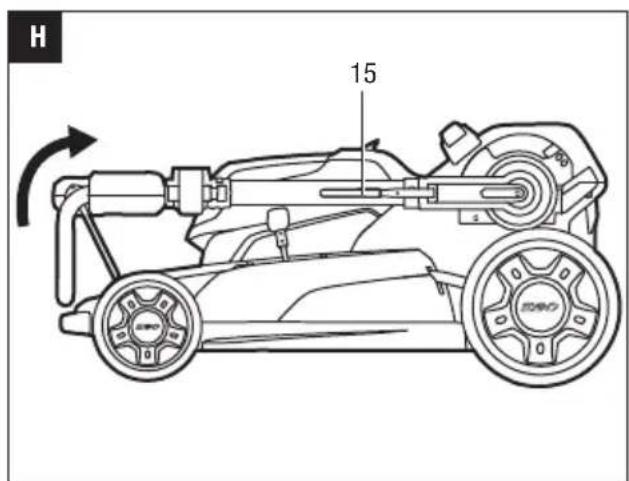

Your mower is shipped with the handle in the compact, LOCKED STORAGE POSITION (Fig. H).

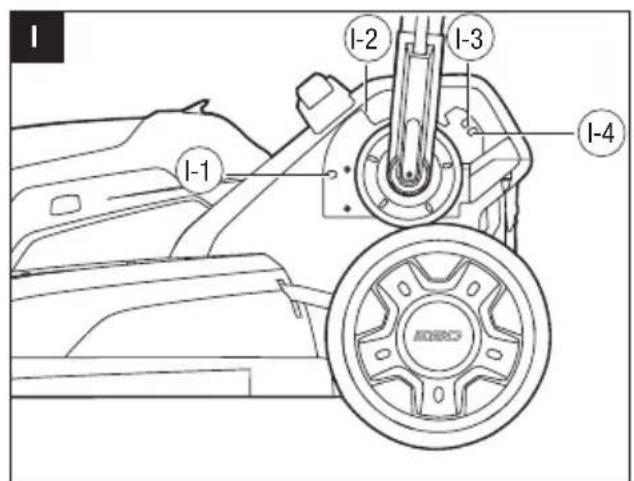

1) Press and hold the quick-adjust lever to release the handle from the LOCKED STORAGE POSITION (Fig. I-1).

2 Lift the handle from its folded position, then release the lever. Gently pivot the handle upward until you hear and feel the lock pin engage in one of the the different positions as shown in the Fig. I.

■ GRASS BAG ATTACHMENT/REMOVAL POSITION (Fig. 1-2).

WARNING: Do not at any time make any adjustment to the lawn mower without first stopping the motor and removing the safety key.

EN

NOTICE: Attach any of the attachments to the lawn mower before mowing.

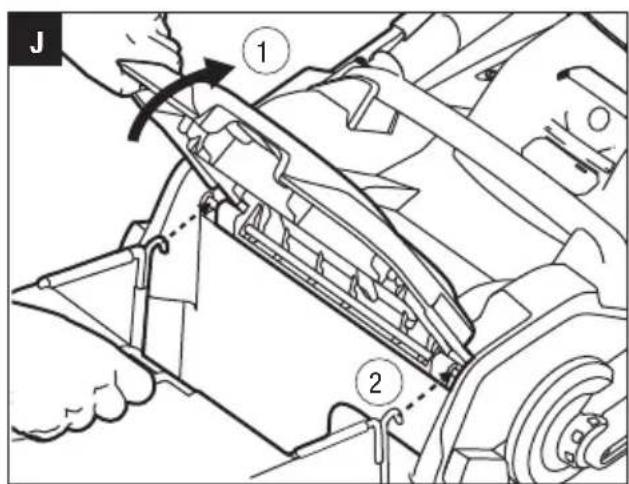

■ To Attach/Remove the Grass Bag (Fig. J)

NOTICE: Remove the pre-installed mulching insert in the mower before attaching the grass bag to the mower.

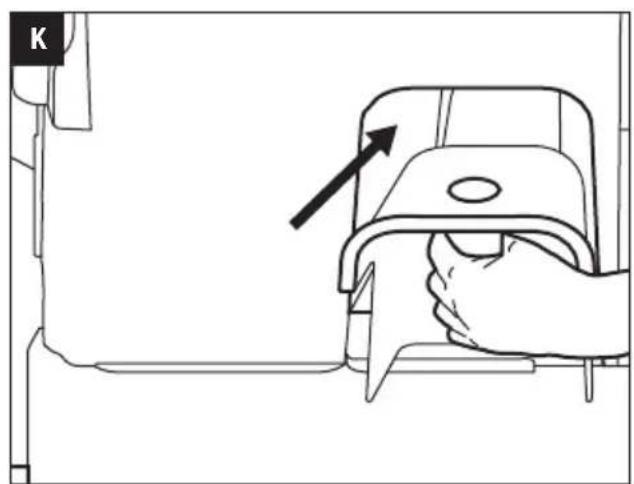

■ To Attach/Remove the Mulching Insert (Fig. K)
■ To Attach/Remove the Side Discharge Chute (Fig. L)

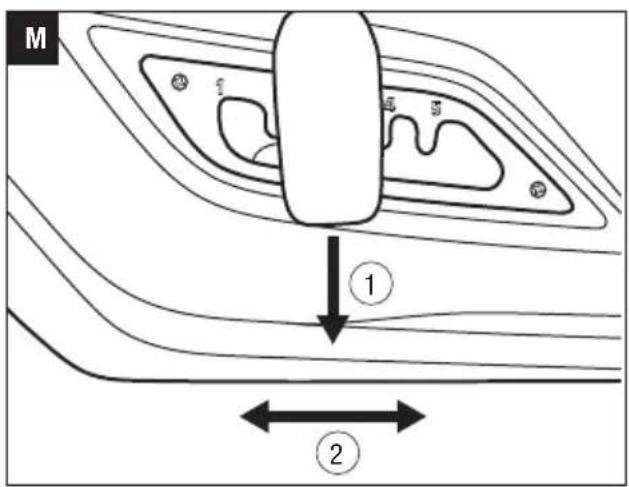

ADJUSTING THE CUTTING HEIGHT (Fig. M)

WARNING: Keep your feet away from the deck when adjusting its height. The mower can be set to 5 cutting heights between 25mm and 80mm. Choose the proper cutting height according to the types and conditions of the grass.

NOTICE: When moving the tool, make sure the cutting height is adjusted at the position of 3 or higher. Failure to do so, could result in the damage of the blade.

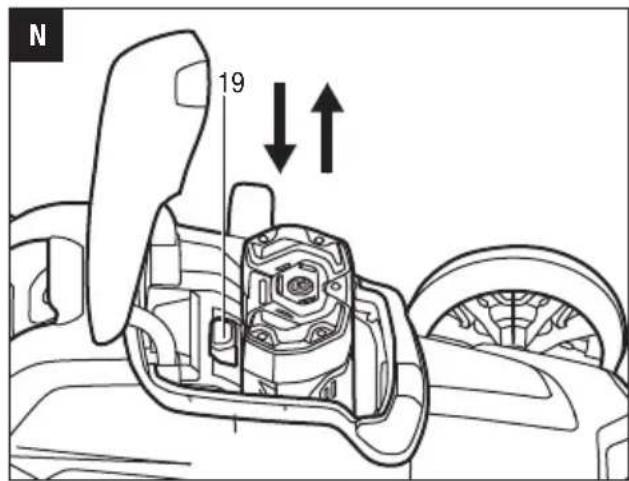

ATTACHING/DETACHING THE BATTERY PACK (Fig. N)

CHARGE BEFORE FIRST USE.

WARNING: If any parts are broken or missing, do not attempt to attach the battery pack to the mower or operate the mower until the broken or missing parts are replaced. Failure to do so could result in serious injury.

■ To Attach

Push the battery pack into the battery compartment until you hear a "click".

■ To Detach

Depress the battery-release button in the battery compartment.

NOTICE: Make sure that the latch on the mower snaps into place and that the battery pack is secured to the mower before starting operation.

STARTING/STOPPING THE MOWER

WARNING: The operation of any lawn mower can result in foreign objects being thrown into your or others' eyes, which can damage eyes severely. Always wear safety glasses while operating the mower, or while performing any adjustments or repairs on it.

WARNING: Do not use the mower in the rain.

WARNING: Ensure that other people and pets remain at least 30m away from the mower when it is in use.

WARNING: The blade will continue to rotate for a few seconds after the mower is turned off. Allow the motor/blade to stop rotating before starting it again. Do not rapidly turn the mower off and on.

NOTE: The motor cannot be started unless:

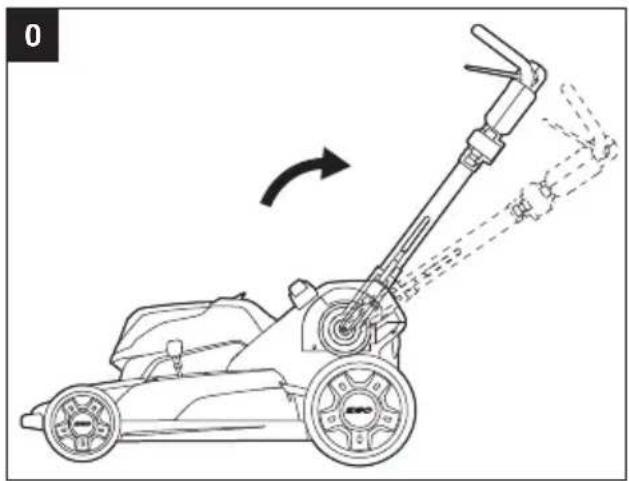

■ The handle is locked into one of the operating positions (Fig. 0).

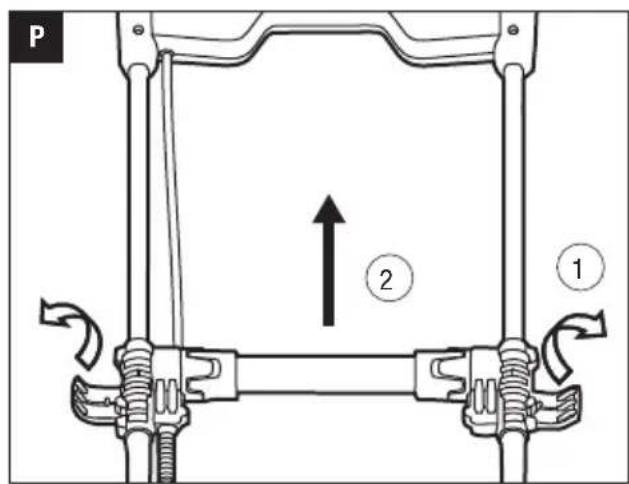

■ The side rails are fully extended (Fig. P).
■ Both green handle-locking clamps are securely closed (Fig. Q).

SAFETY KEY

In order to prevent accidental start-up or unauthorized use of your cordless mower, a removable safety key has been incorporated into the design of your mower. The mower will be completely disabled when the safety key has been removed from the mower.

DANGER: Rotating blades can cause serious injury. To prevent serious injury, remove the safety key when the mower is unattended, or when adjusting, cleaning, servicing, transporting, lifting, or storing the mower.

To Start (Fig. S)

1) Attach the battery pack to the mower and close the battery cover.

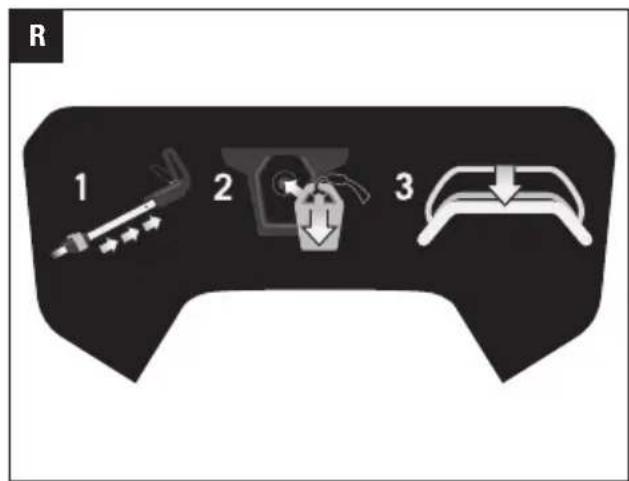

2) According to Fig. R, insert the safety key into the slot and then depress the safety key.
3) With the safety key depressed, pull the bail switch upward to the handle and release the safety key.

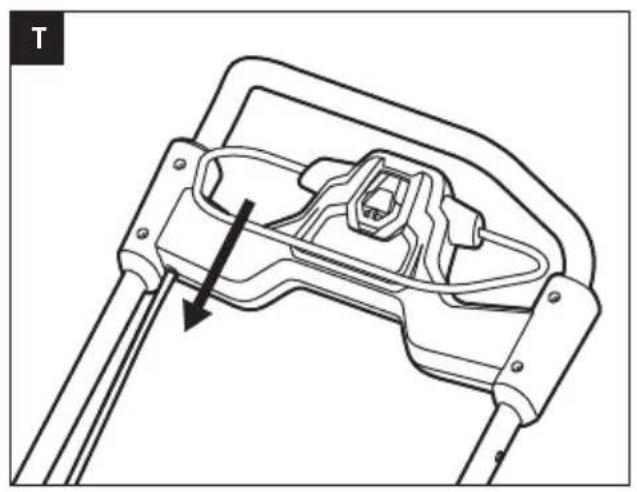

To Stop (Fig. T)

1) Release the bail switch.
2) The electric brake in the Automatic Braking Mechanism will stop the blade rotation within 3 seconds of the bail switch release.

LED WORK LIGHTS ON THE MOWER

Press the switch button (Fig. C-21) to turn on/off the LED work lights in the front of the battery compartment.

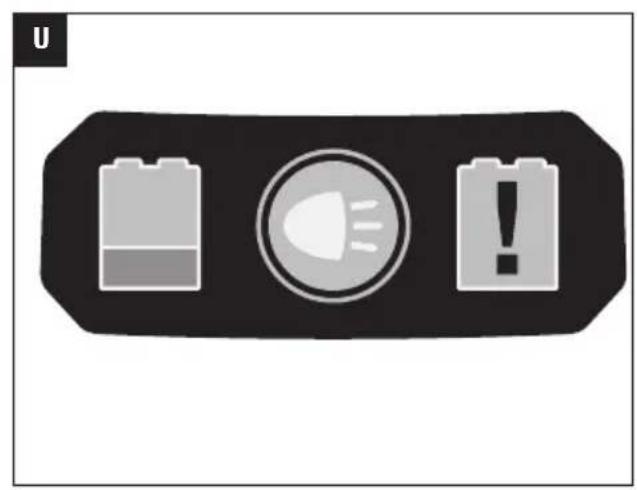

POWER INDICATOR ON THE MOWER (Fig. U)

The mower is equipped with a power indicator (Fig. C-20) to indicate the charge status of the battery pack and the working status of the mower. The power indicator will illuminate when the blade is rotating or when the LED work lights are turned on.

Power Indicator on Mower	Meaning Action
Shining green	Mower is working properly; battery has at least 15% of its charge	N/A
Shining red Low battery		Stop the mower and charge the battery pack
Flashing red	The battery is nearly depleted	Stop the mower and charge the battery pack
Shining orange	The mower or the battery pack is overheated	Remove the battery from the mower, move them to the shade and cool them at least 15 minutes
Flashing orange	The mower is overloaded	Slow down your pace or raise up the cut height to decrease the load

MOWER OVERLOAD PROTECTION

To prevent damage due to overload conditions, do not try to cut too much grass at one time.

Your mower has built-in overload circuit protection. When the mower is overloaded, the power indicator on the mower will blink orange. The mower can endure a short time of overload before turning itself off. You can slow your speed to reduce the load or raise the cutting height of the mower; otherwise the protection circuit will automatically turn off the mower. Release the bail handle, wait for a few seconds and try again.

BATTERY HIGH TEMPERATURE PROTECTION

The battery pack will generate heat during operation. The heat dissipates more slowly in hot weather. If the battery temperature exceeds 70^ C during operation, the protection circuit will immediately turn off the mower to protect the battery pack from damage. The power indicator on the mower will shine orange. Release the bail handle, wait until the battery pack cools down to approximately 67^ C, then restart the mower.

MAINTENANCE

WARNING: To avoid serious personal injury, always remove the safety key and battery pack from the mower before cleaning or performing any maintenance.

WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.

CLEANING THE MOWER

WARNING: To reduce the risk of electric shock, do not expose the mower to water. Always remove the safety key and battery pack when servicing or transporting the mower.

The underside of mower deck should be cleaned after each use, as grass clippings, leaves, dirt and other debris will accumulate.

Remove any build-up of grass and leaves on or around the motor cover (do not use water). Wipe the mower clean with a dry cloth.

REMOVING/INSTALLING THE BLADE

WARNING: Always protect your hands by wearing heavy gloves or wrapping the cutting edges with rags or other materials when performing any maintenance on the mower blade. Always remove the safety key and battery pack when servicing or transporting the mower.

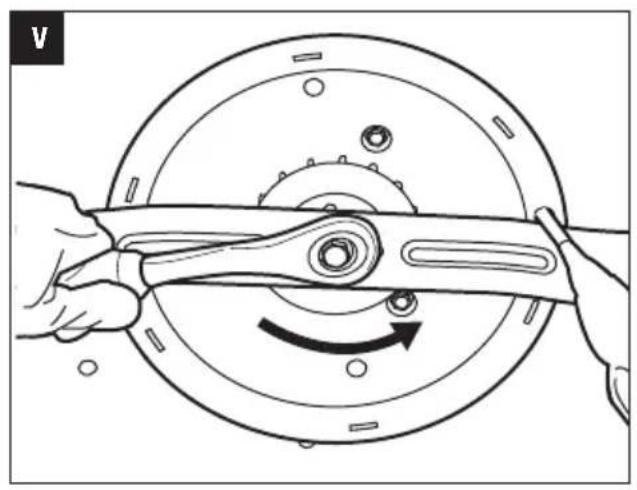

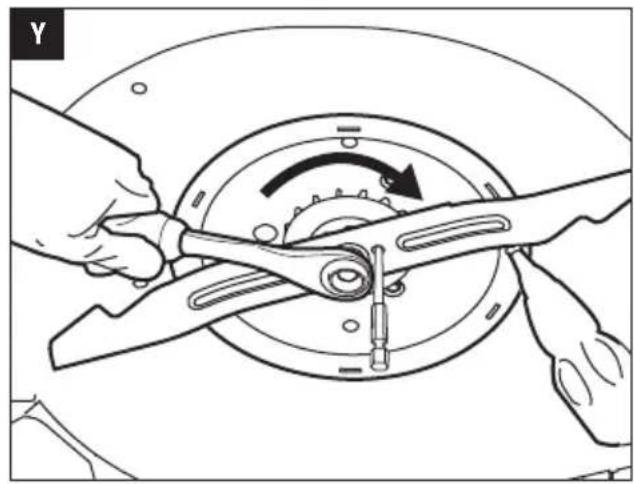

■ To Remove the Blade (Fig. V)

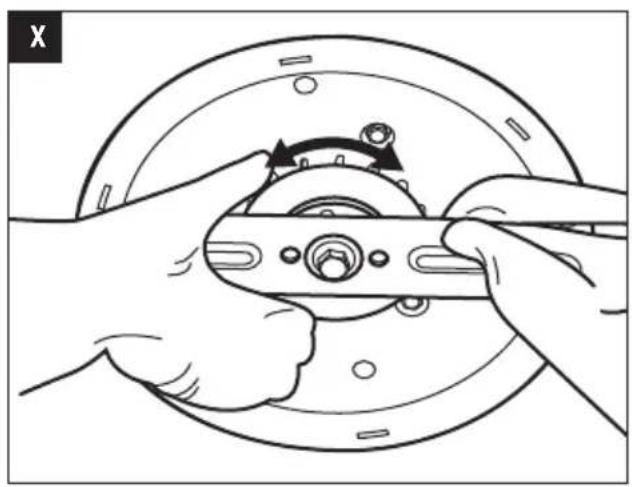

■ To Install the Blade

Following the assembly sequence in Fig. W, with the fan blade towards deck and the bulge on the blade towards outside, align the through holes in the fan with the holes in the blade (Fig. X) and then tighten the blade as Fig. Y shown. Fig. W parts description see below:

W-1 Fan W-4 Bolt
W-2 Inner Flange W-5 Blade
W-3 Outer Flange W-6 Blade Bulge

NOTICE: The recommended torque for tightening the blade bolt is 49-59Nm.

STORAGE THE MOWER

■ Remove the battery pack from the mower and store it in a cool, dry and clean location. Do not store it next to corrosive materials, such as fertilizer or rock salt.

EN

■ Store the mower in a covered, enclosed space, that is cool and dry and out of the reach of children.
■ Do not cover the lawn mower with a solid plastic sheet

Plastic coverings trap moisture around the mower, which causes rust and corrosion.

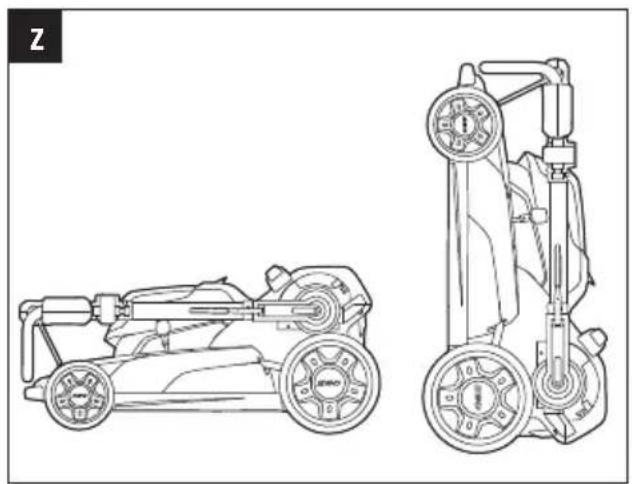

■ The mower can be stored upright or flat (Fig. Z).

- WARNING: If the mower begins to tip over from the upright position, mower damage or personal injury may result. Always keep the mower stable and out of the reach of children when it is in the upright position. If possible, lay it flat for storage.

Protecting the environment

Do not dispose of electrical equipment, battery charger and batteries/rechargeable batteries into household waste!

According to the European law 2012/19/EU, electrical and electronic equipment that is no longer usable, and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

EC DECLARATION OF CONFORMITY

CE

et We, EGO EUROPE GMBH

Declare that the product 56V lithium-ion cordless mower LM2000E complies with the essential health and safety requirements of the following Directives:

2006/42/EC, 2014/30/EU, 2011/65/EU, 2000/14/EC

Standards and technical specifications referred to:

EN 60335-1, EN 60335-2-77, EN 62233, EN 55014-1, EN 55014-2

Measured Sound Power Level: 93.40 dB(A).

Guaranteed Sound Power Level: 94 dB(A).

Conformity assessment procedure of Annex VI is followed according 2000/14/EC.

Quality Manager of Chervon

* (Authorized representative for CHERVON and responsible for technical documentation)

01/04/2016

TROUBLESHOOTING

EN

WARNING: Always remove the safety key and battery pack when servicing or transporting the mower. Always protect your hands by wearing heavy gloves or wrapping the cutting edges with rags or other materials when performing any maintenance on the mower blade.

PROBLEM CAUSE SOLUTION
The mower fails to start	■ The safety key is not inserted in the slot.■ The battery pack is depleted.■ The battery pack is not attached to the mower.■ The battery or mower circuitry is too hot.(The power indicator on the mower will illuminate in orange for 10 seconds)■ The side rails are not extended to their maximum length and the clamps are not locked in position.■ The handle is not set at one of the two operating positions.■ The mower deck is clogged with grass and debris.	■ Insert the safety key; press the key while pulling the bail switch; release the safety key.■ Charge the battery pack.■ Attach the battery pack to the mower.■ Allow the battery pack or mower to cool until the temperature drops below 67°C.■ Fully extend the handle and lock both clamps.■ Adjust the handle to one of the two operating positions.■ Clean the mower deck and make certain that the blade has freedom of movement.
The mower cuts unevenly	■ The blade is dull.■ The cutting height is not set properly.■ The blade is assembled incorrectly.	■ Sharpen or replace the blade.■ Raise the deck to a higher cutting height setting.■ Reassemble the blade, following the section “INSTALLING THE BLADE” in this manual.
The mower stops while mowing	■ The battery pack is depleted.■ Mower is in overload condition.■ Mower deck is clogged with grass and debris.■ The battery or mower circuitry is too hot.(The power indicator on the mower will illuminate orange for 10 seconds.)■ The side rail is retracted a little by the pushing force applying on the handle.	■ Charge the battery pack.■ Raise the cutting height or slow down the mowing.■ Unclog the mower deck. Raise the cutting height, or cut a narrow swath.■ Allow the battery pack or mower to cool until the temperature drops below 67°C.■ Unlock the clamps. Fully extend the side rails and lock the clamps again.

EN

PROBLEM CAUSE SOLUTION
The mower does not mulch properly	■ Wet grass clippings are sticking to the underside of the deck.■ The mower is set to cut too much grass at once.	■ Wait until the grass dries before mowin■ Raise the deck to a higher cutting height setting.
There is excessive vibration	■ The cutting blade is loose.■ The cutting blade is unbalanced.■ The cutting blade is bent.■ The motor shaft is bent.	■ Tighten the blade bolt.■ Balance the blade following the instructions.■ Replace the blade.■ Contact the service center.
The handle locking clamps cannot be closed in position	■ The side rails are not fully extended.	■ Fully extend the side rails, then lock the clamps.

WARRANTY

EGO WARRANTY POLICY

Please visit the website egopowerplus.com for full terms and conditions of the EGO Warranty policy.

DÉCLARATION DE CONFORMITÉ CE

Nous, EGO EUROPE GMBH

2006/42/CE, 2014/30/UE, 2011/65/UE, 2000/14/CE

2006/42/CE, 2014/30/UE, 2011/65/UE, 2000/14/CE

2006/42/CE, 2014/30/UE, 2011/65/UE, 2000/14/CE

Standard e specifiche tecniche conformi a:

EN 60335-1, EN 60335-2-77, EN 62233, EN 55014-1, EN 55014-2

ACCUPACK OPLADER
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E

BATTERIPAKKE OPLADER
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E

LED ARBETSBELYSNING PÅ GRÄSKLIPPAREN

VEDLIKEHOLD OG LAGRING

LED-ARBEIDSLYS PÅ KLIPPEREN

DEKLARACJA ZGODNOŚCI WE

Producent, EGO EUROPE GMBH

2006/42/WE, 2014/30/UE, 2011/65/UE, 2000/14/WE

POLITYKA GWARANCYJNA EGO

AKUPLOKK LAADIJA
BA1120E, BA2240E, BA2800, BA3360, BA4200	CH5500E, CH2100E

NIIDUKI VOOLUINDIKAATOR (Joon. U)
