FS5W051 - Power bank Xtorm - Free user manual and instructions

Product Type	Portable Battery (Power Bank)
Brand	Xtorm
Model	FS5W051
Capacity	5000 mAh (estimated)
Fast Charging	20W USB-C PD
Input	USB-C (PD, 18W recommended)
Output	USB-C PD (20W)
Magnetic Charging	Yes (magnetic attachment to back of device)
LED Display	Battery percentage indicator (0% to 100%)
Full Recharge Time	1.5 hours (with 18W PD charger)
Weight	150 g (estimated)
Dimensions	100 x 60 x 15 mm (estimated)
Material	Plastic
Included Accessories	USB-C cable
Power Button Functions	Single press: turns display on/off; Double press: turns power bank completely on/off
Safety	Protection against overheating, short circuits, overvoltage
Recycling	Compliant with WEEE directive
Care and Cleaning	Clean with a soft, dry cloth. Do not use liquids.
Spare Parts and Repairability	Not user-serviceable. Contact after-sales service.

Frequently Asked Questions - FS5W051 Xtorm

How do I charge my phone with the Xtorm FS5W051?

Magnetically attach the power bank to the back of your phone or connect the included USB-C cable to the USB-C PD output of the power bank and to your device's input. Charging starts automatically.

How long does it take to fully recharge the power bank?

With an 18W USB-C PD charger, the power bank fully recharges in about 1.5 hours.

What does the LED display mean?

The LED screen shows the remaining battery percentage, from 0% (empty) to 100% (full). A fast charging indicator lights up when you use a compatible cable for fast charging (20W USB-C PD or higher).

How do I use the power button?

Press once to turn the LED display on or off. Press twice quickly to turn the power bank completely on or off.

Can I charge multiple devices at the same time?

The Xtorm FS5W051 has a single USB-C output. To charge multiple devices, you will need a separate cable or adapter.

Which cables are compatible?

The power bank comes with a USB-C cable. For Apple (Lightning) or Micro USB devices, you need to use your own cable.

Is the power bank compatible with fast charging?

Yes, it supports USB-C PD fast charging up to 20W. Make sure to use a compatible cable and device.

How do I clean the power bank?

Use a soft, dry cloth to clean the surface. Do not use liquid or abrasive products.

What should I do if the power bank does not charge?

Check that the cable and wall charger are working. Try another 18W PD charger. If the problem persists, contact after-sales service.

How do I recycle the power bank at end of life?

Do not dispose of the power bank with household waste. Drop it off at a WEEE collection point or contact your local recycling organization.

USER MANUAL FS5W051 Xtorm

Line drawing of two electronic devices with circular components and a magnifying glass (no text or symbols)

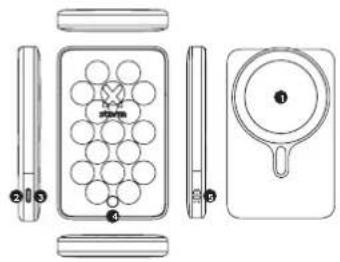

SPECIFICATIONS PRODUCT OVERVIEW1 2

5.000 mAh Li-Poly / 18.5Wh

Wireless 15W/7.5W Apple iPhone USB-C PD 18W

USB-C PD 18W input

106x68x13 mm

152 grams

+ 1x USB-C to USB-C cable 1x Manual

Technical line drawings of a mechanical component with labeled parts (no text or symbols)

Output Wireless 15W (7.5W Apoe Phone)

Output USB-C PD 18W

Input USB-C PD 18W

Power Button

Digital Capacity Indicator

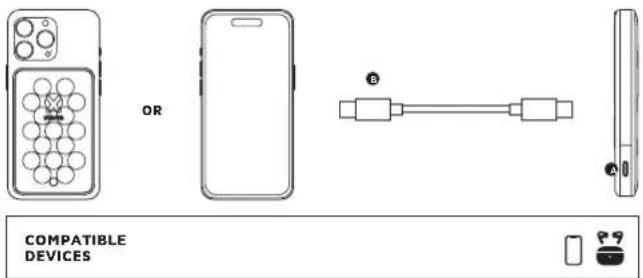

CHARGING YOUR DEVICE3 RECHARGING THE POWER BANK 4

3A Snap the Power Bank to the back of your phone magnatically or connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^® or a Micro USB cable.

Technical line drawings of three electronic components: a plug, a connector, and a side panel (no text or symbols)

4A Connect the USB-C end of the charging cable to output 2 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 1.5 hours.

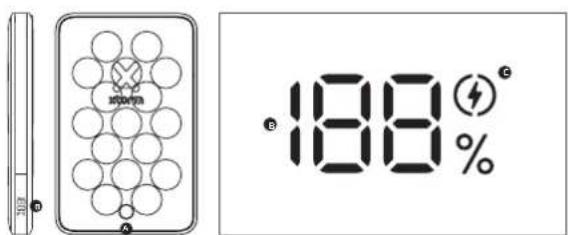

LED POWER INDICATOR5 IN THE BOX 6

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:

- single press to turn on/off the display

- double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

1

7

3

FS5W051

Wireless Power Bank

USB-C to USB-C Cable

Manual

EN - ENGLISH

1 SPECIFICATIONS

2 PRODUCT OVERVIEW

3 CHARGING YOUR DEVICE

3.A Snap the Power Bank to the back of your device magnetically or connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3.B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^b or a Micro USB cable.

4 RECHARGING THE POWER BANK

4.A Connect the USB-C end of the charging cable to output 2 of the Power Bank and the USB end to a wall charger.

4.B For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 1.5 hours.

5 LED POWER INDICATOR

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function: - single press to turn on/off the display - double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

6 IN THE BOX

NL - NEDERLANDS

1 SPECIFICATIES

2 PRODUCT OVERZICHT

3 OPLADEN VAN JOUW APPARAAT

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK WARNINGS

1. TEMPERATURE CONTROL

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

EN Warnings

Don't crop, disseme or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flamimabla gas. The warranty will lease in the event of limoper use. Talco Accessories has tested the product in a test environment. All statements/declarations made by Talco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.

NL Waarschuwingen

EU DECLARATION OF CONFORMITY

Product Category	Product Type
Material Description	Material Description
Material Quality	Quality
Material Use	Material Use
Material Designation	Material Designation

HIGHER QUALITY

= LOWER IMPACT

CUSTOMER SUPPORT

[e-mail]

[phone]

TELCO ACCESSORIES GROUP

Hoofdveste 19, 3992DH Houten

The Netherlands

MOREENERGY

XTORM.EU
