USER MANUAL XR203 Xtorm

Technical line drawing of a multi-panel battery pack with grid and mounting holes (no text or symbols)

Technical line drawing of a 3D object with contour patterns and mounting holes (no text or symbols)

SPECIFICATIONS

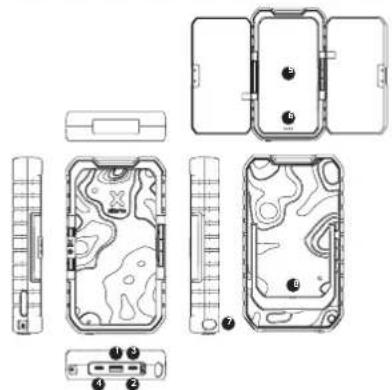

PRODUCT OVERVIEW1 2

10.000 mAh Li-ion / 37Wh

1x USB-C PD 20W 1x USB-C 15W

1x USB-A 18W

3 1x Solar Panels 5.1W

1x USB-C PD 18W

Folded: 166x95x27mm Unfolded: 166x250x54mm

506 grams

+ 1x USB-C PD cable 1x Manual

Technical diagram of a mobile phone's internal components with labeled parts and contour lines

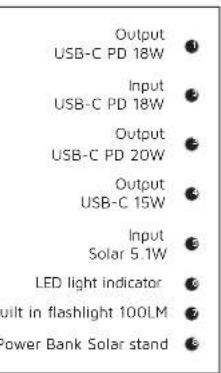

Output USB-C PD 18W Input USB-C PD 18W Output USB-C PD 20W Output USB-C 15W Input Solar 5.1W LED light indicator Built in flashlight 100LM Power Bank Solar stand

CHARGING YOUR DEVICE

Three technical line drawings of electronic devices: a rectangular case, a connected USB cable, and a ports with indicator lights (no text or symbols present)

COMPATIBLE DEVICES

3A Connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.

3B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^* or a Micro USB cable.

CHARGING THE POWER BANK 4

Three technical line drawings of electronic components: a three-pin plug, a connector, and a separate device (no text or symbols)

4A Connect the USB-C end of the charging cable to input 2 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 18W charger. This will fully recharge the Power Bank within 2.5 hours.

5 LED LIGHT INDICATOR IN THE BOX 6

5A Button Function

- Single press: turn on the powerbank and show battery status

• Double press: turn on/off the flashlight

- Single press when flashlight is turned on: Switch between

SOS mode and Flashlight mode

5B Each lit LED light indicates 12.5% remaining energy in the Power Bank. At 8 lit lights, the Power Bank is fully charged.

5C We added indicator lights to show you how strong the sun is shining, to know how much energy is generated by the built-in panels. This will give an estimated range how fast the

Power Bank will be recharged from 0% to 100%

• Solar-strength indicator light: >45h

• Solar-strength indicator light: 25h to 45h

• Solar-strength indicator light: 17h to 25h

• Solar-strength indicator light: 12h to 17h

Please note: If the powerbank battery has been at 0% for an extended period of time, it cannot be recharged by solar input. The battery needs to "wake up" by recharging it via USB-C until a few percent has been added. After which, it can be recharged via the solar panels again as normal.

12

●

●

XR203 Rugged Solar

Power Bank

1

USB-C PD

cable

Manual

2

C

EN - ENGLISH

1 SPECIFICATIONS

2 PRODUCT OVERVIEW

3 CHARGING YOUR DEVICE

3A Connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.

3B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^® or a Micro USB cable.

4 RECHARGING THE POWER BANK

4.A Connect the USB-C end of the charging cable to input 2 of the Power Bank and the USB end to a wall charger.

4.B For the fastest charging possible use a 20W charger. This will fully recharge the Power Bank within 2,5 hours.

5 LED POWER INDICATOR

5A Button Function:

- Single press: turn on the powerbank and show battery status

- Double press: turn on/off the flashlight

- Single press when flashlight is turned on: Switch between SOS mode and Flashlight mode

5.B Each lit LED light indicates 12.5% remaining energy in the Power Bank. At 8 lit lights, the Power Bank is fully charged.

5.C We added indicator lights to show you how strong the sun is shining, to know how much energy is generated by the built-in panels. This will give an estimated range how fast the Power Bank will be recharged from 0% to 100%.

Solar-strength indicator light: >45h

• Solar-strength indicator light: 25h to 45h

• Solar-strength indicator light: 17h to 25h

• Solar-strength indicator light: 12h to 17h

Please note: If the powerbank battery has been at 0% for an extended period of time, it cannot be recharged by solar input. The battery needs to "wake up" by recharging it via USB-C until a few percent has been added. After which, it can be recharged via the solar panels again as normal.

6 IN THE BOX

NL - NEDERLANDS

1 SPECIFICATIES

2 PRODUCTOVERZICHT

3 UW APPARAAT OPLADEN

5 LED STROOMINDICATOR

5A Knopfunctie:

5.C We added indicator lights to show you how strong the sun is shining, to know how much energy is generated by the built-in panels. This will give an estimated range how fast the Power Bank will be recharged from 0% to 100%.

• Solar-strength indicator light: >45h

• Solar-strength indicator light: 25h to 45h

• Solar-strength indicator light: 17h to 25h

• Solar-strength indicator light: 12b to 17b

Please note: If the powerbank battery has been at 0% for an extended period of time, it cannot be recharged by solar input. The battery needs to "wake up" by recharging it via USB-C until a few percent has been added. After which, it can be recharged via the solar panels again as normal.

6 IEPAKOJUMÄ

EE - EESTI

1 SPETSIFIKATSIOONID

2 TOOTE ÜLEVAADE

3 SEADME LAADIMINE

- Indikator sunčeve snage: >45h

- Indikator sunčeve snage: 25 do 45 sati

• Svietlo indikatora sunčeve snage: 17h do 25h

- Indikator sunčeve snage: 12 do 17 sati

Imajte na umu: ako je baterija powerbank-a bila na 0% dulje vrijeme, ne može se ponovno napuniti solarnim ulazom. Baterija se mora "probuditi" punjenjem preko USB-C dok se ne doda nekoliko postotaka. Nakon toga se može ponovo puniti preko solarnih panela kao i obično.

6 U KUTIJI

RO - ROMÂNĂ

1 SPECIFICATII

2 PREZENTARE GENERALĂ A PRODUSULUI

3 ÎNCĂRCAREA DISPOZITIVULUI DVS.

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK WARNINGS

1. TEMPERATURE CONTROL

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

EN Warnings

Don't crop, disseme or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flamimabla gas. The warranty will lose in the event of limaroper use. Talco Accessories has tested the product in a test environment. All statements/declarations made by Talco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.
