USER MANUAL DEEBOT T30S Combo ECOVACS

For the Instruction Manual in further languages, visit: https://www.ecovacs.com.

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical Appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe way and understand the hazards involved. Children shall not play with the Appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Clear the area to be cleaned. Remove power cords and small objects from the floor that could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as curtains and tablecloths off the floor.

3. If there is a drop off in the cleaning area due to a step or stairs, you should operate the Appliance to ensure that it can detect the step without falling over the edge. It may become necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the physical barrier is not a trip hazard.

4. Only use as described in this manual. Only use attachments recommended or sold by the manufacturer.
5. Please make sure your power supply source voltage matches the power voltage marked on the Docking station.
6. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or industrial environments.
7. Do not use without dust bin and/or filters in place.
8. Do not operate the Appliance in an area where there are lit candles or fragile objects.
9. Keep hair, loose clothing, fingers, and all parts of body away from any openings and moving parts.
10. Do not operate the Appliance in a room where an infant or child is sleeping.

11. Do not use Appliance on wet surfaces or surfaces with standing water.

12. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any item that may clog the Appliance.

13. Do not use Appliance to pick up flammable or combustible materials such as gasoline, printer or copier toner, or use in areas where they may be present.
14. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes, matches, hot ashes, or anything that could cause a fire.
15. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep the intake clear of dust, lint, hair, or anything that may reduce air flow.
16. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
17. The lithium battery type suitable for CH2367 is Max. 8 cells, max. nominal voltage DC 14.4V, rated capacity 5,800mAh. The battery must be removed and discarded according to local laws and regulations before disposal of the Appliance.
18. Turn OFF the power switch before cleaning or

maintaining the Appliance.

1. Please dispose of used batteries according to local laws and regulations.
2. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in a fire.
3. The Appliance must be used in accordance with the directions in this Instruction Manual. Ecovacs Home Service Robotics cannot be held liable or responsible for any damages or injuries caused by improper use.
4. The robot contains batteries that are only replaceable by skilled persons. To replace the robot's battery, please contact Customer Service.
5. Please make sure your power supply source voltage matches the power voltage marked on the OMNI Station.
6. Use only the original rechargeable battery and OMNI Station provided with the Appliance from the manufacturer. Non-rechargeable batteries are prohibited.
7. Take care not to damage the power cord. Do not pull on or carry the Appliance or OMNI Station by the power cord, use the power cord as a handle, close a door on the power cord, or pull

power cord around sharp edges or corners. Do not run Appliance over the power cord. Keep power cord away from hot surfaces.

1. Do not use the OMNI Station if it is damaged. The power supply is not to be repaired and not to be used any longer if it is damaged or defective.
2. Do not use with a damaged power cord or receptacle. Do not use the Appliance or OMNI Station if it is not working properly, has been dropped, damaged, left outdoors, or come in contact with water. It must be repaired by the manufacturer or its service agent in order to avoid a hazard.
3. The plug must be removed from the receptacle before cleaning or maintaining the OMNI Station.
4. Remove the Appliance from the OMNI Station, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.
5. When not using the OMNI Station for a long period of time, please unplug it.

6. If the robot will not be used for a long time, power OFF the robot for storage and unplug the OMNI Station.

7. WARNING-Add clean water into the clean tank only.

8. WARNING: For the purposes of recharging the battery, only use the detachable supply unit CH2367 provided with the Appliance.

To satisfy RF exposure requirements, a separation distance of 20 cm or more should be maintained between this device and persons during device operation.

To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

Device Update

Typically, some devices are updated bi-monthly, but not always so specific.

Some devices, especially those that went on sale more than three years ago, will only be updated if a critical vulnerability is found and fixed.

	Caution: hot surface
	Short-circuit-proof safety isolating transformer
	Switch mode power supply
	For indoor use only
	Direct current
	Alternating current
	This product conforms to the applicable EC Directives.
	Before charging, read the instructions.
	Polarity of the charging port
	Time-lag miniature fuse-link

The remote surveillance is for the absolute private use of non-public, private owned places for the pure self-protection and single control intended only. Please be aware of the local data protection based legal obligations in case of use. No surveillance of public places, especially with clandestine intent and/or on the part of the employer without justified reasons. Such not justified use is in the risk and responsibility of the user only.

European Union Compliance Statement Information on Disposal for Users of Waste Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that used electrical and electronic products should not be mixed with unsorted municipal waste.

For proper treatment, it is your responsibility to dispose of your waste equipment by arranging to return it to designated collection points.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

To return your used device, please use the return and collection systems or contact the retailer where the product was purchased, which is free of charge, please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Information on Disposal for Users of used batteries

This symbol means that batteries and accumulators, at their end-of-life, should not be mixed with unsorted municipal waste. Your participation is an important part of the effort to minimize the impact of batteries and accumulators on the environment and on human health. For proper recycling you can return this product or the batteries or accumulators it contains to your supplier or to a designated collection point, which is free of charge.

Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.

Penalties may be applicable for incorrect disposal of this waste, in accordance with your national .legislation. there are separate collection systems for used batteries and accumulators.

Please, dispose of batteries and accumulators correctly at your local community waste collection/recycling center.

Restriction of the use of certain hazardous substances (RoHS) Directive

Ecovacs Home Service Robotics Co., Ltd. hereby declares the whole product including parts (cables, cords, and so on) meets the requirements of RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment ("RoHS recast" or "RoHS 2.0").

Radio Equipment Directive

Ecovacs Home Service Robotics Co., Ltd. hereby declares that the product listed in this section comply with the essential requirements and other relevant provisions of the Radio Equipment Directive 2014/53/EU.

Europe Authorised Representative:

Ecovacs Home Service Robotics Co., Ltd. hereby declares that the product comply with the essential requirements and other relevant provisions of the RoHS Directive 2011/65/EU and amendment Commission Delegated Directive (EU) 2015/863, the Radio Equipment Directive 2014/53/EU. The declaration of conformity can be viewed at the following address: https://www.ecovacs.com/global/compliance.

Package Contents

Simple line drawing of a circular object with a small circular top and a ring at the center (no text or symbols)

Robot

Technical line drawing of a front view of a refrigerator with door, seat, and door panel (no text or symbols)

OMNI Station

Base

Power Cord

Instruction ManualSide Brush

Handheld Vacuum Cleaner

Line drawing of a mechanical device with no visible text or symbols

Main Unit Mini Power Brush

Simple line drawing of a T-shaped object with a rounded corner and horizontal bar (no text or symbols)

Flat Brush Crevice Tool

Optional Components

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

ZeroTangle Power Brush Extension Hose Holder

Note:

* ZeroTangle Power Brush, Extension Hose and Holder are optional components. To purchase, please visit ECOVACS HOME App or http://www.ecovacs.com/global.
* Figures and illustrations are for reference only and may differ from actual product appearance. Product design and specifications are subject to changes without notice.

Product Diagram

Robot

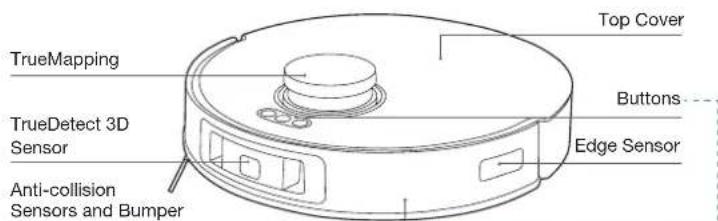

Top Cover TrueMapping Buttons TrueDetect 3D Sensor Edge Sensor Anti-collision Sensors and Bumper

Buttons

Short press: Exit/Return to the Station

Short press: Start/Pause/Continue

Short press: Start/End Spot Cleaning

Long press: Power on/Power off

Long press: Child Lock

RESET Button

Restore to default settings: Press and hold RESET button for 5 seconds.

After you hear the voice prompt, the startup music will be played and the robot will be restored to default settings.

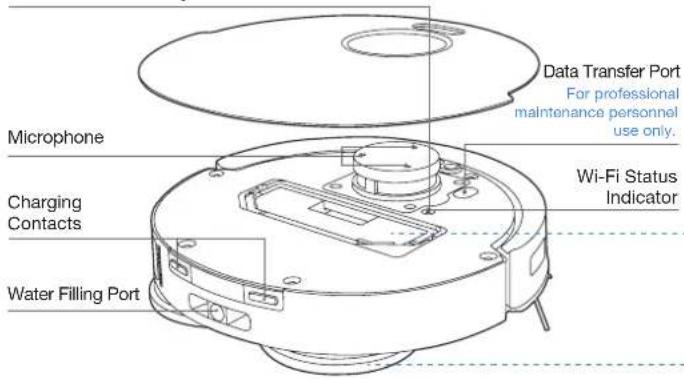

Data Transfer Port For professional maintenance personnel use only. Microphone Charging Contacts Water Filling Port Wi-Fi Status Indicator

Bottom View

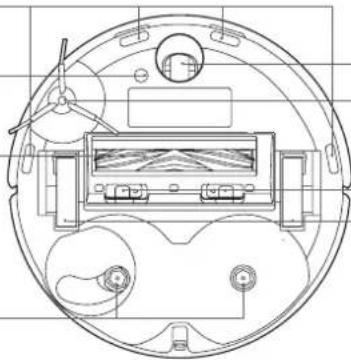

Anti-drop Sensors

Carpet Detection Sensor

Brush

Mounting Slots for Mopping Pad Assembly

Technical line drawing of a circular mechanical or electronic component with internal components and no visible text or symbols

Universal Wheel

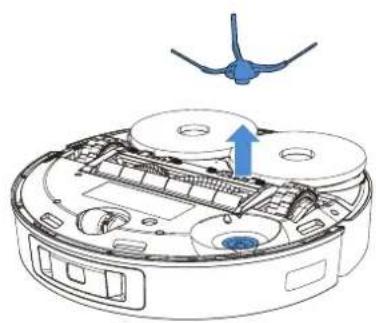

Side Brush

Brush Release

Button

Driving Wheels

Dust Bin

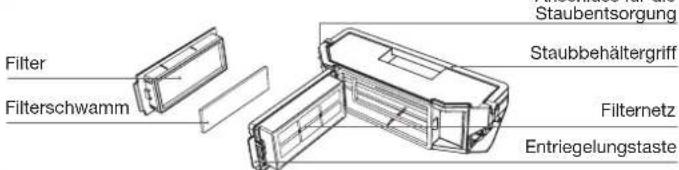

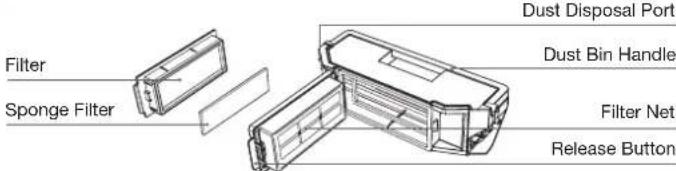

Filter Sponge Filter Dust Disposal Port Dust Bin Handle Filter Net Release Button

Mopping Pad Assembly

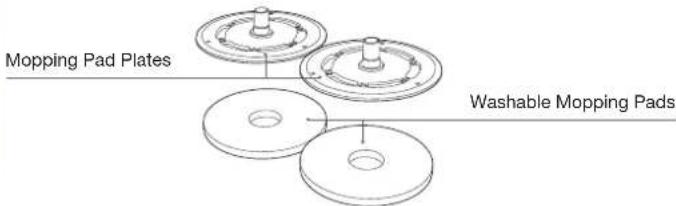

Mopping Pad Plates Washable Mopping Pads

OMNI Station

Note:

* Flashing Red: Please check the reason in ECOVACS HOME App.
* If DEEBOT fails to charge, please wipe Charging Contacts with a clean and dry cloth.

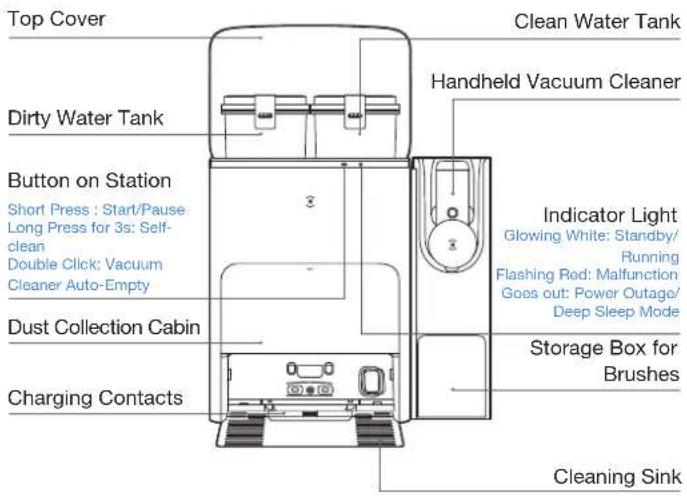

Top Cover Clean Water Tank Dirty Water Tank Handheld Vacuum Cleaner Button on Station Short Press : Start/Pause Long Press for 3s: Self-clean Double Click: Vacuum Cleaner Auto-Empty Dust Collection Cabin Charging Contacts Indicator Light Glowing White: Standby/ Running Flashing Red: Malfunction Goes out: Power Outage/ Deep Sleep Mode Storage Box for Brushes Cleaning Sink

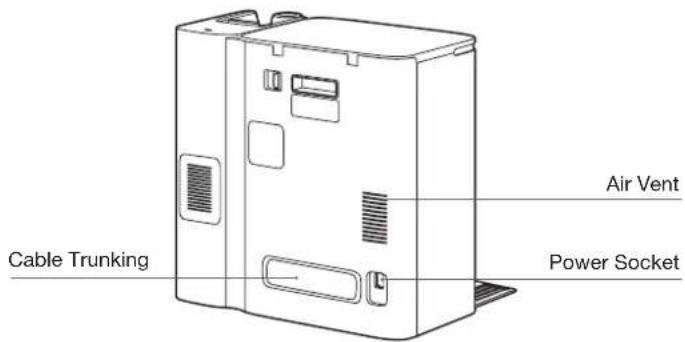

Station(Back)

Cable Trunking Air Vent Power Socket

Dust Bag

Dust Bag Handle

Handheld Vacuum Cleaner

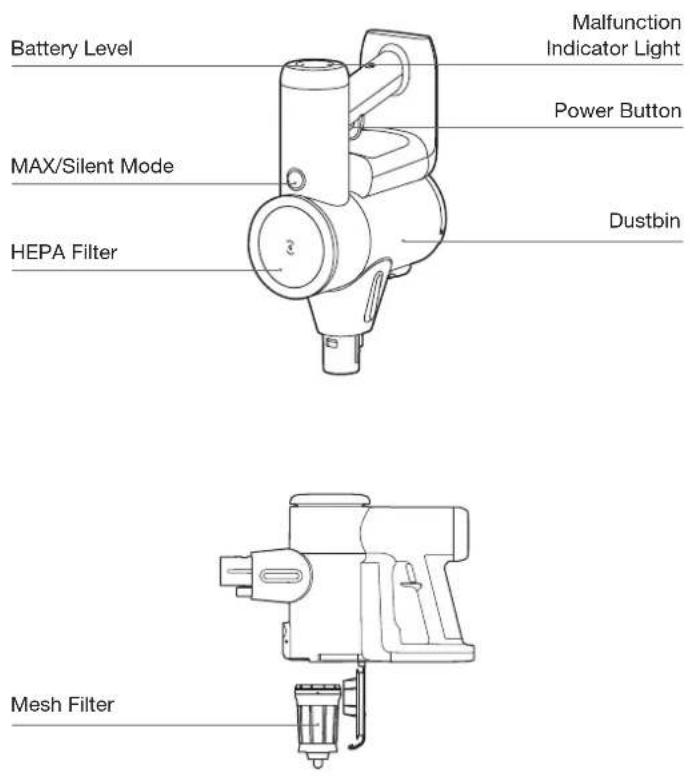

Battery Level MAX/Silent Mode HEPA Filter Malfunction Indicator Light Power Button Dustbin Mesh Filter

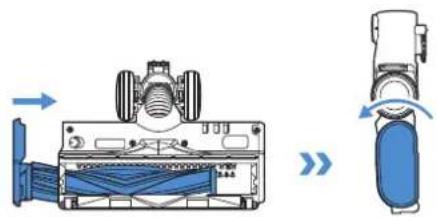

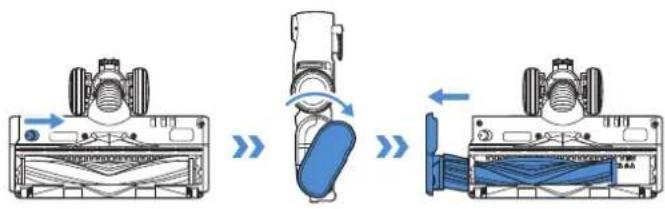

Mini Power Brush

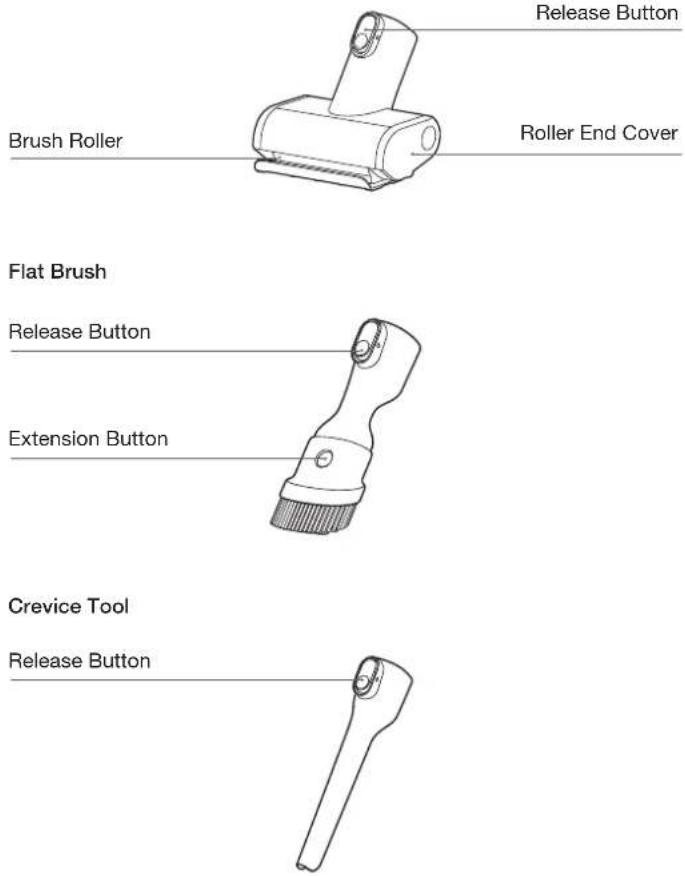

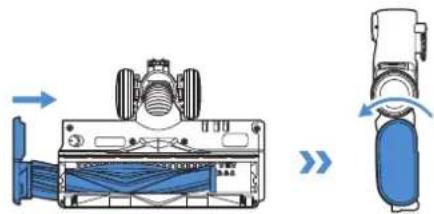

Release Button Brush Roller Roller End Cover Flat Brush Release Button Extension Button Crevice Tool Release Button

ZeroTangle Power Brush

Release Button

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Extension Hose

Release Button

Holder

Sensors

Name Functional Description
TrueMapping Distance Sensor	By utilizing the principle of triangulation, which involves emitting and receiving laser beams reflected by surrounding objects, precise distance measurement information between the DEEBOT and nearby objects can be calculated through algorithms. When the DEEBOT moves within a certain environment, the positions of surrounding objects are determined to create a spatial map of the DEEBOT's surroundings. The measurement range is 8 meters.
Microphone	Vibrating the diaphragm through air by human voice, it can realize Voice Recording and ask DEEBOT to complete the assigned work by Voice Control. Effective wake of 8m.
TrueDetect 3D Sensor	The TrueDetect 3D structured light sensor scans the object with a line laser and collect images with a monocular camera, and generates the three-dimensional coordinates of the object through image algorithms to identify the size of the object. The detection distance is 0.35m.
Anti-drop Sensor	With Infrared Ranging-detecting the distance between the bottom of DEEBOT and ground by Infrared Sensor at the bottom, DEEBOT will not move forward when there are stairs in front or the identified distance exceeds the preset one, realizing the Anti-drop. The trigger distance is 60mm.
Carpet Detection Sensor	The difference in energy of the ultrasonic echo signal on different surfaces is used to identify the floor material and help DEEBOT to adjust the cleaning strategy automatically. Drive frequency 290kHz.
Anti-collision Sensor	When the transmitted signal is blocked by an obstacle, the signal receiver will not be able to receive the signal. With this principle, DEEBOT will avoid obstacles when colliding with them.
Edge Sensor	With ToF distance measurement, DEEBOT can detect the distance between itself and objects on its right side. When there is a wall or obstacle on the right side, DEEBOT will perform edge cleaning to avoid missing spots or collisions.

Notes Before Cleaning

Tidy up the area to be cleaned by putting furniture, such as chairs, in their proper place.

Simple line drawing of a desk with a checkmark and a fan on top, no text or symbols present

It may be necessary to place a physical barrier at the edge of a drop to stop the unit from falling over the edge.

Simple line drawing of a balcony with railing and circular base (no text or symbols)

During the first use, make sure each room door is open to help DEEBOT fully explore your house.

Pure architectural floor plan lines without any text, numbers, or symbols

Put away objects including cables, cloths and slippers, etc. on the floor to improve the cleaning efficiency.

Before using the product on a rug with tasseled edges, please fold the rug edges under.

Please do not stand in narrow spaces, such as hallways, and make sure not to block the TrueMapping Distance Sensor.

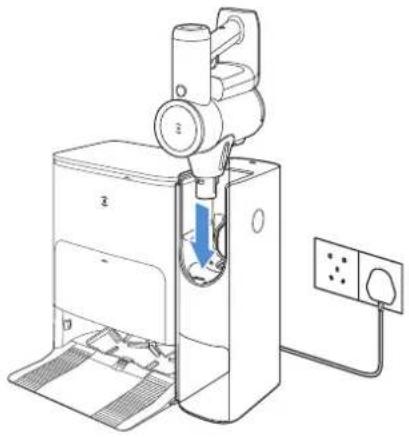

Handheld Vacuum Cleaner

Before the first use, please charge the appliance for 4-5 hours in an area where the ambient temperature is between 39.2°F (4°C) and 104°F(40°C).

Line drawing of a washing machine with a blue arrow indicating airflow or motion, connected to a power outlet (no text or symbols)

Note:

• During long periods of not being used, store the appliance in a cool, dry place. Ensure the battery is fully charged every 3 months.
• Do not expose appliance to sunlight or freezing temperature. Recommended temperature range: 39.2°F (4°C)–104°F (40°C).

Quick Start

Before using, please remove all protective materials.

Installation

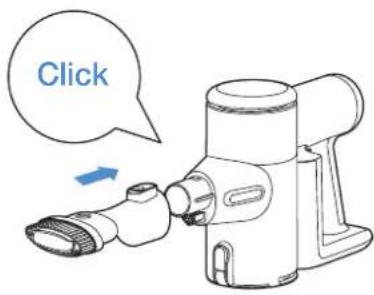

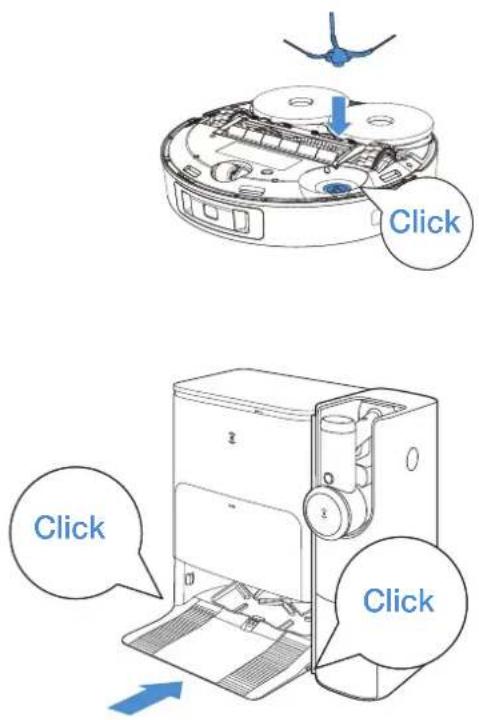

The sound of Click indicates proper installation.

Click Click Click Click

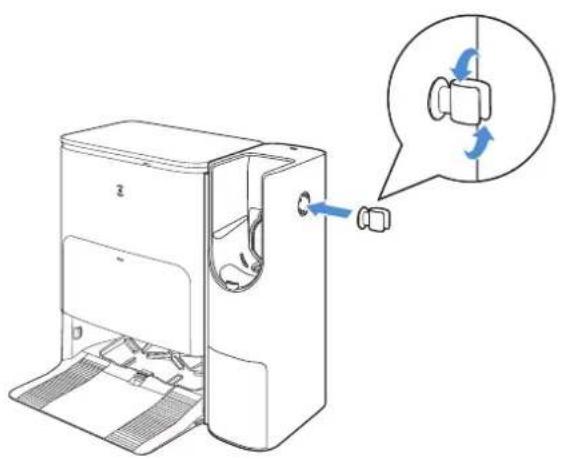

Turn counterclockwise to install the holder to place the ZeroTangle Power Brush.

Diagram of a device with a close-up view showing a component being inserted, no text or symbols present

Select an accessory and attach it to the appliance before use.

Click

Press the release button to disconnect.

Illustration of a hand holding a handheld device with blue arrows indicating motion or force (no text or symbols)

Charge

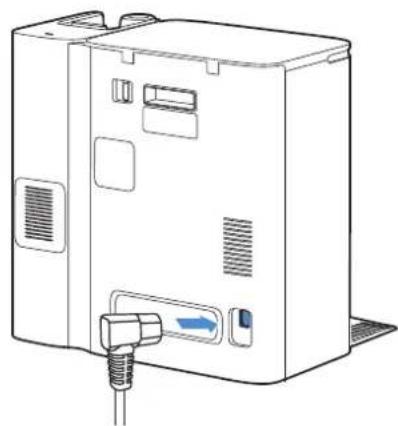

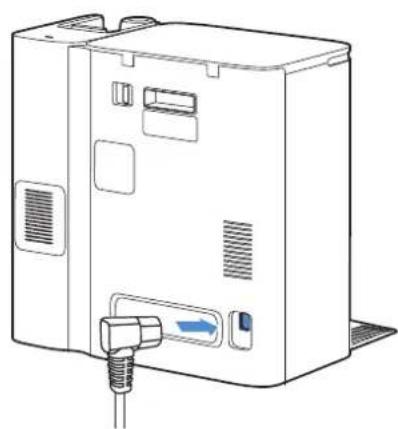

Assemble the Station

Line drawing of a server rack unit with a blue arrow indicating a component (no text or symbols present)

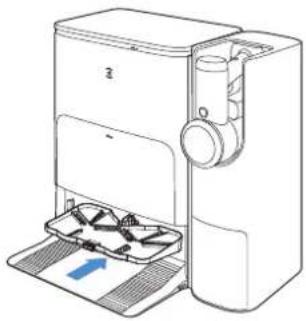

Place the Station

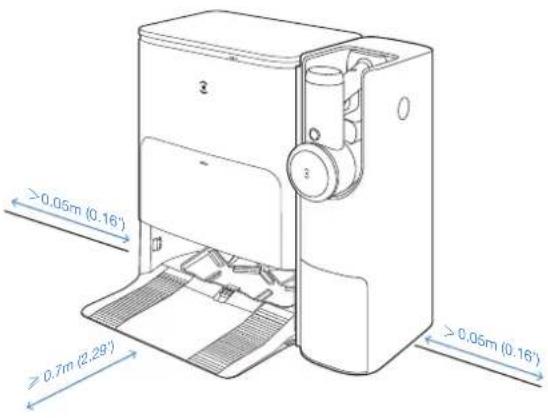

Keep the area around the Station clear of objects especially objects with reflective surfaces.

>0.05m (0.16') ≥ 0.7m (2.29') ≥ 0.05m (0.16')

Note:

• If there are reflective objects such as mirrors and reflective skirting lines near the Station, the bottom 14cm of that should be covered.
• Do not place the Station under direct sunlight.
• It is recommended to place the Station on the hard floor to experience complete functions of the robot.
• Place Station in a location with a strong Wi-Fi signal.

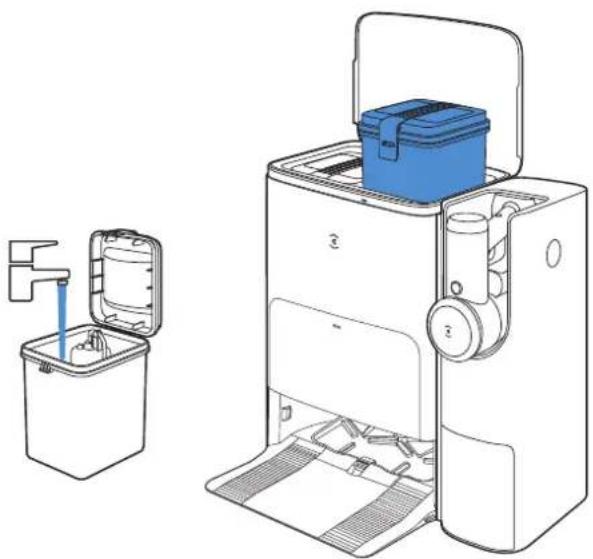

Add Water to Clean Water Tank

Line drawing of a portable appliance with a blue internal box and open lid, alongside a smaller container with a blue handle (no text or symbols)

Note: It is recommended to use ECOVACS DEEBOT Cleaning Solution (sold separately). Using other cleaning solution may cause DEEBOT slipping, water tank block and other problems.

Download the ECOVACS HOME App

To enjoy all available features, it is recommended to control your DEEBOT via the ECOVACS HOME App.

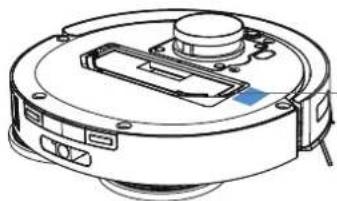

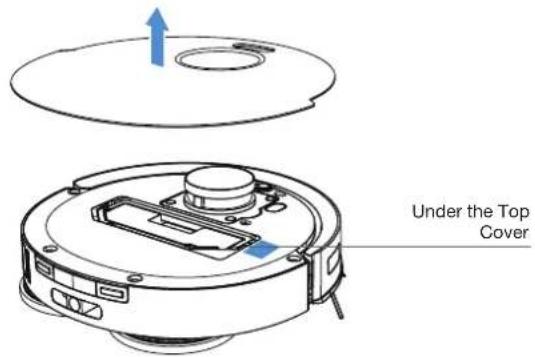

1. Scan the QR Code under the Top Cover to download the App.

Under the Top Cover

1. Search the ECOVACS HOME to download the App.

Power on DEEBOT

Press and hold (for 3 seconds, wait for the startup music to play, indicating that the DEEBOT has powered on.

long press

Connect DEEBOT with App

1. Via Bluetooth:

Turn on the DEEBOT and mobile phone Bluetooth. Allow the App to obtain mobile phone Bluetooth permission. Tap [→] to scan the QR Code on DEEBOT or tap Add in the App to find nearby DEEBOT.

2. Via Wi-Fi:

You can also choose to connect DEEBOT with the App through other methods according to the prompts on the App's page.

Note: Please select the appropriate connecting method.

Wi-Fi Network Requirements:

• You are using a 2.4GHz or 2.4/5 GHz mixed network.
• Your router supports 802.11b/g/n and IPv4 protocol.
• Do not use a VPN (Virtual Private Network) or Proxy Server.
• Do not use a hidden network.

- WPA and WPA2 using TKIP, PSK, AES/CCMP encryption.

- WEP EAP (Enterprise Authentication Protocol) is not supported.

- Use Wi-Fi channels 1-11 in North America and channels 1-13 outside North America (refer to local regulatory agency).

- If you are using a network extender/repeater, the network name (SSID) and password are the same as your primary network.

- Please enable the WPA2 on your router.

Wi-Fi Indicator Light

	White light slow flash Connecting
	White light fast flash Disconnected to Wi-Fi
	Solid White Light Connected to Wi-Fi

Please be aware that the realization of intelligent functions such as remote startup, voice interaction, 2D/3D map display and control settings, and personalized cleaning (depending on different products) requires users to download and use ECOVACS HOME App, which is constantly updated. You need to agree to our Privacy Policy and User Agreement before we can process some of your basic

and necessary information and enable you to operate the product. If you do not agree with our Privacy Policy and User Agreement, some of the aforementioned intelligent functions cannot be realized through ECOVACS HOME App, but you can still use the basic functions of this product for manual operation.

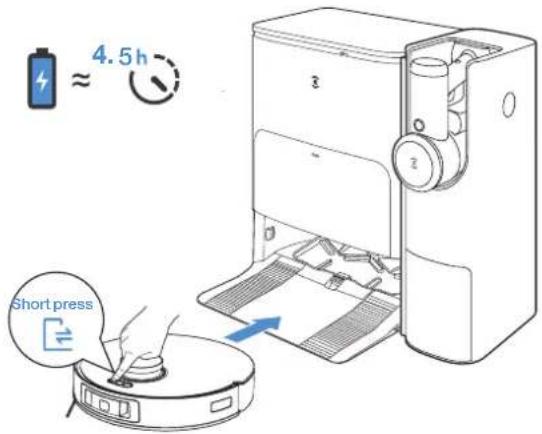

Charge DEEBOT

Short press ☐ to recall DEEBOT to enter the Station to charge.

Short press ≈ 4.5 h

Note: After DEEBOT enters the Station, wait for about 5 seconds and you will hear the voice prompt "Pairing Successful".

Operate DEEBOT

DEEBOT will create a map during the first-time cleaning. When creating a map for the first time, please follow DEEBOT to help eliminate some minor issues. For example, DEEBOT may get stuck under the furniture. Please refer to the following solutions:

1. Raise the low sitting furniture if possible;
2. Cover the bottom of the furniture;
3. Set up Virtual Boundary via the App.

Short press ⏻ to start. For the first-time cleaning, please ensure that DEEBOT is fully charged.

Short press

Note: When DEEBOT is not working, it is recommended to keep it powered ON and charging.

Note:

1. Do not frequently remove washable mopping pads.
2. Do not scratch the Mopping Pad Plates with a rag or any other object.
3. When the ECOVACS HOME App prompts that the mops need to be replaced, please replace them in time. Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com/global.

Station Operate Handheld Vacuum Cleaner

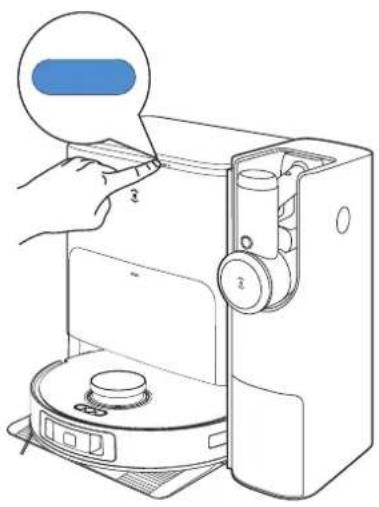

Short press to start/pause. Long press to self-clean the Station. Double click to start Vacuum Cleaner Auto-Empty.

Illustration of a hand using a digital kitchen appliance to clean or store food items (no text or symbols visible)

1. Press (to activate suction. Press it again to turn off the appliance. When the Vacuum Cleaner is in operation, press and hold the ⏻ for 10 seconds to turn off the appliance.

Line drawing of a hand operating a sewing machine (no text or symbols)

1. The appliance will start in MAX mode by default. Press the button to switch between MAX and Silent mode.

Line drawing of a hand pressing a button on a cylindrical device (no text or symbols)

Note:

· Auto-Emptying Dustbin is supported.
- When in Silent mode, the runtime is approximately 60 minutes. When Max power is used, the runtime is approximately 15 minutes.
· A full charge takes approximately 4-5 hours.
- Place the vacuum onto the Station. The Station will then start charging, meanwhile Auto-Emptying will also be activated.

REGULAR MAINTENANCE

To keep DEEBOT running at peak performance, perform maintenance tasks and replace parts at the following frequencies:

Robot Part Maintenance Frequency Replacement Frequency
Washable Mopping Pad / Every 1-2 months
Side Brush Once every 2 weeks Every 3-6 months
Floating Rubber Brush Once per week Every 6-12 months
Filter Once per week Every 3-6 months
TrueDetect 3D SensorUniversal WheelAnti-Drop SensorsBumperCharging ContactsTrueMapping	About 1 month /
Clean Water Tank Once every 3 months /
Dirty Water Tank	Once per month /
Dust Collection Cabin	Once per week	/
Station	Once per week	/
Mesh Filter	Once every 6 months	/
HEPA Filter	Once every 6 months	Once every 24 months

Before performing cleaning and maintenance tasks on DEEBOT, turn the robot OFF and unplug the Station. Note: ECOVACS manufactures various replacement parts and fittings. Please contact Customer Service for more information on replacement parts.

MAINTAIN DUST BIN AND FILTER

1

Diagram showing a container being poured into a cup with blue dots indicating liquid (no text or symbols present)

2

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.

4

Two technical diagrams showing mechanical assembly or assembly steps with no visible text or symbols

Note:

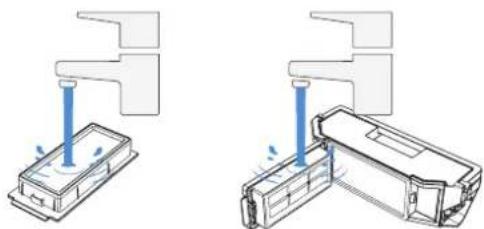

• Please rinse the filter with water as shown above.
• Do not use finger or brush to clean the Filter.

5

Diagram showing a solar-powered device with a light source and internal components, no text or symbols present

Note: Completely dry the filter before use.
Explore more accessories at ECOVACS HOME App or at https://www.ecovacs.com/global.

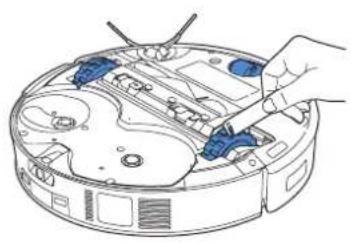

MAINTAIN FLOATING RUBBER BRUSH AND SIDE BRUSH

1 Floating Rubber Brush

Diagram showing a CD or DVD disc assembly with an inset close-up of its internal components, labeled in English.

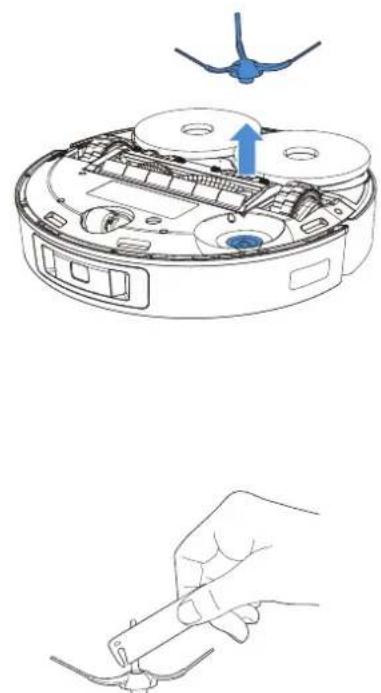

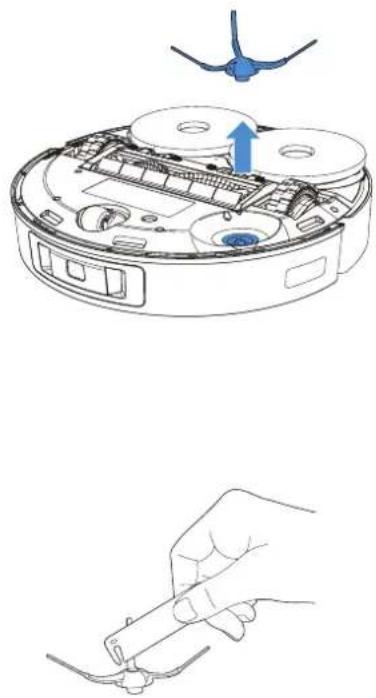

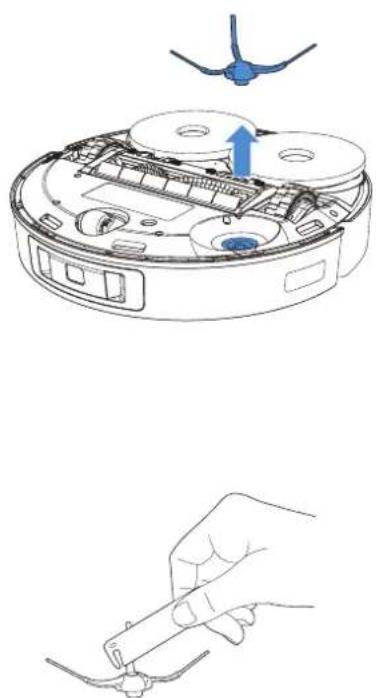

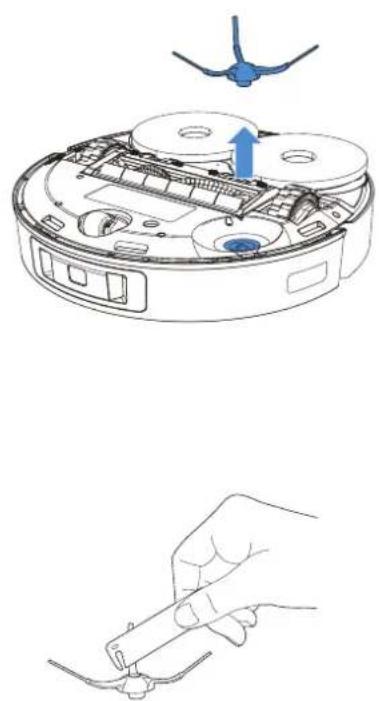

2 Side Brush

Diagram of a device's internal components with an airplane overhead, showing no text or symbols.

Diagram of a CD or DVD disc assembly with a blue cable and directional arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool with wires (no text or symbols)

Line drawing of a hand using a tool to cut a cylindrical object with a blue circular mark (no text or symbols)

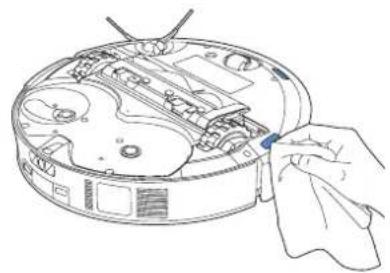

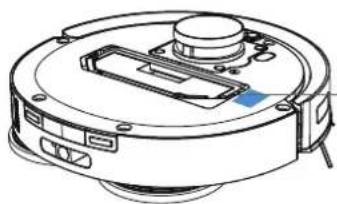

Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.

MAINTAIN OTHER COMPONENTS

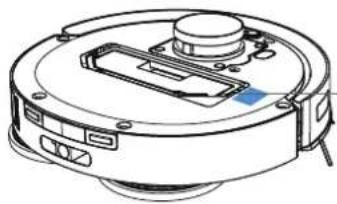

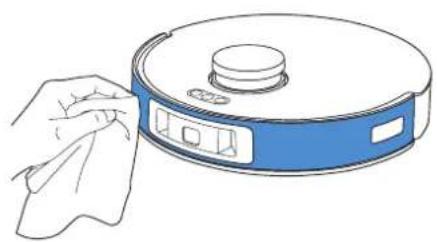

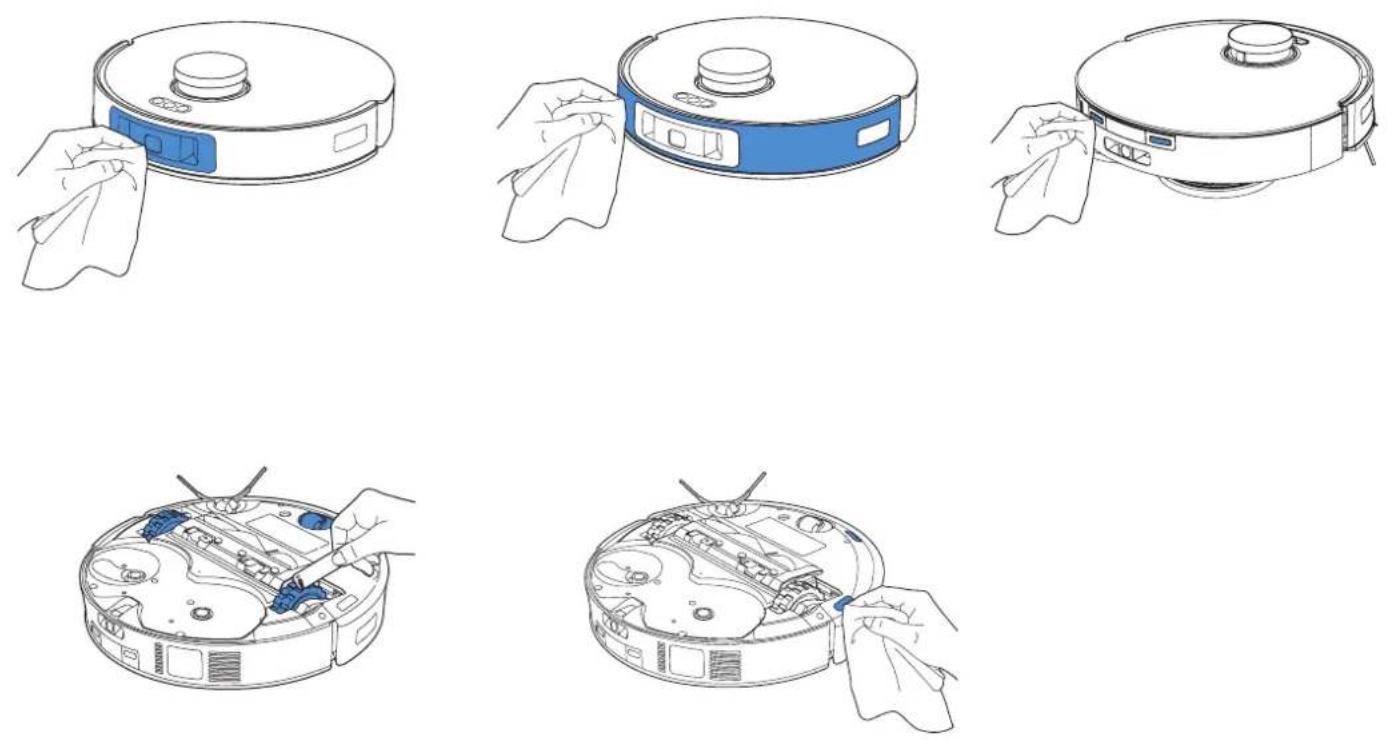

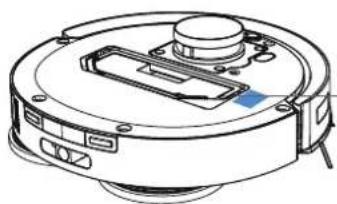

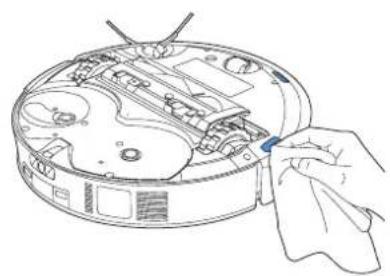

Note: Wipe the components with a clean, dry cloth. Avoid using cleaning sprays or detergents.

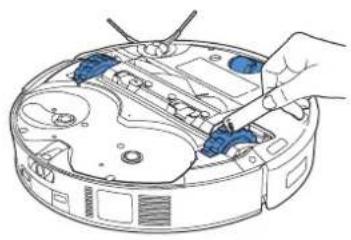

Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.

MAINTAIN STATION

Note:

• Please don't enable self-clean when DEEBOT is working.
• If there is remaining dirty water in the Cleaning Sink, the Station will drain the water first after a long press. Please long press to start self-clean.

1 Long press to direct DEEBOT to exit from Station

Diagram showing a hand operating a device with a blue indicator box, labeled with numbers 1 and 2.

3 The Station will drain the water out of Cleaning Sink automatically

Diagram showing a hand inserting a component into a device with labeled parts and a blue speech bubble pointing to the component.

② Clean Cleaning Sink

Technical line drawing of a mechanical device with no visible text or symbols

4 Empty Dirty Water Tank

Diagram of a printer or printer with a blue triangular tip emerging from its side (no text or symbols)

Note: Maintenance tools are not included. Please clean with your own brush or similar tools at home.

MAINTAIN CLEANING SINK

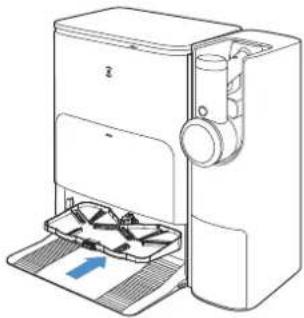

1 Take the Detachable Tray and Base Filter to Wash

Illustration of a hand inserting a blue tool into a machine (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a portable device with a fan and control panel, showing internal components (no text or symbols)

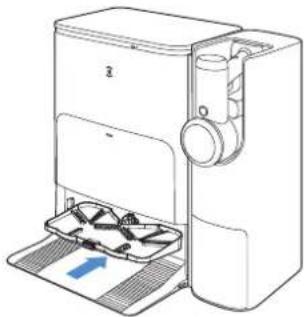

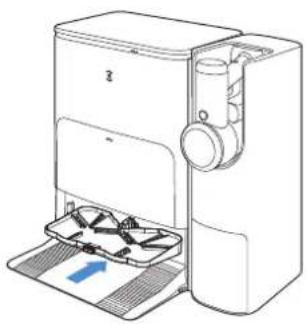

2 Install

Line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical component with a blue arrow indicating a force or movement, no text or symbols present.

Note: Please install Cleaning Sink properly to prevent malfunction.

MAINTAIN DUST BAG

1 Discard the Dust Bag

Click

Line drawing of a mechanical device with a blue arrow indicating rotation or movement (no text or symbols)

Diagram of a printer with a blue label 'C01' being inserted into the main chamber (no text or symbols on the device itself)

Simple line drawing of a container with a lid and a small object inside, no text or symbols present.

Hold the Handle to lift out the Dust Bag, which can effectively prevent dust leakage.

② Clean the Dust Collection Cabin with a Dry Cloth and Put a New Dust Bag in

Diagram of a printer or scanner device with a blue arrow indicating a process, no visible text or symbols.

Note: Please unfold the new Dust Bag.

3 Close the Dust Collection Cabin

Click

STORAGE DUSTBIN AND MESH FILTER

Please fully charge and switch OFF the DEEBOT before storage. Please recharge it every 1.5 months to prevent the battery from over-discharge.

Hand inserting a power button into a circular device (no text or symbols visible)

Note:

• DEEBOT can't be charged when the power is turned off.
• If the battery is over-discharged or not used for a long time, the DEEBOT may not be charged. Please contact ECOVACS for help. Do not disassemble by yourself.

1 Press the release button on the side of the Dustbin to open the flap. Remove the Mesh Filter. Do not turn the appliance upside down when removing or installing the Mesh Filter to prevent dust from entering the motor.

Line drawing of a hand operating a sewing machine with a blue arrow indicating the press direction (no text or symbols)

Diagram of a hairdryer with a downward arrow indicating compression or disassembly (no text or symbols present)

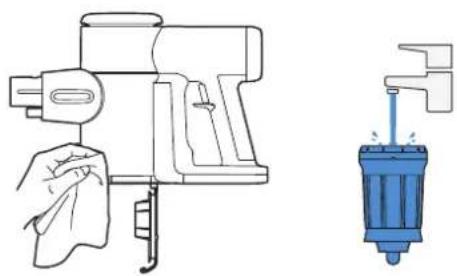

2 Wipe Dustbin with clean and soft cloth. The Mesh Filter can be washed under cold running water.

Line drawing of a hand cleaning a spray gun with cloth (no text or symbols)

3 The Mesh Filter must be completely dry before reinstalling. Cover the flap. The sound of Click indicates proper installation.

HEPA FILTER

1 Pull out the HEPA Filter for cleaning. Do not use the appliance without first installing the HEPA Filter.

Illustration of a hand holding a cylindrical object above a mechanical device with an upward arrow (no text or symbols)

2 The HEPA Filter can be washed under running water and must be completely dry before reinstalling.

Line drawing of a mechanical device with an upward arrow indicating motion (no text or symbols)

Line drawing of a handheld electric shaver with a blue arrow indicating rotation (no text or symbols)

Illustration of a hand using a hairdryer to press down a cylindrical object (no text or symbols present)

Note: Please don't wash Dustbin with water.

MINI POWER BRUSH

1 Clean the surface with a soft and clean cloth.

Line drawing of a hand cleaning a rolled-up mechanical component (no text or symbols)

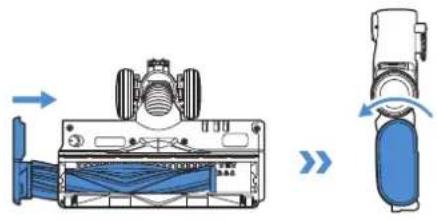

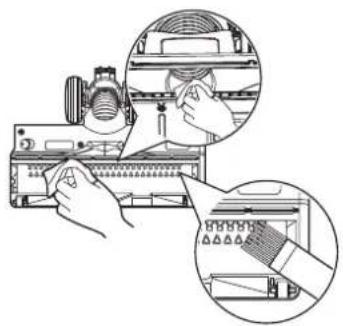

2 Press against the Roller End Cover downward. Pull out the Brush Roller.

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable (no text or symbols)

3 Remove the debris wrapped around the Roller with a tool.

Line drawing of a hand holding a coiled cable or wire (no text or symbols)

4 Fully reinsert the Brush Roller at an angle and push upward until it clicks securely back into place.

Click

With the power off, slide the switch to open the Brush Roller End Cover, and rotate it counter-clockwise to pull out the Brush Roller.

Three-step diagram showing a device with fan, valve, and base components (no text or symbols)

2 After removing the Brush Roller, gently clean the brush window, suction mouth and the row of plastic teeth.

Illustration of hands installing or adjusting a device panel with a rack, showing internal components and wiring (no text or symbols present)

3 Remove the debris wrapped around the roller.

Hand holding a pen over a wire-wrapped object (no text or symbols visible)

4 Fully reinsert the Brush Roller into the brush window and the End Cover can be rotated counter-clockwise until it clicks securely back into place.

Diagram showing a device with a fan blade and internal components, connected to a cylindrical device with directional arrows indicating motion (no text or symbols present)

TROUBLESHOOTING

No.	Malfunction Possible Causes Solutions
1	DEEBOT is not able to connect to ECOVACS HOME App.	Incorrect home Wi-Fi username or password entered. Enter the correct home Wi-Fi username and password.
		DEEBOT is not within range of your home Wi-Fi signal.	Make sure DEEBOT is within range of your home Wi-Fi signal. Try to stay as close to the Wi-Fi signal as possible.
		DEEBOT is not in the configuration state.	Press the Reset Button to connect DEEBOT to your phone by Bluetooth. If failed, please press the Reset Button and 🏻 to connect via ECOVACS HOME App.
		Incorrect App installed. Please download and install ECOVACS HOME App.
		There is no home Wi-Fi on the Wi-Fi list.	1. Check if the Wi-Fi name contains special characters. Please do not use special characters like ! @#&¥%/.2. Do not use a 5Ghz network.
2	The map is lost.	The map might be lost if you move DEEBOT when cleaning.	Move DEEBOT to the front of the Station to retrieve the map.Find the restored map in the Map Management and tap “Use This Map” to retrieve it. You can lock the map in the ECOVACS HOME App.If this problem persists after trying the above solutions, please restart mapping.
3	Unable to create furniture map on App.	Move DEEBOT when cleaning might cause the map to be lost.	During cleaning, do not move DEEBOT.
		Auto cleaning is not finished. Make sure DEEBOT automatically return to the Station after cleaning.
4	DEEBOT Side Brush drops out of place during use.	The Side Brush is not properly installed. Make sure the Side Brush clicks into place.
5	No signal found. Unable to return to the Station.	The Station is incorrectly placed.	Please place the Station correctly according to the instructions in the [Charging DEEBOT] section.
		The Station is out of power or manually moved.	Check whether the Station is connected to power supply. Do not manually move the Station.
		DEEBOT does not start cleaning from the Station. It is recommended that DEEBOT start cleaning from the Station.
		The charging route is blocked. For example, the door of the room with the Station is closed.	Keep the charging route clear.
6	DEEBOT returns to the Station before it has finished cleaning.	The room is so large that DEEBOT needs to return to recharge.	Please enable Continuous Cleaning. For more details, please follow the App instruction.
		DEEBOT is unable to reach certain areas blocked by furniture or barriers.	Tidy up the area to be cleaned by putting furniture and small objects in their proper place.
7	DEEBOT is unable to charge.	DEEBOT is not switched ON. Switch ON DEEBOT.
		DEEBOT's Charging Contacts are not connected to the Station Pins.	Make sure that the robot's Charging Contacts have connected to the Station Pins and flashes.Check whether DEEBOT's Charging Contacts and the Station Pins are dirty. Please clean these parts according to the instructions in the [Maintenance] section.
		The Station is not connected to the power supply. Make sure the Station is connected to the power.
8	Running is very loud during cleaning.	Side brush and floating rubber brush are entangled. Dust bin and filter are blocked.	It is recommended to clean the side brush, floating rubber brush, dust bin, filter, etc. regularly.
		DEEBOT is in Max Mode. Switch to Standard Mode.
9	DEEBOT gets stuck while working and stops.	DEEBOT is tangled with something on the floor (electrical wires, curtains, carpet fringing, etc.).	DEEBOT will try various ways to free itself. If it is unsuccessful, manually remove the obstacles and restart.
		DEEBOT might be stuck under furniture with an entrance of similar height.	Please set a physical barrier, or set a Virtual Boundary via the ECOVACS HOME App.
		DEEBOT is stuck in a narrow area.	Tidy up the house. Or set a physical barrier. Or set a Virtual Boundary via the ECOVACS HOME App.
10	The following problems appear when DEEBOT is working:disordered cleaning route, deviation from the cleaning route, repeated cleaning, or missing of small areas to be cleaned. (If there is a large area that has not been cleaned temporarily, DEEBOT will automatically clean the missing area. Sometimes DEEBOT will re-enter a cleaned room, which may not be a repeated cleaning, but DEEBOT finding any missing area.)	Objects such as wires and slippers placed on the ground block the DEEBOT.	Please tidy up the scattered objects on the ground such as wires, slippers before cleaning. If there is any area missing, DEEBOT will clean the missing area by itself, please do not interfere (such as moving DEEBOT or blocking the route).
		It may be that the Driving Wheels slip on the ground when DEEBOT climbs steps, thresholds and door bars, thus affecting its judgment of the whole house environment.	It is recommended to close the door of this area and clean the area separately. After cleaning, DEEBOT will return to the starting location. Please rest assured to use.
		Work on freshly waxed and polished floors or smooth tiles, resulting in less friction between the Driving Wheels and the floor.	Please wait for wax to dry before cleaning.
		Due to different home environments, some areas cannot be cleaned.	Tidy up the home environment to ensure that DEEBOT can enter for cleaning.
		The TrueMapping Distance Sensor is dirty or blocked by foreign matters.	Wipe the TrueMapping Distance Sensor with a clean soft cloth or remove foreign matters.
11	After returning to the Station, DEEBOT does not empty the Dust Bin.	The Auto-Empty function has not been turned on in the ECOVACS HOME App.	Turn on the Auto-Empty function in the ECOVACS HOME App.
		Dust Bag is not installed in the Station. Install the Dust	Bag, and close the Dust Collection Cabin .
		Manually moving DEEBOT back to the Station might not trigger Auto-Empty function.	It is recommended to let DEEBOT return to the Station on its own. Please do not manually move it.
		In Do Not Disturb mode, DEEBOT will not empty the dust after returning back to the Station.	Turn off Do Not Disturb mode in ECOVACS HOME App or manually start dust-emptying.
		The Station detects a decrease in empty efficiency.	Replace the Dust Bag according to the [Maintenance] section and close the Dust Collection Cabin. If the Dust Bag is not full when ECOVACS HOME App prompts, you can put it back again.
		If the above possible causes have been ruled out, components of the Station may be abnormal.	Please contact Customer Care for help.
12	Fail to empty the Dust Bin.	The Station detects a decrease in empty efficiency.	Replace the Dust Bag according to the [Maintenance] section and close the Dust Collection Cabin. If the Dust Bag is not full when ECOVACS HOME App prompts, you can put it back again.
		The outlet of Dust Bin is blocked by foreign objects.	Remove the Dust Bin and clean the foreign objects on the outlet.
13	The inner side of Dust Collection Cabin is dirty.	Fine particles are absorbed in the inner side of Dust Collection Cabin through the Dust Bag.	Clean the inner side of Dust Collection Cabin.
		The Dust Bag is broken. Check the Dust Bag. Replace it.
14	Dust leakage occurs during working.	The outlet of Dust Bin is blocked by foreign objects.	Remove the Dust Bin and clean the foreign objects on the outlet.
15	Mopping Pad Plate cannot rotate.	The Mopping Pad Plate is blocked by foreign objects.	Clean the foreign objects.
		Mopping Pad Plate is not correctly installed.	Please install Mopping Pad Plate correctly. A sound of Click means properly installation.
16	DEEBOT does not respond to the Station instruction.	DEEBOT is not in the Station.	Please make sure DEEBOT is in the Station.
17	Driving wheels are blocked. Driving wheels are blocked by foreign objects.		Please rotate and press the driving wheels to check whether there is any foreign object wrapped or stuck. If there is any foreign object, please clean it in time. If this problem persists, please contact Customer Care for help.
18	When the water in the Cleaning Sink is full and cannot be drained out, the voice reports that the Cleaning Sink is full.	The Dirty Water Tank is not properly installed. Tap down on the Dirty Water Tank to ensure it is properly installed.
		The sealing plugs in the Dirty Water Tank is not installed properly.	Make sure to check that the sealing plugs are properly installed.
		The Station cannot drain water normally.	Long press to see whether the Station can properly draw the water. If the water is successfully drawn, wipe dry the Water Overflow Sensor of the Cleaning Sink. If the Station fails to draw the water, check between the Dirty Water Tank and the Station for foreign object and clean it.
		The suction port of the Cleaning Sink is blocked by foreign object.	Ensure that there is no foreign object in the suction port of the Cleaning Sink .
		The voice prompt still exists after trying the above solutions.	Unplug the Station and plug it again. If this problem persists, please contact Customer Care for help.
19	The vacuum cleaner does not turn on.	No power. Charge the battery.
		Auto protection for overheating. Restart after cooling down.
		The appliance is blocked (i.e. the tube, suction mouth or some other parts).	Check and remove blockages.
20	Weak suction power of vacuum cleaner.	Dustbin and filters are full. Clean the Dustbin and filters.
		The appliance is blocked (i.e. the tube, suction mouth or some other parts).	Remove blockages.
		The brush roller tangled with hairs or fibers. Clean the brush roller.
21	Battery of vacuum cleaner won't charge.	The adaptor is not correctly inserted. Reinsert the adaptor correctly.
		Vacuum is not properly placed on the dock. Pull the vacuum up and place it back on the dock again.
22	Abnormal motor sounds of vacuum cleaner.	The appliance is blocked (i.e. the tube, suction mouth or some other parts).	Remove blockages.
23	Malfunction Indicator Light on vacuum cleaner is on.	Something is wrong. Please contact customer service.

TECHNICAL SPECIFICATIONS

DEEBOT
Model DDX14
Rated Input 20V	=== 2A
Charging Time about 4.5h
Station Model CH2367
Rated Input 220-240V	~ 50-60Hz
Rated Output for DEEBOT 20V	=== 2A
Rated Output for vacuum cleaner	18V === 1A
Rated Input Current(Charging) 0.5A
Power(Emptying) 1000W
Power(Hot Water Washing Mop)	1650W
HANDHELD VACUUM CLEANER
Model FM2320
Rated Input 18V	=== 1A
Dustbin Capacity 0.3L
Charging Time 4	~ 5h
Maximum Working Time for One Charge	≈60min

Output power of the wireless module is less than 100mW.
Note: Technical and design specifications may be changed for continuous
product improvement.
Explore more accessories at https://www.ecovacs.com/global.

Diagram of a robotic vacuum cleaner with a circular housing and blue arrow indicating upward motion (no text or symbols)

Please use the mobile camera to scan the QR code and obtain the user guide.

Simple line drawing of a circular object with a small ring and two small protrusions on top (no text or symbols)

Roboter

Technical line drawing of a front view of a computer chassis with monitor, keyboard, and U-shaped door (no text or symbols)

OMNI-Station

Basis

Netzkabel

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a T-shaped object with a rounded corner and horizontal bar (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a circular mechanical or electronic component with internal components and no visible text or symbols

Universalrad

Seitenbürste

Entriegelungstaste

für die

Bürste

Antriebsräder

Staubbehälter

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Verlängerungsrohr

Entriegelungstaste

Halter

SENSOREN

Simple line drawing of a desk with a checkmark and a fan on top, no text or symbols present

Simple line drawing of a balcony with railing and circular base (no text or symbols)

Floor plan outline with room labels and doorways (no text or symbols)

Technical line drawing of a printer with a paper feeding into a rack, connected to a power outlet (no text or symbols present)

Hinweis:

Diagram of a device with a close-up view showing a mechanical component and directional arrows (no text or symbols)

Illustration of a hand holding a handheld device with blue arrows indicating motion or force (no text or symbols)

AUFLADEN

Line drawing of a server rack unit with a blue arrow indicating a component (no text or symbols present)

>0.05m (0.16") ≥0.7m (2.29') ≥0.05m (0.16)

Hinweis:

Technical line drawing of a portable appliance with a blue internal box and open lid, alongside a separate diagram showing its open lid (no text or symbols present)

Line drawing of a hand using a digital kitchen machine to clean or store food (no text or symbols visible)

Line drawing of a hand operating a handheld device (no text or symbols)

Line drawing of a hand pressing a button on a cylindrical device (no text or symbols)

Hinweis:

Diagram showing a container being poured into a cup with blue dots indicating liquid (no text or symbols present)

2

Technical line drawing of a mechanical assembly with a blue arrow indicating direction (no text or symbols)

3

Line drawing of a hand inserting a component into a plastic housing (no text or symbols)

Two technical diagrams showing mechanical assembly or assembly steps with no visible text or symbols

Diagram showing a solar system with sunlight illuminating two rectangular units (no text or symbols)

Diagram illustrating the assembly process of a CD or DVD disc, showing steps from receipt to disassembly.

2 Seitenbürste

Technical illustration showing a device interior with a blue arrow indicating a component, and a hand holding a tool (no text or symbols present)

Diagram of a device being processed into a machine, showing a hand interacting with the lid and a blue button (no text or symbols present)

Diagram showing a hand inserting a blue object into a device with labeled parts and arrows indicating process flow.

Technical line drawing of a mechanical device with no visible text or symbols

Pure diagram of a mechanical component with no text, numbers, or symbols visible

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with a blue tool inserted, no visible text or symbols

Technical line drawing of a mechanical device with a blue arrow indicating rotation or movement (no text or symbols)

Illustration of a printer with a blue '101' label being inserted, showing paper and printer (no text or symbols on the device itself)

Simple line drawing of a container with a lid and arrow indicating direction (no text or symbols)

Diagram of a printer or scanner device with a blue arrow indicating a process, no visible text or symbols.

Line drawing of a hand pressing a button on a circular device (no text or symbols)

Hinweis:

Line drawing of a hand using a hairdryer to press or install a button, with no text or symbols present.

Diagram of a handwashing device with a blue downward arrow indicating a reduction or inspection (no text or symbols present)

Illustration of a hand cleaning a spray gun and a blue spray can stack into it (no text or symbols)

Illustration of a hand holding a filter component next to a washing machine, with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a water tap, 24-hour clock, and sunlight application process with corresponding icons and arrows indicating sequence.

MINI-ELEKTROBÜRSTE

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable wrapped around it (no text or symbols)

Line drawing of a hand holding a tool interacting with a twisted cable or wire (no text or symbols present)

Three-step diagram showing mechanical assembly with arrows indicating motion, no text or symbols present

Illustration of hands installing or adjusting a device panel with a close-up view (no text or symbols present)

Hand holding a pen writing on a wireframe object (no text or symbols visible)

Diagram showing a device with a fan and internal components, connected to a cylindrical device (no text or symbols present)

FEHLERBEHANDLUNG

Diagram of a robotic vacuum cleaner with a circular housing and blue arrow indicating motion (no text or symbols)

Simple line drawing of a circular object with a small top and two curved sides (no text or symbols)

Robot

Technical line drawing of a refrigerator interior with front panel and side door (no text or symbols)

Station OMNI

Base

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a T-shaped object with a rounded corner and horizontal bar (no text or symbols)

Brosse plate Suceur plat

Composants en option

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Brosse ZeroTangle Tuyau d'extension Support

Remarque :

Technical line drawing of a circular mechanical or electronic component with internal components and no visible text or symbols

Roue universelle

Brosse latérale

Technical line drawing of three circular components with central shafts, no text or symbols present

Patins de lavage lavables

Station OMNI

Remarque :

Simple line drawing of a desk with a checkmark and a fan on top, no text or symbols present

Simple line drawing of a balcony with railing and circular base (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Line drawing of a washing machine with a blue arrow indicating airflow or motion, connected to a power outlet (no text or symbols)

Remarque :

Clic Clic Clic

Diagram of a device with a close-up view showing a component being turned into a housing (no text or symbols present)

Illustration of a hand using a handheld device to lift a button (no text or symbols present)

CHARGE

Assembler la station

Line drawing of a device rear panel with a blue arrow indicating a component, no text or symbols present

≥0.05m (0.16") ≥0.7m (2.29) ≥0.05m (0.16)

Remarque :

Line drawing of a portable kitchen appliance with a blue internal box and open lid, alongside a smaller container (no text or symbols)

Simple line drawing of a circular object with an upward arrow, no text or symbols present

Line drawing of a robotic vacuum cleaner with mounting holes and control panel (no text or symbols)

Line drawing of a hand using a digital kitchen appliance to clean or store food (no text or symbols visible)

Line drawing of a hand operating a handheld device (no text or symbols)

Line drawing of a hand holding a handheld device with a circular button labeled (no text or symbols on the device itself)

Remarque :

Diagram showing a device emitting particles into a container (no text or symbols)

2

Technical line drawing of a mechanical housing or enclosure with internal compartments and a blue arrow indicating direction (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Two technical diagrams showing mechanical assembly or assembly process with no visible text or symbols

Diagram showing a solar system with a sun and a device panel, no text or symbols present

Diagram illustrating the assembly process of a CD or DVD disc, showing steps from receipt to disassembly.

2 Brosse latérale

Technical illustration showing a device with internal components and a hand holding a tool (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Diagram showing a hand inserting a component into a device with labeled parts and a speech bubble indicating the component.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical component with a blue triangular indentation (no text or symbols)

Illustration of a hand using a tool to press or write on a machine (no text or symbols visible)

Diagram of a mechanical device with a central shaft and surrounding components, no visible text or symbols

Technical line drawing of a mechanical component with a blue arrow indicating a feature (no text or symbols present)

Line drawing of a portable electronic device with ventilation slots and a scroll wheel (no text or symbols)

2 Installer

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with a blue tool inserted, no visible text or symbols

Line drawing of a mechanical device with a blue arrow indicating rotation or movement (no text or symbols)

Illustration of a printer or scanner device with a blue cover and paper tray, showing no text or symbols.

Simple line drawing of a container with a lid and a curved arrow pointing to the lid (no text or symbols)

Diagram of a printer or scanner device with a blue arrow indicating motion, no text or symbols present

Line drawing of a hand using a power button to press or install a small electronic device (no text or symbols present)

Remarque :

Line drawing of a hand using a sewing machine to press down a component, with no text or symbols present.

Diagram of a hair dryer with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a hand cleaning a spray gun and a blue spray can stack (no text or symbols)

Illustration of a hand holding a filter component above a mechanical device with an upward arrow (no text or symbols)

Diagram illustrating a water tap, 24-hour clock, and usage of a cleaning tool with directional arrows.

MINI BROSSE ÉLECTRIQUE

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable wrapped around it (no text or symbols)

Line drawing of a hand holding a tool interacting with a twisted cable or wire (no text or symbols present)

Three-step diagram showing mechanical assembly with arrows indicating motion, no text or symbols present

Illustration of hands installing or adjusting a device with a close-up view of the component (no text or symbols present)

Hand holding a pen writing on a wireframe object (no text or symbols visible)

Diagram showing a device with a fan and internal components, connected to a right-hand side view (no text or symbols present)

DÉPANNAGE

Diagram of a robotic vacuum cleaner with a blue arrow indicating upward motion (no text or symbols)

Simple line drawing of a circular object with a small ring and two small protrusions on top (no text or symbols)

Robot

Technical line drawing of a refrigerator interior with door, seat, and front panel (no text or symbols)

Stazione OMNI

Base

Line drawing of a mechanical device with no visible text or symbols

Unità principale

Simple line drawing of a T-shaped object with a rounded corner and horizontal bar (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a circular mechanical or electronic component with internal components and no visible text or symbols

Ruota universale

Spazzola laterale

Technical line drawing of three circular components with central shafts and mounting holes (no text or symbols)

Line drawing of a robotic vacuum cleaner with wheels and sensor (no text or symbols)

Tubo di prolunga

Simple line drawing of a desk with a checkmark and a fan on top, no text or symbols present

Simple line drawing of a balcony with railing and circular base (no text or symbols)

Floor plan outline with room layouts and doorways (no text or labels)

Diagram of a printer with a digital display and power outlet, showing internal components (no text or symbols)

Nota:

Clic Clic Clic

Diagram of a device with a close-up view showing a button and directional arrows (no text or symbols)

Illustration of a hand holding a handheld device with blue arrows indicating motion or force (no text or symbols)

RICARICA

Montare la stazione

Line drawing of a server rack unit with a blue arrow indicating a component (no text or symbols present)

≥0.05m (0.16") ≥0.7m (2.29) ≥0.05m (0.16)

Nota:

Technical line drawing of a portable appliance with a blue internal box and open lid, alongside a separate diagram showing its open lid and internal components (no text or symbols present)

Line drawing of a hand using a digital kitchen machine to clean or store food (no text or symbols visible)

Line drawing of a hand operating a sewing machine (no text or symbols)

Line drawing of a hand pressing a button on a device (no text or symbols)

Nota:

Diagram showing a container with liquid being poured into a container, no text or symbols present

2

Technical line drawing of a mechanical housing or enclosure with an arrow indicating direction (no text or symbols present)

3

Line drawing of a hand inserting a small component into an open cylindrical device (no text or symbols)

Two technical diagrams showing mechanical assembly or assembly process with no visible text or symbols

Diagram showing a solar system with a sun and two rectangular components, no text or symbols present

Diagram illustrating three-step assembly process of a CD or DVD disc, showing component disassembly and cleaning steps.

② Spazzola laterale

Technical illustration showing a device interior with a blue arrow indicating upward motion, and a hand holding a tool (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a hand inserting a component (no text or symbols)

Diagram showing a hand inserting a component into a device with labeled parts and a blue speech bubble indicating the component.

2 Pulire il lavabo

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a blue triangular component inserted, no visible text or symbols

MANUTENZIONE DEL LAVABO

Illustration of a hand inserting a component into a machine, with an inset showing the blue component being inserted (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a blue arrow indicating a feature (no text or symbols present)

Diagram of a printer with internal components and a blue arrow indicating flow (no text or symbols)

2 Installare

Diagram of a mechanical device with labeled parts and an arrow indicating direction (no text or symbols present)

Diagram of a mechanical component with a blue arrow indicating a force or movement, no text or symbols present.

Technical line drawing of a mechanical device with a blue arrow indicating rotation (no text or symbols)

Illustration of a printer or scanner device with a blue cover and paper tray, showing no text or symbols.

Simple line drawing of a container with a lid and a blue arrow pointing to the lid (no text or symbols)

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Illustration of a hand inserting a power button into a circular device (no text or symbols)

Nota:

Diagram showing two-step installation of a hand using a handheld device, with blue arrows indicating direction of movement.

Illustration of a hand cleaning a spray gun and a blue spray can stack (no text or symbols)

Diagram showing a hand holding a component above a cleaning machine, with an upward arrow indicating motion or assembly.

Diagram illustrating a water tap, 24-hour clock, and sunlight application process with corresponding icons and arrows indicating sequence.

MINI SPAZZOLA MOTORIZZATA

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable wrapped around it (no text or symbols)

Line drawing of a hand holding a tool interacting with a twisted cable or wire (no text or symbols present)

Three-step diagram showing mechanical assembly with arrows indicating motion, no text or symbols present

Hand holding a pen writing on a wireframe object (no text or symbols visible)

Illustration of hands installing or adjusting a device panel with a close-up view of the component (no text or symbols present)

Diagram showing a device with a fan and internal components, connected to a right-hand side view (no text or symbols present)

Line drawing of a robotic vacuum cleaner with a blue arrow indicating upward motion (no text or symbols)

Simple line drawing of a circular object with a small top and two curved sides (no text or symbols)

Robot

Technical line drawing of a front view of a refrigerator with door and side panel (no text or symbols)

OMNI-station

Bas

Nätsladd

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a T-shaped object with a rounded corner and horizontal bar (no text or symbols)

Platt borste Sprickverktyg

Valfria komponenter

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a circular mechanical or electronic component with internal components and no visible text or symbols

Technical line drawing of three circular components with central shafts, no text or symbols present

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Förlängningsslang

Simple line drawing of a table with a checkmark and a fan on top, no text or symbols present

Simple line drawing of a balcony structure with railing and circular base (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Line drawing of a medical device with a blue arrow indicating a component, connected to an electrical outlet (no text or symbols present)

Obs!

Diagram of a device with a close-up view showing a button and directional arrows (no text or symbols present)

Illustration of a hand holding a handheld device with blue arrows indicating motion or force (no text or symbols)

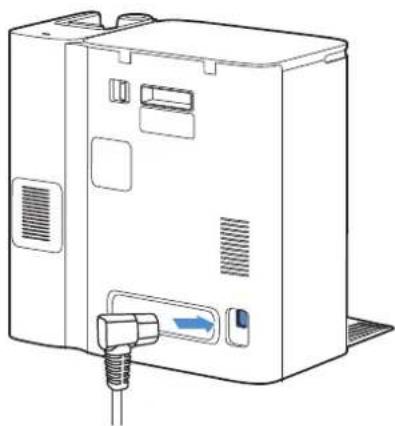

LADDA

Montera stationen

Line drawing of a server rack unit with a blue arrow indicating a component (no text or symbols present)

Placera stationen

≥0.05m (0.16') ≥0.7m (2.29') ≥0.05m (0.16')

Obs!

Technical line drawing of a portable appliance with a blue internal box and open lid, alongside a smaller inset showing a mechanical component (no text or symbols)

Line drawing of a hand using a digital kitchen machine to press or install a component (no text or symbols visible)

Line drawing of a hand holding a small electronic device (no text or symbols)

Line drawing of a hand holding a handheld device with a circular button labeled (no text or symbols on the device itself)

Obs!

Diagram showing a device with arrows indicating flow or interaction between two containers, no text or symbols present.

2

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Two technical diagrams showing mechanical assembly with blue components and mounting brackets (no text or symbols)

Obs!

Diagram showing a solar system with a sun and two rectangular components, no text or symbols present

Line drawing of a robotic vacuum cleaner with a cloth attachment (no text or symbols)

Line drawing of a hand cleaning a blue robotic vacuum cleaner with a cloth (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand cleaning it (no text or symbols)

Line drawing of a robotic vacuum cleaner with hands operating the component (no text or symbols)

Line drawing of a hand cleaning a circular device with internal components (no text or symbols)

Illustration of a hand using a digital kitchen machine to press or install a small electronic device (no text or symbols visible)

Diagram showing a hand inserting a blue object into a device with labeled parts and arrows indicating movement.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a printer or printer with a blue cover, showing no text or symbols.

Illustration of a hand inserting a blue object into a machine (no text or symbols visible)

Diagram of a mechanical assembly with a central rod and surrounding components (no text or labels)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a portable device with a scroll wheel and fan base (no text or symbols)

2 Installera

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with a blue rod inserted into a housing (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating rotation (no text or symbols)

Diagram of a machine with a blue control panel and directional arrow (no text or symbols)

Simple line drawing of a container with a lid and a blue arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a blue arrow indicating direction, showing internal components and flow paths (no text or symbols)

Line drawing of a hand pressing a button on a circular device (no text or symbols)

Obs!

Line drawing of a hand using a sewing machine to press or adjust a component, with no text or symbols present.

Diagram of a handwashing device with a downward arrow indicating waste or discharge (no text or symbols present)

Illustration of a hand cleaning a spray gun and a blue spray can stack (no text or symbols)

Illustration of a hand holding a cylindrical object above a cleaning machine, with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a water tap, 24-hour clock, and sunlight application process with corresponding icons and arrows indicating sequence.

MINIKRAFTBORSTE

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable (no text or symbols)

Line drawing of a hand holding a tool interacting with a twisted cable or wire (no text or symbols present)

Three-step diagram showing mechanical assembly with arrows indicating motion, no text or symbols present

Hand holding a pen over a wireframe object (no text or symbols visible)

Illustration of hands installing or adjusting a device panel with a close-up view (no text or symbols present)

Diagram showing a device with a scroll wheel and a blue mechanical component, connected by directional arrows (no text or symbols)

FELSÖKNING

Simple line drawing of a circular object with a small top and ring (no text or symbols)

Robot

Technical line drawing of a front view of a device with internal components and a U-shaped component (no text or symbols)

OMNI-stasjon

Base

Strømledning

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a T-shaped object with a rounded corner and horizontal bar (no text or symbols)

Flat børste

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Forlengelsesslange

Utløserknapp

Holder

SENSORER

Simple line drawing of a desk with a checkmark and a fan on top, no text or symbols present

Simple line drawing of a balcony with railing and circular base (no text or symbols)

Floor plan outline with room labels and a curved arrow indicating direction (no text or symbols)

Line drawing of a washing machine with a blue arrow indicating airflow direction, connected to a power outlet (no text or symbols)

Merk:

Diagram of a device with a close-up view showing a button and directional arrows (no text or symbols present)

Illustration of a hand holding a handheld device with blue arrows indicating motion or force (no text or symbols)

LADING

Line drawing of a device casing with ports and a blue arrow indicating a component (no text or symbols)

Plasser stasjonen

≥0.05m (0.16") ≥0.7m (2.29) ≥0.05m (0.16)

Merk:

Line drawing of a portable kitchen appliance with a blue internal box and open lid, alongside a smaller open container (no text or symbols)

Line drawing of a hand using a digital kitchen machine to clean food items (no text or symbols present)

Line drawing of a hand operating a sewing machine (no text or symbols)

Line drawing of a hand holding a handheld device with a circular button labeled (no text or symbols on the device itself)

Merk:

REGELMESSIG VEDLIKEHOLD

VEDLIKEHOLDE ST∅VBEHOLDER OG FILTER

1

Diagram showing a device emitting particles into a container (no text or symbols)

2

Technical line drawing of a mechanical assembly with two rectangular components and an arrow indicating direction (no text or symbols)

3

Line drawing of a hand inserting a component into a plastic housing (no text or symbols)

Two technical diagrams showing mechanical assembly or assembly process with no visible text or symbols

Merk:

Diagram showing a solar panel under sunlight, with no text or symbols present.

Diagram illustrating the assembly process of a CD or DVD disc, showing steps from battery installation to disassembly.

2 Sidebørste

Technical illustration showing a device with internal components and a hand holding a tool (no text or symbols present)

VEDLIKEHOLDE STASJONEN

Merk:

Illustration of a hand using a digital kitchen machine to press or install a button (no text or symbols visible)

Diagram showing a printer or scanner device with labeled parts and a blue speech bubble pointing to it.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical device with a blue triangular component inserted, no visible text or symbols

VEDLIKEHOLDE ST∅VPOSEN

1 Kast støvposen

Klikk

Line drawing of a mechanical device with a blue arrow indicating rotation or movement (no text or symbols)

Diagram of a printer or printer with a device inside, showing mechanical components and a blue arrow indicating motion (no text or symbols present)

Simple line drawing of a container with a lid and arrow indicating rotation (no text or symbols)

Diagram of a printer or scanner device with a blue arrow indicating a process, no visible text or symbols.

Merk: Brett ut den nye støvposen.

Line drawing of a hand pressing a button on a circular device with a power button icon (no text or symbols)

Merk:

Illustration of a hand using a sewing machine to adjust a component (no text or symbols present)

Diagram of a handwashing device with a downward arrow indicating a waste or discharge (no text or symbols present)

2 Tørk av støvbeholderen med en ren og myk klut. Nettingfilteret kan skylles under kaldt rennende vann.

Illustration of a hand cleaning a spray gun and a blue spray can stack (no text or symbols)

Illustration of a hand holding a cylindrical object above a cleaning machine, with an upward arrow indicating motion (no text or symbols)

Diagram illustrating a water tap, 24-hour clock, and sunlight application process with corresponding icons and arrows indicating sequence.

ELEKTRISK MINIB∅RSTE

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable wrapped around it (no text or symbols)

Line drawing of a hand holding a tool interacting with a twisted cable or wire (no text or symbols present)

Three-step diagram showing mechanical assembly with arrows indicating motion, no text or symbols present

Hand holding a pen writing on a textured surface (no text or symbols visible)

Illustration of hands installing or adjusting a device panel with a close-up view (no text or symbols present)

Diagram showing a device with a fan and cable, connected to a device with a blue cable (no text or symbols present)

FEILS∅KING

Diagram of a robotic vacuum cleaner with airflow direction indicated (no text or symbols)

Bruk mobilkameraet til å skanne QR-koden og få brukerveiledningen.

VIGTIGE SIKKERHEDSANVISNINGER

VIGTIGE SIKKERHEDSANVISNINGER

Simple line drawing of a circular object with a small circular top and two curved sides (no text or symbols)

Robot

Technical line drawing of a front view of a refrigerator with internal components (no text or symbols)

OMNI Station

Base

Elledning

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical device with wheels and a handle (no text or symbols)

Forlængerslange

Simple line drawing of a desk with a checkmark and a fan on top, no text or symbols present

Simple line drawing of a balcony with railing and circular base (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Line drawing of a washing machine with a blue arrow indicating airflow direction, connected to a power outlet (no text or symbols)

Bemærk:

Diagram of a device with a close-up view showing a button and directional arrows (no text or symbols present)

Illustration of a hand holding a handheld device with blue arrows indicating motion or force (no text or symbols)

OPLAD

Saml stationen

Line drawing of a device casing with ports and a blue arrow indicating a component (no text or symbols)

Anbring stationen

≥0.05m (0.16") ≥0.7m (2.29) ≥0.05m (0.16)

Bemærk:

Line drawing of a portable kitchen appliance with a blue internal box and open lid, alongside a smaller open container (no text or symbols)

Simple line drawing of a circular object with an upward arrow, no text or symbols present

Line drawing of a robotic vacuum cleaner with mounting holes and a central hub (no text or symbols)

Under topdækslet

1. Søg i ECOVACS HOME for at downloade appen.

Tænd for DEEBOT

Line drawing of a hand using a digital kitchen machine to clean or install a product (no text or symbols visible)

Line drawing of a hand using a sewing machine to adjust a button (no text or symbols)

Line drawing of a hand pressing a button on a device (no text or symbols)

Bemærk:

Diagram showing a container with liquid being poured into a cup, no text or symbols present

2

Technical line drawing of a mechanical assembly with a blue arrow indicating direction (no text or symbols)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Two technical diagrams showing mechanical assembly or assembly process with no visible text or symbols

Bemærk:

Diagram showing a solar system with a sun and two rectangular components, no text or symbols present

Diagram of a CD or DVD disc assembly with an inset showing internal components (no text or labels)

Diagram of a CD or DVD disc assembly with an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand using a tool to cut a cylindrical object with blue alignment lines (no text or symbols)

2 Sidebørste

Diagram of a device interior with a blue arrow indicating direction, no text or symbols present

Line drawing of a hand holding a tool with wires (no text or symbols)

Line drawing of a hand operating a microwave oven with a blue indicator light (no text or symbols)

Diagram showing a hand operating a device with a blue indicator box, labeled with parts 1 and 2.

Technical line drawing of a mechanical device with a lever and handle (no text or symbols)

4 Tøm tanken til snavset vand

Diagram of a mechanical component with a blue triangular section, no visible text or symbols

VEDLIGEHOLD AF RENG∅RINGSBASSIN

Illustration of a hand inserting a component into a machine (no text or symbols visible)

Diagram of a mechanical device with a central vertical rod and surrounding components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a portable device with a fan and control panel, showing no text or symbols.

2 Installer

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with a blue lever and textured base (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating rotation (no text or symbols)

Illustration of a printer with a blue arrow indicating a process, no text or symbols present

Simple line drawing of a container with a lid and arrow indicating direction (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a hand pressing a button on a circular device (no text or symbols)

Bemærk:

Line drawing of a hand using a sewing machine to press or install a button, with no text or symbols present.

Diagram of a hair dryer with a downward arrow indicating compression or disassembly (no text or symbols present)

Illustration of a hand cleaning a spray gun and a blue spray can stack into it (no text or symbols)

24 hours >>

Illustration of a hand holding a blue brush above a mechanical device with an upward arrow (no text or symbols)

Diagram illustrating a water tap, 24-hour clock, and sunlight application process with corresponding icons and arrows indicating sequence.

MINI ELDREVET B∅RSTE

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable wrapped around it (no text or symbols)

Line drawing of a hand holding a tool interacting with a twisted cable or wire (no text or symbols present)

Three-step diagram showing mechanical assembly with arrows indicating motion, no text or symbols present

Illustration of hands installing or adjusting a device panel with a close-up view (no text or symbols present)

Hand holding a pen writing on a textured surface (no text or symbols visible)

Diagram showing a device with internal components and directional arrows indicating motion (no text or symbols)

FEJLFINDING

Diagram of a robotic vacuum cleaner with a blue arrow indicating upward motion (no text or symbols)

Simple line drawing of a circular object with a small top and two curved sides (no text or symbols)

Robotti

Technical line drawing of a front view of a refrigerator with door, seat, and side panel (no text or symbols)

OMNI-asema

Alusta

Virtajohto

KäyttöopasSivuharja

Rikkaimuri

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

ZeroTangle-tehoharja Jatkoletku Pidike

Huomautus:

Top-down schematic of a circular device with internal components and no visible text or symbols

Yleispyörä

Sivuharja

Harjan vapautus-

Vetävät pyörät

Pölysäiliö

Suodatin

Suodatintyyny

Technical line drawing of a mechanical housing or enclosure assembly (no text or symbols)

Pölynpoistoaukko

Pölysäilion kahva

Suodatinverkko

Vapautuspainike

Technical line drawing of three circular components with central shafts, no text or symbols present

ZeroTangle-tehoharja

Vapautuspainike

Line drawing of a mechanical device with wheels and a rectangular body (no text or symbols)

Jatkoletku

Vapautuspainike

Pidike

ANTURIT

Simple line drawing of a desk with a checkmark and a fan on top, no text or symbols present

Simple line drawing of a balcony with railing and circular base (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Line drawing of a medical device with a blue arrow indicating a component, connected to an electrical outlet (no text or symbols present)

Huomautus:

Diagram of a device with a close-up view showing a button and directional arrows (no text or symbols present)

Illustration of a hand holding a handheld device with blue arrows indicating motion or force (no text or symbols)

LATAAMINEN

Kokoa asema

Line drawing of a server rack unit with a blue arrow indicating a component (no text or symbols present)

Sijoita asema

≥0.05m (0.16°) ≥0.7m (0.29°) ≥0.05m (0.16°)

Huomautus:

Line drawing of a cleaning machine with a blue lid and open lid, alongside a separate diagram showing a bucket and drain (no text or symbols present)

Simple line drawing of a circular object with an upward arrow, no text or symbols present

Yläsuojuksen alla

Technical line drawing of a robotic vacuum cleaner (no text or symbols)

Line drawing of a hand using a device to clean or store items, no text or symbols present

Line drawing of a hand operating a sewing machine (no text or symbols)

Line drawing of a hand holding a handheld device with a circular button labeled (no text or symbols on the device itself)

Huomautus:

Diagram showing a device emitting particles into a container (no text or symbols)

2

Technical line drawing of a mechanical housing or enclosure with an arrow indicating assembly direction (no text or symbols present)

3

Line drawing of a hand inserting a small component into a rectangular housing (no text or symbols)

Two technical diagrams showing mechanical assembly with no visible text or symbols

Huomautus:

Diagram showing a sun shining over an open storage unit with a blue arrow indicating direction (no text or symbols)

Diagram illustrating the assembly process of a CD or DVD disc, showing steps from disassembly to packaging.

Diagram showing a device with internal components and a hand holding a tool, no text or symbols present

Line drawing of a robotic vacuum cleaner with a cloth, no text or symbols present

Line drawing of a hand cleaning a blue robotic vacuum cleaner with a cloth (no text or symbols)

Line drawing of a robotic vacuum cleaner with a hand cleaning it (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols visible)

Line drawing of a hand cleaning a circular device with internal components (no text or symbols)

Illustration of a hand operating a kitchen appliance with a blue button (no text or symbols)

Diagram showing a printer or scanner device with labeled parts and a blue speech bubble pointing to it.

Technical line drawing of a mechanical device with no visible text or symbols

Pure diagram of a mechanical component with a blue triangular section, no text or symbols present

Illustration of a hand inserting a component into a machine, with an inset showing the blue component being inserted (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with a blue arrow indicating a feature (no text or symbols present)

Diagram of a portable device with a paper feed into the front panel, showing internal components and a blue arrow indicating direction (no text or symbols present)

2 Asenna

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical component with a blue arrow indicating a force or movement, no text or symbols present.

Technical line drawing of a mechanical device with a blue arrow indicating rotation (no text or symbols)

Illustration of a hand inserting a blue component into a machine (no text or symbols visible)

Simple line drawing of a container with a lid and arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a blue arrow indicating direction, showing internal components and flow paths (no text or symbols)

Line drawing of a hand inserting a power button into a circular device (no text or symbols)

Huomautus:

Illustration of a hand using a sewing machine to adjust a component (no text or symbols present)

Diagram of a handwashing device with a blue downward arrow indicating a waste or discharge component (no text or symbols present)

Illustration of a hand cleaning a spray gun and a blue spray can stack into it (no text or symbols)

Illustration of a hand holding a cylindrical object above a mounted device, with an upward arrow indicating motion (no text or symbols)

Diagram illustrating the process of a water filter with time, sun, and power tool icons

MINI POWER -HARJA

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable wrapped around it (no text or symbols)

Line drawing of a hand holding a tool interacting with a twisted cable or wire (no text or symbols present)

Three-step diagram showing a device with rotating components and directional arrows indicating motion (no text or symbols)

Hand holding a pen over a wireframe object (no text or symbols visible)

Illustration of hands installing or adjusting a device with a close-up view of the component (no text or symbols present)

Diagram showing a device with a fan and cable, connected to a device with a blue cable (no text or symbols present)

VIANMÄÄRITYS

Diagram of a robotic vacuum cleaner with a circular housing and blue directional arrow indicating motion (no text or symbols)

Simple line drawing of a circular mechanical component with a central ring and two small protrusions (no text or symbols)

Robot

Technical line drawing of a front view of a refrigerator with door, seat, and door panel (no text or symbols)

OMNI Station

Taban

Güç Kablosu

Simple line drawing of a desk with a checkmark and a fan, no text or symbols present

Simple line drawing of a balcony with railing and circular base (no text or symbols)

Pure architectural floor plan lines without any text, numbers, or symbols

Line drawing of a medical device with a blue arrow indicating a component, connected to an electrical outlet (no text or symbols present)

Not:

Tik Tik Tik Tik

Diagram of a device with a close-up view showing a button and directional arrows (no text or symbols present)

Illustration of a hand holding a handheld device with blue arrows indicating motion or force (no text or symbols)

SARJ

Line drawing of a server rack unit with a blue arrow indicating a component (no text or symbols present)

>0.05m (0.16') ≥ 0.7m (2.29') >0.05m (0.16')

Not:

Line drawing of a portable appliance with a blue internal box and open lid, alongside a smaller open container (no text or symbols)

Simple line drawing of a circular object with an upward arrow and a small ring, no text or symbols present.

Line drawing of a robotic vacuum cleaner with mounting holes and control panel (no text or symbols)

Üst Kapağın altında

Kisabasma ≈ 4.5 h

Kisa basma

Line drawing of a hand using a digital kitchen machine to clean food (no text or symbols visible)

Line drawing of a hand operating a sewing machine (no text or symbols)

Line drawing of a hand pressing a button on a device (no text or symbols)

Not:

Diagram showing a device emitting particles into a container (no text or symbols)

2

Technical line drawing of a mechanical housing or enclosure with an arrow indicating assembly direction (no text or symbols present)

3

Line drawing of a hand inserting a component into a device housing (no text or symbols)

Two technical diagrams showing mechanical assembly with no visible text or symbols

Not:

Diagram showing a solar-powered device with a light source and internal components, no text or symbols present

Diagram illustrating three-step assembly of a CD or DVD disc, showing component insertion and disassembly steps.

2 Yan Fırça

Technical illustration showing a device with internal components and a hand holding a tool, no text or symbols present.

Line drawing of a kitchen appliance with a hand holding a tray and a blue button, no text or symbols present

Diagram showing a printer or scanner device with labeled parts and a speech bubble pointing to the screen.

Technical line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical component with a blue triangular section, no visible text or symbols

Illustration of a hand using a tool to press or write on a machine, with an inset showing a blue object being inserted (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a device with a paper feed into a tray, showing internal components and airflow direction (no text or symbols)

2 Takma

Line drawing of a mechanical device with no visible text or symbols

Diagram of a mechanical component with a blue arrow indicating a force or movement, no text or symbols present.

Technical line drawing of a mechanical device with a blue arrow indicating rotation (no text or symbols)

Diagram of a printer or scanner device with a blue internal component and directional arrows indicating flow (no text or symbols present)

Simple line drawing of a container with a lid and a blue arrow indicating direction (no text or symbols)

Diagram of a printer or scanner device with paper feed and paper tray, showing internal components and directional arrow (no text or symbols)

Line drawing of a hand using a power button to press or install a circular device (no text or symbols present)

Not:

Line drawing of a hand using a sewing machine to adjust a component (no text or symbols present)

Diagram of a handwashing device with a blue downward arrow indicating a waste or discharge component (no text or symbols present)

Illustration of a hand cleaning a spray gun and a blue spray can stack into it (no text or symbols)

Illustration of a hand holding a brush tip above a washing machine with an upward arrow (no text or symbols)

Diagram illustrating a water tap, 24-hour clock, and sunlight application process with corresponding icons and arrows indicating sequence.

MİNİ GÜÇLÜ FIRÇA

Line drawing of a hand cleaning a mechanical component (no text or symbols)

Illustration of a mechanical device with blue components and directional arrows, next to a blue cable (no text or symbols)

Line drawing of a hand holding a tool interacting with a twisted cable or wire (no text or symbols present)

Three-step diagram showing mechanical assembly with arrows indicating motion, no text or symbols present

Illustration of hands installing or adjusting a device panel with a close-up view (no text or symbols present)

Hand holding a pen writing on a textured surface (no text or symbols visible)

Diagram showing a device with internal components and a close-up view of its internal structure (no text or symbols)

SORUN GIDERME

No.518 Songwei Road, Wusongjiang Industry Park, Guoxiang Street, Wuzhong District, Suzhou, Jiangsu, China.

451-2362-0105
