USER MANUAL CC2004E AYA

Front view of a simple kitchen appliance with a top shelf and side-mounted buttons (no text or symbols)

Congélateur

TABLE DES MATIÈRES

INSTRUCTIONS DE SÉCURITÉ .... 1

DESCRIPTION DE L'APPAREIL ....7

SÉCURITÉ ÉLECTRIQUE....8

UTILISATION ....10

RÉGLAGE DE LA TEMPÉRATURE ET DESCRIPTION DE L'APPAREIL 11

USAGE QUOTIDIEN....15

EFFICACITÉ D'UTILISATION....18

DÉGRIVRAGE/PREMIÈRE UTILISATION ET INSTALLATION....19

INFORMATION TECHNIQUE....23

DÉPANNAGE....26

MISE AU REBUT DE L'APPAREIL'....30

ENLÈVEMENT DES APPAEREILS MÉNAGERS USAGÉS....31

LE TRI + FACILE BAC DE TRI

Labeled diagram of an open refrigerator with numbered parts and a close-up inset showing interior components.

700mm 200mm 75mm

Installation important!

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a folded paper or document (no text or symbols)

Front view of a white appliance cabinet with mounting holes and a control panel (no text or symbols)

CONTENTS

SAFETY AND WARNING INFORMATION .... 1

DESCRIPTION OF THE PRODUCT 6

ELECTRICAL SAFETY 7

BEFORE USE 9

TEMPERATURE ADJUSTMENT AND DESCRIPTION OF APPLIANCE....10

DAILY USE....13

EFFICIENT USE 16

DEFROSTING/FIRST USE AND INSTALLATION ....17

TECHNICAL INFORMATION ....20

TROUBLESHOOTING....23

DISPOSAL OF THE APPLIANCE....27

DISPOSAL OF OLD ELECTRICAL APPLIANCES....28

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

SAFETY AND WARNING INFORMATION

1. IMPORTANT WARNINGS: READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE.
2. With regard to information on installation, handling, maintenance and disposal of the please refer to the following section of the manual. of the manual.

3. This appliance is intended to be used in household and similar applications such as:

4. staff kitchen areas in shops, offices and other working environments,

5. farmhouses and by clients in hotels, motels and other residential type environments,
6. bed and breakfast type environments,

7. catering and similar non-retail applications

8. WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstruction.

9. WARNING: Do not damage the refrigerant circuit

10. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance unless they are of the type recommended by the manufacturer.

11. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

12. This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

13. If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard

14. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

15. If the refrigerant circuit is damaged:

16. Avoid naked fames and sources of ignition.

17. Thoroughly ventilate the room in which the appliance is situated.

18. WARNING: When positioning the appliance ensure the supply cord is not trapped or damaged

19. WARNING: Do not locate multiple portable socket out lets or portable power supplies at the rear of the appliance.

20. Regarding the information for the installation operation maintenance and disposal of the device refer to the following paragraph of the instruction manual.

21. To avoid any harm to the environment or human health caused by the uncontrolled disposal of electrical waste recycle the appliance responsibly to promote the reuse of material resources. Disposal must be done safely at public collection points provided for this purpose.

22. Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

23. Please contact your nearest waste disposal center for more details on the correct disposal procedures.

24. The appliance must be installed on the ground on a fat horizontal surface making sure the vents are not obstructed.

25. Never attempt to replace or repair any appliance part or component yourself Request help from a professional qualified person if needed.

26. Always handle the appliance with care in order to avoid damaging it.

1. Warning: risk of fire/flammable materials

2. To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the freezer, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mound developing within the appliance.

1. Extreme caution must be used when moving the appliance.

2. Regarding the details for safe storage of food, installation and maintenance, Please refer to the relevant sections of the manual.

3. WARNING -When positioning the appliance ensure the supply cord is not trapped or damaged.

4. WARNING - Do not locate multiple portable so kept outlets or portable power supplies at the rear of the appliance.

5. WARNING - Damaged supply cord must be replaced by a special cord or assembly available from the manufacture or its service agent

6. If the refrigerant circuit is damaged:

- Avoid naked flames and sources of ignition.

- Thoroughly ventilate the room in which the appliance is situated.

1. It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire, and/or electric shock.

2. Do not insert oversized food as this could cause incorrect operation.

3. If you are discarding an old freezer or freezer with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.

4. Unplug the appliance from the mains socket when not in operation and before cleaning.

5. Do not insert oversized food as this could cause incorrect operation.

DESCRIPTION OF THE PRODUCT

Labeled diagram of an open refrigerator with numbered parts and a close-up inset showing interior components.

1 Door handle 6		Temperature control panel
2 thermostat knob (FREEZING - congélation, COOLING - Congélateur)	7 Levelling foot
3 Shelving basket 8 Cabinet
4 Power cord 9 Drain
5 Shutter 10 Ice scraper

ELECTRICAL SAFETY

1. The power cord must not be lengthened.
2. Make sure the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. Otherwise there is a danger of electric shock.
6. You must not operate the appliance without the interior lighting lamp cover.
7. The freezer is only supplied with power supply of single phase alternating current of 220 - 240V\~50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C.
8. Automatic voltage regulator of more than 350W to the freezer. The freezer must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

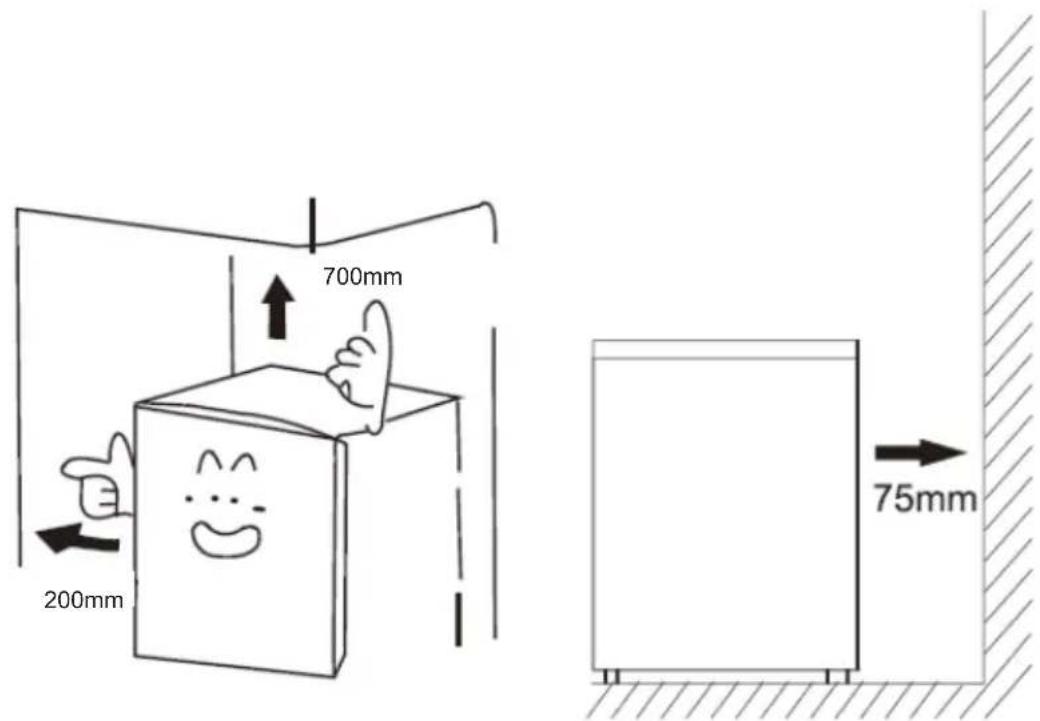

Important!

There must be good ventilation around the freezer to allow heat dissipation, high efficiency and low power consumption.

Therefore, there must be enough space around the freezer. It is recommended to leave a space of 75 mm between the back of the freezer and the wall, at least 200 mm on each side and at least 700 mm above.

700mm 200mm 75mm

Horizontal mounting

The unit must be set up horizontally to minimize vibration. To set the unit horizontally, it must be standing upright, with its two adjustable feet in stable contact with the floor. You can also adjust the horizontal setting by unscrewing the front adjustable feet in the appropriate position (use your fingers or an appropriate wrench).

BEFORE USE

• Remove all packing materials, adhesive tape, etc. Leave the doors open for a while to ventilate the unit.
• The unit is cleaned before shipping. Nevertheless, we recommend cleaning the inside of the compartment once after delivery.
• Plug into an earthed wall socket supplying 220-240 V \~ single-phase current.
• Let the appliance run for about 1 hour for the compartment to cool down before placing items in the appliance.

WAIT 5 MINUTES OR MORE BEFORE RE-STARTING

Restarting the unit immediately after it has been turned off may cause fuses to blow and activate the circuit breaker the compressor may become overloaded and/or other damage may occur.

TEMPERATURE ADJUSTMENT AND DESCRIPTION OF APPLIANCE

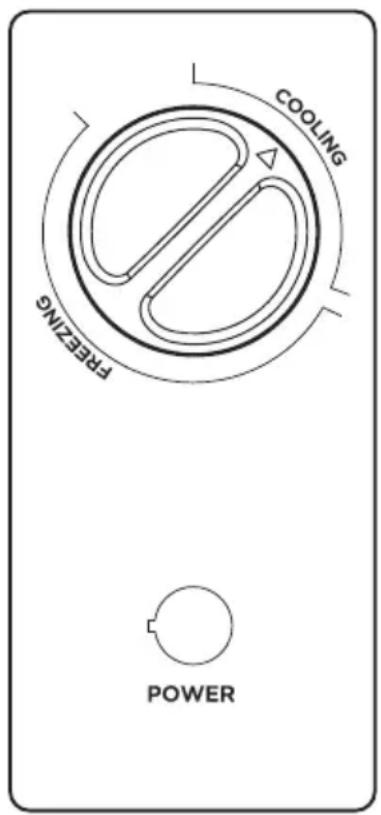

TEMPERATURE ADJUSTMENT

Please electrify the chest freezer, the “POWER” lamp will shine (green light).

Rotate the thermostat knob clockwise, the temperature inside the chest freezer will be lower and lower.

“COOLING” means cooling zone, “FREEZING” means the freezing zone.

Recommended gear see the schematic marking position.

COOLING FREEZING POWER

The temperature of the cooling position is 0-10 °C. It is suitable for short-term storage of vegetables, fruits and

other foods that do not need to be frozen for 1-2 days Tips: This temperature range is not suitable for long-term storage of meat and other food that needs to be placed, otherwise it is easy to spoil. The temperature of the side wall of the refrigerator is low. Do not store it against the wall

The freezing temperature is -12--24°C, suitable for long-term storage of meat and other foods.

Daily use store at -18°C or colder( middle position of freezing gear area). Avoid opening the freezer compartment door unnecessarily.

Tips: Do not place vegetables, fruits and other food that does not need to be frozen in this position, otherwise it will be frostbitten food

The freezing mode could generally store: Meat, dumplings ice cream (3-6 months) Fish and shrimp (1-3 months)

In order to improve efficiency of the cooling system and save energy it is necessary to maintain good ventilation around the appliance for the dissipation of heat for this reason sufficient clear space should be available around the freezer. Please according below method load your food please close the door of the freezer as soon as you have finished the food storage this can help you reduce energy consumption.

Food should not be stored in the freezer for too long.

Generally fish and meat foods that need to be frozen should be stored for a maximum of one year Foods that need to be refrigerated including cooked food) such as: milk and yogurt for 2-3 days read for 3-5 days fish and meat sausages 1-3 days for vegetables 3-5 days for green leafy vegetables such as spinach): 1-2 weeks for stems (radish celery), and 1-3 weeks for apples.

Frozen meat and fish are placed in the lower layer of the freezer compartment, and foods that are directly imported such as cold drinks are placed in the upper layer of the freezer compartment.

To avoid food waste, plus adjust to COOLING mode for fresh meat and fish, vegetables. diary. Setting to FREEZING mode for long-time storage like frozen meat and fish.

Never touch the interior of the freezer chamber or frozen foods in the compartment with wet hands as this could result in frostbite.

The above image is for reference only Configuration is subject to the actual product.

DISCRIPTION OFAPPLIANCE

Installation any electrical work that is required to install this appliance MUST be carried out by a qualified electrician

Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

Warning: THIS APPLIANCE MUST BE GROUNED

Before making any electrical connections, sure the following: Electrical connection

Electrical safety is only guaranteed when the grounding system of your house is in accordance with the related local regulations

Do not bendy stretch or pull the supply cable to avoid electric shock.

Do not use electrical appliances inside of food storage compartments of the appliance unless they are of the type recommended by the manufacturer.

Ensure the power socket is suitable for the maximum power of the machine fuses in the power circuit must be 13 amps.

The supply voltage should be the same as that indicated in the technical specifications and he appliance rating plate.

The appliance should be grounded and in compliance with the applicable laws.

When installed the power socket must be within easy reach

If the socket outlets in your home are not suitable for the plug supplied with this unit check with a qualified electrician for replacement.

The use of adapters multiple connectors or extension cables is not recommended.

The plug contains a removable fuse cover that must be refitted when the fuse is replaced If the fuse cover is lost or damaged the plug must not be used until a replacement cover has been fitted or the plug is replaced.

A damaged plug should be cut off as close to the plug body as possible the fuse should be removed and the plug disposed of safely.

DAILY USE

Do not store flammable gas or liquids in the appliance. There is a risk of an explosion.

Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).

When unplugging always pull the plug from the mains socket, do not pull on the cable.

Do not place hot items near the plastic comp nets of the freezer.

Do not place food products directly against the air outlet on the rear wall.

Store pre-packed frozen food in accordance with the frozen food manufacturer instructions.

The manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.

Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

Frozen food can cause frost burns if consumed straight from the freezer compartment.

Do not place the appliance in direct sunlight.

Keep lit candles, lamps and other items with open flames away from the equipment to avoid igniting it.

The appliance is intended for keeping food and/or beverages in normal households as explained in this instruction booklet. The appliance is heavy. Care should be taken when moving it.

Do not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns

Never use the base, drawers, doors etc. to stand on or as supports.

Frozen food must not be refrozen once it has been thawed out.

Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.

To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.

Gentle Reminder

When the ambient temperature and relative humidity are very high, there may be frost or water condensed on the breaker of the freezer. It is a normal phenomenon. Please wipe it with a dry towel.

Caution!

Care and cleaning

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers.

Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

Installation important!

For electrical connection carefully, follow the instructions given in this manual.

Unpack the appliance and check if there are damages on it.

Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.

It is advisable to wait at least four hours before connecting theappliance to allow the oil to flow back in the compressor.

Adequate air circulation should be allowed around the appliance reducing the risk of overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.

Wherever possible the back of the product should not be close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of a lire, follow the instructions relevant to installation.

The appliance must not be located close to radiators or cookers.

Make sure that the mains plug is accessible after the installation of the appliance.

Service

Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. This product must be serviced by an authorized Serviced Center, and only genuine spare parts must be used.

EFFICIENT USE

Please follow the following instructions in order to save energy consumption.

• To prevent cold air escaping from the chest freezer, open and close the door quickly and keep the door opened for as short time period as possible.
• Please install the unit in a well-ventilated location.
• Do not use the unit to store water or food that requires water as a storage medium. Never place fresh seafood containing water directly in to the unit
• This refrigerating appliance is not intended tube used as a built-in appliance.

CHECKS

To ensure the safety perform the following checks after cleaning the unit:

• Is the power cord plug firmly inserted in to a dedicated wall outlet Confirm that the plug is not abnormally hot.
• Check the power cord for cracks and damage should the slightest irregularity be observed contact the dealer from whom you purchased this unit or our customer service department.

DEFROSTING/FIRST USE AND INSTALLATION

You should defrost the freezer compartment two or three times a year when the ice is about 4mm thick to defrost follow these steps:

• Remove the plastic plug on the rear panel and fit a drain in the hole to hole to drain water.
• Set the thermostat to "Cooling" at least 12 hours before defrosting.
• After this period has elapsed switch off the freezer compartment by removing the plug from the main power supply
• Remove all food from the freezer and wrap them in paper and store them in a cold place and leave the door open.
• Remove the plastic cap on the back panel and put a drain in the hole to evacuate water.
• When the defrosting is finished the compartment must be cleaned and wiped dry
• Switch the appliance back on using the thermostat set to "Cooling" and wait at least one hour before replacing the foodstuffs. Thermostat dams as position origin.
• After a few hours the thermostat can be setback to the original position.

WARNING: Do not use mechanical devices or other artificial means to accelerate defrosting other than those recommended by the recommended by the manufacturer.

WARNING: Do not use electrical appliances in food storage compartments of the appliance unless they are of the type recommended by the recommended by the manufacturer.

Cleaning before use

Before using the appliance for the first time, clean the inside of the appliance and all internal accessories with lukewarm water and a small amount of neutral soap to eliminate the smell typical of new appliances accessories, then dry them thoroughly.

CLEANING

1. Unplug the appliance.
2. Remove all substances
3. Clean the inside and outside walls with clean sponge or soft cloth using warm water or 1 teaspoon of bicarbonate of soda to 1.2 liters of water
4. Rinse well and wipe dry with a clean soft cloth. If the appliance is not to be used for a long period of time, then it is recommended to remove all the leave the door open to allow the air to circulate thus avoiding unpleasant odors.
5. Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving
6. The interior of the freezer should be cleaned regularly to avoid odor.
7. Check the door gasket regularly to make sure there are no debris.
8. Please turn off the power before cleaning remove all food, shelves, drawers, etc.
9. Clean the door gasket with mild soap and water.
10. Use a soft cloth or sponge to clean the inside of the freezer with two tablespoons of baking soda and a quart of warm water.
11. Then rinse with door and wipe clean and open the door and dry it naturally before the power is turned on.
12. For areas that are difficult to clean in the freezer (such as narrow sandwiches gaps or corners), it is recommended to wipe them regularly with a soft rag soft brush etc. and when necessary combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.
13. Do not use soap detergents scrub powder spray cleaner etc. as these may cause odors in the interior of the freezer.
14. Clean the bottle frame, shelves and drawers with a mild

detergent and dry with a soft cloth wipe the outer surface of the freezer with a soft cloth dampened with soapy water detergent etc. and then wipe dry.

1. Do not use abrasives such as hard brushes, cleaning steel balls, war brushes, and organic solvents such as toothpaste (e.g., alcohol, acetone, bananas, oils), boiling water, acidic or alkaline items to clean the freezer to avoid damaging the surface and interior of the freezer.

2. Boiling water and benzene may deform or damage plastic parts.

3. Do not rinse with water as not to affect the electrical insulation properties.

4. It is advisable to clean the appliance regularly and to remove any food deposits or splashes sin particular clean the door seals recesses and adjacent parts.

5. Don't overlook parts of the appliance such as the humidity controller light casing racks egg and butter compartments ice cube tray and all of therein age areas etc.

6. If the appliance is not kept clean and in good condition its surface could deteriorate and inexorably affect the length of its service and could lead to a dangerous situation.

7. The appliance must not be steam cleaned.

8. Use only a non-abrasive spongey rinse with clean water then dry thoroughly before putting the parts back in place.

9. Never use abrasive cleaning products or hard metal scrapers to clean the appliance as they could scratch the surfaces and break down the coating.

10. After cleaning leave the inside of the appliance to dry with the door open before plugging it into the mains again.

11. When re-stocking the appliance be especially careful not to hit, scratch, crack or break the internal surfaces.

TECHNICAL INFORMATION

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: AYA
Supplier's address: BUT INTERNATIONAL, 1 AVENUE SPINOZA 77184 EMERAINVILLE, FRANCE
Model identifier:CC2004E
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:	freestanding
Wine storage appliance:		No	Other refrigerating appliance:	yes
General product parameters:
Parameter Value Parameter Value
Overall dimensions (millimeter)	Height	850	Total volume (dm3 or l) 198
	Width 770
	Depth 560
EEI		100	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a) 200 Climate class:				Extended temperate Temperate Subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting NO

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimized food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3l'Annexe IV, Tableau 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage	No - - - -
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or ice making	No - - - -
1-star No - - - -
2-star No - - - -
3-star No - - - -
4-star No - - - -
2-star section No - - -
Variable temperature compartment	compartment types	198 +4 or -18 9.0 M
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			No
Energy efficiency class			NA
Minimum duration of the guarantee offered by the manufacturer: 2 YEARS
Additional information:
Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr

Reference: CC2004E
Rated voltage: 220-240V~
Ampere: 0.9A
Rated frequency: 50Hz
Climate class: ST/N/SN
Refrigerant: R600a(51g)
Protection against electrical shock:	I
Insulation foam: CYCLOPENTANE

Climate class:

Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ C to 32^ C’.

Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C’.

Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C’.

Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16^ C to 43^ C.’

Flash the QR code on your appliance to access its main information.

TROUBLESHOOTING

Warningly Before trouble-shooting disconnect the power supply. Only a qualified electrician r other person must carry out the trouble-shooting that is not the manual.

Important!

Repairs to the appliance may only be performed by competent service engineers. Improper repairs can give rise to significant hazards for the user.

If your appliance needs repairing please contact your specialist dealer or your local Customer Service Center.

Problem Solution
POWER FAILURE	Keep the opening and closing of the door for a minimum time to prevent cold air from escaping.
	Avoid placing new items in the cooler as this will raise the temperature inside the compartment
	In the event of a prolonged power cut, place ice in the freezer.
POWER CORDPROBLEMS	If the supply cord is damaged. It must be replaced by a special cord or assembly available from the manufacturer or the service agent.
	The showcase must be positioned so that the plug inaccessible to the wall outlet.
WHEN NOTUSED FORA LONG PERIOD	Remover all items from the compartment and disconnect the power cord plug from the wall outlet.
	Clean the compartment interior and wipe away all water.
	To prevent mold formation and foul odors,leave the door open to dry the compartment completely.

Please check the following if you encounter problems with the unit. If the problem continues after taking the proper remedial actions disconnect the power cord plug from the wall outlet.

Transfer the items stored in the cooler to a box or other container. The contact the dealer from whine our purchased this unit and be ready to provide information as listed in the “REQUIRED INFORMATION” below. To prevent any electrical shock hazards do not disconnect the power cord plug from the wall outlet with wet hands.

No function at all.	Is the power supply interrupted?
	Is the power cord plug disconnected from the wall outlet?
	Are the shops power fuses blown and/or the circuit breaker activated?
	Is the temperature control turned to OFF?
Inadequate function	Inadequate refrigeration Is the place of installation ventilated?
	Is the freezer exposed to direct sunlight placed near a heater or stove?
	Are the lids opened and closed frequently?
	Are items stoked beyond the load line?
	Is the temperature control dial in the direction of Colder.Ifit is too cold turn dial in direction of Cold.
	Is a lot of frost forming in the freezer compartment?
Excessive noise.	Is the floor underneath the freezer sturdy enough?Is the unit shaking and/or rattling?Is the rear panel of the uniting contact with a wallet?Is there a container or something behind the freezer?The compressor will generate rather loud sound for a while after operation is started. The noise will cease together with refrigeration.
Condensation on cooler exterior	Condensation may condense on the exterior of the unit and the door during hot and humid days or depending on the place of installation. This occurs when the humidity is high and water particles in the cold surfaces This is normal.Wipe away condensation with a dry cloth.
The circumference of chest freezer feels hot	Especially in summer or in the period of starting running the circumference of the chest freezer feels hot because the chest freezer inside has a pipe for radiating and preventing condensation.The heat does not affect inside goods.

DISPOSAL OF THE APPLIANCE

It is prohibited to dispose of this appliance in domestic household waste.

For disposal there are several possibilities:

a) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user.

b) The manufacturer will take back the old appliance for disposal at least free of charge to the user.

c) As old products contain valuable resources, they can be sold be scrap metal dealers. Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the ground-water and find their way into the food chain.

The refrigerating gas contained in the circuit of this appliance is isobutene (R600a); it causes a low level of pollution but is inflammable.

Please contact your local disposal department for advice on the correct method of disposal.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or numbers present)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream.

Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment.

The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

About your product service : To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97

From Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call).

Period of availability of repair spare parts: 10 years

In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.

LE TRI + FACILE BAC DE TRI
