USER MANUAL ACT1005 AYA

33When using an electrical appliance, basic precautions should always be followed, including the following:

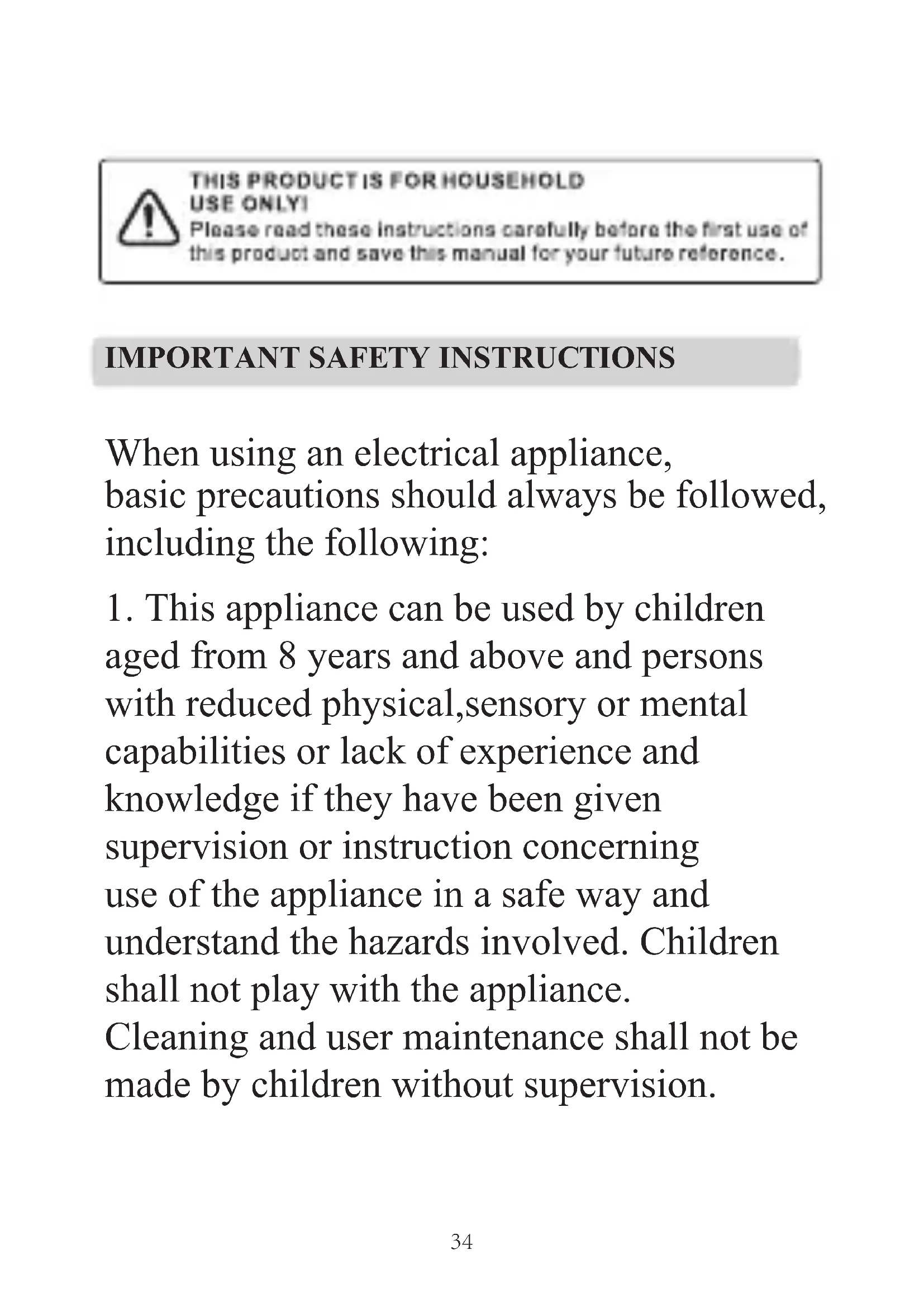

IMPORTANT SAFETY INSTRUCTIONS

1. This appliance can be used by children

aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

342. Children aged from 3 to 8 years are allowed

to load and unload refrigerating appliances.

3. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent rder to avoid a hazard.

4. WARNING: Keep ventilation openings,

in the appliance enclosure or in the built-in structure, clear of obstruction.

5. WARNING: Do not use mechanical devices

or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

6. WARNING: Do not damage the refrigerant

inside the food storage compartments of the appliance,unless they are of the type recommended by the manufacturer.

358. Do not store explosive substances such as

9. This appliance is intended to be used

in household and similar applications such as -staff kitchen areas in shops,offices and other working environments; – farm houses and by clients in hotels, – bed and breakfast type environments;

10. Placed the appliance against a wall with

a free distance not exceeding 75mm and more than 50mm.

11. WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

12. WARNING: Do not locate multiple

portable socket outlets or portable power supplies at the rear of the appliance. le propellant in this appliance. motels and other residential type environments; – catering and similar non-retail applications. 3613. To avoid contamination of food,please respect the following instructions: – Opening the door for long periods can cause rease of the temperature in the compartments of the appliance. – Clean regularly surfaces that can come in contact with food and accessible drainage systems. – Clean water tanks if they have not been used water system connected to a water supply if water has not been drawn for 5 days. – Store ra le containers in the refrigerator, so that it is not in contact with or drip onto other food. – Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. 37– One-, two- and three-star compartments are not suitable for the freezing of fresh food. – If the refrigerating appliance is left empty for long periods,switch off,defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

14. Unplug the appliance from outlet

when not in use, before putting on or taking off parts,before cleaning.

15. Make sure to place the plug all the way

into socket when connecting your appliance.

16. Insert the plug into a singlegrounded socket.

17. Never use the appliance in place where

combustibl le materials are kept.

18. For safety reason, be sure to repairor

replace parts at an authorized service dealers. 3820.The appliance must be positioned so that the plug is accessible. 21.Please execute according to local regulations. regarding disposal of the appliance for Before you scrap the appliance,please take off the doors to prevent children trapped. 22.Ensure the refrigerator is unplugged before cleaning or if the product is not in use. 23.To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents. 24.It is not recommended to use this Please ensure that the appliance is plugged directly into the electrical outlet. 25.Do not place hot food or drink into 19.The motor is permanently lubricated and 39the before it cools down to room temperature.

26. Close the door immediately after

putting in any items so the inside temperature will not rise dramatically.

27. Keep appliance away from any heat

source or direct sunlight.

ly, the appliance must It should not be laid on any soft material. . To avoid injury or death from electrical shock do not operate the appliance with wet hands, while standing on a wet surface or while standing in water.

. Do not use outdoors or in wet conditions. from the outlet.

. Never pull the cord to disconnect it 40Grasp the plug and pull it from the outlet.

. Keep the cord away from heated surfaces.

. Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

. Connect your to an independent electrical socket and use a safe ground wire.

. Defrost the freezer at least once a month because too much frost may affect refrigeration.

. Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

. When the frost in freezer is removed, or when there is no electricity or when ceases to be used, it should be cleaned in order to prevent it from smelling. 413 .Children should be supervised to ensure that they do not play with the appliance. .The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

.This appliance has been incorporated with a grounded plug.Please ensure the wall outlet in your house is well earthed.

.It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

. Disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points. 42Old refrigerators can contain CFC that destroy the ozone;contact the waste treatment center nearest your home for more details on the correct procedures for disposal. during using, service and disposal. the appliance.

.This refrigerating appliance is not intended 4345.If the refrigerant circuit is damaged: - Avoid naked flames and sources of ignition. - Thoroughly ventilate the room in which the appliance is situated.

46. If you are discarding an old freezer or

refrigerator with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.

47. Extreme caution must be used when

moving the appliance. 48.Do not give children ice-cream and water ices direct from the freezer as the low temperature may cause "freezer burns" on the lips. 4449.Replacing certain parts of your household electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional. 45It is the most energy efficient to place food in the position shown in the picture above. The freezer is suitable for storage of meat,fish,shrimp,dumplings,rice balls and other foods not to be consumed in short term. Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time. Notice: After long term using, there maybe a certain degree of wear with the hinge,it will cause the noise when open/close the door and reduce the service life of hinge. It is recommended to put the grease on hinge for maintenance regularly,it can effectively eliminate noise and extend the service life of the hinge. The low temperature of freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice. Door

PROPER USE OF FREEZERS

Names of components control knob Temperature- (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor) Flap drawer

Freezing chamber Type of food(storage time:within 3 months) Freezer drawer(s)/shelf Foods for long-term storage.

Bottom drawer/shelf for raw meat, poultry, fish.

• Middle drawer/shelf for frozen vegetables(blanched), chips.

• Top drawer/shelf for ice cream, frozen fruit(in syrup), frozen baked goods. 484950511. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

2. The interior of the refrigerator should be cleaned regularly to avoid odor.

3. Check the door gasket regularly to make sure there are no debris.

4. Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

5. Clean the door gasket with mild soap and water.

6. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking

soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

7. For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or

corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

8. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the

interior of the refrigerator.

9. Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.

Cleaning 5210. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

11. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic

solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.

12. Do not rinse with water so as not to affect the electrical insulation properties.

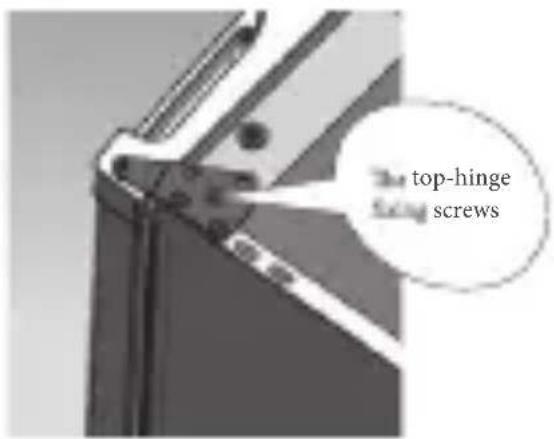

532. Remove the top-hinge screws with cross-slot screwdriver.

Take the door and put it down with care in a safe location.

3. Replace the top-hinge and the door limit block and the door bearing

bush to the other side. top-hinge screws replace the top-h ingereplace the door bearin g bush andthe lim it block REVERSE DOOR

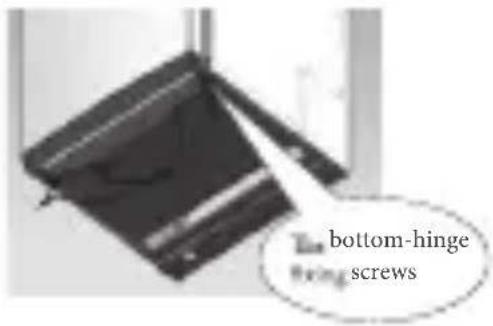

544. Disassemble the bottom-hinge screws with cross-slot screwdriver

replace and the hinge to the other side. bottom-hinge screws

5. Replace the leveler to the other side and adjust it for a proper cabinet le

Supplier's name or trademark: AYA Model identifier:ACT1005 Type of refrigerating appliance: Low-noise appliance: Wine storage appliance:

Climate class: temperate, subtropical, Energy efficiency class Airborne acoustical noise emission class

Airborne acoustical noise emissions (dB(A) re 1 pW) Annual energy consumption (kWh/a) Minimum ambient temperature (ºC), for which the refrigerating appliance is suitable Maximum ambient temperature (ºC), for which the refrigerating appliance is suitable Winter setting

For 4-star compartments Fast freeze facility Light source parameters: Type of light source Energy efficiency class

Minimum duration of the guarantee offered by the manufacturer: 2 YEARS Additional information: Weblink to the manufacturer’s website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr Variable temperature compartment Compartment volume (dm³ or l) Freezing capacity (kg/24h) Defrosting type (auto-defrost=A, manual defrost=M) Recommende d temperature setting for optimised food storage (ºC) These settings shall not contradict the storage conditions set out in Annex IV, Table 3l’Annexe IV, Tableau 3 59Climate classes -Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; -Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’; -Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’; -Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging fr om 16 °C to 43 °C’; Note: More data information, please scan the QR code on the energy label. TECHNICAL INFORMATION Reference: ACT1005 220-240V~ 0.7A 50Hz N/ST R600a(43g)

CYCLOPENTANE Rated voltage: Ampere: Rated frequency: Climate class: Refrigerant: Insulation foam: Protection against electrical shock: 60About your product service : To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97 From Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call). Period of availability of repair spare parts: 10 years In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity. European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection
