ACA160W Upright Freezer EN1 Safety warnings Meaning of safety warning symbols Related warnings for use Electricity related warnings Placement Start Warnings related to placing items Warnings related to disposal

6. Maintenance of refrigerator

7. Frequently asked questions

10. Correct disposal of this product

DEAR CUSTOMER: Thank you for buying this refrigerator. To ensure that you get the best results from your new refrigerator, please take time to read through the simple instructions in this booklet.Please ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any refrigerator equipment please contact your local waste disposal department for advice on safe disposal.This appliance must be only used for its intended purpose. - 18 -Meaning of safety warning symbols Prohibition symbols Warning symbols Note symbols The symbols indicate prohibited matters, and those behaviors are forbidden. Non-compliance with the instructions may result in product damages or endanger the personal safety of users. The symbols indicate matters that must be followed, and those behaviors must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damages or endanger the personal safety of users. The symbols indicate matters to pay attention to, and these behaviors shall be specially noted. Due precautions are needed or minor or moderate injuries or damages of the product will be caused.

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!Please read these instructions carefully before the first use of this product and save this manual for your future reference. Regarding the information for the installation, operation, maintenance and disposal of the appliance, please refer to the below paragraphs of this manual. This appliances can be used by children aged from 8 years and above and persons withreduced physical,sensory or metal capabilities or lack of experiences and knowledge if theyhave been given supervision or instruction concerning use of the appliances in a safe way andunderstand hazard way involved.Children shall not play with appliances. Cleaning and usermaintenance shall not be made by children without supervision.If the supply cord is damaged,it must be replaced by the manufacturer,its service agentor similarly qualified persons in order to avoid a hazard.It is recommended to checkregularly the supply cord for any sign of possible deterioration,and the appliance shouldnot be used if the cable is damaged.This appliance has been incorated with a grounded plug.Please ensure the wall outlet inyour house is well earthed.It is recommended to check regularly the supply cord for any sign of possible deterioration,and the appliance should not be used if the cable is damaged.Check that the voilage of the power supply in your home is the same as the voltage shownon the rating label of.WARNING: When positioning the appliance, ensure the supply cord is not trapped ordamaged.WARNING: Do not locate multiple portable socket-outlets or portable power supplies at therear of the appliance.Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.If the refrigerant circuit is damaged:– Avoid naked flames and sources of ignition.– Thoroughly ventilate the room in which the appliance is situated.

Do not store explosive substances such as aerosol cans with a flammable propellant in thisappliance.

2-WARNING- Keep ventilation openings,in the appliance enclosure or in the built-in structure, clear of obstruction. 3-WARNING- Do not use mechanical devices or other means to accelerate the defrosting process,other than those recommended by the manufacturer. 4-WARNING- Do not damage the refrigerant circuit. 5-WARNING- Do not use electrical appliances inside the food storage compartments of the appliance,unless they are of type recommended by the manufacturer;

1-WARNING- Risk of fire / flammable materials. There are flammable materials at the back of appliance, please keep the product far away fire source. - 19 -10A To ensure safety, it is not recommended that to place regulators,rice cookers, microwave ovens and other appliances at the top of the refrigerator, those recommended by the manufacture are not included.Do not use electrical appliances in the food pantry.

Electricity related warnings Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.Worn or damaged power cord shall be replaced in manufacture-authorized maintenance stations.Please use a dedicated three-hole power socket which is 10A or more and the power socket shall not be shared with other electrical appliances. The power cord should be firmly contacted with the socket or elsefires might be caused. Please ensure that the grounding electrodeof the power socket is equipped with a reliable grounding line.The refrigerator adopts220V-240V/50Hz AC power, voltage fluctuations over the range of 220V-240V±10%will cause malfunction or even damage,so a 750 W automatic voltage regulator must be installed in concert with the AC power. Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases.Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire. GENERAL This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. This manual contains lots of important safety information which shall be observed by the users. To avoid contamination of food, please respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. – Clean regularly surfaces that can come in contact with food and accessible drainage systems. – Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. – Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. – Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. – One-, two- and three-star compartments are not suitable for the freezing of fresh food. – If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. - 20 -Do not allow children to enter or climb the refrigerator to prevent that children are sealed in the refrigerator or children are injured by the falling refrigerator. Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator. Do not place heavy objects on the top of the refrigerator considering that objectives may fall when switching the door, and accidental injuries might be caused. Please pull of the plug in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts. Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents. Do not place flammable items near the refrigerator to avoid fires. This product is household refrigerator and shall be only suitable for the storage of foods. According to national standards, household refrigerator shall not be used for other purposes, such as storage of blood, drugs or biological products.

Warnings related to placing items Authorized demolition or renovation of the refrigerator is not prohibited.It is forbidden to damage the refrigerant lines and the repair and maintenance of the refrigerator must be carried out by professionals. Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger. The surrounding of the appliances around or the embedded structureshall not be obstructed while good ventilation shall be maintained. The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the refrigerator door to avoid falling articles. Do not pick foods or containers in the refrigerator chamber when the refrigerator is running, especially metal containers in order to avoid frostbite. Related warnings for use - 21 -The refrigerator To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points. Old refrigerators can contain CFC that destroy the ozone; contact the waste treatment center nearest your home for more details on the correct procedures for disposal. s R600a refrigerant and cyclopentane foam materials are combustible materials and discarded refrigerators should be isolated from fire sources and can not be burned.Please transfer the refrigerator to qualified professional recycling companies for processing to avoid damages to the environment or other hazards. Please remove the door of the refrigerator and shelves which shall be properly placed to avoid accidents of children entering and playing in the refrigerator. Warnings related to disposal Disposal of the appliance Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the refrigerator to prevent bursts and other losses. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. - 22 -. Follow the following stages to reverse the door from its initial position.

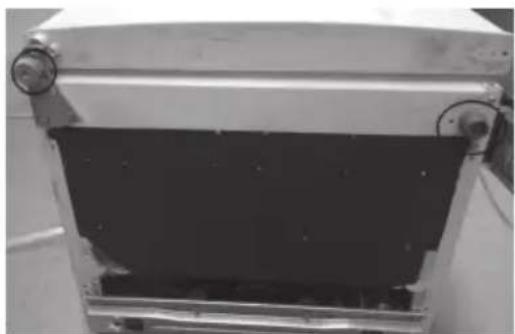

1. Remove the top right hinge cover.

2. Unscrew and remove the hinge with a cross-slot screwdriver.

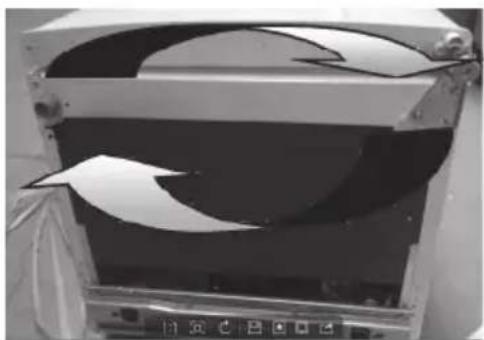

3. A. Return the hinge, take off the axle and fix it at the other side.

B. Take off the door, then remove the door limit block and place it to the opposite side. C. Remove the top left hinge cover and put it on the right side. - 23 -2. Door Right-Left Change

5. Reinstall the door on the hinge properly, take care about the vertical alignment.

6. Fix firmly the top hinge on the other side and put on hinge cover.

7. Replace the leveler to the other side and adjust it to make sure the cabinet level.

- 24 -Placement Start The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy. Before using the refrigerator,

3. PROPER USE OF REFRIGERATOR

This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. remove all packaging materials including bottom cushions and foam pads and tapes inside the refrigerator,tear off the protective filmon the door and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect. The top space of the refrigerator shall be greater than 30cm, and the distances from both sides and backside shall be more than 10cm to facilitate the opening and closing and heat dissipation. Wipe the refrigerator inside and outside with warm moist rag (add a small amount of detergent in the warm water and wipe clean finally with clean water). The refrigerator shall stay for half an hour before connecting 220V/50Hz power when it is firstly started. The refrigerator shall run 2 to 3 hours before loading fresh or frozen foods; the refrigerator shall run for more than 4 hours in summer in advance considering that the ambient temperature is high. Please leave enough space to ensure feasible opening and drawer removal. Dimensions shown are for reference only. 1028mm 545mm 1065mm 487mm 135°

Freezing chamber Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected. *All images in this instruction manual are for indication only; please refer to your individual unit for details. Freezing chamber The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice. The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to

consumed in short term. Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time. Placed according to the position in the picture above are the most energy efficient. Type of food(storage time:within 3 months) Freezer drawer(s)/shelf

• Foods for long-term storage.

• Bottom drawer/shelf for raw meat, poultry, fish.

• Middle drawer/shelf for frozen vegetables(blanched), chips.

• Top drawer/shelf for ice cream, frozen fruit(in syrup), frozen baked goods. - 26 -5. OPERATION

SETTING THE THERMOSTAT KNOB

The temperature of the freezer is controlled with a thermostat knob from MIN (less cold) MID (intermediary) and MAX (coldest) Changes of the ambient temperature affect temperature in the interior of the appliance so choose a correct setting of the temperature control knob, depending on your ambient conditions. Set the thermostat knob to MID position to achieve -18°C in the freezer compartment. Please Note: If the appliance is switched off you must wait at least 5 minutes before restarting the appliance or re-inserting the plug into the wall outlet. This is to allow the protection device in the compressor to reset. If the compressor fails to start correctly remove the plug and wait for 5 minutes before you try again then the compressor should restart normally. The storage temperature may be affected by:

• The room temperature

• How often the door is opened

• How much food is stored

• Position of the appliance When you set the correct temperature, all these factors mentioned above shall be taken into account.

- 27 -6. MAINTENANCE OF REFRIGERATOR

Cleaning Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth when cleaning temperature control knob and electrical components. Please unplug the refrigerator for defrost and cleaning. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The refrigerator of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on. Stop using Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the refrigerator. Please unplug the refrigerator left unused for a long time for cleaning. Keep the door open to avoid the bad odor. Do not turn upside, horizontally place or vibrate the refrigerator, the carrying angle can not be greater than 45°. Please hold the door and hinge when moving. Continuous operation is recommended when the refrigerator is started. Please do not move the refrigerator under normal circumstances so as not to affect the refrigerator's service life. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Check the door gasket regularly to make sure there are no debris. Please turn off the power before cleaning, remove all food, shelves, drawers, etc. Clean the door gasket with mild soap and water. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on. For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator. Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts. Do not rinse with water so as not to affect the electrical insulation properties. - 28 -Inoperation Odor Long-term operation of compressor Illuminating light does not shine The refrigerator door can not be properly closed. Loud noises Whether the refrigerator is plugged and connected to power; Low voltage; Whether temperature control knob is in the work area Failure power or tripping circuit Odorous foods should closely wrapped; Whether foods are rotten; Whether the interior shall be cleaned. It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher; Do not put too much food in the refrigerator at one time; Do not put foods until they are cooled; Frequent opening of refrigerator door. Thick frost layer (defrost is needed) Whether the refrigerator is connected to power, whether the indicator light is damaged. The refrigerator door is stuck by food packages; Too much food; Tilt refrigerator. Whether the food is leveled, whether the refrigerator is balanced; Whether the refrigerator parts are properly placed.

7. FREQUENTLY ASKED QUESTIONS

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled. Warm tips: The refrigerator enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon. Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the refrigerator when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel. Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect. Buzz: Buzz will be generated by running compressor specially when starting up or shutting down. Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation. - 29 -Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance. Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient. Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

8. TIPS FOR ENERGY SAVING

Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible. Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance). In normal temperature conditions, please arrange the thermostat at the middle setting. Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature. Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.

The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

Supplier's name or trademark: AYA Supplier's address: BUT INTERNATIONAL,

1 AVENUE SPINOZA 77184 EMERAINVILLE, FRANCE

Model identifier: ACA160W Type of refrigerating appliance: Low-noise appliance: Wine storage appliance:

Climate class: temperate, subtropical, Energy efficiency class Airborne acoustical noise emission class

Airborne acoustical noise emissions (dB(A) re 1 pW) Annual energy consumption (kWh/a) Minimum ambient temperature (ºC), for which the refrigerating appliance is suitable Maximum ambient temperature (ºC), for which the refrigerating appliance is suitable Winter setting

Compartment Parameters: Compartment type Compartment parameters and values Compartment volume (dm³ or l) Recommended temperature setting for optimised food storage (ºC) These settings shall not contradict the storage conditions set out in Annex IV, Table 3l’Annexe IV, Tableau 3 Freezing capacity (kg/24h) Defrosting type (auto-defrost=A, manual defrost=M) Pantry Wine storage Cellar Fresh food Chill 0-star or icemaking 1-star 2-star 3-star 4-star 2-star section

Variable temperature compartment For 4-star compartments Fast freeze facility Light source parameters: Type of light source Energy efficiency class

Minimum duration of the guarantee offered by the manufacturer: 2 YEARS Additional information: Weblink to the manufacturer’s website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr

- 32 -9. TECHNICAL INFORMATION

About your product service: To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97 .From Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call).Period of availability of repair spare parts: 5 years.In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity. Reference： ACA160W 220-240V~ 0.68A 50Hz N/ST R600a(54g)

CYCLOPENTANE Rated voltage： Ampere： Rated frequency: Climate class: Refrigerant: Insulation foam: Protection against electrical shock: Climate classes -Extended temperate: ‘this refrigerating appliance is intended to be used atambient temperaturesranging from 10 °C to 32 °C’;-Temperate: ‘this refrigerating appliance is intended to be used at ambienttemperatures ranging from 16 °C to 32 °C’;-Subtropical: ‘this refrigerating appliance is intended to be used at ambienttemperatures ranging from 16 °C to 38 °C’;-Tropical: ‘this refrigerating appliance is intended to be used at ambient

Note: More data information, please scan the QR code on the energy label. This refrigerating appliance is not intended to be used as a built-in appliance. mperatures ranging from 16 °C to 43 °C’;

10. CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
