ACA160EX - Freezer AYA - Free user manual and instructions

Product type	Free-standing freezer
Brand	AYA
Model	ACA160EX
Dimensions (H x W x D)	1420 x 550 x 550 mm
Total net volume	160 L
Energy class	E
Annual consumption	183 kWh/year
Noise level	42 dB(A) - Class D
Power supply	220-240 V ~ 50 Hz, 0.5 A
Refrigerant	R600a (54 g)
Freezing capacity	7.2 kg/24h
Freezing temperature	-18 °C (MID setting)
Defrost	Manual
Climate class	N/ST (16 °C to 38 °C)
Warranty	2 years
Availability of spare parts	10 years
Door reversal	Possible (left/right)
Adjustable feet	Yes
Maintenance	Regular interior cleaning; manual defrost when frost layer reaches 3-5 mm
Safety	Grounding mandatory; do not use extension cord; avoid heat sources

Frequently Asked Questions - ACA160EX AYA

What is the freezing capacity of the AYA ACA160EX?

The freezer can freeze up to 7.2 kg of fresh food in 24 hours.

How to adjust the temperature?

Use the rotary thermostat inside. The MID setting corresponds to approximately -18 °C. Turn to MAX for colder, to MIN for less cold.

How to reverse the door opening direction?

Unplug the appliance, remove the top and bottom hinges, then reattach them on the opposite side. Use a screwdriver and a socket wrench. A second person is recommended.

What type of defrost?

Defrosting is manual. When the frost layer reaches 3 to 5 mm thickness, unplug the appliance, remove the food, leave the door open, and collect the melt water.

What to do in case of a power outage?

Keep the door closed. Food remains frozen for several hours. Avoid frequent opening. After power returns, wait 5 minutes before plugging back in.

How to clean the interior?

Unplug the appliance. Use a soft cloth with warm water and a little baking soda. Rinse with clean water and dry. Do not use abrasive products or solvents.

What are the exact dimensions?

Height: 1420 mm, Width: 550 mm, Depth: 550 mm.

What is the energy class?

Class E (annual consumption 183 kWh/year).

Is the appliance noisy?

The noise level is 42 dB(A), class D. Fluid or compressor noises are normal.

Where to find spare parts?

Spare parts are available for 10 years after purchase. Contact BUT after-sales service at 09 78 97 97 97.

USER MANUAL ACA160EX AYA

MANUEL D'UTILISATION ACA160EW / ACA160EX

FR

Blank white rectangular frame with thin black border and corner markers (no text or symbols)

Congélateur

Armoire

TABLE DES MATIERES

Simple line drawing of a room with a monitor and desk, no text or symbols present

Simple line drawing of an oven with a top-mounted appliance and warning symbol (no text or labels)

Simple line drawing of a refrigerator, battery, switch, and pencil (no text or symbols)

Hand holding a book with a starburst effect, no text or symbols present

Line drawing of a person opening an open refrigerator with a cross symbol and warning symbols (no text or labels)

Simple line drawing of a distressed character with a frowning expression, surrounded by symbols (circle, cross, and exclamation mark) — no text or labels present.

Simple line drawing of a person pushing an open box next to a refrigerator (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Simple line drawing of a refrigerator with a sad face, a potted plant, and sun symbols (no text or labels)

Simple line drawing of a refrigerator with a smiling face and height measurement labels (no text or symbols on the refrigerator itself)

Cartoon illustration of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

REGLER LA TEMPÉRATURE

Illustration of various household items including a glass bottle, alcohol spray bottle, and a kettle with steam rising (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Blank white rectangular frame with thin black border and corner markers (no text or symbols)

Upright Freezer

CONTENTS

1. Safety warnings - 19 -
   Electricity related warnings - 20 -
   Related warnings for use - 21 -
   Warnings related to placing items - 21 -
   Warnings related to disposal - 22 -
   Disposal of the appliance - 22 -
2. Product overview - 23 -
3. Door right-left change -24-
4. Proper use of freezer -26-
   Placement -26-
   Start -26-
5. Operation -27-
6. Maintenance of freezer - 28 -
   Cleaning -28-
   Stop using -28-
7. Troubleshooting -29-
8. Tips for energy saving - 30 -
9. Technical information -31-
10. Correct disposal - 33 -

DEAR CUSTOMER:

Thank you for buying this freezer. To ensure that you get the best results from your new freezer, please take time to read through the simple instructions in this booklet. Please ensure that the packing material is disposed of in accordance with the current environmental requirements. When disposing of any freezer equipment please contact your local waste disposal department for advice on safe disposal. This appliance must be only used for its intended purpose.

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

1. SAFETY WARNINGS

Regarding the information for the installation, operation, maintenance and disposal of the appliance, please refer to the below paragraphs of this manual.

- WARNING-Risk of fire / flammable materials. There are flammable materials at the back of appliance, please keep the product far away fire source.

- WARNING-

- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING-

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING-

Do not damage the refrigerant circuit.

- WARNING-

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of type recommended by the manufacturer;

• This is our life

nces can be used by children aged from 8 years and above and persons with physical, sensory or metal capabilities or lack of experiences and knowledge if been given supervision or instruction concerning use of the appliances in a and understand hazard way involved. Children shall not play with appliances. and user maintenance shall not be made by children without supervision.

• Do not store this appliar

re explosive substances such as aerosol cans with a flammable propellant in nce.

• If the supp or similarly regularly th not be use

y cord is damaged, it must be replaced by the manufacturer, its service agent qualified persons in order to avoid a hazard. It is recommended to check the supply cord for any sign of possible deterioration, and the appliance should d if the cable is damaged.

• This applia your house

nce has been incorporated with a grounded plug. Please ensure the wall outlet in e is well earthed.

• It is recom- deteriorati

mended to check regularly the supply cord for any sign of possible on, and the appliance should not be used if the cable is damaged.

- Check that shown on t

t the voilage of the power supply in your home is the same as the voltage the rating label of.

- WARNING: damaged

When positioning the appliance, ensure the supply cord is not trapped or

• WARNING: the rear of

Do not locate multiple portable socket-outlets or portable power supplies at the appliance.

- Children a

ged from 3 to 8 years are allowed to load and unload refrigerating appliances.

- If the refrig

erant circuit is damaged:

-Avoid naked flames and sources of ignition.

-Thoroughly ventilate the room in which the appliance is situated.

- Please acc flammable prevent ch

According to local regulations regarding disposal of the appliance for its blowing gas. Before you scrap the appliance, please take off the doors to children trapped.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the freezer, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the Freezing appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1. SAFETY WARNINGS

GENERAL

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments.
• farmhouses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments.
• catering and similar non-retail applications.

▶ Electricity related warnings

Simple line drawing of a room with a monitor and desk, no text or symbols present

Simple line drawing of an open refrigerator with a warning symbol (no text or labels)

• Do not pull the power cord when pulling the power plug of the freezer. Please firmly grasp the plug and pull out it from the socket directly.
• Do not damage the power cord under any condition so as to ensure safety use, do not use when the power cord is damaged or the plug is worn.
• Worn or damaged power cord shall be replaced in manufacture-authorized maintenance stations.
• Please use a dedicated three-hole power socket which is 10A or more and the power socket shall not be shared with other electrical appliances.
• The power cord should be firmly contacted with the socket or else fires might be caused. Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.
• The freezer adopts 220V-240V/50Hz AC power, voltage fluctuations over the range of 220V-240V±10% will cause malfunction or even damage, so a 750 W automatic voltage regulator must be installed in concert with the AC power.
• Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the freezer and other electrical appliances considering that spark may cause a fire.
• To ensure safety, it is not recommended that to place regulators, rice cookers, microwave ovens and other appliances at the top of the freezer, those recommended by the manufacture are not included. Do not use electrical appliances in the food pantry.

1. SAFETY WARNINGS

▶ Related warnings for use

Simple line drawing of a refrigerator, electrical switch, and tools (no text or symbols)

• Authorized demolition or renovation of the freezer is not prohibited. It is forbidden to damage the refrigerant lines and the repair and maintenance of the freezer must be carried out by professionals.
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Simple line drawing of a hand holding a book with a starburst effect, no text or symbols present

- The surrounding of the appliances around or the embedded structures shall not be obstructed while good ventilation shall be maintained.

- The gaps between freezer doors and between doors and freezer body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when switching off the freezer door to avoid falling articles.

- Do not pick foods or containers in the freezer chamber when the freezer is running, especially metal containers in order to avoid frostbite.

Line drawing of a refrigerator with a person climbing the door, no text or symbols present

• Do not allow children to enter or climb the freezer to prevent that children are sealed in the freezer or children are injured by the falling freezer.
• Do not spray or wash the freezer; do not put the freezer in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the freezer.

Simple line drawing of a distressed trash can with a sad face and warning symbols (no text or labels)

• Do not place heavy objects on the top of the freezer considering that objectives may fall when switching the door, and accidental injuries might be caused.
• Please pull of the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

▶ Warnings related to placing items

• Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents.
• Do not place flammable items near the freezer to avoid fires.

- This product is household freezer and shall be only suitable for the storage of foods. According to national standards, household freezer shall not be used for other purposes, such as storage of blood, drugs or biological products.

- Do not place items such as bottled or sealed container of fluid such as bottled beers and beverages in the freezer to prevent bursts and other losses.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

▶ Warnings related to disposal

The freezer is R600a refrigerant and cyclopentane foam materials are combustible materials and discarded freezers should be isolated from fire sources and can not be burned. Please transfer the freezer to qualified professional recycling companies for processing to avoid damages to the environment or other hazards.

Please remove the door of the freezer and shelves which shall be properly placed to avoid accidents of children entering and playing in the freezer.

▶ Disposal of the appliance

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

And the disposal should only be done through public collection points.

Old freezers can contain CFC that destroy the ozone; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

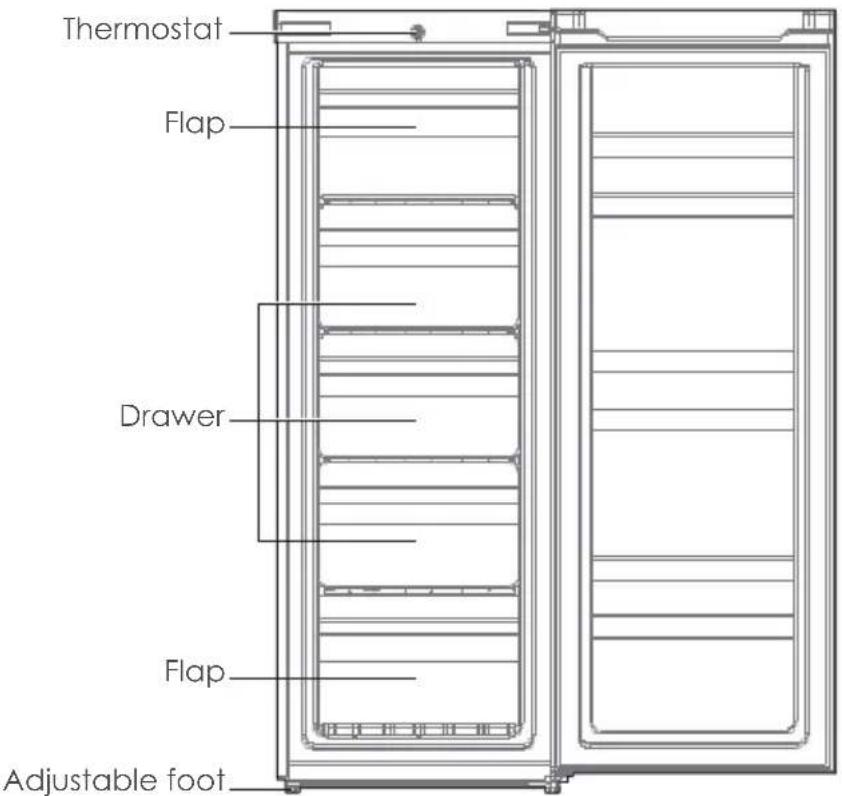

2. PRODUCT OVERVIEW

Freezing chamber

•The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
- Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.
- Recommended storage times of frozen food in the freezer compartment. These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

Food	Storage time
Bacon, casseroles, milk	1 month
Bread, ice cream, sausages, pies, prepared shellfish, oily fish	2 months
Non-oily fish, shellfish, pizza, scones and muffins	3 months
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 months
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw)	6 months
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes	12 months

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the freezer. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

3. Door Right-Left Change

Precautions before installation:

Unplug your freezer before you reverse the door. Failure to unplug your freezer may result in serious injury or death from electrical shock.

To avoid personal injury and property damage, get another person to help you reverse the door.

You will need the following tools to reverse the freezer door:

Flat-blade screwdriver

Phillips screwdriver

5/16" socket wrench

Putty knife

Follow the following stages to reverse the door from its initial position:

1. Unplug your freezer.

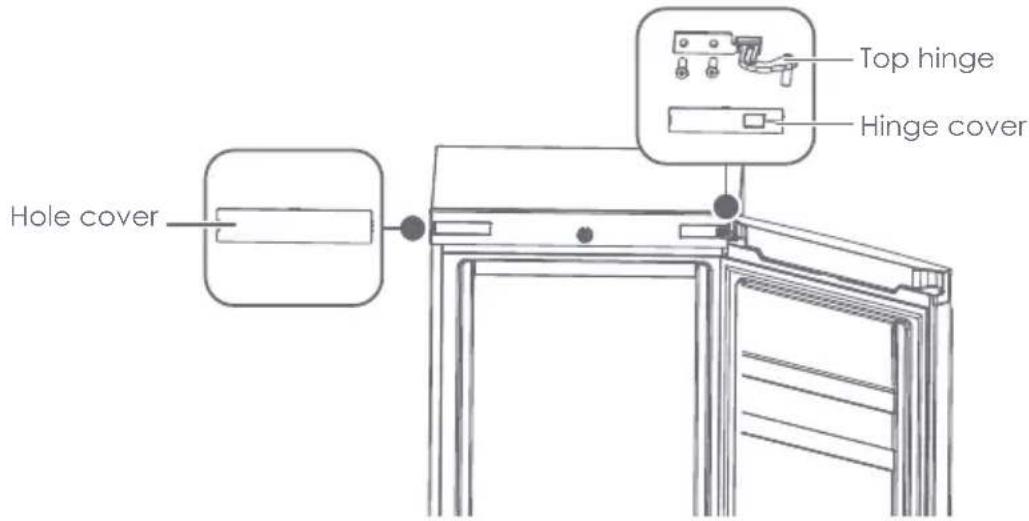

2. Remove the hinge cover, then remove the top hinge screws and hinge from your freezer. Remove the pin from the top edge of the door, then remove the hole cover from the other side of the freezer.

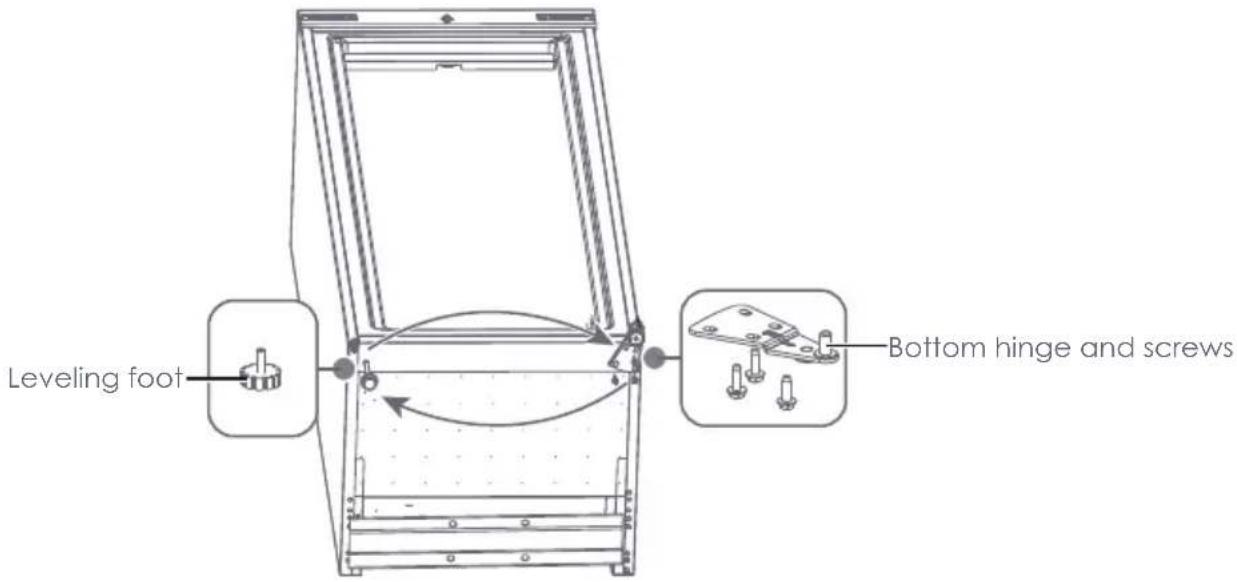

1. While one person tilts your freezer backwards, remove the bottom hinge screws and hinge and the two leveling feet. Install the bottom hinge and leveling feet on the other side.

You can lay your freeze flat on the floor to make removing and installing the bottom hinge easier. If you do lay it flat, when you return it to the upright position, wait two hours before you plug it in.

3. Door Right-Left Change

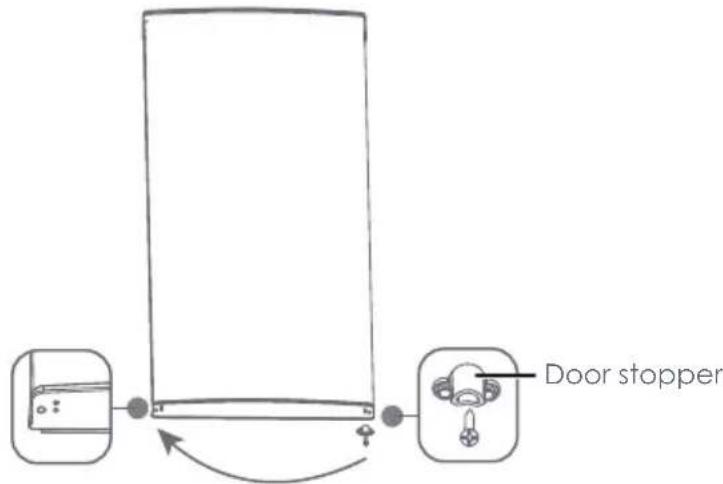

1. Remove the door stopper, then install it on the other side.

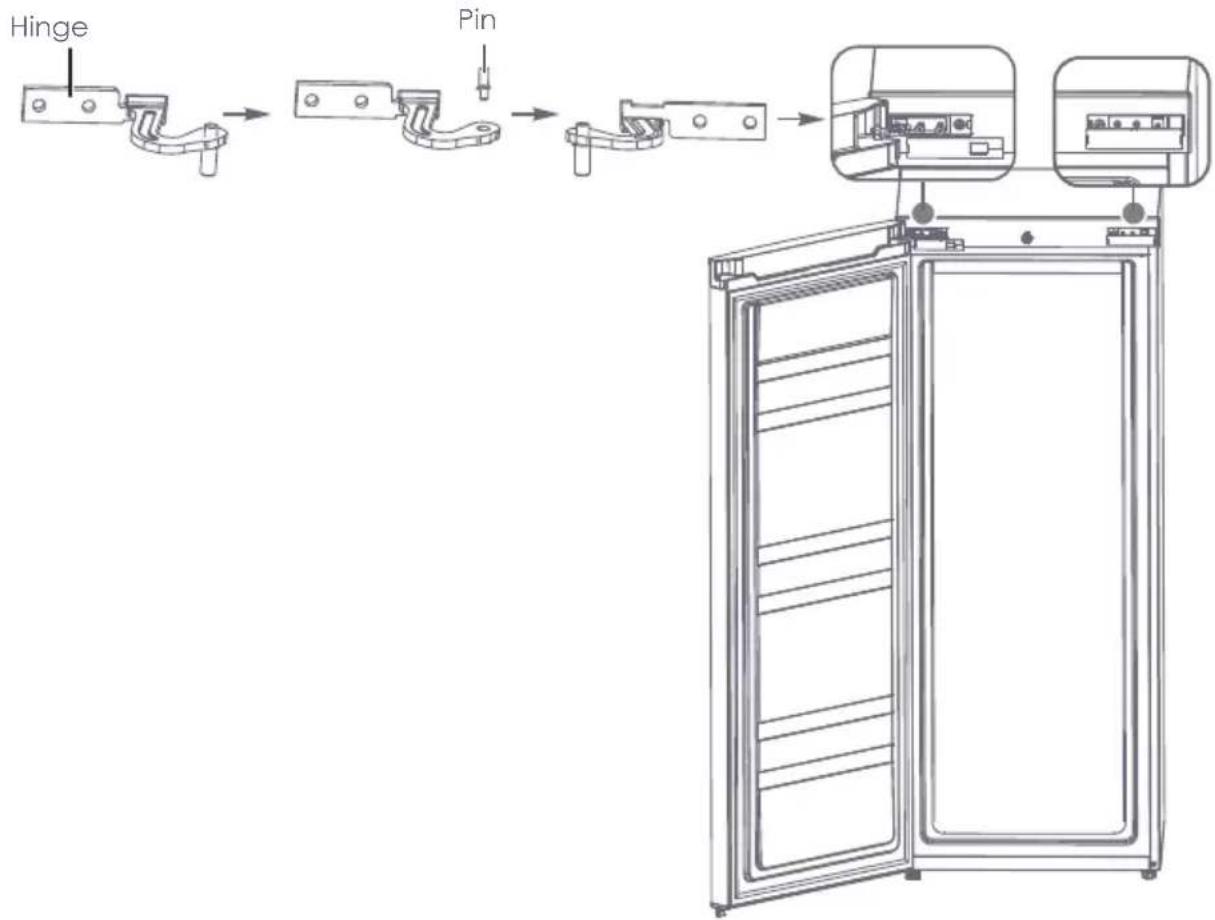

1. Align the door bottom so that the pin on the hinge slides into the hole in the door bottom.
2. Align the hinge with the screw holes on the door and the hole in the top edge of the door. Slide the pin through the hole in the hinge and into the hole on the top edge of the door. Use the screws to attach the hinge to your freezer. Place the hole cover over the hinge opening on the other side of the door.

4. PROPER USE OF FREEZER

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

Placement

Simple line drawing of a person lifting a box next to an refrigerator (no text or symbols)

● Before using the freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer body.

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

● The freezer is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun (no text or symbols)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

Simple line drawing of a refrigerator with a smiling face and height measurement lines (no text or symbols)

- The top space of the freezer shall be greater than 30cm, and the distances from both sides and backside shall be more than 10cm to facilitate the opening and closing and heat dissipation. - Wipe the freezer inside and outside with warm moist rag (add a small amount of detergent in the warm water and wipe clean finally with clean water).

Start

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

• The freezer shall stay for half an hour before connecting 220V/50Hz power when it is firstly started.
• The freezer shall run 2 to 3 hours before loading fresh or frozen foods; the freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is high.

• Please leave enough space to ensure feasible opening and drawer removal.
  ● Dimensions shown are for reference only.

5. OPERATION

SETTING THE THERMOSTAT KNOB

The temperature of the freezer is controlled with a thermostat knob from MIN (less cold) MID (intermediary) and MAX (coldest) Changes of the ambient temperature affect temperature in the interior of the appliance so choose a correct setting of the temperature control knob, depending on your ambient conditions.

Set the thermostat knob to MID position to achieve -18°C in the freezer compartment.

Please Note:

If the appliance is switched off you must wait at least 5 minutes before restarting the appliance or re-inserting the plug into the wall outlet.

This is to allow the protection device in the compressor to reset.

If the compressor fails to start correctly remove the plug and wait for 5 minutes before you try again then the compressor should restart normally.

The storage temperature may be affected by:

• The room temperature
• How often the door is opened
• How much food is stored
- Position of the appliance

When you set the correct temperature, all these factors mentioned above shall be taken into account.

- Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the freezer should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth.

Open the door for natural drying before the power is turned on.

Illustration of various household items including a glass, alcohol spray bottle, and a kettle (no text or symbols)

- Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean freezer considering that this may damage the fridge surface and interior.

- Do not rinse with water so as not to affect the electrical insulation properties. Please use a dry cloth when cleaning temperature control knob and electrical components.

⚠️ Please unplug the freezer for defrost and cleaning.

• Dusts behind the freezer and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• The interior of the freezer should be cleaned regularly to avoid odor.
• Check the door gasket regularly to make sure there are no debris.
• Please turn off the power before cleaning, remove all food, shelves, drawers, etc.
• Clean the door gasket with mild soap and water.
• Use a soft cloth or sponge to clean the inside of the freezer, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.
• For areas that are difficult to clean in the freezer (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the freezer.
• Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.
• Wipe the outer surface of the freezer with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean freezer considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.
• Do not rinse with water so as not to affect the electrical insulation properties.

▶ Stop using

Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening door and do not put fresh foods into the freezer.

Please unplug the freezer left unused for a long time for cleaning. Keep the door open to avoid the bad odor.

Do not turn upside, horizontally place or vibrate the freezer, the carrying angle can not be greater than 45^ . Please hold the door and hinge when moving.

Continuous operation is recommended when the freezer is started.

Please do not move the freezer under normal circumstances so as not to affect the freezer is service life.

7. TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperation	Whether the freezer is plugged and connected to power;Low voltage;Whether temperature control knob is in the work areaFailure power or tripping circuit
Odor	Odorous foods should closely wrapped;Whether foods are rotten;Whether the interior shall be cleaned.
Long-term operation of compressor	It is normal that freezer operates for longer time in summer when the ambient temperature is higher;Do not put too much food in the freezer at one time; Do not put foods until they are cooled;Frequent opening of freezer door.Thick frost layer (defrost is needed)
The freezer door can not be properly closed.	The freezer door is stuck by food packages; Too much food;Tilt freezer.
Loud noises	Whether the food is leveled,whether the freezer is balanced;Whether the freezer parts are properly placed.

Warm tips:

The freezer enclosure may emit heat during operation specially in summer, this is caused by the radiation of the condenser, and it is a normal phenomenon.
Condensation: condensation phenomenon will be detected on the exterior surface and door seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
Airflow sound: Refrigerants circulating in the refrigerant lines will produce eruption of sound and grunts which is normal does not affect the cooling effect.
Buzz: Buzz will be generated by running compressor specially when starting up or shutting down.
Clatter: The solenoid valve or electric switch valve will clatter which is a normal phenomenon and does not affect the operation.

8. TIPS FOR ENERGY SAVING

Try not to open the door too often, especially when the weather is wet and hot. Once you open the door, close it as soon as possible.

Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).

In normal temperature conditions, please arrange the thermostat at the middle setting.

Before loading the appliance with packages of fresh food, make sure they are cooled to ambient temperature.

Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5 mm thick.

◆ The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
- Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
◆ Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
◆ Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

9. TECHNICAL INFORMATION

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: AYA
Supplier's address: BUT INTERNATIONAL, 1 AVENUE SPINOZA 77184 EMERAINVILLE, FRANCE
Model identifier: ACA160EW / ACA160EX
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:	freestanding
Wine storage appliance:		No	Other refrigerating appliance:	yes
General product parameters:
Parameter		Value	Parameter	Value
Overall dimensions (millimetre)	Height	1420	Total volume (dm3 or l)	160
	Width	550
	Depth	550
EEI		98	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		42	Airborne acoustical noise emission class	D
Annual energy consumption (kWh/a)		183	Climate class:	temperate, subtropical,
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

9. TECHNICAL INFORMATION

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3l'Annexe IV, Tableau 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	No	-	-	-	-
Chill	No	-	-	-	-
0-star or icemaking	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	Yes	160	-18	7.20	M
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			No
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 2 YEARS
Additional information:
Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr

9. TECHNICAL INFORMATION

Reference:	ACA160EW / ACA160EX
Rated voltage:	220-240V~
Ampere:	0.5A
Rated frequency:	50Hz
Climate class:	N/ST
Refrigerant:	R600a(54g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

Climate classes

-Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
-Temper ate: 'this refrigerating appliance is intended to be used at ambient temperatur es ranging from 16 °C to 32 °C';
-Subtropical: 'this refrigerating appliance is intended to be used at ambient temperature ranging from 16 °C to 38 °C';
-Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Note: More data information, please scan the QR code on the energy label. This refrigerating appliance is not intended to be used as a built-in appliance.

10. CORRECT DISPOSAL

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

About your product service:

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of of conformity of 2 years.

Duration of availability of spare parts: 10 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97.

From Monday to Saturday from 8:00 am to 8:00 pm (local call price).

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.
