USER MANUAL ACU050W AYA

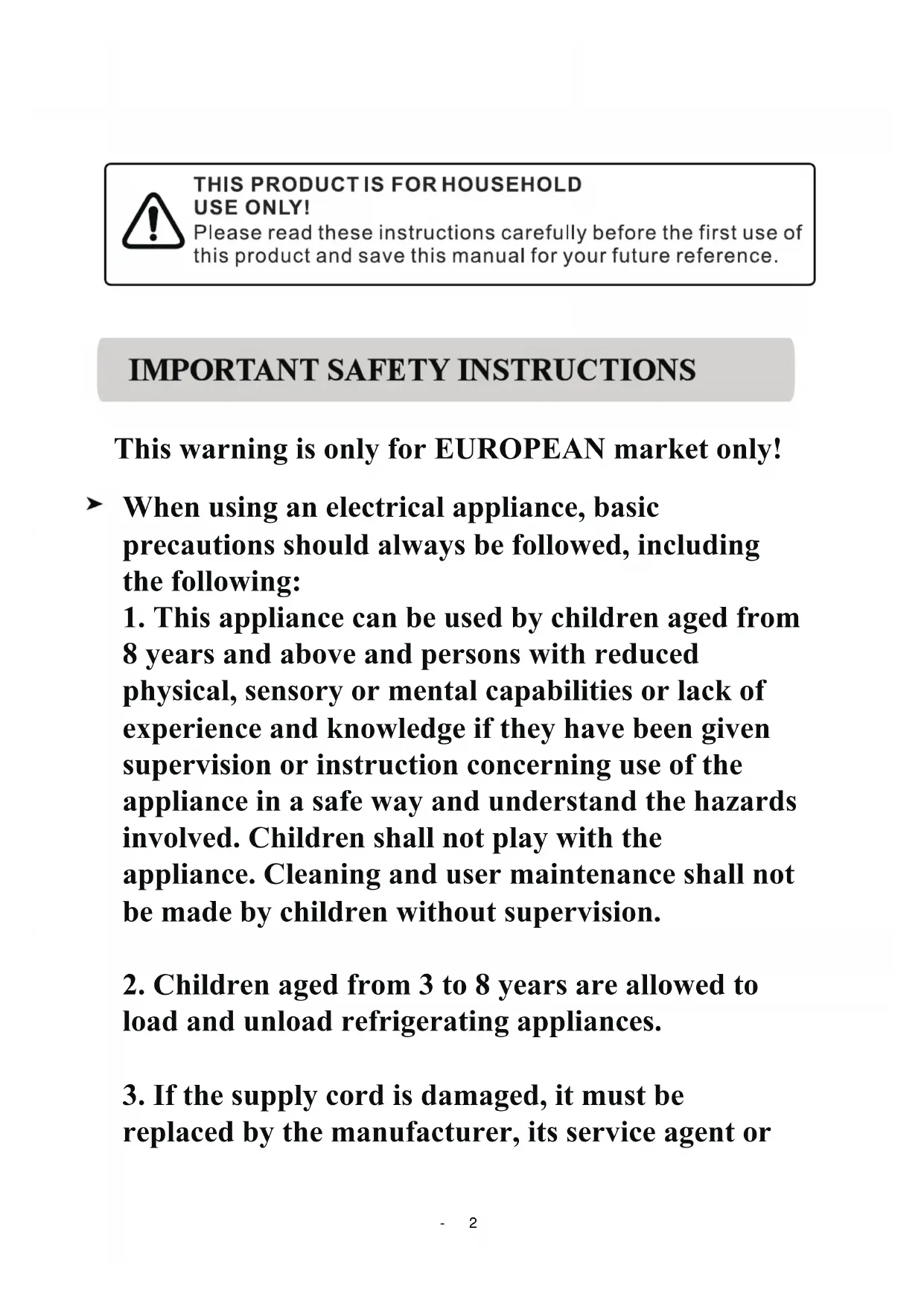

-This warning is only for EUROPEAN market only! When using an electrical appliance, basic precautions should always be followed, including the following:

1. This appliance can be used by children aged from

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children aged from 3 to 8 years are allowed to

load and unload refrigerating appliances.

3. If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or - 28 -similarly qualified persons in order to avoid a hazard.

4. WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

5. WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

6. WARNING: Do not damage the refrigerant circuit.

7. WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

8. Do not store explosive substances such as aerosol

cans with a flammable propellant in this appliance.

9. This appliance is intended to be used in household

and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. - 29 -10. Placed the appliance against a wall with a free distance not exceeding 75 mm and more than 50mm

11. WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

12. WARNING: Do not locate multiple portable

socket-outlets or portable power supplies at the rear of the appliance.

13. To avoid contamination of food, please respect the

following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. – Clean regularly surfaces that can come in contact with food and accessible drainage systems. – Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. – Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. – One-, two- and three-star compartments are not suitable for the freezing of fresh food. - 30 -– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

14. Unplug the appliance from outlet when not in use,

before putting on or taking off parts, before cleaning.

15. Make sure to place the plug all the way into socket

when connecting your appliance.

16. Insert the plug into a single grounded socket.

17. Never use the appliance in place where

combustible and inflammable materials are kept.

18. For safety reason, be sure to repair or replace

parts at an authorized service dealers.

19. The motor is permanently lubricated and will

20. The appliance must be positioned so that the plug

21. Please according to local regulations regarding

disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the - 31 -doors to prevent children trapped.

22. Ensure the refrigerator is unplugged before

cleaning or if the product is not in use.

23. To clean the appliance use only mild detergents or

glass cleaning products. Never use harsh detergents or solvents.

24. It is not recommended to use this refrigerator with

an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

25. Do not place hot food or drink into the refrigerator

before it cools down to room temperature.

26. Close the door immediately after putting in any

items so the inside temperature will not rise dramatically.

27. Keep appliance away from any heat source or

28. To fix stably, the appliance must be placed on a

flat and solid surface. It should not be laid on any soft material. - 32 -29. Do not place any other appliance on top of the refrigerator, and do not wet it.

30. To avoid injury or death from electrical shock do

not operate the appliance with wet hands, while standing on a wet surface or while standing in water.

31. Do not use outdoors or in wet conditions.

32. Never pull the cord to disconnect it from the outlet.

Grasp the plug and pull it from the outlet.

33. Keep the cord away from heated surfaces.

34. Check that the voltage of the power supply in your

home is the same as the voltage shown on the rating label of this product.

35. Connect your refrigerator to an independent

electrical socket and use a safe ground wire.

36. When the frost in freezer is removed, or when

there is no electricity or when refrigerator ceases to be used, it should be cleaned in order to prevent it from smelling.

37. Defrost the freezer at least once a month because

too much frost may affect refrigeration. - 33 -38. Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

39. Children should be supervised to ensure that they

do not play with the appliance.

40. The appliance is not intended to be operated by

means of an external timer or a separate remote-control system.

41. This appliance has been incorporated with a

grounded plug. Please ensure the wall outlet in your house is well earthed.

42. It is recommended to check regularly the supply

cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged. - 34 -43. Disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points. Old refrigerators can contain CFC that destroy the ozone; contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

This refrigerating appliance is not intended to be used as a built-in appliance. Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance.

- 35 -PROPER USE OF FREEZERS

Names of components Shelf Thermostat knob Leveling foot ( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor ) The low temperature of upright freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice. It is the most energy efficient to place food in the position shown in the picture above. The upright freezer is suitable for storage of meat, fish, shrimp, pastries class and other foods not to be consumed in short term. Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

- 36 -SETTING THE THERMOSTAT KNOB

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor ) The markings on control knob indicate the “MIN, NORMAL, MAX and OFF” for the different temperature level. "MIN." is the warmest setting; "MAX." is the coldest setting; For normal use, please set the control knob to "NORMAL" position. Recommended gear ："NORMAL" - 37 -2

Food Storage time Bacon, casseroles, milk 1 month Bread, ice cream, sausages, pies, prepared shellfish, oily fish 2 month Non-oily fish, shellfish, pizza, scones and muffins 3 month Ham, cakes, biscuits, beef and lamb chops, poultry pieces 4 month

utter, vegetables (blanched), eggs whale and yolks, cooked crayfish, minced meat (raw), pork (raw) 6 month Fruit (dry ar in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes 12 month Tha wing Deep- frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.31 - 39 -- 40 -- 41 -1. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

2. The interior of the refrigerator should be cleaned regularly to avoid odor.

3. Check the door gasket regularly to make sure there are no debris.

4. Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

5. Clean the door gasket with mild soap and water.

6. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking

soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

7. For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or

corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

8. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the

interior of the refrigerator.

Clean the bottle frame, shelves with a mild detergent and dry with a soft cloth.

10. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water,

detergent, etc., and then wipe dry.

11. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic

solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.

12. Do not rinse with water so as not to affect the electrical insulation properties.

Cleaning - 42 -1. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

2. The interior of the refrigerator should be cleaned regularly to avoid odor.

3. Check the door gasket regularly to make sure there are no debris.

4. Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

5. Clean the door gasket with mild soap and water.

6. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking

soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

7. For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or

corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

8. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the

interior of the refrigerator.

9. Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.

10. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water,

detergent, etc., and then wipe dry.

11. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic

solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.

12. Do not rinse with water so as not to affect the electrical insulation properties.

- 43 -REVERSE DOOR 1)Remove all food from door shelves. Fix the door by tapes.

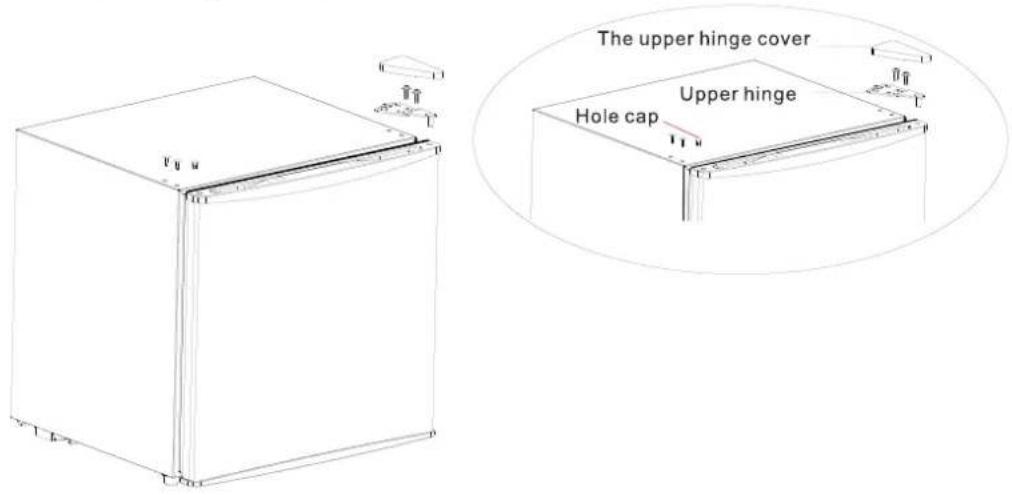

2) Dismantle hole caps, the upper hinge cover, fitting screws of upper hinge,

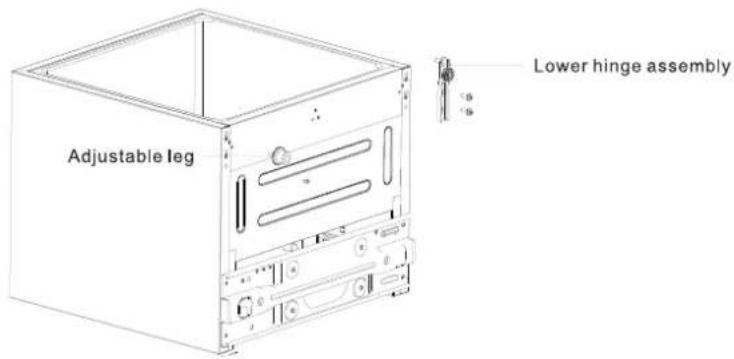

and remove the upper hinge, please keep the door vertical in whole process for avoiding falling down; 3)Remove the door; - 44 -4) Dismantle the lower hinge assembly and adjustable leg;

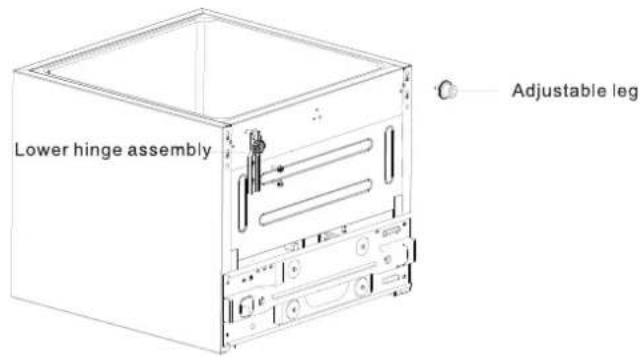

5) Install the lower hinge and adjustable leg on lower left side of cabinet and

lower right side respectively;

6) Put the door on lower hinge vertically, and validate the gas tightness of door

gasket, then install the upper hinge by tting screws and the hinge cover, nally cover the hole caps on upper right side. - 45 -- 46 -- 47 -Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2016

Supplier's name or trademark: AYA Model identifier:ACU050W Type of refrigerating appliance: Low-noise appliance: Wine storage appliance:

Climate class: temperate, subtropical, Energy efficiency class Airborne acoustical noise emission class

temperature (ºC), for which the refrigerating appl iance is suitable Maximum ambien

temperature (ºC), for which the refrigerating appliance is suitable Winter setting

Variable temperature compartment For 4-star compartments Fast freeze facility Light source parameters: Type of light source Energy efficiency class

Minimum duration of the guarantee offered by the manufacturer: 2 YEARS Additional information: Weblink to the manufacturer’s website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.frI CYCLOPENTANE R600a(25g) N/ST 50Hz 0.6A 220-240V~ ACU050W Reference: Rated voltage: Ampere: Rated frequency: Climate class: Refrigerant: Insulation foam: Protection against electrical shock: Climate classes -Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; -Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’; -Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’; -Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; Note: More data information, please scan the QR code on the energy label. - 50 -About your product service : In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of of conformity of 2 years. Duration of availability of spare parts: 10 years. To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97, From Monday to Saturday from 8:00 am to 8:00 pm (local call price).

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection. We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.
