Product type	Chest freezer (free-standing)
Brand	AYA
Model	ACT1005S
Dimensions (H x W x D)	847 x 546 x 556 mm
Total volume	98 liters (including 70 L net freezer)
Energy class	E
Annual consumption	166 kWh/year
Freezing capacity	4.5 kg/24h
Refrigerant	R600a (43 g)
Noise level	39 dB(A) - class C
Defrost	Manual
Power supply	220-240 V~ / 50 Hz
Rated current	0.7 A
Climate class	N/ST (16°C to 38°C)
Temperature setting	Rotary thermostat from 1 to 4 (OFF position)
Safety	Door lock, child protection, grounding
Maintenance	Interior cleaning with baking soda, regular defrosting
Spare parts	Available for 10 years
Warranty	2 years (legal warranty of conformity)
After-sales service	09 78 97 97 97 (Mon-Sat 8am-8pm, local call rate)

Frequently Asked Questions - ACT1005S AYA

What is the ideal temperature for the AYA ACT1005S freezer?

The recommended temperature is -18°C. Set the thermostat to an intermediate position (between 1 and 4) to achieve it. Adjust according to the load and ambient temperature.

How to reverse the door opening direction?

Unplug the appliance and empty it. Tilt it (max 45°) on a sturdy support. Unscrew the upper and lower hinges, then reposition the door on the other side. Refer to the manual for detailed steps.

What to do in case of a power outage?

Keep the door closed. Frozen foods remain frozen for several hours. Do not refreeze thawed products without checking their condition: discard ice cream, consume seafood and cooked dishes quickly.

How to defrost the freezer?

Pack the food, turn off the appliance and open the door. Place a container to collect water. Speed up defrosting with hot water (not boiling) and a plastic scraper. Clean and dry before restarting.

Why is my freezer making noise?

Normal noises include the circulation of refrigerant (gurgling) and the thermostat click when the compressor starts. If noise is excessive, check leveling and the absence of obstacles.

What is the maximum freezing capacity?

The freezing capacity is 4.5 kg per 24 hours. Do not exceed this amount to ensure quick freezing and preserve food quality.

How to clean the interior of the freezer?

Unplug the appliance and remove food. Use a mixture of hot water and baking soda (5 ml per 0.5 L of water). Rinse and dry completely. Do not use abrasive or scented detergents.

What foods should not be frozen?

Do not freeze carbonated drinks (risk of explosion), hot foods, or already thawed dishes. Whole raw eggs and high-water vegetables (cucumber, lettuce) are not recommended.

How to save energy with this freezer?

Install the appliance away from heat sources, ensure sufficient ventilation (50 mm above), pack food tightly, let cool before freezing, and do not open the door too often.

What to do if the door does not close properly?

Check that nothing is obstructing the closure (food, packaging). Clean the door gasket with mild soap. If the gasket is worn or deformed, contact after-sales service for replacement.

USER MANUAL ACT1005S AYA

Line drawing of a rectangular container or shelf with a top lid and side supports (no text or symbols)

Congélateur

Compact

TABLE DES MATIERES

Warning sign depicting a flame symbol in yellow and black, indicating hazard or caution

1. Danger; risque d'incendie / matières inflammables
   44.AVERTI EMESSNT!

3D rendering of a simple rectangular box with a square top (no text or symbols)

3D rendering of a mechanical part with an arrow indicating rotational motion (no text or symbols)

Simple line drawing of a blank whiteboard with a curved arrow indicating rotation (no text or symbols)

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

Simple line drawing of a rectangular container with a top shelf (no text or symbols)

Remarque :

Cartoon illustration of a smiling rectangular character with arms and legs, waving one hand (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, standing on a platform (no text or symbols)

INSTRUCTIONS FOR USE ACT1005S

EN

Front view line drawing of a rectangular container with a top lid and side supports (no text or symbols)

Compact Freezer

TABLE OF CONTENTS

Important Safety Instructions -34-

Proper use of freezers - 46 -

The Freezer Compartment - 48 -

Hints and Tips -50-

Maintenance and Cleaning - 51 -

Reverse Door -54-

What Happens if Something Goes Wrong - 56 -

Installation Requirements -57-

Technical information -58-

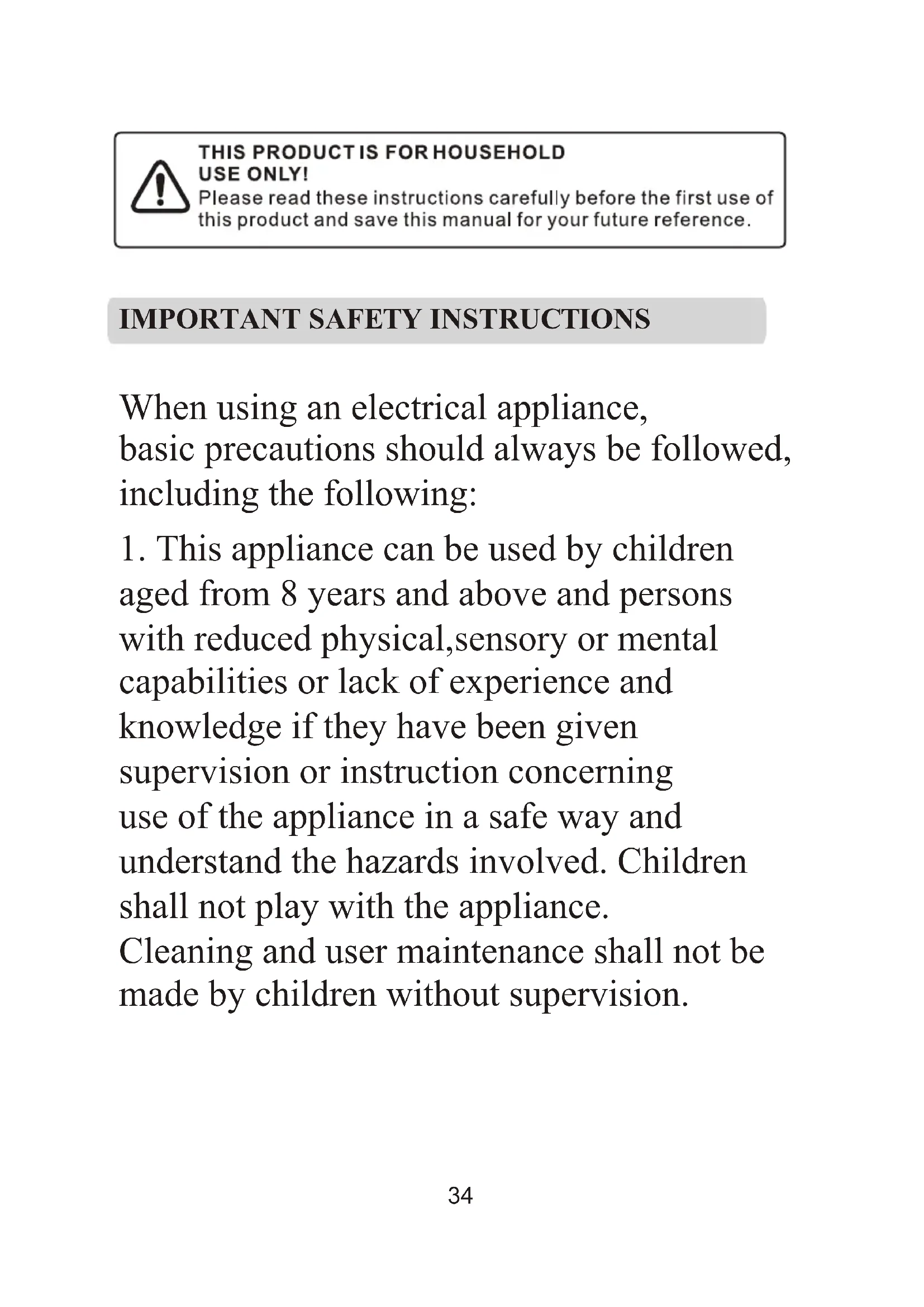

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

1. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
4. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
5. WARNING: Do not damage the refrigerant circuit.

6. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

7. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

8. This appliance is intended to be used in household and similar applications such as
   -staff kitchen areas in shops, offices and other working environments;
   – farm houses and by clients in hotels, motels and other residential type environments;
9. bed and breakfast type environments;
   – catering and similar non-retail applications.
10. Placed the appliance against a wall with a free distance not exceeding 75mm and more than 50mm.
11. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

12. WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.

13. To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

– Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48h;flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

• Unplug the appliance from outlet when not in use, before putting on or taking off parts, before cleaning.

• Make sure to place the plug all the way into socket when connecting your appliance.

• Insert the plug into a singlegrounded socket.

• Never use the appliance in place where combustible and inflammable materials are kept.

• For safety reason, be sure to repair or replace parts at an authorized service dealers.

• The motor is permanently lubricated and will require no oil.

• The appliance must be positioned so that the plug is accessible.
• Please execute according to local regulations.
  Regarding disposal of the appliance for its flammable blowing gas, before you scrap the appliance, please take off the doors to prevent children trapped.
• Ensure the refrigerator is unplugged before cleaning or if the product is not in use.
• To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.
• It is not recommended to use this freezer with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.
  25.Do not place hot food or drink into

the fire before it cools down to room temperature.

1. Close the door immediately after putting in any items so the inside temperature will not rise dramatically.
2. Keep appliance away from any heat source or direct sunlight.
3. To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.
4. To avoid injury or death from electrical shock do not operate the appliance with wet hands, while standing on a wet surface or while standing in water.
5. Do not use outdoors or in wet conditions.
6. Never pull the cord to disconnect it from the outlet.

Grasp the plug and pull it from the outlet.

1. Keep the cord away from heated surfaces.

2. Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

3. Connect your fitecan independent electrical socket and use a safe ground wire.

35 When the frost in freezer is removed, or when there is no electricity or when freezer ceases to be used, it should be cleaned in order to prevent it from smelling.

1. Defrost the freezer at least once a month because too much frost may affect refrigeration.

2. Turn on electricity only 5 minutes later after electricity goes off.

Otherwise, the compressor may be damaged.

38Children should be supervised to ensure that they do not play with the appliance.

1. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

2. This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

3. It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

4. Disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

And the disposal should only be done through public collection points.

Old refrigerators can contain CFC that destroy the ozone;contact the waste treatment center nearest your home for more details on the correct procedures for disposal.

Warning sign depicting a flame symbol with hazard symbol, commonly used in safety or hazard prevention.

1. WARNING! Risk of fire – flammable material. Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance.

2. This refrigerating appliance is not intended to be used as a built-in appliance.

3. If the refrigerant circuit is damaged:

4. Avoid naked flames and sources of ignition.
5. Thoroughly ventilate the room in which the appliance is situated.
6. If you are discarding an old freezer or refrigerator with a lock / catch fitted to the door, ensure that it is left in a disabled condition to prevent the entrapment of young children when playing.

7. Extreme caution must be used when moving the appliance.
   48.Do not give children ice-cream and water ices direct from the freezer as the low tem-perature may cause "freezer burns" on the lips.

8. Replacing certain parts of your house-hold electrical appliance may lead to a danger. Please ensure that you have the necessary skills and own all tools required to carry out the self-repair operations safely. Otherwise, please contact a qualified professional.

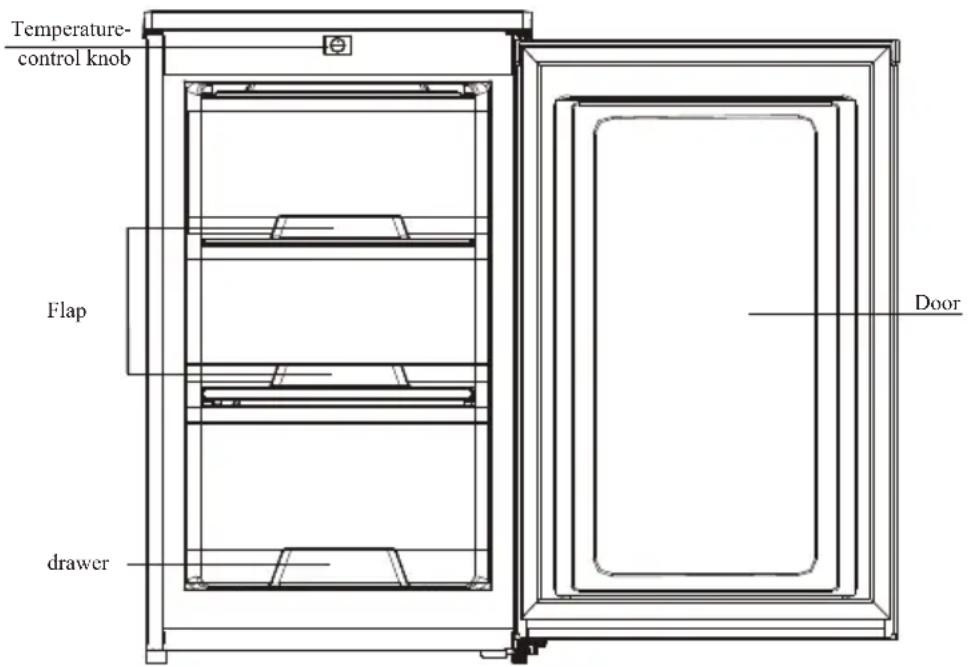

Names of components

Temperature- control knob Flap door drawer

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

• The low temperature of freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
  It is the most energy efficient to place food in the position shown in the picture above.
• The freezer is suitable for storage of meat, fish, shrimp, dumplings, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access.

Please be noted food shall be consumed within the shelf time.

Notice:

After long term using, there maybe a certain degree of wear with the hinge, it will cause the noise when open/close the door and reduce the service life of hinge. It is recommended to put the grease on hinge for maintenance regularly, it can effectively eliminate noise and extend the service life of the hinge.

SETTING THE THERMOSTAT KNOB

The refrigerator is controlled with a thermostat knob located inside the fridge, towards the upper right-hand corner. Turn the knob from the STOP (OFF) position towards the higher numbers for colder temperatures. The knob can be adjusted from setting 1 to 4.

Higher settings on the knob (higher numbers) mean lower temperatures (colder) in all compartments of the appliance.

Changes of the ambient temperature affect temperature in the interior of the appliance so choose a correct setting of the temperature control knob, depending on your ambient conditions.

In the STOP (OFF) position the appliance does not operate (the cooling system is switched off), but power supply is not interrupted.

Set the thermostat knob to a middle position to achieve -18^ in the freezer compartment.

Please Note: If the appliance is switched off you must wait at least 5 minutes before restarting the appliance or re-inserting the plug into the wall outlet. This is to allow the protection device in the compressor to reset.

If the compressor fails to start correctly remove the plug and wait for 5 minutes before you try again then the compressor should restart normally.

The storage temperature may be affected by:

• The room temperature
• How often the door is opened
• How much food is stored
• Position of the appliance

When you set the correct temperature, all these factors mentioned above shall be taken into account.

The symbol means that your freezer will store frozen food at -18°C or colder allowing for long term frozen food storage and freezing of fresh food. The freezer temperature is controlled automatically by the thermostat situated in the control panel.

Due to the different installations, methods of usage and weather conditions, adjustments to the temperature settings may be required.

i These are best assessed against temperature reading on a thermometer buried in the frozen food. The reading must be taken quickly as the thermometer temperature will rise rapidly after removed.

• Freezing Fresh Food

The maximum quantity of food you can freeze in 24 hours is 4kg. Place the fresh food on the freezer compartment. Food may need rearranging to achieve this.

During freezing process the temperature of fresh food should be reduced quickly so that ice crystals are kept as small as possible to prevent damaging the structure of food. If freezing takes place slowly large ice crystals from and these will affect the quality of food once it has defrosted.

Packets to be frozen should be placed in the basket in contact with the baskets surface as far as possible and spaced apart to allow cold air to circulate between them. They should no touch existing packets.

Freezing chamber	Type of food(storage time:within 3 months)
Freezer drawer(s)/shelf	· Foods for long-term storage.· Bottom drawer/shelf for raw meat, poultry, fish.· Middle drawer/shelf for frozen vegetables(blanched), chips.· Top drawer/shelf for ice cream, frozen fruit(in syrup), frozen baked goods.

⚠ Frozen food should not be refrozen once it has thawed out.

Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or 'frost/freezer burns'.

- Frozen Food Storage

The appliance has the following net storage volume: 70 liters.

This is a standard measurement and the actual capacity depends upon the density and sizes of the food.

Pre packed commercially frozen food should be stored in accordance with the manufacturer's instructions for a 4 star frozen food compartment and should be put in the freezer as soon as possible after purchase. Your freezer provides for long term storage which generally means up to 3 months but the length of the time can vary and it is important to follow the recommended times shown on packets of commercially frozen food.

Do not place sealed containers or carbonated liquids such as fizzy drinks into the freezer as it creates pressure on the container which may cause it to explode resulting to damage to the freezer. Ice cubes and ice lollies should not be consumed immediately after removal from the freezer as it may result in low temperature skin abrasions.

Manufacturers storage times should be adhered to.

- Hints and Tips

1. Any opened packets of frozen food should be rewrapped in airtight materials to prevent surface evaporation which causes drying or 'freezer burn'.
2. Frozen food which is allowed to thaw accidentally should either be used immediately or thrown away. Alternatively if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.
3. Aim to check dates on packets and rotate food regularly. Although storage longer than recommended is not harmful, flavors and textures begin to change.

• Normal Operating Sounds

1. You may hear faint gurgling or bubbling sounds when the refrigerant is pumped through the coils or tubing at the rear, to the cooling plate/evaporator.
2. When the compressor is on, the refrigerant is being pumped round, and you will hear a whirring sound or pulsating noise from the compressor.
3. A thermostat controls the compressor, and you will hear a faint 'click' when the thermostat outs in and out.

- Food Storage

1. To obtain the best results from your appliance, neither hot foods nor liquids which may evaporate, should be placed in the compartment.
2. Avoid buying frozen food if you cannot store it straight away. The use of an insulated container is advisable. When you arrive home place the frozen food in the freezer immediately.
3. Keep the time between buying chilled food and placing it in your fridge as short as possible.
4. Do not push food together too much, try to allow air to circulate around each item.
5. Do not store food uncovered.
6. Ensure that food placed in the freezer is dated and labeled and used in date, to ensure that food is consumed at its best.
7. Remove suspect food from your refrigerator and clean, refer to cleaning and maintenance.

• Energy Saving Advice

1. Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator.
2. Locate the appliance in a cool well ventilated room and make sure that the air openings of the cabinet are not obstructed.
3. Avoid unnecessary frosting in the cabinet by packing all foodstuffs into airtight packages before placing them in the freezer.

4. Always leave warm food to cool down to room temperature before placing in the freezer.

5. Food which is to be frozen (when cool) should be placed in the fridge before being transferred to the freezer.

6. Thaw frozen food in the fridge. This will ensure safer defrosting of foods and reduce the work of the refrigeration unit.
7. Try to avoid keeping the door open for long periods, or opening the door too frequently as warm air will enter the cabinet, and cause the compressor to switch on unnecessarily often.
8. Ensure there are no obstructions preventing the door from closing properly.
9. It is advisable to periodically clean the refrigeration system at the back of the appliance with a duster or vacuum cleaner.

• In the Event of a Power Failure

If there is a power failure during the storage of frozen foods, keep the door closed. If the temperature within your freezer should rise do not refreeze the food without checking its condition.

The following guidelines should assist you:

Ice Cream: Once thawed should be discarded.

Fruit and Vegetables: if soft should be cooked and used up.

Bread and Cakes: can be refrozen without danger.

Shellfish: should be refrigerated and used up quickly.

Cooked Dishes: i.e. casseroles, should be refrigerated and used up.

Large Pieces of Meat: can be re-frozen providing there are ice crystals remaining within them.

Small Joints: should be cooked and then re-frozen as cooked dishes.

Chicken: should be cooked and re-frozen as a fresh dish.

MAINTENANCE AND CLEANING

⚠️ Before any maintenance or cleaning work is carried out disconnect the appliance from the electricity supply

- Internal Cleaning

Clean the inside and accessories with warm water and bicarbonate of soda (5ml to 0.5 liter of water). Rinse and dry thoroughly.

Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol.

- External Cleaning

Wash the outer cabinet with warm soapy water.

Do not use abrasive products.

There are sharp edges on the underside of the product so care should be taken when cleaning.

Once or twice a year dust the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the applaicne and cause excessive electricity consumption.

- Cleaning

1. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

2. The interior of the refrigerator should be cleaned regularly to avoid odor.

3. Check the door gasket regularly to make sure there are no debris.

4. Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

5. Clean the door gasket with mild soap and water.

6. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

7. For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

8. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator.

9. Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.

10. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

11. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.
12. Do not rinse with water so as not to affect the electrical insulation properties.

• To Defrost the Freezer

1. Wrap any food in layers of newspaper or blankets.
2. Switch the appliance off at the wall socket and remove the plug.
3. Open the freezer door.
4. Place a suitable container to collect the defrost water.
5. After defrosting, clean and dry the interior.
6. Switch the appliance on and replace any frozen food.

Defrosting can be speeded up by putting bowls of hot (not boiling) water in the freezer and loosening the frost with a suitable plastic scraper.

If the temperature of frozen food is allowed to rise during defrosting, its storage life may be shortened.

- When the Appliance is Not in Use

When the appliance is not in use for long periods, disconnect from the electricity supply, empty all the food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

REVERSE DOOR

Follow the following stages to reverse the door from its initial position.

1. Remove the screws behind the top cover with cross-slot screwdriver and disassemble it from the refrigerator.

3D rendering of a simple rectangular box with a square top (no text or symbols)

1. Remove the top-hinge screw with cross-slot screwdriver.

Take off the door and put it down with care in a safe location.

The top-hinge fixing screws

1. Replace the top-hinge and the door limit block and the door bearing bush to the other side.

3D rendering of a mechanical component with an arrow indicating rotation or assembly (no text or symbols)

replace the top-hinge

Simple line drawing of a blank whiteboard with curved arrows indicating rotation or movement (no text or symbols)

replace the door bearing bush and the limit block

1. Disassemble the bottom-hinge screw with cross-slot screwdriver replace and the hinge to the other side.

The bottom-hinge fixing screws

1. Replace the leveler to the other side and adjust it for a proper cabinet le

Diagram of a mechanical component with curved arrows indicating motion or force direction (no text or symbols)

1. Set the door at right position, fix the top-hinge and then the top cover.

Simple line drawing of a rectangular container with a top handle and bottom base (no text or symbols)

Note :

Ensure the Appliance is unplugged and empty.

Adjust the two leveling feet to their highest position.

We recommend you have someone to assist you.

To take the door off it is necessary to tilt the appliance backward.

The refrigerator inclination angle should be less than 45^ .

You should rest the Appliance on something solid e.g. a chair just below the top panel.

Do not lay the Appliance completely flat as this may damage the coolant system.

Before contacting your local service force center, check the following points:

Symptom	Solution
No power to the appliance	Check there is power at the socket.
	Check there is not a power cut by checking the household lights.
	Check the fuse has not blown.
The temperature in the freezer section is too high	Check the thermostat is turned to the correct Setting relative to ambient conditions.
The freezer door will not open	- Has door just been opened?If so leave for a few minutes to allow the air pressure to equalise.
The compressor runs continuously	Adjust the thermostat to give correct temperature control.
	Check that the door is closed.
	Large quantities of food have recently been placed in the cabinet / and or door is frequently opened.
	Check that air ventilation is not obstructed.
	Ensure the door is not left open.
Excessive frost and ice has built up	Check that nothing is preventing the door from closing.
	Is the door gasket intact and clean?
	Has advised periodic defrosting been carried out?
Noise	Refer to normal operating sounds.

INSTALLATION REQUIREMENT

Avoid the following locations: unventilated kitchen, outhouse, conservatory, garage.

For Correct operation this appliance must be installed:

1. in a dry atmosphere
2. out of direct sunlight
3. away from extreme temperature (not next to a cooker or other sources of heat).

Your appliance will be heavy when loaded with food and must therefore be stood on a strong firm floor.

• Ventilation Requirements

Gently push into place until the back of the freezer keeps a required distance from wall.

When in position a 50mm clear space above the appliance should be maintained.

If space above the appliance is not available, clearance of 25mm should be maintained on both sides.

⚠ Ensure that the appliance does not stand on the electrical supply cable. Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation.

Cartoon illustration of a smiling rectangular character with arms and legs, waving one hand (no text or symbols)

• Levelling

The appliance should be level, to eliminate rocking:

Ensure the appliance is upright and both adjusters are firm contact with the floor so that the cabinet is level.

Adjust the level by screwing out the appropriate level adjuster at the front (use your fingers or a

suitable spanner).

Cartoon illustration of a smiling rectangular character with arms and legs, standing on a platform (no text or symbols)

Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: AYA
Supplier's address: BUT INTERNATIONAL,1 AVENUE SPINOZA 77184 EMERAINVILLE,FRANCE
Model identifier:ACT1005S
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:	freestanding
Wine storage appliance:		No	Other refrigerating appliance:	yes
General product parameters:
Parameter		Value	Parameter	Value
Overall dimensions (millimetre)	Height	847	Total volume (dm3 or l)	98
	Width	546
	Depth	556
EEI		98	Energy efficiency class	E
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		166	Climate class:	temperate, subtropical,
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	38
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or 1)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 31'Annexe IV, Tableau 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	No	-	-	-	-
Chill	No	-	-	-	-
0-star or icemaking	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	Yes	98	-18	4.5	M
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			No
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 2 YEARS
Additional information:
Weblink to the manufacturer's website, where the information in point 4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.but.fr

Reference:	ACT1005S
Rated voltage:	220-240V~
Ampere:	0.7A
Rated frequency:	50Hz
Climate class:	N/ST
Refrigerant:	R600a(43g)
Protection against electrical shock:	I
Insulation foam:	CYCLOPENTANE

Climate classes

-Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’;
-Temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
-Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
-Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’;

Note: More data information, please scan the QR code on the energy label.

CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

About your product service :

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

Duration of availability of spare parts: 10 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97,

From Monday to Saturday from 8:00 am to 8:00 pm (local call price).

LE TRI

FACILE
