USER MANUAL ACT1004 AYA

Do not allow children to tamper with the controls or play with the product. This appliance can be used by children aged from 8 year and above and persons with reduced physical,-3- sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.-4--5-

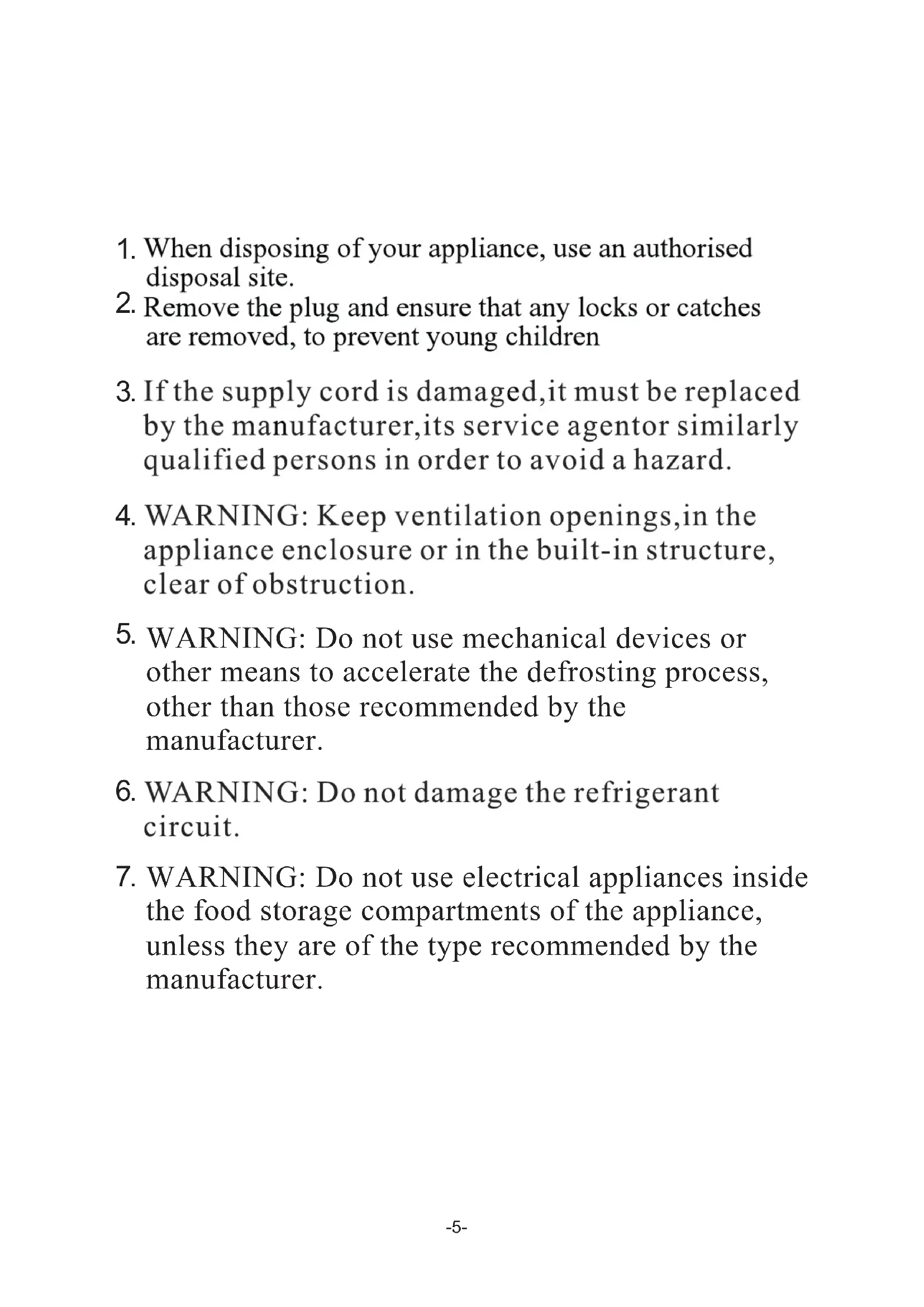

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.Do not store explosive substances such as 8.

aerosol cans with a flammable propellant in this appliance. Regarding the instructions for installation, handling, maintenance, disposal of this appliance, please refer to below paragraphs from this manual This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and othe

residential type environments; - bed and breakfast type environments. -6-11 . To clean the appliance use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.

It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

Keep appliance away from any heat source or direct sunlight.

Warming: Risk of fire / flammable materials. There are flammable materials at the back of appliance, please keep the product far away fire source.-

WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable

socket-outlets or portable power supplies at the rear of the appliance. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. If the refrigerant circuit is damaged: – Avoid naked flames and sources of ignition. – Thoroughly ventilate the room in which the appliance is situated. To avoid contamination of food, please respect the following instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. – Clean regularly surfaces that can come in contact with food and accessible drainage systems.

4.Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. One-, two- and three-star compartments are not suitable for the freezing of fresh food. If the refrigerating appliance is left empty for This refrigerating appliance is not intended to be used as a built-in appliance. long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

10.-10- contro It is the most energy efficient to place food in the position shown in the picture above. l knob Temperature- Door

Climate classes -Extended temper ate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; -Temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’; -Subtropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’; -Tropical: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’; Note: More data information, please scan the QR code on the energy label. Technical information Reference: ACT1004 220-240V~ 0.5A 50Hz N/ST R600a(38g)

CYCLOPENTANE Rated voltage: Ampere: Rated frequency: Climate class: Refrigerant: Insulation foam: Protection against electrical shock:-12-

Freezing chamber Type of food Freezer drawer(s)/shelf Foods for long-term storage.

Bottom drawer/shelf for raw meat, poultry, fish.

• Middle drawer/shelf for frozen vegetables, chips.

• Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.-13- 70-14--15--16-

1. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling

effect and energy saving.

2. The interior of the refrigerator should be cleaned regularly to avoid odor.

3. Check the door gasket regularly to make sure there are no debris.

4. Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

5. Clean the door gasket with mild soap and water.

6. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking

soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

7. For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or

corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

8. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the

interior of the refrigerator.

9. Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.

10. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water,

detergent, etc., and then wipe dry.

11. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic

solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.

12. Do not rinse with water so as not to affect the electrical insulation properties.

1. Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling

effect and energy saving.

2. The interior of the refrigerator should be cleaned regularly to avoid odor.

3. Check the door gasket regularly to make sure there are no debris.

4. Please turn off the power before cleaning, remove all food, shelves, drawers, etc.

5. Clean the door gasket with mild soap and water.

6. Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking

soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.

7. For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or

corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.

8. Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the

interior of the refrigerator.

9. Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.

10. Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water,

detergent, etc., and then wipe dry.

11. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic

solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.

12. Do not rinse with water so as not to affect the electrical insulation properties.-18-

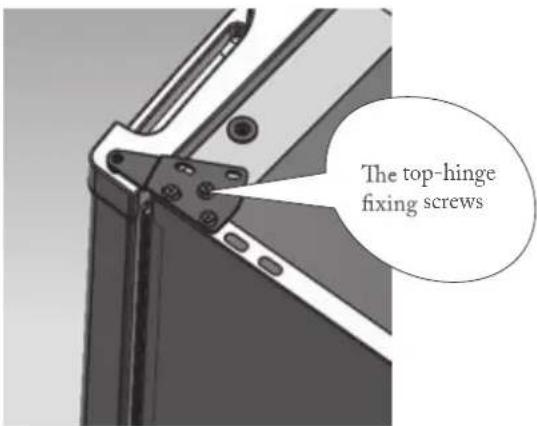

Remove the top-hinge screws with cross-slot screwdriver. Take the door and put it down with care in a safe location.

3. Replace the top-hinge and the door limit block and the door bearing

bush to the other side. top-hinge screws replace the top-hinge replace the door bearing bush and the limit block REVERSE DOOR-19-

4. Disassemble the bottom-hinge screws with cross-slot screwdriver

replace and the hinge to the other side. bottom-hinge screws

5. Replace the leveler to the other side and adjust it for a proper cabinet le-20--21--22-

About your product service : To contact our After-Sales Service, before going to BUT store, call 09 78 97 97 97 From Monday to Saturday from 8:00 a.m. to 8:00 p.m. (Price of a local call). Period of availability of repair spare parts: 5 years In accordance with Article L. 217 of the Consumer Code, your product has 2 year legal guarantee of conformity.
