USER MANUAL MW-200SL AIWA

Line drawing of a microwave oven with control panel and power/TV settings (no text or symbols on the device itself)

Line drawing of a microwave oven with control knobs (no text or symbols)

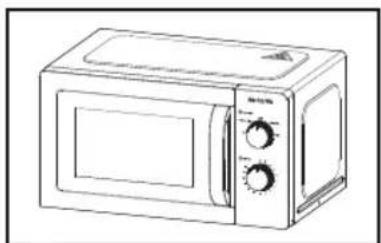

① Microwave oven

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

② Glass Turntable Plate

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

③ Turntable Ring + Coupling

anva Air microwave oven 100-250K The impact of microwave oven

④ Instruction manual

aiwa® aiwa® aiwa®

⑤ Declaration of conformity, Warranty sheet

IMPORTANT SAFEGUARDS

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.

WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation, which involves the removal of any cover, which gives protection against exposure to microwave energy. WARNING: Liquids or other food must not be heated in sealed containers since they are liable to explode.

1. Only use utensils that are suitable for use in microwave ovens.
2. Metallic containers for food and beverages are not allowed during microwave cooking.

3. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

4. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

5. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
6. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
7. Eggs in their shell and whole hard boiled eggs shall not be heated in microwave ovens since they may

explode, even after microwave heating has ended.

1. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
2. The appliance must not be placed in a cabinet.
3. Care should be taken not to displace the turntable when removing containers from the appliance.
4. The appliance shall not be cleaned with a steam cleaner.
5. The appliance must not be installed equal or higher than 900 mm above the floor. Minimum height of free space necessary above the top surface of the oven: 100mm.

Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

CAUTION: HOT SURFACE

1. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved.

1. Children shall not play with the appliance.

2. Cleaning and user maintenance shall not be made by children without supervision.

3. Do not directly put cold water into the glass plate after use. It needs to place the glass plate for at least 20 minutes, and then put it into the water to avoid cracking.

4. Group 2 Class B appliance Group 2 ISM equipment: group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

5. This product internal light source LED light on < 60lm.

6. To be in compliance EN 61000-3-11, the product shall be connected only to a supply of the system impedance: |Zsys|=0.40089 ohms or less. Before connect the product to public power network, please consult your local power supply authority to ensure the power network meet above requirement.

INSTALLATION

1. Take out all the packing. If there is a safe film over the oven, tear it off before use. Check carefully for damage. If any, immediately notify dealer or send to the manufacturer's service center.

2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank.

3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm, the distance of the microwave to the ground should be at least 85 cm.

4. The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance, or noise may occur. The distance should be more than 5m.

5. The appliance must be positioned so that the plug is accessible, and must ensure a good grounding in case leakage, ground loop can be formed to avoid electric shock.

6. The microwave oven must be operated with the door closed.

7. The microwave oven must not be placed in a cabinet. The microwave oven is intended to be used freestanding.
8. As there is manufacturing residue or oil remained on the oven cavity or heat element, it usually would smell the odor, even a slight smoke, It is normal case and would not occur after several times use, keep the door or window open to ensure good ventilation. So it is strongly recommended to place a cup of water in the cavity, setting at high power and operate for several times.

CLEANING

MICROWAVE OVEN CARE

CAUTION

The oven should be cleaned regularly and any food deposits removed.

WARNING

a. Remove the power cord from the wall outlet before cleaning. After cooling products. Don't immerse the appliance in water or other fluids when cleaning.
b. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
c. Never use hard detergent, gasoline, abrasive powder or metal brush to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. When the microwave oven has been used for a long time, there may be some strange odors exist in oven, Following 3 methods can get rid of them:
1) Place several lemon slices in a cup, then heat with high Micro Power for 2-3 min.

2) Place a cup of red tea in oven, then heat with high micro power.
3) Put some orange peel into oven, and then heat them with high Micro Power for 1 minute.
f. When the product is not used, it should be placed in try and ventilated areas as well as possible.

WARNING

Details how to clean surfaces in contact with food:

After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built -up grease may overheat and begin to cause smoke or catch fire.

TIPS FOR CLEANING

Details for cleaning door seals, cavity and adjacent parts:

Exterior: Wipe the enclosure with a dampened soft cloth.

Door: Using a dampened soft cloth, wipe clean the door and window.

Wipe the door seals and adjacent parts to remove any spill or spatter.

Wipe the control panel with a slightly dampened soft cloth.

Interior walls:

Wipe clean the interior surfaces with a dampened soft cloth.

Wipe clean the waveguide cover to remove any food splashed.

Turntable / Rotation ring / Rotation axis:

Wash with mild soap water.

Rinse with clean water and allow drying thoroughly.

EN

PRODUCT INSTRUCTION

12 3 4 5 6 7 aiwa

1) Door lock: Microwave oven door must be properly closed in order for it to operate.
2) Viewing window: Allow user to see the cooking status.
3) Rotating ring: The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating.
4) Rotating axis: The glass turntable sits on the axis; the motor underneath it drives the turntable to rotate.
5) Turntable: The food sits on the turntable, its rotation during operation helps to cook food evenly.

CAUTION

• Place the rotating ring first.
• Fit the turntable onto the rotating axis and make sure that it is geared in properly.
  6) Control panel: See below in details (the control panel is subject to change without prior notice).
  7) Waveguide cover: It is inside the microwave oven, next to the wall of control panel.

! WARNING

Never remove the waveguide cover.

aiwa

POWER

TIMER

High fire cooking

Milk 250g ≈ 1'30"

Instant noodles 100g ≈ 6'00"

Bread 100g ≈ 0'20"

Steamed spareribs 600g ≈ 12'00"

Hot rice 200g ≈ 3'00"

Pizza 400g ≈ 3'00"

1. CLOCK SETTING

The maximum setting is 35 minutes, there is a ringtone at the end, and the knob returns to the "0" position.

2. MICROWAVE FUNCTION

N° Firepower Microwave output ratio
1 Low 17%	power output
2 Defrost	30% power output
3 Medium	55% power output
4 M. High	80% power output
5 High 100%	power output

Below is some food defrosting time advice:

N° Weight (g) Defrost time
1 200g About 4 minutes
2 400g About 8 minutes
3 600g About 12 minutes

OPERATION

1) Connect the cord

- Before connecting the cord, make sure the timer is set to "0" position. - Do not block the ventilation.

2) Place the food on the glass turntable and close the door

- Food must be contained in a utensil. - Do not operate the microwave oven without load, otherwise it will cause damage to the microwave oven.

3) Select the desired power level.

4) Once the desired time is set, the cooking begins. If pausing in midway is needed, just open the door at any time, and close it to resume operation.

5) When it times out and cooking ends, the microwave oven produces a bell ring, the inside lamp will also be automatically turned off. If food is removed before time out, make sure to set back the timer to "0" position, this avoids the microwave oven from operating in empty load.

6) It is recommended to wear gloves when removing the cooked food from oven and be careful do not touch the heat element on the top of cavity.

CAUTION

Heating food fast, generally only 2 to 3

minutes, please control in 5 minutes. Please pay attention to the cooking condition of the food at any time and adjust it according to your taste preference. Avoid overheating. When heating porridge, congee, should first stir

evenly, and then covered with plastic film (leave corners for ventilation) or with a perforated lid heating. At mid-point to defrosting time, please open the door to turn the food, so that the defrosting effect is more uniform.

EN

UTENSILS GUIDELINE

Depending on the cooking method, it is necessary to choose a safe and suitable vessel. If it is not properly selected, it will not only affect the cooking effect,

but also cause damage to the vessel or microwave oven. Please refer to the table below for use:

Material of container	Microwave Notes
Heat-resistant ceramic	Yes Never use the ceramics which are decorated with metal rim or glazed
Heat-resistant plastic	Yes Cannot be used for long time microwave cooking
Heat-resistant glass	Yes
Plastic film	Yes It should not be used when cooking meat or chops as the over-temperature may do damage to the film
Grill rack No

COOKING TIPS

The following factors may affect the cooking result:

Food arrangement

Place thicker areas towards outside of dish, the thinner part towards the centre and spread it evenly. Do not overlap if possible.

Cooking time length

Start cooking with a short time setting, evaluate it after it times out and extend it according to the actual need. Over cooking may result in smoke and burns.

Cooking food evenly

Food such as chicken, hamburger or steak should be turned once during cooking.

Depending on the type of food, if applicable, stir it from outside to center of dish once or twice during cooking.

Allow standing time

After cooking times out, leave the food in the oven for an adequate length of time, this allows it to complete its cooking cycle and cooling it down in a gradual manner.

Whether the food is done

Color and hardness of food help to determine if it is done, these include:

• Steam coming out from all parts of food, not just the edge.
• Joints of poultry can be moved easily.
• Pork or poultry shows no signs of blood.
• Fish is opaque and can be sliced easily with a fork.

Browning dish

When using a browning dish or self-heating container, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and rotating ring.

Microwave safe plastic wrap

When cooking food with high fat content, do not allow the plastic wrap come into contact with food as it may melt.

Microwave safe plastic cookware

Some microwave safe plastic cookware might not be suitable for cooking foods with high fat and sugar content. Also, the preheating time specified in the dish instruction manual must not be exceeded.

MAINTENANCE

SERVICING

Please check the following before calling for services.

1. Place one cup of water (approx.150ml) in a glass measure in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min.
2. Does the oven lamp light?
3. Does the cooling fan work? (Put your hand over the rear ventilation openings.)
4. Does the turntable rotate? (The turntable can rotate clockwise or counter clockwise. This is quite normal.)
5. Is the water inside the oven hot? If "NO" is the answer to any of the above questions, please check your wall socket and the fuse in your meter box. If both the wall socket and the fuse are functioning properly, CONTACT YOUR NEAREST SERVICE CENTER APPROVED.

SERVICING SAFEGUARDS

Caution: MICROWAVE RADIATION

1. The high voltage capacitor remains charge after disconnection; short the negative terminal of H. V capacitor to the oven chassis (use a screwdriver) to discharge before touching.
2. During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth.

· Magnetron
· High voltage transformer
· High voltage capacitor
· High voltage diode
· High voltage fuse

1. The following conditions may cause undue microwave exposure during servicing.

2. Improper fitting of magnetron,

3. Improper matching of door interlock, door hinge and door,
4. Improper fitting of switch support,
5. Door, door seal or enclosure has been damaged.

TECHNICAL SPECIFICATIONS

EN

• 20L capacity & 700W power with Mechanical Controls.
• Stainless Steel Front Panel with Transparent Viewing Window.
• Easy Clean Stone Enamel cooking compartment with Powder coated rear housing.
• Chrome Plated Rotary Microwave Power Controller with 5-Levels including Defrost function.
• Built-In Door Handle for easy opening of cooking compartment.

• Rotary mechanical timer with 35 minutes maximum setting (Chrome Plated)

• With 25,5 cm Diameter Glass Turntable Plate.

• Bright white LED interior compartment lighting for energy saving.
• Notification Bell to announce end of each cooking cycle.
• Heavy Duty 1.0m AC-Cord with moulded AC-Plug for extra safety and convenience.
• Dimensions: 45,5 x 26,1 x 35,1 cm.
• Weight: 10,4 kg.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment

or human health from uncontrolled waste disposal, recycle it responsibly to promote

the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Line drawing of a microwave oven with control knobs (no text or symbols)

Simple line drawing of concentric ovals with a small figure inside, no text or symbols present.

Simple line drawing of an oval-shaped object with two small protrusions (no text or symbols)

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrovlnná trouba

Pure concentric oval shapes with a small central cluster, no text or symbols present

Simple line drawing of an oval-shaped object with a small protrusion and two small circular ends (no text or symbols)

anwa Air oven The Airflow Microwave Oven

4 Návod k použití

aiwa® LPG.com B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 B49 B50 B51 B52 B53 B54 B55 B56 B57 B58 B59 B60 B61 B62 B63 B64 B65 B66 B67 B68 B69 B70 B71 B72 B73 B74 B75 B76 B77 B78 B79 B80 B81 B82 B83 B84 B85 B86 B87 B88 B89 B90 B91 B92 B93 B94 B95 B96 B97 B98 B99 AIWA®

Dušené spareribs 600g ≈ 12'00"

Microwave safe plastic cookware

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrobølgeovn

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

③ Pladespiller Ring + Kobling

anva Air microwave oven 100-250K The impact of microwave oven

④ Instruktionsmanual

Instant nudler 100g ≈ 6'00"

Brød 100q ≈ 0'20"

Dampet spareribs 600g ≈ 12'00"

Varm ris 200g ≈ 3'00'

Pizza 400g ≈ 3'00'

1. INDSTILLING AF UR

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrowelle

Pure concentric oval shapes with a small central cluster, no text or symbols present

Simple line drawing of an oval-shaped object with a small protrusion and two small circular ends (no text or symbols)

③ Plattentellerring + Kupplung

anwar Antenna Anwar The 120% of the Microwave Oven The 120% of the Microwave Oven

Line drawing of a microwave oven with control knobs (no text or symbols)

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small circular ends (no text or symbols)

Line drawing of a microwave oven with control knobs (no text or symbols)

① Horno microondas

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

② Placa giratoria de vidrio

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

③ Anillo de plato giratorio + acoplamiento

anva Air microwave oven 100-250K The impact of microwave oven

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrolaineahi

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

④ Kasutusjuhend

OLULISED KAITSEMEETMED

ETTEVAATUST: KUUM PINNAD

Line drawing of a microwave oven with control knobs (no text or symbols)

Mikroaaltouuni

Simple diagram of concentric ovals with three small figures at the center (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion (no text or symbols)

Höyrytetty spareribs 600g ≈ 12'00"

Line drawing of a microwave oven with control knobs and lid (no text or symbols)

① Four micro-onde

Simple line drawing of concentric ovals with a small bird-like shape at the center (no text or symbols)

Simple line drawing of an oval-shaped object with two small protrusions (no text or symbols)

INSTRUCTIONS SUR LE PRODUIT

1234567 aiwa

ÉLIMINATION CORRECTE DE CE PRODUIT

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrovalna pećnica

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

② Staklena ploča za okretanje

Simple line drawing of an oval-shaped object with a small protrusion at the top (no text or symbols)

③ Prsten za okretno postolje + spojnica

anva Air microwave oven 100-250K The impact of microwave oven

④ Upute za uporabu

aiwa® an EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN

⑤ Izjava o sukladnosti, Jamstveni list

VAŽNE ZAŠTITNE MJERE

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrohullámú sütő

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

Line drawing of a microwave oven with control knobs (no text or symbols)

① Forno a microonde

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

② Piatto giradischi in vetro

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrobangu krosnelé

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

③ Patefono Žiedas + Mova

anva Air microwave oven 100-250K The impact of microwave oven

④ Instrukcija

aiwa® an EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikroviņu krāsns

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

4 Instrukcijas

Line drawing of a microwave oven with control knobs (no text or symbols)

① Forn microwave

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

② Hgieg Turntable Plate

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

③ Turntable Ring + Akkoppjar

anva Air microwave oven 100-250K The impact of microwave oven

Spareribs steamed 600g ≈ 12'00"

Ross shun 200g ≈ 3'00"

Pizza 400g ≈ 3'00"

1. L-ISSETTJAR TAL-ARLOGG

Line drawing of a microwave oven with control knobs (no text or symbols)

① Magnetron

Simple diagram of concentric ovals with a central three-circle shape, no text or symbols present.

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

③ Draaitafelring + Koppeling

anva Air microwave oven 100-250K The impact of microwave oven

④ Handleiding

aiwa® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA® Digital.com AIWA®

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrobølgeovn

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

② Plateplate i glass

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

③ Platespiller Ring + Kobling

anva Air microwave oven 100-250K The impact of microwave oven

④ Bruksanvisningen

aiwa® an EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN

⑤ Samsvarserklæring, garantiblad

VIKTIGE SIKKERHETSFORANSTALTNINGER

Instant nudler 100g ≈ 6'00"

Brød 100g ≈ 0'20"

Dampede spareribs 600g ≈ 12'00"

Varm ris 200g ≈ 3'00"

Pizza 400g ≈ 3'00"

1. KLOKKE INNSTILLING

RIKTIG AVHENDING AV DETTE PRODUKTET

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrofalówka

Pure concentric oval shapes with a small central cluster, no text or symbols present

Simple line drawing of an oval-shaped object with a small protrusion and two small circular ends (no text or symbols)

anwa Microwave Anva The package is microwave oven

aiwa aiwa aiwa

Line drawing of a microwave oven with control knobs (no text or symbols)

① Forno de micro-ondas

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

Line drawing of a microwave oven with control knobs (no text or symbols)

① Cuptor cu microunde

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

Taitei Instant 100g ≈ 6'00"

Paine 100g ≈ 0'20"

Aburit spareribs 600g ≈ 12'00"

Orez fierbinte 200g ≈ 3'00"

Pizza 400g ≈ 3'00"

1. SETAREA CEASULUI

Line drawing of a microwave oven with control knobs (no text or symbols)

Pure concentric oval shapes with a small central cluster, no text or symbols present

Simple line drawing of an oval-shaped object with a small protrusion at the top (no text or symbols)

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrovlnka

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

② Skleneny tanier gramofónu

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

④ Návod na použitie

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrovalovna pečica

Simple line drawing of concentric ovals with a small figure inside, no text or symbols present.

② Steklena vrtljiva plošča

Simple line drawing of an oval-shaped object with two small protrusions (no text or symbols)

③ Obroč gramofona + spojka

anwa for 10A-200K THE CANDAL MICROWAVE OVEN

4 Navodila

aiwa aiwa EN FR NC HR PD IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT IT 12 CE 12A

Line drawing of a microwave oven with control knobs (no text or symbols)

Pure concentric oval shapes with a small central cluster, no text or symbols present

Simple line drawing of an oval-shaped object with a small protrusion and two small circular ends (no text or symbols)

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrovågsugn

Simple diagram of concentric ovals with a central oval containing three small figures (no text or symbols)

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

④ Bruksanvisning

aiwa® an EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en en EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN EN

Line drawing of a microwave oven with control knobs (no text or symbols)

① Mikrodalga fırın

Simple diagram of concentric ovals with a central three-circle shape at the center (no text or symbols)

② Cam Döner Tabla

Simple line drawing of an oval-shaped object with a small protrusion and two small protrusions on the side (no text or symbols)

anva Air microwave oven 100-250K The impact of microwave oven

④ Kullanım klavuzu
