1 - DESCRIPTION OF THE APPLIANCE....12

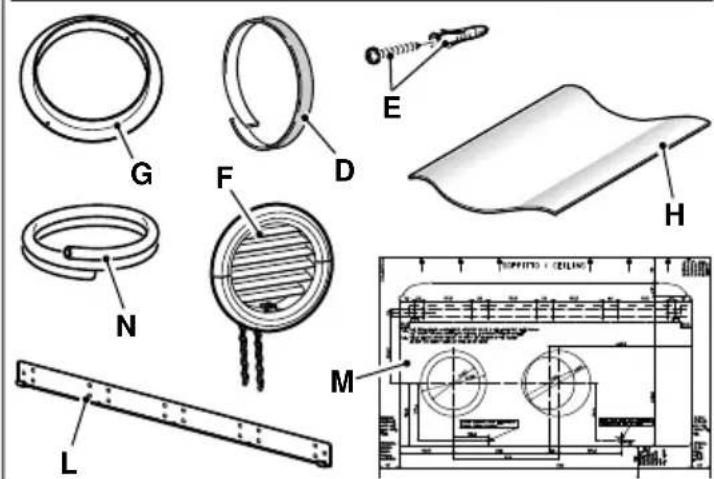

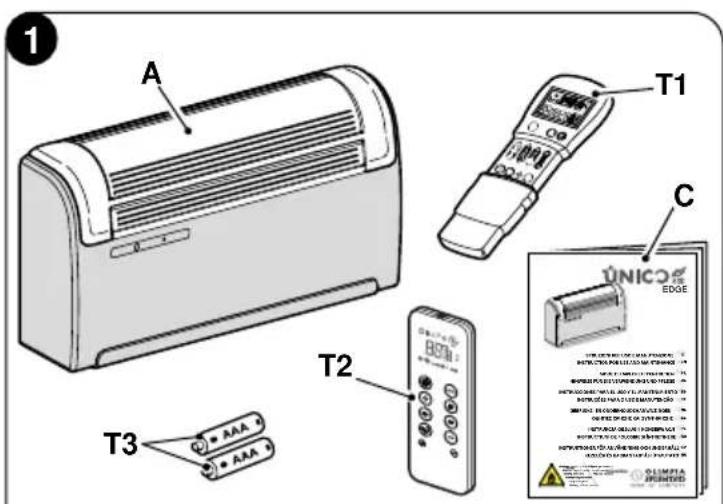

1.1 - LIST OF THE COMPONENTS SUPPLIED 12
1.2 - STORAGE....13
1.3 - RECEIPT AND UNPACKING....13

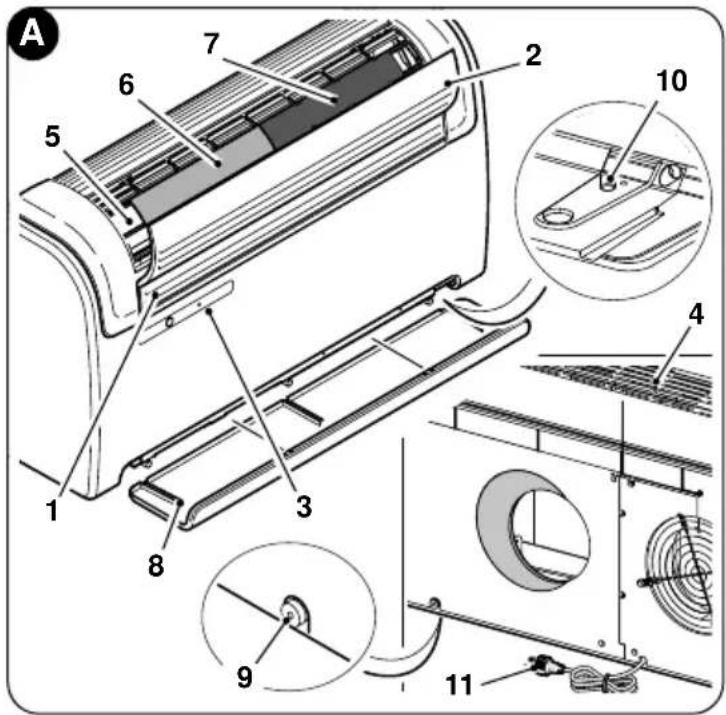

1.4 - APPLIANCE COMPONENTS DESCRIPTION 14

2 - INSTALLATION ....14

2.1 - INSTRUCTIONS FOR INSTALLATION....14
2.2 - SIZE AND SPECIFICATIONS OF THE ROOM IN WHICH TO INSTALL THE AIR CONDITIONER..14

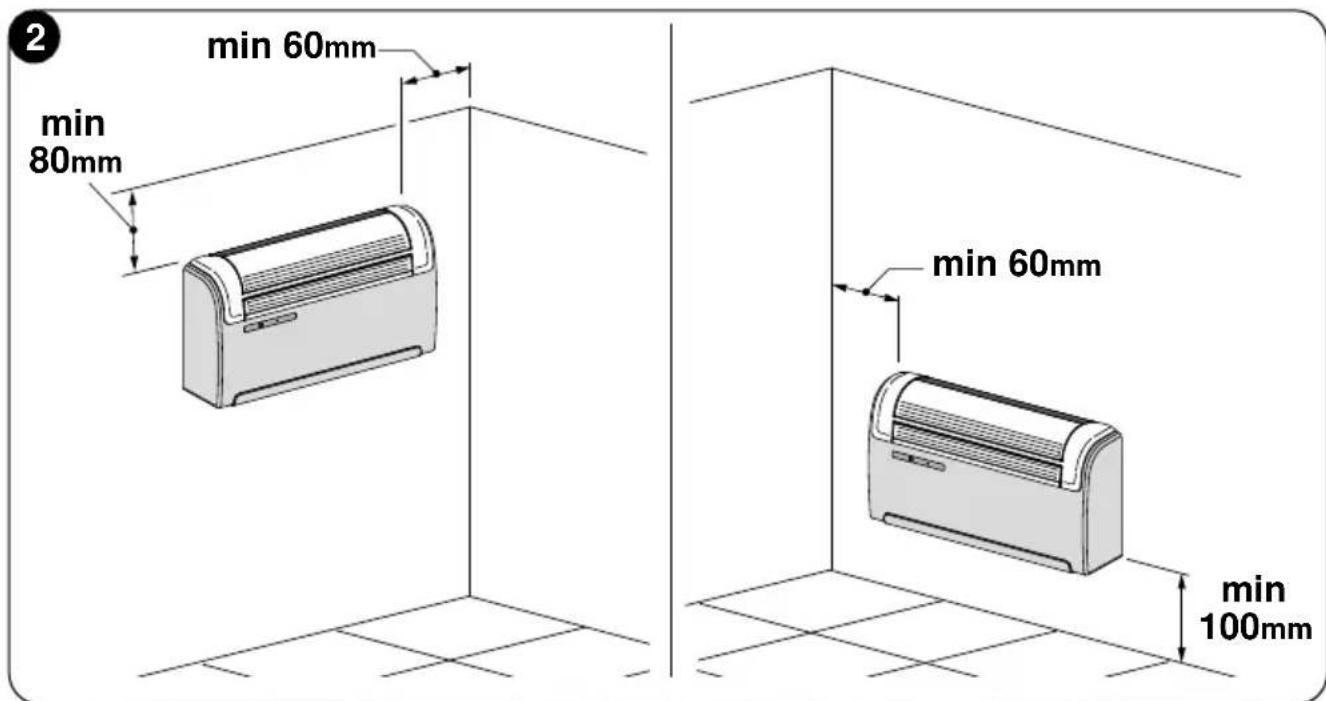

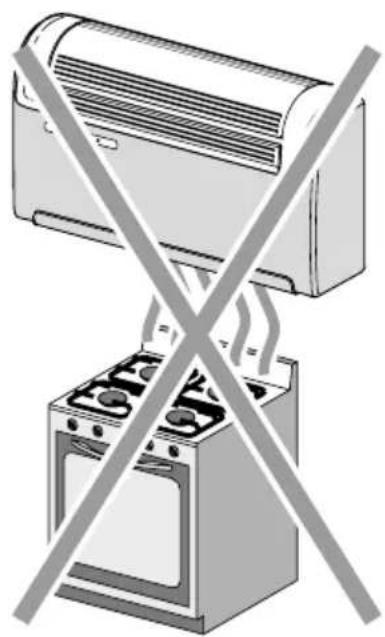

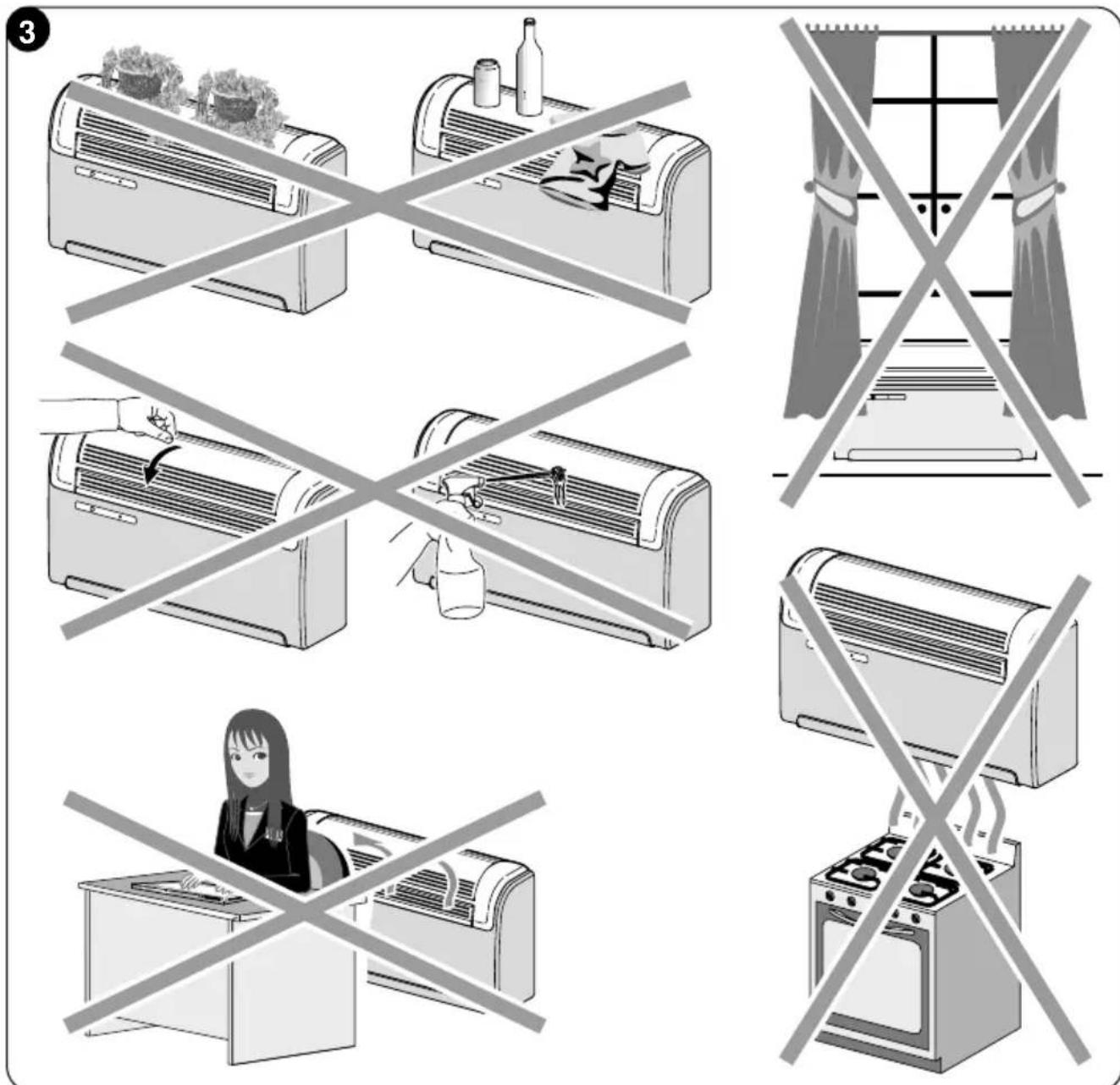

2.3 - CHOOSING THE POSITION OF THE UNIT 15
2.4 - UNIT ASSEMBLY 17

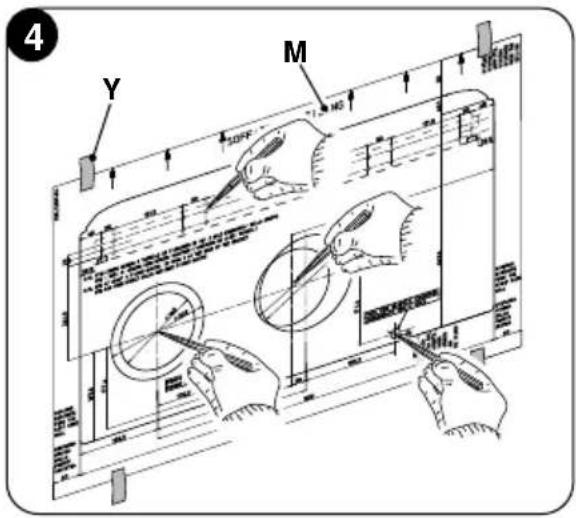

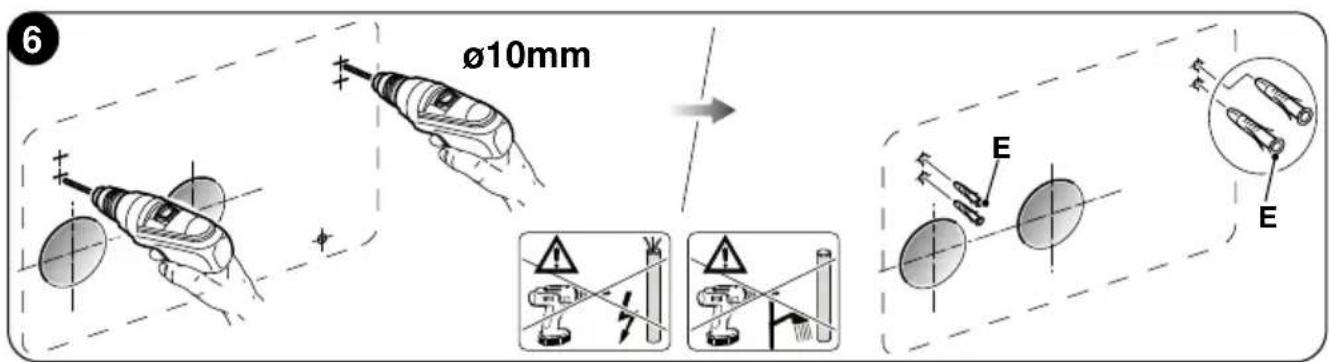

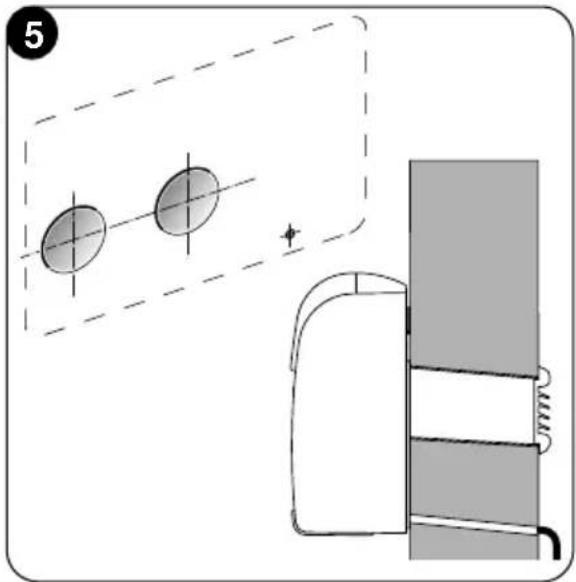

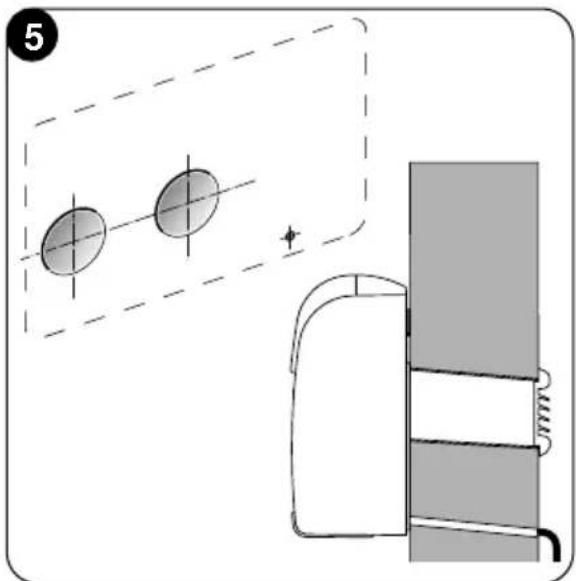

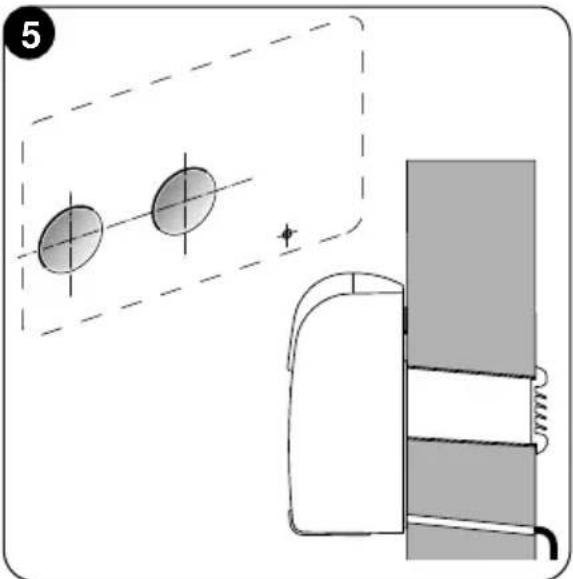

2.4.1 - Drilling the wall....17

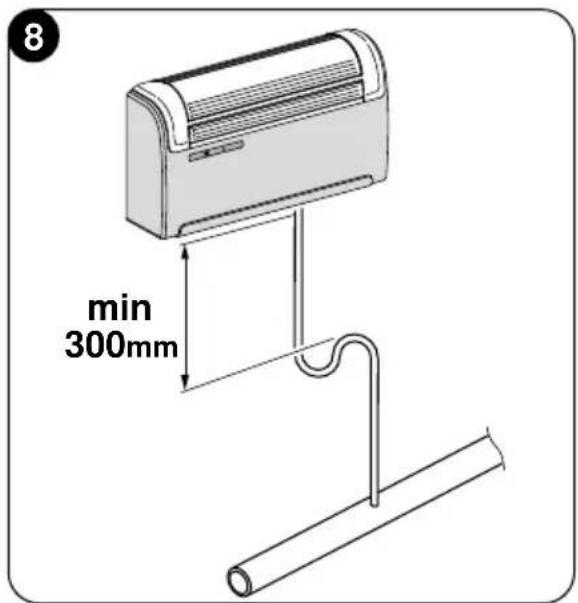

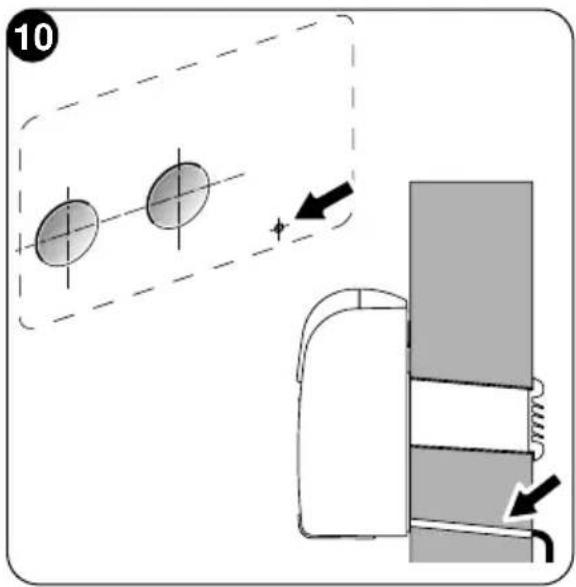

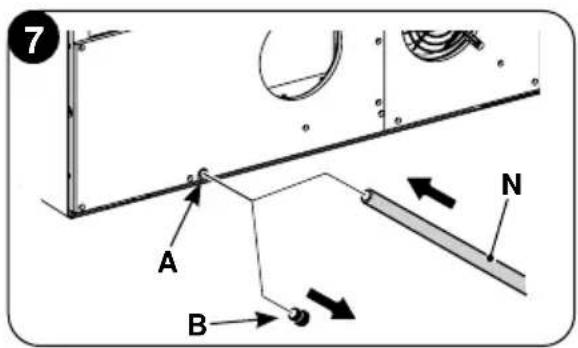

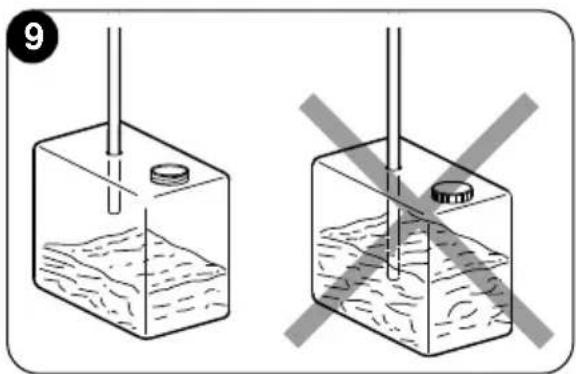

2.4.2 - Preparing the condensate discharge....19

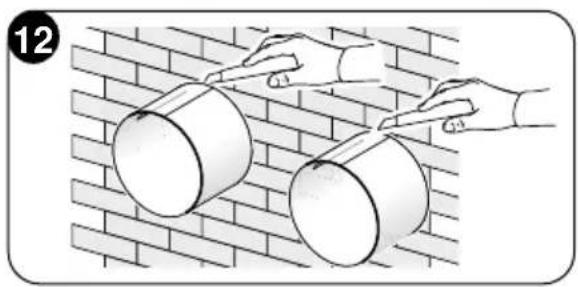

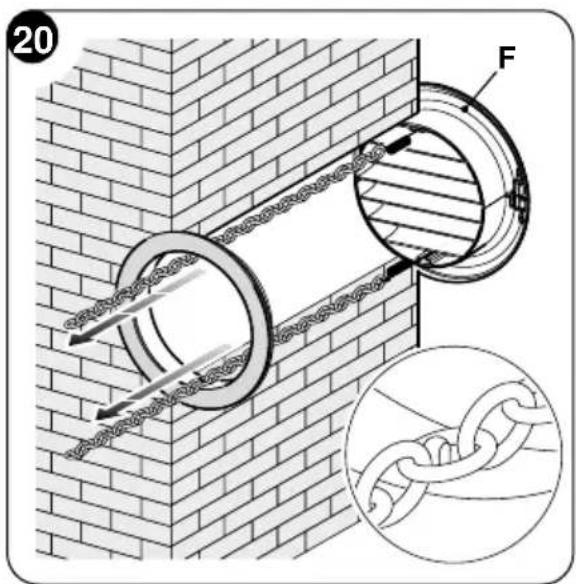

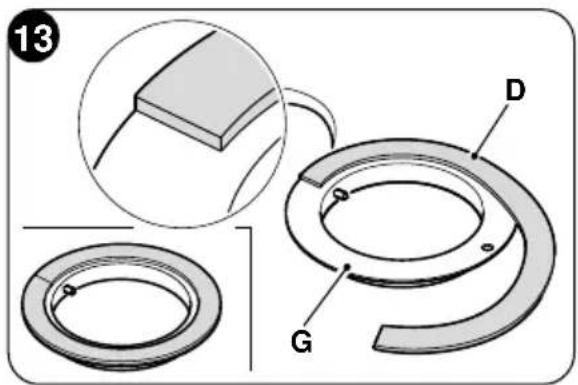

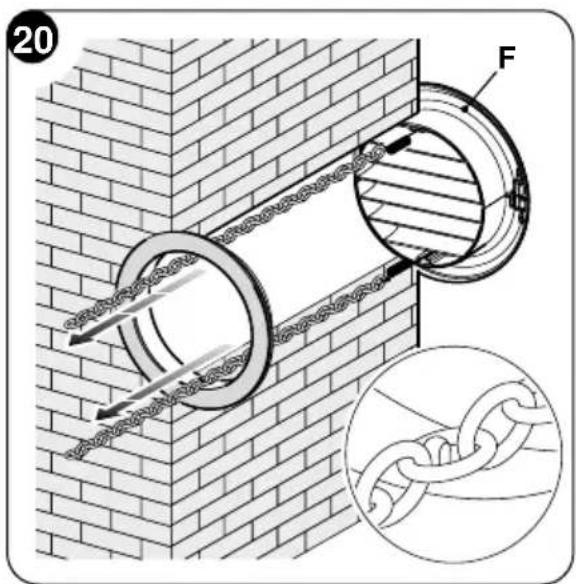

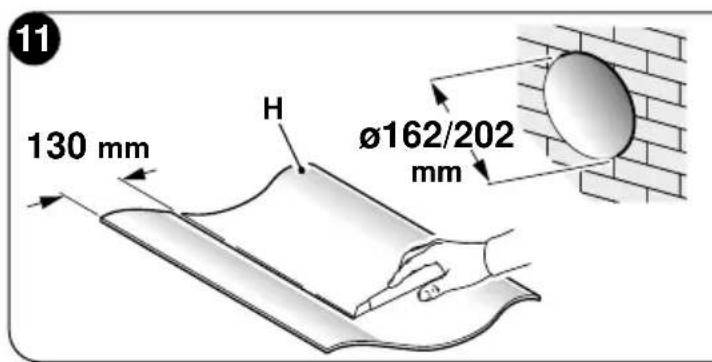

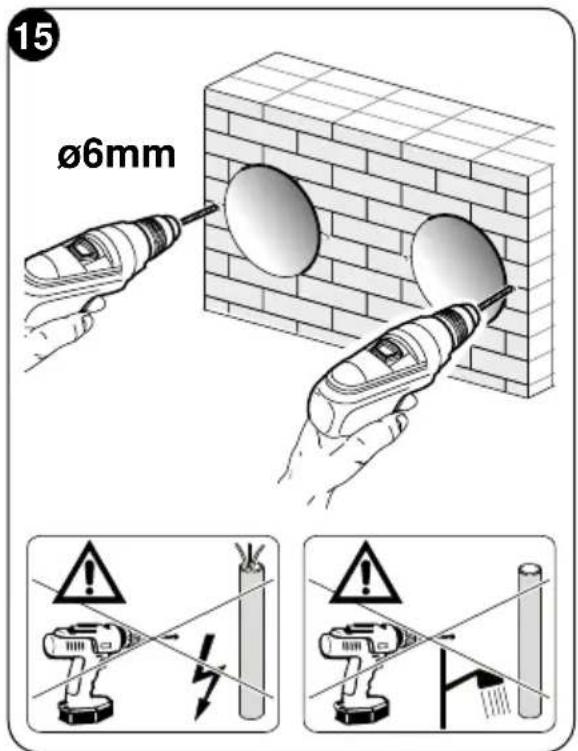

2.4.3 -Assembly of the air ducts and external grids 20

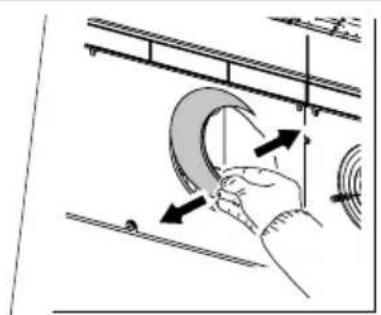

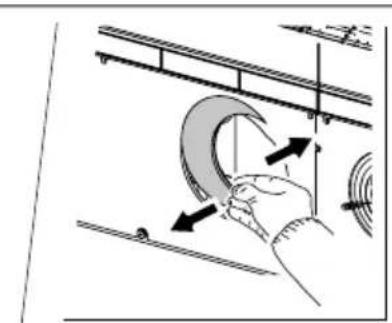

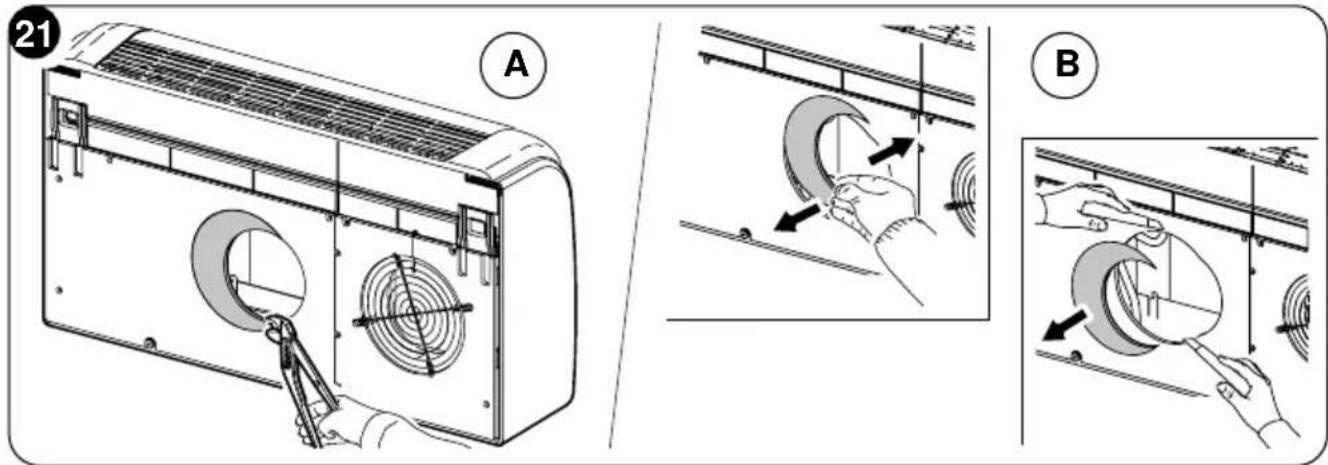

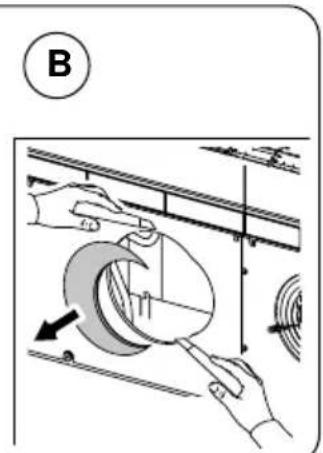

2.4.4 - Preparing the holes on the machine....22

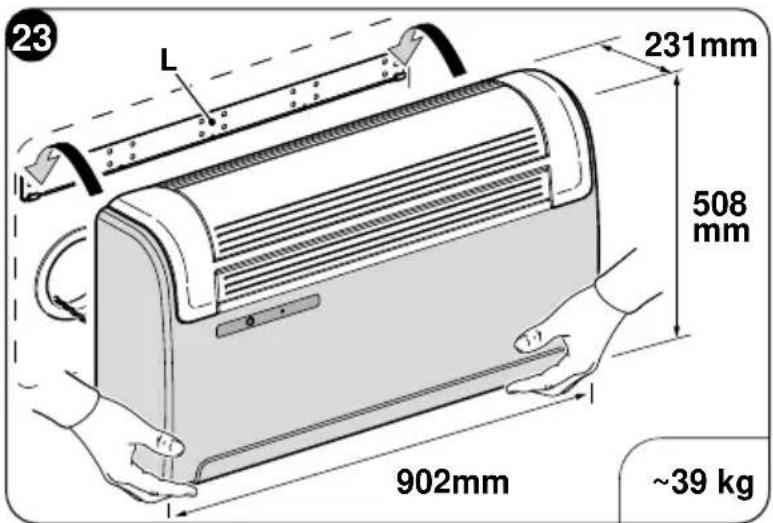

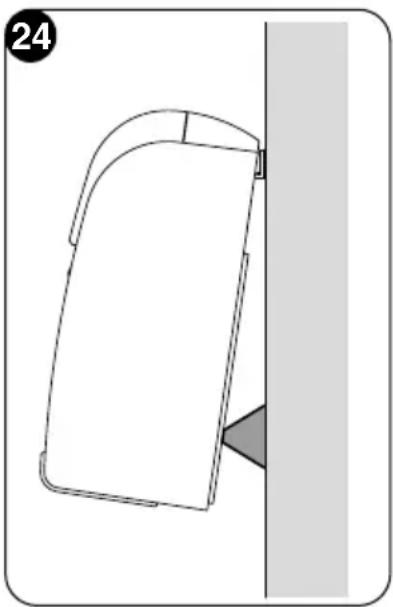

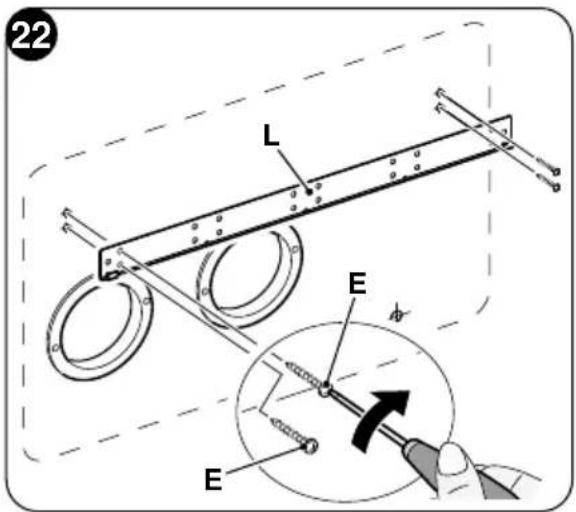

2.4.5 - Positioning of the device on the anchor brackets....23

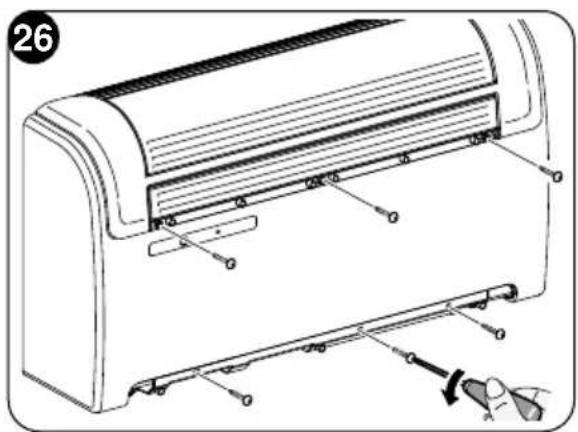

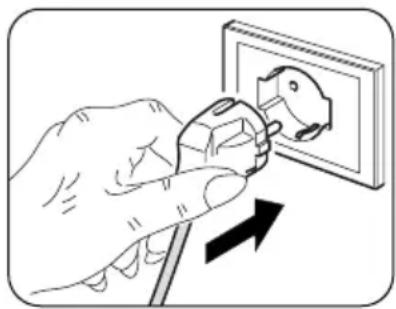

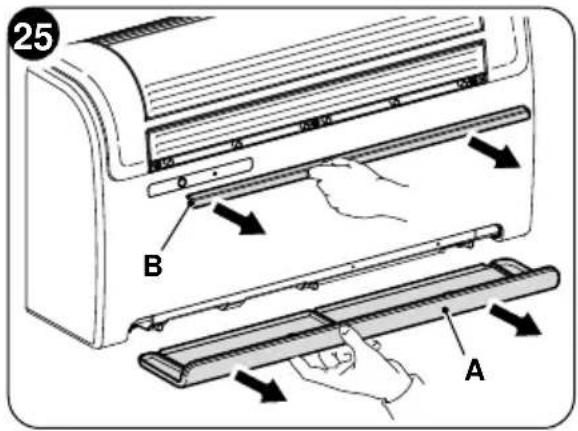

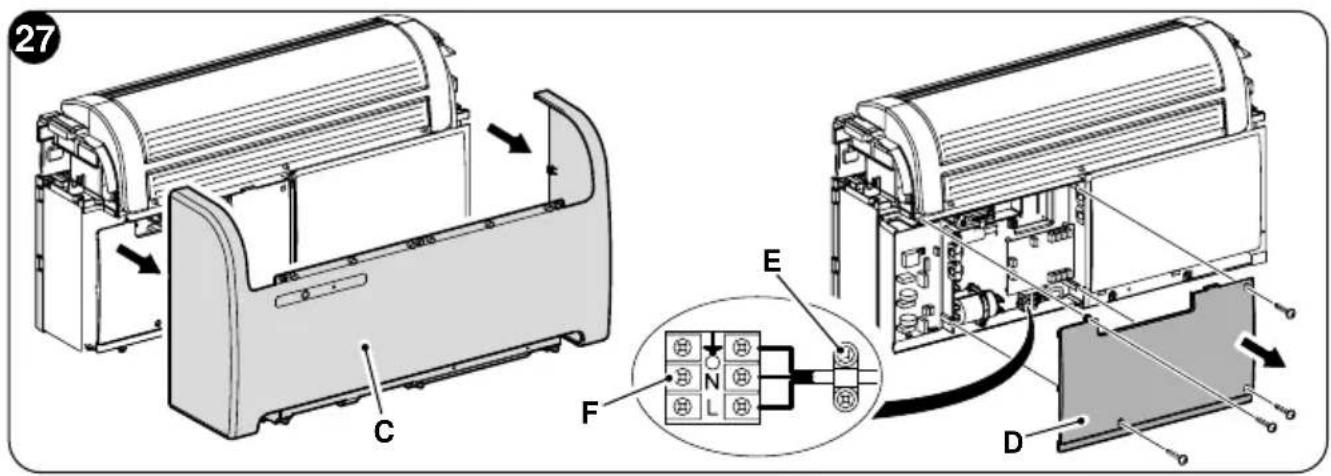

2.4.6 - Electric hook-up....24

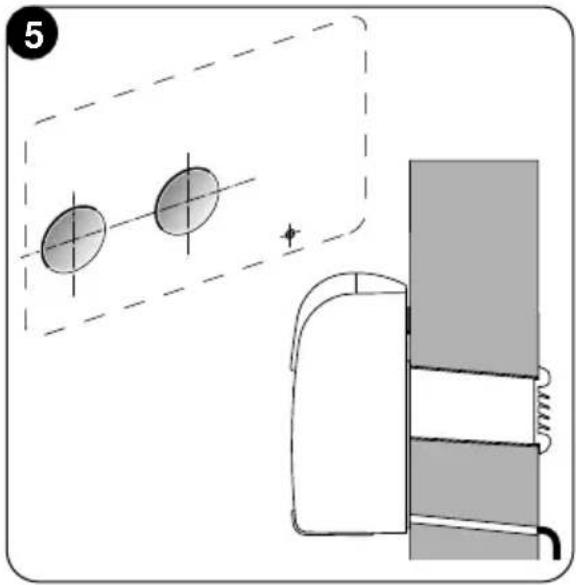

2.5 - TOP/BOTTOM INSTALLATION CONFIGURATION....25

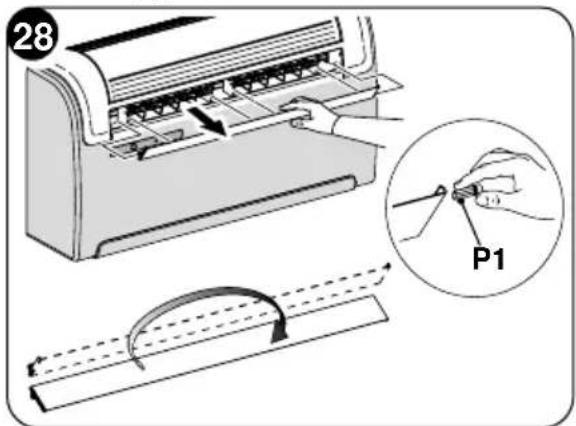

2.5.1 - Electronic configuration for lower or upper wall installations....26

3 - USE......26

3.1 - WARNINGS....26
3.2 - DESCRIPTION OF THE WARNING PANEL 27

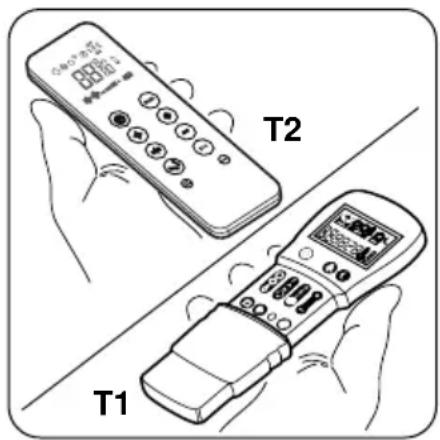

3.3 - USE OF THE REMOTE CONTROL 27

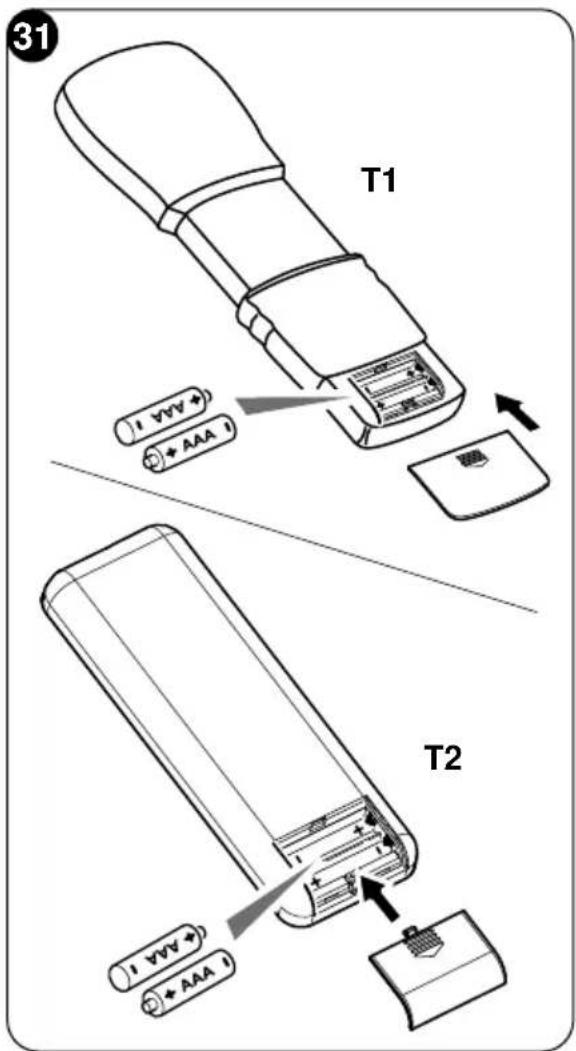

3.3.1 - Insertion of batteries....28
3.3.2 - Replacement of batteries....28

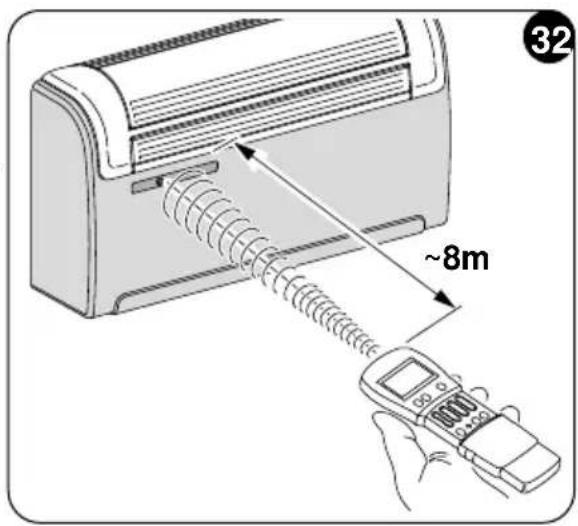

3.3.3 - Location of the remote controller 29

3.4 - DESCRIPTION OF REMOTE CONTROL....29

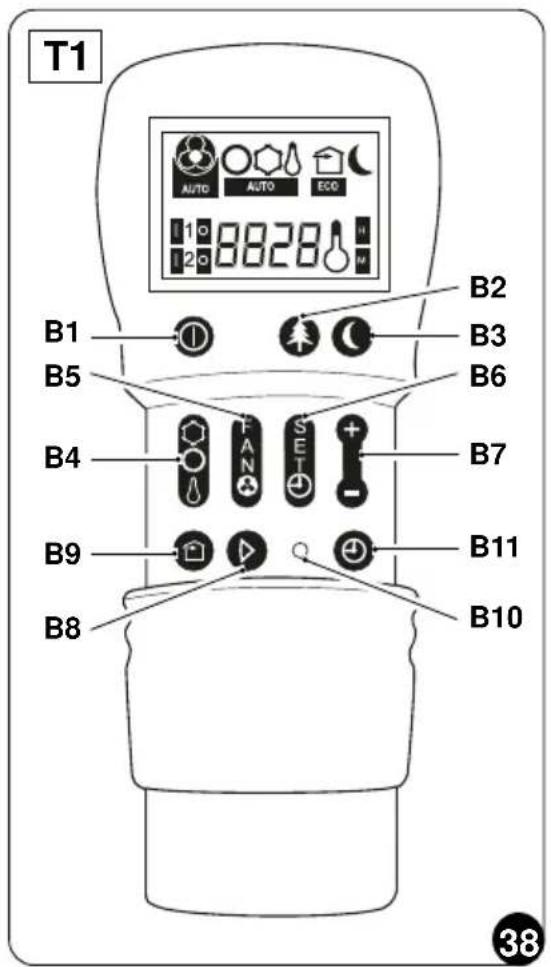

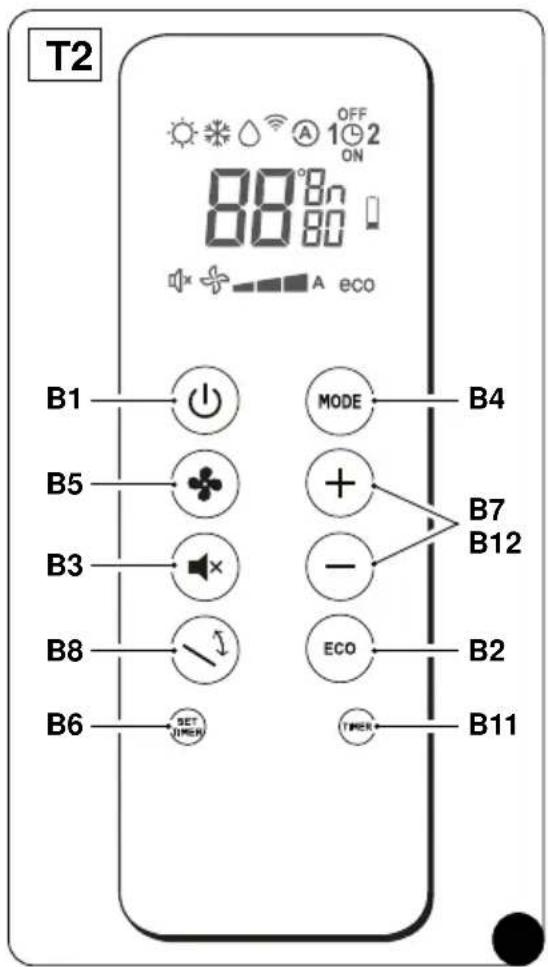

3.4.1 - Description of the remote control keys 30

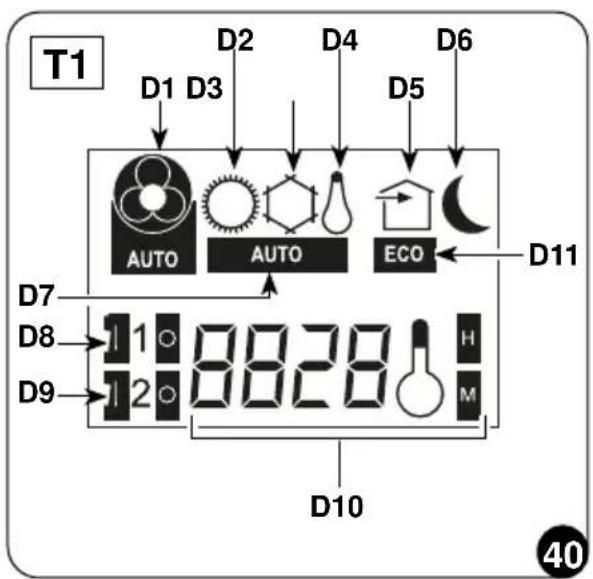

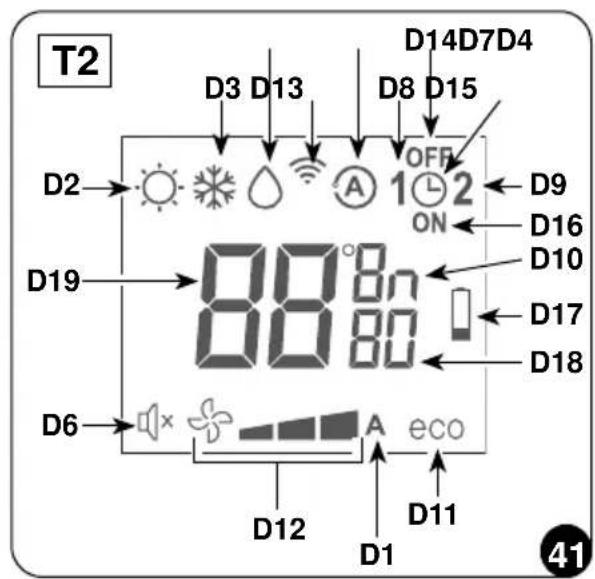

3.4.2 - Description of the remote control display ....31

3.5 - DESCRIPTION OF THE AIR CONDITIONER FUNCTIONS....32

3.5.1 - Main switch-on and running management....32
3.5.2 - ECO key 32
3.5.3 - Turning the unit ON/OFF 32

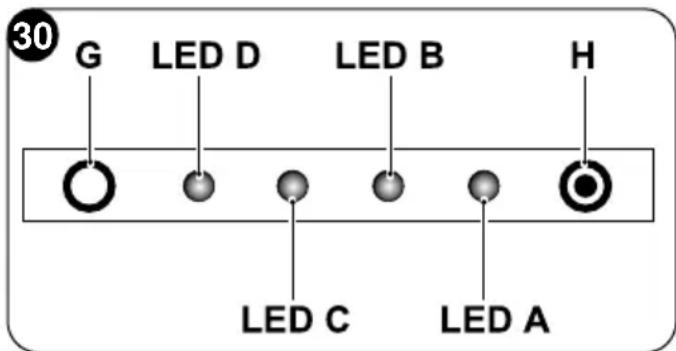

3.5.4 - Operation in "Cooling" mode only....32
3.5.5 - Operation in "Dehumidification" mode only 33
3.5.6 - Operation in "Ventilation" mode only 33
3.5.7 - Operation in "Spa" mode only (Automatic) 33

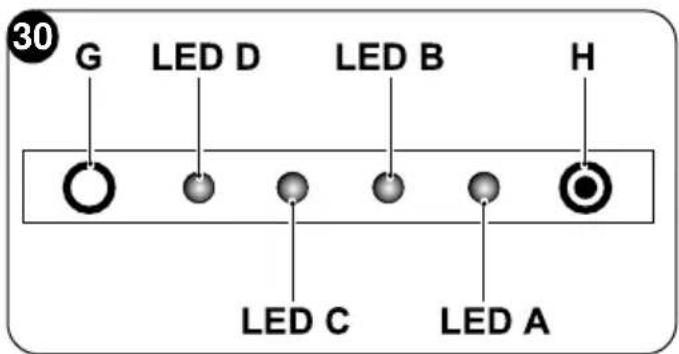

3.5.8 - Operation in "Heating" mode only (only models fitted with heating pump)....33
3.5.9 - Checking airflow direction....34
3.5.10 - Checking fan speed 34
3.5.11 - SILENT key 35
3.5.12 - Timer setting 35

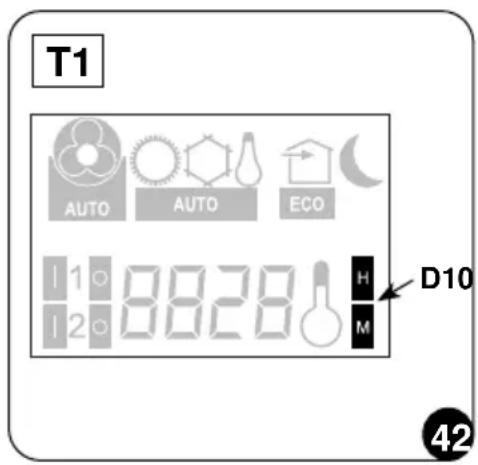

3.5.13 - Timer and clock setting (T1)....36

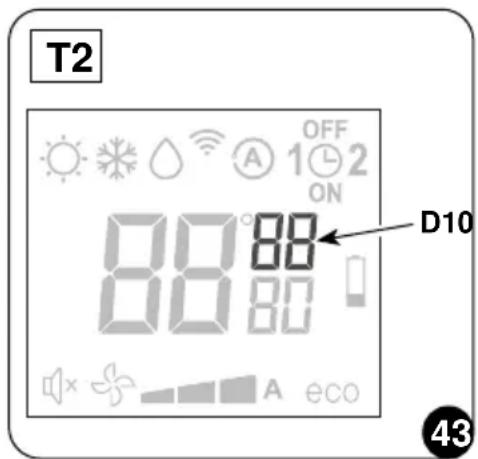

3.5.14 - Timer and clock setting (T2)....36

EN - 1

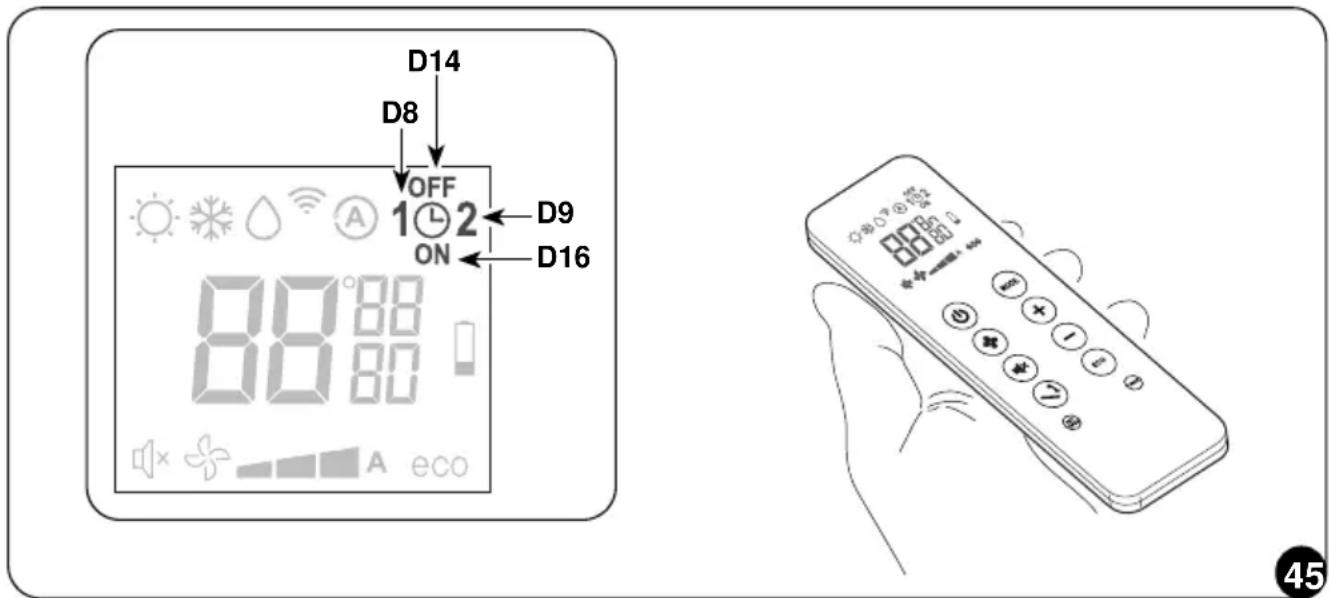

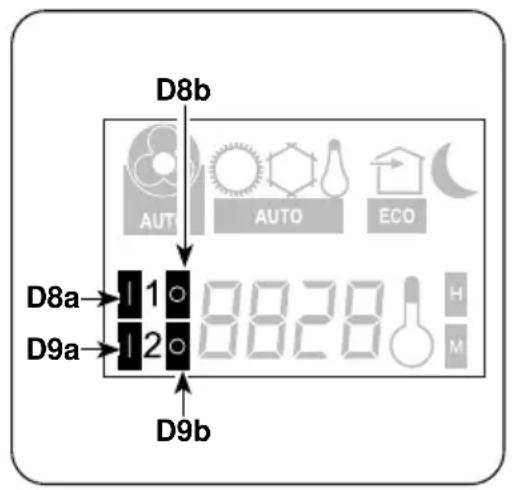

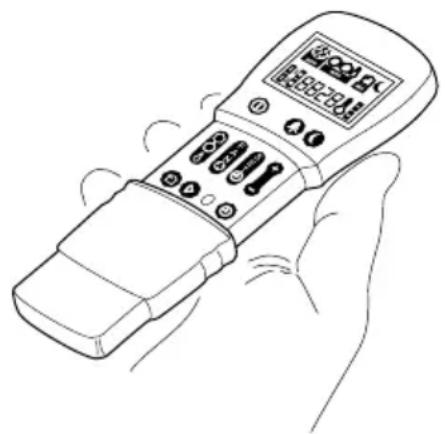

3.5.15 - Timer setting (PROGR. 1 and PROGR. 2) (T1)....37
3.5.16 - Timer setting (PROGR. 1 and PROGR. 2) (T2)....38
3.5.17 - Timer activation and deactivation....39
3.5.18 - Reset of all the remote control functions (only for remote control T1) 39
3.5.19 - Managing the unit if the remote control is not available....39

3.6 - RECOMMENDATIONS FOR ENERGY SAVINGS....39

4 - MAINTENANCE AND CLEANING 40

4.1 - CLEANING 40

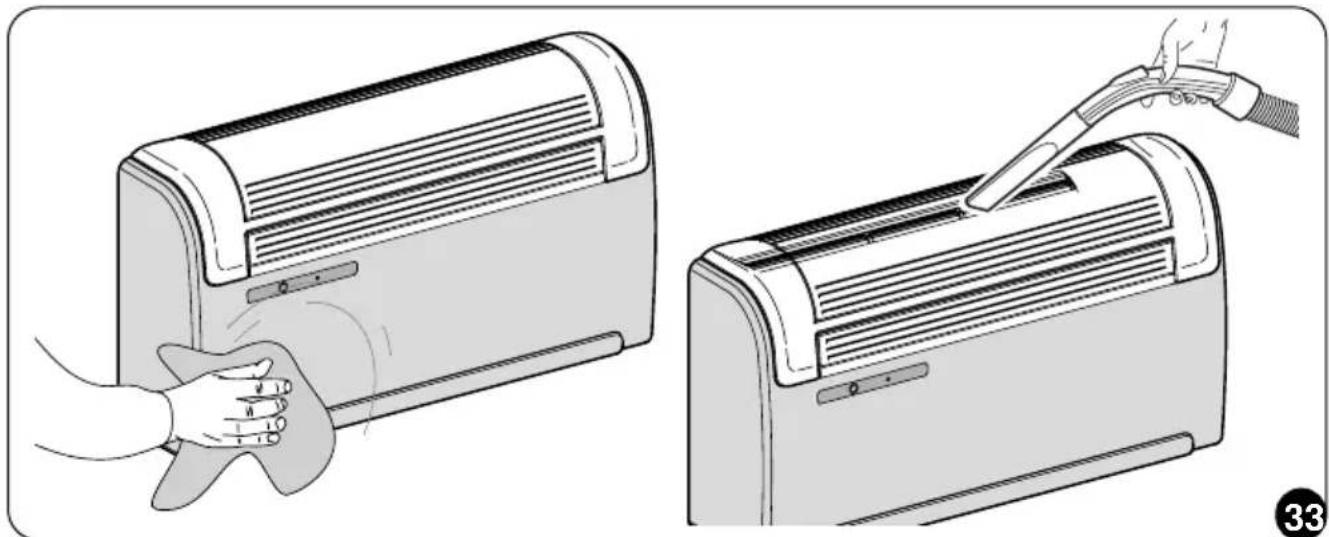

4.1.1 - Appliance and remote control cleaning ....40

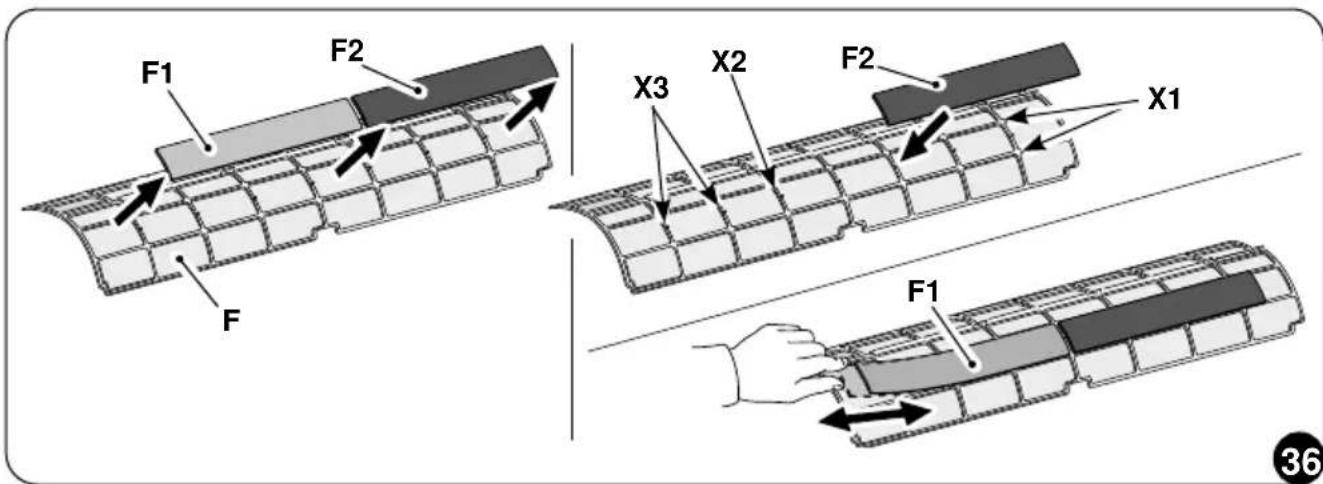

4.1.2 - Cleaning the air filter....41

4.2 - MAINTENANCE 42

4.2.1 - Routine maintenance 42

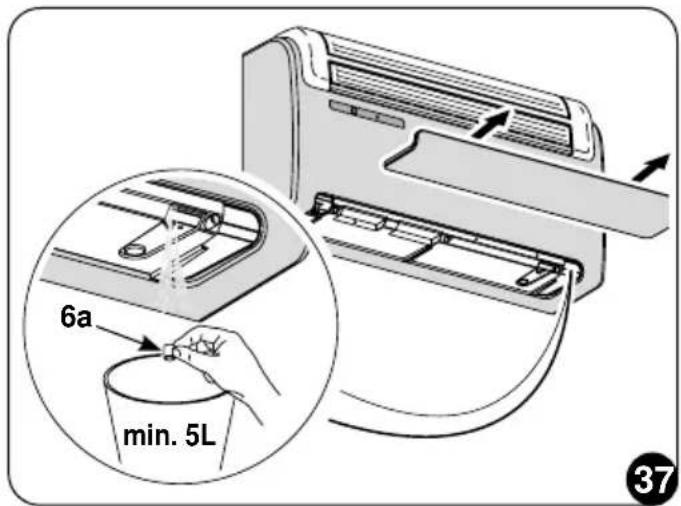

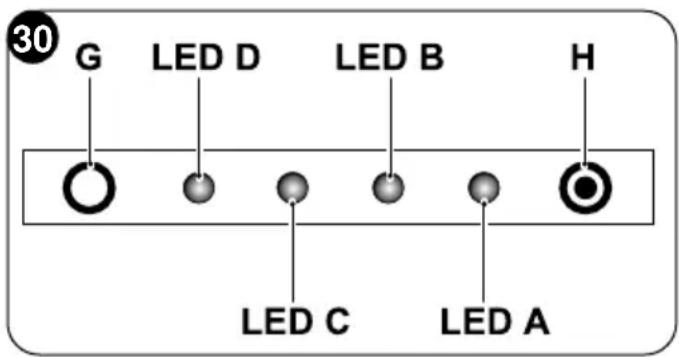

4.2.2 - Condensation water drainage in case of emergency 42

4.3 - DIAGNOSIS, ALARMS AND INCONVENIENCES....43

4.3.1 - Diagnosis of the inconveniences....43
4.3.2 - Functional aspects not to be mistaken for anomalies....44

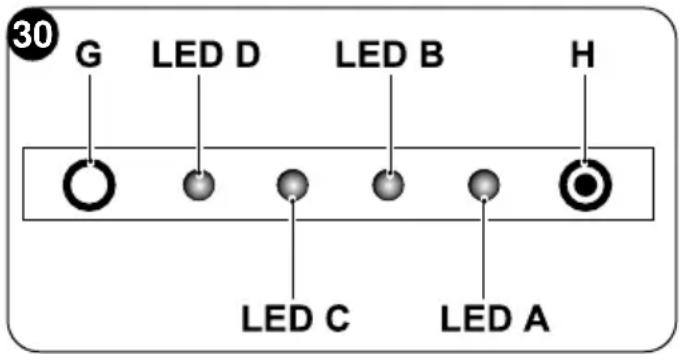

4.3.3 - Console led signals 44
4.3.4 - Console alarms....45
4.3.5 - Anomalies and remedies....46

TECHNICAL DATA

OPERATING LIMIT CONDITIONS	INDOOR TEMPERATURE	OUTDOOR TEMPERATURE
Maximum operating temperatures in cooling mode	DB 35°C - WB 24°C DB	43°C - WB 32°C
Minimum operating temperatures in cooling mode	DB 18°C DB -10°C
Maximum operating temperatures in heating mode	DB 27°C DB 24°C -	WB 18°C
Minimum operating temperatures in heating mode	--- DB -15°C

DISPOSAL

This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances. Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal. Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product. This regulation is valid only in EU member states.

0 - GENERAL INFORMATION

First of all, we would like to thank you for choosing our appliance.

This document is confidential pursuant to the law and may not be reproduced or transferred to third parties without the explicit authorisation of the manufacturer.

The appliance may undergo updates and therefore have details different from those represented, without prejudice to the texts contained in this manual.

0.1 - SYMBOLS

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

0.2 - EDITORIAL PICTOGRAMS

Service

Refers to situations in which you should inform the SERVICE department in the company:

CUSTOMER TECHNICAL SERVICE.

Index

Paragraphs marked with this symbol contain very important information and recommendations, particularly as regards safety.

Failure to comply with them may result in:

• danger of injury to the operators
• loss of the warranty
• refusal of liability by the manufacturer.

Raised hand

Refers to actions that absolutely must not be performed.

als to the personnel that the operation described could cause electrocution if not performed according to the safety rules.

GENERIC DANGER

rms the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.

EN - 3

DANGER

es that the appliance uses flammable refrigerant. If the refrigerant leaks and is exposed to an external ignition source, the risk of fire exist.

DANGER DUE TO HEAT

ns the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.

DO NOT COVER

lates to the personnel concerned, that it is prohibited to cover the appliance, to prevent over-heating.

WARNING

cates that this document must be read carefully before installing and/or using the appliance.

- Indicates that this document must be read carefully before any maintenance and/or cleaning operation.

ATTENTION

Indicates that there may be additional information in attached manuals.

- Indicates that information is available in the user manual or in the installation manual.

ATTENTION

ates that the assistance personnel must handle the appliance following the installation manual.

0.3 - GENERAL WARNINGS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN ORDER TO REDUCE RISKS OF FIRE, ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING:

1. This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID.
   Our machines are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.
2. Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter.
3. Make all personnel involved in transport and installation of the machine aware of these instructions.
4. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.
5. The manufacturer reserves the right to make any changes it deems advisable to its models, although the essential features described in this manual remain the same.
6. The installation and maintenance of air-conditioners like this one may be hazardous as they contain a cooling gas under pressure as well as powered parts.
   Therefore, the installation, first startup and subsequent maintenance should be carried out exclusively by authorized, qualified personnel.
7. Failing to comply with the instructions contained in this manual, and using the unit with temperatures exceeding the permissible temperature range will invalidate the warranty.
8. Routine maintenance of the filters and general external cleaning can be done by the user as these operations are not difficult or dangerous.
9. During installation and maintenance, respect the precautions indicated in the manual, and on the labels applied inside the units, as well as all the precautions suggested by good sense and by the safety regulations in effect in your country.
10. Always wear gloves and protective goggles when performing any operations on the refrigerating side of the units.

EN - 5

1. Air conditioners must not be installed in places containing inflammable gasses, explosive gasses, or in very humid environments (laundries, greenhouses, etc.), or in places where there are machines that generate very great heat.

1. In case of replacement of parts, use only original OLIMPIA SPLEN-DID parts.

1. IMPÔRTANT!

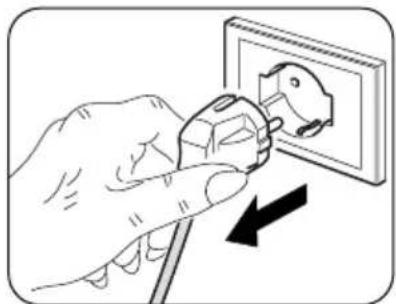

der to prevent any risk of electrical shocks, it is essential to disconnect the plug from the power socket before performing any electrical connection and any cleaning and/or maintenance operation on the appliances.

1. Lightening, cars in the vicinity and mobile phones can cause malfunctioning. Disconnect the unit electrically for a few seconds and then re-start the air conditioner.

1. On rainy days, it is recommended to connect the electric power supply in order to prevent damage caused by lightening.

1. If the unit is unused for a long period, or no-one uses the climate-controlled room, it is recommended to disconnect the electric power supply in order to prevent accidents.

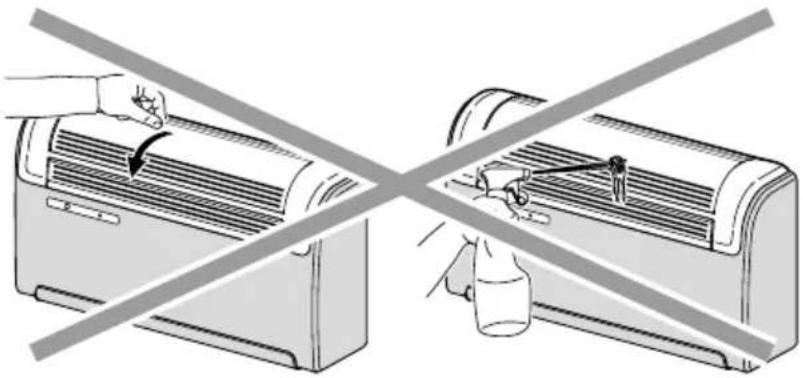

1. Do not use liquid or corrosive detergents to clean the unit, do not spray water or other liquids onto the unit, since they could damage the plastic components or even cause electric shocks.

1. Do not wet the indoor unit and the remote control. t circuits or fires may occur.

1. In the event of operating anomalies (e.g. strange noise, bad odour, smoke, abnormal temperature rise, electric dispersions, etc.) disconnect the electric power supply immediately.

Contact the local dealer.

1. Do not let the air conditioner run for a long time when the humidity is very high and a door or a windows is left open.

Moisture may condense and wet or damage furniture.

1. Do not plug or unplug the power supply plug during operation. and electric shocks risk.

1. Do not touch (operation) the product with wet hands and electric shocks risk.

1. Do not place a heater or other appliance near the power cable. Fire and electric shocks risk.

1. Make sure water does not enter the electrical parts.uld cause fires, product failure or electric shocks.

1. Do not open the air inlet grid during appliance operation. Risk of injury, electric shock or damage to the product.

1. Do not block the air inlet or outlet; the product could be damaged

1. Do not insert hands or other object through air inlet or outlet while the product is operated.

The presence of sharp and moving parts could cause injury.

1. Do not drink the water drained from the product. It is not sanitary could cause serious health issues

1. When there are gas leaks from other units, ventilate the room well before activating the air conditioner.

2. Do not disassemble or modify unit.

3. Ventilate the room well when used together with a stove, etc.
4. Do not use for special purposes.
5. The persons that work or intervene on a cooling circuit, must be in possession of suitable certification, issued by an accredited assessment body. This must attest skill in safely handling refrigerants in compliance with assessment specification acknowledged by sector associations.
6. Do not emit R32 gas into the atmosphere; R32 is a fluorinated greenhouse gas with a Global Warming Potential (GWP) = 675.

1. The appliance described in this manual is in compliance with the following European Regulations

• ECODESIGN 2009/125/EC, 206/2012/EU
• ENERGY LABELLING 2012/30/EU, 626/2011/EU and successive amendments.

0.4 - NOTES REGARDING FLUORINATED GASES

- This climate control appliance contains fluorinated gas. specific information regarding the type and quantity of gas, refer to the data plate affixed to the unit.

• The installation, assistance, maintenance and repair of the appliance, must be performed by a qualified certified technician.
• Product removal and re-cycling operations must be performed by a qualified certified technician.
• If the system has a leak-detection device installed, the checks for leaks must be performed at least every 12 months.
• When the unit is checked for leaks, keeping a record of all inspections is highly recommended.
• Before starting to operate on the appliance, it is necessary to check the zone surrounding the equipment to make sure there are no dangers of fire nor risks of combustion.

To repair the refrigerating system, it is necessary to take the following precautions before starting the intervention on the system.

THIS PRODUCT MUST BE USED EXCLUSIVELY ACCORDING TO THE SPECIFICATIONS INDICATED IN THIS MANUAL. USE DIFFERENT TO THAT SPECIFIED, COULD CAUSE SERIOUS INJURIES.

THE MANUFACTURER IS NOT LIABLE FOR INJURY/DAMAGE TO PERSONS/OBJECTS DERIVING FROM FAILURE TO COMPLY WITH THE REGULATIONS CONTAINED IN THIS MANUAL.

1. It is necessary to define the area around the work space and to avoid working in tight spaces. Ensure safe work conditions by checking flammable material.

1. All personnel in charge of maintenance and people which work in the surrounding area must be instructed on the type work they are going to carry out.

1. The zone MUST be checked with a specific refrigerating liquids detector before and during work, so that the technician is aware of potentially flammable atmospheres. Make sure the detection device of the leaks is suitable for use with flammable refrigerants, then that it does not produce sparks and that is adequately sealed or intrinsically safe.

EN - 8

1. The leaks electronic detectors may need calibration. If necessary, calibrate them in a zone free of refrigerant.
2. Make sure the detector is not a potential source of combustion and that it is suitable for the refrigerant used. The device for detection must be set at a percentage of the refrigerant LFL and must be calibrated for the used refrigerant; the appropriate percentage of gas (maximum 25 %) must be confirmed.
3. If the presence of a leak is suspected, all open flames must be removed. If a fluid leak which requires brazing is encountered, all refrigerant must be collected from the system or insulated (by means of shut off valves) in a part of the system away from the leak. Then, bleed nitrogen without oxygen (OFN) through the system both before and after the brazing process.

1. In case it is necessary to carry out a hot work on the appliance, IT IS NECESSARY to have a powder or CO2 fire extinguisher available.

1. To carry out a work which includes exposition of pipes which contain or contained a flammable refrigerant, DO NOT use sources of combustion. Risk of fire or explosion!

2. All sources of combustion (even a lit cigarette) should be kept away from the place in which all operations during which the flammable refrigerant may be released in the surrounding space must be carried out.

3. Make sure the area is adequately ventilated before intervening inside the system; a continuous degree of ventilation must be present.

1. DO NOT use means different from those recommended by the manufacturer in order to speed up the defrosting process or for cleaning.

2. Before any operation, always check that:

• the condensers are unloaded.
The operation must be carried out safely to avoid the risk of producing sparks;
• there are no live electrical components and that the cables are not exposed while loading, recovering or bleeding the system;
- there is continuity in the ground connection.

EN - 9

1. All electrical power supplies must be disconnected from the appliance on which you are working.

If it is absolutely necessary that the appliance has electrical power supply, it is necessary to place a leak detector permanently operational in the most critical point.

1. Make sure the seals and sealing materials have not deteriorated. sible development of flammable atmospheres.

1. Do not apply any net inductive or capacity load to the circuit without making sure that this operation won't make you exceed the voltage and current permitted for the appliance in use.

The appliance for the test must have correct nominal values.

1. Periodically check that the cables are not subject to wear, corrosion, excessive pressure, vibrations, sharp edges or any other hostile environmental situation.

2. When intervening inside the refrigerating circuit to carry out repairs or for any other reason, the conventional procedures must be followed:

3. remove the refrigerant;

4. bleed the circuit with an inert gas;
5. evacuate;
6. bleed again with an inert gas;

7. open the circuit by cutting or by means of brazing.

8. The load of refrigerant must be stored in the specific custody cylinders.

The system must “cleaned” with OFN to make the unit safe.

It may be necessary to repeat this process several times.

DO NOT use compressed air or oxygen for this operation.

1. The cylinders must be kept in vertical position.

Only use cylinders suitable for collection of refrigerants.

The cylinders must be complete of a pressure-relief valve and switch off valves in good conditions.

A set of calibrated weighing scales must also be available.

1. The pipes must be equipped with couplings for disconnection and must NOT present leaks.

Before using the collection machine, check that it underwent correct maintenance and that the possible associated electric components are sealed, to prevent switching on in case of leak of refrigerant.

1. Make sure the refrigerating system is earthed before proceeding with reloading of the system with refrigerant.

Label the system when reloading is complete.

Pay particular attention not to overload the refrigerating system.

1. Before proceeding with reloading, the system must undergo the pressure test with OFN and the tightness test at the end of reloading, but before commissioning.

It is necessary to carry out an additional tightness test before leaving the site.

1. Collected refrigerant must be returned to the fluid supplier in the appropriate collection cylinder, compiling the corresponding Transfer Note of Scraps.

DO NOT mix the refrigerants in the collection units and, in particular, in the cylinders.

1. If the compressors or their oils must be removed, make sure they have been emptied at an acceptable level to be sure that the flammable refrigerant does not remain in the lubricant.

This process must be carried out before the compressor returns to the suppliers.

Only use electric heating on the compressor body to speed up this process.

1. Once installation is complete, check that there's no loss of refrigerant (the refrigerating liquid produces toxic gas if exposed to a flame).

0.5 - PROPER USE

- The air-conditioner should be used for the exclusive purpose of producing hot or cool air (on demand) for the sole purpose of obtaining a comfortable temperature in the room.

- An improper use of the devices (external and internal) with possible damages caused to people, things or animals relieves OLIMPIA SPLENDID from any liability.

0.6 - Hazardous zones

- The climate controllers must not be installed in environments with the presence of inflammable gases, explosive gases, in very humid environments (laundries, greenhouses, etc.), or in places with other machines that generate a strong heat source, in proximity of a sources of salt water or sulphurous water.

- DO NOT use gas, gasoline or other inflammable liquids near to the climate controller.

- The climate controller does not have a fan for the introduction of fresh outdoor air into the room; ventilate by opening doors and windows.

• Always install circuit breaker and a dedicated power circuit.

1 - DESCRIPTION OF THE APPLIANCE

1.1 - LIST OF THE COMPONENTS SUPPLIED

The units making up the climate control system are packaged individually in cardboard boxes.

Individual unit packages can be transported by hand by two members of personnel, or loaded onto a transport trolley; up to max. three packages stacked for indoor units and individually for outdoor units.

Before beginning to assemble the unit, make sure all the parts are within easy reach.

A. Appliance UNICO Edge R32

T1. Remote control*

T2. Remote control*

C. Use and maintenance book-lets + warranty

D. Strip of adhesive isolating tape (x 2)

E. Kit of screws and anchor bolts

F. Air inlet and outlet external grids including chains and kit for installing the grids (x 2)

G. Internal flanges (x 2)

H. Sheet for wall pipes (x 2)

L. Bracket for wall anchoring

M. Paper template to make holes

N. Condensation drain pipe

* Check the model supplied

1 A T1 C T2 T3 UNICO EDGE AAAA AAAA

Technical diagram showing labeled components of a mechanical or electrical component, including rings, coils, and a schematic view.

The batteries (T3) for the remote control, quantity 2 - 1,5V AAA type, are components necessary but not supplied as a standard.

1.2 - STORAGE

Store the cartons in a closed environment protected against atmospheric agents and raised off the floor by planks or a pallet.

DO NOT TURN THE PACKAGING UPSIDE DOWN NOR PLACE IT HORIZONTALLY.

1.3 - RECEIPT AND UNPACKING

The packaging is made up from suitable material and performed by expert personnel. The units are delivered complete and in perfect condition. However, for he quality control of the transport services, follow the warnings below:

a. On receipt of the packages, check whether the packaging is damaged. If this is the case, withdraw the goods with reserve, producing photographic proof and any apparent damage.
b. Unpack, checking the presence of the individual components with the packing lists.
c. Control that all components have not undergone damage during transport. If this is the case, inform the carrier by registered letter with acknowledgement of receipt within 3 days of receiving the goods, presenting photographic documentation.
d. Pay attention when unpacking and installing the equipment.

Sharp parts can cause injury. Pay particular attention to the edges of the structure and the fins of the condenser and evaporator.

No information concerning damage undergone can be taken into consideration after 3 days from delivery.

For any controversy the court of jurisdiction will be BRESCIA.

Keep the packaging for at least the duration of the warranty period, for any shipments to the after-sales centre for repairs. Dispose of packaging in compliance with the regulations in force regarding waste disposal.

1.4 - APPLIANCE COMPONENTS DESCRIPTION (fig.A)

1. Air outlet deflector (Flap)
2. Air intake flap
3. Function and alarms display console
4. Air suction grille
5. Air filters
6. Purifying filter
7. Active carbon filter
8. Lower protection
9. Condensate drain
10. Emergency condensate drain
11. Power cord

A 1 2 3 4 5 6 7 8 9 10 11

2 - INSTALLATION

2.1 - INSTRUCTIONS FOR INSTALLATION

To obtain the best results and optimum performance, follow the instructions for correct installation provided in this manual.

A failure to implement the indicated standards, which may cause a malfunction of the appliances, relieves OLIMPIA SPLENDID from any form of warranty and from any liability for possible damages caused to people, animals or things.

The electrical system must be compliant with legal standards, must respect the data in the technical data sheet and be must be equipped with an efficient ground system.

2.2 - SIZE AND SPECIFICATIONS OF THE ROOM IN WHICH TO INSTALL THE AIR CONDITIONER

• Before installing the air conditioner, it is essential to make an accurate calculation of the heat load in summer (and cold load in winter for models with heating pump) at the site of installation.
• The more accurate this calculation is made the better the air conditioner will be able to do its job.
• When executing the calculations, refer directly to the prevailing standards.

EN - 14

- For particularly important applications, we recommend contacting expert heating engineers.

- The user should try to limit high heat loads as much as possible as follows: glass doors and windows exposed to many hours of sunlight should be fitted on the inside with curtains or, even better, on the outside with coverings such as Venetian blinds, verandahs, refractive film, etc.). The air-conditioned room must remain closed as long as possible.

- Halogen spotlights or other electrical equipment with high power consumption should not be used in the room (toasters, steam irons, hot plates for cooking, etc.).

2.3 - CHOOSING THE POSITION OF THE UNIT

To obtain the best operating performance and prevent faults or hazardous conditions, the position of indoor unit installation must meet the following requirements:

a. Do not expose the appliance to heat or steam sources (fig. 3).
b. Make sure that the space to the right and left is at least 60 mm and space above the unit is at least 80 mm. (fig. 2).
c. The height of the unit's lower edge from the floor should be at least 100 ~mm if fixed to the wall in the lowest position. If fixed to the wall in the highest position, it should be at least 80 ~mm from the ceiling (fig. 2).
d. The wall where the indoor unit is to be fixed, must be stable, strong and suitable to support the weight.
e. It must be possible to leave room around the unit for any maintenance operations that may be necessary.

2 min 60mm min 80mm min 60mm min 100mm

EN - 15

f. Nothing should be in the way of the air that needs to circulate both on the top air-intake (curtains, plants, furniture) and at the front where the air exits. This could cause air swirls that would inhibit the working efficiency of the unit (fig. 3).

g. Do not spray water or other liquids of any kind directly on the unit (fig. 3).

h. The appliance must not be positioned so that the air flow is directed directly towards nearby people (fig. 3).

i. Never force the opening of the airflow flap (fig. 3).

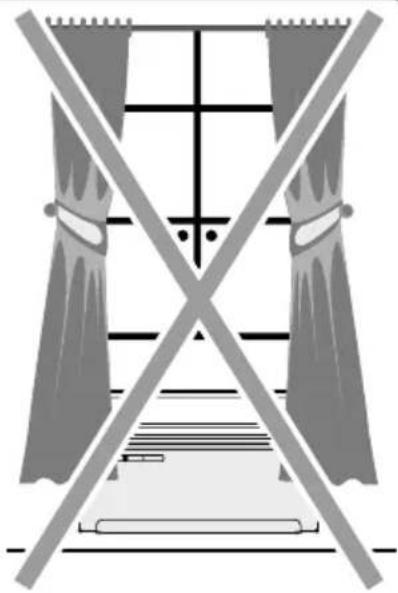

I. Do not place bottles, cans, clothes, flowers or any other object on the air suction grille (fig. 3).

m. Do not install the air conditioner directly on another household appliance (TV, radio, fridge, etc.), or on a heat source (fig. 3).

Illustration showing various household appliances and kitchen fixtures with crossed-out safety symbols, including air condition checks.

EN - 16

The air conditioner must be installed on a wall that communicates with the outside

After determining the best place for installation as described above, check for the absence of other structures or systems (beams, piers, pipes, wires, etc.) at the points where the holes are to be drilled, which would prevent drilling the holes required to install the unit.

Check again to make sure there are no obstacles to air circulation through the holes to be drilled due to plants and their leaves, slats or panelling, blinds, gratings or grids too dense, etc.).

2.4 - UNIT ASSEMBLY

The maximum length allowed for the pipes is 1 m, the pipes must be internally smooth and no bends can be made.

It is necessary to use the grilles provided, or grilles which keep the same features.

2.4.1 - Drilling the wall

To operate, the unit requires two holes to be drilled in the wall, positioned as indicated on the drilling template; the holes must be 162 mm in diameter.

- It is possible to install the unit UNICO EDGE instead of a unit UNICO SKY or UNICO STAR without modifying the already existing holes, exception made for the small condensation drain hole.

In this case, in order not to penalize performances, remove the insulating material possibly present in the air expulsion hole. The anchoring brackets need new drilling too.

- Drill the wall using the proper tools to facilitate your job and prevent excess damage or disturbance to your client.

The best tools for drilling large holes in walls are special drills called core borers with very high twisting torque and adjustable rotating speed depending on the diameter of the hole to be drilled.

- To prevent the creation of large amounts of dust and rubble due to drilling, the core borer can be fitted with a vacuum system applied by means of suction cups to the drilling zone.

• To drill the holes, proceed as follows:

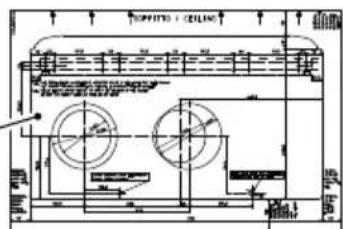

- Place the supplied drill jig (M) against the wall observing the minimum distances from the ceiling, the floor and from the side walls indicated on the jig itself which can be kept in the correct position using adhesive tape (Y) (fig. 4).

- Use a small drill or punch to mark, with extreme care, the exact centre of each of the holes to be drilled (fig.4).

- Using a core boring head measuring at least 202 mm (or 162 mm) to drill the two holes for entry and exit of the air.

Drill the foregoing holes tilted slightly downwards to prevent water from being fed back through the ducts (fig. 5).

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

5

Most of the removed material is expelled outwards, therefore make sure that it does not hit any person or object when it falls out.

In order to avoid as much as possible outer plaster breaking, it is necessary to proceed carefully with the last part of hole execution, decreasing pressure on core borers.

- Drill the holes, previously marked, for the wall plugs related to the fixing brackets (fig. 6).

6 Ø10mm E E

EN - 18

Carefully check the characteristics and consistency of the wall in order to possibly choose wall plugs specific for particular situations.

The manufacturer will not be held liable for any underestimates made in the structural consistency of the anchor prepared by the installer. Therefore, pay utmost attention to the foregoing operation that could cause serious injury/damage to people/property if carried out incorrectly.

- When installing models equipped with heating pump, if no condensate discharge was built into the wall (see paragraph 2.4.2), in order to drain the condensate it will be necessary to drill a hole through the wall in the position shown on the template.

2.4.2 - Preparing the condensate discharge

- As regards machines with heat pump, a condensation drain pipe (fig. 1 - ref. N) (supplied) to be inserted in the specific connection (A) (fig. 7).

Remove the cap (B) (fig. 7) before inserting the condensation drain pipe.

When the max level is reached, a solenoid valve ensures the condensate will flow out from the internal tray.

- For cold-only machines, connect the condensate discharge pipe if you intend running the unit at low outdoor temperatures (lower than 23°C).

- Since condensate drains by gravity, there must be a minimum slope of at least 3% at every point of the discharge line. Use a rigid or flexible tube having an inside diameter of at least 16 ~mm .

7 A B N

8 min 300mm

- If the line empties into a sewerage system, install a siphon before the point in which the pipe reaches the main discharge, at least 300 ~mm below the inlet from the unit (fig. 8).

EN - 19

- If the drainpipe drains into a vessel (tank or other container), this container should not be sealed and the drainpipe should not remain immersed in the water (see fig. 9). - The hole (J) through which the condensate pipe passes should always slope towards the outside (see fig. 10).

The exact position in which to place the pipe inlet, as compared to the machine, is shown on the drilling template.

Make sure, in this case, that the water expelled outward does not damage or disturb persons or property.

During the winter this type of drainage may cause sheets of ice to form.

9

10

When the condensate drainage is fitted, pay much attention not to compress the rubber hose.

In the event of operation during the winter with temperatures equal to or lower than 0^ C, make sure that the condensate drain pipe is protected from freezing in order to ensure draining.

In the event of prolonged operation during the winter with temperatures below 5°C, install the optional basin heater kit.

2.4.3 -Assembly of the air ducts and external grids

• After drilling the holes (with the core drill), insert the plastic sheet (H) supplied with the air conditioner (fig. 11) inside them.

Since the sheet (H) was made for 202 ~mm holes, you will have to cut off 130 mm from the long side of the sheet for the 162 ~mm holes (fig. 11).

The sheets must be 65 mm shorter than the length of the wall.

EN - 20

11 130 mm H Ø162/202 mm

Two hands performing a circular tool manipulation or disassembly process, showing a curved object being handled (no text or symbols present)

- Roll the sheet (H) and insert it into the hole, paying attention to the splicing line, which must always face upwards. (fig.11).

Use an ordinary cutter for the foregoing operation (fig. 11 - 12).

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

To position the external grids, proceed as follows:

a. Apply the seal (G) to the wall flange (D), ensuring it lines up with the outer edge of the flange as indicated in the figure 13.

b. Fix the two flanges using 2 pegs having a diameter of 6 mm and check that the two fixing holes are horizontal (fig. 14 - 15 - 16).

13 D G

14 G

15 Ø6mm

16 G

EN - 21

c. Fit the small eyelet of the spring, with the long stem, on the cap pin (on both components) (fig. 17).

d. Insert the two caps (with spring), on the front part of the external grid, on its two housings, pulling until it clicks (fig. 18) and couple the two chains to the large eyelet of the spring.

e. Using one hand, grip the two chains connected to the grid;

f. Bend the external grids back, gripping them with your free hand where they bend, and insert your fingers inside the single fins (fig. 19).

g. Insert your arm into the pipe until the grid protrudes completely outwards.

h. Reopen the grid, being careful to keep your fingers inside the fins.

i. Turn the grid until the fins are fully horizontal and tilted downwards.

I. Pull the chain, tensioning the spring, and couple the chain ring to the pin of the inner flange through which the pipes pass (fig. 20).

m. Use hand shears to cut off any excess chain links.

Use exclusively the supplied grids (F), or grids with like characteristics.

2.4.4 - Preparing the holes on the machine

If 162 mm pipes are being used, the removal operation of part of the rear cover must not be performed.

17

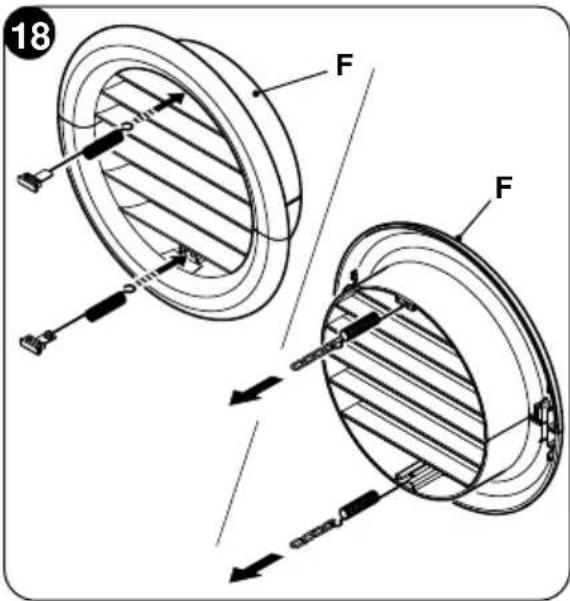

18 F F

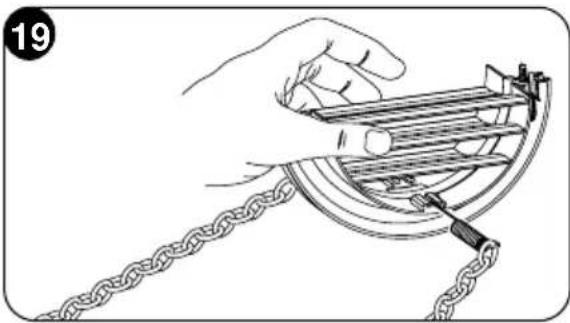

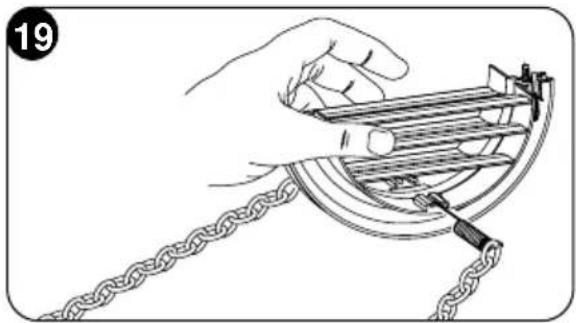

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

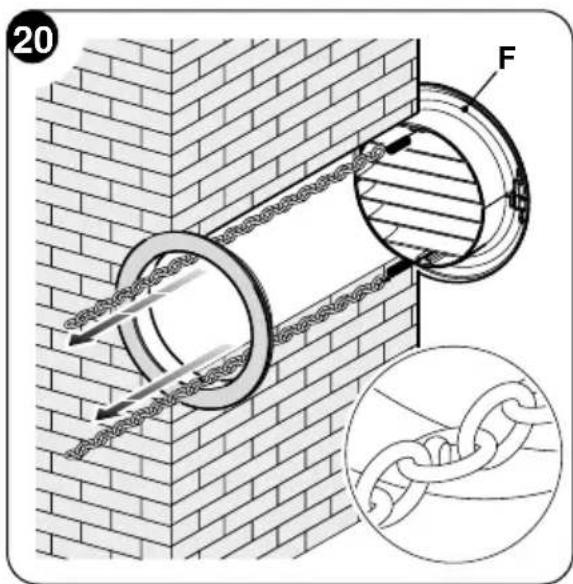

20 F

In the event of use of ∅ 202 mm holes, work as follows:

a. Use pincers to break the precut of the rear cover (fig. 21-A).

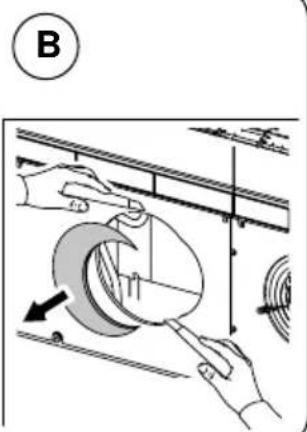

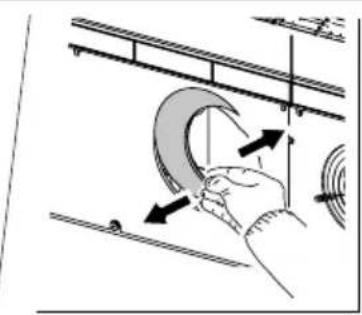

b. Then, rotate back and forth the part of the cover to be remove with the hand until breaking the remaining precut part (fig. 21-B).
c. Use a cutter to trim the possible insulating material in excess which remained inside the hole (fig. 21-B).

21 A B

2.4.5 - Positioning of the device on the anchor brackets

Working on the two previously drilled holes (see fig. 6), fix the support bracket (L) to the wall using the supplied wall plugs screws (H) (fig. 22).

After checking:

that the fixing brackets are well anchored to the wall, that the installation site has been prepared for electrical connection and condensation discharge (if necessary),

22 L E E

it is possible to hook the air conditioner.

Lift the air conditioner by holding it on the sides of the lower base and hook it to the bracket (L) (fig. 23).

Slightly tilt the lower part of the appliance towards yourself to ease the operation.

23 L 231mm 508mm 902mm ~39 kg

EN - 23

- To make the electrical connection and fasten the drainpipe, place a wedge between the air conditioner and the wall (see fig. 24).

- When you have finished, inspect carefully to make sure there are no fissures at the back of the air conditioner (the insulating gasket must fit firmly against the wall) particularly in the zone where air enters and leaves the machine.

Diagram of a vehicle door frame with a vertical guide and a shaded triangular component (no text or symbols)

2.4.6 - Electric hook-up

The appliance is fitted with a power cord with plug (Y-type connection).

If the socket is in proximity to the appliance, simply plug it in.

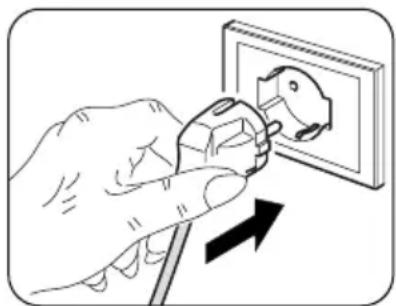

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Before connecting the conditioner, ensure that:

the power supply voltage and frequency values comply with those indicated on the data plate of the appliance.

• The power supply line is fitted with an efficient earth connection that is appropriately sized for the maximum absorption of the conditioner (minimum cross-section of the cable must be 1.5 mm2).
• The appliance is powered exclusively through a socket that is compatible with the plug supplied.

Any replacement of the power cable must be carried out solely by authorized technical support or by similarly qualified personnel.

On the power supply line of the appliance there must be an adequate omnipolar disconnection device that complies with the national installation regulations. It is, however, necessary to check that the electrical power supply is equipped with efficient earthing and with adequate protections against overloading and/or short circuits (a type 10 AT delayed fuse or other devices with equivalent functions are recommended).

EN - 24

To replace the power cord, proceed as follows:

a. Remove the lower cover (interlocking) (A) (fig. 25).

b. Remove the upper cover (interlocking) (B) (fig. 25).

c. Unscrew the 6 screws that lock the front cover (fig. 26).

d. Remove the front cover (C) (fig. 27) and remove the cover of the electrical box (D) (fig. 27).

e. Unscrew the cable clamp (E) (fig. 27) and unscrew the cable locking screws of the terminal block (F) (fig. 27).

f. Remove the present cable and insert the new cable following the same path.

g. Remove the wooden wedge on the back of the machine.

h. Lock the three poles of the cable in the terminal block and tighten the screws (F) (fig. 27).

i. Secure the cable with the clamp (E) (fig. 27).

I. Close the board protection (D) (fig. 27).

m. Refit the front cover of the machine with the six screws.

n. Reassemble the two interlocking covers (upper and lower).

25 B A

26

27 C E F D

2.5 - TOP/BOTTOM INSTALLATION CONFIGURATION

The unit can be installed both in the lower part (adjacent to the floor) and in the upper part (adjacent to the ceiling) of the wall.

To optimize air distribution and ambient comfort, the direction of the air flow can be changed by changing the position of the air outlet flap.

EN - 25

2.5.1 - Electronic configuration for lower or upper wall installations

Work as follows (see fig. 28):

a. Delicately open the flap and detach it from its side and central hooks on the deflectors.
b. Remove the pin (P1) and rotate the flap 180°.
c. Insert the pin (P1) on the right side of the flap.

28 P1

d. Re-insert the flap by inserting the pin (P1) in the lower hole located on the right of the opening (P2) and insert the pin already located in the appliance in the lower hole located on the left of the opening.

Upper wall configuration determines an automatic correction of the room temperature equal to 3°C in heating mode.

For correct functionality, each modification of the configuration of the air outlet flap must correspond to the relative modification of the electronic configuration.

After performing the mechanical operations for changing the air outlet flap, it is necessary to configure the control electronics of the machine (see fig.29):

a. Connect the power supply line.
b. Make sure the machine is in stand-by, LED A on.
c. Keep the reset button H pressed until an acoustic signal sounds.

d. HIGH WALL CONFIGURATION: press and hold button H again until LED C (yellow) lights up.

FLOOR CONFIGURA- TION: press and hold button H again until LED B (green) lights up.

29 G LED D LED B H LED C LED A

e. Release the display button H and wait a few seconds until the stand-by configuration is restored, LED A on.

3 - USE

3.1 - WARNINGS

The installation and electrical connection of the air conditioner should be carried out by specialized personnel who possess the

EN - 26

requisites set forth by law.

The installation instructions are contained in the appropriate paragraph of this manual.

No structural object (furniture, curtains, plants, leaves, blinds, etc.) should ever obstruct the normal flow of air from either the internal or external gratings.

- Never lean or, worse yet, sit on the casing of the air conditioner as this could cause serious damage to the external parts.

• Do not move the air outlet flap by hand. Always use the remote control to adjust baffle position.
• If the unit leaks water, switch it off immediately and disconnect it from the power mains. Call the nearest service centre.
• When the air conditioner is heating, it has to periodically eliminate any ice that could form on the external battery. While it is doing this, the machine keeps running but does not heat the room. This lasts for a brief period of time, from 3 to a maximum of 10 minutes.
• Clean the air filter periodically, as described in the specific paragraph (4.1.2).

The air conditioner must not be installed in rooms where explosive gasses develop or where there are conditions of heat and humidity beyond the maximum limits indicated in the installation manual.

3.2 - DESCRIPTION OF THE WARNING PANEL

In the upper right part of the appliance are located a few keys and LEDs whose functions are described in the paragraph (4.3.3).

3.3 - USE OF THE REMOTE CONTROL

The remote control supplied with the air-conditioner is the instrument that enables you to use the appliance in the most convenient way.

It should be handled with care and in particular:

• Keep it dry (do not clean it with water or leave it outdoors in bad weather).
• Avoid dropping or bumping it.

T1 T2

EN - 27

- Keep it out of direct sunlight.

- The remote control operates by means of an infrared beam.

• During use, there must not be any obstacle between the remote control and the air-conditioner.
• If other appliances in the room have remote controls (TV, stereo, etc...), there may be interference with consequent loss of the sent signal.
  • Electronic and fluorescent lights may also interfere with transmissions between remote control and air-conditioner.
• Remove the batteries in case of prolonged disuse of the remote control.
• The remote control display goes off after a few seconds of non-use, to reactivate it press any key.

3.3.1 - Insertion of batteries (fig. 31)

To insert the batteries correctly:

a. Remove the batteries compartment cover.
b. Insert the batteries into the relevant compartment.

Check the polarity indicated on the bottom of the compartment.

c. Close the compartment correctly.

3.3.2 - Replacement of batteries

The batteries should be replaced when the display on the remote control does not appear sharply or when the remote control does not change the settings.

Always use new batteries and replace both at the same time.

The use of old or different batteries could generate malfunctioning of the remote control.

The remote control uses two dry alkaline 1.5V batteries (AAA.LR03) (fig. 31).

31 T1 T2

EN - 28

When the batteries have been replaced, adjust the remote control clock.

When replacing batteries, replace both and dispose of the dead batteries in the appropriate collection centres and as required by law.

• If the remote control is not used for several weeks or longer, remove the batteries. Any leaks from the batteries could damage the remote control.
• The average life-span of the batteries, with normal use, is approx. six months. Replace the batteries when the indoor unit command receipt "beep" can no longer be heard, or if the transmission indicator on the remote control does not switch on.

Do not re-charge or disassemble the batteries. Do not throw the batteries into the fire. They can burn and explode.

If the battery liquid falls onto the skin or clothes, wash well with clean water. Do not use the remote control with batteries that have leaked. The chemical products contained in the batteries can cause burns or other risks to health.

3.3.3 - Location of the remote controller

- Keep the remote control in a position from which the signal can reach the appliance receiver (maximum distance is about 8 meters - with charged batteries) (fig. 32). The presence of obstacles (furniture, curtains, walls, etc.) between the remote control and the appliance reduces the remote control range.

32 ~8m

3.4 - DESCRIPTION OF REMOTE CONTROL

The remote control is the interface between the air-conditioner and the customer, so it is very important to learn all its functions, the use of the various controls and the meaning of the symbols marked on it.

EN - 29

3.4.1 - Description of the remote control keys (Fig. 38-39)

B1 Activation/deactivation (Stand-by) of the unit
B2 ECONOMY/ECO mode key
B3 Night mode key (SILENT)
B4 Operating mode selection - cooling > heating > ventilation > dehumidification > automatic
B5 Increase/decrease fan speed
B6 Clock/programming setting
B7 Increase/Decrease desired temperature/clock/programming
B8 Activation/deactivation of the oscillation function of the air outlet flap
B9 Activation/deactivation of the FREE COOLING air exchange system (not available for this model)
B10 RESET key
B11 Activation/deactivation of programs
B12 Selection of the desired temperature unit °C / °F by pressing keys B7 simultaneously

T1 AUTO AUTO ECO 1 0 8828 H 2 0 B1 B5 B4 B9 B8 B2 B3 B6 B7 B11 B10 38

T2 OFF 12 ON 88°8n B1 MODE B4 B5 + B7 B12 B3 - ECO B2 B8 SET TIMER B6 TIMER B11

3.4.2 - Description of the remote control display (Fig. 40-41)

D1 Indication of the fan speed or its automatic operating mode (AUTO)
D2 Heating mode
D3 Cooling mode
D4 Dehumidification mode
D5 Air exchange function (not available for this model)
D6 Night function (SILENT)
D7 Automatic function
D8 Program 1
D9 Program 2
D10 Temperature/clock indicator
D11 ECO function enabled
D12 Minimum - average - maximum ventilation speed
D13 Transmission of the command in progress
D14 Program switching off time setting
D15 Clock/program setting
D16 Program switching on time setting
D17 Low battery notification
D18 Minutes timer
D19 Desired temperature/clock/programming

T1 D1 D3 D2 D4 D6 AUTO AUTO ECO D7 D8 1 8828 H D9 2 M D10 D11 40

T2 D3 D13 D8 D15 D14D7D4 OFF 1 ON 2 D9 D16 D10 D17 D18 D2 D19 88°8n 88°8n D6 A eco D12 D11 41

EN - 31

3.5 - DESCRIPTION OF THE AIR CONDITIONER FUNCTIONS

3.5.1 - Main switch-on and running management

- The machine may be regulated using the remote control.

In order to transmit commands to the indoor appliance, point the front of the remote control toward the appliance's control panel.

The device emits a beep when it receives a command.

- The maximum distance from which the appliance can be controlled is about 8 meters (with charged batteries).

3.5.2 - ECO key

- Pressing the B2 key on the remote control activates the energy saving function, automatically optimizing the machine functions, the D11 symbol appears on the display.

3.5.3 - Turning the unit ON/OFF

- Press key B1 on the remote control to activate or deactivate (stand-by) the air conditioner.

The control system of the unit is equipped with memory, for this reason all the settings won't be lost when shutting off the appliance itself.

In case of prolonged stop of the machine, it must be deactivated turning the main switch off or unplugging the machine from the mains.

3.5.4 - Operation in "Cooling" mode only

• When used in this mode, the air conditioner dehumidifies and cools the room.
• To activate this mode, press the key B4 on the remote control several times until the D3 symbol appears on the display.
• In this run mode, the required temperature and fan speed can be set.
  After three minutes (as a maximum) from activation in this operating mode the compressor will start and the appliance starts emitting cold air.

- The start of the compressor is indicated by the lighting up of the LED B (green) located on the console (fig.30).

30 G LED D LED B H LED C LED A

3.5.5 - Operation in "Dehumidification" mode only

• When used in this mode, the air conditioner eliminates the humidity in the room. This function can be extremely useful between seasons, particularly on rainy days when the temperature is not uncomfortable but the excess humidity feels unpleasant.
• In this mode, both room temperature and fan speed settings are ignored, which correspond to minimum.
• Any indication of fan temperature and speed disappears from the remote control display (fig.40-41).
• To activate this mode, press the B4 key on the remote control several times until the D4 symbol and the D1 automatic ventilation symbol appear on the display.
• In this operating mode it is normal for the air conditioner to function intermittently.

3.5.6 - Operation in "Ventilation" mode only

• When used in this mode the air conditioner does not perform any action with regard to temperature and air humidity in the room.
• To activate this mode, press key B4 on the remote control several times until the automatic ventilation symbol D1 appears on the remote control display.

3.5.7 - Operation in "Spa" mode only (Automatic)

• In this mode, the machine's temperature is automatically regulated according to the room's temperature. The fan speed is also automatically regulated according to the set temperature (except in dehumidification mode).
• To activate this mode, press the B4 key on the remote control several times until the D7 symbol appears on the display.

3.5.8 - Operation in “Heating” mode only (only models fitted with heating pump)

• Using this mode, the appliance heats the room.
This function is only available for the versions with heat pump (HP).
- To activate this mode, press button B4 on the remote control several times until the D2 symbol appears on the display.
- In this run mode, the required temperature and fan speed can be set. After three minutes (maximum time) the compressor should start and the air conditioner starts heating the room.

- The start of the compressor is indicated by the lighting up of the LED B (green) located on the console (fig.30).

30 G LED D LED B H LED C LED A

The air conditioner has to defrost its battery periodically.

During this operation the air conditioner does not heat the room, though its internal parts remain on except for the room air fan. when the outdoor temperature is very low, there may be a slight delay for passage from the minimum to the medium or maximum speed from when the command is sent to the machine with the remote control.

Like delays might occur on activating the swinging function of the mobile baffle.

After having turned off the unit, the internal fan runs seconds more.

Then it stops and both air flaps close.

3.5.9 - Checking airflow direction

• Press key B9 on the remote control to activate/deactivate the continuous oscillation of the moving air outlet deflector (1).
• When continuous oscillation is active, an additional press of the key B9 allows to lock the deflector so as to obtain the desired vertical direction for the air flow.

The moving deflector position must never be forced manually.

• The fan speed check occurs through key B5 (on the remote control).
• Pressing several times this key will cause speed to change according to the following sequence:

$$ \text { Low } > \text { Medium } > \text { High } > \text { Automatic }. $$

• The higher the speed setting, the greater the output of the air conditioner but also the louder its operation.

• By setting the Automatic mode, the onboard microprocessor adjusts the automatic speed. The higher the difference between the room temperature detected and the temperature set, the higher the speed.

• As the room temperature nears the setting, fan speed is reduced automatically.

• In dehumidification mode, it is not possible to control the speed as the appliance can only operate exclusively at low speed.

3.5.11 - SILENT key

• To activate this mode, press the B3 key on the remote control, the D6 symbol appears on the display.

• Activating the night function (SILENT) allows you to obtain multiple results:

• gradual increase in the set temperature during cooling mode

• gradual decrease in the set temperature for heating (HP versions only)
• reduction of the sound level of the appliance

• savings on nightly electricity consumption

• To activate the night function, it is necessary to select the operating mode and the desired temperature first, then press key B3 to activate it.

• Ideally, the activation of the night key should be done immediately before falling asleep.
• In cooling mode, the set temperature is maintained for an hour after activating the night key.

In the following two hours the setting is gradually increased, while the fan operation is set to low speed.

• After the second hour, the temperature setting and the fan setting are not further altered.
• In heating, the set temperature is maintained for an hour after activating the night key.

Over the next two hours, the setting is gradually lowered, while the fan operation is set to low speed.

• After the second hour, the temperature setting and the fan setting are not further altered.
• The night key is not available for operation in dehumidification and ventilation only.
• The night key can be disabled at any time (ideally upon awakening) by pressing button B3 once more.
• At this point, the fan temperature and speed settings that were set before activating this function are restored.

3.5.12 - Timer setting

- The appliance logic allows the User to make use of two different timer programs (see paragraph 3.5.15), thanks to which the appliance can be deactivated and activated (or vice versa) whenever desired (for example, it can be activated shortly before returning home so as to find an already pleasant temperature in the room).

- Firstly, if it is desired to make use of these functions, set the correct time (see paragraph 3.5.13) and then set the timer as you prefer.

3.5.13 - Timer and clock setting (T1)

To set time, work with the remote control as follows:

a. Press key B6 (SET TIMER) until when the hour indication h (D10) appears on the display
b. Set the hour with keys B7 (+ and -).
c. Press the key B6 until when the minutes indication m (D10) appears on the display.
d. Set the minutes with keys B7 (+ and -).
e. Press key B6 to save the time and proceed with the timer programming.

T1 AUTO AUTO ECO 1 8828 H 2 M D10 42

3.5.14 - Timer and clock setting (T2)

To set time, work with the remote control as follows:

a. Press key B6 (SET TIMER) until when the hour indication h (D10) appears on the display
b. Set the hour with keys B7 (+ and -).
c. Press the key B6 until when the minutes indication m (D10) appears on the display.
d. Set the minutes with keys B7 (+ and -).
e. Press key B6 to save the time and proceed with the timer programming.

T2 OFF 1 2 ON 80°80 80°80 A eco D10 43

3.5.15 - Timer setting (PROGR. 1 and PROGR. 2) (T1)

It is possible to set one or both the timer programs.

To set the appliance activation and deactivation times in the two programs, use the remote control and work as follows:

a. Press once or more key B6 (SET TIMER) until when symbol 1 (D8a) (Activation time of the 1° program).
b. Use keys B7 (+ and -) to increase or decrease the hour in which you wish the air conditioner activates.

The hour variation settable with keys B7 (+ and -) is of 30 minutes.

c. Press key B6 (SET TIMER) a second time; symbol ☐ (D8b) (Deactivation time of the 1° program).

d. Use keys B7 (+ and -) to increase or decrease the hour in which you wish the air conditioner switches off. The hour variation settable with keys B7 (+ and -) is of 30 minutes.

e. Press key B6 (SET TIMER) again; symbol 1 (D9a) (Activation time of the 2° program).

f. Use keys B7 (+ and -) to increase or decrease the hour in which you wish the air conditioner activates.

The hour variation settable with keys B7 (+ and -) is of 30 minutes.

g. Press key B6 (SET TIMER) again; symbol ☐ (D9b) (Deactivation time of the 2° program).

h. Use keys B7 (+ and -) to increase or decrease the hour in which you wish the air conditioner switches off. The hour variation settable with keys B7 (+ and -) is of 30 minutes.

i. To return to the normal operation mode, press once or more key B6 (SET TIMER) until when all the symbols related to this setting on the display turn off.

D8b AUT AUTO ECO D8a 1 8828 H D9a 2 D9b

Line drawing of a handheld electronic device with control buttons and a screen (no text or symbols)

44

EN - 37

3.5.16 - Timer setting (PROGR. 1 and PROGR. 2) (T2)

It is possible to set one or both the timer programs.

To set the appliance activation and deactivation times in the two programs, use the remote control and work as follows:

a. Press once or more key B6 (SET TIMER) until when symbol 1 (D8) (Activation time of the 1° program) and symbol ON (D16) appear on the display.
b. Use keys B7 (+ and -) to increase or decrease the hour in which you wish the air conditioner activates.

The hour variation settable with keys B7 (+ and -) is of 30 minutes.

c. Press key B6 (SET TIMER) a second time; symbol 1 (D8) (Deactivation time of the 1° program) and symbol OFF (D14) appear on the display.

d. Use keys B7 (+ and -) to increase or decrease the hour in which you wish the air conditioner switches off. The hour variation settable with keys B7 (+ and -) is of 30 minutes.

e. Press key B6 (SET TIMER) again; symbol 2 (D9) (Activation time of the 2° program) and symbol ON (D16) appear on the display.

f. Use keys B7 (+ and -) to increase or decrease the hour in which you wish the air conditioner activates.

The hour variation settable with keys B7 (+ and -) is of 30 minutes.

g. Press key B6 (SET TIMER) again; symbol 2 (D9) (Deactivation time of the 2^ program) and symbol OFF (D14) appear on the display.

h. Use keys B7 (+ and -) to increase or decrease the hour in which you wish the air conditioner switches off. The hour variation settable with keys B7 (+ and -) is of 30 minutes.

i. To return to the normal operation mode, press once or more key B6 (SET TIMER) until when all the symbols related to this setting on the display turn off.

D14 D8 OFF 1 2 D9 ON D16 88°88 A eco 45

3.5.17 - Timer activation and deactivation

Once set, the timer programs can either be activated or deactivated depending on occasional needs.

Activation may relate to one of the two programs or both.

In particular, each time you press key B11 (Programs activation), situation changes as follows:

• Use of Program no. 1 only.
• Use of Program no. 2 only.
  • Use of Programs 1 and 2.
  • Disuse of both programs.

3.5.18 - Reset of all the remote control functions (only for remote control T1)

Pressing the B10 (RESET) key will reset all the remote control settings.

In so doing, all the time settings of the timer saved in the remote control are cancelled and the remote control restores all the factory settings.

Furthermore, always by pressing the key B10, all the symbols appear on the display thus making it possible to check the integrity of the display itself.

3.5.19 - Managing the unit if the remote control is not available

In the event of loss of the remote control, battery depletion or malfunction of the remote control, the air conditioner can only be operated automatically by pressing the microswitch located under the hole on the console using a pointed object.

To switch off the air conditioner, press the microswitch again.

From the moment the remote control becomes available again, restore normal air conditioning control by issuing any command via the remote control.

3.6 - RECOMMENDATIONS FOR ENERGY SAVINGS

Below find simple recommendations for reducing consumption:

• Always and constantly keep the filters clean (see maintenance and cleaning chapter).
• Keep the doors and windows of the rooms to be climate controlled closed.
• Avoid the sun's rays penetrating freely into the room (we recommend using curtains or lowering blinds or closing the shutters).
• Do not obstruct the unit air flow (inlet and outlet), i.e. in addition to bad performance of the system, it also affects correct operation and the possibility of irreparable faults to the units.

4 - MAINTENANCE AND CLEANING

Before proceeding with any maintenance and cleaning, always make sure the system has been switched off, using the remote control, and the power supply plug has been disconnected from the system socket (or the upstream master isolating switch is positioned at "0" OFF).

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Do not touch the metal parts of the unit when removing the air filters. They are very sharp. Cuts or injury risk.

4.1 - CLEANING

4.1.1 - Appliance and remote control cleaning

Use a dry cloth to clean the appliance and the remote control (fig. 33).

It is possible to use a cloth moistened with cold water to clean the appliance if it is very dirty.

Suck between the air inlet and outlet grilles (fig. 33).

Illustration of two different air conditioner units, one being handled and the other holding a tool (no text or symbols present)

Do not use a chemically treated or antistatic cloth to clean the appliance.

Do not use gasoline, solvent, polish or similar solvents.

These products could cause the breakage or deformation of the plastic surface.

EN - 40

4.1.2 - Cleaning the air filter

To ensure effective internal air filtration and good air conditioning operation, it is essential to periodically clean the air filter or when the LED A (red) on it lights up. The air filter is at the top of the unit.

Filter extraction:

a. Electrically disconnect the appliance.
b. Switch off the unit and wait for the closure of the suction flap.

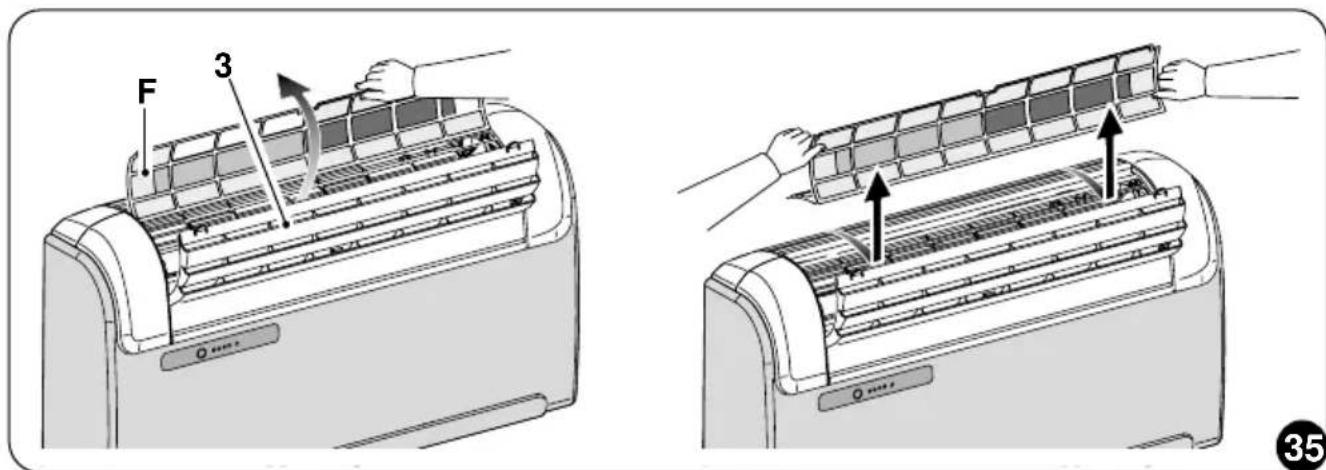

c. Manually raise the air suction grille (3) (fig. 35).
d. Raise the front part of the filter (F) and slightly pull it towards yourself (fig. 35).
e. Extract the two additional filters (fig. 36) from the filter group (F): (green purifying filter ref. F1 - black active carbons filter ref. F2).
f. Perfectly wash and dry all the filters.

Filter reassembly:

g. Insert the active carbon group (F2) on the filter group (F) locking it on the special tabs (X1) (fig. 36).
h. Insert the purifying filter (F1) on the first pin on the filter group (X2), pulling it slightly and locking it on the other two pins present (X3) (fig. 36)

F 3 35

F1 F2 F X3 X2 F2 X1 F1 36

EN - 41

i. Reassemble the filters group (F1-F2) inserting the rear edge inside the grid (fig. 37).
I. Manually close the air suction grille (3) (fig. 37).

To deactivate the LED A (if on), after cleaning and repositioning the filters, electrically connect the appliance then press the reset key H briefly using a pointed object.

In this way, the signal relating to the need for filter cleaning is reset.

4.2 - MAINTENANCE

If you plan to idle the unit for a long time, perform the following:

a. Stop the air conditioner and disconnect the power supply.
b. Remove the batteries from the remote control.

Do not perform them alone.

4.2.1 - Routine maintenance

The air conditioner that you have purchased has been designed to reduce routine maintenance operations to a minimum.

These operations involve solely the cleaning operations outlined below:

• Cleaning or washing of the ambient air filter every 2 weeks or every time the relative red LED lights up (this can be done by the user, see user manual).
• Cleaning of the condensing battery and cleaning of the condensate management system.

These operations must be carried out by skilled technicians on a regular basis that will depend on the place of installation and intensity of use.

Depending on the quantity of dirt, the unit can be cleaned dry (by using a battery compressor and bowl and cleaning the fins with a soft brush taking care not to deform them) or more thoroughly using dedicated detergents.

4.2.2 - Condensation water drainage in case of emergency

If anomalies occur in the condensation water disposal system, the air conditioner stops and signals the alarm status with the intermittent lighting up of LED A, LED B and LED C (fig.30).

30 G LED D LED B H LED C LED A

To enable the air conditioner to work temporarily until the service personnel arrive, you can drain the water out by following these simple instructions (fig. 37):

Before proceeding with any maintenance and cleaning, always make sure the system has been switched off, using the remote control, and the power supply plug has been disconnected from the system socket (or the upstream master isolating switch is positioned at "0" OFF).

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Remove the bottom cover.

a. Remove the cap (6a) after having placed a good-sized container underneath it (at least 5-liter capacity) to collect the water.

b. After having cleared the fault, the service personnel will close the evacuation pipe.

6a min. 5L

4.3 - DIAGNOSIS, ALARMS AND INCONVENIENCES

4.3.1 - Diagnosis of the inconveniences

It is important for the User to distinguish between functional problems and anomalies in relation to the behaviour of the appliance as foreseen for its normal operation. Furthermore, the most common problems may easily be solved through simple operations on behalf of the User (See paragraph 4.3.5 - Anomalies and solutions).

For all the other reports (see paragraph: 4.3.3 - 4.3.4), it is necessary to always contact the technical assistance service"

Any attempt to repair the appliance by unauthorised personnel will immediately invalidate any form of guarantee.

4.3.2 - Functional aspects not to be mistaken for anomalies

The following events may occur during normal operation:

a. The compressor does not start up again immediately after a stop (it takes about three minutes to start again).

- In the operating logic of the appliance a delay between a compressor stop and its successive restart has been included, so that the compressor itself is protected against activations that are too frequent.

b. During the heating operation of the heat pump appliances, the flow of hot air may occur some minutes after activation of the compressor.

- Should the fan start at the same time as the compressor, for the first few minutes it would emit cold air into the room (and this could bother the occupants) since the unit has not yet reached steady running conditions.

4.3.3 - Console led signals

In the event that the air conditioner is blocked, the LEDs highlight an alarm signal as per table "TAB1".

Contact an Olimpia service centre.

H Reset key.

G Infrared receiver.

30 G LED D LED B H LED C LED A

Table "TAB1"

DESCRIPTION	LED D green	LED C yellow	LED B green	LED A red
Signalling of the machine in stand-by OFF OFF	OFF	OFF
Signalling of the machine in operation ON x x	x
Signalling of timer activation, machine on hold	OFF	ON	OFF	OFF
Signalling of timer activation, machine running	ON	ON	x	x
Signalling of the ignition of the refrigerator compressor	ON x	ON x
Indication of any need to clean the air filter.	ON	x	x	ON
ON: led on - OFF: led off - x: indifferent

4.3.4 - Console alarms

In the presence of an alarm, the LEDs flash as indicated in table "TAB2".

If one of the alarms persists for more than three minutes, contact an Olimpia service centre.

Table "TAB2"

DESCRIPTION	LED D green	LED C yellow	LED B green	LED A red
External air temperature probe faulty x x 0 1
Condenser temperature probe faulty x x 0 2
Inlet temperature probe faulty x x 0 3
Compressor current protection x x 0 4
Communication error x x 0 5
Power line overcurrent x x 0 6
Compressor current protection not suitable x x 0 7
Power board DC voltage problem x x 0 8
Current anomaly x x 0 9
Condenser temperature too high x x 1 0
UIPM protection x x 1 2
EEPROM reading error	x x 1	3
EEPROM writing error	x x 1	4
Inlet temperature too high	x x 1	7
Room temperature probe faulty	0 1 0	0
Evaporator temperature probe faulty	0 2 0	0
Evaporator temperature too low	0 3 0	0
Evaporator temperature too high	0 4 0	0
Communication error	0 5 0	0
Evaporating fan motor failure	0 8 0	0
Water level alarm	1 1 0	0
1-9: number of flashes (1 flash = 1 second on, 1 second off) - 0: led off - x: indifferent

4.3.5 - Anomalies and remedies

Malfunctioning Cause	What must be done?
The unit will not start.	Current failure Wait for the current	rent to be restored.
	The unit is disconnected from the current.	Check that the plug is inserted in the wall socket.
	The fuse is interrupted or the thermal-magnetic circuit breaker has tripped.	Replace the fuse or restore the thermal-magnetic circuit breaker.
	The remote control batteries may be discharged.	Replace the batteries.
	The time set with the timer may not be correct.	Wait or annul the timer setting.
The appliance doesn't cool/heat sufficiently anymore.	Incorrect temperature setting.	Set the temperature correctly. Consul the "Using the remote control" chapter for the procedure.
	The air filter is dirty. Clean	the air filter.
	The doors or windows are open.	Close the doors or windows.
	The air inlet or outlet vents of the indoor or outdoor units are blocked.	First, remove the obstructions and then re-start the unit.
If the problem has not been solved, please contact the nearest technical assistance service. e give detailed information about the malfunction and on the equipment version.

0 - INFORMATIONS GÉNÉRALES ...... 3

0.1 - SYMBOLOGIE ....3
0.2 - PICTOGRAMMES RÉDACTIONNELS ....3
0.3 - MISES EN GARDE GÉNÉRALES ....5
0.4 - À PROPOS DES GAZ FLUORÉS....8
0.5 - UTILISATION PRÉVUE....11
0.6 - ZONES À RISQUE....11

1 - DESCRIPTION DE L'APPAREIL....12

1.1 - LISTE DES COMPOSANTS FOURNIS 12
1.2 - STOCKAGE 13
1.3 - RÉCEPTION ET DÉBALLAGE 13
1.4 - DESCRIPTION DES COMPOSANTS DE L'APPAREIL 14

2 - INSTALLATION ....14

2.1 - MODE D'INSTALLATION 14
2.2 - DIMENSIONS ET CARACTÉRISTIQUES DU LOCAL D'INSTALLATION DU CLIMATISEUR ..14
2.3 - CHOIX DE LA POSITION DE L'APPAREIL....15
2.4 - MONTAGE DE L'APPAREIL....17

Technical diagram showing labeled mechanical components and a technical schematic with dimensions and annotations

Two air purifiers with plants on top and one with a bottle and bag, separated by a diagonal line (no text or symbols)

Symmetrical architectural diagram with diagonal lines crossing over a central grid (no text or symbols)

Illustration of two air purifiers with a hand holding a valve, crossed by a diagonal line (no text or symbols)

Illustration of a double boiler with steam rising from its side, crossed by a diagonal line (no text or symbols)

Illustration of a woman at a desk crossed with a diagonal line, symbolizing prohibition or exclusion (no text or symbols present)

FR - 16

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

Diagram showing two circular objects aligned with a diagonal line, next to a wall-mounted device (no text or symbols)

6 Ø10mm E E

FR - 18

Illustration of two hands holding a cylindrical object with a circular component, labeled 'H' (no text or symbols on the objects themselves)

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

20 F

FR - 22

23 L 231mm 508mm 902mm ~39 kg

FR - 23

Diagram of a vehicle rear view showing the front and side views (no text or symbols)

Illustration of a hand using a power plug to insert an electrical socket (no text or symbols present)

27 C E F D

2.5 - CONFIGURATION INSTALLATION HAUTE/BASSE

29 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld electronic device with control buttons and a screen (no text or symbols)

44

FR - 37

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Illustration of two different air conditioner units, one being handled and the other holding a tool (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

30 G LED D LED B H LED C LED A

Tableau « TAB1 »

Technical diagram showing labeled components of a mechanical or electrical component assembly, including rings, coils, and a schematic view.

DE - 12

Illustration showing various household appliances and kitchen fixtures with crossed-out safety symbols, including air condition checks.

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

5

6 Ø10mm E E

DE - 18

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

20 F

Technical diagram showing installation steps of an air conditioner unit, with labeled components A and B and component callouts.

23 L 231mm 508mm 902mm ~39 kg

DE - 23

Diagram of a vehicle door frame with a gray handle, no text or symbols present

Hand using a power plug to switch an electrical outlet (no text or symbols visible)

27 C E F N L D

2.5 - UMSTELLUNG VON TRUHEN- AUF WANDGERÄT

29 G LED D LED B H LED C LED A

3 - BEDIENUNG

3.1 - WARNHINWEISE

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld electronic device with control buttons and a screen (no text or symbols)

44

DE - 37

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Illustration of two different air conditioner units, one being handled and the other holding a tool (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

30 G LED D LED B H LED C LED A

Tabelle „TAB1“

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

5

6 Ø10mm E E

ES - 18

Two hands performing a circular tool manipulation or disassembly process, showing a curved object being handled (no text or symbols present)

Illustration of two hands stretching a cylindrical object on a brick wall (no text or symbols)

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

20 F

Technical diagram showing installation steps of an air conditioner unit, with labeled components A and B and component callouts.

23 L 231mm 508mm 902mm ~39 kg

ES - 23

Diagram of a vehicle door frame with a vertical guide and a shaded triangular component (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

27 C E F N L D

29 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld mobile phone with control buttons and a digital display (no text or symbols)

44

ES - 37

Line drawing of a remote control with Chinese text labels and function buttons

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Illustration of two different air conditioner units, one being handled and the other holding a tool (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

30 G LED D LED B H LED C LED A

Tabla "TAB1"

Simple line drawing of an open book with visible page lines (no text or symbols)

4.3 - DIAGNÓSTICOS, ALARMES E INCIDENTES....43

4.3.1 - Diagnóstico dos problemas....43

1 A T1 C T2 T3 = AAA T3 UNICOS EDGE G F D E N M H L

PT - 12

Illustration showing various household appliances and kitchen fixtures with crossed-out safety symbols, including air condition checks.

PT - 16

Diagram showing two circular objects aligned with a diagonal line, next to a wall-mounted device with a coiled spring (no text or symbols)

6 Ø10mm E E

PT - 18

Illustration of two hands holding a cylindrical object with a circular component, labeled 'H' (no text or symbols on the objects themselves)

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

Safety warning illustration showing two scenarios of a robot performing electrical hazard testing with lightning and safety symbols

PT - 21

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

23 L 231mm 508mm 902mm ~39 kg

PT - 23

Diagram of a vehicle door frame with a vertical guide and a shaded triangular component (no text or symbols)

Illustration of a hand using a power plug to insert an electrical socket (no text or symbols present)

27 C E F D

29 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld mobile phone with control buttons and a digital display (no text or symbols)

44

PT - 37

Illustration of a hand using a power plug to switch an electrical socket (no text or symbols present)

Illustration of two hand-painted views of an air conditioner unit, showing a hand pressing down and holding a tool (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

4.3 - DIAGNÓSTICOS, ALARMES E INCIDENTES

4.3.1 - Diagnóstico dos problemas

30 G LED D LED B H LED C LED A

Tabela "TAB1"

Simple line drawing of an open book with visible page lines (no text or symbols)

1 - OMSCHRIJVING VAN HET APPARAAT

1.1 - LIJST VAN DE MEEGELEVERDE ONDERDELEN

Illustration showing various household appliances and kitchen equipment, including air conditioners, a washing machine, and a person at a counter.

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

Diagram showing two circular objects aligned with a diagonal line, next to a wall-mounted device (no text or symbols)

Ø10mm E E

NL - 18

Illustration of two hands holding a cylindrical object with a circular component, labeled 'H' (no text or symbols on the objects themselves)

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

20 F

Diagram of a car air conditioner unit with cooling fan and ventilation slots, showing hand operating tool (no text or symbols)

Illustration of a hand holding a curved object with directional arrows, no text or symbols present

B

23 L 231mm 508mm 902mm ~39 kg

NL - 23

Diagram of a vehicle door frame with a vertical guide and a shaded triangular component (no text or symbols)

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

27 C E F D

2.5 - CONFIGURATIE HOGE/LAGE INSTALLATIE

29 G LED D LED B H LED C LED A

3.1 - WAARSCHUWINGEN

T1 I VVV + + AAA I T2 I VVV + + AAA I

30 G LED D LED B H LED C LED A

3.5.5 - Werking enkel "Ontvochtiging"

30 G LED D LED B H LED C LED A

Line drawing of a handheld electronic device with control buttons and a display screen (no text or symbols)

44

NL - 37

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Illustration of two hand-painted views of an air conditioner unit, showing the exterior and side views (no text or symbols)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Trek de onderste afdekking los.

30 G LED D LED B H LED C LED A

Tabel "TAB1"

OMSCHRIJVING	LED D groen	LED C geel	LED B groen	LED A rood
Signalering machine in stand-by OFF OFF OFF OFF
Signalering werkende machine ON x x x
Signalering activering timer, machine in wachtstand	OFF ON	OFF OFF
Signalering activering timer, machine werkt ON ON x x
Signalering inschakeling koelcompressor ON x ON x
Signalering eventueel reiniging luchtfilter vereist.	ON x x	ON
ON: led aan - OFF: led uit - x: niet van belang

4.3.4 - Alarmen paneel

Simple line drawing of an open book with visible page lines (no text or symbols)

Simple line drawing of a folded paper or sheet with a small labeled point H (no text or symbols beyond the label)

N

Simple line drawing of a rectangular beam with evenly spaced dots and a labeled point L (no text or symbols beyond the label)

M

TOMATO + CEILING 100mm x 200mm x 300mm x 400mm x 500mm x 600mm x 700mm x 800mm x 900mm x 1000mm x 1100mm x 1200mm x 1300mm x 1400mm x 1500mm x 1600mm x 1700mm x 1800mm x 1900mm x 2000mm x 2100mm x 2200mm x 2300mm x 2400mm x 2500mm x 2600mm x 2700mm x 2800mm x 2900mm x 3000mm x 3100mm x 3200mm x 3300mm x 3400mm x 3500mm x 3600mm x 3700mm x 3800mm x 3900mm x 4000mm x 4100mm x 4200mm x 4300mm x 4400mm x 4500mm x 4600mm x 4700mm x 4800mm x 4900mm x 5000mm x 5100mm x 5200mm x 5300mm x 5400mm x 5500mm x 5600mm x 5700mm x 5800mm x 5900mm x 6000mm x 6100mm x 6200mm x 6300mm x 6400mm x 6500mm x 6600mm x 6700mm x 6800mm x 6900mm x 7000mm x 7100mm x 7200mm x 7300mm x 7400mm x 7500mm x 7600mm x 7700mm x 7800mm x 7900mm x 8000mm x 8100mm x 8200mm x 8300mm x 8400mm x 8500mm x 8600mm x 8700mm x 8800mm x 8900mm x 9000mm x 9100mm x 9200mm x 9300mm x 9400mm x 9500mm x 9600mm x 9700mm x 9800mm x 9900mm x1

EL - 12

Illustration showing various household appliances and kitchen fixtures with crossed-out safety symbols, including air conditioners, screens, and a person at a counter.

EL - 16

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

5

6 Ø10mm E E

EL - 18

Illustration of two hands holding a cylindrical object with a circular component, labeled 'H' (no text or symbols on the objects themselves)

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

Technical illustration of a mechanical spring with a bracket and threaded end (no text or symbols)

18 F F

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

20 F

EL - 22

23 L 231mm 508mm 902mm ~39 kg

EL - 23

27 C E F N L D

2.5 - PYOMIISH EΓΚΑΤΑΣΤΑΣΗΣ ΨΗΛΑ/ΧΑΜΗΛΑ

29 G LED D LED B H LED C LED A

3 - XPHΣH

T1 I VVV + + AAA I T2 I VVV + + AAA I

EL - 28

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld electronic device with control buttons and a display screen (no text or symbols)

44

EL - 37

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Illustration of two different air conditioner units, one being handled and the other holding a tool (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

30 G LED D LED B H LED C LED A

Πίνακας "TAB1"

3.5 - OPIS FUNKCJI KLIMATYZATORA....32

Simple line drawing of an open book with visible page lines (no text or symbols)

4.3 - DIAGNOSTYKA, ALARMY I NIEPRAWIDŁOWOŚCI....43

Technical diagram showing labeled components of a mechanical or electrical component, including coils, plates, and a schematic view.

Illustration showing various household appliances and kitchen equipment, including air conditioners, a washing machine, and a person at a counter.

PL - 16

Diagram showing two circular objects aligned with a diagonal line, next to a wall-mounted device (no text or symbols)

6 Ø10mm E E

PL - 18

Two hands performing a circular tool manipulation or disassembly process, showing a cylindrical object being held by two others (no text or symbols present)

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

Illustration of a hand holding a curved object with directional arrows, next to a rail track (no text or symbols)

B

23 L 231mm 508mm 902mm ~39 kg

PL - 23

Simple line drawing of a door frame with a handle, no text or symbols present

27 C E F D

2.5 - KONFIGURACJA INSTALACJI WYSOKIEJ/NISKIEJ

29 G LED D LED B H LED C LED A

3.5 - OPIS FUNKCJI KLIMATYZATORA

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld electronic device with control buttons and a screen (no text or symbols)

44

PL - 37

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Illustration of two different air conditioner units, one being handled and the other holding a tool (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

4.3 - DIAGNOSTYKA, ALARMY I NIEPRAWIDŁOWOŚCI

30 G LED D LED B H LED C LED A

Tabela „TAB1”

1 A T1 C T2 T3 = AAA = AAA UNICC EDGE G F D E N M H L

Illustration showing various household air conditioner and oven cleaning rules, with multiple crossed-out diagrams and a person at the counter.

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

5

6 Ø10mm E E

RO - 18

Two hands performing a circular tool manipulation or disassembly process, showing a curved object being held by another (no text or symbols present)

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

20 F

Technical diagram showing installation steps of an air conditioner unit, with labeled components A and B and component callouts.

23 L 231mm 508mm 902mm ~39 kg

RO - 23

Diagram of a vehicle door frame with a vertical guide and a shaded triangular component (no text or symbols)

Hand using a power plug to switch an electrical outlet (no text or symbols visible)

27 C E F D

2.5 - CONFIGURATIE INSTALARE ÎNALT/JOS

29 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld electronic device with control buttons and a screen (no text or symbols)

44

RO - 37

Line drawing of a remote control with Chinese UI labels and function buttons

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Illustration of two hand-painted views of an air conditioner unit, showing a hand holding the lid and a tool interacting with the lid (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

30 G LED D LED B H LED C LED A

Tabel „TAB1”

0 - ALLMÄN INFORMATION....3

0.1 - SYMBOLER 3
0.2 - REDAKTIONELLA PIKTOGRAM 3
0.3 - ALLMÄNNA VARNINGSTEXTER....5
0.4 - ANMÄRKNINGAR OM FLUORERADE GASER 8
0.5 - FÖRUTSEDD ANVÄNDNING 11
0.6 - RISKZONER 11

1 - BESKRIVNING AV APPARATEN....12

1.1 - LISTA ÖVER KOMPONENTER SOM LEVERERAS MED ANLÄGGNINGEN 12
1.2 - MAGASINERING 13
1.3 - MOTTAGANDE OCH UPPACKNING 13
1.4 - BESKRIVNING AV APPARATENS KOMPONENTER 14

2 - INSTALLATION ....14

Technical diagram showing labeled mechanical components and a technical schematic with circular components and cross-sections.

Illustration showing household cleaning and disinfection rules with crossed-out air condition covers and a person at a counter.

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

5

6 Ø10mm E E

SV - 18

Two hands performing a circular tool manipulation or disassembly process, showing a curved object being held by another (no text or symbols present)

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

Mechanical assembly diagram showing a spring and bracket with a force arrow (no text or symbols)

18 F F

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

20 F

Diagram of an air conditioner unit with cooling fan and ventilation system, showing hand operating a tool (no text or symbols)

Illustration of a hand holding a curved object with directional arrows, next to a rail track (no text or symbols)

B

23 L 231mm 508mm 902mm ~39 kg

SV - 23

Diagram of a vehicle door frame with a vertical guide and a shaded triangular component (no text or symbols)

2.4.6 - Elanslutning

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

27 C E F N L D

2.5 - KONFIGURATION AV HÖG/LÅG INSTALLATION

29 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld electronic device with control buttons and a screen (no text or symbols)

44

SV - 37

Illustration of a hand using a power plug to switch an electrical socket (no text or symbols present)

Illustration of two hand-painted views of an air conditioner unit, showing a hand holding the lid and a tool interacting with the lid (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

30 G LED D LED B H LED C LED A

Tabell "TAB1"

1 A T1 C T2 T3 = AAA = AAA UNICC EDGE G F D E N M L H OCCUPPO - CEILING

Illustration showing various household appliances and kitchen equipment, including air conditioners, a washing machine, and a person at a counter.

4 Y M 100mm 1.5 mm H2 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100mm 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100mm

5

6 Ø10mm E E

HU - 18

Two hands performing a circular mechanical operation with a labeled component 'H' (no text or symbols on the diagram itself)

Illustration of two hands painting cylindrical objects on a brick wall (no text or symbols)

Illustration of a hand using a mechanical device to interact with chains (no text or symbols visible)

Diagram of an air conditioner unit with cooling fan and ventilation system, showing hand operating a clip (no text or symbols)

Illustration of a hand holding a curved object with directional arrows, no text or symbols present

B

23 L 231mm 508mm 902mm ~39 kg

HU - 23

Diagram of a vehicle door frame with a vertical guide and a shaded triangular component (no text or symbols)

Illustration of a hand using a power plug to install an electrical socket (no text or symbols present)

27 C E F D

2.5 - MAGAS/ALACSONY TELEPÍTÉSI KONFIGURÁCIÓ

29 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

30 G LED D LED B H LED C LED A

Line drawing of a handheld electronic device with control buttons and a screen (no text or symbols)

44

HU - 37

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Illustration of two hand-painted views of an air conditioner unit, showing a hand pressing down and holding a tool (no text or symbols present)

30 G LED D LED B H LED C LED A

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

30 G LED D LED B H LED C LED A

„TAB1” táblázat
