USER MANUAL 5GI6FARAF WHIRLPOOL

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

BOTTOM MOUNT REFRIGERATOR

Use & Care Guide

Table of Contents....2

Table of Contents

REFRIGERATOR SAFETY....2

Table of Contents....2

Proper Disposal of Your Old Refrigerator....3

INSTALLATION INSTRUCTIONS ....4

Unpack the Refrigerator....4

Before Use 4

Location Requirements....4

Handle Removal and Replacement....5

Remove and Replace Doors and Hinges 5

Connect the Water Supply....6

Adjust the Doors 6

REFRIGERATOR USE 6

Opening and Closing Doors 6

Using the Controls 6

Crisper Humidity Control 8

Ice Maker and Ice Storage Bin 8

Water and Ice Dispensers....8

Water Filtration System 10

REFRIGERATOR CARE ....10

Cleaning 10

Changing the Light Bulb....11

TROUBLESHOOTING 11

Refrigerator Operation 11

Temperature and Moisture 12

Ice and Water....12

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

You can be killed or seriously injured if you don't immediately follow instructions.

WARNING

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

■ Plug into a grounded (earthed) outlet.
■ Do not remove ground prong.
■ Do not use an adapter.
■ Do not use an extension cord.
■ Disconnect power before servicing.
■ Replace all parts and panels before operating.
■ Remove doors from your old refrigerator.
■ Use nonflammable cleaner.
■ Do not use mechanical, electrical or chemical means other than those recommended by the Manufacturer to speed up the defrost process.
■ Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions.
■ Do not store explosive substances such as aerosol cans with a flammable propellant in this refrigerator.
■ Do not use or place electrical devices inside the refrigerator compartments if they are not of the type expressly authorized by the Manufacturer.
■ Use two or more people to move and install refrigerator.

■ Disconnect power before installing ice maker (on ice maker kit ready models only).
■ A qualified service technician must install the water line and ice maker.
■ Use a sturdy glass when dispensing ice (on some models).
■ Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.
■ Do not swallow the contents (non-toxic) of the ice packs (in some models).
■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the refrigerator.
If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Refrigerator

WARNING

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ When scrapping the refrigerator, make it unusable by cutting off the power cable.
■ Take off the doors so that children cannot climb inside and become trapped.
■ Leave the shelves in place so that children may not easily climb inside.

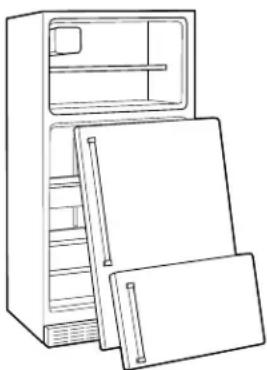

Line drawing of an open refrigerator with multiple doors, no text or symbols present

Scrapping and Disposal

IMPORTANT: Scrap the refrigerator in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the refrigerator unattended even for a few days, since it is a potential source of danger for children.

The appliance is manufactured using recyclable material. This appliance is marked in compliance with European Directive 2002/96/EC on Waste, Electrical and Electronic Equipment (WEEE). By ensuring the correct disposal of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

■ This symbol on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a special collection centre for the recycling of electrical and electronic equipment.

■ For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance.

■ This appliance does not contain CFCs. The refrigerant circuit contains R134a (HFC) or R600a (HC) (see the rating plate inside the appliance).

■ Appliances with Isobutane (R600a): Isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged.

■ This product may contain Fluorinated Greenhouse Gases covered by the Kyoto Protocol; the refrigerant gas is inside a hermetically sealed system. Refrigerant gas: R134a has a Global Warming Potential of (GWP) 1300.

Declaration of Conformity

■ This appliance has been designed for preserving food and is manufactured in compliance with Regulation (CE) No. 1935/2004.

■ This appliance has been designed, manufactured and marketed in compliance with:

■ Safety objectives of the “Low Voltage” Directive 2006/95/CE (which replaces 73/23/CEE and subsequent amendments).
■ The protection requirements of Directive "EMC" 2004/108/EC.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

IMPORTANT: A qualified engineer must unpack and connect the refrigerator in accordance with these installation instructions.

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Remove the Packaging

■ Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
■ Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see “Refrigerator Safety.”

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or "walk" the refrigerator when trying to move it, as floor damage could occur.

■ After unpacking the refrigerator, make sure it is not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the refrigerator.
■ Dispose of/recycle all packaging materials. The packing material which bears this symbol is 100% recyclable. For disposal, comply with the local regulations. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

Before Use

IMPORTANT:

■ To ensure best use of your refrigerator, read the operating instructions, which contain a description of the refrigerator and other useful advice.
■ Wait at least 2 hours before turning on the refrigerator to ensure that the refrigerant circuit is fully efficient.

Electrical Requirements

IMPORTANT: Installation and the electrical connection must be carried out by a qualified technician according to the manufacturers' instructions and in compliance with the local safety regulations.

■ The refrigerator is designed to operate on a separate 220-240 volt, 10 amp, 50/60 Hz cycle time.
■ Make sure the voltage specified on the rating plate corresponds to that of your home.
■ It must be possible to disconnect the appliance from the power supply by unplugging it or by means of a mains two-pole switch installed upstream of the socket.
■ Power cable modification or replacement must be carried out only by qualified personnel or by After-sales Service.

Clean Before Using

After you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in "Refrigerator Care."

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

Food Storage

■ Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
■ Do not store glass containers with liquids in the freezer compartment because they may break.
■ Avoid storing unwrapped food in direct contact with internal surfaces of the refrigerator or freezer compartments.

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

Install and level the refrigerator on a floor strong enough to hold its weight and in a place suitable for its size and use.

IMPORTANT: This refrigerator is designed for indoor, household and similar applications such as:

■ Staff kitchen areas in shops, offices and other working environments.
■ Farmhouses and by clients in hotels, motels and other residential type environments.
■ Bed and breakfast type environments.

Ventilation

Install the refrigerator in a dry and well-ventilated place.

To ensure proper ventilation for your refrigerator, allow for a 12 " (1.25 cm) of space on each side and at the top. Allow for a 1" (2.54 cm) space behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave a 3 34 " (9.5 cm) minimum space between the refrigerator and wall to allow the door to swing open.

NOTE: Keep the refrigerator ventilation openings clear.

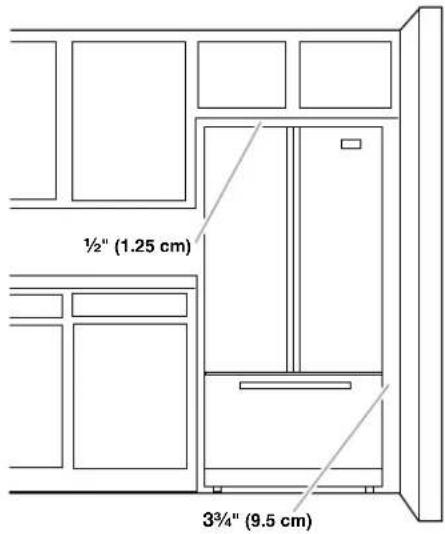

½" (1.25 cm) 3¾" (9.5 cm)

Temperature

This refrigerator is designed for operation in places where the temperature comes within the following ranges, according to the climatic class shown on the rating plate. The refrigerator may not work properly if it is left for a long time at a temperature outside the specified range.

NOTE: It is recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.

Climatic Class Amb. T. (°C) Amb. T. (°F)

SN From 10 to 32 From 50 to 90

N From 16 to 32 From 61 to 90

ST From 16 to 38 From 61 to 100

T From 16 to 43 From 61 to 110

Handle Removal and Replacement

Measure the door opening and the depth and width of the refrigerator. Remove handles or doors, if necessary.

Refrigerator Door Handles

IMPORTANT: To avoid scratching the finish, do not press the handles into the refrigerator when replacing them.

To remove the handle:

1. Grasp the lower part of the handle firmly, slide the handle up and pull the handle straight out from the door.
2. Repeat Step 1 to remove the handle from the adjacent door.

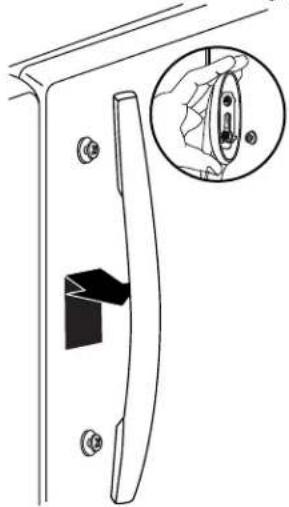

To replace the handle:

1. Position the handle so that the large holes in the mounting clips are down and align the holes with the door studs.
2. Rotate the handle so that the mounting clips are flat against the door and slide the handle down to engage.

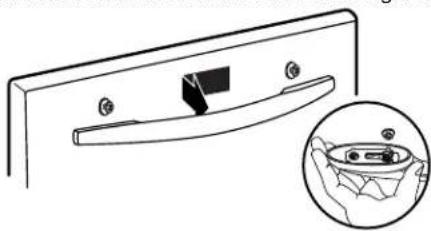

Technical line drawing of a door handle with an inset showing a close-up of the handle (no text or symbols)

Freezer Drawer Handle

To remove the handle:

1. Slide the handle to the left to disengage the slots in the mounting clip from the drawer studs, and pull it off of the drawer.

To replace the handle:

1. Position the handle so that the large holes in the mounting clips are aligned with the door studs.
2. Rotate the handle so that the mounting clips are flat against the drawer and slide the handle toward the right to engage.

Diagram of a door handle with a small inset showing a close-up view of the interior (no text or symbols)

Remove and Replace Doors and Hinges

IMPORTANT: Contact a qualified engineer to perform this task.

Connect the Water Supply

IMPORTANT: Contact a qualified engineer to perform this task.

■ Follow local water and electrical company connection regulations.
■ Complete water supply connection before electrical supply connections.
■ Use the pipe supplied with the new appliance; do not reuse that of the previous appliance.
■ All appliances equipped with an automatic ice maker and water dispenser must be connected to a water supply that delivers only drinking water (with mains water pressure of between 0.17 and 0.81 Mpa [1.7 and 8.1 bar]). Automatic ice makers and/or water dispensers not directly connected to the water supply must be filled with drinking water only.

Adjust the Doors

IMPORTANT:

• Your refrigerator has two adjustable, front leveling screws – one on each side of the refrigerator base. If your refrigerator seems unsteady or you want the door to close easier, use the instructions below.
  ■ Before moving the refrigerator, raise the leveling screws so the front rollers are touching the floor.

• Remove the base grille. Grasp the grille firmly and pull it toward you.

NOTE: Depending on your model, you may need to remove two screws before removing the base grille.

Line drawing of two hands holding a cylindrical object with a handle, no text or symbols present

1. Raise or lower the cabinet.

Using a 14 " hex driver, turn the leveling screw on each side to raise or lower that side of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws. This makes it easier to turn the screws. It may take several turns of the leveling screw to adjust the tilt of the refrigerator.

■ To raise, turn the leveling screw clockwise.
■ To lower, turn the leveling screw counterclockwise.

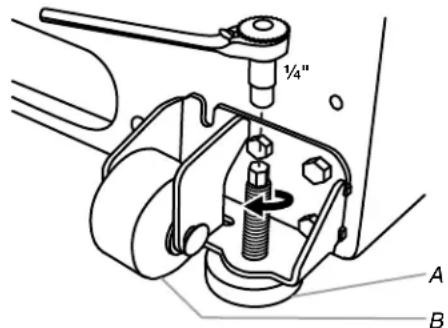

1/4" A B

A. Leveling screw
B. Front roller

1. Open the door again to make sure that it closes as easily as you like. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws clockwise. It may take several more turns, and you should turn both screws the same amount.
2. Replace the base grille.

REFRIGERATOR USE

Opening and Closing Doors

There are two refrigerator compartment doors. The doors can be opened and closed either separately or together.

There is a vertically-hinged seal on the left refrigerator door.

■ When the left side door is opened, the hinged seal automatically folds inward so that it is out of the way.
■ When both doors are closed, the hinged seal automatically forms a seal between the two doors.

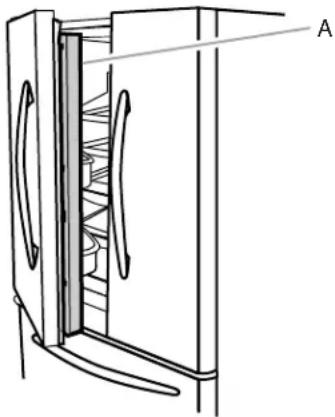

Technical line drawing of a door with internal structure and curved handle (no text or symbols)

A. Hinged seal

Using the Controls

The refrigerator and freezer controls are located on the dispenser panel.

IMPORTANT: The display screen on the dispenser control panel will turn off automatically and enter "sleep" mode when the control buttons and dispenser levers have not been used for 2 minutes or more. While in "sleep" mode, the first press of a control button will only reactivate the display screen, without changing any settings. After reactivation, changes to any settings can then be made. If no changes are made within 2 minutes, the display will re-enter "sleep" mode.

■ Touch any control button on the dispenser panel to activate the display screen. The home screen will appear as shown.

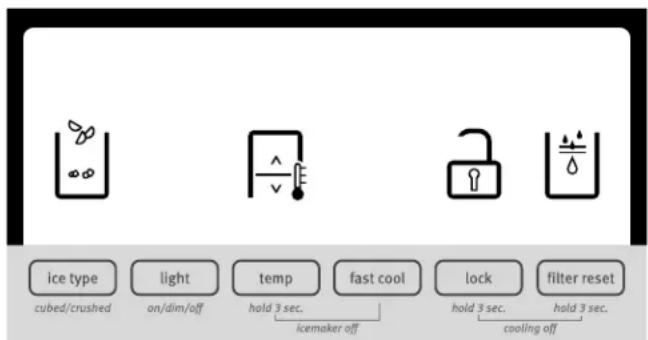

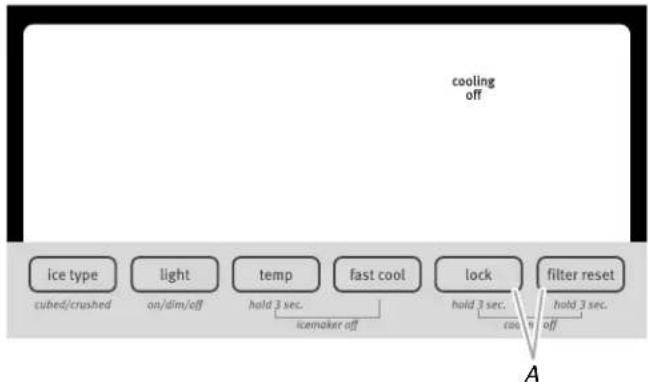

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

Adjusting the Controls

For your convenience, your refrigerator and freezer controls are preset at the factory. When you first install your refrigerator, make sure that the controls are still set to the "mid-settings." The factory recommended set points are 38^ F ( 3^ C) for the refrigerator and 0^ F (-18°C) for the freezer.

IMPORTANT:

■ Wait 24 hours before you put food into the refrigerator. If you add food before the refrigerator has cooled completely, your food may spoil.

NOTE: Adjusting the set points to a colder than recommended setting will not cool the compartments any faster.

■ If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls.
■ The preset temperatures should be correct for normal household usage. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.
■ Wait at least 24 hours between adjustments. Recheck the temperatures before other adjustments are made.

To view and adjust the set points, press and hold the TEMP button for 3 seconds. When adjust mode is activated, adjusting information will appear on the display screen.

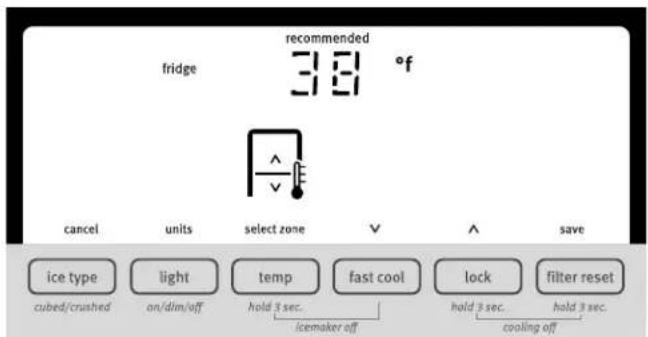

recommended fridge 38 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

NOTE: To view Celsius temperatures, press the LIGHT button when adjust mode is activated. To return the display setting to Fahrenheit, press LIGHT again.

■ When adjust mode is activated, the display screen shows the refrigerator set point and "FRIDGE" appears.
■ Press LOCK to raise the set point, or press FAST COOL to lower the set point.
■ When you have finished viewing (and adjusting if desired) the refrigerator set point, press TEMP to change the display to show the freezer set point. When the zone has been changed, "FREEZER" appears on the display screen.
■ Press LOCK to raise the set point, or press FAST COOL to lower the set point.
■ When you have finished viewing (and adjusting if desired) both the refrigerator and freezer set points, press FILTER to save the settings.

NOTE: To exit without saving changes, press ICE TYPE at any time while in adjust mode, or allow about 60 seconds of inactivity and adjust mode will turn off automatically.

When adjusting temperature set points, use the following chart as a guide.

CONDITION: TEMPERATURE	ADJUSTMENT:
REFRIGERATOR too cold REFRIGER	ERATOR Setting1° higher
REFRIGERATOR too warm	REFRIGERATOR Setting1° lower
FREEZER too cold FREEZER Setting	1° higher
FREEZER too warm / Too little ice	FREEZER Setting1° lower

The set point range for the refrigerator is 33^ F to 45^ F ( 0^ C to 7^ C). The set point range for the freezer is -5^ F to 5^ F ( -21^ C to -15^ C).

Cooling On/Off

Your refrigerator and freezer will not cool when cooling is turned off.

■ To turn cooling off, press and hold the LOCK and FILTER RESET buttons at the same time for 3 seconds. When cooling is off, "cooling off" will appear on the display screen.

IMPORTANT: To avoid unintentionally locking the dispenser or changing other settings, be sure to press both buttons at exactly the same time.

A. Press LOCK and FILTER RESET at the same time.

■ Press and hold LOCK and FILTER RESET for 3 seconds again to turn cooling back on.

Additional Features

Fast Cool

The Fast Cool feature assists with periods of high refrigerator use, full grocery loads, or temporarily warm room temperatures.

■ Press FAST COOL to set the freezer and refrigerator to the lowest temperature setting. When the feature is on, the Fast Cool icon will appear on the dispenser display screen. The Fast Cool feature will remain on for 24 hours unless manually turned off.

■ To manually turn off the Fast Cool feature, press FAST COOL again or adjust the refrigerator temperature set point. The Fast Cool icon will disappear when the feature is off.

NOTE: Setting the freezer to a colder temperature may make some foods, such as ice cream, harder.

Door Ajar Alarm

The Door Ajar Alarm feature sounds an alarm when the refrigerator or freezer door is open for 5 minutes and the product cooling is turned on. The alarm will repeat every 2 minutes. Close both doors to turn it off. The feature then resets and will reactivate when either door is left open again for 5 minutes.

NOTE: To mute the audible alarm while keeping the doors open, such as while cleaning the inside of the refrigerator, press any button on the control panel. The alarm sound will be temporarily turned off, but the Door Ajar icon will still be displayed on the dispenser control panel.

Water Filter Status Light and Filter Reset

The filter reset control allows you to restart the water filter status tracking feature each time you replace the water filter. See "Water Filtration System."

■ Press and hold FILTER RESET for 3 seconds, until the "Replace Filter" light turns off.

Crisper Humidity Control

You can control the amount of humidity in the moisture-sealed crisper. Depending on your model, adjust the control to any setting between FRUIT and VEGETABLES or LOW and HIGH.

FRUIT/LOW (open) for best storage of fruits and vegetables with skins.

VEGETABLES/HIGH (closed) for best storage of fresh, leafy vegetables.

Ice Maker and Ice Storage Bin

IMPORTANT:

■ Flush the water system before turning on the ice maker. See "Water and Ice Dispensers."
■ The ice maker and storage bin are located in the upper left-hand side of the refrigerator compartment.

Turning the Ice Maker On/Off

The ice maker has an automatic shutoff. When the ice maker is on, sensors will automatically stop ice production when the storage bin is full. The ice maker will remain set to ON, and ice production will resume when the bin is no longer full.

To manually turn off the ice maker, press TEMP and FAST COOL at the same time and hold for 3 seconds until the "Ice Maker Off" icon lights up. When the ice maker is set to OFF, it will stop producing ice.

Pressing and holding TEMP and FAST COOL again for 3 seconds turns on the ice maker and the "Ice Maker Off" icon disappears.

Removing and Replacing Ice Storage Bin

To Remove the Ice Storage Bin:

1. Hold the base of the storage bin and press the release button.
2. Pull out the storage bin.

To Replace the Ice Storage Bin:

IMPORTANT: It may be necessary to turn the auger driver, behind the ice bin, counterclockwise to properly align the ice bin with the auger driver. The ice storage bin must be locked in place for proper ice dispensing.

1. Slide the ice bin into the guide rails located on either side of the enclosure.

2. Push the ice bin in until resistance is felt. Raise the front slightly and push the ice bin in until an audible "click" is heard.

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Auger driver

Ice Production Rate

■ Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.
■ The ice maker should produce approximately 8 to 12 batches of ice in a 24-hour period.
■ To increase ice production, lower the freezer and refrigerator temperature. See “Using the Controls.” Wait 24 hours between adjustments.

NOTE: Setting the freezer to a colder temperature may make some foods, such as ice cream, harder.

Remember

■ The quality of your ice will be only as good as the quality of the water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals (such as salt) can damage parts of the ice maker and lead to poor quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.
■ Do not use anything sharp to break up the ice in the bin. This can cause damage to the ice bin and dispenser mechanism.
■ Do not store anything in the ice storage bin.

Water and Ice Dispensers

NOTES:

■ The display screen on the dispenser control panel will turn off automatically and enter “sleep” mode when the control buttons and dispenser levers have not been used for 2 minutes or more. While in “sleep” mode, the first press of a control button will only reactivate the display screen, without changing any settings. After reactivation, changes to any settings can then be made. If no changes are made within 2 minutes, the display will re-enter “sleep” mode.
■ The dispensing system will not operate when the refrigerator door is open.
- Allow 24 hours for the refrigerator to cool down and chill water.
■ Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced.

Cleaning, Sanitizing and Maintenance

IMPORTANT: Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the water dispensed.

■ When using the refrigerator for the first time, and each time the water filter is changed, flush the water system. Discard the first 15 litres of water, equivalent to 6 to 7 minutes of dispensing (not necessarily consecutive, but before initial consumption) and discard the ice produced in the first 24 hours.
If the water dispenser has not been used for more than 5 days, it is advisable to clean the circuit and run off the first litre of water.
■ Clean the ice bin regularly using only drinking water for cleaning the ice bin.
■ The water filter must be changed when indicated on the control panel or when the ice/water dispenser has not been used for more than 30 days.
■ With each water filter replacement, sanitise the ice and /or water dispensing system using a food grade disinfectant (with sodium hypochlorite), which does not alter the characteristics of the materials, or use the “Sanitising Kit” available from the After-Sales Service. Rinse with at least 2 litres of water before use.
■ Only original spare parts supplied by the manufacturer should be used when replacing components in the ice and water dispenser.

Flushing the Water System

1. Use a sturdy container to depress and hold the water dispenser lever for 5 seconds, then release it for 5 seconds. Repeat until water begins to flow.
2. Once water begins to flow, continue depressing and releasing the dispenser lever (5 seconds on, 5 seconds off) until a total 15 litres has been dispensed. This will flush air from the filter and water dispensing system, and prepare the water filter for use. Additional flushing may be required in some households. As air is cleared from the system, water may spurt out of the dispenser.

The Water Dispenser

IMPORTANT: Dispense enough water every week to maintain a fresh supply.

To Dispense Water:

1. Press a sturdy glass against the water dispenser lever.
2. Remove the glass to stop dispensing.

The Ice Dispenser

Ice dispenses from the ice maker storage bin in the freezer when the dispenser lever is pressed. To turn off the ice maker, see “Ice Maker and Storage Bin.”

Your ice maker can produce both crushed and cubed ice. Before dispensing ice, select which type of ice you prefer by pressing the ICE TYPE button.

The display screen indicates which type of ice is selected.

CRUSHED CUBED

For crushed ice, cubes are crushed before being dispensed. This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal, and pieces of ice may vary in size. When changing from crushed to cubed, a few ounces of crushed ice will be dispensed along with the first cubes.

To Dispense Ice:

1. Make sure the desired type of ice is selected. To switch between cubed and crushed, press ICE TYPE.

WARNING

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

1. Press a sturdy glass against the ice dispenser lever. Hold the glass close to the dispenser opening so ice does not fall outside of the glass. IMPORTANT: You do not need to apply a lot of pressure to the lever in order to activate the ice dispenser. Pressing hard will not make the ice dispense faster or in greater quantities.
2. Remove the glass to stop dispensing.

NOTE: Ice may continue to dispense for up to 10 seconds after removing the glass from the lever. The dispenser may continue to make noise for a few seconds after dispensing.

The Dispenser Light

When you use the dispenser, the light will automatically turn on. If you want the light to be on continuously, you may choose either ON or DIM. The display screen indicates which mode is selected.

ON DIM

ON: Press LIGHT to turn the dispenser light on.

DIM: Press LIGHT a second time to select DIM mode. The dispenser light will remain on, but at a lower intensity.

OFF: Press LIGHT a third time to turn the dispenser light off.

The dispenser lights are LEDs that cannot be changed. If it appears that your dispenser lights are not working, see "Troubleshooting" for more information.

The Dispenser Lock

The dispenser can be turned off for easy cleaning or to avoid unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the refrigerator, to the ice maker, or to the dispenser light. It simply deactivates the controls and dispenser levers. To turn off the ice maker, see "Ice Maker and Storage Bin."

■ Press and hold LOCK for 3 seconds to lock the dispenser.

■ Press and hold LOCK a second time to unlock the dispenser.

The display screen indicates when the dispenser is locked.

LOCKED UNLOCKED

Water Filtration System

The water filter is located in the upper right-hand corner of the refrigerator compartment.

Water Filter Status Light

When a water filter has been installed in the refrigerator, the water filter status lights help you know when to change your water filter.

■ The water filter status icon will change from Normal (blue water) to Order (red waves) and “Order Filter” (orange) when 90% of the volume of water for which the filter is rated has passed through the filter OR 5 months have passed since the filter was installed.
■ The “Replace Filter” (red) icon illuminates and blinks continuously during dispensing when the rated volume of water has passed through the filter OR 6 months have passed since the filter was installed. A new water filter should be installed immediately when the Replace light is illuminated.
■ After 14 days at Replace Filter stage, the “Replace Filter” and “water” icons will glow (red) at all times and blink continuously during dispensing. Also, an alert chime will sound three times following dispensing.

The disposable water filter should be replaced at least every 6 months. If the water flow to the water dispenser or ice maker decreases noticeably before 6 months have passed, replace the water filter more often.

Reset Water Filter Status

After changing the water filter, reset the water filter status. On the display screen, press and hold FILTER RESET for 3 seconds. The status light will change from Replace Filter (red) to Normal (white waves and water drop) when the system is reset.

Replacing the Water Filter

IMPORTANT: Air trapped in the water system may cause water and filter to eject. Always dispense water for at least 2 minutes before removing the filter or blue bypass cap.

1. To access the filter, press upward on the ribbed section of the water filter cover.
2. Turn filter counterclockwise to remove.
3. Remove sealing label from replacement filter and insert the filter end into the filter head.
4. Turn the filter clockwise until it stops. Snap the filter cover closed.
5. Flush the water system. See "Water and Ice Dispensers."

NOTE: The dispenser feature may be used without a water filter installed. Your water will not be filtered. If this option is chosen, replace the filter with the blue bypass cap.

REFRIGERATOR CARE

Cleaning

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Both the refrigerator and freezer sections defrost automatically. However, clean both sections about once a month to avoid odor buildup. Wipe up spills immediately.

IMPORTANT:

■ Because air circulates between all compartments, any odors formed in one compartment will transfer to the other. You must thoroughly clean all compartments to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly.
■ Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, nail polish remover, bleaches or cleansers containing petroleum products. Do not use paper towels, scouring pads, or other harsh cleaning tools that may scratch or damage the materials.

Clean the Interior

1. Unplug refrigerator or disconnect power.
2. Using a clean sponge or soft cloth and a mild detergent in warm water, hand wash, rinse, and dry removable parts and interior surfaces thoroughly.
3. Plug in refrigerator or reconnect power.

Clean the Touch Screen Display on the Dispenser Panel

1. Make sure the refrigerator is unplugged or the power is disconnected before wiping the screen, to avoid unintentionally changing the settings.
2. Mix a solution of mild detergent in warm water. Dampen a soft, lint-free cloth with the solution and gently wipe the screen.
   NOTE: Do not spray or wipe liquids directly onto the screen, or over-saturate the cloth.
3. Plug in refrigerator or reconnect power.

Clean the Exterior Surfaces

1. Unplug refrigerator or disconnect power.
2. Using a clean sponge or soft cloth and a mild detergent in warm water, wash, rinse and thoroughly dry stainless steel and painted metal exteriors.
3. Plug in refrigerator or reconnect power.

Clean the Condenser

There is no need for routine condenser cleaning in normal home operating environments. If the environment is particularly greasy or dusty, or there is significant pet traffic in the home, the condenser should be cleaned every 2 to 3 months to ensure maximum efficiency.

To clean the condenser:

1. Unplug refrigerator or disconnect power.
2. Remove the base grille.
3. Use a vacuum cleaner with a soft brush to clean the grille, the open areas behind the grille and the front surface area of the condenser.
4. Replace the base grille when finished.
5. Plug in refrigerator or reconnect power.

Changing the Light Bulb

IMPORTANT: The lamps used in the refrigerator are special purpose lamps for household electrical appliances and they are not suitable for household room illumination (Regulation (EC) 244/2009).

NOTE: Not all appliance bulbs will fit your refrigerator. Be sure to replace the bulb with an appliance bulb of the same size, shape, and wattage (no greater than 40 watts).

■ The dispenser lights are LEDs that cannot be changed.
■ On some models, the interior lights are LEDs that cannot be changed.
■ Some models may have LEDs in one compartment and an appliance bulb in another compartment.

To Replace an Appliance Bulb:

1. Unplug refrigerator or disconnect power.
2. Remove the light shield(s), if necessary.

■ Squeeze both sides of the light shield while pulling downward to remove.

Line drawing of a hand holding an object with a curved arrow indicating rotation (no text or symbols)

1. Replace burned-out bulb(s) with appliance light bulb(s) no greater than 40 watts.
2. Replace the light shield(s) by inserting the tabs on the shield into the liner holes and snap into place.

NOTE: To avoid damaging the light shield, do not force the shield beyond the locking point.

1. Plug in refrigerator or reconnect power.

TROUBLESHOOTING

Try the solutions suggested here first before calling for assistance.

Refrigerator Operation

The refrigerator will not operate

■ Power cord unplugged? Plug into a grounded outlet.
■ Is outlet working? Plug in a lamp to see if the outlet is working.
■ Household fuse blown or circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
■ Are controls on? Make sure the refrigerator controls are on. See “Using the Control(s).”
■ New installation? Allow 24 hours following installation for the refrigerator to cool completely.
NOTE: Adjusting the temperature controls to coldest setting will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its high-efficiency compressor and fans. The unit may run even longer if the room is warm, a large food load is added, doors are opened often, or if the doors have been left open.

The refrigerator seems noisy

Refrigerator noise has been reduced over the years. Due to this reduction, you may hear intermittent noises from your new refrigerator that you did not notice from your old model. Below are listed some normal sounds with explanations.

■ Buzzing - heard when the water valve opens to fill the ice maker
■ Pulsating - fans/compressor adjusting to optimize performance
■ Hissing/Rattling - flow of refrigerant, movement of water lines, or from items placed on top of the refrigerator
■ Sizzling/Gurgling - water dripping on the heater during defrost cycle
■ Popping - contraction/expansion of inside walls, especially during initial cool-down
■ Water running - may be heard when ice melts during the defrost cycle and water runs into the drain pan
■ Creaking/Cracking - occurs as ice is being ejected from the ice maker mold.

The doors will not close completely

■ Door blocked open? Move food packages away from door.
- Bin or shelf in the way? Push bin or shelf back into the correct position.

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

■ Gaskets dirty or sticky? Clean gaskets and contact surfaces with mild soap and warm water. Rinse and dry with soft cloth.

Temperature and Moisture

Temperature is too warm

■ New installation? Allow 24 hours following installation for the refrigerator to cool completely.
■ Door(s) opened often or left open? Allows warm air to enter refrigerator. Minimize door openings and keep doors fully closed.
■ Large load of food added? Allow several hours for refrigerator to return to normal temperature.
■ Controls set correctly for the surrounding conditions? Adjust the controls a setting colder. Check temperature in 24 hours. See "Using the Control(s)."

Temperature is too cold in refrigerator

■ Refrigerator air vent blocked? If the air vent located in the top, left, rear corner of the refrigerator compartment is blocked by items placed directly in front of it, the refrigerator will get too cold. Move items away from the air vent.
■ Ice storage bin in correct position? See “Ice Maker and Ice Storage Bin.”
■ Controls set correctly for the surrounding conditions? Adjust the controls a setting warmer. Check temperature in 24 hours. See “Using the Control(s).”

There is interior moisture buildup

NOTE: Some moisture buildup is normal.
■ Humid room? Contributes to moisture buildup.
■ Door(s) opened often or left open? Allows humid air to enter refrigerator. Minimize door openings and keep doors fully closed.

Ice and Water

The ice maker is not producing ice or not enough ice

■ Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.
■ Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.
■ Ice maker turned on? Make sure ice maker is on. See “Ice Maker and Ice Storage Bin.”
■ New installation? Wait 24 hours after ice maker installation for ice production to begin. Wait 72 hours for full ice production.
■ Refrigerator door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely.”
■ Large amount of ice recently removed? Allow 24 hours for ice maker to produce more ice.
■ Ice cube jammed in the ice maker ejector arm?
Remove ice from the ejector arm with a plastic utensil.
■ Water filter installed on the refrigerator? Remove filter and operate ice maker. If ice volume improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.
■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure.

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

■ Water shutoff valve not fully open? Turn the water shutoff valve fully open.
■ Kink in the water source line? A kink in the line can reduce water flow. Straighten the water source line.
■ Water filter installed on the refrigerator? Remove filter and operate ice maker. If ice quality improves, then the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.
■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure.
■ Questions remain regarding water pressure? Call a licensed, qualified plumber.

Off-taste, odor or gray color in the ice

■ New plumbing connections? New plumbing connections can cause discolored or off-flavored ice.
■ Ice stored too long? Discard ice. Wash ice bin. Allow 24 hours for ice maker to make new ice.
■ Odor transfer from food? Use airtight, moisture proof packaging to store food.
■ Are there minerals (such as sulfur) in the water? A water filter may need to be installed to remove the minerals.
■ Water filter installed on the refrigerator? Gray or dark discoloration in ice indicates that the water filtration system needs additional flushing. Flush the water system before using a new water filter. Replace water filter when indicated. See "Water Filtration System."

The water and ice dispenser will not operate properly

■ Refrigerator connected to a water supply and the supply shutoff valve turned on? Connect refrigerator to water supply and turn water shutoff valve fully open.
■ Kink in the water source line? Straighten the water source line.
■ New installation? Flush and fill the water system. See “Water and Ice Dispensers.”
■ Is the water pressure at least 35 psi (241 kPa)? The water pressure to the home determines the flow from the dispenser.
■ Water filter installed on the refrigerator? Remove filter and operate dispenser. If water flow increases, the filter may be clogged or incorrectly installed. Replace filter or reinstall it correctly.
■ Water dispenser measured fill feature is not dispensing an accurate amount of water? Calibrate the water dispenser. See “Water and Ice Dispensers.”
■ Refrigerator door closed completely? Close the door firmly. If it does not close completely, see “The doors will not close completely.”
- Recently removed the doors? Make sure the water dispenser wire/tube assembly has been properly reconnected at the top of the refrigerator door. See “Refrigerator Doors and Drawer.”
■ Reverse osmosis water filtration system connected to your cold water supply? This can decrease water pressure.

Water is leaking from the dispenser system

NOTE: One or two drops of water after dispensing is normal.

■ Glass not being held under the dispenser long enough? Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever.
■ New installation? Flush the water system. See “Water and Ice Dispensers.”
■ Recently changed water filter? Flush the water system. See "Water and Ice Dispensers."

Water from the dispenser is warm

NOTE: Water from the dispenser is only chilled to 50°F (10°C).

■ New installation? Allow 24 hours after installation for the water supply to cool completely.
■ Recently dispensed large amount of water? Allow 24 hours for water supply to cool completely.
■ Water not been recently dispensed? The first glass of water may not be cool. Discard the first glass of water.
■ Refrigerator connected to a cold water pipe? Make sure the refrigerator is connected to a cold water pipe.

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

RÉFRIGÉRATEUR SUPERPOSE

INSTRUCTIONS D'INSTALLATION ....4

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a close-up of the interior detail (no text or symbols)

Diagram of a kitchen sink with a magnified inset showing the interior portion (no text or symbols)

Line drawing of hands holding a cylindrical object on a flat surface (no text or symbols)

Technical line drawing of a door with internal structure and labeled point A (no text or symbols beyond label)

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Vis auto-bloquante

ON (MARCHE) DIM (SOMBRE)

Line drawing of a hand holding an object with a black arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

KÜHLGEFRIER- KOMBINATION

PFLEGE DES KÜHLSCHRANKS ....11

Reinigung....11

Line drawing of an open refrigerator with doors closed, showing internal shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a hand holding a key (no text or symbols present)

Diagram of a kitchen sink with a magnified inset showing the interior portion (no text or symbols)

Line drawing of two hands holding a cylindrical object with a ruler, no text or symbols present

Technical line drawing of a door with internal fan structure and labeled point A (no text or symbols beyond label)

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Schneckenantrieb

Eisproduktionsrate

Line drawing of a hand holding an object with a black arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

KOEL/ VRIESCOMBINATIE

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with a magnified inset showing a hand holding a key (no text or symbols present)

Handgreep vriezerlade

Diagram of a kitchen sink with a magnified inset showing the interior bowl (no text or symbols)

Line drawing of two hands holding a cylindrical object with a textured base (no text or symbols)

Technical line drawing of a door with internal fan structure and labeled point A (no text or symbols beyond label)

A. Gescharnierde afsluiting

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Grondboor

ON (AAN) DIM (DIMMEN)

Line drawing of a hand holding an object with a black arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

FRIGORÍFICO CON CONGELADOR EN LA PARTE INFERIOR

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a hand holding a key (no text or symbols present)

Diagram of a kitchen sink with a magnified inset showing the interior portion (no text or symbols)

Line drawing of hands holding a wooden bar with a flat top (no text or symbols)

Technical line drawing of a door with internal fan structure and labeled point A (no text or symbols beyond label)

ice type cubed/crushed light on/dim/off temp hold 3 sec. fast cool lock hold 3 sec. filter reset hold 3 sec. cooling off icemaker off

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

Line drawing of a hand holding an eyeshadow with a black arrow indicating the direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

FRIGORÍFICO COM CONGELADOR NA PARTE INFERIOR

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Abandonar e eliminar

Technical line drawing of a door handle with an inset showing a hand holding a key (no text or symbols present)

Diagram of a kitchen sink with a magnified inset showing the interior bowl (no text or symbols)

Line drawing of hands holding a cylindrical object with a handle (no text or symbols)

Technical line drawing of a door with internal blades and a labeled section A (no text or symbols beyond label)

A. Junta articulada

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Parafuso sem-fim

Limpar as superfícies exteriores

Line drawing of a hand holding an object with a curved arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

FRIGORIFERO BOTTOM MOUNT

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a close-up of the handle (no text or symbols)

Diagram of a door handle with a small inset showing a hand holding a bowl (no text or symbols)

Line drawing of hands holding a cylindrical object with a handle (no text or symbols)

Technical line drawing of a door with internal fan structure and labeled point A (no text or symbols beyond label)

A. Guarnizione

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

A. Premere LOCK e FILTER RESET contemporaneamente.

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Vite senza fine

Line drawing of a hand holding an object with an arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a hand holding a small object (no text or symbols present)

Technical line drawing of a door handle with a magnified inset showing internal components (no text or symbols)

Line drawing of hands holding a cylindrical object on a base (no text or symbols)

Technical line drawing of a door with internal fan structure and labeled point A (no text or symbols beyond label)

A. Λωρίδα σφράγισης

Χρήση των κουμπιών

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

Line drawing of a hand holding an object with a curved arrow indicating direction (no text or symbols)

Illustration of a tomato and a candy with snowflakes in the background (no text or symbols)

K∅LEFRYSESKAB

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a close-up of the interior detail (no text or symbols)

Fryerskuffehåndtag

Diagram of a kitchen sink with a magnified inset showing the interior (no text or symbols)

Line drawing of two hands holding a wooden beam with a flat support (no text or symbols)

Technical line drawing of a door with internal structure and labeled point A (no text or symbols beyond label)

A. Hængslet tætning

ice type cubed/crushed light on/dim/off temp hold 3 sec. Icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 38 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Sneglegevind

For at dispensere vand:

1. Tryk et robust glas mod vanddispenserarmen.
2. Fjern glasset for at stoppe dispenseringen.

Isdispenseren

For at dispensere is:

Line drawing of a hand holding an object with a black arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

PÄÄLLEKKÄIN SIJOITETTU JÄÄKAAPPI

JÄÄKAAPIN HOITO....10

Puhdistus 10

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a hand holding a small object (no text or symbols present)

Diagram of a door handle with a magnified inset showing hand positioning (no text or symbols)

Line drawing of hands holding a cylindrical object with a ruler, no text or symbols present

1. Nosta tai laske kaappia.

Technical line drawing of a door with internal structure and labeled point A (no text or symbols beyond label)

ice type cubed/crushed light on/dim/off temp hold 3 sec. fast cool lock hold 3 sec. filter reset hold 3 sec. cooling off icemaker off

recommended fridge 38 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Syöttöruuvi

Jäänmuodostusnopeus

Line drawing of a hand holding an object with an arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

KJ∅LESKAP MED FRYSER NEDERST

KJ∅LESKAPSSIKKERHET....2

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a hand holding a key (no text or symbols present)

Fryserskuffhåndtak

Diagram of a kitchen sink with a magnified inset showing the interior sink (no text or symbols present)

Line drawing of hands holding a cylindrical object with a flat top (no text or symbols)

Technical line drawing of a door with internal shelves and curved handle (no text or symbols)

A. Hengslet pakning

Bruk av kontrollene

ice type cubed/crushed light an/dim/off temp hold 3 sec. fast cool icemaker off lock hold 3 sec. cooling off filter reset

Justere kontrollene

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. Icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Naver

Isproduksjonsrate

Statuslys for vannfilter

Line drawing of a hand holding an object with a curved arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflake motifs (no text or symbols)

KYL ÖVER FRYSSKÅP

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a close-up of the internal component (no text or symbols)

Fryslådans handtag

Att demontera handtaget:

Diagram of a kitchen sink with a magnified inset showing the interior bowl (no text or symbols)

Line drawing of two hands holding a wooden beam with a flat support (no text or symbols)

Technical line drawing of a door with internal structure and curved arrows indicating flow or movement (no text or symbols)

A. Gångjärnstätning

Manöverkontrollen

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

Justera kontrollerna

recommended fridge 38 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Rotorn

Line drawing of a hand holding an object with a curved arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflake motifs (no text or symbols)

AMERICKÁ LEDNICE

TYTO POKYNY SI USCHOVEJTE

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a close-up detail (no text or symbols)

Technical line drawing of a mechanical component with a close-up inset showing internal components (no text or symbols)

Line drawing of two hands holding a cylindrical object with a handle (no text or symbols)

Technical line drawing of a door with internal woodwork and labeled component A (no text or symbols beyond label)

A. Sklápěcí těsnění

ice type: cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 38 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 2 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Závitový kolík

Line drawing of a hand holding an object with a black arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

CHŁODZIARKO- ZAMRAŻARKA Z ZAMRAŻALNIKIEM NA DOLE

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a hand holding a key (no text or symbols present)

Diagram of a kitchen sink with a magnified inset showing the interior structure (no text or symbols)

Line drawing of hands holding a cylindrical object with a handle (no text or symbols)

Technical line drawing of a door with internal fan structure and labeled point A (no text or symbols beyond label)

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 38 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed an/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

Line drawing of a hand holding an object with a black arrow pointing to it (no text or symbols)

Illustration of a tomato and a pepper with snowflake motifs (no text or symbols)

CHLADNIČKA SO SPODNOU MONTÁŽOU

POKYNY NA INSTALÁCIU 4

Vybalenie chladničky 4

Pred použitím 4

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

TIETO POKYNY SI USCHOVAJTE

Správna likvidácia vašej starej chladničky

UPOZORNENIE

Riziko udusenia

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

POKYNY NA INŠTALÁCIU

Vybalenie chladničky

Technical line drawing of a door handle with an inset showing a close-up of the interior detail (no text or symbols)

Diagram of a door handle with a magnified inset showing a hand holding a small object (no text or symbols present)

Line drawing of hands holding a cylindrical object with a base, no text or symbols present

Technical line drawing of a door with internal fan structure and labeled point A (no text or symbols beyond label)

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Nebožiec

Line drawing of a hand holding a bowl with a pointer and arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflake motifs (no text or symbols)

ALULFAGYASZTÓS HÛTÕSZEKRÉNY

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a close-up of the handle (no text or symbols)

Diagram of a kitchen sink with a magnified inset showing the interior portion (no text or symbols)

Line drawing of two hands holding a cylindrical object (no text or symbols)

Technical line drawing of a door with internal blades and a labeled section A (no text or symbols beyond label)

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.0 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Csiga

Line drawing of a hand holding an object with a curved arrow indicating rotation (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a hand holding a circular component (no text or symbols)

Diagram of a door handle with a small inset showing hand positioning (no text or symbols)

Line drawing of two hands holding a cylindrical object with a textured base (no text or symbols)

Technical line drawing of a door with internal blades and a handle, labeled 'A' (no text or symbols on the diagram itself)

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 38 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Бурае

Line drawing of a hand holding an object with a black arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflake motifs (no text or symbols)

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with an inset showing a close-up of the lock mechanism (no text or symbols)

Diagram of a kitchen sink with a magnified inset showing the interior bowl (no text or symbols)

Свалете и подменете вратите и пантите

Line drawing of two hands holding a cylindrical object (no text or symbols)

1. Повдигнете или наведете шкафа.

Technical line drawing of a door with internal blades and a labeled section A (no text or symbols beyond label)

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.0 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

A. Натиснете LOCK (ЗАКЛЮЧВАНЕ) и FILTER RESET(РЕСТАРТИРАНЕ НА ФИЛТЪРА) едновременно.

Pure mechanical diagram showing a lever and pivot point with no text or symbols

Line drawing of a hand holding a bowl with a black arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflake motifs (no text or symbols)

COMBINĂ FRIGORIFICĂ

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

■Medii tip bed and breakfast.

Aerisire

Technical line drawing of a door handle with a magnified inset showing a hand holding a key (no text or symbols present)

Diagram of a kitchen appliance with a handle and a magnified inset showing a small bowl (no text or symbols)

Line drawing of hands holding a cylindrical object with a handle (no text or symbols)

Technical line drawing of a door with internal blades and a handle, labeled 'A' (no text or symbols on the diagram itself)

A. Garnitură

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

Reglarea comenzilor

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Suport de fixare

Line drawing of a hand holding a bowl with an arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflakes in the background (no text or symbols)

ALT DONDURUCULU BUZDOLABI

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with a close-up inset showing a hand holding a button (no text or symbols)

Diagram of a kitchen sink with a magnified inset showing the interior portion (no text or symbols)

Line drawing of two hands holding a wooden beam with a flat support (no text or symbols)

Technical line drawing of a door with internal fan structure and labeled point A (no text or symbols beyond label)

A. Menteşeli conta

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

A. Burgu sürücü

Buz Üretim Hızı

Line drawing of a hand holding an object with a curved arrow indicating direction (no text or symbols)

Illustration of a tomato and a pepper with snowflake motifs (no text or symbols)

Line drawing of a refrigerator with open doors and shelves (no text or symbols)

Technical line drawing of a door handle with a magnified inset showing a hand holding a small object (no text or symbols)

Diagram of a door handle with a small inset showing hand holding a small object (no text or symbols)

Line drawing of two hands holding a cylindrical object with a textured base (no text or symbols)

Technical line drawing of a door with internal blades and a handle, labeled 'A' (no text or symbols on the diagram itself)

ice type cubed/crushed light on/dim/off temp hold 3 sec. icemaker off fast cool lock hold 3 sec. cooling off filter reset

recommended fridge 3.8 °f cancel units select zone √ ∧ save ice type light temp fast cool lock filter reset cubed/crushed on/dim/off hold 3 sec. hold 3 sec. hold 3 sec. icemaker off cooling off

Pure mechanical diagram showing a lever and pivot point with no text or symbols

Line drawing of a hand holding a small object with an arrow indicating direction (no text or symbols)
