USER MANUAL CALED100 Schwaiger

GB USER GUIDE AND SAFETY INSTRUCTIONS

CAMPING LANTERN, MULTIFUNCTIONAL

MODE D'EMPLOI ET CONSIGNES DE SÉCURITÉ

LANTERNE DE CAMPING, MULTIFONCTIONS

GUIDA PER L'UTENTE E AVVERTENZE DI SICUREZZA

Green portable nightlight device with metal cage and display, no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

3 2 USB

⑤ ④

Congratulations and thank you for purchasing this Schwaiger product.

This user guide is designed to help you use and operate the device.

Read through the User guide carefully. Store this guide safely throughout the product's entire service life and pass it on to any subsequent users or owners.

Check that the supplied package is complete and ensure that none of the parts are defective or damaged.

1. ⚠️ GENERAL SAFETY & WARNING INSTRUCTIONS!

• This product is intended for private, non-commercial household use.
• This product is an electronic product that must be kept away from children. Therefore, keep it out of reach of children.
• The product is not intended for use by children, or by adults with visual or other impairments preventing them from using it safely. In such cases, it should be used under supervision.
• Never expose the product to high temperatures or extreme cold. Please observe the operating temperature specified in the technical data.
• Do not intentionally drop the product or expose it to extreme vibrations.
• Do not introduce any objects into the product's connections or openings.
• Do not disassemble the product into its individual parts. The unit does not contain any user serviceable parts. Incorrect assembly can cause electric shocks or malfunctions.
• The product is not user serviceable, and any attempt to do so will invalidate the guarantee.
• Never dazzle other people or animals with the light.
• Misuse of the lamp can lead to eye injuries as it is very bright.

For safety reasons and reasons related to official approvals (CE), you must not convert and/or modify the product. The product may become damaged if you use it for purposes other than the one previously described. In addition, improper use may result in hazards such as short circuits, fire, electric shock, etc.

Special notice concerning the battery

• The battery is permanently installed in the casing of the product. It cannot be replaced.
• Never throw the product into a fire, as the battery may explode or cause a flame hazard!
• Charge the battery of the product roughly every three months, even if you are not using it. Otherwise, it may get deeply discharged and become permanently unfit for use. The battery does not need to be discharged before being recharged.
• Place the product on a surface which is not sensitive to heat when recharging. It is normal for the product to become slightly warm when recharging.
• Dead or damaged batteries may cause skin irritation, so use suitable protective gloves when handling them.
• Leaking battery fluids are highly corrosive, and may seriously damage objects or surfaces they come into contact with.

Warnings concerning the battery (when leaking)

This product is powered by a built-in lithium battery. In normal use, the battery is enclosed and protected by the device. If battery fluid leaks from the unit, follow these safety precautions:

• If battery fluid is swallowed, seek medical attention immediately! Do not induce vomiting and do not eat or drink anything.
• If you have inhaled battery fluid, go to fresh air immediately and seek medical attention.
• If skin contact with battery fluid occurs, rinse thoroughly with water and avoid contact with eyes.
• If battery fluid has come in contact with your eyes, immediately rinse them thoroughly under running water for at least 15 minutes and seek medical attention.

IMPORTANT!

look directly into the light beam (especially from a short distance).

2. INTENDED USE

This multi-function light with removable lighting units and Bluetooth® speaker is specially designed for use on the road and outdoors. The IP44 certification means that the light is protected against water spray from all directions. The product is charged exclusively via Micro USB. The product is designed for private use and is not intended for use in commercial or industrial environments.

This light is not suitable as conventional household lighting!

Information on the protection class

This product is IP44 certified and protected.

The first code digit indicates that the product is protected against contact with tools or wires and against foreign bodies ≥ 1.0 mm. The second code digit indicates that the product is protected against water splashing from all directions.

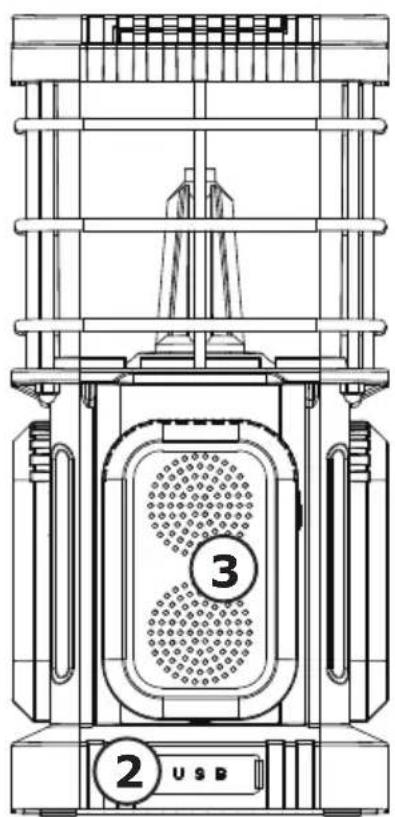

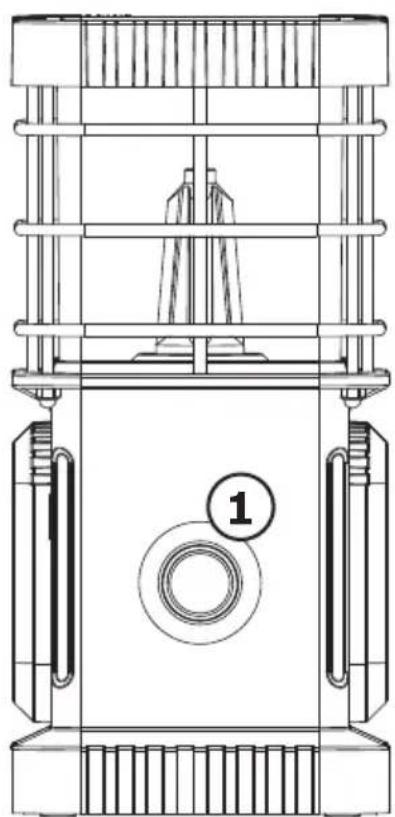

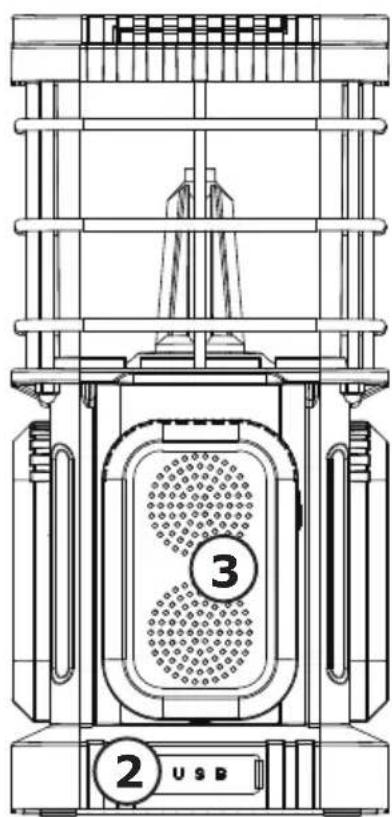

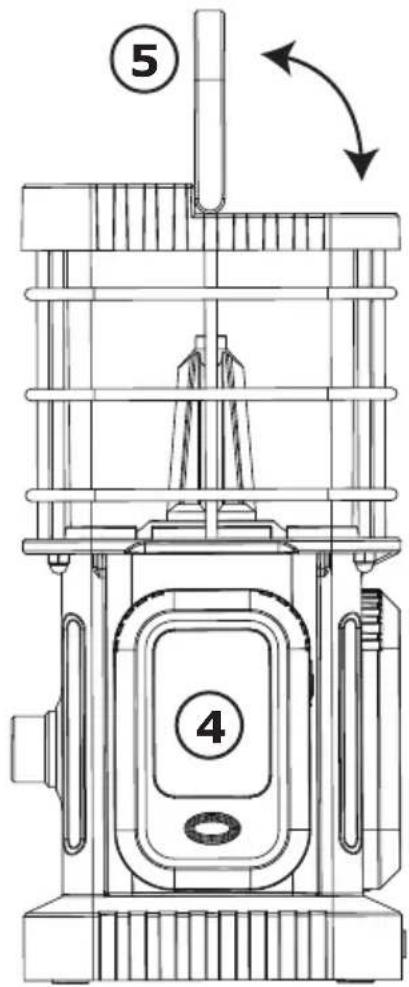

3. PRODUCT DETAILS

1. On/Off switch (rotary control)
2. Charging connector with rubber cover
3. Removable Bluetooth® speaker
4. Removable lights
5. Foldable & divisible carrying handle

Technical line drawing of a mechanical device with no visible text or symbols

3 2 USB

⑤ ④

Front view Rear view Lateral view

4.1. Charging the product

Input 5V 1A Output 5V 1A

This product has been designed so that power supply to the side-mounted units is provided by the main unit via magnetic contacts.

Charge the main unit using the supplied Micro USB cable. You will need a 230 V charging adapter with at least 1 A output power.

The battery is supplied partially precharged, and should be fully charged before being used for the first time. The charging time is approx. 6 - 6 1/2 hours.

During the charging process, the status LED (next to the USB port) flashes quickly, and once the battery is fully charged, it lights up constantly.

NOTE

To ensure maximum flexibility, the side-mounted units can also be charged directly via Micro USB.

4.2. Emergency power bank function

A further feature of the product is the additional charging function via the USB port. This can be used to charge mobile devices such as smartphones (max. 1 A).

Both functions (lighting and charging) can be used simultaneously.

NOTE

The charging function is only an emergency function, using it leads to accelerated battery discharge. Therefore, the maximum lighting duration of the product is reduced.

5. FUNCTIONS

NOTE

The side-mounted units can be interchanged. The Bluetooth ^® speaker can thus be placed and charged on the back as well as on the side of the lamp.

5.1. Main unit

Switch on the light of the main unit by pressing the knob on the front panel for approx. 2 seconds.

You can then adjust the brightness as you wish (5% - 100%) using the rotary knob. To switch the light off, press the knob again for about 2 seconds.

5.2. Lateral lighting units

The side-mounted lights have several lighting modes. To switch the light on, press the button on the front for approx. 2 seconds. You can then change the lighting modes using this same button. To switch the light off, press the button again for 2 seconds.

5.3. Bluetooth® speaker

The product also has a Bluetooth ^® speaker on its back side. You can switch it on by pressing and holding the power switch on the front of the product for 2-3 seconds.

During powering on, a melody will be played and the speaker will start in pairing mode.

In the Bluetooth® settings of your smartphone or tablet, search the model name: "CALED100" and connect to it. If the connection is successfully established, a signal tone sounds again.

During music playback, you can also stop / resume playback using the on/off switch.

Meaning of the LED colours

Red LED Battery is being charged
Green LED Battery is fully charged
Blue LED (fast flashing) Pairing mode
Blue LED (constantly flashing) Device is connected via Bluetooth	Bluetooth

Automatic switch-off

The product has an automatic switch-off function to prevent unnecessary discharge of the battery.

The device is automatically switched off in the following situations:

• After 6 minutes with no active connection or pairing

- As soon as the battery reaches a low or critical level.

NOTE

Please ensure that you familiarize yourself with the Bluetooth®

NOTE

If your smartphone or tablet prompts you to enter a password, please enter "0000" or "1234".

NOTE

Music can only be played from one device at a time.

Switch the device off in aircrafts, hospitals, operating rooms or in the vicinity of medical electronic systems. The transmitted radio signals can affect the functionality of sensitive electronic devices.

The magnetic fields generated by the product can affect pacemakers and implanted defibrillators. Therefore, keep a minimum distance of 10 - 15 cm between the product and the pacemaker / defibrillator.

1. TECHNICAL DATA

General
Casing material ABS
Protection Degree IP44
Ambient temperature -20% to +60°
Ambient humidity ≤ 95%
Dimensions 125 x 125 x 270 mm
Main unit
Illuminant 6W LED (dimmable)
Lumen max. 400 lm
Lighting duration (max.) 4-70 hours (depending on the lighting mode)
Service life (illuminants) 20,000 hours
Battery type Lithium-Ion (rechargeable)
Battery capacity 5,000 mAh (3.7V)
Power input (via Micro USB) DC 5.0 V - 1,000 mA
Output (via USB) DC 5.0 V - 1,000 mA
Charging time (via Micro USB) 6-7 hours

Lighting units (removable)
Illuminant type 1W LED
Lumen 100 lm
Lighting duration (max.) 6-8 hours (depending on the lighting mode)
Service life (illuminants) 20,000 hours
Modes 100% / 50% / headlight
Battery type Lithium-Ion (rechargeable)
Battery capacity 1,800 mAh (3.7V)
Power input (via Micro USB) DC 5.0V – 200 mA
Power input (via magnetic contact) DC 5.0V – 200 mA

Bluetooth® Speaker
Speaker 1x 5W
Bluetooth® version 4.2
Bluetooth® coverage 10m
Bluetooth® display name CALED100
Frequency band	20 Hz – 20,000 Hz
Battery type Lithium-Polymer (rechargeable)
Battery capacity 1,100 mAh (3.7V)
Power input (via Micro USB) DC 5.0V – 200 mA
Power input (via magnetic contact)	DC 5.0V – 200 mA
Charging time (via Micro USB) 4 hours
Charging time (via magnetic contact)	4 hours
Frequency band	2.402 – 2.480 GHz
Transmission power	4.0 dBm

7. CLEANING

Ensure that no liquids get into the product while you are cleaning it. The use of solvent-containing or aggressive cleaning agents as well as alcohol or thinners is prohibited as it could damage the coating or the surface of the product. You should therefore clean the product with a lint-free, ever so slightly damp soft cloth only.

NOTE ON THE LEDS

This product is maintenance free, and the illuminants are not replaceable.

8. DISPOSAL

The product is delivered in packaging made of recyclable materials to protect against damage during transport. Sort and dispose of these materials in the designated containers. Ask your local disposal company or local council about how to dispose of the product in an environmentally correct way.

Do not dispose of batteries or electric and electronic devices in the normal household waste. The consumer is legally obliged to return electrical and electronic devices, and batteries that are at the end of their useful life to the point of sale or public collection points that have been set up for this purpose. The details are regulated by the respective national law. The symbol on the product, user guide or the packaging indicates this legal requirement.

Disclaimer

Schwaiger GmbH does not accept any liability or warranty for damages that are sustained due to improper installation or mounting, improper use of the product or non-compliance with the safety instructions.

Manufacturer's information

Please contact our Technical Support if you need technical advice and your retailer is unable to help you. Our technical support is available in English or German.

Simplified declaration of conformity as per the RED Directive

Schwaiger GmbH hereby declares that the described radio system product complies with Directive 2014/53/EU and other directives applicable to the product. The complete EU declaration of conformity is available online at: http://konform.schwaiger.de

Office Hours (Technical support in German)

Monday to Friday: 8:00 a.m. - 5:00 p.m.

Warranty

The warranty period starts when the product is purchased. You are requested to prove this date of commencement of the guarantee by means of a proof of purchase (receipt, invoice or delivery slip). Keep these documents in a safe place. Our warranty is based on our warranty conditions valid at the time of purchase.
