USER MANUAL 302717 Bearware

Red stylized graphic of a bear and a pig (no text or symbols)

BEARWARE

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing a BEARWARE product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Energy cost meter
• User manual

2. Technical data

Electric voltage 230V AC~50Hz
Maximum current 16A
Maximum power 3680W
Power supply (data storage)	3.6V Ni-Mh / 40mAh
Operating temperature	0°C to 40°C
Accuracy +/-2%
Range/ Measurement range	0.1 - 3680W (power)200V - 276V (voltage)0.0KWh - 9999.9KWh (consumption)0.00€ - 9999€ (electricity costs)
Features	Measurement and calculation of many data concerning energy consumption of the connected devicesData storage (battery operated) in case of power failureSuitable for wall mounting

3. Initial use

Take the product out of the package and remove all the packaging material. Then plug the energy cost meter into a properly installed shockproof socket.

The device is now ready for use. Detailed information regarding the operation and settings is given in the following sections in this user manual.

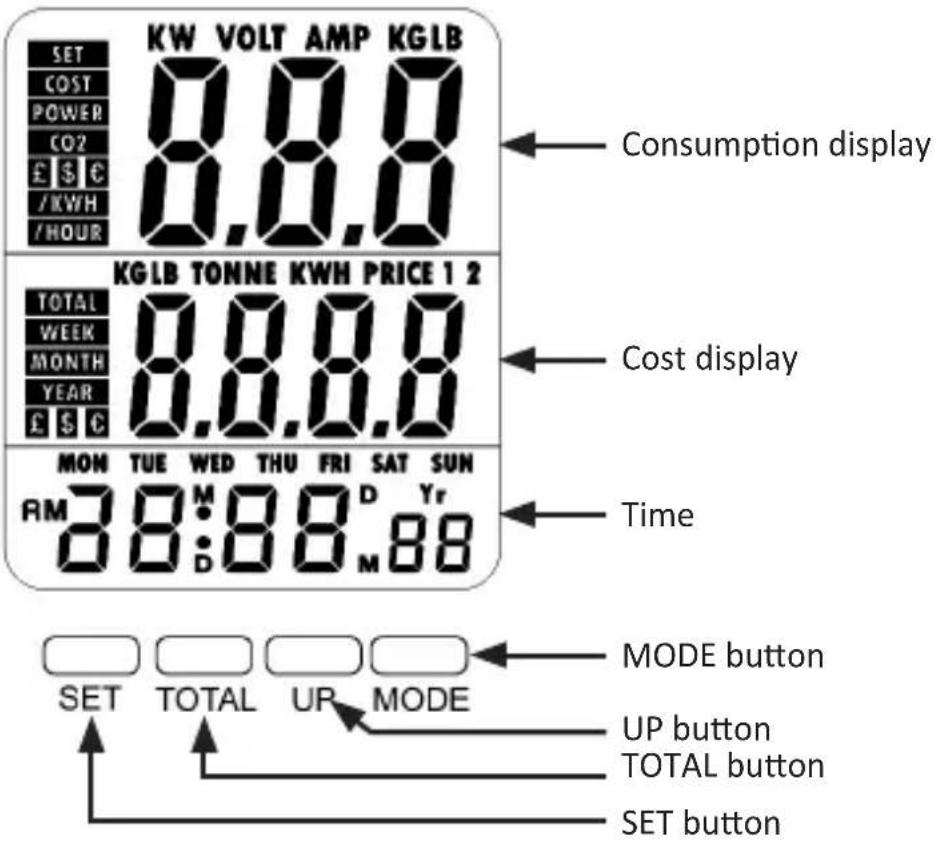

4. Displays and controls

SET COST POWER CO2 £ $ € /KWH /HOUR KW VOLT AMP KGLB 0.8.8 0.8.8 Consumption display KGLB TONNE KWH PRICE 1 2 TOTAL WEEK MONTH YEAR £ $ C 0.8.8.8 Cost display MON TUE WED THU FRI SAT SUN RM 38:88 D Yr M D M 88 Time MODE button SET TOTAL UP MODE UP button TOTAL button SET button

display 4.1 Display

Consumption display:

The display shows information on consumption, total costs since the start of measurement, mains voltage, power consumption of the load and CO2 values for the current day.

Cost display:

This display shows the approximate weekly, monthly or annual costs and CO2 values if they are configured.

Time display:

The display shows the current time.

4.2 Button functions

MODE button:

- You can switch between the different modes using this button.

12 English

"UP" button:

• In normal operation, you can switch between the 12 and 24-hour display using this button.
• The value can be increased using this button in the settings menu. Press and hold the button a little longer for faster scrolling.

TOTAL button:

• Switch between weekly, monthly and yearly display of consumption costs.
• The value can be decreased using this button in the settings menu. Press and hold the button a little longer for faster scrolling.

SET button:

• Press briefly to access the date settings. Confirm the entry by briefly pressing the SET button.
• Press longer to access the tariff and CO2 settings. Confirm the entry by briefly pressing the SET button.

RESET button:

Press and hold the RESET button using a sharp object to clear all settings and to restart the device.

5. Date / time settings

Note: We advise you to charge the internal battery for about 2-3 hours using a properly installed socket before using the device for the first time.

Press the "SET" button briefly to access the settings mode. The value to be set starts flashing. To adjust the respective value, press the "UP" (increase) or the "TOTAL" (decrease) button until the desired value is shown in the display. By briefly pressing the "SET" button, you can confirm the entry and go to the next point.

The setting sequence is as follows:

Year -> Date format (Month / Day or Day / Month) -> Month -> Day -> Hours -> Minutes

I_D I_M

Note: If you do not press any button within 30 seconds, the device exits the setting mode automatically.

6. Cost settings

You have the option to set two different power cost tariffs for various time periods. If price 1 and price 2 are set to "0.00", the cost function is turned off.

Normally, it is sufficient to set only tariff 1 (price 1). Price 1 is the basic tariff. If this is not set, then price 2 cannot be entered.

1. Press and hold the "SET" button for about 2 seconds to start the cost settings mode. The currency unit will start flashing in the display. Use the "UP" or "TOTAL" buttons to set the desired currency. Confirm your entry using the "SET" button.
2. The "Price 1" display starts flashing. Press the "SET" button again. The weekdays start flashing. Set the desired time period using the "UP" and "TOTAL" buttons for which tariff 1 needs to be applied.
3. After setting the weekdays, confirm the entry using the "SET" button. You can then configure the hour display for starting the billing period. Confirm the entry again using the "SET" button and repeat the process for the minutes display. Confirm again using "SET".
4. You can then configure the cost. The first digit of the cost display starts flashing. Set this using the "UP" and "TOTAL" buttons and confirm with "SET". Then repeat this procedure for the second and third digit. Confirm each setting using the "SET" button.
5. Then the decimal point starts flashing. If you want to shift the decimal point, press the "UP" or "TOTAL" button. If you do not want to shift the decimal, press the "SET" button to confirm the setting.
6. To configure Price 2, you need to select "Price 2" instead of "Price 1" at the beginning and set it. Make sure that there is no time overlap in the two tariffs. The time settings should not be the same!

Example:

For a kWh price of 0.24 €/kwh, enter 0.24.

If you want to set only one tariff, set the time period for all 7 days of the week and the start time to 0.00 hrs.

6.1 CO2 settings

After configuring the prices and confirming them, you can access the CO2 settings (CO2 equivalent). You can find out this value from your energy supply company.

"SET CO2" is shown in the display. Use the "UP" and "TOTAL" buttons to set the unit of measurement (kg/kWh or lb/kWh). Then press the "SET" button to confirm the entry.

The first digit of CO2 setting starts flashing. Configure this using the "UP" and "TOTAL" buttons and repeat this procedure for the second and third digit. Confirm the setting respectively using the "SET" button.

Then press the "SET" button again to return to the normal display.

7. Display and modes

You can change between the following modes in the first line using the "MODE" button in normal display mode: Display of costs since the start of measurement; power display; voltage display, current consumption of the load and CO2 mode.

The second line shows the accumulated data for cost, consumption or CO2 emissions. This data can be displayed for weekly, monthly and annual accumulation by pressing the "TOTAL" button.

8. Resetting the device

Press the "RESET" button on the front side of the device using a pointed object to delete all settings and restart the device. Caution! Be careful not to injure yourself with the object!

To reset the accumulated data, press and hold the "TOTAL" and "UP" buttons simultaneously for 2 seconds. The accumulated data is reset to zero.

CAUTION!

• Do not connect in series!
• Disconnected only when the plug is removed!
• Only for indoor use!
  • No maintenance required!
• Do not connect any device in which the load exceeds 16A.
• Ensure that the plug is fully and correctly inserted.
• Clean the device with a dry cloth only.
• Do not immerse the device in water!

Symbols

CAT II

Ground terminal

AC

Only for indoor use

Overvoltage category II

9. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner.

Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons.

Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life.

The relevant local laws regulate the details in this regard.

The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

11. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 302717 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
