USER MANUAL 302542 CSL

Bluetooth Headphone CSL 310, brown/white

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for having chosen this product from CSL and for placing your trust in our company. Before using the product for first the time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1. Scope of delivery

• CSL 310 Bluetooth Headphone
- MicroUSB Charging Cable
- User Manual

2. Technical data

Connection Bluetooth
Range up to 10m
Power supply via microUSB port
Transmission power 1,51 dBm
Frequency band 2402MHz - 2480MHz
Features • Function buttons (for playback, volume and call acceptance)• built-in microphone

3. Functions

The CSL 310 uses Bluetooth technology to play the music on your Bluetooth devices such as your smartphone or tablet PC without a cable. The CSL 310 device has an integrated microphone and can therefore also be used as a Bluetooth hands-free set.

4. Hands-free speech function

Please press the „multifunction button“ in order to answer the call. If you wish to end the active call, press the „multifunction button“ again.

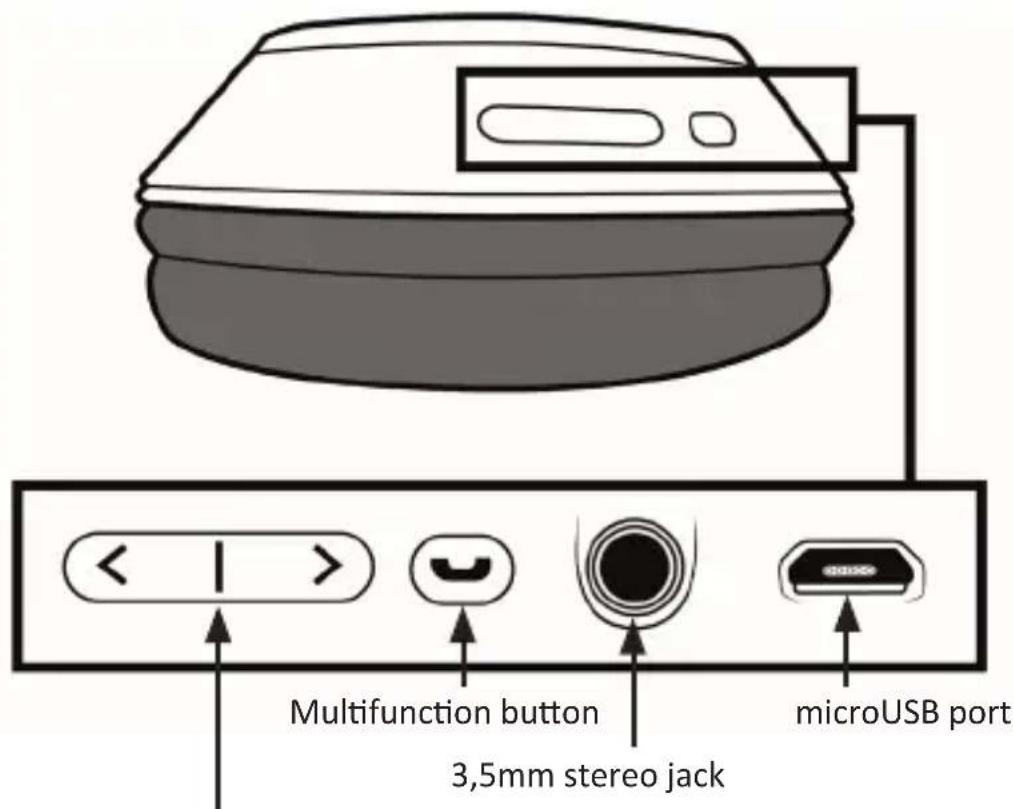

5. Product details

Multifunction button 3,5mm stereo jack microUSB port

Volume up and down buttons

6. Getting started

Please take the device out of the package and completely charge it before using it for the first time. Connect the charging cable provided to a microUSB port and also to a suitable 5V DC charging source, for example the USB port of a computer or a USB charging adapter.

During charging the LED next to the “multifunction button” lights up red. Disconnect the headphone from the power source after each completed charging process to prevent continuous recharging. We recommend using the headphone at regular intervals to retain the full capacity of the built-in battery.

7. Button functions

Button Functions
Multifunction button	Press once: answer call, end call, play / pausePress twice: Redial the last called contact
Increase volume • Press and hold: Increase volumePress once: Next track
Decrease volume • Press and hold: Decrease volumePress once: Previous title

8. Connecting via Bluetooth

Make sure the headphone is off.

Press and hold the „multifunction button“ for approx. 10 seconds until the device is ON and the LED indicator next to the “multifunction button” flashes red and blue.

Activate Bluetooth on the device that you want to link with the headphone.

Perform a search and connect to device "CSL-310 BW". Enter "0000" if a safety code is requested.

Note: The Bluetooth pairing mode is deactivated for safety reasons when no connection has been established after several minutes. Please repeat the steps described above when pairing has failed.

Please note!

9. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device

for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect

10. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

11. Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following: As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings:

Pb = battery contains more than 0.004 percent by mass of lead,

Cd = battery contains more than 0.002 percent by mass of cadmium,

Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302542/20180913SZ163 conforms to the principle requirements and other relevant stipulations of Directive 2014/53/EU. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, https://www.ganzeinfach.de/
