302657 - Earphones CSL - Free user manual and instructions

Product Type	Wired USB Gaming Headset
Model	GSH-100
Connection	USB
Cable Length	Approx. 2 m
Microphone	Retractable
Integrated Controls	Inline remote: volume, next/previous track, microphone mute/unmute, sound mute/unmute
Plug & Play Function	Yes, automatic driver installation
Material	Not specified (estimated: ABS plastic)
Weight	Not specified (estimated: approx. 250 g)
Compatibility	Computer with USB port
Care and Cleaning	Wipe with a soft, dry cloth. Do not use chemical products
Safety Instructions	Do not open, do not expose to moisture or high temperatures. Indoor use only
Recycling	Do not dispose of with household waste. Comply with WEEE Directive 2012/19/EU
Warranty	Warranty valid subject to repairs not performed by the original manufacturer
WEEE Registration Number	94495668
Brand	CSL
Reference	302657

Frequently Asked Questions - 302657 CSL

How to connect the CSL 302657 headset?

Plug the headset into a USB port on your powered-on computer. Driver installation is automatic thanks to the Plug & Play function.

How to adjust the volume?

Use the inline remote. Press the '+' button to increase volume and '-' to decrease. Hold down for quick adjustment.

How to skip to the next or previous track?

On the remote, briefly press the '+' button once for the next track and '-' for the previous track.

How to mute or unmute the microphone?

Press the designated button on the remote to turn the microphone on or off. An indicator may show the status.

How to mute the headset sound?

Press the mute button on the remote. Press again to restore sound.

Is the headset compatible with game consoles?

The headset is designed for use with a computer with a USB port. It may work on some USB-compatible consoles, but this is not guaranteed. Consult your console's manual.

How to clean the headset?

Use a soft, dry cloth to wipe the headset. Do not use chemical or abrasive products. Avoid getting moisture into the connectors.

What to do if the microphone is not working?

Check that the microphone is not muted on the remote. Make sure the device is recognized by your computer in audio settings. Restart the computer if necessary.

Is the headset waterproof?

No, the headset is not waterproof. Use it only in a dry place and protect it from moisture, water, and snow.

How to recycle the headset at end of life?

Do not dispose of the headset with household waste. In accordance with the WEEE directive, take it free of charge to a collection point, the manufacturer, or the retailer. Help protect the environment.

USER MANUAL 302657 CSL

Thank you for having chosen this product from CSL and for placing your trust in our company. Before using the product for first the time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• GSH-100 USB Gaming headset
- User manual

2 Technical specifications

Cable length approx. 2 m
Port USB
Features	Foldable microphoneCable remote controlVolume controlNext / previous title

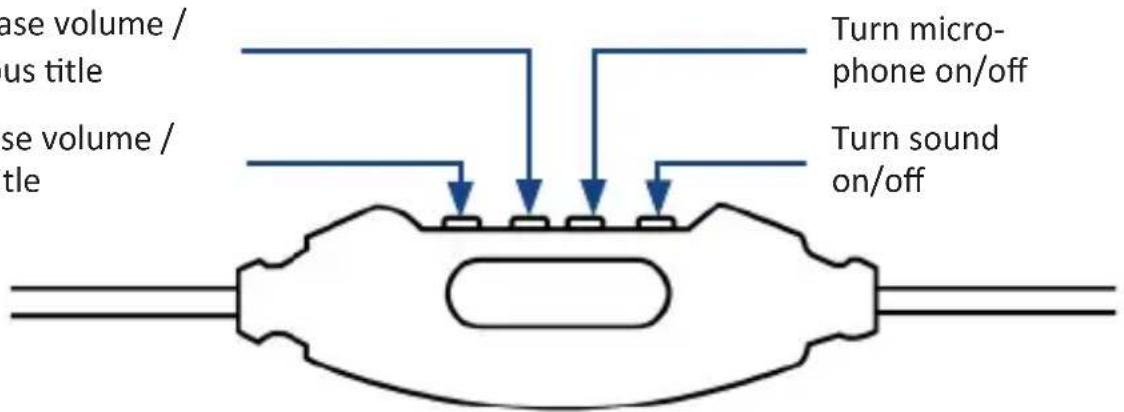

3 Cable remote control

Decrease volume / previous title

Increase volume / next title

4 Start-up

Remove the headset from the packaging and connect it into a free USB port on your computer. Due to "Plug and Play" this can also be done during operation.

The installation of the device drivers starts automatically. With the cable remote control it is easy to increase or decrease the volume, turn the microphone or sound on and off or play the next or previous track.

The volume can be increased or decreased by keeping the corresponding button pressed. Simply pressing the corresponding button will cause the next or previous track to be played.

5 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

CSL Computer GmbH & Co. KG, herewith declares that this product 302657/20161111DG037 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: CSL Computer GmbH & Co. KG, Sokelantstraße 35, 30165 Hanover
