303603 - Satellite receiver CSL - Free user manual and instructions

Product Type	Satellite Finder
Brand	CSL
Model	303603
Connectors	2 x F connector (receiver input, LNB output)
Display	Analog scale (0-10), polarization LED (13V/18V), switching signal LED (22KHz/0Hz)
Sound signal	Built-in buzzer for acoustic level indication
Adjustment	Rotary sensitivity control
Power supply	Via satellite receiver or multiswitch (13V/18V DC)
Power consumption	Low, powered by LNB
Temperature range	Temporary outdoor use, protect from moisture
Protection rating	Not waterproof, use in a dry place
Main functions	Helps with satellite dish alignment, signal strength measurement, visualization of polarization and switching signal
Care and cleaning	Wipe with a dry, lint-free cloth
Safety	Do not open, do not expose to water or high temperatures, use only as described
Spare parts and repairability	Not user-serviceable, contact supplier
General information	Supplied with connection cable and instruction manual

Frequently Asked Questions - 303603 CSL

How to connect the CSL 303603 satellite finder?

First unplug the receiver from the mains. Connect the finder to the cable from the receiver (to REC socket), then connect the LNB to the other socket using the provided cable. Plug the receiver back in.

What if the scale needle stays at maximum?

The signal is too strong. Reduce sensitivity with the rotary control. If necessary, add an attenuator between the LNB and the finder.

What are the LEDs on the device for?

The LEDs indicate the received polarization (13V = vertical, 18V = horizontal) and switching signal (22KHz = input, 0Hz = output).

How to set the sensitivity correctly?

Turn the rotary sensitivity control so that the needle is in the middle of the scale (value 5) during coarse adjustment. Then fine-tune by reducing sensitivity at each peak.

Can I use this finder with a multiswitch?

Yes, connect the finder between the multiswitch and the LNB. Ensure the multiswitch is powered and the receiver is on.

The buzzer does not work, is that normal?

The buzzer emits a sound proportional to the signal strength. If it does not sound, check connections and power. The volume is not adjustable.

What safety precautions should I take?

Never open the device, avoid water and moisture, do not expose to extreme temperatures. Use only indoors or in dry weather.

How to maintain the device?

Clean the device with a dry, soft cloth. Do not use chemicals. Store in a dry place.

Does this finder work with all LNBs?

Yes, it is compatible with standard LNBs using 13/18V polarization and 22KHz switching signal.

What if the needle does not move?

Check that the receiver is on and the LNB is powered. Ensure the cables are properly connected and that the sensitivity is not at minimum.

USER MANUAL 303603 CSL

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• Satellite finder
• Connection cable
• User manual

2. Technical specifications

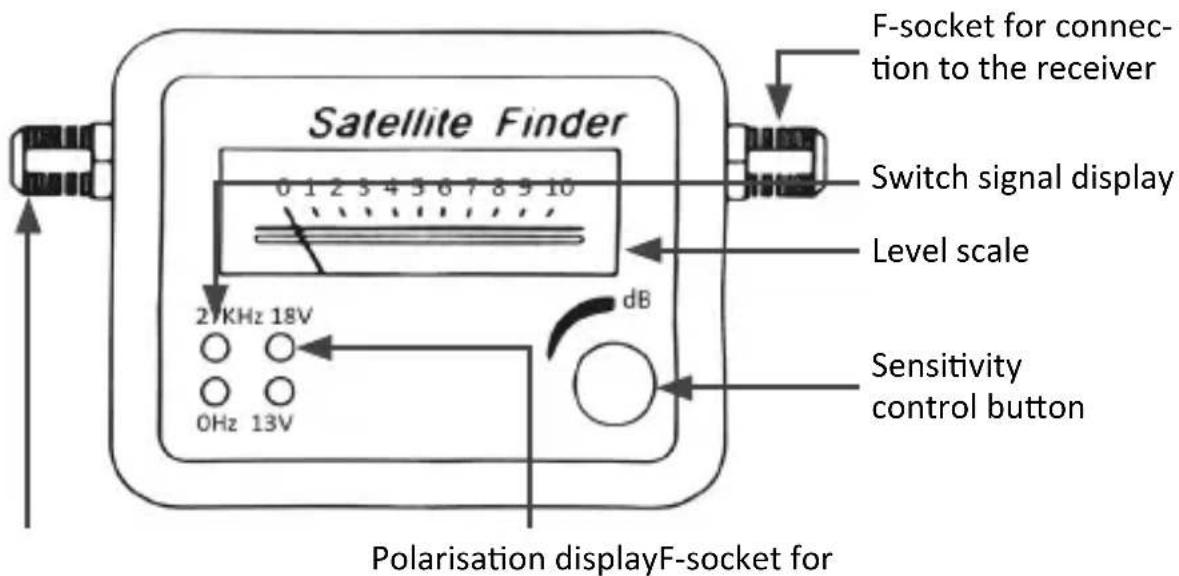

connection to the LNB

3. Function

The satellite finder provides you with an easily readable scale to find the optimal position for your satellite system. The signal strength is also indicated by a buzzer, so that you can fully concentrate on the installation.

4. Connection and start up

The satellite finder is intended for precise adjustment and optimization of the receiving signal. You have to determine the satellite and its position first and roughly align the satellite dish accordingly. You can use a compass or a more comfortable satellite finder app for smartphones.

First disconnect the receiver or the multi-switch from the power supply. Then connect the satellite finder with the cable coming from the receiver or the multi-switch. The appropriate connector on the reverse side is labelled "to REC". Link the connection cable included with the opposite connector on the satellite finder and the connector on your Low Noise Block (LNB). Ensure that the sensitivity control dial is set to minimum sensitivity. Thereafter, connect the receiver or multi-switch to the power mains and switch on the receiver so that the Low Noise Block and the satellite finder can be powered up. Roughly align the satellite dish and then set the sensitivity so that the pointer on the scale stops approximately at Value 5. Perform the fine adjustment of the satellite dish. Move the LNB until the needle on the scale points to a higher value. Reduce the sensitivity on the rotary controller until the needle has moved back to the middle of the scale and the LNB can be adjusted even more accurately. Repeat these steps several times until the optimal position has been reached. Fasten the satellite dish to ensure that its position can no longer be changed. The alignment has now been completed.

Note: The reception signal is too high for the satellite finder when the pointer jumps to the maximum value. Lower the sensitivity at the rotary controller in this case. An attenuation unit or an attenuation controller between the LNB and the satellite finder may be required when you use a very large satellite dish or a high-performance LNB.

5. Control displays

If you operate a multi-user SAT system with Quattro LNB, you need to measure the polarisation plane (13V vertical, 18V horizontal) to find the correct connection to the multi-switch. The control display enables you to determine the polarisation. The satellite finder also has LEDs to indicate the switch signal (22 KHz on / 0 Hz off).

6. Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. The product is only disconnected from the voltage system when the plug has been removed from the socket. Please avoid any contact to the electric current. Disregard of tis warning could lead to coming into contact with the operating voltage, or could generate a short circuit. Pull out the plug before lightning storm or if you do not regularly use this product, to prevent a short- circuit. This device is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperature and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage to the electronic part of this unit. Check the product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use the device for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims. The machine may only be used by persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention.

This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

7. Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment by an incorrect disposal. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return end-of-life electrical and electronic equipment

to their manufacturer, point of sale, public collection points or importer of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing points out these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU WEEE register No: DE 67896761

WD Plus GmbH, herewith declares that this product 303603 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
