USER MANUAL 303833 CSL

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing this CSL product and for placing your trust in our company. Please read this manual carefully before installation to ensure your long-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• Satellite finder
• User manual

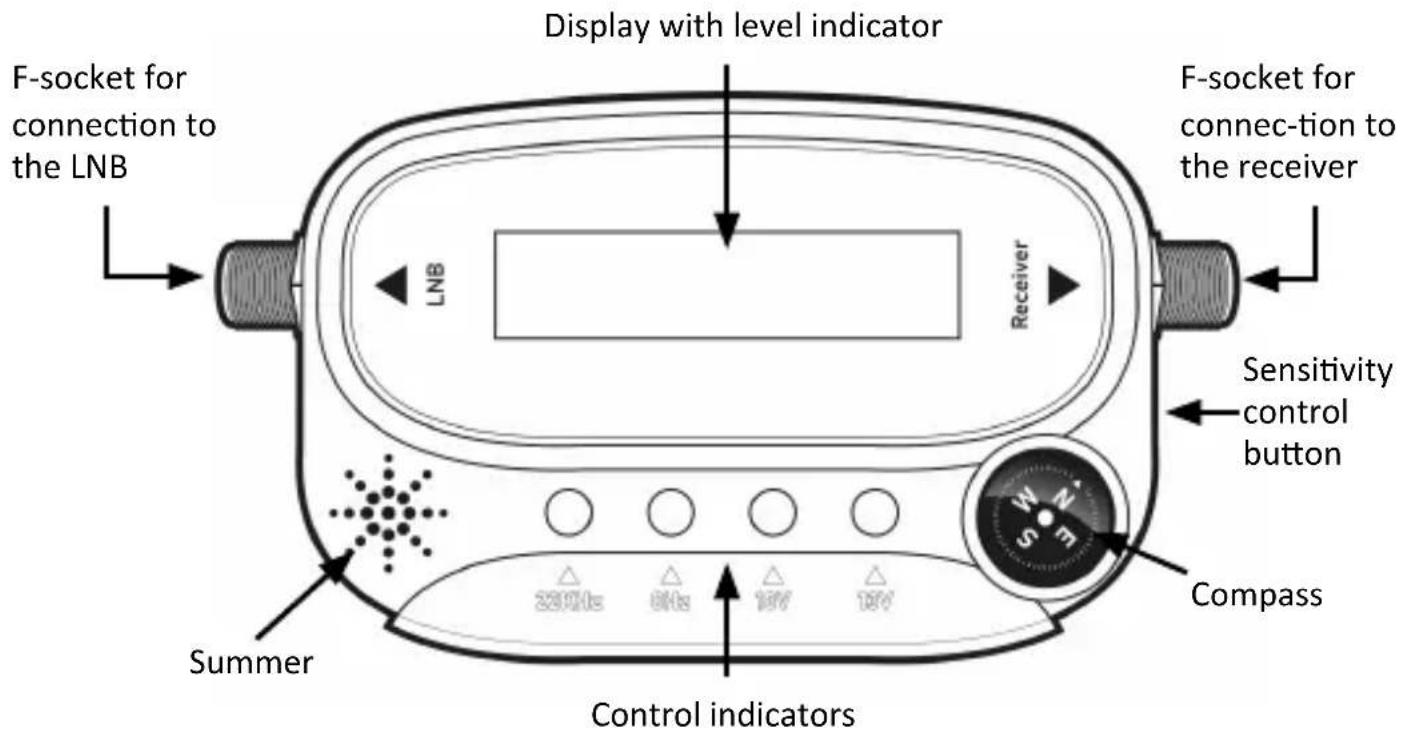

2. Technical specifications

F-socket for connection to the LNB Display with level indicator F-socket for connection to the receiver LNB Receiver Sensitivity control button Compass Summer Control indicators

3. Function

The satellite finder provides you with an easily readable scale to find the optimal position for your satellite system. The signal strength is also indicated by a buzzer, so that you can fully concentrate on the installation.

The satellite finder is intended for fine adjustment and optimization of the received signal. You first have to determine the satellite and its position and roughly align the satellite dish accordingly. You can use a compass or a comfortable satellite finder app for smartphones.

At first, disconnect the receiver or multiswitch from the power supply. Then connect the satellite finder with the connection cable coming from the receiver or multiswitch. The appropriate connection is marked „Receiver“ on the back. Afterwards connect the supplied connection cable to the opposite connection on the satellite finder and link it to a connection on your LNB. Make sure that the sensitivity knob is set to a minimum sensitivity. Then restore the power supply to the receiver or multiswitch and switch on the receiver so that the LNB and the satellite finder can be supplied with power. Roughly align the satellite dish and then adjust the sensitivity so that the display remains at approximately 50%. After that, make the fine adjustment. Move the LNB until the display shows a higher value. Then decrease the sensitivity of the knob until the display returns to about 50% to more accurately align the LNB. Repeat these steps several times until you have reached the optimal position. Next, attach the satellite dish so that the position cannot be changed. The alignment has now been completed.

Note: If the display shows the maximum value (100%), this means that the received signal is too large for the satellite finder. In this case, decrease the sensitivity of the knob. If you are using a very large satellite dish or a high performance LNB, you may need an attenuator or damping control connected between the LNB and the satellite finder.

5. Control displays

If you operate a multi-user SAT system with Quattro LNB, you need to measure the polarisation plane (13V vertical, 18V horizontal) to find the correct connection to the multi-switch. The control display enables you to determine the polarisa-tion. The satellite finder also has LEDs to indicate the switch signal (22 KHz on / 0 Hz off).

6. Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. The product is only disconnected from the voltage system when the plug has been removed from the socket. Please avoid any contact to the electric current. Disregard of tis warning could lead to coming into contact with the operating voltage, or could generate a short circuit. Pull out the plug before lightning storm or if you do not regularly use this product, to prevent a short- circuit. This device is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperature and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage to the electronic part of this unit. Check the product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use the device for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims. The machine may only be used by persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention.

This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

7. Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment by an incorrect disposal. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return end-of-life electrical and electronic equipment to their manufacturer, point of sale, public collection points or importer of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing points out these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE guideline: 2012/19/EU

WEEE register No: DE 67896761

WD Plus GmbH, herewith declares that this product 303833 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

Technical specifications

Umgebungstemperatur + 0	-3°C bis 35-40°C
Ambient temperature	+ 0-3°C until 35-40°C
Température ambiante + 0	-3°C à 35-40°C
Temperature ambiante + 0	-3°C fino 35-40°C
Temperatura ambiente + 0	-3°C a 35-40°C
