USER MANUAL Ferrara Audizio

MANUEL D'INSTRUCTIONS

V1.3

ENGLISH 4

UNPACKING INSTRUCTION....5

POWERSUPPLY 5

CONTROL 5

REMOTE CONTROL....6

USING THE REMOTE CONTROL....6

GETTING STARTED....7

NETWORK SETUP....7

INTERNET RADIO 7

MEDIA CENTRE 8

DAB(+) RADIO 9

FM RADIO 9

BT PLAYBACK 10

ALARM SETTING....10

SLEEP TIMER SETTING 10

MICRO SD/TF CARD SLOT....10

CD PLAYER....11

CONFIGURATION....11

HELPFUL TIPS 15

TROUBLESHOOTING 15

NEDERLANDS....17

UITPAKKEN 18

AANSLUITSPANNING 18

BEDIENING 18

AFSTANDSBEDIENING 19

GEBRUIK VAN DE AFSTANDSBEDIENING....19

AAN DE SLAG....20

PROBLEEMOPLOSSING 29

DEUTSCH....30

AUSPACKEN 31

NETZANSCHLUSS 31

BEDIENUNG 31

FERNSTEUERUNG 32

VERWENDEN DER FERNBEDIENUNG 32

ERSTE SCHRITTE 33

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.
• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.
• Do not repeatedly switch the fixture on and off. This

shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of a different magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

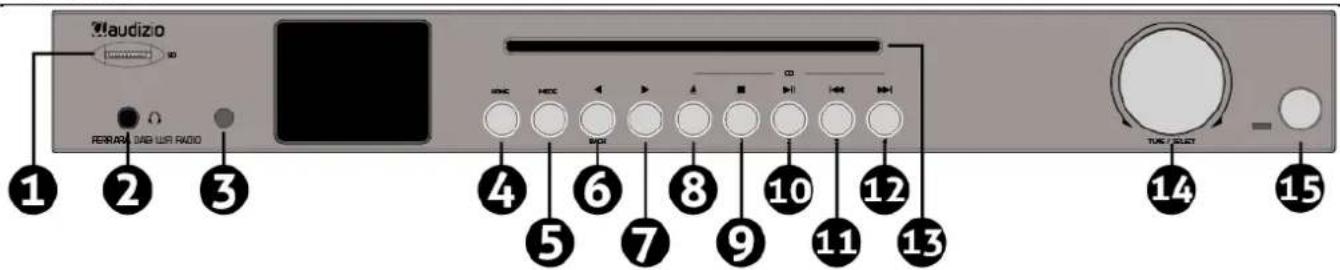

CONTROL

Iaudizio 1 2 3 REBRAN: DAB LWR RADIO 4 6 8 10 12 5 7 9 11 13 TURU / SELECT 14 15

1. Micro SD/TF card slot
2. Headphone jack

6.35mm headphones output jack.

1. Remote control infrared sensor
2. Home

Go back to main menu.

1. Mode

Go to mode selection, use tune/select to go to another mode.

1. Previous

Go to precious display or highlighted position in list.

1. Next

Go to next display or highlight next option.

1. Eject

Press to remove cd.

1. Stop

Press to stop playback.

1. Play/pause

Press to (re)start/pause play.

1. Previous track

Play previous track or rewind.

1. Next track

Play next track or fast forward.

1. Cd player

2. Tune / Select

Rotate to navigate menu / to adjust volume. Press to select an item.

1. Power button

Press to put the device in/out of standby mode.

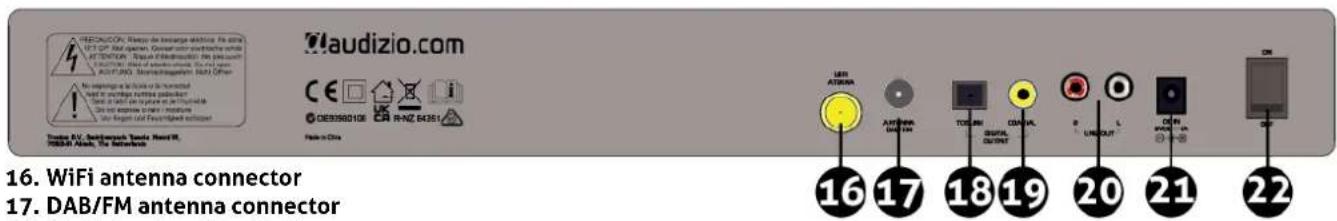

CAUDIZIO.COM 16. WiFi antenna connector 17. DAB/FM antenna connector

1. WiFi antenna connector
2. DAB/FM antenna connector
3. Optical output (Toslink)
4. Co-axial output
5. RCA line output
6. DC adapter connector
7. Power switch

Switch to turn the device on/off.

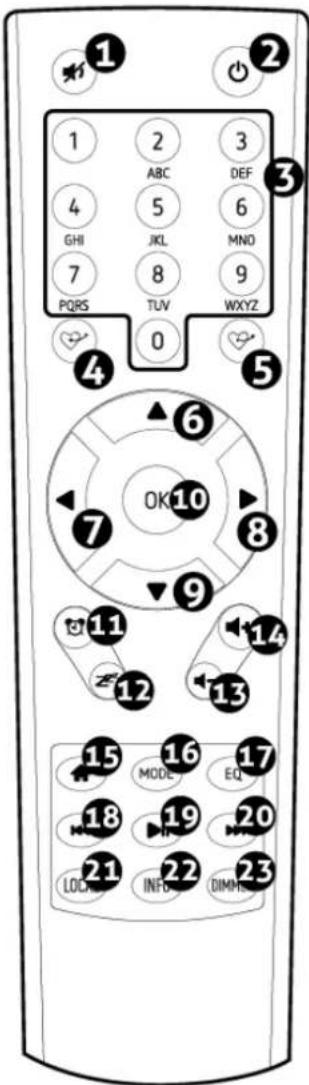

REMOTE CONTROL

1. Mute

Press to (un)mute the device.

2. Standby

Press to put the device in/out of standby mode.

3. 0-9 Num pad

4. Set to preset/favourite

Save the current station as preset/favourite.

5. Recall presets/favourites

Enter the presets/favourites list.

6. Cursor up

7. Cursor left/back to previous menu

8. Cursor right

9. Cursor down

10. OK

Press to confirm your input.

11. Alarm

Press to enter the alarm clock function.

12. Sleep timer

Press to enter the sleep timer function.

13. Vol -

Press to lower the volume.

14. Vol +

Press to raise the volume.

15. Main menu

Press to enter the main menu.

16. Mode

Press to switch between Internet radio-, DAB+, FM-, BT- and Media Centre modes.

17. EQ

Equalizer (for headphone- and line output only).

18. Previous station/previous track/Media centre

19. Play/pause

Press to (re)start/pause play.

20. Next station/next track/Media centre

21. Local

Access the local station list (Local Area setup in configuration).

22. Info

Quick access to network and system information.

23. Dimmer

Enter the dimmer menu to adjust the brightness of the display.

1 2 3 4 5 6 7 8 9 PQRS TUV WXYZ 0 1 2 ABC DEF 3 4 OK10 5 6 7 8 9 10 11 12 13 14 15 MODE EQ 16 17 18 19 20 21 22 DIMM

USING THE REMOTE CONTROL

On the num pad, press each button repeatedly to cycle through the letters, numbers and symbols as listed below. To input a character, scroll to the correct one and press the button to set the character. When the last character is being highlighted, press to confirm your input.

Button 1: 1 and different kind of symbols !@#\$%^&*()_+[]{};:"|./<>?

Button 2: 2ABCabc

Button 3: 3DEFdef

Button 4: 4GHIghi

Button 5: 5JKLjkl

Button 6: 6MNOmno

Button 7: 7PQRSpqrs

Button 8: 8TUVtuv

Button 9: 9WXYZwxyz

Button 0: 0

Using the control knob on the tuner (instead of using the remote control)

Use the knob to scroll through the characters and press the button to set the character. When the last character is being highlighted, press to confirm your input.

Note: the security code is case sensitive.

Remove the tuner from the package box.

Plug in the DC adapter and switch the switch (on the rear panel) to "ON". Press the (on the front panel) to power on the device.

Caution: Only use the supplied adapter to power the device. Using a power supply with a different rating can cause permanent damage to the device and may be hazardous.

The tuner is intended to be connected with external powered speakers. It does not have a built-in amplifier and speakers driver. Please connect your stereo through the analogue- or digital outputs, located on the rear panel.

NETWORK SETUP

An internet connection can be setup via wireless LAN (WiFi).

Wireless LAN (WiFi)

Connect the WiFi antenna to the connector on the rear panel. If done for the first time, the Configure Wizard will appear on the display. Choose "Yes" to start configuring the network. Press the button to highlight "Yes" and press to confirm your input.

Select Add/Remove AP, use the knob to confirm. Now choose Add AP.

The device will start scanning the available WiFi-routers. Scroll to your network and press to confirm. If your WiFi network is protected by a security code, you will be asked to enter the password.

If the connection has been successful, the WiFi signal bar will appear in the top left corner of the display.

When in the main menu, select "Internet Radio" and you will find the below options:

Skytune

Select Skytune to start enjoying radio stations from all over the world. You can filter your search by, for example, region and genre. The Local Radio lets you quickly access available stations in your region through internet connection.

Note: you can set the local radio area under Configuration>Local radio setup.

Search

Instead of browsing the radio station list, you can input a few characters of the desired station to filter out/short list the stations.

History

The device memorizes the stations you have listed up to 99 stations. If you have listened more than 99 stations, it will supersede the first station that you have listened.

Start playing internet radio

When a radio station is playing, additional radio information can be displayed. Press the on the remote when in below state of play.

Internet Radio Top 40 Dance TOP40 Dance IMANY - Don't Be So Shy < 3/30 0:06 >

Every time you press the button, the display will show various information (if available), such as streaming bit rate, artist name, song name, etc.

Top 40 Dance Pop MP3,128Kbps 44100Hz,2ch Peter Fox - Haus am See < 3/30 0:14 >

Top 40 Dance 10:37 < 2 May,2018 Wed >

Game interface screenshot showing 'Top 40 Dance' title and 'TOP40 Dance' logo with time 10:38

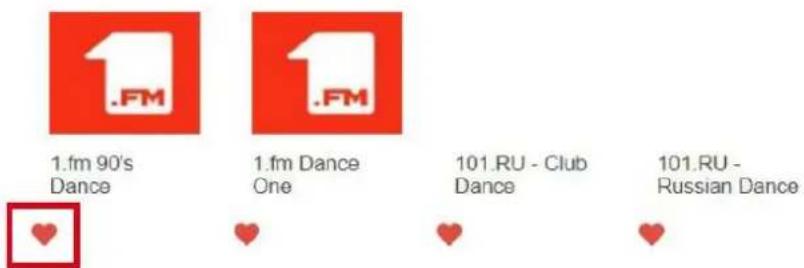

Favourites

Shows the list of your favourite stations which have been assigned to the presets.

Preset a station

You need the remote control to preset a station. When a station is playing, press the button on the remote control. The preset icon will appear on the display and the station is added to the favourite list.

Top 40 Dance Pop MP3,128Kbps 44100Hz,2ch Peter Fox - Haus am See < 3/30 0:14 >

The new added station will always show as the last item on the favourite list. Up to 99 presets can be stored.

Recall a station

Press the button on the remote control to recall the list of presets, or navigate to My Favourite on the main menu and select it to confirm.

Edit your favourite list

When in the favourite list: choose the station you want to edit and press the button on the remote control or press on the device. This will initiate the edit menu and will provide the following options:

Move down - move down the ranking of a station.

Move up - move up the ranking of a station.

Delete - Delete a station from the list.

MEDIA CENTRE

The device supports UPnP and is DLNA-compatible. This provides the opportunity to stream music from your network. However, this requires you to have a compatible device in your network that can function as a server. This can be e.g., a network hard drive or a conventional PC with e.g., Windows 8 via which access to the shared folder or media sharing is permitted. The folders can then be browsed and played on the Tuner.

Note: Please make sure your computer laptop is on the same Wi-Fi network as the device before you start using this function.

Music streaming

• Once the UPnP/DLNA compatible server is configured to share media files with your radio, you can start music streaming.
  • On the main menu, select Media Centre and choose UPnP.
• It may take a few seconds for the radio to complete the scan for available UPnP servers. If no UPnP servers are found, it will show Empty List.
  • After a successful scan is done, select your UPnP server.
  • The radio will show the media categories available from the UPnP server, e.g. 'Music', 'Playlists' etc.
• Choose the media files that you wish to play.

You can set the mode of playback under Configuration > Playback setup.

My playlist

You can make your own playlist for the UPnP music files. Choose and highlight the song you want to add to playlist, press and hold the knob or press and hold the button on remote, until the sign appears. The song will be added to My playlist.

Clear my playlist

Remove all songs in My playlist to allow a new playlist to be prepared.

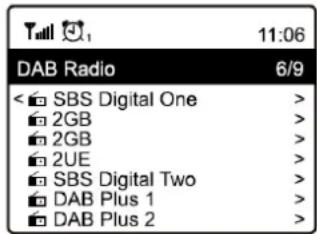

DAB(+) RADIO

If there is Digital Audio Broadcasting (DAB) in your area, the device can pick up the DAB stations (no internet connection is required). The device supports both DAB and DAB+. Connect the supplied wire antenna to the antenna connector on the rear cabinet. Place the radio close to the window and extend the antenna as far as it can go to get the best reception.

On the main menu, scroll to DAB Radio or use the button on remote to switch to DAB Radio. Press to start. It will ask whether you want to Scan DAB Station. Press to start scanning and it will show the progress on the number of channels received. When it is done, a preset page will be displayed.

Tall 11:06 DAB Radio 6/9 < □ SBS Digital One > □ 2GB > □ 2GB > □ 2UE > □ SBS Digital Two > □ DAB Plus 1 > □ DAB Plus 2 >

You can select a station and start listening to it. Whenever you want to add the station to My Favourite, press the button and the station will be added to the favourite list.

Press the button (or on the device) to return to the Preset list.

FM RADIO

To receive FM stations (no internet connection is required), connect the supplied wire antenna to the antenna connector on the rear cabinet. Place the radio close to the window and extend the antenna as far as it can go to get the best reception.

On the main menu, scroll to FM Radio or use the button on remote to switch to FM Radio. Press to start. It will ask whether you want to Scan FM Station. Press to start scanning and it will show the progress on the number of channels received. When it is done, it will automatically save the found stations on presets and display the list.

Tall 11:06
FM Radio	1/10
< FM 88.10MHz	>
FM 89.50MHz	>
FM 90.30MHz	>
FM 92.10MHz	>
FM 94.40MHz	>
FM 96.90MHz	>
FM 97.60MHz	>

You can select a station and start listening to it. Whenever you want to add the station to My Favourite, press the button and the station will be added to the favourite list.

Press the button (or on the device) to return to the Preset list.

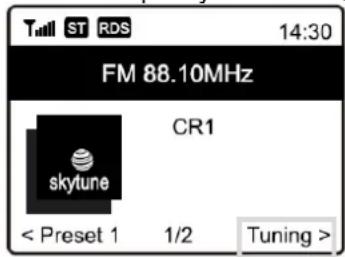

Manual tune

To manual tune to the frequency, long press on the remote or long press on the device, until you see "Tuning" appearing in the bottom right corner of the display. Use the buttons on the remote control to tune the frequency. When done, long press the button to exit manual tune.

FM 88.10MHz CR1 skytune < Preset 1 1/2 Tuning >

BT PLAYBACK

Before transmission between your BT device and the radio is possible, both devices must be coupled. This process is called "pairing". The radio is served as a receiver, to receive music stream to play on the radio.

If you have already coupled to a BT device before, this connection will be restored automatically when both devices are in range and BT operation has been selected on the radio. "Pairing" does not have to be repeated. This function may need to be activated on your BT device, however.

• Push the Menu button to display the selection menu for the different operating modes.
• Use the up/down button to select the operating mode BT and push the dial switch.
• Switch on your BT device to which you want to connect the radio to and activate the pairing mode. The device scans for BT devices within the reception range.
• When the radio is found, your BT device shows its name Audizio Trento.
• Select the radio on your BT device.
• Start playback on your BT device.
• Playback now takes place using the radio.

ALARM SETTING

• Choose Alarm from the main menu or press the button on the remote control.
• Select either Alarm 1 or Alarm 2, choose Turn on to activate the Alarm.
• Follow the alarm wizard instructions to set the alarm.
• The wizard will guide you through the settings below:

Time - Set the time for the alarm.

Sound - You can choose Wake to Tone, My Favourite, Wake to FM Radio or Wake to DAB Radio as the alarm source. Note - Wake to FM or Wake to DAB Radio - only the preset stations can be used for the radio alarm (if the preset scan has been completed).

Wake to My Favourite - Please preset your favorite station before setting this as the alarm source.

Repeat - You can schedule the alarm as you desire -Everyday, Once or multiple days.

Alarm Volume - Adjust the volume of the alarm as you like by rotating the knob or buttons on remote.

Alarm duration - Set the duration of the alarm from the preset options ranging from 30 to 180 minutes. The radio will be turned to standby when the selected duration of time is due.

- After the above settings are completed, press the button to exit and make sure the Alarm is turned on. You will see the Alarm icon appeared on the display if it is activated.

Talll l1 l2 z3 11:07 Internet Radio 1/3 < Skytune > Search(Skytune) > History >

SLEEP TIMER SETTING

You can set the timer force the radio in standby mode after the selected time has elapsed (within the range of 15 minutes to 180 minutes). Press the button on the remote control to set the timer. You will see the icon appearing on the display when the timer is set.

Till 12 Z30 11:07 Internet Radio 1/3 < Skytune > Search(Skytune) > History >

MICRO SD/TF CARD SLOT

The radio can playback audio files on micro SD/TF cards if they stored in mp3 or FLAC format

To start playing music files insert the micro SD/TF card intro the card reader slot and a list of available music files will be displayed.

Search the file that you want to play and select it by pressing the knob on the front of the radio or the button on the remote controller.

Playback will start by playing the selected track with the next track to be played selected automatically according to the playback option setting under playback setup in configuration mode i.e. repeat all, repeat one, shuffle of normal.

Note: Presets cannot be used with the micro SD/TF card feature.

CD PLAYER

Select CD Player mode (press Home button and navigation to CD mode) and insert a CD intro the CD player slot.

The radio will automatically start playing the first track on the CD with the next track to be played selected automatically according to the playback option selected in configuration mode under playback setup i.e. repeat all, repeat one, shuffle of normal.

Note: Presets cannot be used in the cd player mode.

CONFIGURATION

This is where you'll find the complete settings/options available to configure your own radio tuner. When in the main menu, navigate to Configuration setting. Press and you will see a list of available options.

Network

• Network options

Always on: The WLAN function remains switched on (faster access when switching from DAB or FM mode to Internet radio).

Auto off in 30s: The WLAN function shuts down after 30 seconds when not in use (to save energy).

- Wifi channels

Not all of the Wi-Fi channels are available in every country. There may be variation between different countries.

Therefore it is necessary to choose the Wi-Fi channels to ensure the Wi-Fi performs satisfactory. We have already set the channels according to the requirement in different countries. Choose the country you are staying from the list to get the correct channel. The Europe/United Kingdom is set by default, press on the Remote control or push the knob to edit the country selection.

- WiFi network

- Add / remove AP

Add AP - It will scan for routers in your area.

Add AP (WPS) - Select this option for connecting your WiFi-router via WPS (if the router has a WPS button). Add AP (SmartConfig) - Choose this option to configure the WiFi network with a smart phone through an app. It is available on iOS App Store and android play store. Search and install the app "Esptouch".

Have your smart phone connected to the same WiFi network which the radio is also connected to. It is recommended to place the radio within 2 meters from your router for the highest possible success rate. Follow the steps below:

1. On the radio: navigate to Configuration>Network>Add/Remove AP>Add AP (SmartConfig) and press to confirm.
2. Launch the App on your smart phone.
3. The name of the SSID (your WiFi-network) will appear as below.

EspTouch SSID: KCG_NET_2G BSSID: 6c:b0:ce:20 9b:18 Password: Device count: 1 Broadcast Multicast

1. Enter the WiFi password.
2. Tap Multicast, followed by Confirm to complete the setup.

EspTouch SSID: KCG_NET_2G ESSID: 6c:b0:ce:20-9b:18 Password: a388A388a Device count: 1 Broadcast Multicast

1. The radio will start associating with the network, the message "Association complete" will appear when the connecting is successful.

Remove AP - Choose this option if you have already added a router and want to delete it.

○ AP[]

If you have added more than one router and want to switch between them, select this option.

○ Signal

This is to show the strength of the signal of the Wi-Fi router as received by the radio. Usually signal levels lower than -70dBm is at weaker level and if it affects the reception of your radio, you may need to optimize the router location or check any problem of the router itself.

○ IP

The IP is set to Dynamic by default. Select to change the Fixed IP according to your network condition.

○ DNS

The DNS is set to Dynamic by default. Select to change the Fixed DNS according to your network condition.

Date and time

The radio will set your local time automatically after the internet connection is completed. If you want to do manual setting, change it with the following options:

- Time zone

Auto-set Time Zone: This option is set as default.

Manual-set Time Zone: Choose this option if you want to set the time in another region. Choose and highlight the region/city you prefer and press to confirm.

- Set time format

Choose either 12-hour or 24-hour notation.

- Set date format

Allows for changing the date format.

• DST (Daylight Saving Time)

Enable on/off.

• NTP (Use network time)

NTP is designed to synchronize a device's clock with a time server. Your device will synchronize with the time server by default every time it powers up and connects to Internet. This ensures a very high degree of accuracy. You can change to use other time servers by inputting the URL address (see below NTP server). You can choose "Do not use network time" if you don't want it to. If you choose not to use NTP for clock synchronization, highlight the NTP

(Network time protocol) and press to make the change. You will see the Set Date & Time appear. Select it and adjust the date and time as you desire.

- NTP server

NTP is designed to synchronize a device's clock with a time server. This sub-menu shows the server currently being used for the tuner.

Language

You can choose other languages than default as preferred. Scroll with the buttons on remote or the knob and press to select your language of choice. English, French, Spanish, Italian, German, Dutch, Polish, Russian and Simplified Chinese are available.

Local radio

The radio is set by default to detect the radio stations in your local area automatically through internet connection. These stations can be accessed by a press of the button on remote. You can also set Local in another region if you want. Highlight the Local Radio and press . Choose Manual-set Local radio to change the region setting.

DAB setup

- DAB preset scan

You can always carry out a new scanning of DAB channels by selecting this option. All current presets and channels will be erased.

• DAB radio preset

The scanned DAB stations will be listed here for management. You can move the positions of channels or delete them from the list entirely. Scroll to the station and press . A pop up window will appear: move up, move down and delete.

FM setup

- FM area

Choose the region according to your geographical location to define the search range of the tuner.

- FM preset scan

You can always carry out a new scanning of FM channels by selecting this option. All current presets and channels will be erased. The station at the lowest frequency of the scanned values will be highlighted. The preset list will be saved unless a new preset scan is carried out.

- FM radio preset

You can adjust the preset ranking by Move down, Move up or Delete it. Highlight one of the presets, then press on the remote control or on the device and the Edit menu has been entered. Press on the remote control or on the device to return to the preset list.

Playback setup

Menu to set the repeat mode under UPnP/DLNA compatible streaming: Repeat all, Repeat once or Shuffle.

Resume when power on

This function is ON by default. The device will resume with the last used status when powering on again.

Power-on options

This is to select the state/mode of the radio after a power reset. Choose to return to the standby mode or back to the main menu.

Dimmer

Set the backlight level for the display. There are two settings: Mode and Level.

• Mode - Normal or Power saving
Normal - the display will keep the same level of brightness without dimming down.
Power saving - the display will dim down after 20 seconds if no input is being made.

• Level - Bright and Dim

Bright - This is to adjust the level of brightness in Normal mode.

Dim - This is to adjust the level of brightness in Dim mode.

- Dimmer in standby

The display brightness in standby mode can be adjusted manually by turning the knob or by pressing the buttons on the remote. If no input has been registered within 20 seconds, the dim value will stay the same as set in Configuration.

EQ (Equalizer)

Various equalizer presets can be set (for Headphone- and Line output only).

Buffer time

Sometimes you may experience uneven playback of the internet radio. This can happen if the internet connection is slow or network congestion occurs. To help improving the situation, you can choose longer buffer time to get a few seconds of radio stream before beginning to play. The default value is 2 seconds. You can choose 5 seconds if you prefer to have a longer buffering time.

Information

View the Network and System Information of your radio. To quickly access this information, press the button on the remote control. When you use your PC to manage the My favorite stations, you have to use the IP address to be able to view the information. Type the IP address (Configuration > Information > Network Information > IP) to your PC's browser input window.

Software update

There may be software released to upgrade features of the radio from time to time. Check the update menu regularly to keep your radio up to date with the latest software.

Reset to default

You can do the reset to clear all the settings and return to the default settings. Note: all the station presets, settings and configuration will be erased after performing the reset.

REMOTE CONTROL VIA PC / SMART PHONE

Experience an easy way to control tuning internet radio channels and manage your favourite list via PC or Smart phone's web browser. The supported browsers are Internet Explorer and Chrome.

• Connect your PC or Smart phone to the same Wi-Fi network as your radio.
• Visit www.skytune.net
  • On the home page, click "Browse/Search"
• Browse or enter the name to search the radio channel, a list of internet radio channels will be displayed.
• Click the "♥" symbol

skytune SKYTUNE Internet Radio Browse / Search

Result for Searching 'dance'

1.fm 90's Dance

1.fm Dance One
101.RU - Club Dance
101.RU - Russian Dance

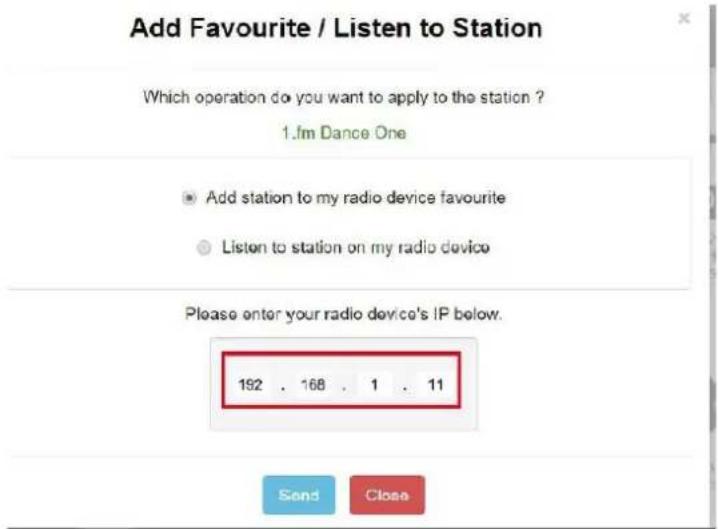

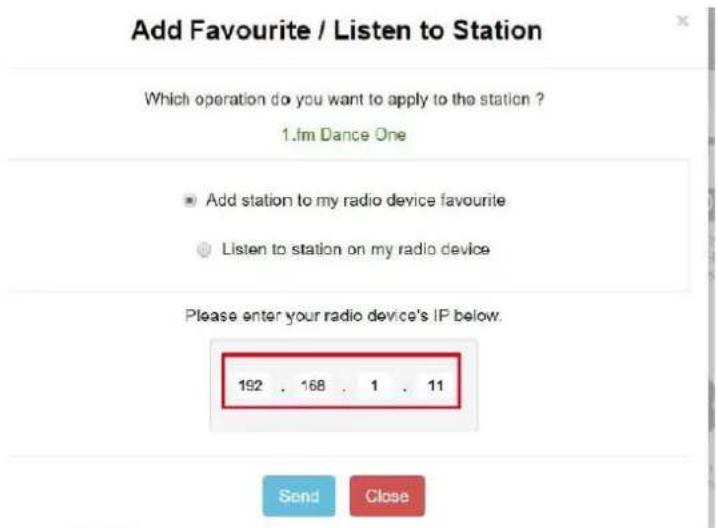

- It will prompt you whether to "Add Favourite" or "Listen to Station". Enter the IP address of your radio (e.g. 192.168.1.11):

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.fm Dance One Add station to my radio device favourite Listen to station on my radio device Please enter your radio device's IP below. 192 . 168 . 1 . 11 Send Close

The IP address can be located on the radio unit as follow:

* On the remote control, press the [Info] button, choose Network and scroll to IP to view the IP address
* On the radio, return to the main menu. Navigate to Configuration > Information > Network Information > IP

- Select "Listen to Station", click "Send" and the radio unit will switch playing the channel and the "My Favourite" page will pop up on the web browser.

You can then choose to add the playing station to favourite or manage your list by other edit options. Any changes will synchronize to the radio unit immediately.

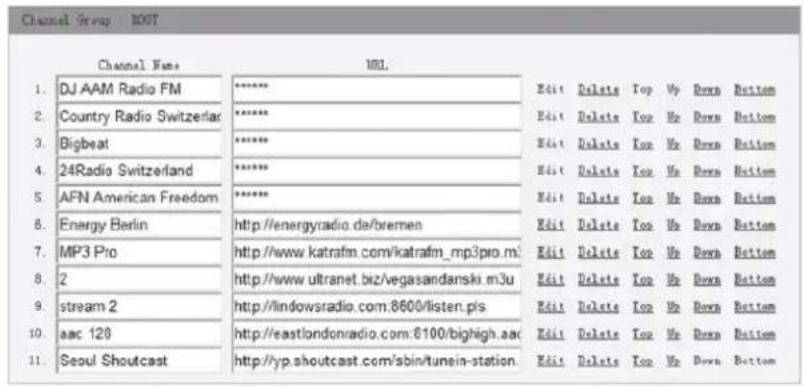

MY FAVOURITE

Channel Name URL 1. DJ AAM Radio FM **** Edit Delete Top Up Down Bottom 2. Country Radio Switzerland **** Edit Delete Top Up Down Bottom 3. Bigbeat **** Edit Delete Top Up Down Bottom 4. 24Radio Switzerland **** Edit Delete Top Up Down Bottom 5. AFN American Freedom **** Edit Delete Top Up Down Bottom 6. Energy Berlin http://energyradio.de/bremen Edit Delete Top Up Down Bottom 7. MP3 Pro http://www.katrafm.com/katrafm_mp3pro.m3 Edit Delete Top Up Down Bottom 8. 2 http://www.ultranet.biz/vegasandanski.m3u Edit Delete Top Up Down Bottom 9. stream 2 http://lndowsradio.com:8600/listen.pis Edit Delete Top Up Down Bottom 10. aac 128 http://eastlondonradio.com:8100/bighigh.aac Edit Delete Top Up Down Bottom 11. Seoul Shoutcast http://yp.shoutcast.com/sbin/tunein-station Edit Delete Top Up Down Bottom

Add Channel Channel Name URL Submit Reset

You can also add the radio channel if you know the published audio stream URL with the streaming format as follow:

1. Audio formats: MP3, AAC, AAC+
2. Stream formats: Shoutcast, Icecast (HTTP, HTTPS) and HLS
3. Playlist formats: PLS, M3U
4. Sampling frequency: 44.1 KHz and 48 KHz

HELPFUL TIPS

1. If the Internet Radio keeps re-buffering radio station:

The Internet Radio is streaming the data from the radio station via your broadband connection, if there is a high error rate on your broadband connection, or the connection is intermittent, then it will cause the Internet Radio to pause until the connection is re-established and it has received enough data to start playing again.

If your Internet Radio keeps stopping, please check the DSL modem to ensure that the Broadband line is not suffering a high error rate or disconnections. If you are experiencing these problems, you will need to contact your broadband supplier.

2. What is Buffering?

When playing a stream, the Internet Radio/Media player, downloads a small amount of the stream before it starts playing. This is used to fill in any gaps in the stream that may occur if the internet or the wireless network is busy. The Internet Radio streams music data from the PC while you are listening. If a stream gets blocked or experiences Internet congestion while transferring it may stop/interfere with the quality of play. If this happens, check your internet connection speed- it must be faster than the speed of the streams.

1. My radio is working but some stations cannot be played.

a) The problem may be due to one or more of the followings:
b) The radio station is no longer broadcasting.
c) The radio station has reached the maximum allowed number of simultaneous listeners.
d) The radio station has changed the stream arrangement and the link is no longer valid.
e) The radio station is not broadcasting at the time of the day (not all stations are broadcasting 24 hours throughout the day).
f) The Internet connection between your radio and the radio station server is too slow or unstable to support the data rate of the broadcast.

TROUBLESHOOTING

Problem	Cause	Solutions
Cannot connect to Wi-Fi network	Network downRouter restricts access to listed MAC addresses	Confirm that a Wi-Fi or Ethernet Wired connected PC can access the internet (i.e. can browse the web) using the same network.• Check that a DHCP server is available, or that you have configured a static IP address on the radio.• Check that you firewall is not blocking any outgoing ports. As a minimum the radio needs access to UDP and TCP ports 80,443 and 8008, DNS port 53.Obtain the MAC address from Configuration > Information > Network > Wi-Fi MAC and add to the allowed equipment list on your access point.Note: The radio has separate MAC addresses for wired and wireless networks.
	Insufficient Wi-Fi signal strength	Check distance to router; see if a computer can connect to the network in this location• Optimize the distance of the router's location
	Unknown encryption method	Change encryption method on router. The radio supports WEP, WPA, WPA2
	Firewall preventing access	Windows Media Player: varies — non-Microsoft firewalls may require configuration for UPnP.
If your radio can connect to the network successfully, but is unable to play particular stations		• The station is not broadcasting at this time of the day (remember it may be located in a different time zone).• The station has too many people trying to attach to the radio station server and the server capacity is not large enough.• The station has reached the maximum allowed number of simultaneous listeners.• The link on the radio is out of date. This is updated automatically every day, so the next time you turn on the link will be recognized.
No sound		• Adjust the volume level of the external powered speaker.• Please check if the power of the external powered speaker is switched on.

10:37 Top 40 Dance 10:37 < 2 May,2018 Wed >

Top 40 Dance TOP40 Dance

Favorieten

EspTouch SSID: KCG_NET_2G BSSID: 6c:00:cc:20/9b:18 Password. Device count: 1 Broadcast Multicast

EcpTouch SSID: KCG_NET_2G BSSID: 6c:00:0e:20-90:18 Password: a383A383a Device count: 1 Broadcast Multicast

- Dimmer in stand-by

Result for Searching 'dance'

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.fm Dance One • Add station to my radio device favourite • Listen to station on my radio device Please enter your radio device's IP below. 192 , 168 , 1 , 11 Send Close

Channel Name URL DJ AAM Radio FM **** Country Radio Switzerlar ***** Bigbeat ***** 24Radio Switzerland ***** AFN American Freedom ***** Energy Berlin http://energyradio.de/bremen MP3 Pro http://www.katrafm.com/katrafm_mp3pro.m2 2 http://www.ultranet.biz/vegasandanski.m3u stream 2 http://lndowsradio.com.8600/listen.pis asc 128 http://eastlondonradio.com:6100/bighigh.aac Seoul Shoutcast http://yp.shoutcast.com/sbin/tunein-station. Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom Edit Delete Top Up Down Bottom

Add Channel Channel Name URL Submit Reset

2. Wat is buffering?

PRAUATION: Keep the secure electrical, to ensure 16" UP, but open. General will not receive any ATTENTION. Assume 9 information. We can use CAUTION. Make details which do not get AC FUND. The network is available. Use Open For downloads in series, we can be used. Use in records to send packets. Use in a separate or similar device. Use in a network / network. Use in a network or fixed-point installation. AIA ATENA ANTENA SOUT TOLIN CAMPAL CNTN R L GND OUT OR ON OR 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Tell 12:09 My Favourite < 28 Apr, 2018 >

INTERNET-RADIO

Toll 10:37 Top 40 Dance 10:37 < 2 May,2018 Wed >

Top 40 Dance TOP40 Dance

Favoriten

EspTouch SSID: KCG_NET_2G BSSID: 6c:00:cc/20:90:18 Password: Device count: 1 Breakfast Volkast

EspTouch SSID: KCG_NET_2G BSSID: 6c:00:0e:20:90:18 Password: a388A388a Device count: 1 Broadcast Multicast

Result for Searching 'dance' 1.fm 90's Dance 1.fm Dance One 101.RU - Club Dance 101.RU - Russian Dance

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.fm Dance One • Add station to my radio device favourite • Listen to station on my radio device Please enter your radio device's IP below. 192 . 168 . 1 . 11 Send Close

Channel Name URL 1. DJ AAM Radio FM **** Edit Delete Top Up Down Bottom 2. Country Radio Switzerland **** Edit Delete Top Up Up Down Bottom 3. Bigbeat **** Edit Delete Top Up Up Down Bottom 4. 24Radio Switzerland **** Edit Delete Top Up Up Down Bottom 5. AFN American Freedom **** Edit Delete Top Up Down Bottom 6. Energy Berlin http://energyradio.de/bremen Edit Delete Top Up Up Down Bottom 7. MP3 Pro http://www.katrafm.com/katrafm_mp3pro.m: Edit Delete Top Up Up Down Bottom 8. 2 http://www.ultranet.biz/vegasandarski.m3u Edit Delete Top Up Up Down Bottom 9. stream 2 http://lindowsradio.com:8600/listen.pis Edit Delete Top Up Up Down Bottom 10. aac 120 http://eastlondonradio.com:6100/bighigh.aac Edit Delete Top Up Up Down Bottom 11. Seoul Shoutcast http://yp.shoutcast.com/sbin/tunein-station Edit Delete Top Up Up Down Bottom

Add Channel Channel Name URL Submit Reset

Top 40 Dance 10:37 < 2 May.2018 Wed >

Top 40 Dance TOP40 Dance

Favoritos

EspTouch SSID: KCG_NET_2G BSSID: 6c:b0:ce:20 9b:18 Password: Device count: 1 Broadcast Multicast

EspTouch SSID: KCG_NET_3G BSSID: 6c:00:cc:20:96:18 Password: 23851833a Device count: 1 Broadcast Multicast The device is connected after startup Please make sure the network is 2.4G The device only supports 2.4G Confirm APP=0.32 / SDK=0.5.70

Result for Searching 'dance'

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.fm Dance One • Add station to my radio device favourite • Listen to station on my radio device Please enter your radio device's IP below. 192 . 108 . 1 . 11 Send Close

Channel Name URL 1. DJ AAM Radio FM **** Edit Delete Top Up Down Bottom 2. Country Radio Switzerland **** Edit Delete Top Up Down Bottom 3. Bigbeat **** Edit Delete Top Up Down Bottom 4. 24Radio Switzerland **** Edit Delete Top Up Down Bottom 5. AFN American Freedom **** Edit Delete Top Up Down Bottom 6. Energy Berlin http://energyradio.de/bremen Edit Delete Top Up Down Bottom 7. MP3 Pro http://www.katrafm.com/katrafm_mp3pro.m3 Edit Delete Top Up Down Bottom 8. 2 http://www.ultranet.biz/vegasandanski.m3u Edit Delete Top Up Down Bottom 9. stream 2 http://lndowsradio.com:8600/listen.pis Edit Delete Top Up Down Bottom 10. asac 128 http://eastlondonradio.com:6100/bighigh.aac Edit Delete Top Up Down Bottom 11. Seoul Shoutcast http://yp.shoutcast.com/sbin/tunein-station Edit Delete Top Up Down Bottom

Add Channel Channel Name URL Submit Reset

Top 40 Dance 10:37 < 2 May.2018 Wed >

Top 40 Dance TOP40 Dance

Favoris

EspTouch SSID: KCG_NET_2G BSSID: 6c:b0:ce:20 9b:18 Password: Device count: 1 Broadcast Multicast

Resume when power on

Result for Searching 'dance'

1.fm 90's Dance

1.fm Dance One

101.RU - Club Dance

101.RU - Russian Dance

- It will prompt you whether to "Add Favourite" or "Listen to Station". Enter the IP address of your radio (e.g. 192.168.1.11):

Add Favourite / Listen to Station Which operation do you want to apply to the station ? 1.fm Dance One • Add station to my radio device favourite • Listen to station on my radio device Please enter your radio device's IP below. 192 . 168 . 1 . 11 Send Close

Channel Name		VRL
1.	DJ AAM Radio FM	******	Edit	Delete	Top	Up	Down	Bottom
2.	Country Radio Switzerlar	******	Edit	Delete	Top	Up	Down	Bottom
3.	Bigbeat	******	Edit	Delete	Top	Up	Down	Bottom
4.	24Radio Switzerland	******	Edit	Delete	Top	Up	Down	Bottom
5.	AFN American Freedom	******	Edit	Delete	Top	Up	Down	Bottom
6.	Energy Berlin	http://energyradio.de/bremen	Edit	Delete	Top	Up	Down	Bottom
7.	MP3 Pro	http://www.katrafm.com/katrafm_mp3pro.m3c	Edit	Delete	Top	Up	Down	Bottom
8.	2	http://www.ultranet.biz/vegesandanski.m3u	Edit	Delete	Top	Up	Down	Bottom
9.	stream 2	http://lindowsradio.com:8600/listen.plo	Edit	Delete	Top	Up	Down	Bottom
10.	aac 128	http://eastlondonradio.com:8100/bighhigh.aac	Edit	Delete	Top	Up	Down	Bottom
11.	Seoul Shoutcast	http://yp.shoutcast.com/sbin/tunein-station.	Edit	Delete	Top	Up	Down	Bottom

Add Channel Channel Name URL Submit Reset

Output Connections : Optical, RCA, 3.5mm Jack

Power Supply : 100-240VAC 50/60Hz (9V Adapter)

Dimensions (L × W × H) : 430 × 260 × 60mm

Weight : 2,30

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.audizio.com

Copyright © 2022 by Tronios The Netherlands
