USER MANUAL Intimidator Spot 260X Chauvet

CHAVET INTIMATOR

Intentionally Left Blank Page

About This Guide

The Intimidator Spot 260X Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

- Replace the fuse with the same type and rating.

- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

- DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

- Intimidator Spot 260X

- Hanging bracket

- Power cord

- Quick Reference Guide

To Begin

Unpack your Intimidator Spot 260X and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link up to 7 Intimidator Spot 260X products on 120 V or 11 products on 230 V. Never exceed this number. Power-linking cords can be purchased separately.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

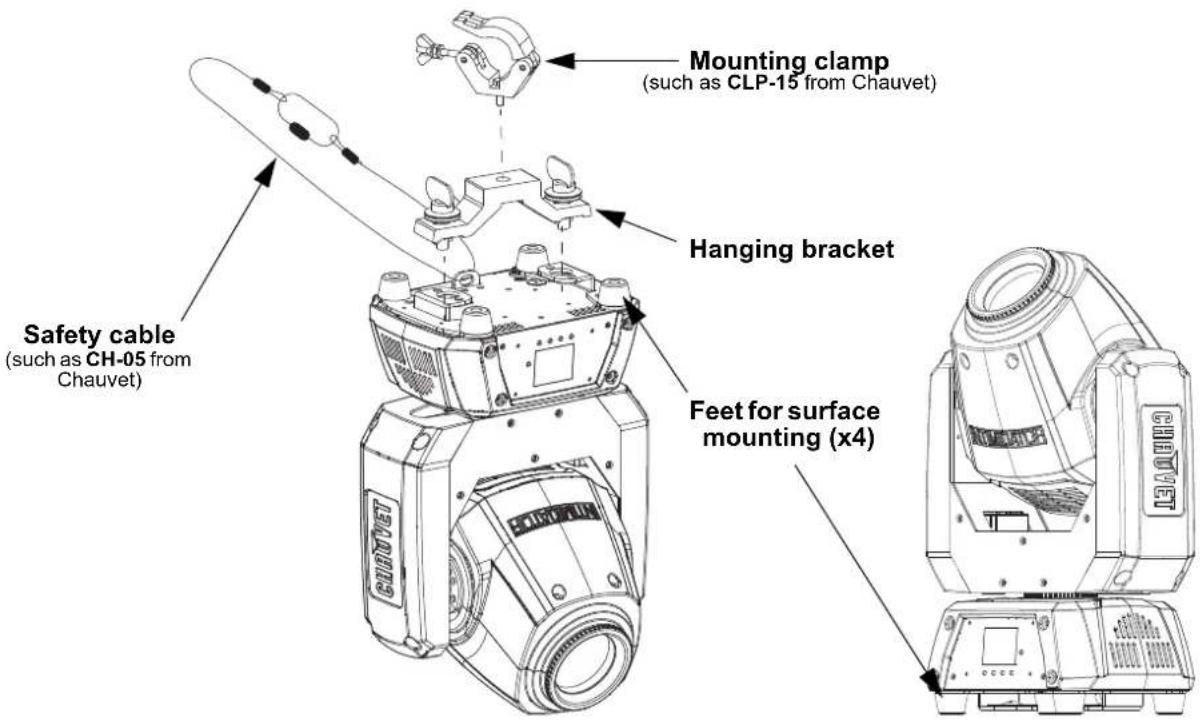

Mounting Diagram

Mounting clamp (such as CLP-15 from Chauvet) Hanging bracket Safety cable (such as CH-05 from Chauvet) Feet for surface mounting (x4)

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the Intimidator Spot 260X product page on www.chauvetdj.com for the latest menu map.

Main Level Programming Levels Description
Address 001-512 Sets the DMX starting address
Run Mode	DMX	14CH		Selects DMX mode
		8CH
	Slave Slave1-4 Selects Slave mode 1, 2, 3, or 4
	Auto Selects Auto mode
	Sound Selects Sound-Active mode
	RF	RF 1-4		Sets the product to work with the RFC-XL remote in group 1, 2, 3, or 4 (RF remote must be bound to the product first)
				Sets the product to work with public RF signalRFP
	Manual	Pan	000-255	Manual pan control
		Tilt Manual tilt control		Manual gobo rotation control
		Color Manual color control
		Gobo Manual rotating gobo control
		Gobo Rotate
		Prism		Manual prism control
		Focus		Manual focus control
		Dimmer		Manual dimmer control
		Shutter		Manual shutter control
Setup	Pan Reverse		OFF	Normal pan operation
			ON	Reverse pan operation
	Tilt Reverse		OFF	Normal tilt operation
			ON	Reverse tilt operation
	Screen Reverse		OFF	Normal display
			ON	Reverse display
	Pan Angle		540	Selects the 540^ pan angle range
			360	Selects the 360^ pan angle range
			180	Selects the 180^ pan angle range
	Tilt Angle		234	Selects the 234^ tilt angle range
			180	Selects the 180^ tilt angle range
			90	Selects the 90^ tilt angle range
	Totem Mode		OFF	Does not restrict the pan and tilt motion
			UP	Restricts the pan and tilt motion for overhead mounting
			DOWN	Restricts the pan and tilt motion for surface/floor mounting
	Sensitivity		001-100	Sets the sound sensitivity
	DMX Loss		Hold	Holds the last setting when signal is lost
			Black	Blacks out the product
			Auto	Sets the unit to Auto mode when signal is lost
			Sound	Sets the unit to Sound mode when signal is lost
	Indicator		ON	Enables/Disables LED Indicator
			OFF
	Flash if DMX		ON	Sets whether the LED indicator flashes when the fixture is connected to or disconnected from the DMX
			OFF
	RF		Bind	Shows instructions on how to bind the RF remote to the product
	Reset			Resets the product
	Factory Set			Loads factory defaults
Main Level	Programming Levels		Description
Sys Info	Ver: V_ Displays the firmware version
	Running Mode	----_	Displays the current running mode
	DMX Address ____	Displays the current DMX address
	Temperature ____	Displays the current product temperature

DMX Linking

The Intimidator Spot 260X can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 499.

Master/Slave Connection

The Intimidator Spot 260X uses the DMX data connection for its Master/Slave mode. Information about configuring the Intimidator Spot 260X for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

RF Remote

The Intimidator Spot 260X can be operated with the CHAUVET RFC or RFC-XL remotes. For more information about the RF Remote, download instructions for the Intimidator Spot 260X User Manual from www.chauvetdj.com.

Gobos

1

2

3

4

5

6

7

DMX Values

8Ch	14Ch	Function	Value	Percent/Setting
1	1	Pan	000 ⇔ 255	0–540°
-	2	Pan fine	000 ⇔ 255	Fine control of panning
2	3	Tilt	000 ⇔ 255	0–234°
-	4	Tilt fine	000 ⇔ 255	Fine control of tilting
-	5	Pan/tilt speed	000 ⇔ 255	Pan/Tilt speed, fast to slow
36	Color wheel		000 ⇔ 006	White
			007 ⇔ 013	Red
			014 ⇔ 020	Orange
			021 ⇔ 027	Yellow
			028 ⇔ 034	Green
			035 ⇔ 041	Blue
			042 ⇔ 048	CTO
			049 ⇔ 055	Cyan
			056 ⇔ 062	Magenta
			063 ⇔ 064	White
			065 ⇔ 189	Color indexing
			190 ⇔ 221	Color cycling rainbow, fast to slow
			222 ⇔ 223	Stop
			224 ⇔ 255	Reverse color cycling rainbow, slow to fast
4	7	Gobo wheel (seeGobos)	000 ⇔ 007	Open
			008 ⇔ 015	Gobo 1
			016 ⇔ 023	Gobo 2
			024 ⇔ 031	Gobo 3
			032 ⇔ 039	Gobo 4
			040 ⇔ 047	Gobo 5
			048 ⇔ 055	Gobo 6
			056 ⇔ 063	Gobo 7
			064 ⇔ 071	Gobo 7 shake, slow to fast
			072 ⇔ 079	Gobo 6 shake, slow to fast
			080 ⇔ 087	Gobo 5 shake, slow to fast
			088 ⇔ 095	Gobo 4 shake, slow to fast
			096 ⇔ 103	Gobo 3 shake, slow to fast
			104 ⇔ 111	Gobo 2 shake, slow to fast
			112 ⇔ 119	Gobo 1 shake, slow to fast
			120 ⇔ 127	Open
			128 ⇔ 189	Cycle effect, slow to fast
			190 ⇔ 193	Stop
			194 ⇔ 255	Reverse cycle effect, slow to fast
58	Gobo rotation		000 ⇔ 007	No function
			008 ⇔ 119	Clockwise rotation, slow to fast
			120 ⇔ 231	Counter-clockwise rotation, slow to fast
			232 ⇔ 255	Bounce, slow to fast
6	9	P r i s m	000 ⇔ 015	No function
			016 ⇔ 255	3-facet prism
7 10 Focus 000 ⇔ 255 Focus
-11 Dimmer 000 ⇔ 255 0–100%
8	12	Strobe	000 ⇔ 003	Off
			004 ⇔ 007	On
			008 ⇔ 076	Strobe, slow to fast
			077 ⇔ 145	Pulse strobe, slow to fast
			146 ⇔ 215	Random strobe, slow to fast
			216 ⇔ 255	On
- 13 Function			000 ⇔ 007	No function
			008 ⇔ 015	Blackout on pan/tilt movement
			016 ⇔ 023	Blackout on color wheel movement
			024 ⇔ 031	Blackout on gobo wheel movement
			032 ⇔ 039	Blackout on pan/tilt/color wheel movement
			040 ⇔ 047	Blackout on pan/tilt/gobo wheel movement
			048 ⇔ 055	Blackout on pan/tilt/color wheel/gobo wheel movement
			056 ⇔ 095	No function
			096 ⇔ 103	Pan reset
			104 ⇔ 111	Tilt reset
			112 ⇔ 119	Color wheel reset
			120 ⇔ 127	Gobo wheel reset
			128 ⇔ 135	No function
			136 ⇔ 143	Prism reset
			144 ⇔ 151	Focus reset
			152 ⇔ 159	All reset
			160 ⇔ 255	No function
- 14 Movement macros			000 ⇔ 007	No function
			008 ⇔ 023	Movement macro 1
			024 ⇔ 039	Movement macro 2
			040 ⇔ 055	Movement macro 3
			056 ⇔ 071	Movement macro 4
			072 ⇔ 087	Movement macro 5
			088 ⇔ 103	Movement macro 6
			104 ⇔ 119	Movement macro 7
			120 ⇔ 135	Movement macro 8
			136 ⇔ 151	Sound-active movement macro 1
			152 ⇔ 167	Sound-active movement macro 2
			168 ⇔ 183	Sound-active movement macro 3
			184 ⇔ 199	Sound-active movement macro 4
			200 ⇔ 215	Sound-active movement macro 5
			216 ⇔ 231	Sound-active movement macro 6
			232 ⇔ 247	Sound-active movement macro 7
			248 ⇔ 255	Sound-active movement macro 8
