USER MANUAL Intimidator Beam Q60 Chauvet

Technical line drawing of a CHAVET optical instrument (no text or symbols on the device itself)

About This Guide

The Intimidator Beam Q60 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

• Be sure that no ventilation slots on the unit's housing are blocked.
• Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• In the event of a serious operating problem, stop using immediately.
• DO NOT open this product. It contains no user-serviceable parts.

- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Intimidator Beam Q60

• Power cord

• Omega bracket

• Quick Reference Guide

To Begin

Unpack your Intimidator Beam Q60 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

For the maximum number of Intimidator Beam Q60 products that you can power link at each voltage, see the User Manual or the sticker on the product.

Fuse Replacement

1. Disconnect the product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder and pull straight out.
3. Remove the blown fuse from the holder and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

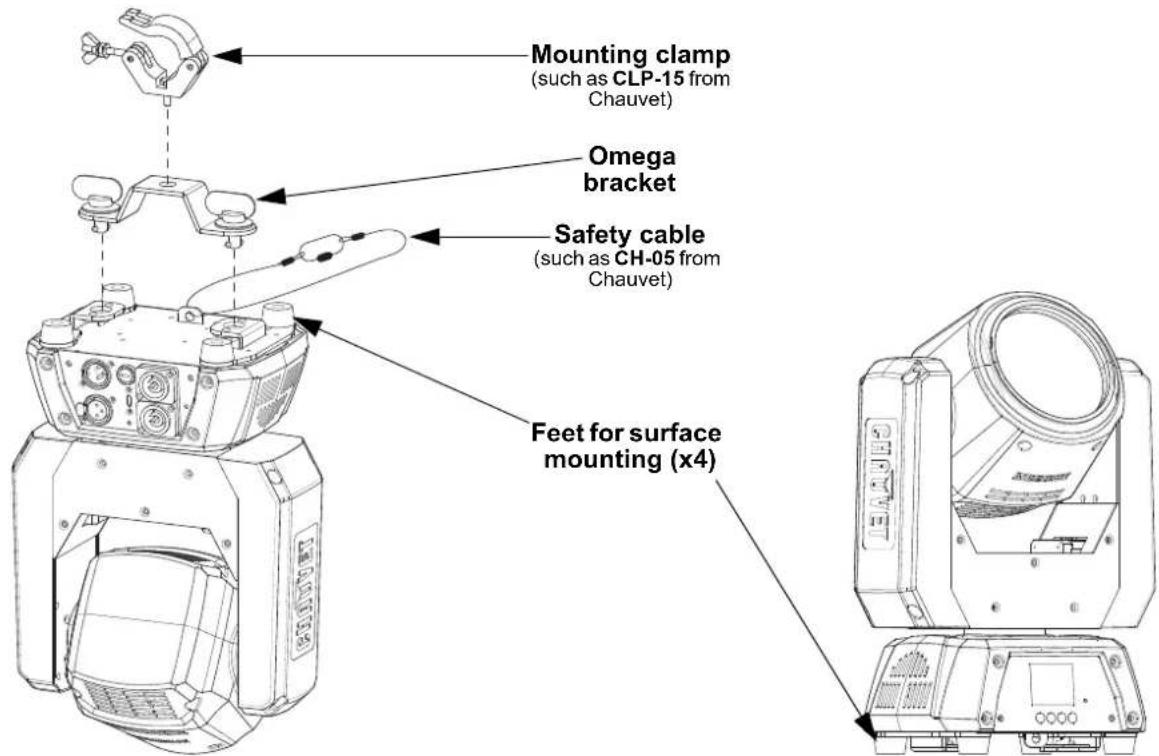

Mounting Diagram

Mounting clamp (such as CLP-15 from Chauvet) Omega bracket Safety cable (such as CH-05 from Chauvet) Feet for surface mounting (x4)

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the Intimidator Beam Q60 product page on www.chauvetdj.com for the latest menu map.

Main Level Programming Levels Description
Address 001-512 Sets the DMX starting address
Run Mode	DMX	16CH		Selects the DMX mode
		12CH
	Slave Slave1-4 Selects Slave mode 1, 2, 3, or 4
	Auto Selects Auto mode
	Sound Selects Sound-Active mode
	Manual	Pan	000-255	Manual pan control
		Tilt Manual tilt control
Setup	Pan Reverse	OFF Normal pan operation
		ON Reverse pan operation
	Tilt Reverse	OFF Normal tilt operation
		ON Reverse tilt operation
	Screen Reverse	OFF Normal display
		ON Reverse display
	Pan Angle	540		Selects the 540° pan angle range
		360		Selects the 360° pan angle range
		180		Selects the 180° pan angle range
	Tilt Angle	260		Selects the 260° tilt angle range
		180		Selects the 180° tilt angle range
		90		Selects the 90° tilt angle range
	Totem Mode	OFF Normal mode
		UP		Totem mode Base Up
		DOWN		Totem mode Base Down
	Sensitivity	001-100		Sets the sound sensitivity
	USB Set	OFF		Enables or disables USB function
		ON
	DMX Loss	Hold		Holds the last setting when signal is lost
		Black		Blacks out the product
		Auto		Sets the unit to Auto mode when signal is lost
		Sound		Sets the unit to Sound mode when signal is lost
	Reset			Resets the product
	Factory Set			Loads factory defaults
Sys Info	Ver:		V_	Displays the firmware version
	Running Mode:		----	Displays the current running mode
	DMX Address:		---	Displays the current DMX address
	Temperature:		---	Displays the product temperature in °C

DMX Linking

The Intimidator Beam Q60 can work with a DMX controller. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 497.

Master/Slave Connection

The Intimidator Beam Q60 uses the DMX data connection for its Master/Slave mode. Information about configuring the Intimidator Beam Q60 for Master/Slave operation is in the User Manual, which is available from the Chauvet website.

DMX Values
16CH

Channel Function Value Percent/Setting
1 Pan 000 ⇔ 255 0-540°
2	Fine pan	000 ⇔ 255	Fine control of panning
3 Tilt 000 ⇔ 255 0-260°
4	Fine tilt	000 ⇔ 255	Fine control of tilting
5 Continuous pan		000 ⇔ 003 No function
		004 ⇔ 127	Pan rotation, fast to slow
		128 ⇔ 131 Stop
		132 ⇔ 255	Reverse pan rotation, slow to fast
6 Continuous tilt		000 ⇔ 003 No function
		004 ⇔ 127	Tilt rotation, fast to slow
		128 ⇔ 131 Stop
		132 ⇔ 255	Reverse tilt rotation, slow to fast
7	Pan/tilt speed	000 ⇔ 255	Pan/Tilt speed, fast to slow
8 Shutter		000 ⇔ 031 Closed
		032 ⇔ 063 Open
		064 ⇔ 095	Strobe, slow to fast
		096 ⇔ 127 Open
		128 ⇔ 159	Pulse strobe, slow to fast
		160 ⇔ 191 Open
		192 ⇔ 223	Random strobe, slow to fast
		224 ⇔ 255 Open
9 Dimmer 000 ⇔ 255 0-100%
10 Virtual color wheel control		000 ⇔ 015 No function
		016 ⇔ 031 CTC
		032 ⇔ 047	Rainbow effect
		048 ⇔ 063	Reverse rainbow effect
		064 ⇔ 079 Continuous
		080 ⇔ 111	Color bounce
		112 ⇔ 255	Reserved for future use
11	Virtual color wheel (when Ch. 10 is 016 ⇔ 031)	000 ⇔ 047	Color temperature correction 2000K-2700K
		048 ⇔ 098 3200K white
		099 ⇔ 149 4200K white
		150 ⇔ 200 5600K white
		201 ⇔ 255 8000K white
	Virtual color wheel (when Ch. 10 is 032 ⇔ 047)	000 ⇔ 255	Rainbow effect, slow to fast
	Virtual color wheel (when Ch. 10 is 048 ⇔ 063)	000 ⇔ 255	Reverse rainbow effect, slow to fast
	Virtual color wheel (when Ch. 10 is 064 ⇔ 111)	000	Blackout
		001	Red
		002	Green
		003	Blue
		004	White
		005 ⇔ 046	Red: 0% Green: 0-100% Blue: 100% White: 0%
		047 ⇔ 088	Red: 0% Green: 100% Blue: 100-0% White: 0%
		089 ⇔ 130	Red: 0-100% Green: 100% Blue: 0% White: 0%
		131 ⇔ 172	Red: 100% Green: 100-0% Blue: 0% White: 0%
		173 ⇔ 214	Red: 100% Green: 0% Blue: 0-100% White: 0%
		215 ⇔ 255	Red: 100-0% Green: 0% Blue: 100% White: 0%
Channel Function Value Percent/Setting
12 Red	000 ⇔ 255 0–100%
13 Green	000 ⇔ 255 0–100%
14 Blue	000 ⇔ 255 0–100%
15 White	000 ⇔ 255 0–100%
16 Control		000 ⇔ 007 No function
		008 ⇔ 015 Reset all
		016 ⇔ 023	Blackout while pan and tilt moving on (5 second delay)
		024 ⇔ 031	Blackout while pan and tilt moving off (5 second delay)
		032 ⇔ 039	Sound-active pan and tilt on (5 second delay)
		040 ⇔ 047	Sound-active pan and tilt off (5 second delay)
		048 ⇔ 055	Sound-active color on (5 second delay)
		056 ⇔ 063	Sound-active color off (5 second delay)
		064 ⇔ 071 Display off
		072 ⇔ 079 Display on
		080 ⇔ 087 Fan speed auto
		088 ⇔ 095 Fan speed full
		096 ⇔ 103	Dimmer speed mode linear
		104 ⇔ 111	Dimmer speed mode slow
		112 ⇔ 119	Dimmer speed mode medium
		120 ⇔ 127	Dimmer speed mode fast
		128 ⇔ 135	Blackout on movement
		136 ⇔ 143	Pan forward spin
		144 ⇔ 151	Pan reverse spin
		152 ⇔ 159	Tilt forward spin
		160 ⇔ 167	Tilt reverse spin
		168 ⇔ 175	Pan and tilt forward spin
		176 ⇔ 183	Pan and tilt reverse spin
		184 ⇔ 191	Pan forward spin and tilt reverse spin
		192 ⇔ 199	Pan reverse spin and tilt forward spin
		200 ⇔ 255	Reserved for future use

12CH

Channel Function Value Percent/Setting
1 Pan 000 ⇔ 255 0-540°
2 Tilt 000 ⇔ 255 0-260°
3	Pan/tilt speed	000 ⇔ 255	Pan/Tilt speed, fast to slow
4 Shutter		000 ⇔ 031 Closed
		032 ⇔ 063 Open
		064 ⇔ 095 Strobe, slow to fast
		096 ⇔ 127 Open
		128 ⇔ 159 Pulse strobe, slow to fast
		160 ⇔ 191 Open
		192 ⇔ 223 Random strobe, slow to fast
		224 ⇔ 255 Open
5 Dimmer 000 ⇔ 255 0-100%
6 Virtual color wheel control		000 ⇔ 015 No function
		016 ⇔ 031 CTC
		032 ⇔ 047 Rainbow effect
		048 ⇔ 063 Reverse rainbow effect
		064 ⇔ 079 Continuous
		080 ⇔ 111 Color bounce
		112 ⇔ 255 Reserved for future use
7	Virtual color wheel (when Ch. 6 is 016 ⇔ 031)	000 ⇔ 047 Color temperature correction 2000K-2700K
		048 ⇔ 098 3200K white
		099 ⇔ 149 4200K white
		150 ⇔ 200 5600K white
		201 ⇔ 255 8000K white
	Virtual color wheel (when Ch. 6 is 032 ⇔ 047)	000 ⇔ 255 Rainbow effect, slow to fast
	Virtual color wheel (when Ch. 6 is 048 ⇔ 063)	000 ⇔ 255 Reverse rainbow effect, slow to fast
	Virtual color wheel (when Ch. 6 is 064 ⇔ 111)	000 Blackout
		001 Red
		002 Green
		003 Blue
		004 White
		005 ⇔ 046 Red: 0% Green: 0-100% Blue: 100% White: 0%
		047 ⇔ 088 Red: 0% Green: 100% Blue: 100-0% White: 0%
		089 ⇔ 130 Red: 0-100% Green: 100% Blue: 0% White: 0%
		131 ⇔ 172 Red: 100% Green: 100-0% Blue: 0% White: 0%
		173 ⇔ 214 Red: 100% Green: 0% Blue: 0-100% White: 0%
		215 ⇔ 255 Red: 100-0% Green: 0% Blue: 100% White: 0%
8	Red	000 ⇔ 255 0-100%
9	Green	000 ⇔ 255 0-100%
10	Blue	000 ⇔ 255 0-100%
11	White	000 ⇔ 255 0-100%

Channel Function Value Percent/Setting
12 Control	000 ⇔ 007 No function
	008 ⇔ 015 Reset all
	016 ⇔ 023	Blackout while pan and tilt moving on (5 second delay)
	024 ⇔ 031	Blackout while pan and tilt moving off (5 second delay)
	032 ⇔ 039	Sound-active pan and tilt on (5 second delay)
	040 ⇔ 047	Sound-active pan and tilt off (5 second delay)
	048 ⇔ 055	Sound-active color on (5 second delay)
	056 ⇔ 063	Sound-active color off (5 second delay)
	064 ⇔ 071 Display off
	072 ⇔ 079 Display on
	080 ⇔ 087 Fan speed auto
	088 ⇔ 095 Fan speed full
	096 ⇔ 103	Dimmer speed mode linear
	104 ⇔ 111	Dimmer speed mode slow
	112 ⇔ 119	Dimmer speed mode medium
	120 ⇔ 127	Dimmer speed mode fast
	128 ⇔ 135	Blackout on movement
	136 ⇔ 143	Pan forward spin
	144 ⇔ 151	Pan reverse spin
	152 ⇔ 159	Tilt forward spin
	160 ⇔ 167	Tilt reverse spin
	168 ⇔ 175	Pan and tilt forward spin
	176 ⇔ 183	Pan and tilt reverse spin
	184 ⇔ 191	Pan forward spin and tilt reverse spin
	192 ⇔ 199	Pan reverse spin and tilt forward spin
	200 ⇔ 255	Reserved for future use

Acerca de esta guía

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetdj.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.

Intimidator Beam Q60 QRG Rev. 6 ML6

© Copyright 2021 Chauvet

All rights reserved

RoHS CE
