USER MANUAL IX39B5 HTW

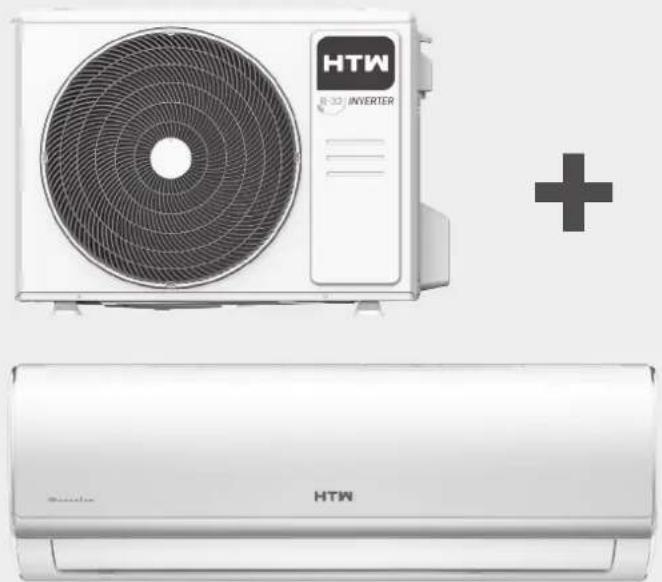

Product image of a HTW air conditioner unit with fan and back panel, plus a plus symbol (no text or labels on main body)

ESPAÑOL

Warning symbol of a flame inside a triangle (no text or numbers)

Mechanical diagram showing a tool interacting with a bolt and rotating a circular component (no text or symbols present)

Pure electrical circuit lines without any symbols

Illustration of hands performing a manual tool on a textured surface (no text or symbols)

Diagram of a cable assembly with exposed and hidden wires, showing internal components and connection (no text or labels)

Illustration of two hands holding a horizontal bar with two upward arrows, no text or symbols present

Diagram of air conditioning system components with numbered parts and Chinese labels

(1) (2)
Fig. 3.1.

Line drawing of a cylindrical device with a curved pipe extending from its side (no text or symbols)

Fig. 3.1-a

Pared Interior Exterior

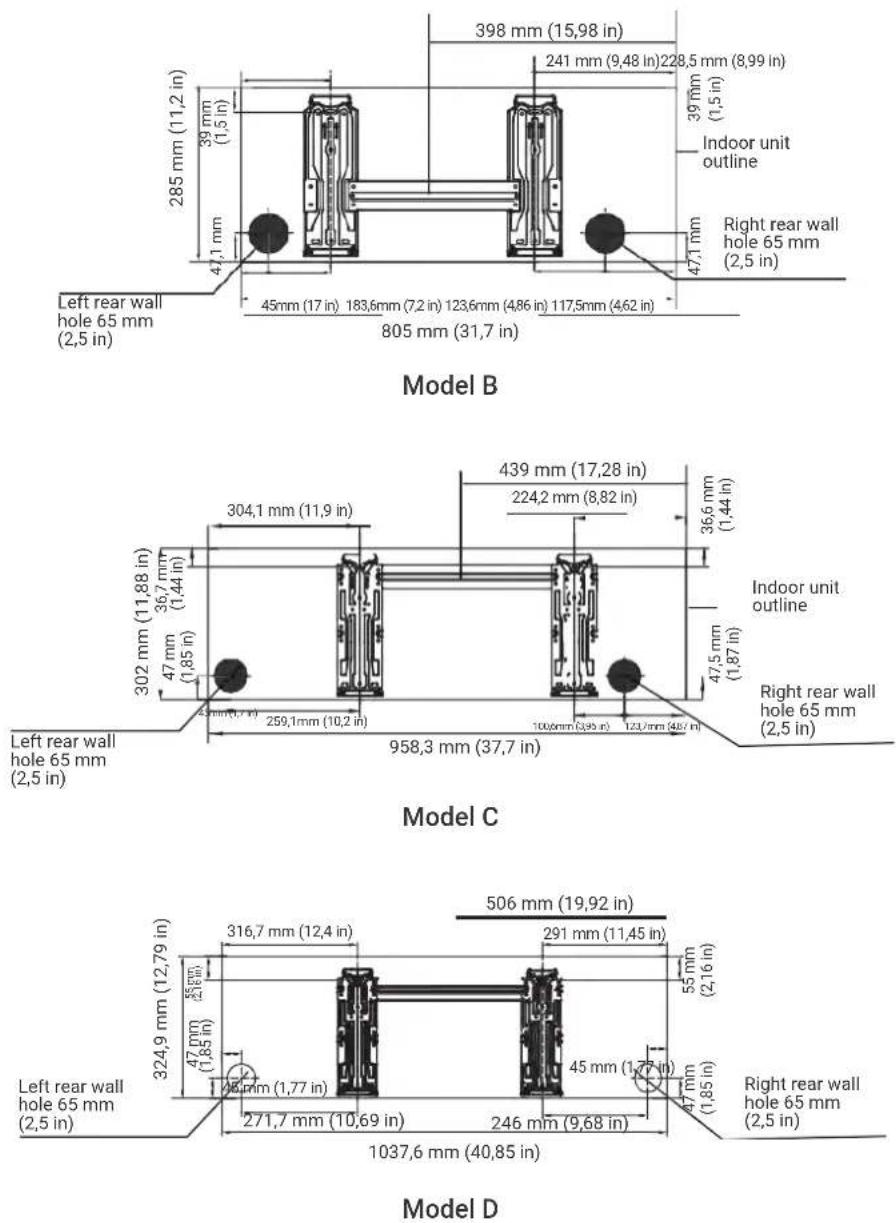

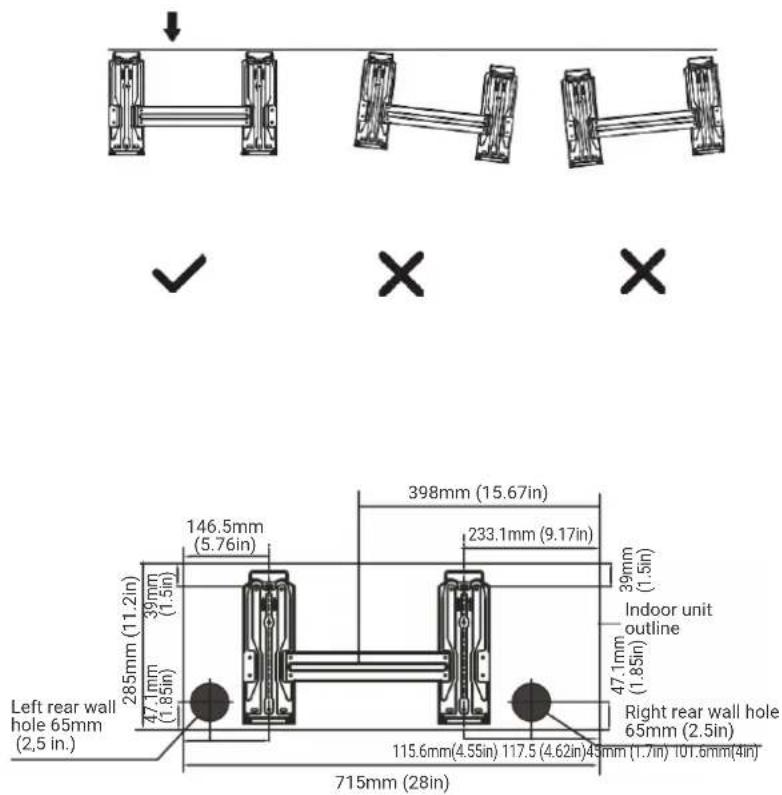

DIMENSIONES DE LA PLACA DE MONTAJE

Line drawing of a mechanical device with a coiled spring and housing (no text or symbols)

Fig 3.4.

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

▲ PRECAUCIÓN

Technical line drawing of a door latch mechanism against a vertical wall (no text or symbols)

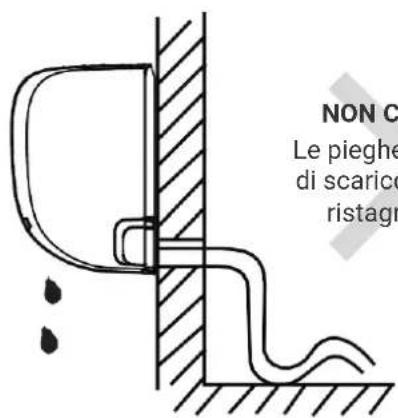

CORRECTO

Simple line drawing of a door hinge and pipe connection (no text or symbols)

Pure technical diagram of a door and pipe connection without any text, numbers, or symbols

Line drawing of a multi-free air conditioner unit with fan blades and mounting bracket (no text or symbols)

Technical illustration of a mechanical connector assembly showing two stages: before and after assembly, with no text or symbols present.

6.1 NOTA SOBRE LA LONGITUD DE LA TUBERÍA

Technical line drawing of a mechanical clamp or fixture with no visible text or symbols

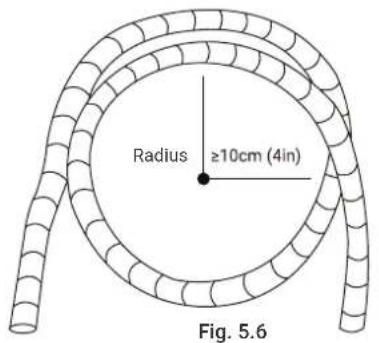

Radic ≥10cm (4in) Fig. 5.6

Line drawing of a hand using a wrench to lift a tool (no text or symbols present)

Fig. 5.8

PARES DE APRIETE

Diámetro exterior de la tubería (mm)	Par de apriete (N·cm)	Par de apriete adicional (N·cm)
∅ 6,35 (∅ 0,25") 1.5	00 (11lb·ft) 1.600 (11.8lb·ft)
∅ 9,52 (∅ 0,375") 2.5	00 (18,4lb·ft) 2.600 (19,18lb·ft)
∅ 12,7 (∅ 0,5")	3.500 (25,8lb·ft) 3.6	00 (26,55lb·ft)
∅ 16 (∅ 0,63")	4.500 (33,19lb·ft)	4.700 (34,67lb·ft)
∅ 19 (∅ 0,75")	6.500 (47,94lb·ft)	6.700 (49,42lb·ft)

NO APRIETE EN EXCESO

Line drawing of hands using a tool to adjust or install a mechanical component, labeled Fig. 5.10 (no text or symbols on the diagram itself)

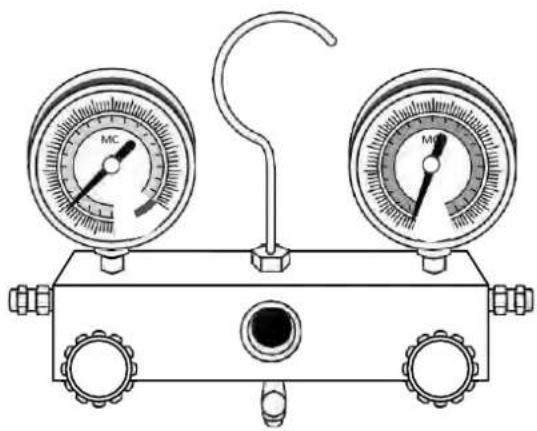

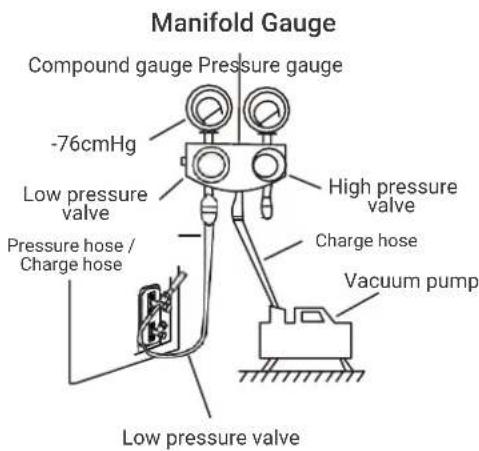

Line drawing of a dual-gauge pressure regulator with two gauges and a central valve (no text or symbols)

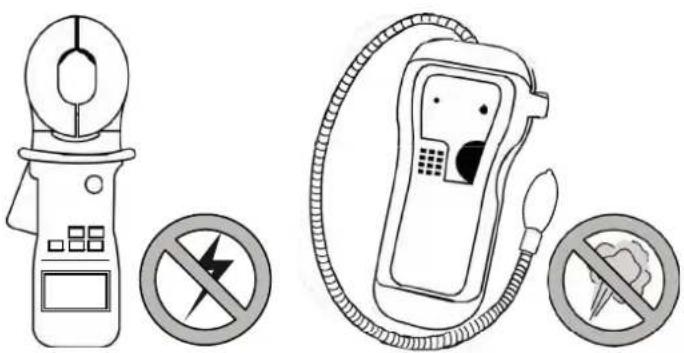

PREPARACIONES Y PRECAUCIONES

Safety warning symbols for electric vehicle charging and non-construction, including a device with no prohibition sign and a mobile phone.

Product image of a HTW air conditioner unit with fan and back panel, plus a plus symbol (no text or labels on main components)

ENGLISH

Installation manual. Split 1x1

THANK YOU

Thank you for choosing our products and we greatly appreciate your trust in us.

This is the Split IX39B5, which combines silent operation with its high energy efficiency and a design that adapts harmoniously to any environment.

We have prepared this manual with the utmost care so that you obtain the maximum benefit from your split.

READ CAREFULLY

TABLE OF CONTENTS

00 SAFETY PRECAUTIONS 48

01 ACCESSORIES 52

02 INSTALLATION SUMMARY - INDOOR UNIT ..... 54

03 UNIT PARTS 56

04 INDOOR UNIT INSTALLATION 57

4.1 Select installation location 57
4.2 Attach mounting plate to wall 58
4.3 Drill wall hole for connective piping 58
4.4 Prepare refrigerant piping 61
4.5 Connect drain hose 62
4.6 Connect signal cable 64

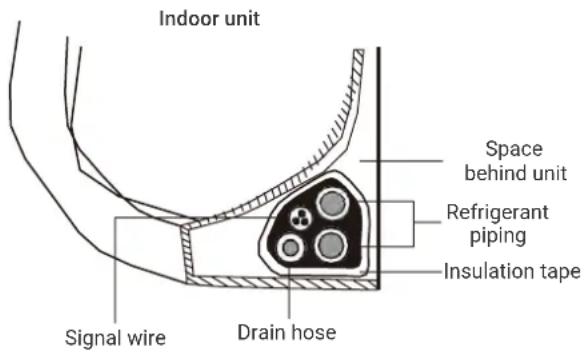

4.7 Wrap piping and cables 66
4.8 Mount indoor unit 67

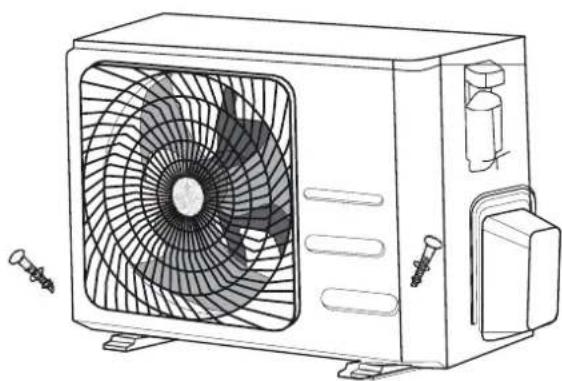

05 OUTDOOR UNIT INSTALLATION 68

5.1 Select installation location 68
5.2 Install drain joint 69
5.3 Anchor outdoor unit 70
5.4 Connect signal and power cables 71

06 REFRIGERANT PIPING CONNECTION 73
^6.1 Note on Pipe Length 73
^6.2 Connection Instructions – Refrigerant Piping ..... 73

07 AIR EVACUATION 77

08 ELECTRICAL AND GAS LEAK CHECKS 79

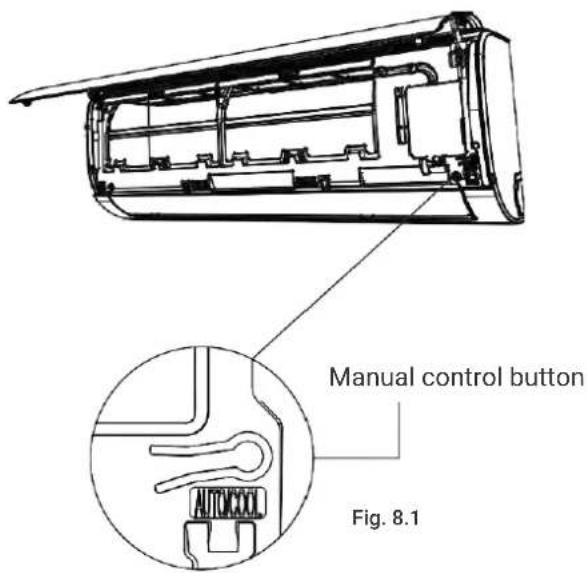

09 TEST RUN 80

10 EUROPEAN DISPOSAL GUIDELINES.... 82

11 INFORMATION SERVICING 83

Read safety precautions before operation and installation

Improper installation due to ignoring instructions can cause serious damage or injury.

The severity of possible damage or injury is classified as a WARNING or CAUTION.

WARNING

This symbol indicates the possibility of personal injury.

CAUTION

This symbol indicates the possibility of property damage or serious consequences.

WARNING

This device can be used by children over 8 years old and by people with reduced physical, sensory or mental abilities or lack of experience and knowledge provided they are under supervision or have received relevant instructions on the use of the device safely and Understand the dangers involved. Make sure children do not play with the device. The cleaning and maintenance of the user must not be carried out by children without supervision (requirements of the EN standard).

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or lack of experience or knowledge, unless they are supervised or have been instructed about the use of this appliance. by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device (requirements of IEC standard).

WARNING FOR PRODUCT USE

• If an abnormal situation arises (such as a burning smell), immediately turn off the unit and turn off the power. Call your dealer for instructions on how to avoid electric shock, fire or injury.
- Do not insert fingers, rods or other objects into the air inlet or outlet. This can cause injuries, as the fan may be rotating at high speeds.
- Do not use flammable sprays such as hairspray, hairspray or paint near the unit. This can cause a fire or start a fire.
- Do not operate the air conditioner in places that are near or around combustible gases. The emitted gas can accumulate around the unit and cause an explosion.
- Do not operate your air conditioner in a damp room, such as a bathroom or laundry. Too much exposure to water can cause a short circuit in electrical components.
- Do not expose your body directly to cold air for an extended period of time.
- Do not allow children to play with the air conditioner. Children must be supervised by an adult when being near the unit at all times.
- If the air conditioner is used together with burners or other heating devices, fully ventilate the room to avoid oxygen deficiency.
- In certain functional environments, such as kitchens, server rooms, etc., the use of special air conditioning units is recommended.

▲ CLEANING AND MAINTENANCE WARNINGS

• Turn off the device and turn off the power before cleaning. Otherwise, it may cause an electric shock.
- Do not clean the air conditioner with excessive amounts of water.
- Do not clean the air conditioner with flammable cleaning products. Flammable cleaning agents can cause fires or deformations.

CAUTION

• Turn off the air conditioner and turn off the power if you are not going to use it for a long time.
- Turn off and unplug the unit during storms.
- Make sure that the water condensation of the unit can drain without obstacles.
- Do not operate the air conditioner with wet hands. It can cause an electric shock.
- Do not use the device for any purpose other than the intended use.
- Do not climb or place objects on the outdoor unit.
- Do not allow the air conditioner to operate for long periods of time with the doors or windows open, or if the humidity is very high.

▲ ELECTRICAL WARNINGS

• Use only the specified power cord. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a duly qualified person, in order to avoid risks.
• Keep the power plug clean. Remove dust or dirt that collects in or around the plug. Dirty plugs can cause fire or electric shock.
• Do not pull the power cord to unplug the unit. Hold the plug firmly and remove it from the power outlet. Pulling the cable directly can damage it, which can cause a fire or an electric shock.
• Do not modify the length of the power cord or use an extension cord to power the unit.
• Do not share the power outlet with other devices. An inadequate or insufficient power supply can cause a fire or an electric shock.
• The product must be properly grounded at the time of installation, otherwise an electric shock may occur.
• For all electrical maneuvers, follow all local and national wiring regulations, regulations and Installation Manual. Connect the wires firmly and secure them firmly to prevent external forces from damaging them terminal. Incorrect electrical connections can overheat and cause a fire, and can also cause a discharge. All electrical connections must be made in accordance with the Electrical Connections Diagram located on the panels of the indoor and outdoor units.
• All wiring must be properly arranged to ensure that the control board cover can be closed properly. If the control board cover is not closed properly, it can cause corrosion and cause the connection points in the terminal to become hot, catch fire or cause an electric shock.
• If you connect the power to the fixed wiring, you must incorporate a disconnection device of all the poles that has at least 3 mm of free space towards all the poles, and with a leakage current that can exceed 10 mA, having the device residual current (RCD) a nominal residual operating current that does not exceed 30 mA, and the disconnection must be included in the fixed wiring in accordance with established standards.

TAKE NOTE OF THE FUSE SPECIFIATIONS

The air conditioning circuit board (PCB) is designed with a fuse to provide overcurrent protection. Fuse specifications are printed on the circuit board, such as:

Indoor unit: T3.15AL / 250VAC, T5AL / 250VAC, T3.15A / 250VAC, T5A / 250VAC, etc.

Outdoor unit: T20A / 250VAC (units with Btu / h <= 18000), T30A / 250VAC (units with Btu / h > 18000)

NOTE: For units with R-32 refrigerant, only the explosion-proof ceramic fuse can be used.

⚠️ WARNINGS FOR PRODUCT INSTALLATION

1. Installation must be performed by an authorized dealer or specialist. A faulty installation can cause water leakage, electric shock or fire.
2. Installation must be carried out in accordance with the instructions for this. Improper installation can cause water leakage, electric shock or fire.
3. Contact an authorized service technician for repair or maintenance of this unit. This appliance must be installed in accordance with national wiring standards.
4. Use only the accessories, spare parts and parts specified for installation. The use of non-standard parts may cause water leakage, electric shock, fire and the unit may fail.
5. Install the unit in a firm place that can support the weight of the unit. If the chosen location cannot support the weight of the unit, or the installation is not successful, the unit may fall and cause serious injury and damage.
6. Install the drain pipe according to the instructions in this manual. Improper drainage can cause moisture and flood damage to your home and property.
7. For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of any combustible material.
8. Do not install the unit in a place that may be exposed to fuel gas leaks. If combustible gas accumulates around the unit, it may cause a fire.
9. Do not turn on the power until all work has been completed.
10. When moving or relocating the air conditioner, consult experienced service technicians for disconnecting and reinstalling the unit.
11. For details on how to install the device on its stand, read the information in the sections "Installing the indoor unit" and "Installing the outdoor unit".

NOTE ON FLUORINATED GASES

1. This air conditioning unit contains fluorinated greenhouse gases. For specific information on the type of gas and quantity, refer to the corresponding label on the unit itself or "User Manual - Product sheet" on the packaging of the outdoor unit. (Only products of the European Union)
2. Installation, service, maintenance and repair of this unit must be performed by a certified technician.
3. Uninstallation and recycling of the product must be performed by a certified technician.
4. For equipment containing fluorinated greenhouse gases in quantities of 5 tons of CO2 equivalent or more, but less than 50 tons of CO2 equivalent, if the system has a leak detection system installed, it should be checked for leaks At least every 24 months.
5. When verifying that the unit is not leaking, it is strongly recommended that you properly keep track of all verifications.

⚠ WARNING FOR THE USE OF R-32 REFRIGERANT

• When flammable refrigerant is used, the appliance must be stored in a well ventilated area where the size of the room corresponds to the area of the room as specified for its operation. For R-32 refrigerant models: The device must be installed, operated and stored in a room with a surface area greater than 4m2. The device must not be installed in a space without ventilation, if that space is less than 4m2.
• Reusable mechanical connectors and flared joints are not allowed indoors. (Requirements of the EN standard).
• Mechanical connectors used indoors must have a rate of no more than 3g / year at 25% of the maximum allowable pressure. When mechanical connectors are reused indoors, the sealing parts must be renewed. When flare joints are reused indoors, the flare part must be remanufactured. (Requirements of UL standard)
• When mechanical connectors are reused indoors, the sealing parts must be renewed. When flare seals are reused indoors, the flare part must be remanufactured. (IEC Standards Requirements)

Warning symbol of a flame inside a triangle (no text or numbers)

Caution: Fire hazard.
(only for R32 refrigerant)

1. ACCESSORIES

The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail.

Name Shape Quantity
Mounting plate 1
Clip anchor 5	[KBYW]
Mounting plate fixing screw ST3.9 X 25	[ZXKZ]	5
Remote controller		1
Fixing screw for remote controller holder ST2.9 x 10		2
Remote controller holder 1	[ZXX5]	Optional parts
AAA.LR03 dry battery 2
Seal		1(for cooling & heating models only)
Drain joint

Name Shape Quantity
Owner's manual 1
Installation manual 1
Remote controller manual 1
WiFi control module manual 1

WARNING

Appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.

For R32 frigerant models:

Appliance shall be installed, operated and stored in a room with a floor area larger than 4m^2 .

Appliance shall not be installed in an unvertilated space, if that space is smaller than 4m^2 .

2. INSTALLATION SUMMARY - INDOOR UNIT

Select installation location (page 58)

2

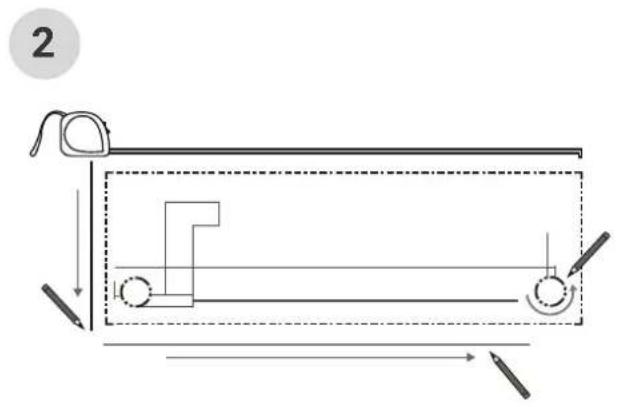

Determine wall hole position (page 58)

3

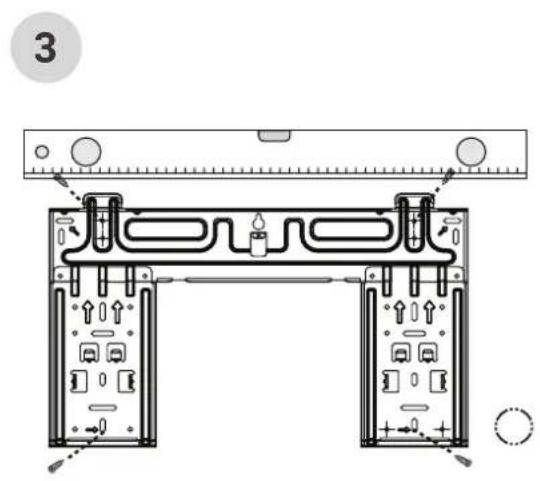

Attach mounting plate (page 58)

4

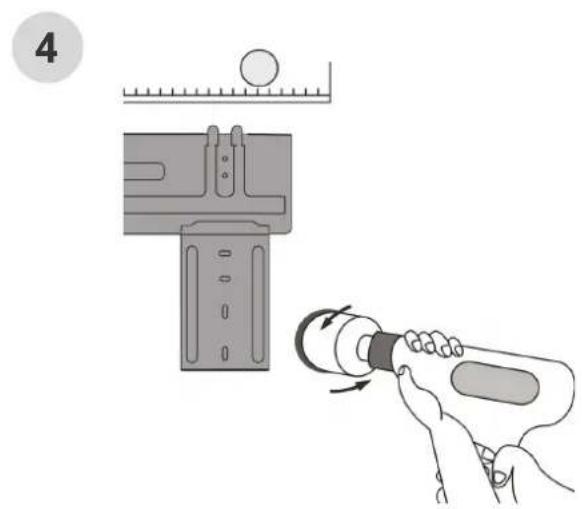

Drill wall hole (page 58)

5

Mechanical diagram showing a tool interacting with a bolt and rotating a circular component (no text or symbols present)

Connect piping (page 73)

6

Pure electrical circuit lines without any symbols

Connect wiring (page 64) Prepare drain hose (page 61)

7

Illustration of hands using a tool to cut or mark a piece, with a textured surface (no text or symbols)

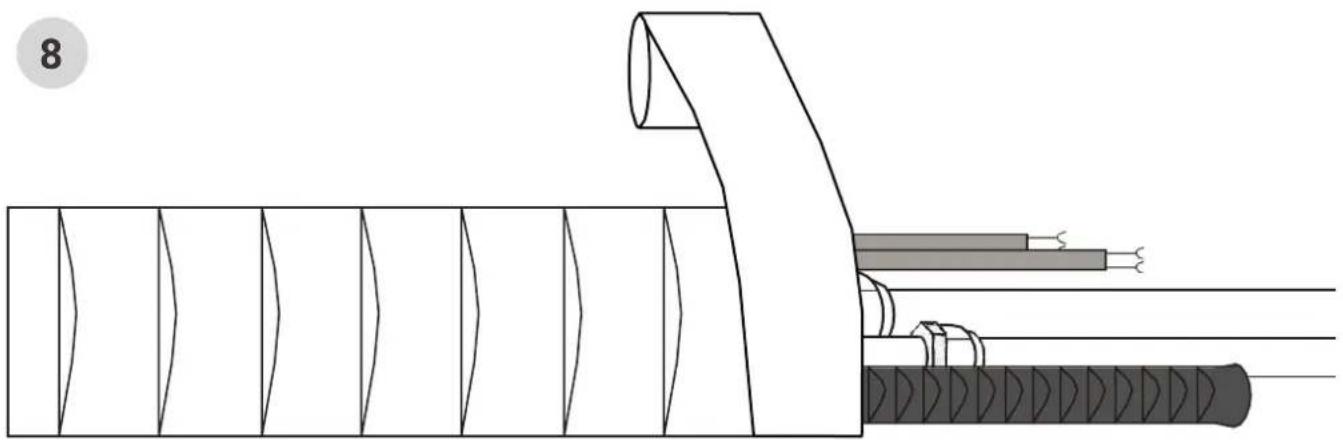

Diagram of a cable assembly with a coiled cable and clamped components (no text or labels)

Wrap piping and cable (not applicable for some locations in the US) (page 66)
9

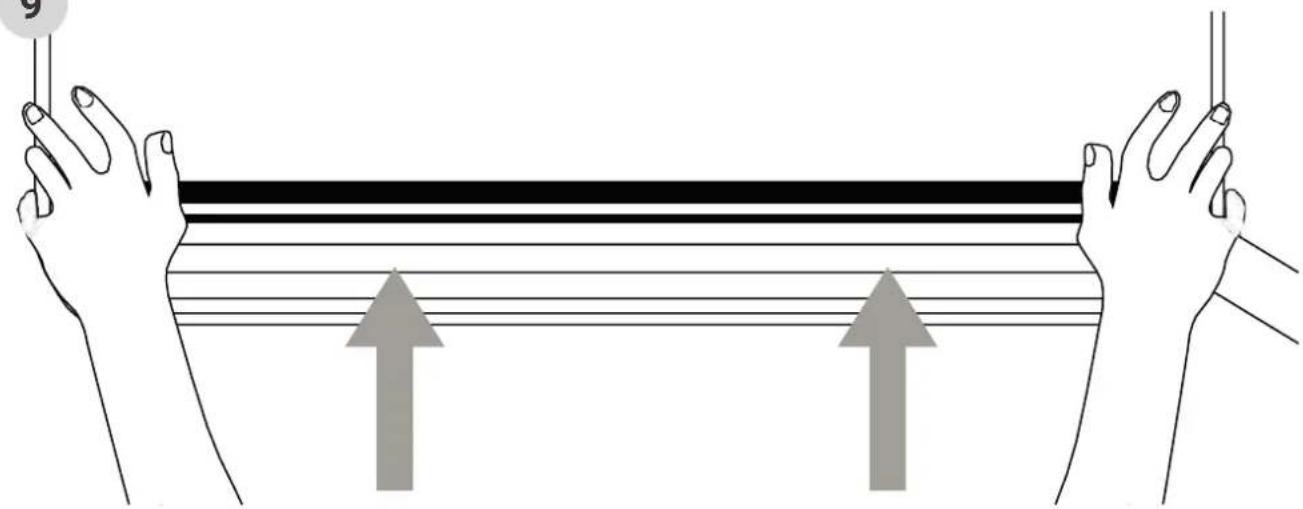

Illustration of two hands holding a horizontal bar with two upward arrows, no text or symbols present

Mounting of the indoor unit (page 67)

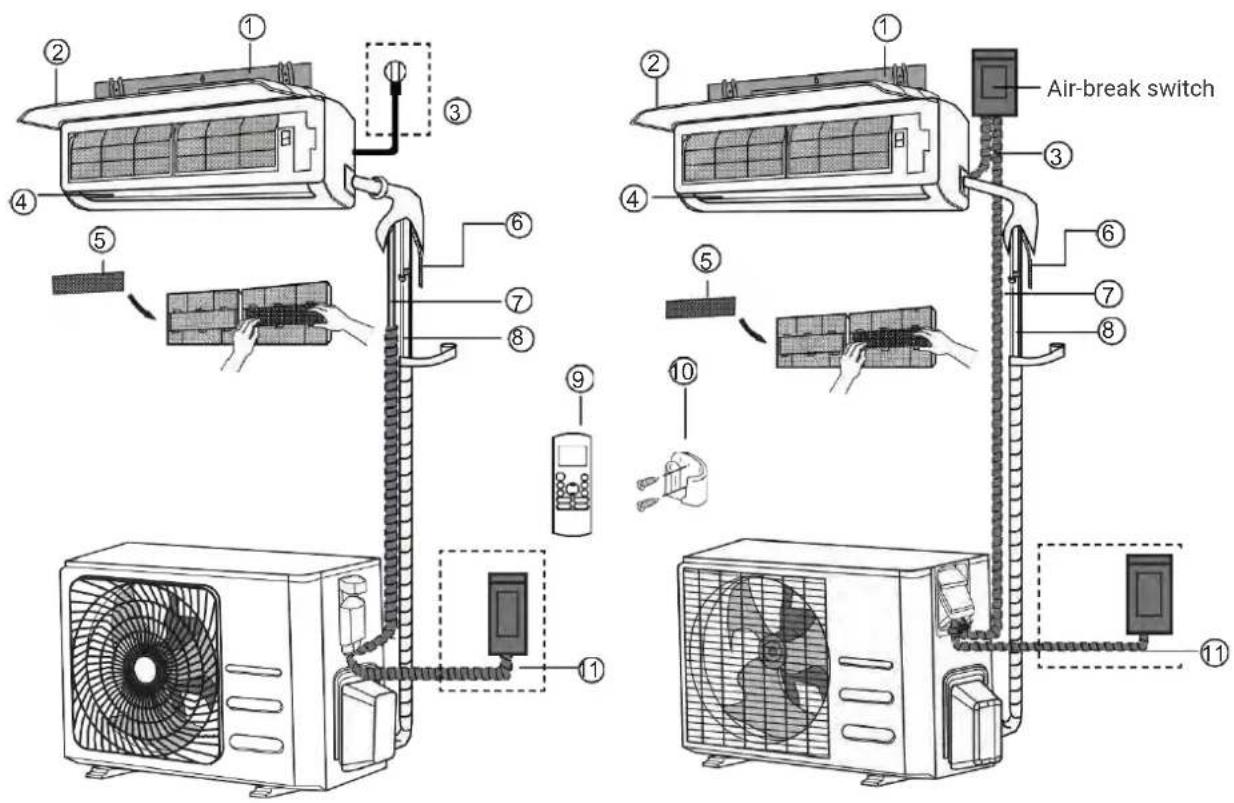

3. UNIT PARTS

NOTE: The installation must be performed in accordance with the requirement of local and national standards. The installation may be slightly different in different areas.

Diagram showing air distribution system components including air break switch, fan, and control panel with numbered parts

(1) (2)
Fig. 3.1.

1. Wall mounting plate 5. Functional filter (on front of main filter - some units) 9. Remote controller
2. Front panel 6. Drainage pipe signal 10. Remote controller holder (some units)
3. Power cable (some units) 7. Cable 11. Outdoor unit power cable (some units)
4. Louver 8. Refrigerant piping

NOTE ON ILLUSTRATIONS

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.

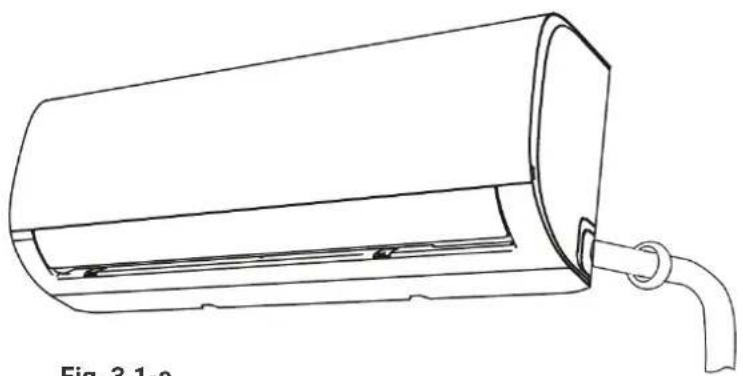

Line drawing of a cylindrical device with a curved pipe extending from its side (no text or symbols)

Fig. 3.1-a

INSTALLATION INSTRUCTIONS - INDOOR UNIT

PRIOR TO INSTALLATION

Before installing the indoor unit, refer to the label on the product box to make sure that the model number of the indoor unit matches the model number of the outdoor unit.

4.1 SELECT INSTALLATION LOCATION

Before installing the indoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit.

Proper installation locations meet the following standards:

• Good air circulation
- Convenient drainage
- Noise from the unit will not disturb other people
- Firm and solid—the location will not vibrate
• Strong enough to support the weight of the unit
• A location at least one meter from all other electrical devices (e.g., TV, radio, computer)

DO NOT install unit in the following locations:

• Near any source of heat, steam, or combustible gas
• Near flammable items such as curtains or clothing
• Near any obstacle that might block air circulation
- Near the doorway
• In a location subject to direct sunlight

NOTE ABOUT WALL HOLE

If there is no fixed refrigerant piping:

While choosing a location, be aware that you should leave ample room for a wall hole (see Drill wall hole for connective piping step) for the signal cable and refrigerant piping that connect the indoor and outdoor units. The default position for all piping is the right side of the indoor unit (while facing the unit). However, the unit can accommodate piping to both the left and right.

4. INDOOR UNIT INSTALLATION

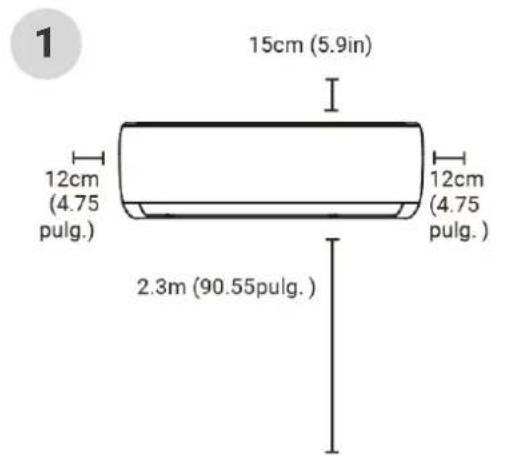

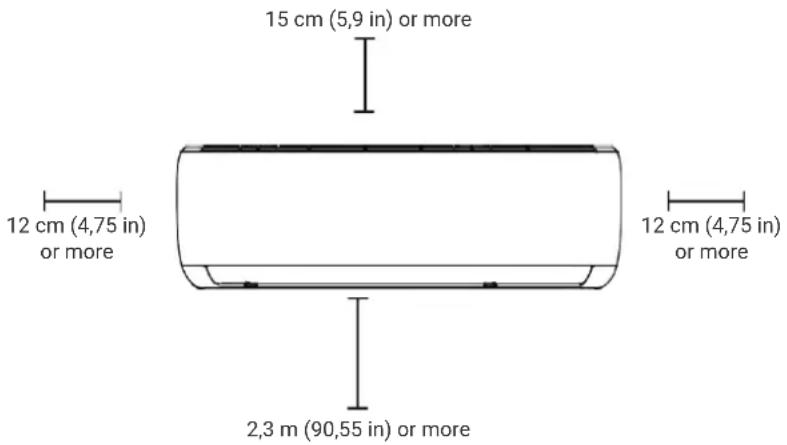

Refer to the following diagram to ensure proper distance from walls and ceiling:

15 cm (5,9 in) or more 12 cm (4,75 in) or more 2,3 m (90,55 in) or more 12 cm (4,75 in) or more

Fig. 3.1-b

4.2 ATTACH MOUNTING PLATE TO WALL

The mounting plate is the device on which you will mount the indoor unit.

1. Remove the screw that attaches the mounting plate to the back of the indoor unit.
2. Place the mounting plate against the wall in a location that meets the standards in the Select Installation Location step. (See Mounting Plate Dimensions for detailed information on mounting plate sizes.)
3. Drill holes for mounting screws in places that:

• have studs and can support the weight of the unit
• correspond to screw holes in the mounting plate

1. Secure the mounting plate to the wall with the screws provided.

2. Make sure that mounting plate is flat against the wall.

NOTE FOR CONCRETE OR BRICK WALLS

If the wall is made of brick, concrete, or similar material, drill 5mm-diameter (0.2in-diameter) holes in the wall and insert the sleeve anchors provided. Then secure the mounting plate to the wall by tightening the screws directly into the clip anchors.

4.3 DRILL WALL HOLE FOR CONNECTIVE PIPING

You must drill a hole in the wall for refrigerant piping, the drainage pipe, and the signal cable that will connect the indoor and outdoor units.

1. Determine the location of the wall hole based on the position of the mounting plate. Refer to Mounting Plate Dimensions on the next page to help you determine the optimal position. The wall hole should have a 65mm (2.5in) diameter at least, and at a slightly lower angle to facilitate drainage.
2. Using a 65mm (2.5in) or 90mm(3.54in) (depending on models) core drill, drill a hole in the wall. Make sure that the hole is drilled at a slight downward angle, so that the outdoor end of the hole is lower than the indoor end by about 5mm to 7mm (0.2-0.27in). This will ensure proper water drainage. (See Fig. 3.2)
3. Place the protective wall cuff in the hole. This protects the edges of the hole and will help seal it when you finish the installation process.

CAUTION

When drilling the wall hole, make sure to avoid wires, plumbing, and other sensitive components.

Wall Indoor Outdoor

MOUNTING PLATE DIMENSIONS

Different models have different mounting plates. In order to ensure that you have ample room to mount the indoor unit, the diagrams to the right show different types of mounting plates along with the following dimensions:

• Width of mounting plate
  • Height of mounting plate
  • Width of indoor unit relative to plate
  • Height of indoor unit relative to plate
• Recommended position of wall hole (both to the left and right of mounting plate)
  • Relative distances between screw holes

Correct orientation of Mounting Plate:

Left rear wall hole 65mm (2,5 in.) 285mm (11.2in) 39mm (1.5in) 47.1mm (1.85in) 146.5mm (5.76in) 398mm (15.67in) 233.1mm (9.17in) 39mm (1.5in) Indoor unit outline 47.1mm (1.85in) Right rear wall hole 65mm (2.5in) 115.6mm(4.55in) 117.5 (4.62in)45mm (1.7in) 101.6mm(4in) 715mm (28in)

Model A

4. INDOOR UNIT INSTALLATION

NOTE: When the gas side connective pipe is ∅16mm(5/8in) or more, the wall hole should be 90mm(3.54in).

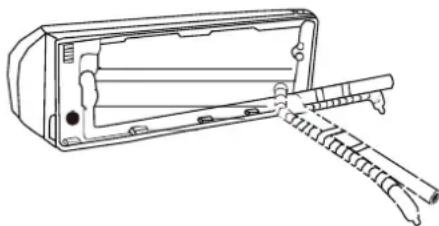

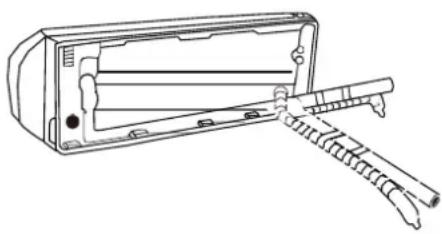

4.4 PREPARE REFRIGERANT PIPING

The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare the piping before passing it through the hole in the wall. Refer to the Refrigerant Piping Connection section of this manual for detailed instructions on pipe flaring and flare torque requirements, technique, etc.

1. Based on the position of the wall hole relative to the mounting plate, choose the side from which the piping will exit the unit.
2. If the wall hole is behind the unit, keep the knock-out panel in place. If the wall hole is to the side of the indoor unit, remove the plastic knock-out panel from that side of the unit. (See Fig. 3.3). This will create a slot through which your piping can exit the unit. Use needle nose pliers if the plastic panel is too difficult to remove by hand.
3. Use scissors to cut down the length of the insulating sleeve to reveal about 15cm (6in) of the refrigerant piping. This serves two purposes:

• To facilitate the Refrigerant Piping Connection process

• To facilitate Gas Leak Checks and enable you to check for dents

1. If existing connective piping is already embedded in the wall, proceed directly to the Connect Drain Hose step. If there is no embedded piping, connect the indoor unit's refrigerant piping to the connective piping that will join the indoor and outdoor units. Refer to the Refrigerant Piping Connection section of this manual for detailed instructions.

2. Based on the position of the wall hole relative to the mounting plate, determine the necessary angle of your piping.

3. Grip the refrigerant piping at the base of the bend.

4. Slowly, with even pressure, bend the piping towards the hole. Do not dent or damage the piping during the process.

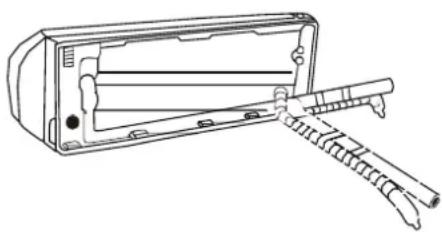

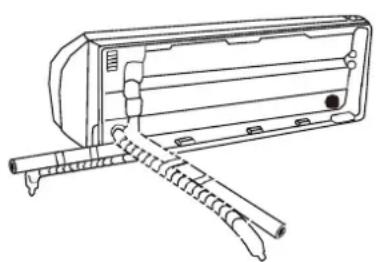

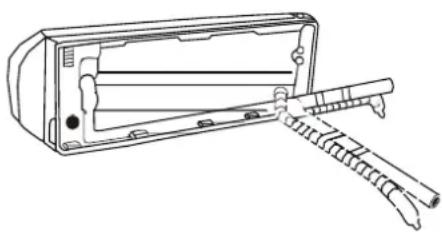

NOTE ON PIPING ANGLE

Refrigerant piping can exit the indoor unit from four different angles:

• Left-hand side
• Left rear
• Right-hand side
• Right rear

Refer to Fig. 3.4 for details.

Panel

Fig. 3.3

Technical line drawing of a mechanical device with coiled spring and housing (no text or symbols)

Fig 3.4.

Line drawing of a device with a handle and internal components (no text or symbols)

CAUTION

Be extremely careful not to dent or damage the piping while bending them away from the unit. Any dents in the piping will affect the unit's performance.

4. INDOOR UNIT INSTALLATION

4.5 CONNECT DRAIN HOSE

By default, the drain hose is attached to the lefthand side of unit (when you're facing the back of the unit). However, it can also be attached to the right-hand side.

1. To ensure proper drainage, attach the drain hose on the same side that your refrigerant piping exits the unit.
2. Attach drain hose extension (purchased separately) to the end of drain hose.
3. Wrap the connection point firmly with Teflon tape to ensure a good seal and to prevent leaks.
4. For the portion of the drain hose that will remain indoors, wrap it with foam pipe insulation to prevent condensation.
5. Remove the air filter and pour a small amount of water into the drain pan to make sure that water flows from the unit smoothly.

NOTE ON DRAIN HOSE PLACEMENT

Make sure to arrange the drain hose according to Fig. 3.5.

DO NOT kink the drain hose.

DO NOT create a water trap.

DO NOT put the end of drain hose in water or a container that will collect water.

PLUG THE UNUSED DRAIN HOLE

To prevent unwanted leaks you must plug the unused drain hole with the rubber plug provided.

Technical line drawing of a door latch or bracket assembly (no text or symbols)

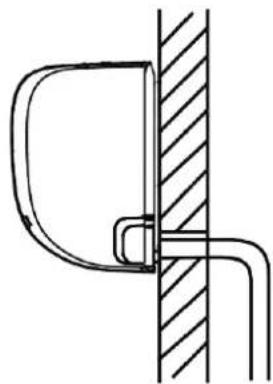

CORRECT

Make sure there are no kinks or dent in drain hose to ensure proper drainage.

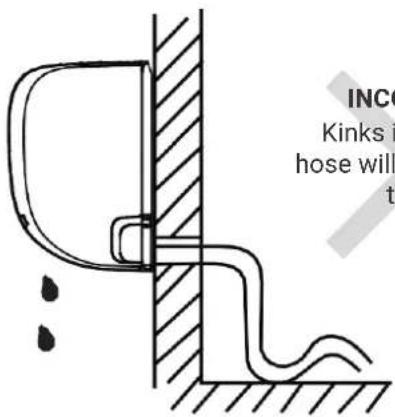

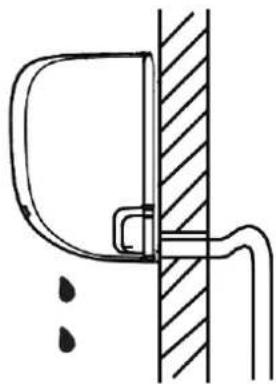

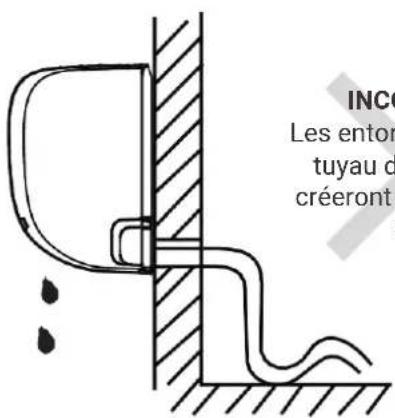

INCORRECT

Kinks in the drain hose will create water traps.

Simple line drawing of a door hinge and pipe connection (no text or symbols)

INCO Kinks in hose will t

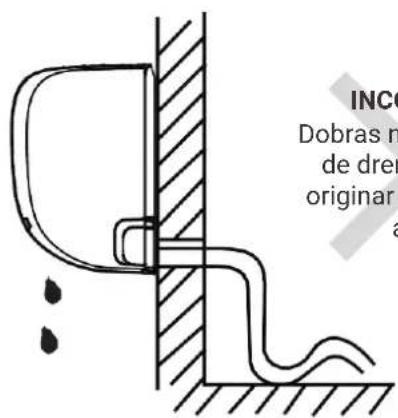

INCORRECT

Kinks in the drain hose will create water traps.

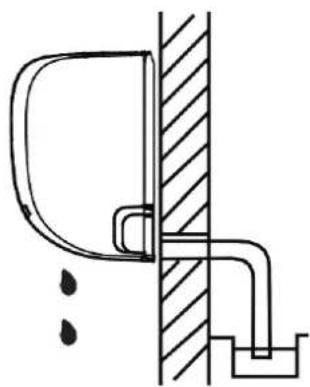

INCORRECT

Do not place the end of the drain hose in water or in containers that collect water. This will prevent proper drainage.

Technical line drawing of a door and pipe assembly (no text or symbols)

▲ BEFORE PERFORMING ELECTRICAL WORK, READ THESE REGULATIONS

1. All wiring must comply with local and national electrical codes, and must be installed by a licensed electrician.
2. All electrical connections must be made according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply, stop work immediately. Explain your reasoning to the client, and refuse to install the unit until the safety issue is properly resolved.
4. Power voltage should be within 90 - 110% of rated voltage. Insufficient power supply can cause malfunction, electrical shock, or fire.
5. If connecting power to fixed wiring, install a surge protector and main power switch with a capacity of 1.5 times the maximum current of the unit.
6. If connecting power to fixed wiring, a switch or circuit breaker that disconnects all poles and has a contact separation of at least 1/8in (3mm) must be incorporated in the fixed wiring. The qualified technician must use an approved circuit breaker or switch.
7. Only connect the unit to an individual branch circuit outlet. Do not connect another appliance to that outlet.
8. Make sure to properly ground the air conditioner.
9. Every wire must be firmly connected. Loose wiring can cause the terminal to overheat, resulting in product malfunction and possible fire.
10. Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts within the unit.
11. If the unit has an auxiliary electric heater, it must be installed at least 1 meter (40in) away from any combustible materials.

WARNING

BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.

4.6 CONNECT SIGNAL CABLE

The signal cable enables communication between the indoor and outdoor units. You must first choose the right cable size before preparing it for connection.

Cable types:

• Indoor Power Cable (if applicable): H05VV-F or H05V2V2-F
  • Outdoor Power Cable: H07RN-F
  • Signal Cable: H07RN-F

Minimum Cross-Sectional Area of Power and Signal Cables

North America
Appliance Amps (A) AWG
10 18
13 16
18 14
25 12
30 10

Other regions
Rated current of appliance (A)	Nominal cross-sectional area ( mm^2 )
>3 and ≤ 6 0,75
>6 and ≤ 10 1
>10 and ≤ 16 1,5
>16 and ≤ 25 2,5
>25 and ≤ 32 4
>32 and ≤ 40 6

CHOOSE THE RIGHT CABLE SIZE

The size of the power supply cable, signal cable, fuse, and switch needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on the side panel of the unit. Refer to this nameplate to choose the right cable, fuse, or switch.

TAKE NOTE OF FUSE SPECIFICATIONS

The air conditioner's circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as:

Indoor unit: T5A/250VAC

Outdoor unit (applicalbe to units adpot R32 or R290 refrigerant only):

T20A/250VAC(<=18000Btu/h units)

T30A/250VAC(>18000Btu/h units)

NOTE: The fuse is made of ceramic.

1. Prepare the cable for connection:

a. Using wire strippers, strip the rubber jacket from both ends of signal cable to reveal about 40mm (1.57in) of the wires inside.
b. Strip the insulation from the ends of the wires.
c. Using wire crimper, crimp u-type lugs on the ends of the wires.

PAY ATTENTION TO LIVE WIRE

While crimping wires, make sure you clearly distinguish the Live ("L") Wire from other wires.

1. Open front panel of the indoor unit.
2. Using a screwdriver, open the wire box cover on the right side of the unit. This will reveal the terminal block.

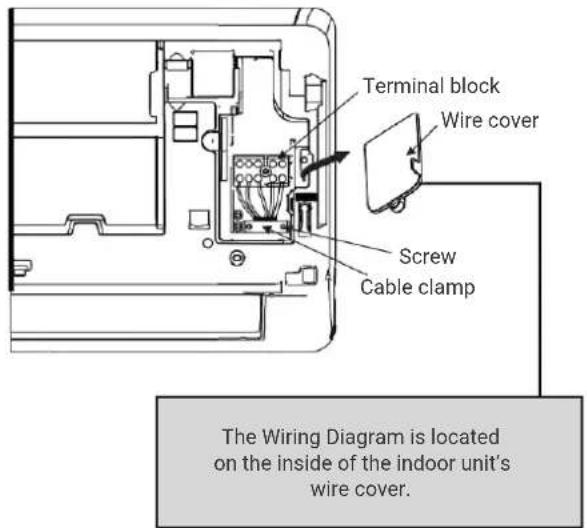

Terminal block Wire cover Screw Cable clamp The Wiring Diagram is located on the inside of the indoor unit's wire cover.

WARNING

ALL WIRING MUST PERFORMED STRICTLY IN ACCORDANCE WITH THE WIRING DIAGRAM LOCATED ON THE INSIDE OF THE INDOOR UNIT'S WIRE COVER

1. Unscrew the cable clamp below the terminal block and place it to the side.
2. Facing the back of the unit, remove the plastic panel on the bottom left-hand side.
3. Feed the signal wire through this slot, from the back of the unit to the front.
4. Facing the front of the unit, match the wire colors with the labels on the terminal block, connect the u-lug and and firmly screw each wire to its corresponding terminal.

CAUTION

DO NOT MIX UP LIVE AND NULL WIRES

This is dangerous, and can cause the air conditioning unit to malfunction.

1. After checking to make sure every connection is secure, use the cable clamp to fasten the signal cable to the unit. Screw the cable clamp down tightly.
2. Replace the wire cover on the front of the unit, and the plastic panel on the back.

NOTE ABOUT WIRING

The wiring connection process may differ slightly between units.

4.7 WRAP PIPING AND CABLES

Before passing the piping, drain hose, and the signal cable through the wall hole, you must bundle them together to save space, protect them, and insulate them.

1. Bundle the drain hose, refrigerant pipes, and signal cable according to Fig. 3.10.

Indoor unit Space behind unit Refrigerant piping Insulation tape Signal wire Drain hose

Fig 3.10

DRAIN HOSE MUST BE ON BOTTOM

Make sure that the drain hose is at the bottom of the bundle. Putting the drain hose at the top of the bundle can cause the drain pan to overflow, which can lead to fire or water damage.

DO NOT INTERTWINE SIGNAL CABLE WITH OTHER WIRES

While bundling these items together, do not intertwine or cross the signal cable with any other wiring.

1. Using adhesive vinyl tape, attach the drain hose to the underside of the refrigerant pipes.
2. Using insulation tape, wrap the signal wire, refrigerant pipes, and drain hose tightly together. Double-check that all items are bundled in accordance with Fig. 3.10.

DO NOT WRAP ENDS OF PIPING

When wrapping the bundle, keep the ends of the piping unwrapped. You need to access them to test for leaks at the end of the installation process (refer to Electrical Checks and Leak Checks section of this manual).

4.8 MOUNT INDOOR UNIT

If you installed new connective piping to the outdoor unit, do the following:

1. If you have already passed the refrigerant piping through the hole in the wall, proceed to Step 4.
2. Otherwise, double-check that the ends of the refrigerant pipes are sealed to prevent dirt or foreign materials from entering the pipes.
3. Slowly pass the wrapped bundle of refrigerant pipes, drain hose, and signal wire through the hole in the wall.
4. Hook the top of the indoor unit on the upper hook of the mounting plate.
5. Check that unit is hooked firmly on mounting by applying slight pressure to the left and right-hand sides of the unit. The unit should not jiggle or shift.
6. Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.
7. Again, check that the unit is firmly mounted by applying slight pressure to the left and the right-hand sides of the unit.

If refrigerant piping is already embedded in the wall, do the following:

1. Hook the top of the indoor unit on the upper hook of the mounting plate.

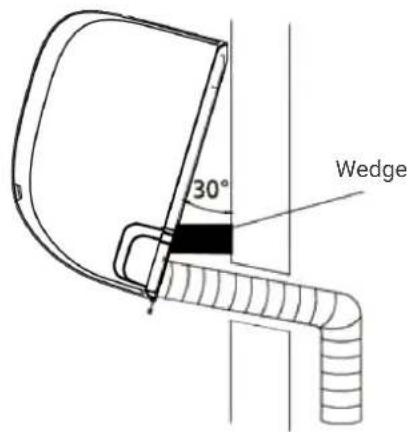

2. Use a bracket or wedge to prop up the unit, giving you enough room to connect the refrigerant piping, signal cable, and drain hose. Refer to Fig. 3.11 for an example.
3. Connect drain hose and refrigerant piping (refer to Refrigerant Piping Connection section of this manual for instructions).
4. Keep pipe connection point exposed to perform the leak test (refer to Electrical Checks and Leak Checks section of this manual).
5. After the leak test, wrap the connection point with insulation tape.
6. Remove the bracket or wedge that is propping up the unit.
7. Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.

30° Wedge

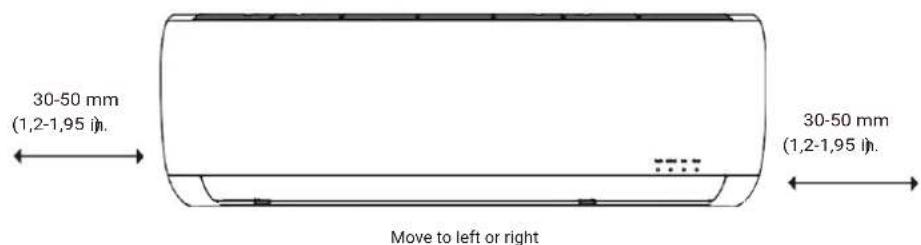

UNIT IS ADJUSTABLE

Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit. If you find that you don't have ample room to connect embedded pipes to the indoor unit, the unit can be adjusted left or right by about 30-50mm (1.25-1.95in), depending on the model. (See Fig. 3.12.)

30-50 mm (1,2-1,95 in.) Move to left or right 30-50 mm (1,2-1,95 in.)

Fig. 3.12

5. OUTDOOR UNIT INSTALLATION

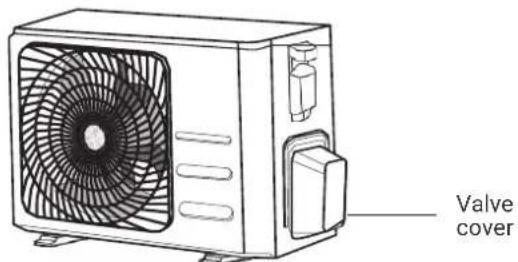

Line drawing of a multi-free air conditioner unit with fan blades and mounting bracket (no text or symbols)

INSTALLATION INSTRUCTIONS - OUTDOOR UNIT

5.1 SELECT INSTALLATION LOCATION

Before installing the outdoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit.

Proper installation locations meet the following standards:

• Meets all spatial requirements shown in Installation Space Requirements (Fig. 4.1)
  • Good air circulation and ventilation
• Firm and solid—the location can support the unit and will not vibrate
• Noise from the unit will not disturb others
• Protected from prolonged periods of direct sunlight or rain

DO NOT install unit in the following locations:

• Near an obstacle that will block air inlets and outlets
• Near a public street, crowded areas, or where noise from the unit will disturb others
• Near animals or plants that will be harmed by hot air discharge
  • Near any source of combustible gas
• In a location that is exposed to large amounts of dust
• In a location exposed to a excessive amounts of salty air

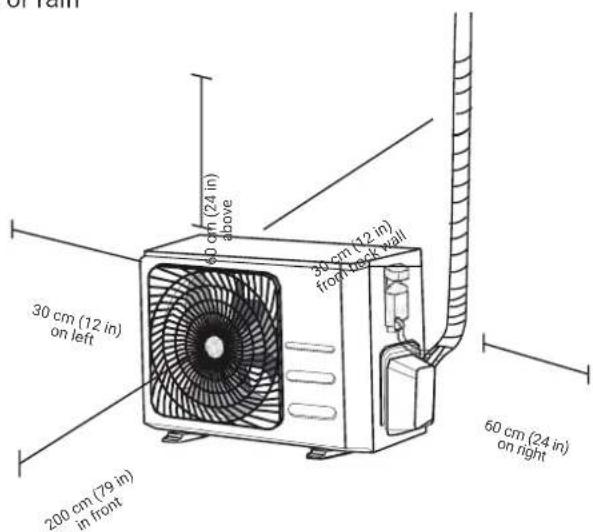

60 cm (24 in) above 30 cm (12 in) on left 39 cm (12 in) from lock wall 200 cm (79 in) in front 60 cm (24 in) on right

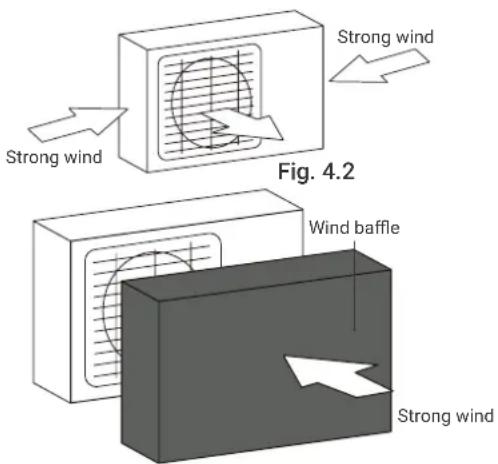

If the unit is exposed to heavy wind:

Install unit so that air outlet fan is at a 90^ angle to the direction of the wind. If needed, build a barrier in front of the unit to protect it from extremely heavy winds.

See Fig. 4.2 and Fig. 4.3 below.

Strong wind Strong wind Fig. 4.2 Wind baffle Strong wind

Fig. 4.3

If the unit is frequently exposed to heavy rain or snow:

Build a shelter above the unit to protect it from the rain or snow. Be careful not to obstruct air flow around the unit.

If the unit is frequently exposed to salty air (seaside):

Use outdoor unit that is specially designed to resist corrosion.

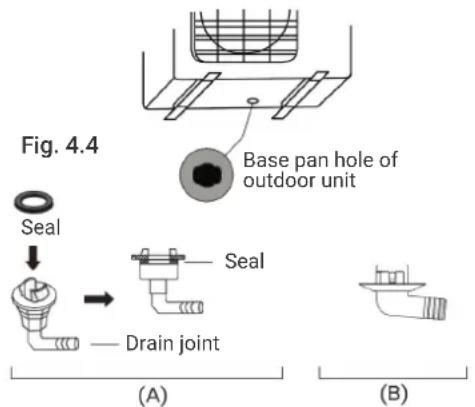

5.2 INSTALL DRAIN JOINT

Heat pump units require a drain joint. Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit. Note that there are two different types of drain joints depending on the type of outdoor unit.

If the drain joint comes with a rubber seal (see Fig. 4.4 - A), do the following:

1. Fit the rubber seal on the end of the drain joint that will connect to the outdoor unit.
2. Insert the drain joint into the hole in the base pan of the unit.
3. Rotate the drain joint 90° until it clicks in place facing the front of the unit.
4. Connect a drain hose extension (not included) to the drain joint to redirect water from the unit during heating mode.

If the drain joint doesn't come with a rubber seal (see Fig. 4.4 - B), do the following:

1. Insert the drain joint into the hole in the base pan of the unit. The drain joint will click in place.
2. Connect a drain hose extension (not included) to the drain joint to redirect water from the unit during heating mode.

Fig. 4.4 Base pan hole of outdoor unit Seal Seal Drain joint (A) (B)

IN COLD CLIMATES

In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the hose and flood the unit.

5.3 ANCHOR OUTDOOR UNIT

The outdoor unit can be anchored to the ground or to a wall-mounted bracket.

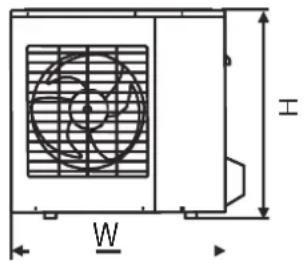

Unit mounting dimensions:

The following is a list of different outdoor unit sizes and the distance between their mounting feet.

Prepare the installation base of the unit according to the dimensions below.

Air inlet Air inlet Air outlet

H W

Outdoor Unit Dimensions (mm)W x H x D		Mounting DimensionsDistance A (mm) Distance B (mm)
681x434x285 (26.8"x17.1"x11.2") 460 (18.1") 292 (11.5")
700x550x270 (27.5"x21.6"x10.6") 450 (17.7") 260 (10.2")
700x550x275 (27.5"x21.6"x10.8") 450 (17.7") 260 (10.2")
720x495x270 (28.3"x19.5"x10.6") 452 (17.7") 255 (10.0")
728x555x300 (28.7"x21.8"x11.8") 452 (17.8") 302 (11.9")
765x555x303 (30.1"x21.8"x11.9") 452 (17.8") 286 (11.3")
770x555x300 (30.3"x21.8"x11.8") 487 (19.2") 298 (11.7")
805x554x330 (31.7"x21.8"x12.9") 511 (20.1") 317 (12.5")
800x554x333 (31.5"x21.8"x13.1") 514 (20.2") 340 (13.4")
845x702x363 (33.3"x27.6"x14.3") 540 (21.3") 350 (13.8")
890x673x342 (35.0"x26.5"x13.5") 663 (26.1") 354 (13.9")
946x810x420 (37.2"x31.9"x16.5") 673 (26.5") 403 (15.9")
946x810x410 (37.2"x31.9"x16.1") 673 (26.5") 403 (15.9")

If you will install the unit on the ground or on a concrete mounting platform, do the following:

1. Mark the positions for four expansion bolts based on dimensions in the Unit Mounting Dimensions chart.
2. Pre-drill holes for expansion bolts.
3. Clean concrete dust away from holes.
4. Place a nut on the end of each expansion bolt.
5. Hammer expansion bolts into the pre-drilled holes.
6. Remove the nuts from expansion bolts, and place outdoor unit on bolts.
7. Put washer on each expansion bolt, then replace the nuts.
8. Using a wrench, tighten each nut until snug.

WARNING

WHEN DRILLING INTO CONCRETE, EYE PROTECTION IS RECOMMENDED AT ALL TIMES.

If you will install the unit on a wall-mounted bracket, do the following:

CAUTION

Before installing a wall-mounted unit, make sure that the wall is made of solid brick, concrete, or of similarly strong material. The wall must be able to support at least four times the weight of the unit.

1. Mark the position of bracket holes based on dimensions in the Unit Mounting Dimensions chart.
2. Pre-drill the holes for the expansion bolts.
3. Clean dust and debris away from holes.
4. Place a washer and nut on the end of each expansion bolt.
5. Thread expansion bolts through holes in mounting brackets, put mounting brackets in position, and hammer expansion bolts into the wall.
6. Check that the mounting brackets are level.
7. Carefully lift unit and place its mounting feet on brackets.
8. Bolt the unit firmly to the brackets.

TO REDUCE VIBRATIONS OF WALL-MOUNTED UNIT

If allowed, you can install the wall-mounted unit with rubber gaskets to reduce vibrations and noise.

5.4 CONNECT SIGNAL AND POWER CABLES

The outside unit's terminal block is protected by an electrical wiring cover on the side of the unit. A comprehensive wiring diagram is printed on the inside of the wiring cover.

BEFORE PERFORMING ELECTRICAL WORK, READ THESE REGULATIONS

1. All wiring must comply with local and national electrical codes, and must be installed by a licensed electrician.
2. All electrical connections must be made according to the Electrical Connection Diagram located on the side panels of the indoor and outdoor units.
3. If there is a serious safety issue with the power supply, stop work immediately. Explain your reasoning to the client, and refuse to install the unit until the safety issue is properly resolved.
4. Power voltage should be within 90-110% of rated voltage. Insufficient power supply can cause electrical shock or fire.
5. If connecting power to fixed wiring, install a surge protector and main power switch with a capacity of 1.5 times the maximum current of the unit.
6. If connecting power to fixed wiring, a switch or circuit breaker that disconnects all poles and has a contact separation of at least 1/8in (3mm) must be incorporated in the fixed wiring. The qualified technician must use an approved circuit breaker or switch.
7. Only connect the unit to an individual branch circuit outlet. Do not connect another appliance to that outlet.
8. Make sure to properly ground the air conditioner.
9. Every wire must be firmly connected. Loose wiring can cause the terminal to overheat, resulting in product malfunction and possible fire.
10. Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts within the unit.
11. If the unit has an auxiliary electric heater, it must be installed at least 1 meter (40in) away from any combustible materials.

WARNING

BEFORE PERFORMING ANY ELECTRICAL OR WIRING WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.

1. Prepare the cable for connection:

Use the right cable:

• Indoor Power Cable (if applicable): H05VV-F or H05V2V2-F
  • Outdoor Power Cable: H07RN-F
  • Signal Cable: H07RN-F

Minimum Cross-Sectional Area of Power and Signal Cables

North America
Appliance Amps (A) AWG
10 18
13 16
18 14
25 12
30 10

Other regions
Rated Currency of Appliance (A)	Nominal Cross-Sectional Area ( mm^2 )
>3 and ≤ 6 0,75
>6 and ≤ 10 1
>10 and ≤ 16 1,5
>16 and ≤ 25 2,5
>25 and ≤ 32 4
>32 and ≤ 40 6

a. Using wire strippers, strip the rubber jacket from both ends of cable to reveal about 40mm (1.57in) of the wires inside.
b. Strip the insulation from the ends of the wires.
c. Using a wire crimper, crimp u-lugs on the ends of the wires.

PAY ATTENTION TO LIVE WIRE

While crimping wires, make sure you clearly distinguish the Live ("L") Wire from other wires.

WARNING

ALL WIRING MUST BE DONE STRICTLY IN ACCORDANCE WITH THE WIRING DIAGRAM LOCATED INSIDE THE CABLE COVER OF THE INDOOR UNIT.

1. Unscrew the electrical wiring cover and remove it.
2. Unscrew the cable clamp below the terminal block and place it to the side.
3. Match the wire colors/labels with the labels on the terminal block, and firmly screw the u-lug of each wire to its corresponding terminal.
4. After checking to make sure every connection is secure, loop the wires around to prevent rain water from flowing into the terminal.
5. Using the cable clamp, fasten the cable to the unit. Screw the cable clamp down tightly.
6. Insulate unused wires with PVC electrical tape. Arrange them so that they do not touch any electrical or metal parts.
7. Replace the wire cover on the side of the unit, and screw it in place.

Cubierta

Outdoor Unit Wiring Diagram is located on the inside of the wire cover on the outdoor unit.
Fig. 4.6

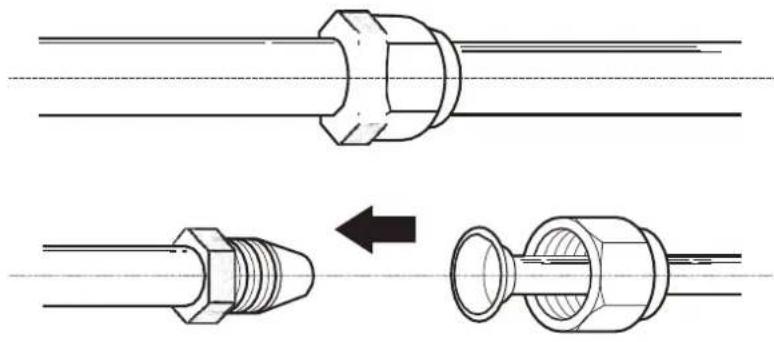

Technical illustration of two pipe fittings with a central connector, showing assembly and disassembly (no text or symbols)

6.1 NOTE ON PIPE LENGTH

The length of refrigerant piping will affect the performance and energy efficiency of the unit. Nominal efficiency is tested on units with a pipe length of 5 meters (16.5ft). A minimum pipe run of 3 metres is required to minimise vibration & excessive noise.

For special tropical area, the maximum length of refrigerant pipe should not exceed 10 meters(32.8ft) and no refrigerant can be added(For R290 refrigerant models).

Refer to the table below for specifications on the maximum length and drop height of piping.

When preparing refrigerant pipes, take extra care to cut and flare them properly. This will ensure efficient operation and minimize the need for future maintenance. For R32/R290 refrigerant models, the pipe connection points must be placed outside of room.

1. Measure the distance between the indoor and outdoor units.
2. Using a pipe cutter, cut the pipe a little longer than the measured distance.

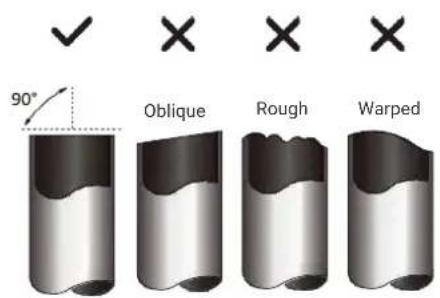

3. Make sure that the pipe is cut at a perfect 90^ angle. Refer to Fig. 5.1 for bad cut examples.

90° Oblique Rough Warped

Fig. 5.1

⚠ DO NOT DEFORM THE PIPE WHILE CUTTING

Be extra careful not to damage, dent, or deform the pipe while cutting. This will drastically reduce the heating efficiency of the unit.

Step 2: Remove burrs

Burrs can affect the air-tight seal of refrigerant piping connection. They must be completely removed.

1. Hold the pipe at a downward angle to prevent burrs from falling into the pipe.
2. Using a reamer or deburring tool, remove all burrs from the cut section of the pipe.

Step 3: Flare pipe ends

Proper flaring is essential to achieve an airtight seal.

1. After removing burrs from cut pipe, seal the ends with PVC tape to prevent foreign materials from entering the pipe.
2. Sheath the pipe with insulating material.
3. Place flare nuts on both ends of pipe. Make sure they are facing in the right direction, because you can't put them on or change their direction after flaring. See Fig. 5.3.
4. Remove PVC tape from ends of pipe when ready to perform flaring work.
5. Clamp flare form on the end of the pipe. The end of the pipe must extend beyond the edge of the flare form in accordance with the dimensions shown in the table below.

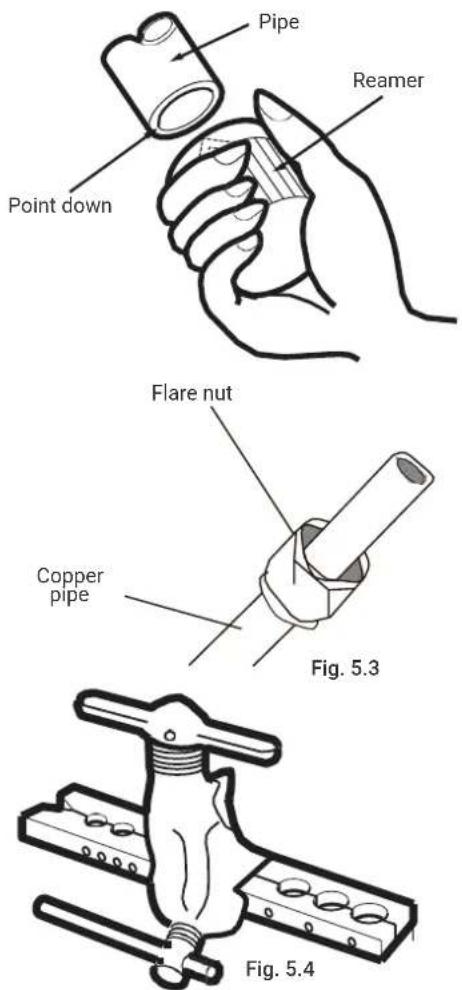

Pipe Reamer Point down Flare nut Copper pipe Fig. 5.3 Fig. 5.4

PIPING EXTENSION BEYOND FLARE FORM

Outer Diameter of Pipe (mm)	A (mm)
	Min. Max.
∅ 6,35 (∅ 0,25") 0,7 (0,0275") 1,3 (0,05")
∅ 9,52 (∅ 0,375") 1,0 (0,04") 1,6 (0,063")
∅ 12,7 (∅ 0,5") 1,0 (0,04") 1,8 (0,07")
∅ 16 (∅ 0,63")	2,0 (0,078") 2,2 (0,086")
∅ 19 (∅ 0,75")	2,0 (0,078") 2,4 (0.094")

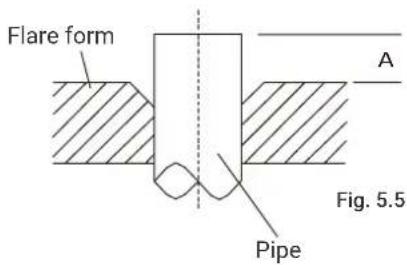

Flare form A Fig. 5.5 Pipe

1. Place flaring tool onto the form.
2. Turn the handle of the flaring tool clockwise until the pipe is fully flared.
3. Remove the flaring tool and flare form, then inspect the end of the pipe for cracks or even flaring.

Step 4: Connect pipes

When connecting refrigerant pipes, be careful not to use excessive torque or to deform the piping in any way. You should first connect the indoor unit, then the outdoor unit.

Minimum bend radius: When bending connective refrigerant piping, the minimum bending radius is 10cm. See Fig. 5.6.

Radius ≥10cm (4in) Fig. 5.6

INSTRUCTIONS FOR CONNECTING PIPING TO INDOOR UNIT

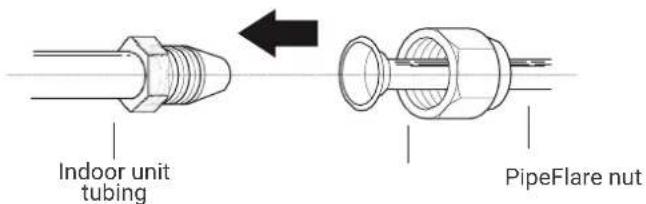

1. Align the center of the two pipes that you will connect. See Fig. 5.7

Indoor unit tubing PipeFlare nut

Fig. 5.7

1. Tighten the flare nut as tightly as possible by hand.
2. Using a spanner, grip the nut on the unit tubing.
3. While firmly gripping the nut on the unit tubing, use a torque wrench to tighten the flare nut according to the torque values in the Torque Requirements table below. Loosen the flaring nut slightly, then tighten again.

Illustration of hands using a tool to lift a bolt (no text or symbols)

Fig. 5.8

TORQUE REQUIREMENTS

Outer Diameter of Pipe (mm)	Tightening Torque (N·cm)	Add. Tightening Torque (N·cm)
∅ 6,35 (∅ 0,25") 1.500 (11lb·ft) 1.600 (11.8lb·ft)
∅ 9,52 (∅ 0,375") 2.500 (18,4lb·ft) 2.600 (19,18lb·ft)
∅ 12,7 (∅ 0,5") 3.500 (25,8lb·ft) 3.600 (26,55lb·ft)
∅ 16 (∅ 0,63") 4.500 (33,19lb·ft) 4.700 (34,67lb·ft)
∅ 19 (∅ 0,75") 6.500 (47,94lb·ft) 6.700 (49,42lb·ft)

▲DO NOT USE EXCESSIVE TORQUE

Excessive force can break the nut or damage the refrigerant piping. You must not exceed torque requirements shown in the table above.

6. REFRIGERANT PIPING CONNECTION

INSTRUCTIONS FOR CONNECTING PIPING TO OUTDOOR UNIT

1. Unscrew the cover from the packed valve on the side of the outdoor unit (see Fig. 5.9)

Valve cover

Fig. 5.9

1. Remove protective caps from ends of valves.
2. Align flared pipe end with each valve, and tighten the flare nut as tightly as possible by hand.

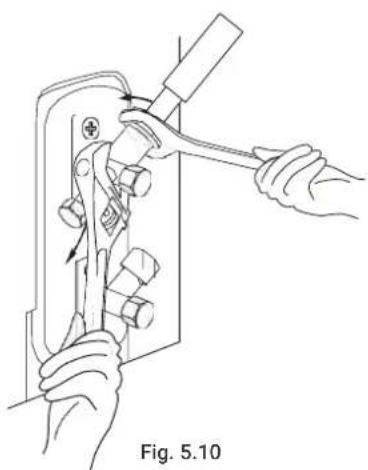

3. Using a spanner, grip the body of the valve. Do not grip the nut that seals the service valve. (See Fig. 5.10)

⚠ USE THE SPANNER TO GRIP THE MAIN BODY OF THE VALVE

Torque from tightening the flare nut can snap off other parts of valve.

Line drawing of hands using a tool to adjust or install a mechanical component, labeled Fig. 5.10 (no text or symbols on the diagram itself)

1. While firmly gripping the body of the valve, use a torque wrench to tighten the flare nut according to the correct torque values.
2. Loosen the flaring nut slightly, then tighten again.
3. Repeat Steps 3 to 6 for the remaining pipe.

Line drawing of a dual-gauge pressure regulator with no text or symbols

PREPARATIONS AND PRECAUTIONS

Air and foreign matter in the refrigerant circuit can cause abnormal rises in pressure, which can damage the air conditioner, reduce its efficiency, and cause injury. Use a vacuum pump and manifold gauge to evacuate the refrigerant circuit, removing any non-condensable gas and moisture from the system.

Evacuation should be performed upon initial installation and when the unit is relocated.

▲ BEFORE PERFORMING THE EVACUATION

• Check to make sure that both high-pressure and low-pressure pipes between the indoor and outdoor units are connected properly in accordance with the Refrigerant Piping Connection section of this manual.
• Check to make sure all wiring is connected properly.

EVACUATION INSTRUCTIONS

Before using the manifold gauge and vacuum pump, read their operation manuals to familiarize yourself with how to use them properly.

Manifold Gauge Compound gauge Pressure gauge -76cmHg Low pressure valve Pressure hose / Charge hose High pressure valve Charge hose Vacuum pump Low pressure valve

Fig. 6.1

1. Connect the charge hose of the manifold gauge to service port on the outdoor unit's low pressure valve.
2. Connect another charge hose from the manifold gauge to the vacuum pump.
3. Open the Low Pressure side of the manifold gauge. Keep the High Pressure side closed.
4. Turn on the vacuum pump to evacuate the system.
5. Run the vacuum for at least 15 minutes, or until the Compound Meter reads -76cmHG (-10 ^5 Pa).

7. AIR EVACUATION

1. Close the Low Pressure side of the manifold gauge, and turn off the vacuum pump.
2. Wait for 5 minutes, then check that there has been no change in system pressure.
3. If there is a change in system pressure, refer to the Gas Leak Check section for information on how to check for leaks. If there is no change in the system pressure, unscrew the cap from the packed valve (high pressure valve).
4. Insert hexagonal wrench into the packed valve (high pressure valve) and open the valve by turning the wrench in a 1/4 counterclockwise turn. Listen for gas to exit the system, then close the valve after 5 seconds.
5. Watch the Pressure Gauge for one minute to make sure that there is no change in pressure. The Pressure Gauge should read slightly higher than atmospheric pressure.
6. Remove the charge hose from the service port.

Flare nut Valve body Valve stem Cap Fig. 6.2

1. Using hexagonal wrench, fully open both the high pressure and low pressure valves.
2. Tighten valve caps on all three valves (serviceport, high pressure, low pressure) by hand. You may tighten it further using a torque wrench if needed.

OPEN VALVE STEMS GENTLY

When opening valve stems, turn the hexagonal wrench until it hits against the stopper. Do not try to force the valve to open further.

NOTE ON ADDING REFRIGERANT

Some systems require additional charging depending on pipe lengths. The standard pipe length varies according to local regulations. For example, in North America, the standard pipe length is 7.5m (25'). In other areas, the standard pipe length is 5m (16'). The refrigerant should be charged from the service port on the outdoor unit's low pressure valve. The additional refrigerant to be charged can be calculated using the following formula:

ADDITIONAL REFRIGERANT PER PIPE LENGTH

Connective Pipe Length (m)	Air Purging Method Additional Refrigerant
< Standard pipe length	Vacuum Pump N/A
> Standard pipe length	Vacuum Pupm	Liquid Side: ∅ 6.35 (∅ 0.25")R32:(Pipe length - standard length) x 12g/m(Pipe length - standard length) x 0.13oZ/ft	Liquid Side: ∅ 9.52 (∅ 0.375")R32:(Pipe length - standard length) x 24g/m(Pipe length - standard length) x 0.26oZ/ft

⚠️ CAUTION DO NOT mix refrigerant types.

Safety warning symbols for electric vehicle charging and non-compliant charging devices, including a device with no prohibition sign.

ELECTRICAL SAFETY CHECKS

After installation, confirm that all electrical wiring is installed in accordance with local and national regulations, and according to the Installation Manual.

BEFORE TEST RUN

Check Grounding Work

Measure grounding resistance by visual detection and with grounding resistance tester. Grounding resistance must be less than 0.1 Ω.

Note: This may not be required for some locations in the US.

DURING TEST RUN

Check for Electrical Leakage

During the Test Run, use an electroprobe and multimeter to perform a comprehensive electrical leakage test. If electrical leakage is detected, turn off the unit immediately and call a licensed electrician to find and resolve the cause of the leakage..

Note: This may not be required for some locations in the US.

⚠ WARNING – RISK OF ELECTRICAL SHOCK

ALL WIRING MUST COMPLY WITH LOCAL AND NATIONAL ELECTRICAL CODES, AND MUST BE INSTALLED BY AN ACCREDITED ELECTRICIAN.

GAS LEAK CHECKS

There are two different methods to check for gas leaks.

Soap and Water Method

Using a soft brush, apply soapy water or liquid detergent to all pipe connection points on the indoor unit and outdoor unit. The presence of bubbles indicates a leak.

Leak Detector Method

If using leak detector, refer to the device's operation manual for proper usage instructions.

AFTER PERFORMING GAS LEAK CHECKS

After confirming that the all pipe connection points DO NOT leak, replace the valve cover on the outside unit

BEFORE TEST RUN

Only perform test run after you have completed the following steps:

• Electrical Safety Checks - Confirm that the unit's electrical system is safe and operating properly.
• Gas Leak Checks - Check all flare nut connections and confirm that the system is not leaking.
• Confirm that gas and liquid (high and low pressure) valves are fully open.

TEST RUN INSTRUCTIONS

You should perform the Test Run for at least 30 minutes.

1. Connect power to the unit.
2. Press the ON/OFF button on the remote controller to turn it on.
3. Press the MODE button to scroll through the following functions, one at a time;
4. COOL – Select lowest possible temperature
5. HEAT – Select highest possible temperature
6. Let each function run for 5 minutes, and perform the following checks:

List of Checks to Perform PASS FAIL

No electrical leakage
The unit is properly grounded
All electrical terminals are properly covered
The indoor and outdoor units are solidly installed
All pipe connection points do not leak Outdoor (2): Indoor (2):
Water drains properly from drain hose
All piping is probably insulated
The unit performs the COOL function properly
The unit performs the HEAT function properly
The indoor unit louvers rotate properly
The indoor unit responds to the remote controller

DOUBLE-CHECK THE PIPE CONNECTIONS

During operation, the pressure of the refrigerant circuit will increase. This may reveal leaks that were not present during your initial leak check. Take time during the Test Run to double-check that all refrigerant pipe connection points do not have leaks.

Refer to Gas Leak Check section for instructions.

1. After the Test Run is successfully completed, and you confirm that all checks points in List of Checks to Perform have PASSED, do the following:

a. Using remote control, return unit to normal operating temperature.
b. Using insulation tape, wrap the indoor refrigerant pipe connections that you left uncovered during the indoor unit installation process.

IF AMBIENT TEMPERATURE IS BELOW 17°C (63°F)

You can't use the remote controller to turn on the COOL function when the ambient temperature is below 17^ . In this instance, you can use the MANUAL CONTROL button to test the COOL function.

1. Lift the front panel of the indoor unit, and raise it until it clicks in place.
2. The MANUAL CONTROL button is located on the right-hand side of the unit. Press it 2 times to select the COOL function. See Fig..8.1
3. Perform Test Run as normal.

Manual control button Fig. 8.1

10. EUROPEAN DISPOSAL GUIDELINES

This appliance contains refrigerant and other potentially hazardous materials. When disposing of this appliance, the law requires special collection and treatment. Do not dispose of this product as household waste or unsorted municipal waste.

When disposing of this appliance, you have the following options:

• Dispose of the appliance at designated municipal electronic waste collection facility.
• When buying a new appliance, the retailer will take back the old appliance free of charge.
  • The manufacturer will take back the old appliance free of charge.
• Sell the appliance to certified scrap metal dealers.

SPECIAL NOTICE

Disposing of this appliance in the forest or other natural surroundings endangers your health and is bad for the environment. Hazardous substances may leak into the ground water and enter the food chain.

(REQUIRED FOR THE UNITS THAT ADOPT R32 REFRIGERANT ONLY)

1. CHECKS TO THE AREA

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

2. WORK PROCEDURE

Works shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

3. GENERAL WORK AREA

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. work in confined sapces shall be avoided. The area around the work space shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

4. CHECKING FOR PRESENCE OF REFRIGERANT

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. no sparking, adequately sealed or intrinsically safe.

5. PRESENCE OF FIRE EXTINGUISHER

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry power or CO2 fire extinguisher adjacent to the charging area.

6. NO IGNITION SOURCES

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. NO SMOKING signs shall be displayed.

7. VENTILATED AREA

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

8. CHECKS TO THE REFRIGERATION EQUIPMENT

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants:

• the charge size is in accordance with the room size within which the refrigerant containing parts are installed;
• the ventilation machinery and outlets are operating adequately and are not obstructed;
• if an indirect refrigerating circuit is being used, the secondary circuits shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible;
• marking and signs that are illegible shall be corrected;

11. INFORMATION SERVICING

- refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9. CHECKS TO ELECTRICAL DEVICES

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, and adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include:

• that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• that there no live electrical components and wiring are exposed while charging, recovering or purging the system;
  • that there is continuity of earth bonding.

10. REPAIRS TO SEALED COMPONENTS

10.1 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
10.2 Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc.

- Ensure that apparatus is mounted securely.

- Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTA: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Instrinsically safe components do not have to be isolated prior to working on them.

11. REPAIR TO INTRINSICALLY SAFE COMPONENTS

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating.

Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

12. CABLING

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

13. DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch(or any other detector using a naked flame) shall not be used.

14. LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may

not be adequate, or may need re-calibration.(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.

If a leak is suspected, all naked flames shall be removed or extinguished. If a leakage of refrigerat is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

15. REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs of for any other purpose conventional procedures shall be used, However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to:

• remove refrigerant;
  • purge the circuit with inert gas;
• evacuate;
  • purge again with inert gas;
• open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be flushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task.

Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system.

When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place.

Ensure that the outlet for the vacuum pump is not closed to any ignition sources and there is ventilation available.

16. CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed:

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete(if not already).
• Extreme care shall be taken not to overfill the refrigeration system.
• Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

17. DECOMMISSIONING

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken.

In case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.

11. INFORMATION SERVICING

c) Before attempting the procedure ensure that:

• mechanical handling equipment is available, if required, for handling refrigerant cylinders.
• all personal protective equipment is available and being used correctly.
• the recovery process is supervised at all times by a competent person.
• recovery equipment and cylinders conform to the appropriate standards.

d) Pump down refrigerant system, if possible.

e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.

f) Make sure that cylinder is situated on the scales before recovery takes place.

g) Start the recovery machine and operate in accordance with manufacturer's instructions.

h) Do not overfill cylinders. (No more than 80% volume liquid charge).

i) Do not exceed the maximum working pressure of the cylinder, even temporarily.

j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

18. LABELLING

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

19. RECOVERY

• When removing refrigerant from a system, either for service or decommissioning, it is recommended good practice that all refrigerants are removed safely.
• When tranferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct numbers of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant(i.e special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order.
• Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.
• The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order.
• Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.
• The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.
• If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to retruning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

20. TRANSPORTATION, MARKING AND STORAGE FOR UNIT

1. Transport of equipment containing flammable refrigerants.
   Compliance with the transport regulations.

2. Marking of equipment using signs.
   Compliance with local regulations.

3. Disposal of equipment using flammable refrigerants.

Compliance with national regulations.

1. Storage of equipment/appliances.

The storage of equipment should be in accordance with the manufacturer's instructions.

1. Storage of packed (unsold) equipment.

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.

The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

IX39B5

HTWS026IX39B5-R32 | HTWS035IX39B5-R32 | HTWS052IX39B5-R32 | HTWS071IX39B5-R32

Product image of a HTW air conditioner unit with fan and back panel, plus a plus symbol (no text or labels on main body)

FRANÇAIS

Warning symbol of a flame inside a triangle (no text or numbers)

Mechanical diagram showing a tool interacting with a bolt and rotating a circular component (no text or symbols present)

Pure electrical circuit lines without any symbols

Illustration of hands using a tool to cut or mark a piece of material (no text or symbols present)

Diagram of a cable assembly with exposed wires and a coiled cable, showing internal components (no text or labels)

Illustration of two hands holding a horizontal bar with two upward-pointing arrows, no text or symbols present

Diagram of air conditioning system components with numbered parts and Chinese labels

(1) (2)
Fig. 3.1.

Line drawing of a cylindrical air conditioner unit with a curved tube attached (no text or symbols)

Fig. 3.1-a

INSTRUCTIONS D'INSTALLATION - UNITÉ INTÉRIEURE

AVANT L'INSTALLATION

Line drawing of a device with two connectors and a rectangular housing (no text or symbols)

Fig

Line drawing of a handheld electronic device with a handle and internal components (no text or symbols)

3.4.

MISE EN GARDE

Pure technical line drawing of a door hinge and pipe connection (no text or symbols)

CORRECT

Pure technical line drawing of a mechanical joint or bracket (no text or symbols)

INCO Les entor tuyau d créeront

INCORRECT

Pure technical line drawing of a door and pipe connection without any text or symbols

⚠ LISEZ CES RÉGLEMENTATIONS AVANT D' EFFECTUER TOUT TRAVAIL ÉLECTRIQUE

Line drawing of a multi-compartment air conditioner unit with fan blades and mounting bracket (no text or symbols)

INSTRUCTIONS D'INSTALLATION - UNITÉ EXTÉRIEURE

5.1 CHOIX DU LIEU D'INSTALLATION

Technical illustration of a mechanical connector assembly showing two stages: before and after assembly, with no visible text or symbols.

6.1 REMARQUE CONCERNANT LA LONGUEUR DE CONDUITE

Technical line drawing of a mechanical component with no visible text or symbols

EXTENSION DE LA TUYAUTERIE AU-DELÀ DE LA FORME D'ÉVASEMENT

Diamètre externe de la conduite (mm)	A (mm)
	Min. Max.
∅ 6,35 (∅ 0,25")	0,7 (0,0275")	1,3 (0,05")
∅ 9,52 (∅ 0,375")	1,0 (0,04")	1,6 (0,063")
∅ 12,7 (∅ 0,5")	1,0 (0,04")	1,8 (0,07")
∅ 16 (∅ 0,63")	2,0 (0,078")	2,2 (0,086")
∅ 19 (∅ 0,75")	2,0 (0,078")	2,4 (0.094")

Forme d'évasement A Fig. 5.5 Tulpería Hyad

Rayon ≥10cm (4in) Fig. 5.6

INSTRUCTIONS DE RACCORDEMENT DE LA TUYAUTERIE À L'UNITÉ INTÉRIEURE

Illustration of hands using a tool to lift a mechanical component, labeled Fig. 5.8 (no text or symbols on the diagram itself)

EXIGENCES DE COUPLE

Diamètre externe de la conduite (mm)	Couple de serrage (N·cm)	Couple de serrage supplémentaire (N·m)
∅ 6,35 (∅ 0,25") 1.500 (11lb·ft) 1.600 (11.8lb·ft)
∅ 9,52 (∅ 0,375") 2.500 (18,4lb·ft) 2.600 (19,18lb·ft)
∅ 12,7 (∅ 0,5") 3.500 (25,8lb·ft) 3.600 (26,55lb·ft)
∅ 16 (∅ 0,63") 4.500 (33,19lb·ft) 4.700 (34,67lb·ft)
∅ 19 (∅ 0,75") 6.500 (47,94lb·ft) 6.700 (49,42lb·ft)

⚠️ N'EMPLOYEZ PAS DE COUPLE EXCESSIF

Line drawing of hands using a tool to adjust or install a mechanical component, labeled Fig. 5.10 (no text or symbols on the diagram itself)

Line drawing of a dual-gauge pressure regulator with two gauges and a central valve (no text or symbols)

PRÉPARATIONS ET PRÉCAUTIONS

Safety warning illustration showing a device with a stop sign and an electric phone connected to its plug, both marked as no stop.

VÉRIFICATIONS DE SÉCURITÉ ÉLECTRIQUE

6. AUCUNE SOURCE D'INFLAMMATION

Product image of a HTW air conditioner unit with fan and back panel, plus a plus symbol (no text or labels on main components)

PORTUGUÊS

Warning symbol of a flame inside a triangle (no text or numbers)

Mechanical diagram showing a tool interacting with a bolt and rotating a circular component (no text or symbols present)

Pure electrical circuit lines without any symbols

Illustration of hands using a tool to cut or mark a piece on a textured surface (no text or symbols)

(pág. 149)

Diagram of a cable assembly with a coiled cable and clamped components (no text or labels)

Illustration of two hands holding a horizontal bar with two upward-pointing arrows, no text or symbols present

Diagram of air conditioning system components with numbered parts and Chinese labels

(1) (2)
Fig. 3.1.

Line drawing of a cylindrical device with a curved pipe extending from its side (no text or symbols)

Fig. 3.1-a

Parede Interior Exterior

DIMENSÕES DA CHAPA DE MONTAGEM

Line drawing of a mechanical device with two spring-loaded components (no text or symbols)

Fig

Line drawing of a device with a handle and internal components (no text or symbols)

3.4.

ATENÇÃO

Technical line drawing of a door bracket and wall junction (no text or symbols)

CORRETO

Simple line drawing of a door and pipe connection (no text or symbols)

INCO Dobras m de dren originar a

INCORRETO

Technical line drawing of a door and wall junction with no text or symbols

ANTES DE EFETUAR TRABALHOS ELÉTRICOS, LEIA ESTA REGULAMENTAÇÃO

30° Calço

O APARELHO É AJUSTÁVEL

Line drawing of a dual-panel air conditioner unit with fan blades and mounting bracket (no text or symbols)

Technical illustration of a mechanical connector assembly showing two stages: disassembly and assembly (no text or symbols)

6.1 NOTA SOBRE O COMPRIMENTO DO TUBO

Raio ≥10cm (4in) Fig. 5.6

INSTRUÇÕES PARA CONECTAR O TUBO À UNIDADE INTERIOR

Illustration of a hand using a tool to lift a bolt, labeled Fig. 5.8 (no text or symbols on the diagram itself)

Line drawing of hands using a tool to adjust or install a mechanical component, labeled Fig. 5.10 (no text or symbols on the diagram itself)

Line drawing of a dual-gauge pressure regulator with no text or symbols

PREPARATIVOS E PRECAUÇÕES

Safety warning symbols for electric vehicle charging and non-compliant charging devices, including a device with no prohibition sign.

VERIFICAÇÕES DE SEGURANÇA ELÉTRICA

Product image of a HTW air conditioner unit with fan and back panel, plus a plus symbol (no text or labels on main components)

ITALIANO

Warning symbol of a flame inside a triangle (no text or numbers)

Mechanical diagram showing a tool interacting with a bolt and rotating a circular component (no text or symbols present)

Pure electrical circuit lines without any symbols

Illustration of hands performing a manual tool on a textured surface (no text or symbols)

(pag. 193)

Diagram of a cable assembly with exposed and hidden wires, showing internal components and wire routing (no text or labels)

Illustration of two hands holding a horizontal bar with two upward-pointing arrows, no text or symbols present

Line drawing of a cylindrical device with a curved handle and internal components, labeled as Fig. 3.1-a (no text or symbols on the diagram itself)

Line drawing of a mechanical device with two screws and a rectangular housing (no text or symbols)

Fig

Line drawing of a mechanical device with a handle and screwdriver (no text or symbols)

3.4.

ATTENZIONE

Pure technical line drawing of a door latch or bracket assembly without any text, numbers, or symbols

CORRETTO

Simple line drawing of a door and pipe connection (no text or symbols)

Technical line drawing of a door and pipe assembly (no text or symbols)

⚠ PRIMA DI ESEGUIRE I LAVORI ELETTRICI, LEGGI QUESTE NORME

Line drawing of a multi-compartment air conditioner unit with fan blades and mounting bracket (no text or symbols)

Technical illustration of a mechanical connector assembly showing two stages: before and after assembly, with no text or symbols present.

6.1 NOTA SULLA LUNGHEZZA DEL TUBO

Illustration of a hand using a tool to lift a mechanical component, labeled Fig. 5.8 (no text or symbols on the diagram itself)

COPPIE DI SERRAGGIO

Diametro esterno del tubo (mm)	Momento torcente (N·cm)	Aggiuntivo Momento Torcente (N·cm)
∅ 6,35 (∅ 0,25") 1.500 (11lb·ft) 1.600 (11.8lb·ft)
∅ 9,52 (∅ 0,375") 2.500 (18,4lb·ft) 2.600 (19,18lb·ft)
∅ 12,7 (∅ 0,5") 3.500 (25,8lb·ft) 3.600 (26,5lb·ft)
∅ 16 (∅ 0,63") 4.500 (33,19lb·ft) 4.700 (34,67lb·ft)
∅ 19 (∅ 0,75") 6.500 (47,94lb·ft) 6.700 (49,42lb·ft)

▲NON APPLICARE UNA TORSIONE ECCESSIVA

Line drawing of hands using a tool to adjust or install a mechanical component, labeled Fig. 5.10 (no text or symbols on the diagram itself)

Line drawing of a dual-gauge pressure regulator with no text or symbols

Safety warning illustration showing electric shock hazard and two phone icons with no symbols

CONTROLLI ELETTRICI E PERDITE DIGAS

[e-mail] www.htwspain.com

España [e-mail] | France [e-mail]

Portugal [e-mail] | Italy [e-mail]

SAT

España [e-mail]

France [e-mail]

Portugal [e-mail]

Italy [e-mail]

tel. [phone]

tel. [phone]

tel. [phone]

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority deifferentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-outwheeled dustbin.

AVERTISSEMENTS POUR L'ÉLIMINATION CORRECTE DU PRODUIT AUX TERMES DE LA DIRECTIVE 2002/96 / CE.
