USER MANUAL 304287 Brandson

Warning sign with black explosion symbol inside yellow triangle, indicating hazard or risk

CAUTION LASER RADIATION DO NOT STARE INTO BEAM DIODE LASER <1mW Output at 620-690nm CLASS II LASER PRODUCT

1. Lieferumfang

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

Important safety guidelines for this product

Laser

• When using laser equipment, it should be ensured that people are not present in the projection range of the laser beam of the device. Ensure that the beam is not reflected to areas where people are present.
• Before using this device, inform yourself about the legal requirements and preventive measures for operating such a laser device.
• Never look into the laser beam and never point it at people or animals. Such laser radiation can cause eye injuries!
• As soon as laser radiation impinges on the eye, the eyes must be closed immediately and the head must be moved away from the laser beam immediately.
• Never point the laser beam at a mirror or other reflective surfaces. The uncontrolled beam may hit persons or animals!
• Manipulations (modifications) to the laser equipment are not permitted.
• This user manual should be kept carefully, and if you give the laser equipment away, it should be handed over along with it.
  • This product is equipped with a laser of Class 2.

Warning sign with black explosion symbol inside yellow triangle, indicating hazard or risk

CAUTION LASER RADIATION DO NOT STARE INTO BEAM DIODE LASER <1mW Output at 620-690nm CLASS II LASER PRODUCT

1. Scope of delivery

• Laser rangefinder
• microUSB charging cable
• User manual

2. Technical data

Battery 400 mAh Li-lon battery
Measurement range 0.20 m - 40 m
Measuring tape 0-5 m
Accuracy ± 3 mm
Laser class II
Laser type 620-690 nm,<1 mw
Operating temperature 0°C to 40°C
Storage temperature -20°C to 60°C
Features • 3 measurement functions (area, Pythagoras, volume)Backlight3 different units (feet, inches, meters)

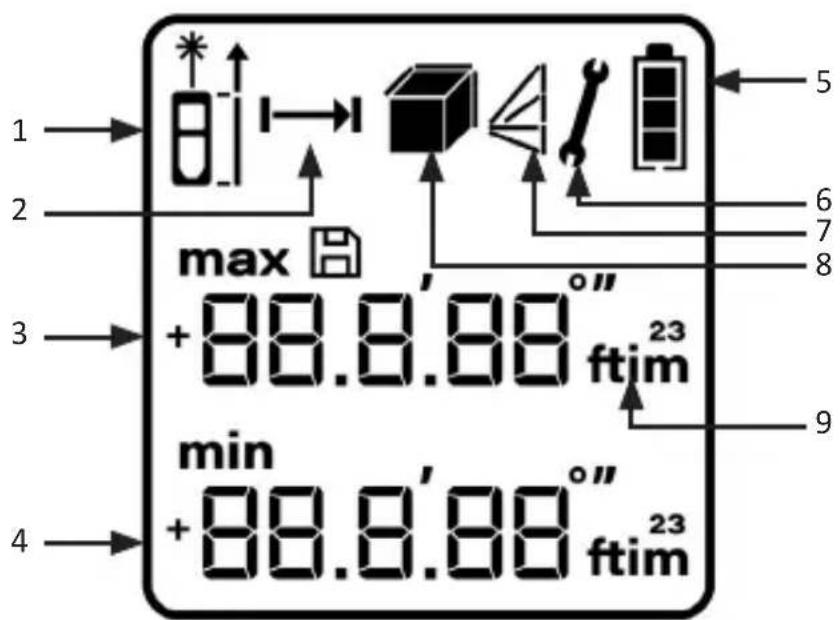

3. Product details

1 2 3 4 max +88.8.88 ftim min +88.8.88 ftim 5 6 7 8 9

1 Signal strength / reference point

2 Standard measurement

3 Auxiliary display area

4 Main display area

5 Battery status

6 Main display area

7 Pythagoras function

8 Volume / area function

9 Measurement unit

4. Key functions

Switching on/Measuring	"ON/OFF" button ( button
Mode change	"Mode" button (
Changing the unit / reference point	"Unit" button (
Clear / Switch off	"Clear" button (

5. Initial use

Take the device out of the package and remove all the packaging material.

Connect the supplied USB charging cable to a 5V DC power adapter (for example, the charger of your smartphone) and to the charging port at the bottom of the rangefinder. Charge the device completely before using it. The battery indicator (5) on the display shows the current battery level. Check that the product and the components are intact and that the device is working properly when using it for the first time.

6. Operating/Measuring

Switching on: Press the "ON/OFF" button (if about 1 second to switch on the device when it is switched off. If you do not press any button within 30 seconds, the laser switches off automatically.

Switching off: Press and hold the "ON / OFF" button ( ) for 2 seconds, to switch off the device. It switches off automatically after 3 minutes if there is no operation.

Laser on/Measuring: Press the "ON/OFF" button ( ) briefly once in the switched-on condition. The laser beam is switched on. Press once again to carry out the measurement. The laser is switched off automatically after completing the measurement. Pressing the button for a long duration results in continuous measurement mode.

6.1 Measurement reference

Press the "Unit change / reference point change" button ( ) briefly in the switched-on condition to change the reference point. The default setting is restored when you restart the device.

- Top of the device: The date mark can be found at the top of the instrument. The measured distance does not include the length of the instrument itself.

- Bottom of the device: The reference mark is the bottom of the instrument. The measured distance includes the length of the instrument itself.

Top

Simple diagram of a battery with an arrow pointing to its top and bottom, no text or symbols present.

Lower side m

7. Single measurement / Continuous measurement

Single measurement

Press the "ON / OFF" button ( ) briefly in the start condition to switch on the laser and to aim the laser beam on the object to be measured. Press again briefly to run the single measurement, and the measurement result is immediately displayed on the screen.

Continuous measurement

Press and hold the "ON/OFF button" ( ) for about 2 seconds in standby mode. The continuous measurement begins.

8. Selecting the unit

The default measurement unit of the instrument is meter (m). Press and hold the "Unit change / reference point change" button ( ) for some time to change the measurement unit.

9. Measurement functions

Area measurement
Volume measurement
Pythagorean measurement I
Pythagorean measurement II (plus)
Pythagorean measurement III (minus)

Area measurement

Press the "Mode" button briefly ( ) in the switched-on state until the area measurement symbol ( ) appears in the display.

The symbol of the side to be measured flashes on the display. Now aim at the desired point and press the "ON/OFF" button ( ) to measure the length of the first side. The square symbol of the second side then starts flashing. Measure the second point as described above. The device automatically calculates the area and shows the result on the display. The measurement results of the lengths of the first and second sides are displayed in the auxiliary display area.

Volume measurement

Press the "Mode" button briefly ( ) in the switched-on state until the volume measurement symbol ( ) appears in the display.

The symbol of the side to be measured flashes on the display. Now aim at the desired point and press the "ON/DIST" button to measure the length of the first side. The symbol of the second side then starts flashing. Measure the second point as described above. The device automatically calculates the area and shows the result on the display. The measurement results of the lengths of the first and second sides are displayed in the auxiliary display area.

Special functions (Pythagoras)

This mode is meant for the automatic calculation of the Pythagorean theorem. There are three different Pythagorean measurements. Select the desired measurement and then carry out the measurement.

Please press the "Mode" button briefly ( ) in the switched-on state until the desired Pythagoras function ("", " ", "") appears in the display. The symbol of the side to be measured flashes on the display. Now aim at the desired point and press the "ON/DIST" button to measure the length of the first side. The symbol of the second side then starts flashing.

Measure the second point as described above. The device automatically calculates the area and shows the result on the display. The measurement results of the lengths of the first and second sides are displayed in the auxiliary display area.

Note: In the Pythagoras measurement mode, the right side has to be smaller than the hypotenuse, otherwise the device shows an error message "D.E".

Notes for measurements

• If the upper surface of the object to be measured is a liquid or a clear and transparent substance, then the measurement may show an error.
• If the object to be measured is highly reflective, then the laser may also be reflected and errors could occur in the measurement.
• If the object to be measured is very dark or hardly reflective, then the time required for measurement may increase.
  • Sunlight adversely affects the range of the device!

10. Error display and troubleshooting

Error Cause of error Troubleshooting
B.L Battery capacity is too low Replace the batteries
T.L The temperature is too low		Warm up the device a little. Always note the approved working temperature range of the device
T.H The temperature is too high		Cool down the device a little. Note the approved working temperature range of the device at all times
D.E	Data error during measurement	Carry out the measurement again and correctly

11. Safety instructions and disclaimer

Never try to repair or modify the device by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. The device is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way.

Please follow the national regulations and restrictions. Do not use the device for purposes other than those described in this manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The specifications of the device may be changed without any special prior notification.

Never aim this device at the sun. Never use this device on a ladder. Always ensure that you are standing on firm ground. Do not immerse the device in water. Use only a soft dry cloth for cleaning. Never use aggressive cleaning agents.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

13. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304287/20200108NB131 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
