USER MANUAL AVerVision M15W AVer

Line drawing of a mechanical device with two arms, one labeled 'AVER' and the other showing a battery (no text or symbols on the device itself)

M15W(v2)

ULTRA HD

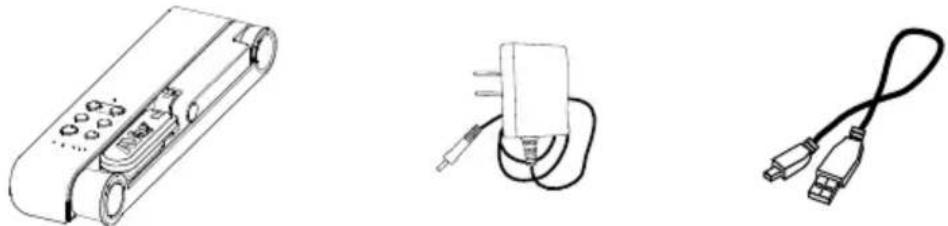

The items below are included with this product. If any item is missing, contact the dealer from whom you purchased this product.

M15W(v2) unit Power adapter/ Power plug USB cable

Warranty card* Instruction manual

Wi-Fi Dongle (Optional)

*Only for Japan, Taiwan, and Europe

Optional Accessories

Carrying bag Anti-glare sheet

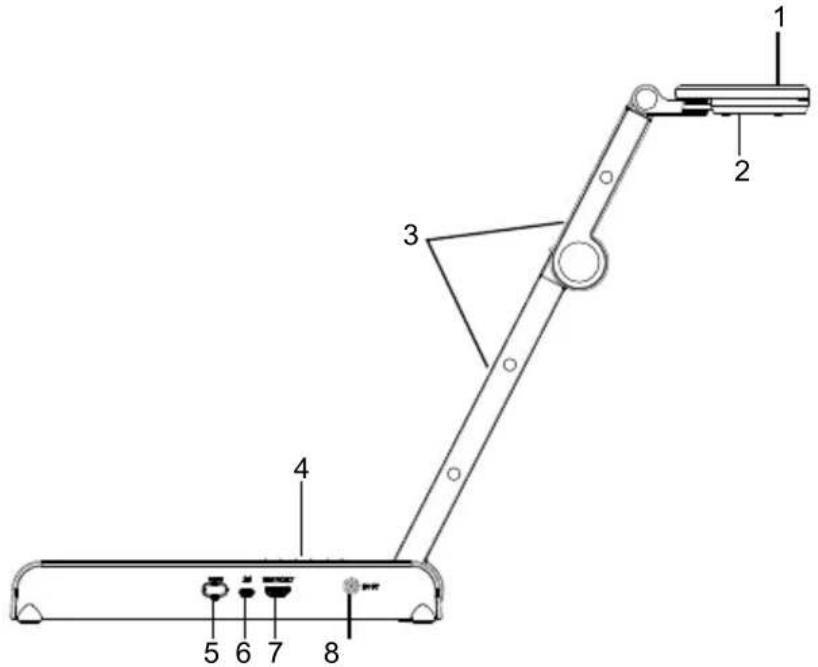

Hardware Parts

Technical diagram of a mechanical device with numbered components and labeled parts

1. Camera head 2.	LED lighting
3. Arm 4. Control panel
5. Wi-Fi dongle 6.	USB port
7. HDMI output 8. DC power jack

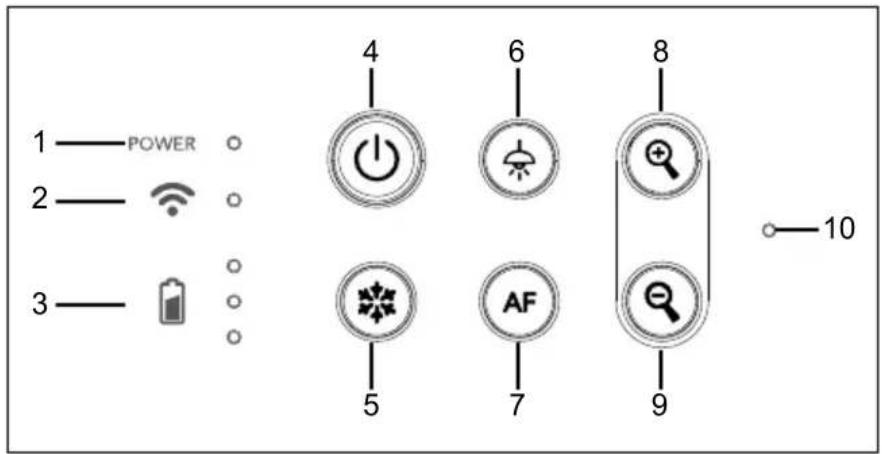

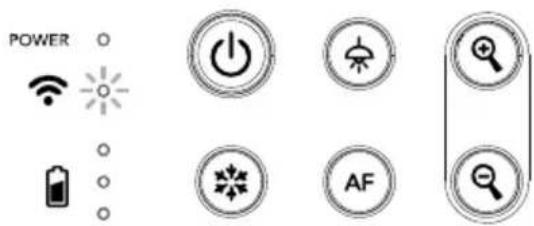

Control Panel

1 POWER 2 Wi-Fi 3 - battery - 4 6 8 5 AF 9 10

1. Power indicator 6. Lamp(on/off)
2. Wi-Fi indicator 7. Auto focus
3. Battery indicator 8. Zoom in
4. Power button 9. Zoom out
   (on/off/standby*)
5. Built-in MIC
6. Freeze

* Standby mode is supported when power plugged in.

LED Indicator

Power	Solid green: Power onNo light: Power offSolid red: Standby mode** Standby mode is supported when power plugged in.
Wi-Fi	Solid blue: AP Mode Ready / STA connectedSlow flashing blue: Software connection with cameraShort flashing blue: Create AP mode / STA connectingSolid green: Miracast mode readySlow flashing green: Miracast streaming startQuick flashing green: Miracast device scan / connecting
Battery	Solid green(x3): Battery is full(100% ~ 60%)Solid green(x2): Battery is 60% ~ 30%Solid green(x1): Battery is 30% ~ 5%Solid red (x1): Battery is 5% ~ 0%Flashing red (x1): Battery is out of powerSolid orange(x3): Battery is abnormal

[Note]

The battery will be exhausted for long-term usage. Do not replace the battery yourself. Please contact your dealer.

Compound Key

Press and hold for 3 seconds to operate the compound key function.

MORE INFO / BATTERY

: Display system information and battery power status.

CAPTURE

: Snapshot the current screen image to software or cloud.

Press keys to operate the compound key function.

FACTORY RESET

RESOLUTION

: Back to factory default settings.

: Press to switch between following modes:

• Auto detects the best resolution(4K, 720P, 1080P)
• 1024x768 (If HDMI device support)
• 4K 60Hz (If HDMI device support)

:Press to switch between following modes:

• Normal: Adjust the gradient of image.
• Motion: Increase frame rate. Sufficient lighting is required when using this mode.
• High quality: Better image quality.

Device Connection

1

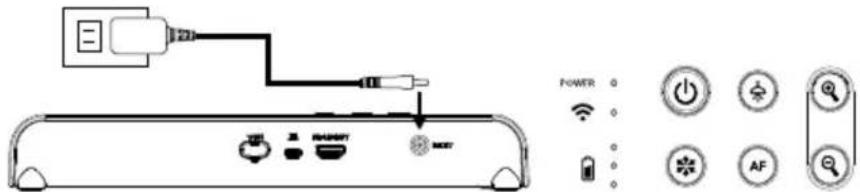

Plug in power adapter and turn on M15W(v2).

Diagram showing wireless device connections with labeled ports and power indicators

[Note]

■ Please fully charge the camera for the first time use.
- When the camera is power on, the camera is in "Standby" mode. In standby mode, it can be charging with the USB connection between other devices; but the power supply is required 5V2A and the charging time will be longer.
■ The laptop, projector, or monitor cannot provide the power through the USB connection to the camera while the camera is operating.
■ When the camera is charging with the wall outlet, the battery indicator is in green flashing.
■ Press AF + 📄 to reboot when the camera doesn't work properly.

2

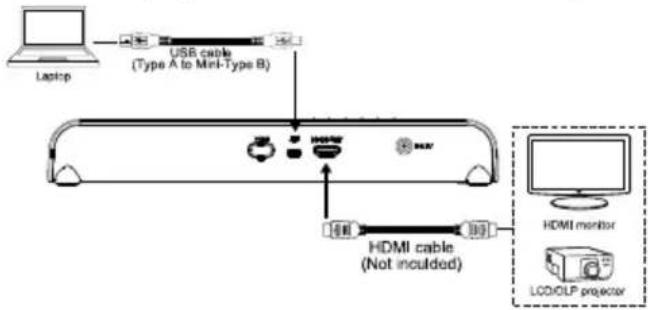

Connect M15W(v2) to laptop and HDMI display.

[Note]

■ The Wi-Fi mode is on when the camera is powered up.
■ When camera connects to a laptop through the USB port, the Wi-Fi mode is disabled. Please follow the direction on HDMI device.

P2P connection via Wi-Fi Dongle(Optional)

1 Plug-in the WiFi dongle to PC/laptop and Install the AVerTouch application.

Mechanical linkage device with sensor icon and signal waves (no text or symbols)

Wi-Fi Dongle Laptop AVerTouch

2 Open AVerTouch application, click to connect the camera.

Options Aircraft All Currencies (continued version) Send your network Send your network

[Note] Check serial number at bottom of the camera to find your camera.

3 Click Next to continue.

AfterTouch You will create your own image. You can access to the image. Cancel Next

4

Entering the Camera Name and Passcode, click Done to continue.

Save Camera Start: 100% Open your email address. Send you to account email. Email: Classroom Add email address Password: Cancel Close

5

Click Done button to connect camera.

Test is not to try ✓ To be done in the Suzhou district of the city, we will take place in the city. We will start at this point on the city's home. ✓? Yes? ✓? Yes?

[Note] It takes about 60 seconds to complete connection.

6

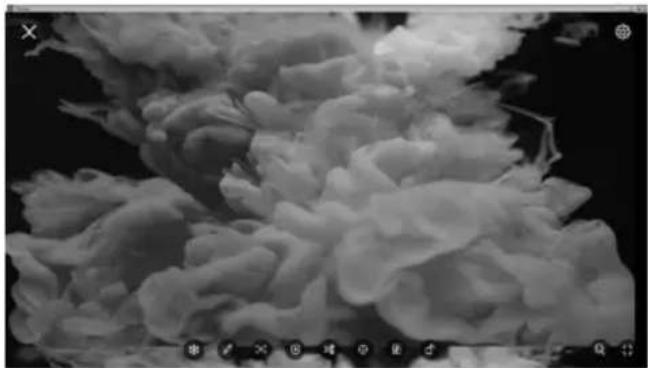

Select X can exit the live view page.

Abstract grayscale texture resembling cloud or smoke plume, no text or symbols visible

[Note] When connecting is successful, you should see the live view of the camera.

Wi-Fi Connection

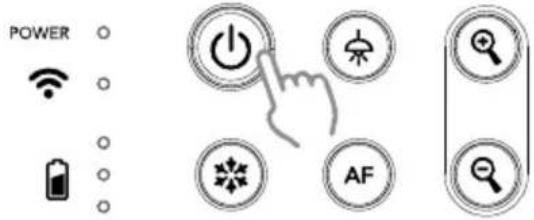

1 Power on the camera.

POWER Wireless Battery Power Power Power Power AF

Check the Wi-Fi status – Blue light on.

POWER Power Battery Power Power Battery Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power Power AFL

2 Open AVerTouch and follow on-screen instruction to enable Wi-Fi function on camera.

All Cameras Send you camera

[Note]

■ The software will auto detect the camera on your network.
■ Select the camera that you want to connect with it.
■ The camera name will be "AVer 'model name' - WiFi dongle Mac address". The Mac address will be different from the device.

Wi-Fi Connection(Cont.)

3

Select to make a connection with camera.

All Camera Connect your camera

4

Select to switch to camera live screen.

Microsoft Camera Add All Cameras Control buttons OK Edit Save Help

Miracast Connection

1

Press

to enter selection menu.

[Note]

■ Using 🔒 and 🔒 button to go to the selection and press

button to confirm the selection.

■ A commercial Miracast Dongle (Wireless Adapter) is required for the display device.

2

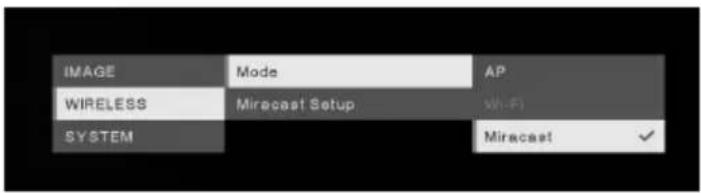

Select Wireless > Mode > Miracast to enable Miracast mode.

IMAGE Mode AP WIRELESS Miracast Setup W-Fi SYSTEM Miracast ✓

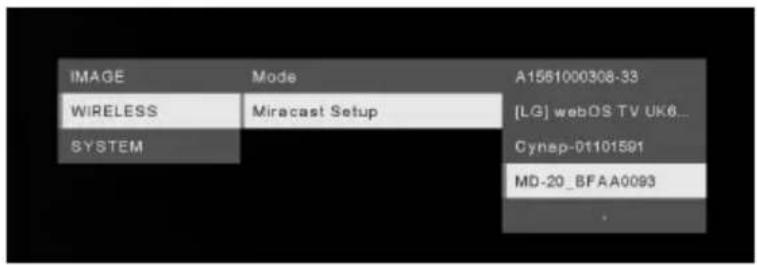

3

Select Miracast > display device.

IMAGE Mode A1561000308-33 WIRELESS Miracast Setup [LG] webOS TV UK6... SYSTEM Cynap-01101591 MD-20_BFAA0093 .

[Note]

■ The detected display devices will be list out.

■ Press 🙏 back to the menu.

■ The camera image will display on the display device's screen after connecting.

Using the Camera

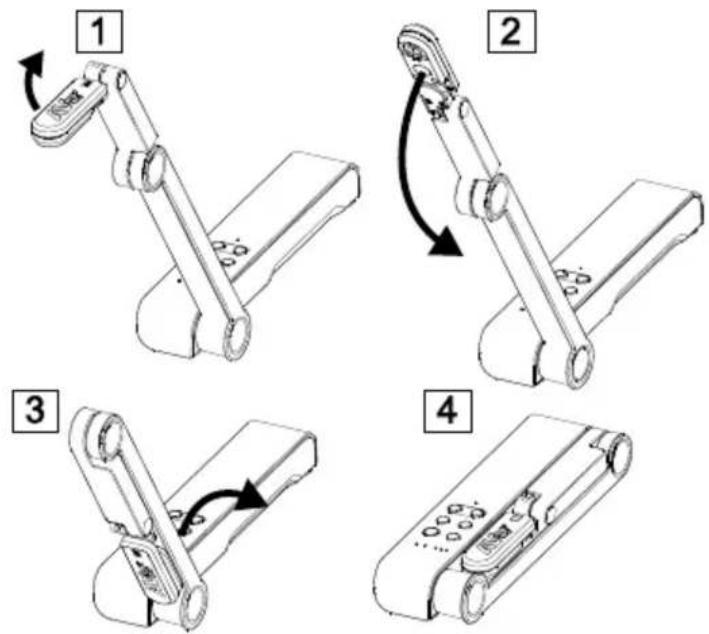

Storage the Camera

Using the Camera (continue)

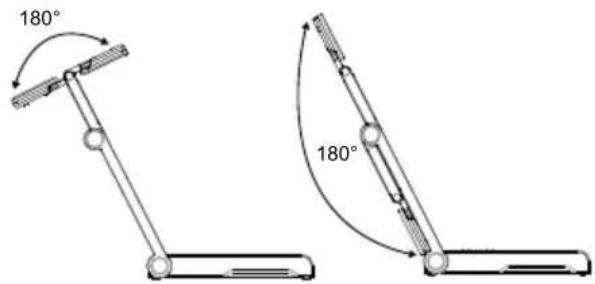

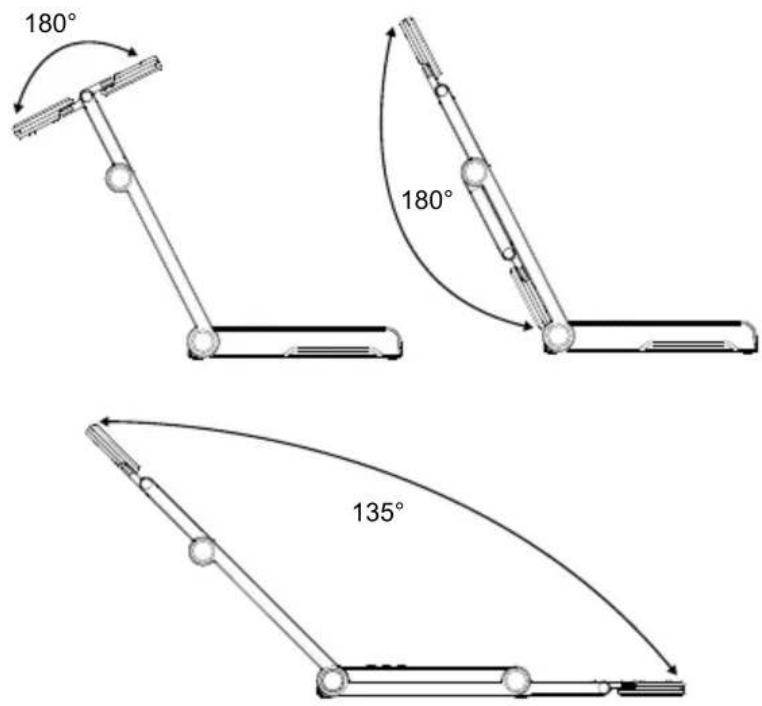

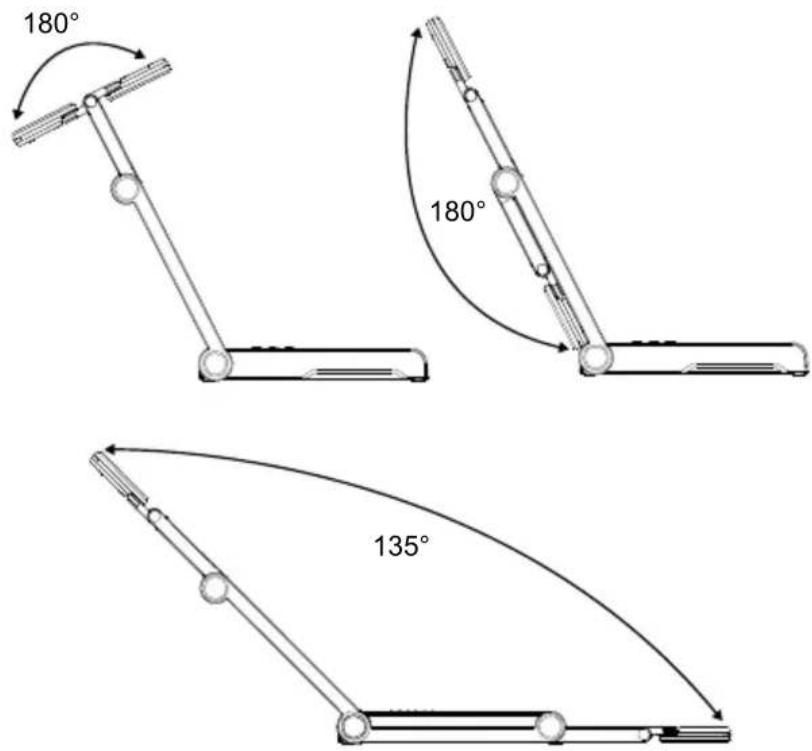

Using Angle of the Camera

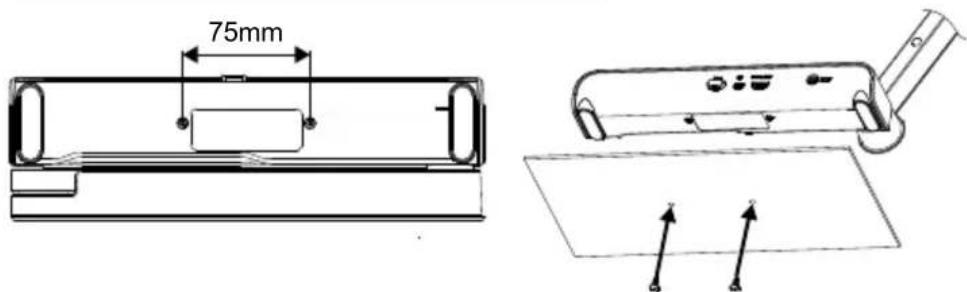

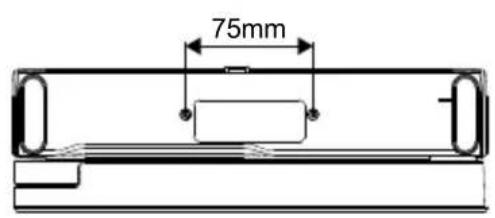

Mounting the Camera on a Flat Surface

75mm

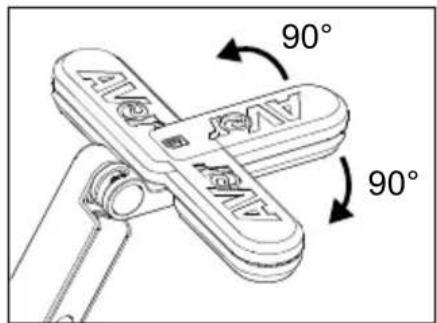

Rotate the Camera Head

Move the camera head as figure shown.

[CAUTIION] To avoid damage the camera head, hold the edge of the camera head to rotation the camera head.

AIVX AIVY 90° 90°

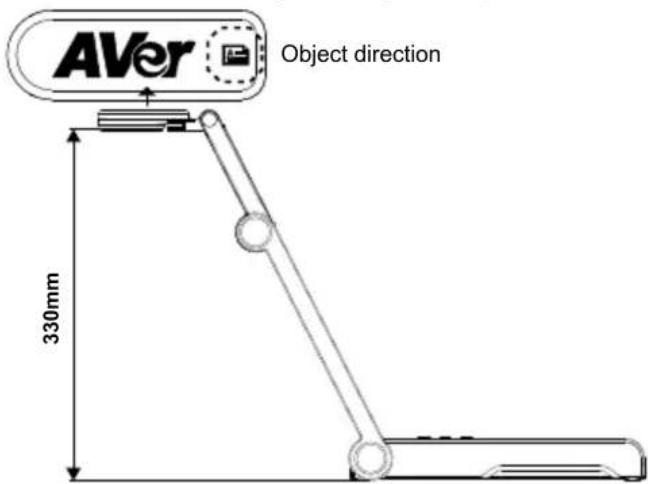

Shooting Area

When camera position is 330mm high, the shooting area will be A3 size. Place the object as illustrate show, the object image is in positive direction.

AVer Object direction 330mm

Image Shooting Direction

To shoot people, adjust the camera lens as illustrate shown; the people image is in positive direction.

Pure mechanical diagram showing a lever and handle without any text, numbers, or symbols

English-11

Specification

Sensor 1/3.06" CMOS
Pixel Count	13 megapixels
Frame Rate	60 fps (max.)
Image mode Normal	/ High Frame / High Quality
Effect Rotate / Freeze
HDMI Output 4K; 1080p 60Hz; 720p 60Hz
Focusing Auto / Manual/ Area (SW)
Shooting Area 426mm x313mm @ 330 mm
Zooming Total 23X maximum
Dual Mode AP / Station DHCP(Server/Client)
WiFi Streaming 1080P@30fps, up to 4K@30fps
Dual Band 5GHz/2.4GHz
Miracast Yes
Compatibility 802.11a/b/g/n/ac (45 ft effective range)
Wireless Security	SUPPORT WEP, WPA/WPA2-PSK,WPA/WPA2-Enterprise**EAP-PEAP, EAP-TLS
Power Source	DC5V/ 2A, AC 100-240V
Consumption	4 Watts(lamp on)3.5 Watts(lamp off)
Lamp Type	LED light
USB	USB2.0 Type-A(WiFi Dongle)USB Type mini-B x 1
DC 5V Input	Power Jack
MIC	Built-in
Operating	518mm(L)*84 mm(W)*351mm(H)(+/-2mm include rubber foot)
Folded	280mm(L)*84mm(W)*42mm(H)(+/-2mm include rubber foot)
Weight 0.68 kg (about 1.5lbs)
Software Supported	ePTZImage/ Area capturePicture by PictureTimerCloud libraryRecordingAnnotation

CE Class A

Warning:

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

NOTICE

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. THE INFORMATION CONTAINED HEREIN IS TO BE CONSIDERED FOR REFERENCE ONLY.

COPYRIGHT

©2023 AVer Information Inc. All rights reserved. | June 27, 2023

The information contained in this documentation is subject to change without notice.

TRADEMARKS

“AVer” is a trademark owned by AVer Information Inc. Other trademarks used herein for description purpose only belong to each of their companies.

CAUTION

Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.

DISCLAIMER

No warranty or representation, either expressed or implied, is made with respect to the contents of this documentation, its quality, performance, merchantability, or fitness for a particular purpose. Information presented in this documentation has been carefully checked for reliability; however, no responsibility is assumed for inaccuracies. The information contained in this documentation is subject to change without notice.

In no event will AVer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.

WARNING

■ Do not drop the camera or subject it to physical shock.
■ Use the correct power supply voltage to avoid the damaging camera.
■ Do not place the camera where the cord can be stepped on as this may result in fraying or damage to the lead or the plug.
■ Do not pull the mechanical arm and camera part in the opposite direction.

Technical line drawing of a mechanical device with no visible text or symbols

■ To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Warranty will be void if any unauthorized modifications are done to the product.

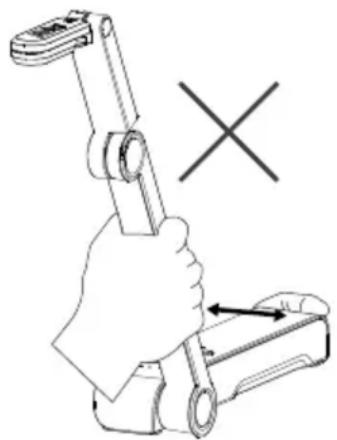

■ Hold the bottom of the camera with both hands to move the camera. Do not grab the lens or Flexible arm to move the camera.

Illustration of a hand holding a tool with a cross mark, no text or symbols present

RADIO FREQUENCY

FOR PORTABLE DEVICE USAGE (<20m from body/SAR needed eg. BT dongle, smartphone)

Radiation Exposure Statement:

The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

FOR MOBILE DEVICE USAGE (>20cm/low power eg. AP routers)

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

RADIO FREQUENCY

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the Radio Equipment Directive (2014/53/EU). The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment Directive (2014/53/EU)

THE MARK OF CROSSED-OUT WHEELED BIN INDICATES THAT THIS PRODUCT MUST NOT BE DISPOSED OF WITH YOUR OTHER HOUSEHOLD WASTE. INSTEAD, YOU NEED TO DISPOSE OF THE WASTE EQUIPMENT BY HANDING IT OVER TO A DESIGNATED COLLECTION POINT FOR THE RECYCLING OF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT. FOR MORE INFORMATION ABOUT WHERE TO DROP OFF YOUR WASTE EQUIPMENT FOR RECYCLING, PLEASE CONTACT YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT.

MORE HELP

For FAQs, technical support, software and user manual download, please visit:

Download Center Technical Support

Headquarters

https://www.aver.com/download-center

https://www.aver.com/technical-support

Europe Branch Office

https://www.avereurope.com/download-center

https://www.avereurope.com/technical-support

CONTACT INFORMATION

Headquarters

AVer Information Inc.

https://www.aver.com

8F, No.157, Da-An Rd., Tucheng Dist., New Taipei City 23673, Taiwan

Tel: [phone]

Europe Branch office

AVer Information Europe B.V.

https://www.avereurope.com

Westblaak 134, 3012 KM, Rotterdam, The Netherlands

Tel: [phone]

Technical support: [e-mail]

Japan Branch Office

アバー・インフォメーション株式会社

https://jp.aver.com

Vietnam Branch Office

Công ty TNHH AVer Information (Việt Nam)

Technical diagram of a mechanical device with numbered components for identification

Diagram showing connected ports and power control icons with labels like POWER, WiFi, and AF

[註]

OK OK OK OK OK

[註] 約需等待 60 秒來完成連接。

6

點選 X 可離開即時影像顯示畫面。

Microscopic view of a fibrous or cellular structure with no visible text or symbols

POWER Wireless Battery Power Power Power AF

確認無線連線狀態為「藍燈恆亮」狀態。

POWER Power AF

[註]

Mechanical linkage diagram showing a lever and fulcrum with no text or symbols

Mechanical diagram showing a lever mechanism with a curved arrow indicating rotational motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

使用 M15W(v2)(接續)

可使用角度

180° 180° 135°

安裝 M15 於平面上

75mm

Diagram of a handheld device with two arrows pointing to a blank sheet, no text or symbols present

旋轉鏡頭

Technical line drawing of a mechanical component with a lever and housing (no text or symbols)

規格

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a hand holding a handheld device with a cross symbol indicating cancellation or disassembly (no text or symbols present)

免責聲明

https://www.aver.com

https://www.aver.com/download-center

常見問題、技術支援，請到下面網址：

https://www.aver.com/technical-support

パッケージ同梱物

Technical diagram of a mechanical device with numbered components for identification

Diagram showing electronic device connections including power, wireless, and control icons with labels like POWER, WiFi, AF, and USB port.

[注意]

Mechanical linkage diagram showing a lever with a curved arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

カメラを使用する(続き)

カメラの角度調節

180° 180°

135°

カメラのねじ固定を行う箇所・寸法

75mm

Diagram of a device with three arrows pointing to a blank sheet, no text or symbols present

日本語-37

カメラを使用する(続き)

カメラヘッドの回転

図のようにカメラヘッドを動かします。

Pure mechanical assembly diagram showing a lever and handle without any text or symbols

日本語-38

仕様

Illustration of a hand holding a mechanical clamp with an 'X' symbol indicating no text or labels

Line drawing of a mechanical device with a vertical rod and base, featuring intersecting rods (no text or symbols)

製品サポート

https://jp.aver.com/download-center

ヘルプセンター

https://jp.aver.com/helpcenter

お問い合わせ先

アバー・インフォメーション株式会社

https://jp.aver.com

Technical line drawing of a rectangular electronic device with circular ports and a central internal component (no text or symbols)

M15W(v2)-Gerät

Netzadapter/Netzstecker

USB-Kabel

Garantiekarte*

Bedienungsanleitung

WLAN-Dongle (Option)

Diagram showing electronic device connections with labeled ports and power control icons

[Hinweis]

AfterTouch By switched: PC, PC, or other PC after the next session AfterTouch Console Adder New

4

Kamera speichern The information is required to display images. However, the data is available in a software interface. It is currently available at the beginning of the session.

5

SOMENIX, S.A. ✓ If: M. R. B. A. 100% or more, I am not allowed to allow the system to drive a 25% or 30% of the system's status. This is already completed.

Black and white abstract cloud-like texture with no visible text or symbols

Diagram showing a hand pressing a button to interact with four circular icons labeled A, B, C, D and an 'Power' button.

Technical line drawing of a mechanical device with two arrows indicating movement or force, no text or symbols present

Kamerakopf drehen

Pure mechanical assembly diagram showing a lever and housing component without any text or symbols

Technische Daten

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a hand holding a mechanical clamp or tool, with a cross symbol indicating a specific movement (no text or labels present)

Mehr Hilfe

https://www.avereurope.com/download-center

https://www.avereurope.com/technical-support

Westblaak 134, 3012 KM, Rotterdam, The Netherlands

Tel: [phone]

Technical line drawing of a rectangular electronic device with ports and buttons (no text or symbols)

Appareil M15W(v2)

Technical diagram of a mechanical device with numbered components labeled 1 through 8

Diagram showing electronic device connections including power, wireless, and control icons with labels like POWER, WiFi, and AF.

[Remarque]

Simple line drawing of a mechanical device with a sensor icon and signal waves (no text or symbols)

Dongle Wi-Fi Ordinateur portable AVerTouch

2

After Touch Start after click the user to access the following steps: OK Cancel

4

Enregistrer la camirs Let me remember Christmas enregistrer de la question, then call out a file into the following categories: • For this case. • After that case. • Use place it.

5

Not sure: Offense Recommended to ensure that the following is required: to be able to do the correct answer if you need to help you know.

Abstract grayscale texture with flowing, cloud-like forms against a dark background (no text or symbols)

Diagram showing a hand pressing a button with power, battery, snowflake, and AF icons around it

Four circular icons with power, battery, snowflake, and AF symbols, likely representing control or operation buttons.

Toute les commandes www.mirad.com.cn Connected with command

4

Touch the continue OK

Connexion Miracast

Technical line drawing of a handheld device with two arrows pointing to a blank sheet (no text or symbols)

Français-66

Pure mechanical component diagram showing a lever and handle without any text or symbols

Caractéristiques

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a hand holding a mechanical clamp with a cross mark, no text or symbols present

Aide Supplémentaire

https://www.avereurope.com/download-center

Assistance Technique:

https://www.avereurope.com/technical-support

Westblaak 134, 3012 KM, Rotterdam, The Netherlands

Tel: [phone]

Assistance technique: [e-mail]

Line drawing of a remote control device with buttons and ports (no text or symbols)

Unidad M15W(v2)

Technical diagram of a mechanical device with numbered components and labeled parts

Diagram showing connections of a device with labeled ports and power indicators including power, wireless, power button, AF, and search.

[Nota]

Mechanical linkage device with sensor icon and sound waves (no text or symbols)

After Touch This image is too difficult to access or use the following functions: in your application. Toutabo Importe

4

To be done to get ✓

Microscopic view of a porous, fibrous material structure (no text or symbols visible)

Diagram showing a hand pressing a button with four icons: power, snowflake, AF, and light bulb.

[Nota]

Diagram of a device with two arrows pointing to a blank sheet, no text or symbols present

Español-80

Technical line drawing of a mechanical component with a lever and housing (no text or symbols)

Especificaciones

Technical line drawing of a mechanical device with no visible text or symbols

Illustration of a hand holding a tool with a cross mark and directional arrow (no text or symbols)

Ayuda Adicional

https://www.avereurope.com/download-center

Soporte técnico:

https://www.avereurope.com/technical-support

Westblaak 134, 3012 KM, Rotterdam, The Netherlands

Tel: [phone]

Technical line drawing of a remote control device with buttons and ports (no text or symbols)

Unità M15W(v2)

Technical diagram of a mechanical device with numbered components labeled 1 through 8

Diagram showing network device connections with labeled ports and power control icons

[Nota]

Simple line drawing of a mechanical lever with a sensor icon and signal waves (no text or symbols)

Wi-Fi Dongle Laptop AVerTouch

Miter Touch Background after modification: some single version version System Apply Replace

4

Solve telecamera Do you want to use appropriate text or URL. You can use currently telecamera to access any user's phone. Save telecamera Add image content Telecamera Apply Finish

5

Image with a circular checkmark icon and partial text below it, likely a software splash or confirmation dialog.

Abstract grayscale image of a textured, cloud-like shape with no visible text or symbols

Diagram showing a hand pressing a button with power and symbols for alarm, snowflake, and AF.

TUBE is telecommers www.163.com Add to the Web browser Add to the Web browser

[Nota]

Tube is telecommens 12.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

IMAGE Mode AP WIRELESS Miracast Setup WiFi SYSTEM Miracast ✓

3

Mechanical lever diagram showing a rotating arm and fulcrum (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with two arrows indicating force or movement (no text or symbols present)

Italiano-95

Pure mechanical component diagram without any text, numbers, or symbols

Specifiche tecniche

Technical line drawing of a mechanical lever assembly (no text or symbols)

Illustration of a hand holding a tool with a cross mark, no text or symbols present

Altro Aiuto

https://www.avereurope.com/download-center

Assistenza tecnica:

https://www.avereurope.com/technical-support

Westblaak 134, 3012 KM, Rotterdam, The Netherlands

Tel: [phone]
