Quick Installation Guide

Unmanaged Industrial Mini Switch (v2.xR)

Table of Contents

1 English

1. Before You Start
2. Quick Reference
3. Hardware Installation

8 Français

https://www.trendnet.com/qig/1775

QR code image containing encoded data, no visible human-readable text

1. Before You Start

Package Contents

• TI-GLC80 / TI-ELC80 / TL-GLC50 / TI-ELC50
• Quick Installation Guide
- Removable terminal block
- DIN-Rail mount
- Wall mount kit

Minimum Requirements

• Existing network
• Power Supply

Switch Power Consumption

	Switch Power Consumption Switch Model Voltage Range
TI-GLC80	4.72W	9 – 60V
TI-ELC80	1.92W	9 – 60V
TI-GLC50	3.21W	9 – 60V
TI-ELC50	1.69W	9 – 60V

Compatible Power Supplies

Power Supply Model	Max. Power Supplied DC Output		Type
TI-M6024 60W		24V / 2.5A	DIN-Rail
TI-S12024	120W	24V / 5A	DIN-Rail
TI-S12048	120W	48V / 2.5A	DIN-Rail
TI-S24048	240W	48V / 5A	DIN-Rail
TI-S48048	480W	48V / 10A	DIN-Rail
TI-S15052	150W	52V / 4.86A	DIN-Rail
TI-S24052	240W	52V / 4.61A	DIN-Rail

Note: Select the appropriate power supply according to the switch model your switch model.

Safety Note

Warning symbol with exclamation mark inside a triangle

• Turn off the power before connecting or disconnecting any module or wire. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure that you are using the correct part. Do NOT use voltage greater than the maximum listed on the product label.
• Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current surpasses the maximum ratings, the wiring could overheat, causing serious damage to your equipment.

2. Quick Reference

Note: The switch model and power supply may be different than the one shown in the example below.

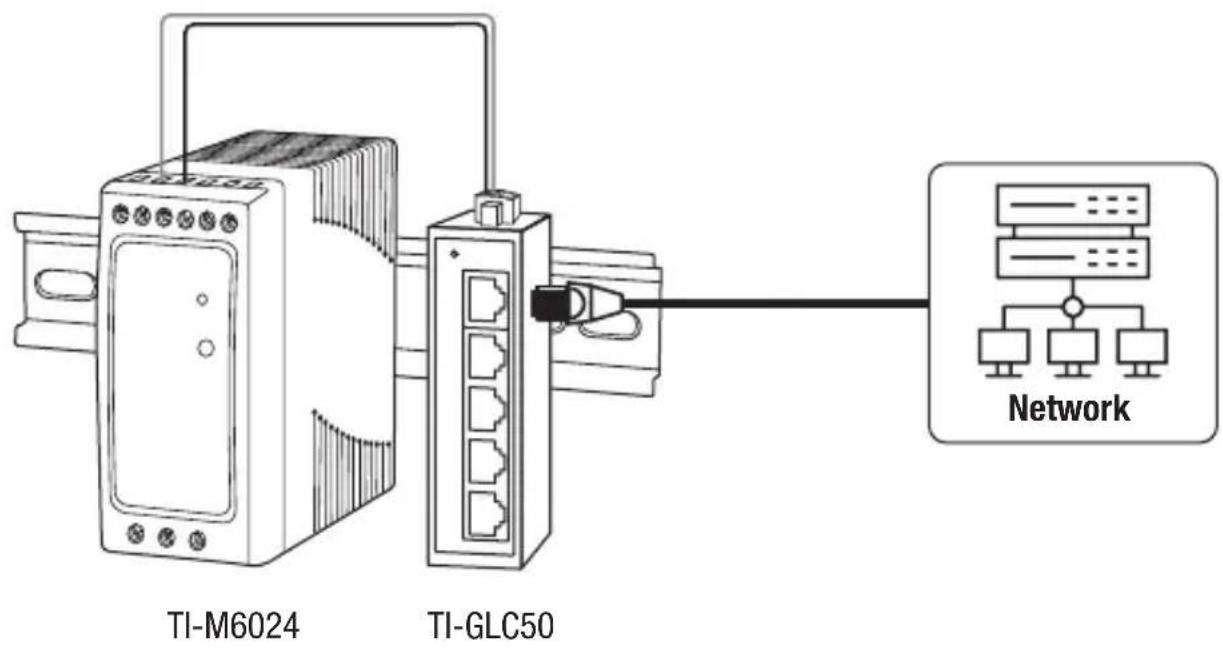

TI-M6024 TI-GLC50 Network

3. Hardware Installation

The switch can be placed on a desktop, wall mounted, or mounted to a DIN-Rail.

DIN-Rail Mounting Instructions

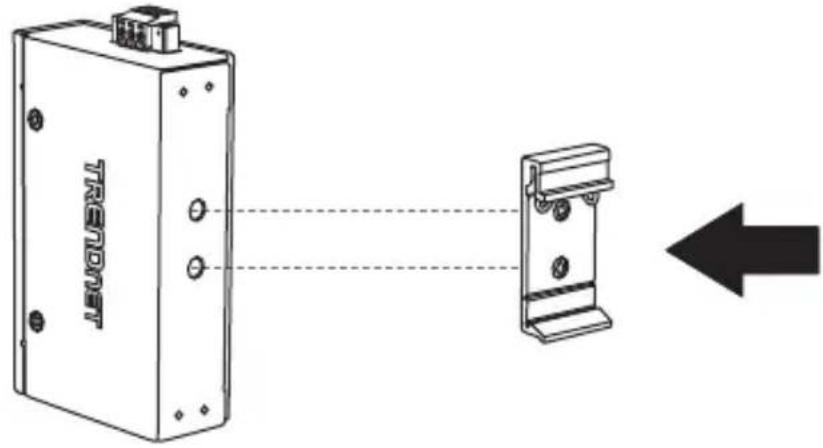

1. Attach the DIN-rail mount bracket to the switch.

Note: The switch may be different than the one shown in the examples below.

TRONOMY

1. Position the unit in front of the DIN-Rail and hook the mount bracket over the top of the rail.
2. Rotate the unit downward towards the rail to lock it into place. You will know it is secure when you hear the click.

Diagram showing two mechanical components with rotational arrows indicating movement (no text or symbols)

Mounting the unit Releasing the unit

1. To remove the unit, pull down to clear the bottom of the DIN-Rail and rotate up, away from the rail.

Wall Mounting Instructions

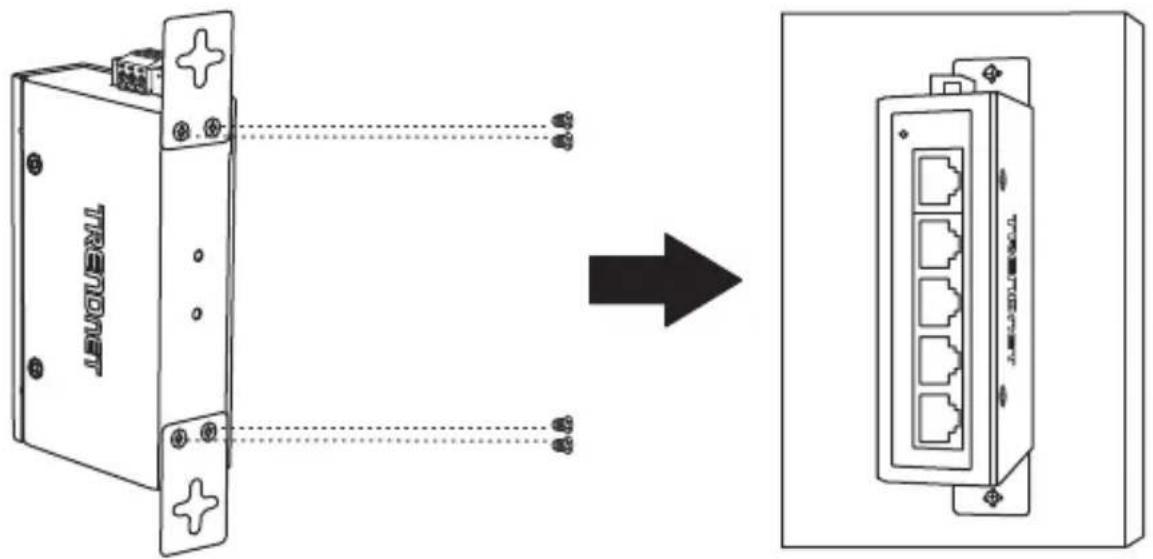

1. Attach the wall mount plates to switch.
2. Mount the switch.

TRONET

Applying Power

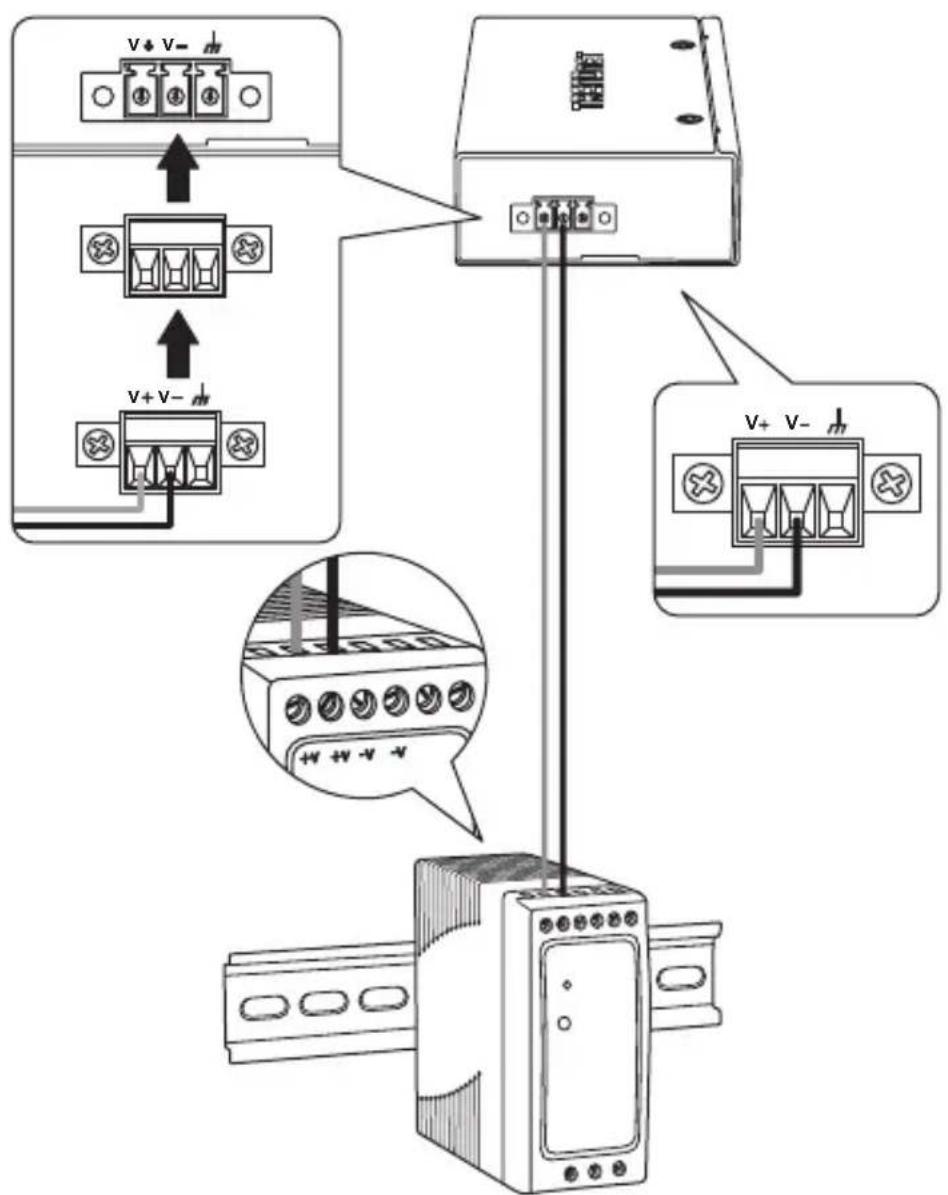

1. Connect the power supply (sold separately) to the included terminal block (as shown below) and secure with the screws.

Note: Polarities must match.

1. Attach the terminal block to the unit, connect the ground wire to the ground, and supply power to the power adapter.

Note: The switch model and power supply may be different than the one shown in the example below. Terminal blocks may be 3-pin (dual power input) or 6-pin (dual power input with alarm relay output) with differences in labeling.

Diagram showing connections between a device with labeled terminals and electrical components, including voltage and power indicators.

1. Connect a network source and devices to the switch. Check the LEDs to confirm the connections are established. Your installation is completed.

Note: Please refer to the LED definition section on page 6-7 for reference to your switch model.

TI-GLC80 LED Indicators

LED	Status Definition
P1	Solid Green	Power On
	Off	Power Off or Fail
P2	Solid Green Power On
		Power Off or FailOff
Alarm	Solid Red	PW1 or PW2 Not Connected
		Both PW1 And PW2 Are ConnectedOff
Ports 1-8	Solid Green	Connected at 10/100/1000M
		Data TransmitingBlinking Green
	Off	No Connection

TI-ELC80 LED Indicators

LED	Status Definition
P1	Solid Green	Power On
	Off	Power Off or Fail
P2	Solid Green Power On
		Power Off or FailOff
Alarm	Solid Red	PW1 or PW2 Not Connected
		Both PW1 And PW2 Are ConnectedOff
Ports 1-8	Solid Green	Connected at 10/100M
		Data TransmitingBlinking Green
	Off	No Connection

TI-GLC50 LED Indicators

LED	Status Definition
P1	Solid Green	Power On
	Off	Power Off or Fail
P2	Solid Green Power On
		Power Off or FailOff
Alarm	Solid Red	PW1 or PW2 Not Connected
		Both PW1 And PW2 Are ConnectedOff
Ports 1-5	Solid Green	Connected at 10/100/1000M
		Data TransmitingBlinking Green
	Off	No Connection

TI-ELC50 LED Indicators

LED	Status Definition
P1	Solid Green	Power On
	Off	Power Off or Fail
P2	Solid Green Power On
		Power Off or FailOff
Alarm ⚠️	Solid Red	PW1 or PW2 Not Connected
		Both PW1 And PW2 Are ConnectedOff
Ports 1-5	Solid Green	Connected at 10/100M
		Data TransmitingBlinking Green
	Off	No Connection

Warning symbol with exclamation mark inside a triangle

Diagram showing two mechanical components with rotational arrows indicating movement (no text or symbols)

Diagram showing connections between electronic devices with labeled terminals and connectors, including a device with two switches and a terminal block.

Warning symbol with exclamation mark inside a triangle

Diagram showing two mechanical components with rotational arrows indicating movement (no text or symbols)

Diagram showing electrical connection between a device with labeled terminals and wiring, including V+V- and V+V+ symbols.

Warning symbol with exclamation mark inside a triangle

Diagram showing two mechanical components with rotational arrows indicating movement (no text or symbols)

Diagram showing connections between electronic devices with labeled components and wiring, including V+V- and V+V+ labels.

Warning sign with exclamation mark inside triangle, commonly used to indicate caution or hazard

Diagram showing two mechanical components with rotational arrows indicating movement (no text or symbols)

Diagram showing electrical connection between a device with labeled terminals and wiring, including V+V- and V+V+ connections.

Switch Power Consumption

	Cambia il consumo energetico	Intervallo di tensione di Ingresso CC
TI-GLC80	4.72W	9 – 60V
TI-ELC80	1.92W	9 – 60V
TI-GLC50	3.21W	9 – 60V
TI-ELC50	1.69W	9 – 60V

Warning symbol with exclamation mark inside triangle

Diagram showing two mechanical components with rotational arrows indicating movement (no text or symbols)

Diagram showing connections between a device with labeled terminals and electrical components, including power lines and terminal blocks.

Manufacturer's Name and Address

TRENDnet, Inc. Zwolsestraat 156 2587 WB

20675 Manhattan Place The Hague The

Torrance, CA 90501 USA Netherlands

Product Information:

Model Number: TI-ELC80 (v2.0R) / TI-GLC80 (v2.0R) / TI-ELC50 (v2.0R) / TI-GLC50 (v2.0R)

Product Name: 8-Port Industrial Fast Ethernet DIN-Rail Mini Switch

8-Port Industrial Gigabit DIN-Rail Mini Switch

5-Port Industrial Fast Ethernet DIN-Rail Mini Switch

5-Port Industrial Gigabit DIN-Rail Mini Switch

Trade Name: TRENDnet

TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility.

Safety EN IEC 62368-1:2020+A11:2020

EMC EN 55032:2015/A1:2020

EN 55035:2017/A11:2020

EN IEC 61000-6-2:2019

EN IEC 61000-6-4:2019

This product is herewith confirmed to comply with the Directives.

Directives: EMC Directive 2014/30/EU

RoHS Directive (EU) 2015/863

RoHS Directive 2011/65/EU

WEEE Directive 2012/19/EU

REACH Regulation (EC) No. 1907/2006

Low Voltage Directive 2014/35/EU

Person responsible for this declaration.

Place of Issue: Torrance, California, USA

Date: August 08, 2025

Name: Sonny Su

Title: VP of Technology

Signature:

Lloyd

TrendNet, Inc. INCORPORATED SEPT. 3 2009 CALIFORNIA

Torrance, CA 90501 USA Netherlands

Détails du produit:

Directives: Directive CEM 2014/30/UE

Directive RoHS 2015/863/UE

Directive RoHS 2011/65/UE

Directive WEEE 2012/19/UE

REACH Réglement (CE) N° 1907/2006

Directive Basse Tension 2014/35/UE

TrendNet, Inc. INCORPORATED SEPT. 3 2009 CALIFORNIA

Torrance, CA 90501 USA Netherlands

TrendNet, Inc. INCORPORATED SEPT. 3 2009 CALIFORNIA

Manufacturer's Name and Address

TRENDnet, Inc.

20675 Manhattan Place

Torrance, CA 90501 USA

Authorized Representative:

Office: [phone]

Unit 4 Rivermead Business Park,

Pipers Way, Thatcham, R 19 4EP EnglandG

Product Information:

Model Number: TI-ELC80 (v2.0R) / TI-GLC80 (v2.0R) / TI-ELC50 (v2.0R) / TI-GLC50 (v2.0R)

Product Name:

8-Port Industrial Fast Ethernet DIN-Rail Mini Switch

8-Port Industrial Gigabit DIN-Rail Mini Switch

5-Port Industrial Fast Ethernet DIN-Rail Mini Switch

5-Port Industrial Gigabit DIN-Rail Mini Switch

Trade Name: TRENDnet

TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility.

Safety BS EN IEC 62368-1:2020+A11:2020

EMC BS EN 55032:2015/A1:2020

BS EN 55035:2017/A11:2020

BS EN IEC 61000-6-2:2019

BS EN IEC 61000-6-4:2019

This product is herewith confirmed to comply with the Directives.

Directives: Electromagnetic Compatibility Regulations 2016

The Restriction of Use of Certain Hazardous Substances in Electrical and

Electronic Equipment Regulations 2012

The Waste Electrical and Electronic Equipment Regulations 2013 (as amended)

The REACH Enforcement Regulations 2008 (as amended)

Electrical Equipment (Safety) Regulations 2016

Person responsible for this declaration.

Place of Issue: Torrance, California, USA

Date: August 08, 2025

Name: Sonny Su

Title: VP of Technology

Signature:

Lloyd

TrendNet, Inc. INCORPORATED SEPT. 3 2009 CALIFORNIA

Certifications

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

Waste electrical an electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or Retailer for recycling advice.

• FCC warning: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
• FCC Caution: Any changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

CAUTION: Double pole, neutral fusing. Disconnect mains before servicing.

If you have any questions regarding the product installation, please contact our Technical Support.
