USER MANUAL PC-HBB 3117 ProfiCare

Front view of a light blue long-sleeve button-up shirt with black buttons, placed on a white electronic device (no text or symbols visible)

Diagram of a mechanical or electrical component with curved ends and a central circular housing, no visible text or symbols.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Reinigung

! WARNING:

Be sure to read the separately enclosed safety instructions first.

Instruction Manual

Thank you for choosing our product. We hope you will enjoy using the appliance.

Read the instruction manual and the separately enclosed safety instructions very carefully before using this appliance. Keep these documents, including the warranty certificate, receipt and, if possible, the box with the inner packaging in a safe place. If you pass the appliance on to a third party, always include all the relevant documents.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

Content

Overview of the Components ....3

Intended Use....8

Unpacking the Appliance 8

Overview of the Components/Scope of Delivery ....8

Warnings for the Use of the Appliance 9

Notes for Use....9

Assembly....9

Operation 9

Cleaning 10

Storage....10

Troubleshooting 10

Technical Data.... 11

Disposal....11

Intended Use

This appliance is used for drying and ironing garments (e. g. shirts). You may use all garments which are suitable for ironing. Always follow the laundry tags which are found in the garments!

Only use this appliance as instructed in this user manual.

Do not use this appliance commercially.

No other use is intended and can cause damage or personal injuries.

The manufacturer does not assume any liability for damages resulting from improper use.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the scope of delivery for completeness.
4. If the contents of the packaging are incomplete or if damage can be detected, do not operate the appliance. Return it to the dealer immediately.

Overview of the Components / Scope of Delivery

1 Hanger arms
2 Hanger head
3 Connectors
4 Height adjustable bars
5 Junction
6 Water trap with scent pad device
7 Short bar
8 Ventilation
9 On / off switch / timer
10 Motor unit
11 Operation indicator light

Without Illustration

1 × Balloon body for shirts
1 × Balloon body for trousers
5× Neutral pads

Warnings for the Use of the Appliance

• To prevent the appliance from overheating, the appliance should not be covered. Keep the ventilation slots free.
• The motor unit and the bars become hot during operation. Therefore, do not touch them during or shortly after use.
• Do not leave the appliance unattended for hours. Do not leave the house during operation.

Notes for Use

• The appliance is intended for garments which are spin-dried by a washing machine. Allow the garment to drain in case you wash it by hand or if you haven't spin-dried it. The appliance is not suitable for dripping wet clothes.
• For best results, use ironing moist clothes.
• The drying time depends on the material of the garment.
• If necessary, the placket, cuffs and the collar need to be ironed once more. For trousers, it may be necessary to iron the waistband, the hem and the area around the zipper.
• Conventional clothespins may be used for fixing the garments to the balloon body. When using extra long garments, clothespins are of advantage in order to ensure the best possible drying at the projecting edge.

On/Off Switch

The functions of the on / off switch are the following:

ON = Appliance in continuous operation

OFF = Switch off the appliance

30-180 = Timer operation in minutes

Safety Switch

Your appliance is equipped with a safety switch. This cuts off the power supply as soon as the appliance is tilted by 45°. The safety switch can prevent dangerous situations caused by overheating.

Electrical Connection

Check whether the mains voltage that you want to use, corresponds with that of the appliance. You will find the information about it on the rating plate.

Assembly

Preparation

1. Mount the hanger by inserting the hanger arms into the head of the hanger. Watch out for the markings left (L) and right (R) (see image).

Diagram of a mechanical or electrical component with labeled parts L and R, showing coiled elements and directional arrows (no text or symbols beyond labels)

1. Use the provided screws to attach the hanger arms at the bottom of the hanger.

2. Place the motor unit on a flat, non-slip and heat-resistant surface.

3. Insert the short pole into the appliance in such a way that the marking points show downwards.
4. Slide the fan cover onto the pole until it reaches the marking.
5. Attach the joint onto the short pole with the joint and both its openings pointing upwards.
6. Insert the two longer poles into the openings of the joint.

Mounting the Rack for Shirts

1. Mount the hanger on the poles. Use the two outer openings for this.
2. Loosen the two connectors on the two poles and pull the poles to the desired height. Tighten the connectors again.
3. For shirts, put the balloon body over the hanger and pull it over the rack. Use the elastic band to secure the balloon body to the mounting device.

The appliance is now ready to use.

Mounting the Rack for Trousers

1. Loosen the two connectors on the two poles and pull the poles to the desired height. Tighten the connectors again.
2. For trousers, put the balloon body over the poles. Each trouser leg of the balloon body must hang over one pole. Use the elastic band to secure the balloon body to the mounting device.

The appliance is now ready to use.

Operation

1. Set the on/off switch to the OFF position.
2. Pull the garment (e.g. shirt) over the balloon body. Note the following when doing so:
3. The collar must be placed above the balloon body's collar part.
4. All buttons of the garment need to be buttoned.

5. The garment must lie flat on the balloon body.

6. Insert the mains plug into a correctly installed safety socket.

7. Turn the appliance on by using the on / off switch. There are two ways for operating the appliance:

1) Set the on / off switch to ON.
2) Set a time with the on / off switch.
- The indicator lamp lights up when the appliance is in operation.

1. Switch the appliance off by setting the on / off switch to OFF.

2. Disconnect the mains plug from the socket.

3. Allow the garment to cool down before removing it from the balloon body.

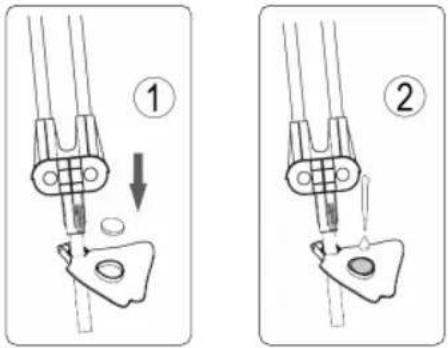

Scent Pad Device

The appliance has a fragrance pad device. 5 neutral pads are included in the scope of delivery. Use commercially available fragrance oils to aromatise your clothes. For the dosage, refer to the package insert of the fragrance oil. Please note that the neutral pads are not required for normal operation.

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows

Cleaning

WARNING:

• Pull the mains plug out of the mains socket before you clean the appliance and allow the appliance to cool down.
• Do not immerse the appliance in water! Doing so may result in an electric shock or fire.

CAUTION:

• Do not use any wire brush or other abrasive objects.
• Do not use abrasive or aggressive cleaners.

Housing

Only use a slightly damp cloth to clean the outside of the appliance.

Balloon Body

You may wipe the balloon body with a damp cloth.

Accessories

You can clean the accessories in warm rinse water with a little hand dishwashing liquid. Allow the accessories to dry before reassembling the appliance.

Storage

• Clean the appliance as described. Allow the accessories to dry completely.
  • We recommend storing the appliance in its original packaging if you do not intend to use it for a longer period of time.
  • Always store the appliance out of the reach of children in a well-ventilated and dry place.

Troubleshooting

Problem Possible Cause	Remedy
The appliance has no function.	The appliance has no power supply. Check the power socket with another appliance.
	The appliance is defective. Contact our service or a specialist.
The garment takes too long to dry.	The garment is very thick. Repeat the procedure.
	The garment was not dry enough. Allow it to drain first.
The appliance stops during operation.	The inlet or outlet openings are covered. Be sure that the inlet or outlet openings are unobstructed.
	The timer is expired. Set the timer again.
	Your appliance is equipped with a safety switch. It will block the motor when overloaded.	Disconnect the mains plug from the socket.
		Allow the appliance to cool down before restarting it.

Technical Data

Model: PC-HBB 3117

Power supply: 220 - 240 V\~, 50 / 60 Hz

Power consumption: 1200–1400W

Protection class:......II

Net weight: .... approx. 3 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.
