Download the instructions for your Power bank in PDF format for free! Find your manual XE1051 - Xtorm and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. XE1051 by Xtorm.
USER MANUAL XE1051 Xtorm


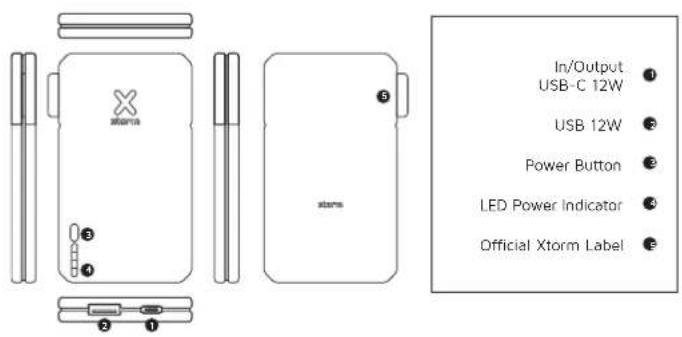

Line drawing of a rectangular electronic device with a 'X' mark and ports, no text or symbols present1 SPECIFICATIONS PRODUCT OVERVIEW
5000 mAh Li-ion / 18.5Wh
1x USB-C 12W (5V-2.4A) 1x USB-A 12W (5V-2.4A)
120x63x14 mm
135 grams
+ 1x USB to USB-C cable 1x Manual
3A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning or a Micro USB cable.
RECHARGING THE POWER BANK 4
4B For the fastest charging possible use a 12W charger. This will fully recharge the Power Bank within 2.5 hours.
LED POWER INDICATOR5
IN THE BOX 6
5B. Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is fully charged.
1 SPECIFICATIONS
2 PRODUCT OVERVIEW
3 CHARGING YOUR DEVICE
3.A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3.B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^4 or a Micro USB cable.
4 RECHARGING THE POWER BANK
4.A Connect the USB-C end of the charging cable to output 1 of the Power Bank and the USB end to a wall charger.
4.B For the fastest charging possible use a 12W USB-C PD charger. This will fully recharge the Power Bank within 2.5 hours.
5 LED POWER INDICATOR
5.A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display.
5.B Each lit LED light indicates 25% remaining energy in the Power Bank. At 4 lit lights, the Power Bank is as good as fully charged.
6 IN THE BOX
NL - NEDERLANDS
1 SPECIFICATIES
2 PRODUCT OVERZICHT
3 OPLADEN VAN JOUW APPARAAT
EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.
XTORM SAFETY CHECK WARNINGS
1. TEMPERATURE CONTROL
Provided with a temperature control chip that prevents overheating.
2. OVERLOAD PROTECTION
Protects both the internal battery as well as the battery of the attached device from overcharging.
3. SECURED POWER MANAGEMENT
Automatically picks the correct charging speed and efficiently devides power between attached devices.
4. SHORT CIRCUIT PROTECTION
Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.
5. A-CLASS BATTERY CELLS
We only use the best battery cells that provide the fast charging you need and meet all safety requirements.
6. HIGH EFFICIENCY
Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.
EN Warnings
Don't crop, dissemba or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flammobia gas. The warranty will lease in the avail of improper use. Talco Accessories has tested the product in a test environment. All statements/declarations made by Talco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in case of evolving or injudicious use and/or use in a different environment.
NL Waarschuwingen
EU DECLARATION OF CONFORMITY
