About This Guide

The 4BAR Quad ILS Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• ONLY connect this product to a grounded and protected circuit.
• DISCONNECT from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cable is not crimped or damaged.
• Never disconnect this product from power by pulling on the cable.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.

• DO NOT touch the product's housing when it is on because it will be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.

• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
  • Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Be sure that no ventilation slots on the unit's housing are blocked.

- Never connect this product to a dimmer or rheostat.

- Replace the fuse with the same type and rating.

- Never carry the product by the power cable.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

- DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• 4BAR Quad ILS

- Power cable

- Trip o d

• Carrying bag

• Wireless footswitch

• Tripod carrying bag

• Quick Reference Guide

To Begin

Unpack the 4BAR Quad ILS and make sure all parts have been received in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

Mounting

Before mounting this product, read the Safety Notes.

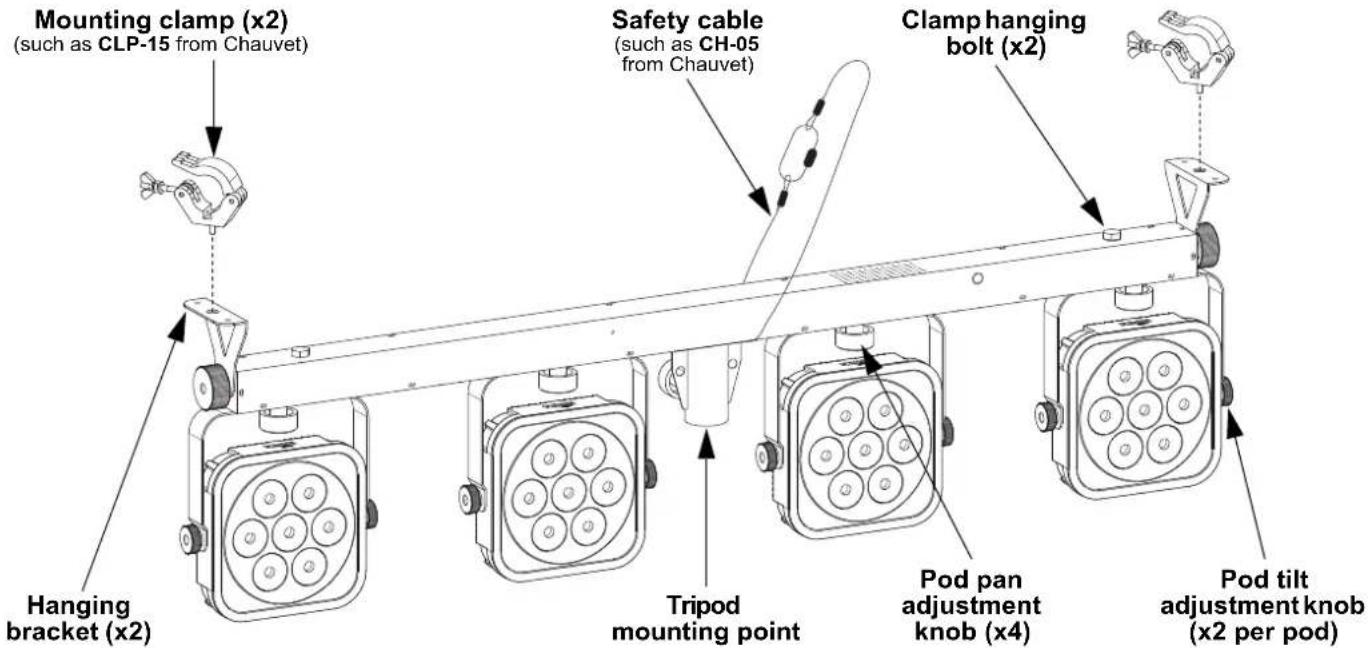

Mounting Diagram

Mounting clamp (x2) (such as CLP-15 from Chauvet) Safety cable (such as CH-05 from Chauvet) Clamp hanging bolt (x2) Hanging bracket (x2) Tripod mounting point Pod pan adjustment knob (x4) Pod tilt adjustment knob (x2 per pod)

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the 4BAR Quad ILS product page on www.chauvetdj.com for the latest menu map.

Mode Programming Levels Description
DMX Mode	4Ch	channel DMX node 509		4-channel DMX mode
	6Ch 6-channel DMX mode
	19Ch 19-channel DMX mode
ILS Mode iLS iLS1-4 Sets		ILS mode
Static Colors	C--	C 1-15 Static colors
		C 16 3000K color temperature
		C 17 4500K color temperature
		C 18 5600K color temperature
Programs P-- P 1-8 Automatic programs
Auto Speed S-- S. 1-100		Program speed for P 1-8
Dimmer	d--	L. 1-255		Dimmer
Sound Mode	Snd	Snd1-8		Sound-active programs
Sensitivity	SEnS	u 0-100		Sets sound sensitivity
Custom Color Mixing	u--	r. 0-255		Custom static colorsCombine red, green, blue, and amber
		G. 0-255
		b. 0-255
		A. 0-255
		S. 0-100		Strobe rate
Control Mode	SEt	ir	on	Turns infrared on or off for footswitch or IRC-6 control
			oFF
		out	SLAV	Enable Master/Slave with other 4BAR Quad ILS products
			dMX	Enable Master/Slave with legacy 4BAR products

DMX Linking

The 4BAR Quad ILS can work with a DMX controller. If you are not familiar with DMX, download the DMX Primer from www.chauvetdj.com.

Starting Address

To ensure full access to all channels available in each DMX mode, the highest recommended DMX address is 494.

Master/Slave Connection

The 4BAR Quad ILS uses the DMX data connection for its Master/Slave mode.

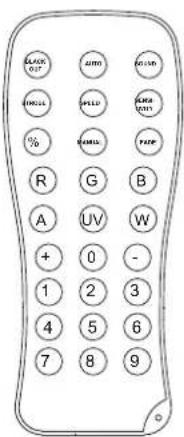

IRC-6 (Infrared Remote Control)

The 4BAR Quad ILS can be operated with the CHAUVET IRC-6.

BLACK OUT INNOZZLE % R A + 1 7 MINI SPEED KONZEN GOLD PANE UV W 0 - 3 6 8 9

Button	Function
	Turns LEDs on/off
	Enables snap and fade modes
	Enables sound active mode
	Increases and decreases speed
	Adjusts sound sensitivity
	Fade program
	Adjusts strobe speed
<%>	Adjusts brightness
	Adjust percentage of red, green, blue, and amber colors
<0>-<9>	1=C1 2=C16 3=C17 4=C18 5=C196=C20 7=C2 8=C22 9=C23 0=C8
<+> Increases values for controls as described above
<->	Decreases values for controls as described above

D-Fi USB Connectivity

The 4BAR Quad ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from CHAUVET DJ. Simply set the DIP switch D-Fi receiving/transmitting channel, plug it into the USB port then set the product's DMX Personality and DMX Address.

WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product.

Once plugged in, the D-Fi USB will take over the product. Wired DMX and manual display control/menu buttons will be unavailable until you unplug the D-Fi USB. The priority levels are:

1. D-Fi USB
2. Wired DMX
3. IRC-6 Remote Control
4. Manual Digital Display/Menu Buttons

Master/Slave Mode (D-Fi USB)

The D-Fi USB allows a single 4BAR Quad ILS product (the "master") to control the actions of one or more 4BAR Quad ILS products (the "slaves") without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in standalone mode, while the slave (receiver) products will be set to operate in DMX mode. Once set and connected, the slave products will operate in unison with the master product.

Configure the products as indicated below.

Slave products:

1. Press repeatedly until 9-Ch shows on the display.
2. Press .
3. Use or to set the starting address to d 1.
4. Press .
5. Set the D-Fi USB to receive on a specific channel, 1–16.
6. Plug in the D-Fi USB.
7. Finish setting and connecting all the slave products.

Master product:

1. Set the master product to operate in standalone mode.
2. Set the D-Fi USB to transmit on the D-Fi channel the slaves are receiving on.
3. Plug in the D-Fi USB.

- All products must be set to the same DMX personality, DMX address, and D-Fi channel.

- Configure all the slave products before configuring the master to transmit.

- Never connect a DMX controller to a D-Fi channel configured for Master/Slave operation because the controller may interfere with the signals from the master.

ILS Mode

ILS (Integrated Lighting System) provides 4 modes that synchronize with the GigBAR MOVE+ILS: Modes 1 and 3 synchronize with side 1 of the GigBAR MOVE+ILS, whereas modes 2 and 4 synchronize with side 2 of the GigBAR MOVE+ILS. When linked, effects will sync with the most similar effect on the selected side of the GigBAR MOVE+ILS: Kinta effects will sync with one of the kintas, moving heads will sync with one of the moving heads, and wash effects will sync with one of the pars. Laser effects will sync with the laser, and strobe effects will sync with the strobe effects regardless of ILS mode.

This product will synchronize with the par effects of the GigBAR MOVE+ILS, regardless of ILS mode.

To set the 4BAR Quad ILS to respond to an ILS signal:

1. Press repeatedly until iLS_ shows on the display.
2. Use or to select from iLS1 (side 1), iLS2 (side 2), iLS3 (side 1), or iLS4 (side 2).
3. Press .

Wireless Footswitch Operation

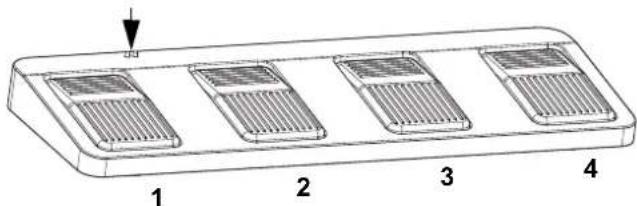

Diagram of a four-tiered heat exchanger or vent system with labeled components (no text or symbols on the diagram itself)

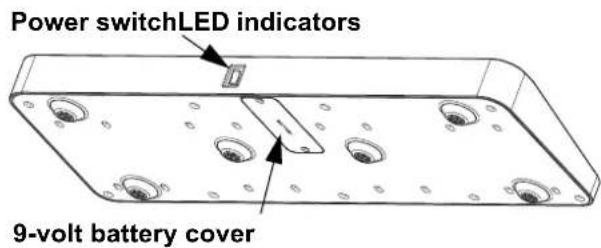

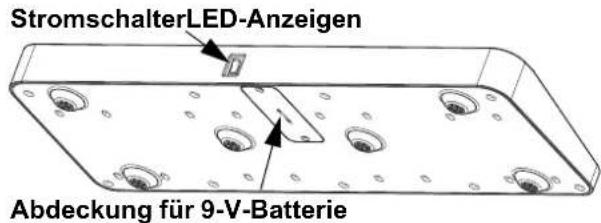

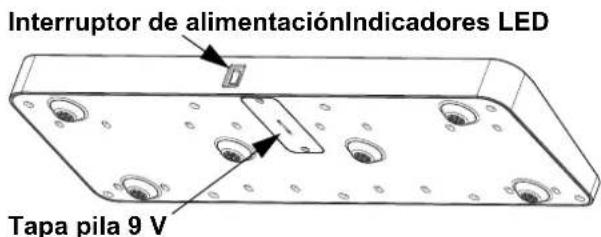

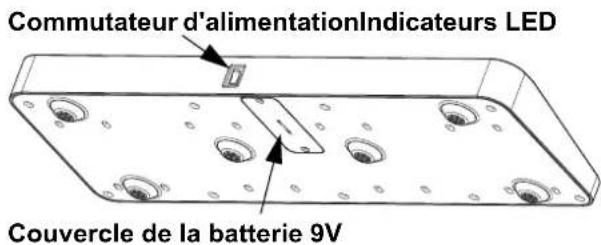

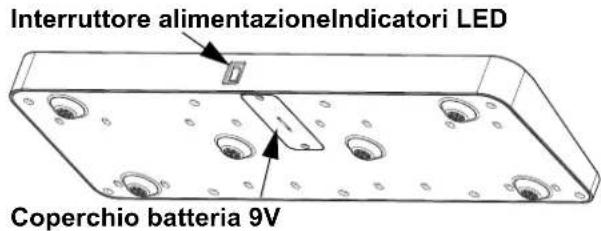

Power switchLED indicators 9-volt battery cover

The included wireless footswitch provides quick access to preset colors, color-change programs, and sound-activation through the 4BAR Quad ILS microphone.

To use the footswitch:

1. Connect the 4BAR Quad ILS to power. Turn the wireless footswitch on.
2. Press repeatedly until SET shows on the display, and press .
3. Use or to select ir, and press .
4. Use or to select on, and press .
5. Press repeatedly until P-- shows on the display, and press .
6. Press pedal #3 to activate static color controls. When working, all the lights will begin in a static color and FOOT will appear on the Menu display.
7. Use the chart below to activate the desired function.

Pedal Action Function
1(Auto Programs)	Tap pedal to activate, then tap to navigate to desired function	Auto programs 1–8
2(Sound Mode)	Press and hold Sound-active programs
3(Static Colors)	Tap	Static colors C1–18
		Auto snap program
		Auto fade program
	Press and hold Auto fade program
4(Blackout)	Tap Blackout
	Press and hold Fade to blackout

The 4BAR Quad ILS footswitch will work properly in any mode, with a maximum unobstructed distance of 100 ft (30.5 m). You must turn on the ir setting from the 4BAR Quad ILS and navigate to Auto mode before using the footswitch.

Footswitch Battery

The wireless footswitch uses a 9-volt battery located under the battery cover on the bottom of the product, which can be replaced when necessary.

Battery Replacement

To replace the battery in the wireless footswitch:

1. Turn the power switch to the Off position.
2. Remove the battery cover by removing 2 screws with a Phillips-head screwdriver.
3. Remove the old battery from the housing and unplug it from the leads.
4. Replace with a new 9-volt battery, ensuring that the positive (+) and negative (-) leads correspond to the correct electrodes on the battery.
5. Place the battery into the housing and cover with the battery cover.
6. Secure the battery cover with the 2 Phillips-head screws.

Do NOT over-tighten the screws!

DMX Values
4Ch/6Ch/19Ch

4Ch	6Ch	19Ch	Function	Value	Percent/Setting
-- 1	Automatic Programs			000 ⇔ 009	No function
				010 ⇔ 029	Auto program 1
				030 ⇔ 049	Auto program 2
				050 ⇔ 069	Auto program 3
				070 ⇔ 089	Auto program 4
				090 ⇔ 109	Auto program 5
				110 ⇔ 129	Auto program 6
				130 ⇔ 149	Auto program 7
				150 ⇔ 169	Auto program 8
				170 ⇔ 189	Auto program 9
				190 ⇔ 209	Auto program 10
				210 ⇔ 229	Auto program 11
				230 ⇔ 249	Auto program 12
				250 ⇔ 255	Sound-active program
-- 2	Dimmer	000 ⇔ 25	5 0–100%
-	-	3	Strobe (when Ch. 1 is 000 ⇔ 009)	000 ⇔ 009	No function
				010 ⇔ 255	Strobe, slow to fast
			Program speed (when Ch. 1 is 010 ⇔ 249)	000 ⇔ 255	Program speed, slow to fast
			Sound sensitivity (when Ch. 1 is 250 ⇔ 255)	000 ⇔ 010	Sound sensitivity off
				011 ⇔ 255	Sound sensitivity, low to high
1	1	4	Red 1	000 ⇔ 255	0–100%
2	2	5	Green 1	000 ⇔ 255	0–100%
3	3	6	Blue 1	000 ⇔ 255	0–100%
4	4	7	Amber 1	000 ⇔ 255	0–100%
-	-	8	Red 2	000 ⇔ 255	0–100%
-	-	9	Green 2	000 ⇔ 255	0–100%
-	-	10	Blue 2	000 ⇔ 255	0–100%
-	-	11	Amber 2	000 ⇔ 255	0–100%
-	-	12	Red 3	000 ⇔ 255	0–100%
-	-	13	Green 3	000 ⇔ 255	0–100%
-	-	14	Blue 3	000 ⇔ 255	0–100%
-	-	15	Amber 3	000 ⇔ 255	0–100%
-	-	16	Red 4	000 ⇔ 255	0–100%
-	-	17	Green 4	000 ⇔ 255	0–100%
-	-	18	Blue 4	000 ⇔ 255	0–100%
-	-	19	Amber 4	000 ⇔ 255	0–100%
- 5 - Dimmer		000 ⇔ 25	5 0–100%
-	6	-	Strobe	000 ⇔ 009	No function
				010 ⇔ 255	Strobe, slow to fast

Acerca de esta guía

Diagram of a four-tiered storage unit with labeled components (no text or symbols on the diagram itself)

Diagram of a four-tiered storage unit with labeled components (no text or symbols on the diagram itself)

Diagram of a four-tiered storage unit with heat exchanger and vent slots, labeled 1 to 4 (no text or symbols on the diagram itself)

P/225 R 100% 100% S/100% S/100% R G B A UV W + - 1 2 3 4 5 6 7 8 9

Diagram of a four-tiered storage unit with heat exchangers and a downward arrow, labeled 1 to 4 (no text or symbols on the diagram itself)

Diagram of a four-tiered heat exchanger or vent system with labeled components (no text or symbols on the diagram itself)

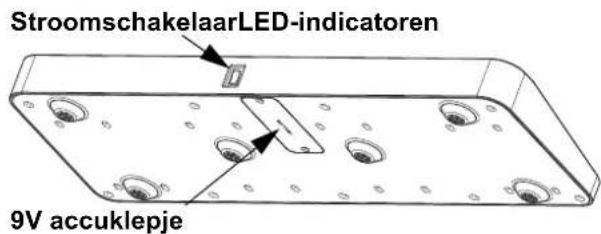

StroomschakelaarLED-indicatoren 9V accuklepje
