TKS 254/2000 - Saw Kraftixx - Free user manual and instructions

Product type	Table saw
Brand	Kraftixx
Model	TKS 254/2000
Motor power (S1)	1800 W
Motor power (S6 40%)	2000 W
No-load speed (speed 1)	3200 rpm
No-load speed (speed 2)	5000 rpm
Saw blade (included)	Ø254 x Ø30 x 2.8 mm, 24 teeth
Extra blade	Ø254 x Ø30 x 2.6 mm, 48 teeth
Max. cutting height (90°)	85 mm
Max. cutting height (45°)	65 mm
Blade tilt	0° to 45° (continuous)
Table dimensions	580 x 546 mm
Table extension (left/right)	580 x 152 mm
Table extension rear	540 x 250 mm
Max. support surface	830 x 850 mm
Weight	approx. 21.5 kg
Power supply	230-240 V ~ 50 Hz
Protection class	II (double insulation)
Sound pressure level (LpA)	97 dB(A) (uncertainty 3 dB)
Sound power level (LWA)	110 dB(A) (uncertainty 3 dB)
Dust extraction connection	Ø 36 mm
Laser	Class 2, 650 nm, ≤1 mW
Laser batteries	2 x 1.5 V, AAA/LR03
Delivery contents	Saw blade, parallel guide, cross guide, push stick, laser unit, keys, waste container, etc.

Frequently Asked Questions - TKS 254/2000 Kraftixx

How to change the saw blade?

Unplug the saw. Set the blade to max depth. Remove the guard, laser unit, table insert, and riving knife. Loosen the blade screw (rotation direction) with a hex key while locking the shaft. Replace the blade respecting the rotation direction. Reassemble all parts and check operation.

How to adjust the laser?

To adjust horizontal parallelism, loosen the two cross-head screws (56) on the laser unit. For vertical adjustment, use the adjusting screw (58): turn the sleeve until the beam hits the blade teeth at the same point. Make sure the laser is aligned with the cutting line.

What is the procedure for mounting the stand?

Turn the saw over. Screw the support feet (29) loosely with hex screws (46). Mount the cross bars (30/31) with square collar bolts (48), washers and nuts. Plug in the rubber feet (13). Then place the machine upright and tighten all connections.

How to use the parallel guide for rip cuts?

Insert the parallel guide (7) into the guide rail (28). Set the cutting width on the scale (22). Lock with the eccentric lever (12). For thin workpieces (<150 mm), use the provided push stick. Guide the workpiece along the fence keeping your hands flat.

How to adjust the cutting depth?

Turn the crank (10): clockwise to increase depth, counterclockwise to decrease. The range is 0 to 85 mm. Make sure the blade does not protrude beyond the workpiece.

What to do if the overload switch trips?

Allow the device to cool for several minutes. Press the overload switch (60) to reset. Then restart the saw. Check the cause of overload (e.g., dull blade, too fast feed).

How to maintain the saw?

Always unplug before cleaning. Keep the ventilation slots and housing clean with a cloth or compressed air. Clean regularly with a damp cloth and mild soap. Never use harsh products. Check carbon brushes if they spark.

What are the important safety instructions?

Wear hearing protection, dust mask and safety goggles. Never put fingers near the rotating blade. Use the push stick for small pieces. Ensure the guard lowers automatically. Do not look directly into the laser beam.

How to make a bevel cut?

Loosen the locking handle (9). Turn the handwheel (8) to tilt the blade to the desired angle (0-45°). Retighten. Place the parallel guide on the opposite side of the tilt. Follow the same steps as for a rip cut.

What to do if the saw does not start?

Check the socket and power cord. Make sure the overload switch has not tripped. Check that the guard and safety devices are properly mounted. If the problem persists, contact customer service.

USER MANUAL TKS 254/2000 Kraftixx

GB Original operating instructions Bench-type circular saw

Close-up of a mechanical device with a bag labeled '59' and attached components (no readable text or symbols beyond the label)

10a 10b 6 17 617

Close-up of hands pressing a black plastic component on a dark metal surface, with an arrow indicating direction (no text or symbols visible)

11a 11b 4 5 15 19 1940 39 40

Mechanical device with gear and labeled parts, no readable text or symbols

Diagram of a gear-like mechanical component with teeth and directional arrows, no text or symbols present

54 55 556

Close-up of a hand using a tool to cut a metallic gear component on a workbench (no text or symbols visible)

Mechanical component with a gear-like cutaway view and a labeled part '57' (no readable text or symbols beyond the label)

12d 58

13a 2 65 64 66

Close-up of a mechanical device with a black bolt and transparent casing, showing internal components and a directional arrow (no text or symbols)

Close-up of a mechanical component with a hand adjusting a gear (no visible text or symbols)

13d 2 63 5

4 15 62 38

15a 61 3 14

Mechanical assembly with metal frame, clamps, and fabric (no visible text or symbols)

Mechanical assembly diagram showing a frame structure with labeled parts (7), no readable text or symbols beyond labels

60 25 44 9 41 42 45 8 10 11

16b-17 11 28

14 45° 23 22 7 12

18 27 12 18 23 7 26

1 27 35 7 28 22 12

19b 28 22 35 23 26 7 12

1 21 43 24 20

Close-up of a mechanical cutting machine with transparent plastic component and metal workpiece (no visible text or symbols)

Industrial machine with transparent sheet metal frame and mechanical components (no visible text or symbols)

Close-up of a mechanical device with a transparent component and labeled parts (no readable text or symbols)

Close-up of a robotic arm handling a transparent mechanical component on a workbench (no visible text or symbols)

Close-up of a mechanical device with a transparent tool inserted into a white block, no visible text or symbols

Mechanical assembly with a transparent cylindrical component mounted on a workbench, showing gears and a flat sheet (no visible text or symbols)

26

D

Gefahr!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

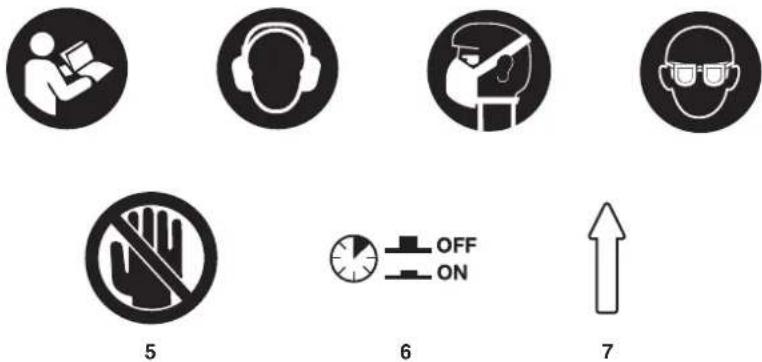

Explanation of the symbols used (see Fig. 26)

1. Danger! - Read the operating instructions to reduce the risk of injury.
2. Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.
3. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
4. Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
5. Caution! Risk of injury! Do not reach into the running saw blade.
6. Overload switch
7. Warning! Workpiece infeed direction

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Warning!

Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury.

Keep all the safety information and instructions in a safe place for future use.

Special information about the laser

Caution! Laser radiation Do not look into the beam Laser class 2

• Never look directly into the laser path.
- Never direct the laser beam at reflecting surfaces or persons or animals. Even a low output laser beam can inflict injury on the eye.
- Caution: It is vital to follow the work procedures described in these instructions. Using the equipment in any other way may result in hazardous exposure to laser radiation.
• Never open the laser module.
- It is prohibited to carry out any modifications to the laser to increase its power.
- The manufacturer cannot accept any liability for damage due to non-observance of the safety information.

2. Layout and items supplied

2.1 Layout (Fig. 1-25)

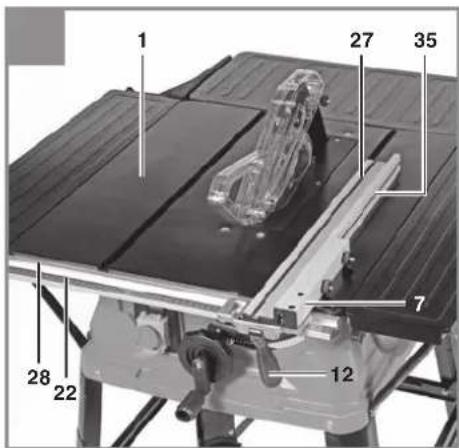

1. Saw table
2. Saw blade guard
3. Push stick
4. Blade
5. Splitter

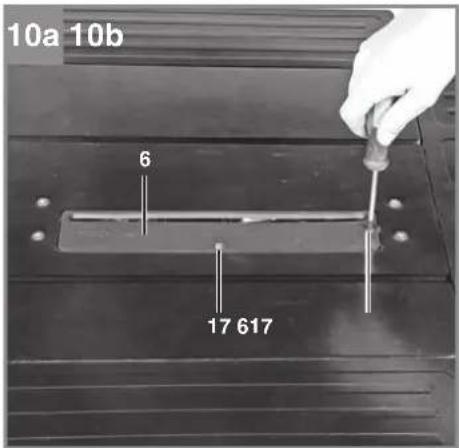

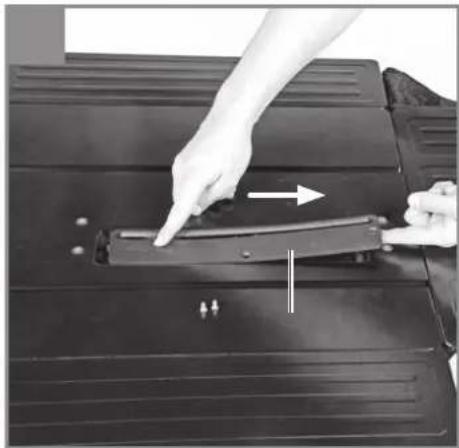

6. Table insert

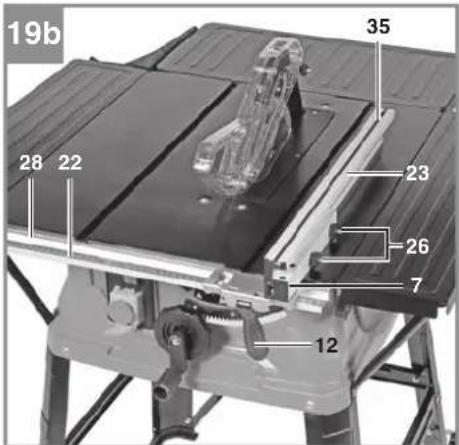

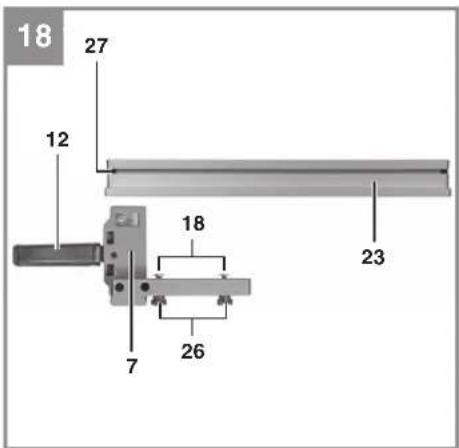

7. Parallel stop
8. Hand wheel
9. Locking grip for saw blade angle
10. Crank arm
11. On/Off switch
12. Eccentric lever
13. Rubber foot
14. Cross stop
15. Screw for saw blade
16. Extractor adapter on housing
17. Countersunk head screw
18. Screw for parallel stop
19. Fastening screw for splitter
20. Locking screw for cross stop
21. Slot in saw table
22. Scale (cutting width)
23. Stop rail for parallel stop

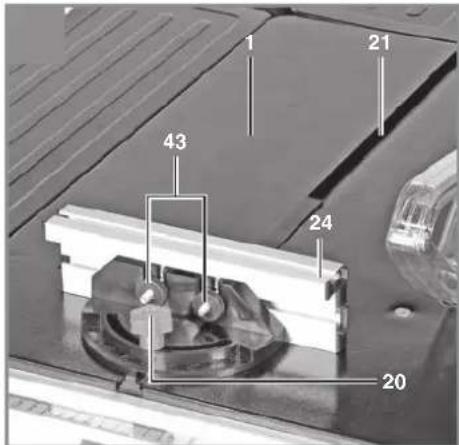

24. Stop rail for cross stop
25. Speed button
26. Knurled screw for parallel stop

GB

1. Slot in stop rail, upright

2. Guide rail system

3. Leg

4. Cross-strut, front/back

5. Cross-strut, side

6. Strut for table width extension

7. Table width extension

8. Table length extension

9. Slot in stop rail, fl at

10. Strut for table length extension

11. Additional leg

12. Wrench, size 10/22 mm

13. Wrench, size 8/10 mm

14. Fastening plate

15. Pointer (angular setting)

16. Scale (angular setting)

17. Knurled screw for cross stop

18. Adjustment screw (0°)

19. Adjustment screw (45°)

20. Hexagon screw

21. Base frame

22. Lock bolt

23. Washer

24. Spring washer

25. Nut

26. Size M5 screw for container

27. Size M5 nut for container

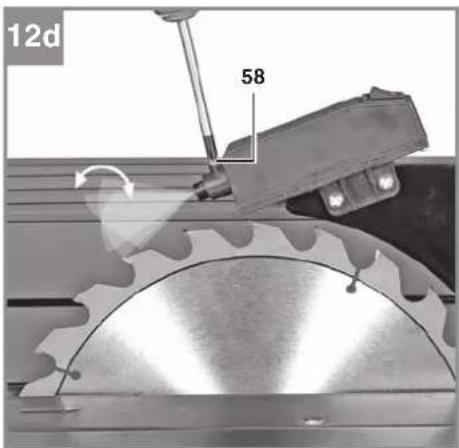

28. Laser unit

29. On/Off switch for laser

30. Recessed head screws for laser

31. Batteries for laser

32. Laser adjustment screw

33. Container for cutting residues

34. Overload switch

35. Additional saw blade

36. Hex key (6 mm)

37. L-shaped recess in the splitter

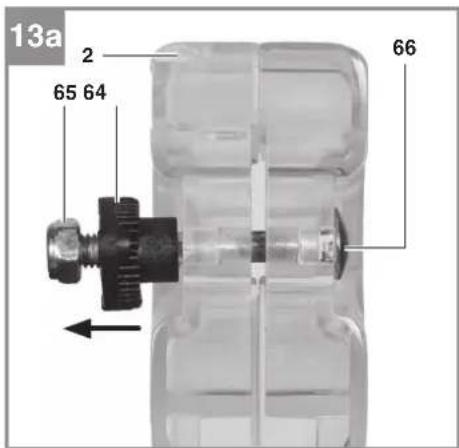

38. Rotary knob on saw blade guard

39. Self-locking nut on saw blade guard

40. Lock bolt on saw blade guard

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

- Open the packaging and take out the equipment with care.

- Remove the packaging material and any packaging and/or transportation braces (if

available).

• Check to see if all items are supplied.
- Inspect the equipment and accessories for transport damage.
- If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

• Saw blade guard
• Pushstick
  Parallelstop
  • Rubber foot (4x)
  Crossstop
  Leg(4x)
  • Cross-strut, front/back (2x)
  • Cross-strut, side (2x)
  • Strut for table width extension (4x)
  • Table width extension (2x)
  • Table length extension
  • Strut for table length extension (2x)
  • Additional leg (2x)
  • Wrench, size 10/22 mm
  • Wrench, size 8/10 mm
  Hex screw (20x)
• Lock bolt (12x)
• Washer(24x)
  • Spring washer (24x)
• Nut(24x)
  • Size M5 screw for container (4x)
  • Size M5 nut for container (8x)
• Laserunit
  • Recessed head screws for laser (2x)
  • Batteries for laser (2x)
  • Container for cutting residues
  • Additional saw blade
• Hex key (6 mm)
  • Original operating instructions
  • Safetyinformation

3. Proper use

The bench-type circular saw is designed for the slitting and cross-cutting (only with the cross stop) of all types of timber commensurate with the machine's size. The equipment is not to be used for cutting any type of round wood.

GB

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

The equipment is to be operated only with suitable saw blades (saw blades made of HM or CV) It is prohibited to use any type of HSS saw blade and cutting-off wheel.

To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual.

All persons who use and service the equipment have to be acquainted with these operating instructions and must be informed about the equipment's potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of health and safety at work.

The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes. Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors.

The following hazards may arise in connection with the machine's construction and design:

• Contact with the saw blade in the uncovered saw zone.
• Reaching into the running saw blade (cut injuries).
• Kick-back of workpieces and parts of workpieces.
• Saw blade fracturing.
• Catapulting of faulty carbide tips from the saw blade.
• Damage to hearing if essential ear-muffs are not used.
• Harmful emissions of wood dust when used in closed rooms.

4. Technical data

AC motor 230-240 V \~ 50 Hz

Power P at 5,000 min ^1 S1 1800 W - S6 40% 2000 W

Power P at 3,200 min ^-1 ....S1 650 W Idle speed n _o

Speed 1 ....3,200 min ^-1

Speed 2 5,000 min ^-1

Carbide saw blade .... 0 254 x 0 30 x 2.8 mm Number of teeth .... 24

Carbide saw blade .... 0 254 x 0 30 x 2.6 mm Number of teeth .... 48

Table size 580 x 546 mm

Table width extension left/right .....580 x 152 mm Table length extension: .....540 x 250 mm

Support surface max. 830 x 850 mm

Cutting height max. 85 mm / 90° 65 mm / 45°

Height adjustment .... infinite 0 - 85 mm Tilting saw blade .... infi nite 0° - 45°

Extractor connection 0 36 mm

Weight ..... approx. 21.5 kg Laser class: ..... 2

Wavelength of laser: 650 nm

Laser output: .... ≤ 1 mW Battery ... .... 2x 1.5 V, AAA/LR03

Protection class: .... 11回 Thickness of the splitter: .... 2.5 mm

Permissible tooth pitch of saw blade: ... > 2.5 mm Permissible basic blade thickness of saw blade: .... < 2.5 mm

Operating mode S6 40%: Continuous operation with idling (cycle time 10 minutes). To ensure that the motor does not become excessively hot, it may only be operated for 40% of the cycle at the specified rating and must then be allowed to idle for 60% of the cycle.

Danger!

Noise

The noise emission values were measured in accordance with EN 62841.

Operation

L_pA sound pressure level 97 dB(A)

K_pA uncertainty 3 dB(A)

L_WA sound power level 110 dB(A)

K_WA uncertainty 3 dB(A)

GB

Wear ear-muff s.

The impact of noise can cause damage to hearing.

The stated noise emission values were measured in accordance with a set of standardized criteria and can be used to compare one power tool with another.

The stated noise emission values can also be used to make an initial assessment of exposure.

Warning:

The noise emission levels may vary from the level specified during actual use, depending on the way in which the power tool is used, especially the type of workpiece it is used for.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.

Limit the operating time!

All stages of the operating cycle must be considered (for example, times in which the electric tools are switched off and times in which the tool is switched on but operates without load).

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

• Unpack the bench-type circular saw and check it for damage which may have occurred in transit.
• The machine has to be set up where it can stand firmly, e.g. on a work bench, or it must be bolted to a strong base.
• All covers and safety devices have to be properly fitted before the machine is switched on.
• It must be possible for the saw blade to run freely.
• When working with wood that has been processed before, watch out for foreign bodies such as nails or screws etc.
  Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and that the machine's moving parts run smoothly.

6. Assembly

Danger! Pull out the power plug before carrying out any maintenance, resetting or assembly work on the circular saw!

6.1 Assembling the base frame (Fig. 3-4)

Danger! Make allowance for the weight of the machine and arrange another person to help you if necessary!

• Turn the bench-type circular over and set the saw down on the floor or on some other work surface. Important! Place suitable material (e.g. packaging material) between the table surface and the surface on which it is stood to prevent any damage to the table surface.
• Important! Only fasten all the screw connections between the base frame and machine loosely at first. Wait until you have returned the bench-type circular saw to its working position before tightening the screw connections securely. This is so that you can be sure the base frame is aligned level with the surface on which it is stood.
• Use the hexagon screws (46) to fasten the four legs (29) loosely to the bench-type circular saw.
• Then use the lock bolt (48), washer (49), spring washer (50) and nuts (51) to screw the cross-struts (30/31) loosely to the legs (29). Make sure that the tongue-and-groove connection between the cross-strut (30/31) and

GB

leg (29) engages properly.

• Plug the rubber feet (13) onto the legs (29).

6.2 Assembling the table width extension/length extension (Fig. 5, 6)

• Use the hexagon screw (46), washer (49), spring washer (50) and nut (51) to fasten the table width extensions (33) loosely to the saw table (1).
• Remove the hexagon screw (46) from the base frame (47) on the left and right-hand side to enable the struts (32) and the base frame (47) to be fitted.
• Fasten the struts (32) loosely to the base frame (47) with hexagon screws (46), but do not tighten.
• Use the hexagon screw (46), washer (49), spring washer (50) and nut (51) to screw the struts (32) loosely to the table width extensions (33).
• Use the hexagon screw (46), washer (49), spring washer (50) and nut (51) to fasten the table length extension (34) loosely to the saw table (1).
• Remove the hexagon screws (46) on the back of the base frame (47).
• Fasten the struts (36) loosely to the base frame (47) with hexagon screws (46), but do not tighten.
• Use the hexagon screw (46), washer (49), spring washer (50) and nut (51) to screw the struts (36) loosely to the table length extension (34).
• Align the table width extensions (33) and the table length extension (34) level with the saw table (1).
• Then tighten the screw connections referred to in 6.2. Use both the wrenches (38) and (39) to do this.

6.3 Standing the bench-type circular saw upright (2, 7-9)

• Turn the machine over so that it stands on its legs (29).
• The bench-type circular saw must be stood on a flat surface.
• Then tighten all loose screw connections. Use both the wrenches (38) and (39) to do this.
• Screw the additional legs (37 to the rear legs (29) so that they point towards the rear of the machine. Use the lock bolts (48), washers (49), spring washers (50) and nuts (51) to fasten them.
• Warning! Don not fit the additional legs (37) too far away from the surface on which the

machine stands; they are intended to provide protection against tipping over.

• Before you can fit the container for cutting residues (59), fasten the screws (52) and nuts (53) to the table width extension (33) and table length extension (34) as shown in Fig. 9a and 9b.
• Attach the container for cutting residues (59) to the screws (52) by the eyelets.

6.4 Changing the table insert (Fig. 10)

• To prevent increased likelihood of injury, the table insert should be changed whenever it is worn or damaged.
• Remove the saw blade guard (2) and the laser unit (54) (see 6.7, 6.6).
• Remove the countersunk head screws (17).
• Lift out the table insert (6) at the back of the saw table (1). Then pull the table insert (6) towards the back until you can take out the table insert (6) with the pin on the side through the recess on the saw table (1).
• Fit the replacement table insert in reverse order.

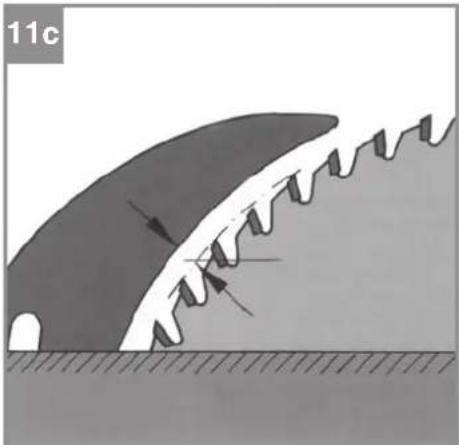

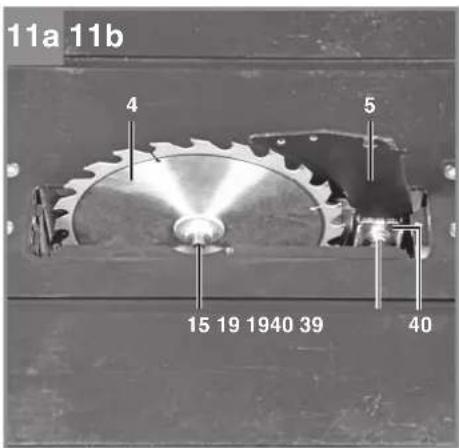

6.5 Fitting/replacing the splitter (Fig. 11)

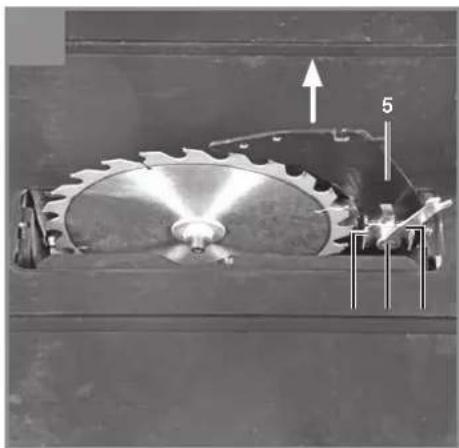

• Important! In the as-delivered state the splitter (5) is in the transport position. Always fasten the splitter in the top position, as described below.
• Using the crank (10), set the blade (4) to max. cutting depth, move to 0^ position and lock in place.
• Remove the saw blade guard (2) and the laser unit (54) (see 6.7, 6.6).
  • Take out the table insert (6) (see 6.4).
• Unscrew the fastening screw (19) and remove the fastening plate (40).
  • Fit the splitter (5) and fasten it loosely with the fastening plate (40) and fastening screw (19).
• Important! The splitter (5) must be fastened in the top position to enable the maximum cutting capacity to be realized.
• Push the splitter (5) right up to the top and tighten the fastening screw (19) securely. Make sure that the splitter (5) has been fitted straight and not wobbly.
• The splitter (5) must be positioned in the center along an imaginary line extending behind the saw blade (4), so that it is not possible for the material to get jammed.
• The gap between the blade (4) and the splitter (5) should be 3 mm to 8 mm. (Fig. 11c).
  • Refit the table insert (6), laser unit (54) and saw blade guard (2) (see 6.4, 6.6, 6.7)

GB

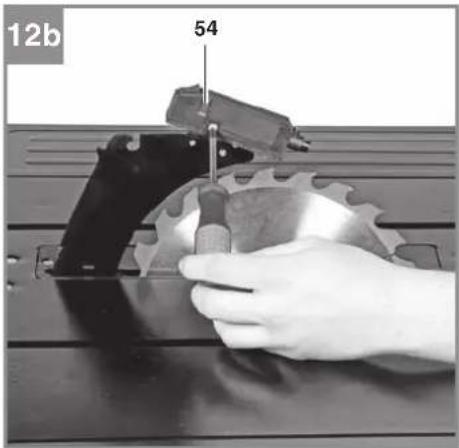

6.6 Fitting/maintenance of the laser unit (Fig. 12)

• Caution! Do not look directly into the laser beam!
• Remove the saw blade guard (2) (see 6.7).

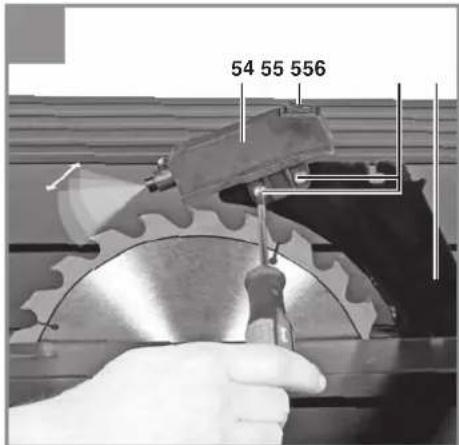

• Fasten the laser unit (54) on the splitter (5) with the two recessed head screws (56).
• Important! By tightening the two recessed head screws (56) by different amounts, you can adjust the parallelism of the laser unit (54) in the horizontal direction relative to the saw blade (4).
• Important! If necessary you can readjust the parallelism of the laser unit (54) in the vertical direction:
  Undo the adjustment screw (58), turn the front holder until the laser beam hits the teeth of the saw blade (4) at the same point in each case, then re-tighten the adjustment screw (58).

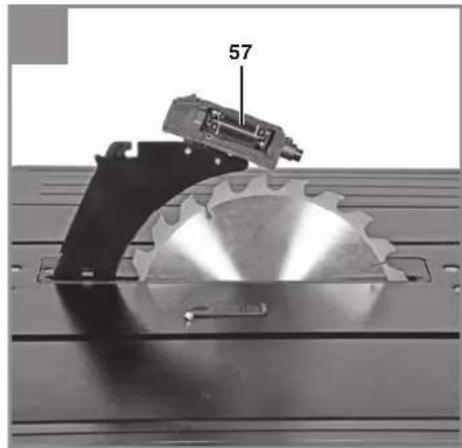

• To insert/change the batteries (57), proceed as follows:
  Open the side cover on the laser unit (54), take out the defective batteries, insert new batteries (57) (make sure that the polarity is correct as shown in the battery compartment), then close the cover again.
  • Remount the blade guard (2) (see 6.7).

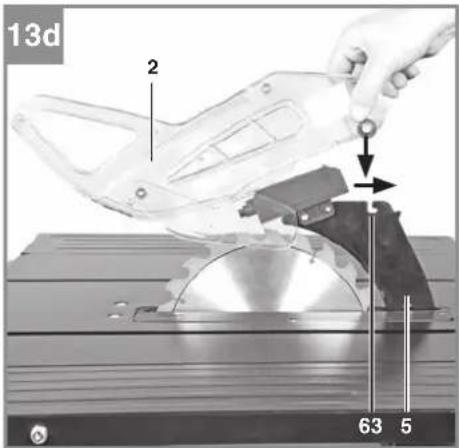

6.7 Fitting/changing the saw blade guard (Fig. 13)

• Using the crank (10), set the saw blade (4) to the maximum cutting depth.

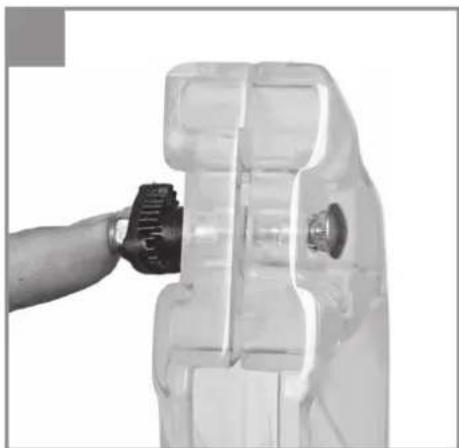

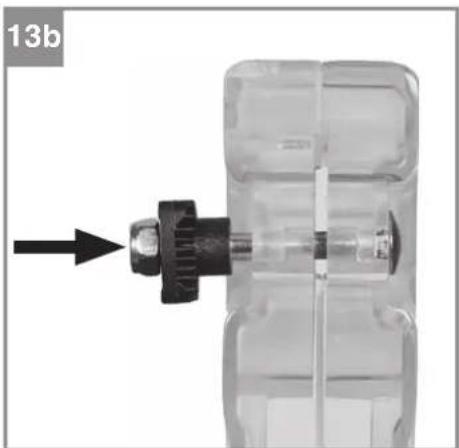

- Unscrew the rotary knob (64) as far as possible until the rotary knob (64) touches the self-locking nut (65).
- Caution! Do not move the self-locking nut (65).
- Push the lock bolt (66) as far as possible through the saw blade guard (2), so that the square profile of the lock bolt (66) projects out of the saw blade guard (2).
- Holding the lock bolt (66) pressed, guide the saw blade guard (2) into the L-shaped recess (63) in the splitter by the lock bolt (66), guiding it down at first and then towards the back.
- Then push the lock bolt (66) with the square profile back into the recess in the saw blade guard (2) with a tight fit.
- Screw the rotary knob (64) back tightly as far as it will go. Important! The screw connection between the lock bolt (66) and the rotary knob (64) is designed to allow the saw blade guard (2) to be able to move freely at all

times.
- Warning! The saw blade guard (2) must always lower to the workpiece automatically under its own weight.
• To dismantle, proceed in reverse order.

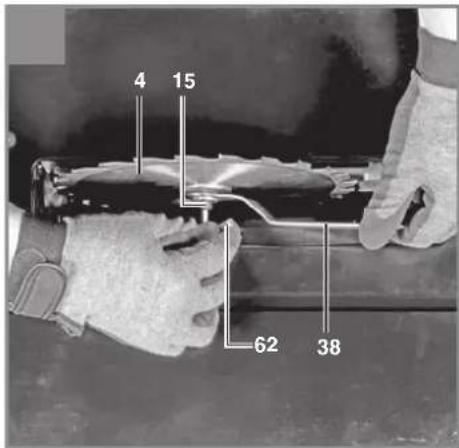

6.8 Fitting/changing the saw blade (Fig. 14)

• Before changing the saw blade: Pull out the power plug!
• Wear work gloves to prevent injury when changing the saw blade.
  • Using the crank (10) set the saw blade (4) to the maximum cutting depth.
• Remove the saw blade guard, laser unit, table insert and splitter (see: 6.7, 6.6, 6.4, 6.5).
• Undo the screw (15) by placing the hex key (62) on the screw (15) and a second wrench (38) on the motor shaft to apply counter-pressure.
• Caution! Turn the screw (15) in the direction of rotation of the saw blade.
  • Take off the outer flange and pull the old saw blade (4) off the inner flange.
• Clean the blade flange thoroughly before fitting the new blade.
• Fit and fasten the new saw blade (4) in reverse order.
• Important! Note the running direction. The cutting angle of the teeth must point in running direction, i.e. forwards (see the arrow on the blade guard).
• Refit and adjust the splitter, table insert, laser unit and saw blade guard (see: 6.5, 6.4, 6.6, 6.7).
• Check to make sure that all safety devices are properly mounted and in good working condition before you begin working with the saw again.
• Warning! Every time that you change the saw blade, check that the saw blade guard (2) opens and closes again in accordance with requirements. Also check that the saw blade (4) spins freely in the saw blade guard (2).
• Warning! Every time that you change the saw blade (4), check to see that it spins freely in the table insert (6) in both perpendicular and 45° angle settings.
• Warning! You should replace the table insert (6) immediately whenever it is worn or damaged (see 6.4).
• Warning! The work to change and align the saw blade (4) must be carried out correctly.

GB

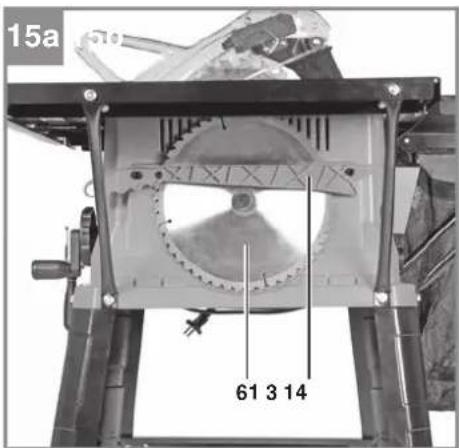

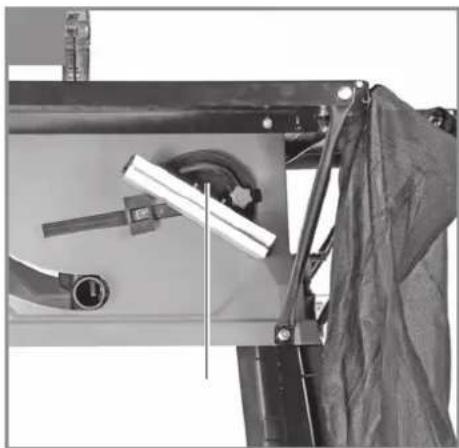

6.9 Putting away loose parts (Fig. 15)

• When not in use, the push stick (3) and the additional saw blade (61) can be secured as shown in Fig. 15a.
• The cross stop (14) can be secured as shown in Fig. 15b.

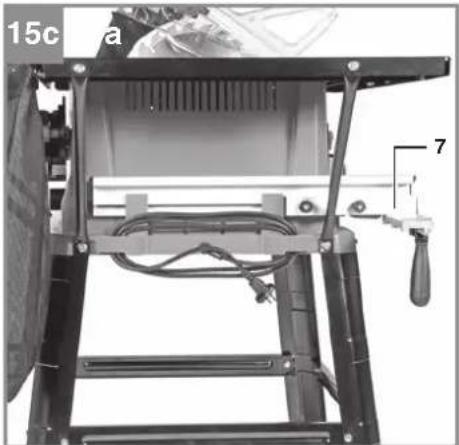

• The parallel stop (7) can be secured as shown in Fig. 15c.

6.10 Connection for vacuum cleaner (Fig. 2)

A connection for a vacuum cleaner is provided on the extractor adapter on the housing (16). Connect an extraction system (not included in delivery) to the extractor adapter (16).

7. Using the saw

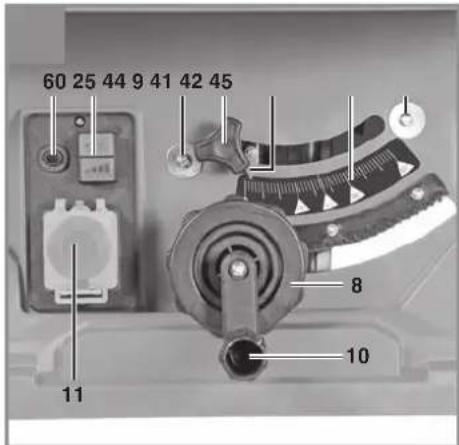

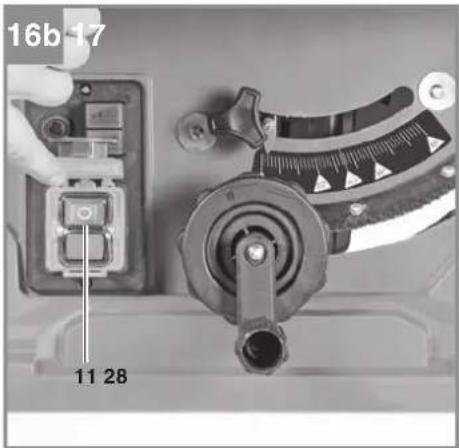

7.1 ON/OFF switch (Fig. 1, 16 / Item 11)

• The On/Off switch is covered by an additional cap. This has to be opened to switch on the saw.
• To turn the saw on, press the green button „I“. Wait for the blade to reach its maximum speed of rotation before commencing with the cut.
• To turn the equipment off again, press the red button „0“.

The motor of this equipment is protected against overload by an overload switch (60). If the rated current is exceeded, the overload switch (60) will shut down the equipment.

• Let the equipment cool down for several minutes.
  • Press the overload switch (60).
• Press the green button „I“ to switch on the equipment.

The bench-type circular saw can be operated with two different speeds. You can set the required speed with the speed button (25). Important! You can preselect the required speed at a standstill and also adjust it while the motor is running.

• To operate the saw with a low speed, press the "3200RPM" button.
• To operate the saw with a high speed, press the "5000RPM" button.

7.2 Cutting depth (Fig. 1, 16)

Turn the crank (10) to set the blade (4) to the required cutting depth.

Turn anti-clockwise:

smaller cutting depth

Turn clockwise:

larger cutting depth

7.3 Parallel stop

The parallel stop (7) has to be used when making longitudinal cuts in wooden workpieces. When fi tting or adjusting the parallel stop, make sure that the parallel stop (7) is aligned parallel to the saw blade (4).

7.3.1 Stop height (Fig. 18, 19)

• The parallel stop (7) supplied with the bench-type circular saw has two different guide faces.
• For thin material you must use the stop rail (23) as shown in Fig. 19a, for thick material you must use the stop rail as shown in Fig. 19b.
• To change over the stop rail (23) to the lower guide face you have to slacken the two knurled screws (26).
• Remove the two screws (18) from the parallel stop through the one slot (27) in the stop rail (23).
• Thread the two screws (18) into the other slot (35) in the stop rail (23) and slide the stop rail (23) back onto the parallel stop.
• Retighten the two knurled screws (26) in order to fix the stop rail (23).
• The procedure for changing over to the high guide face is the same.
• Warning! When in use, the stop rail (23) must always be screwed to the side of the parallel stop (7) which faces the saw blade.

7.3.2 Cutting width (Fig. 17)

• The parallel stop (7) can be mounted on either side of the saw table (1).
• The parallel stop (7) has to be mounted in the guide rail (28) of the saw table (1).
• The parallel stop (7) can be set to the required dimension with the help of the scale (22) on the guide rail (28).
• You can clamp the parallel stop in the required position by pressing the eccentric lever (12).

GB

7.3.3 Setting the stop length (Fig. 17, 18)

• The stop rail (23) can be moved in longitudinal direction in order to prevent the workpiece from becoming jammed.
• Rule of thumb: The rear end of the stop comes up against an imaginary line that begins roughly at the center of the blade and runs at an angle of 45^ to the rear.
• Set the required cutting width
• Slacken the knurled screws (26) and push the stop rail (23) forward until it touches the imaginary 45° line.
• Retighten the knurled screws (26).

Warning! The gap between the saw table (1) and the underside of the stop rail (23) must not be too large in order to prevent the material getting jammed. To adjust the distance, the parallel stop (7) must be fastened fi rst using the eccentric lever (12). Then slacken the knurled screws (26), lower the stop rail (23) down to the saw table (1) and secure the knurled screws (26) again afterwards.

7.4 Cross stop (Fig. 20)

The cross stop (14) has to be used when making cross cuts in wooden workpieces.

• Slide the cross stop (14) into the slot (21) of the saw table.
• Undo the locking screw (20).
• Turn the stop rail (24) until the arrow points to the angle required.
  • Re-tighten the fastening screw (20).
• Check the gap between the stop rail (24) and the saw blade (4).
• Warning! Do not push the stop rail (24) too far toward the blade. The distance between the stop rail (24) and the blade (4) should be approx. 2 cm.
• If necessary, slacken the two knurled screws (43) and adjust the stop rail (24).
  • Retighten the knurled screws (43).

7.5 Setting the angle of the saw blade (Fig. 16)

• Undo the locking grip (9).
- To adjust the angle of the saw blade, press the hand wheel (8) towards the machine and turn it at the same time until the pointer (41) is aligned with the desired angular setting on the scale (42).
• Secure the locking grip (9) again.
- If needed, the end stop for adjusting the angle of the saw blade can be readjusted for 0^ and 45^ . To do this, adjust the two adjustment screws (44) and (45).

7.6 Operation of the laser (Fig. 12)

Switching on: Move the laser On/Off switch (55) to the "I" position to switch on the laser unit (54). A laser line is projected onto the material you wish to process, providing an exact guide for the cut. Switching off: Move the On/Off switch (55) to the "0" position.

8. Operation

Warning!

• After every new adjustment we recommend you to make a trial cut in order to check the new settings.
  • After switching on the saw, wait for the blade to reach its maximum speed of rotation before commencing with the cut.
  • Take extra care when starting the cut!
• Never use the equipment without the suction function.
• Regularly check and clean the suction channels.

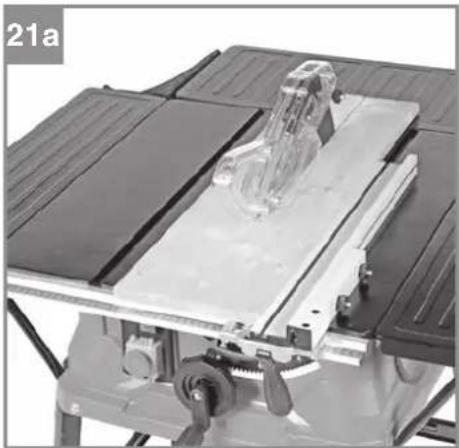

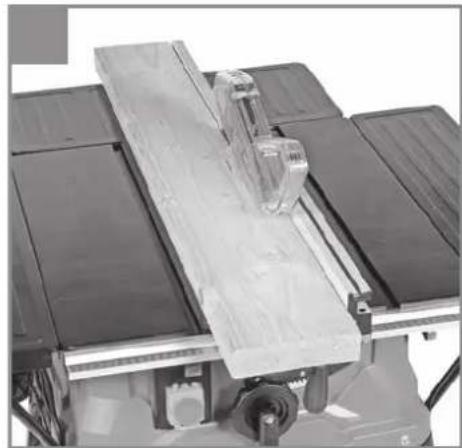

8.1 Making longitudinal cuts (Figure 21)

Longitudinal cutting (also known as slitting) is when you use the saw to cut along the grain of the wood. Press one edge of the workpiece against the parallel stop (7) while the fl at side lies on the saw table (1). The guard hood (2) must always be lowered over the workpiece.

When you make a longitudinal cut, never adopt a working position that is in line with the cutting direction.

• Set the parallel stop (7) in accordance with the workpiece height and the desired width. (See 7.3.)

- Switch on the saw.

- Place your hands (with fingers closed) flat on the workpiece and push the workpiece along the parallel stop (7) and into the blade (4).

- Guide at the side with your left or right hand (depending on the position of the parallel stop) only as far as the front edge of the guard hood.

• Always push the workpiece through to the end of the splitter (5).

- The offcut piece remains on the saw table (1) until the blade (4) is back in its position of rest.

- Secure long workpieces against falling off at the end of the cut (e.g. with a roller stand etc.).

GB

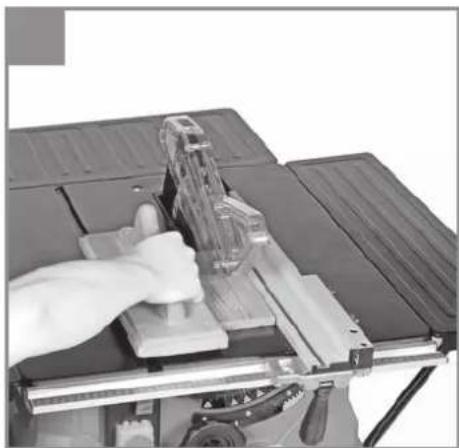

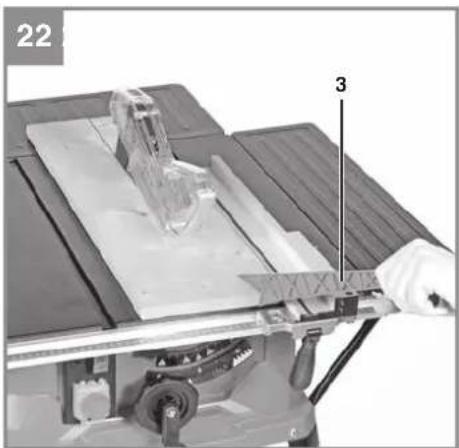

8.1.1 Cutting narrow workpieces (Fig. 22)

Be sure to use a push stick (3) when making longitudinal cuts in workpieces smaller than 150 mm in width. A push block is supplied with the saw! Replace a worn or damaged push stick immediately.

8.1.2 Cutting extremely narrow workpieces (Fig. 23)

• Be sure to use a push block when making longitudinal cuts in very narrow workpieces with a width of 50 mm and less.
• The low guide face of the parallel stop is best used in this case.
• There is no push block supplied with the saw! (Available from your specialist dealer). Replace the push block without delay when it becomes worn.

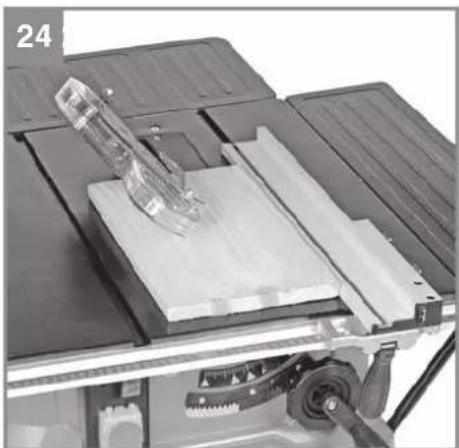

8.2 Making bevel cuts (Fig. 24)

Bevel cuts must always be used using the parallel stop (7).

If you tilt the saw blade (4) to the left when making angular cuts, position the parallel stop (7) on the right-hand side of the saw blade (4). Guide the workpiece between the saw blade (4) and the parallel stop (7).

• Set the blade (4) to the desired angle. (See 7.5.)
• Set the parallel stop (7) in accordance with the workpiece width and height (see 7.3)
• Carry out the cut in accordance with the workpiece width (see 8.1.1., 8.1.2.)

8.3 Making cross cuts (Fig. 25)

• Slide the cross stop (21) into one of the grooves (21) in the table and adjust to the required angle. (See 7.4.) If you also want to tilt the blade (4), use the groove (21) which prevents your hand and the cross stop from making contact with the blade guard.

- Press the workpiece firmly against the cross stop (14).

- Switch on the saw.

- Push the cross stop (14) and the workpiece toward the blade in order to make the cut.

- Warning!

Always hold the guided part of the workpiece. Never hold the part which is to be cut off.

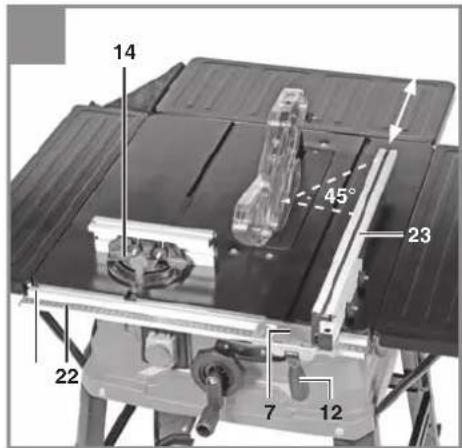

- Push the cross stop (14) forward until the workpiece is cut all the way through.

- Switch off the saw again. Do not remove the offcut until the blade has stopped rotating.

Caution! With some angle settings in combination with other settings (e.g. cutting height) you will not be able to cut all the way through the workpiece. Remedy: With the machine switched off, check whether the imaginary line of the stop rail (24) can be moved to at least as far as the middle of the saw blade (4) in your setting. If this is not possible, you can, for example, insert the cross stop in the opposite groove (21) of the saw blade (4).

9. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

10. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

10.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

10.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Danger! The carbon brushes should not be replaced by anyone but a qualified electrician.

10.3 Maintenance

There are no parts inside the equipment which require additional maintenance.

GB

10.4 Ordering spare parts and accessories

Please provide the following information when ordering spare parts:

• Type of unit
  • Article number of the unit
  • ID number of the unit
• Spare part number of the required spare part For our latest prices and information please go to www.isc-gmbh.info

10.5 Transport

Only ever transport the machine by lifting it by the saw table. Never use the safety devices such as the saw blade guard and stop rails for handling or transporting purposes.

10.6 Battery disposal

The batteries must be removed from the laser before it is disposed of. Batteries are not allowed to be disposed of with normal household refuse.

Batteries should be taken to a suitable collection center for proper disposal. If you do not know where such a collection center is located, you should ask in your local council offices.

11. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

12. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

• The product meets the requirements of EN 61000-3-11 and is subject to special connection conditions. This means that use of the product at any freely selectable connection point is not allowed.
• Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate temporarily.
• The product is intended solely for use at connection points that a) do not exceed a maximum permitted supply impedance Z_sys = 0.25 + j0.25 , or b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.
• As the user, you are required to ensure, in consultation with your electric power company if necessary, that the connection point at which you wish to operate the product meets one of the two requirements, a) or b), named above.

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* V-belt, carbon brushes, table insert, push stick
Consumables* Saw blade
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

Negotovost K_pA 3 dB (A)

Nivo zvočne moči L _WA 110 dB (A)

Negotovost K_WA 3 dB (A)

X 2006/42/EC
X Annex IV
Notified Body:

TÜV Süd Product Service GmbH (0123)

Ridlerstraße 65, D-80339 München, Germany

M6A 024192 1991 Rev.00

□2000/14/EC_2005/88/EC

Annex V

Annex VI

Noise: measured L_WA = dB(A) ; guaranteed L_WA = dB(A)

P = kW; L/∅ = cm

Notifi ed Body:

□2012/46/EU_(EU)2016/1628

Emission No.:

Standard references: EN 62841-1; EN 62841-3-1; EN 60825-1; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-11

Subject to change without notice

Archive-File/Record: NAPR025492

Documents registrar: Wasmeler Korbinlan

Wiesenweg 22, D-94405 Landau/Isar

* GB tenich-type circular saw - SW Sierra circular a tabie / Sapa circle arcable do DKN/BOirundssve - S Donskoretszeg - CZ Sistini koloučova pla - SK Stolna koloučova pla - NL tateroketszeg - E Sierra circular de mess - FIN Poystirikkei - SLO Narmia krozna zagta - H Alaskilokurárez - RO Fertášru circular ou毊a - GF Dolokorové návýku - P Serra circular de bande - WH/BH Stolna kuzna pla - RS Stolna kuzna teleska - PL Przechinska do drevnis. - TR Tezgahli Deire Teetare - RUS Daksovni plnica ou storion - EE Laukatelsasaa - LV Qaida rizpáz - LT Stelnis diskinis pítklas - BG Kirupuler hecnolen - UKN Hauhstá načnica plnica - MK Kirupureceru plnica ou osceva - NO BATSKEIAG - IG Bonbúhyálog

EH 06/2021 (01)
