USER MANUAL PIXBAR SMD IP G2 Cameo

Close-up of a black rectangular electronic device with a colorful, rainbow-colored light beam mounted on its base (no visible text or symbols)

PIXBAR® SMD IP G2

IP65 SMD LED BAR

CLPBSMDIPG2

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

DEFINITIONS AND SYMBOL EXPLANATIONS 6

SAFETY INSTRUCTIONS 7

NOTES ON PORTABLE OUTDOOR DEVICES 10

PACKAGING CONTENT 10

INTRODUCTION 11

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 12

OPERATION 13

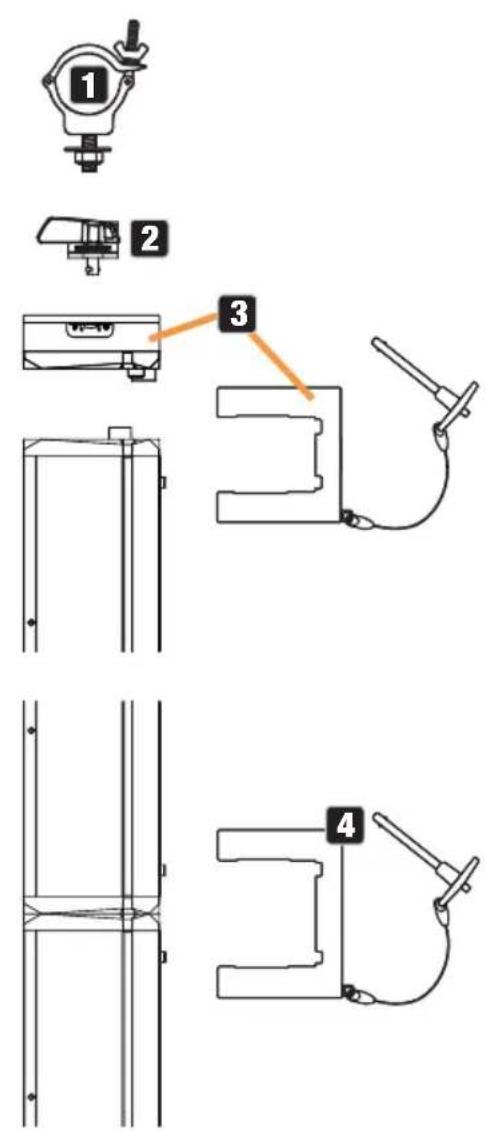

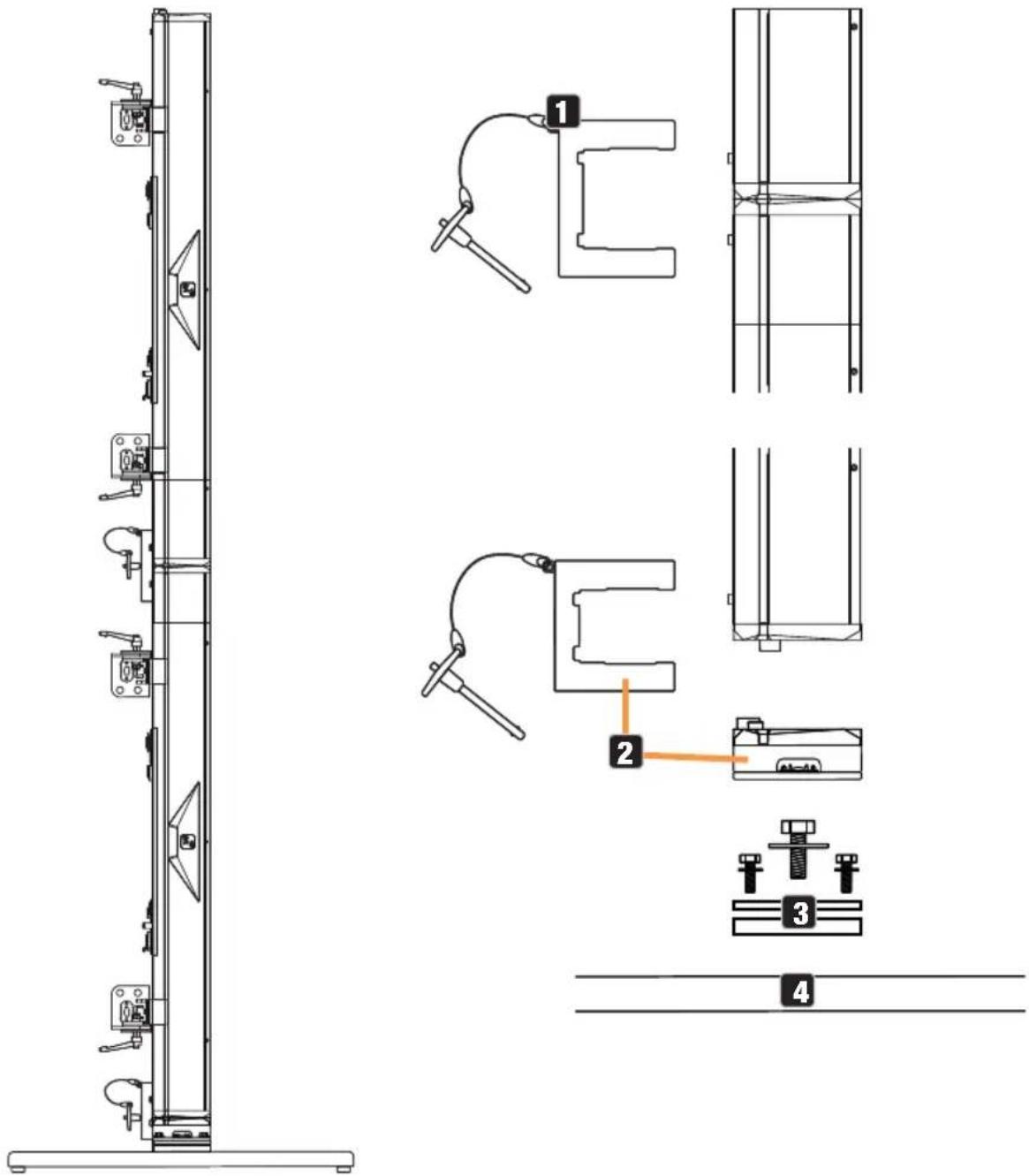

INSTALLATION 23

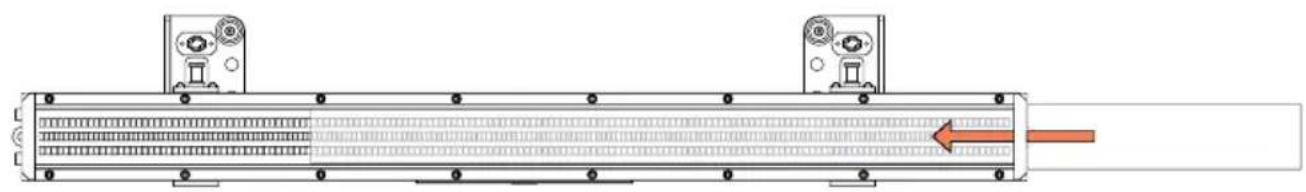

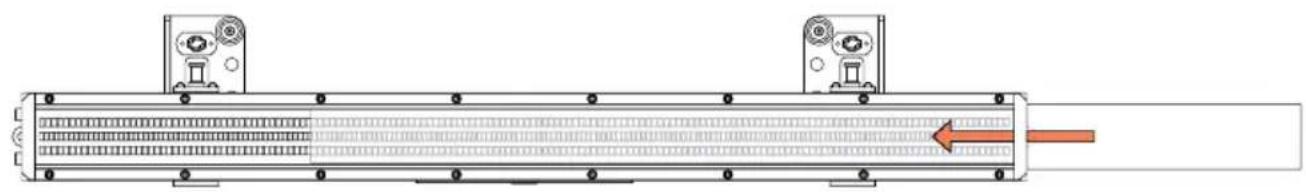

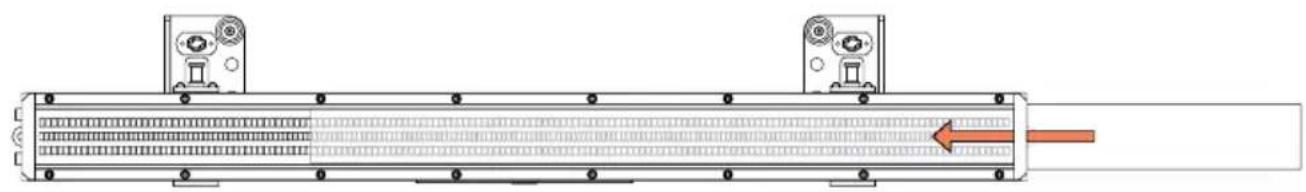

FROST FILTER 27

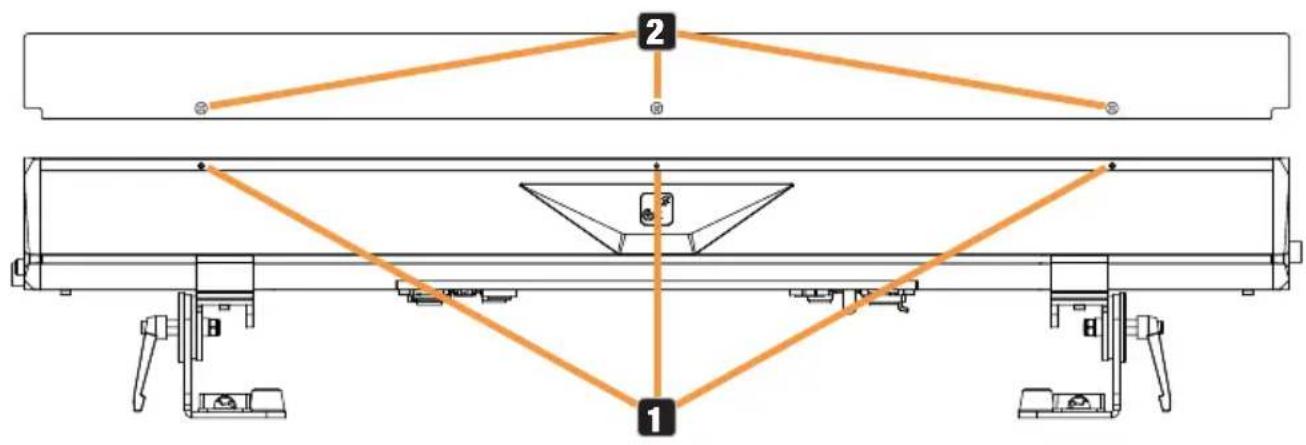

GLARE SHIELD 27

CARE, MAINTENANCE AND REPAIR 28

OPTIONAL ACCESSORIES 29

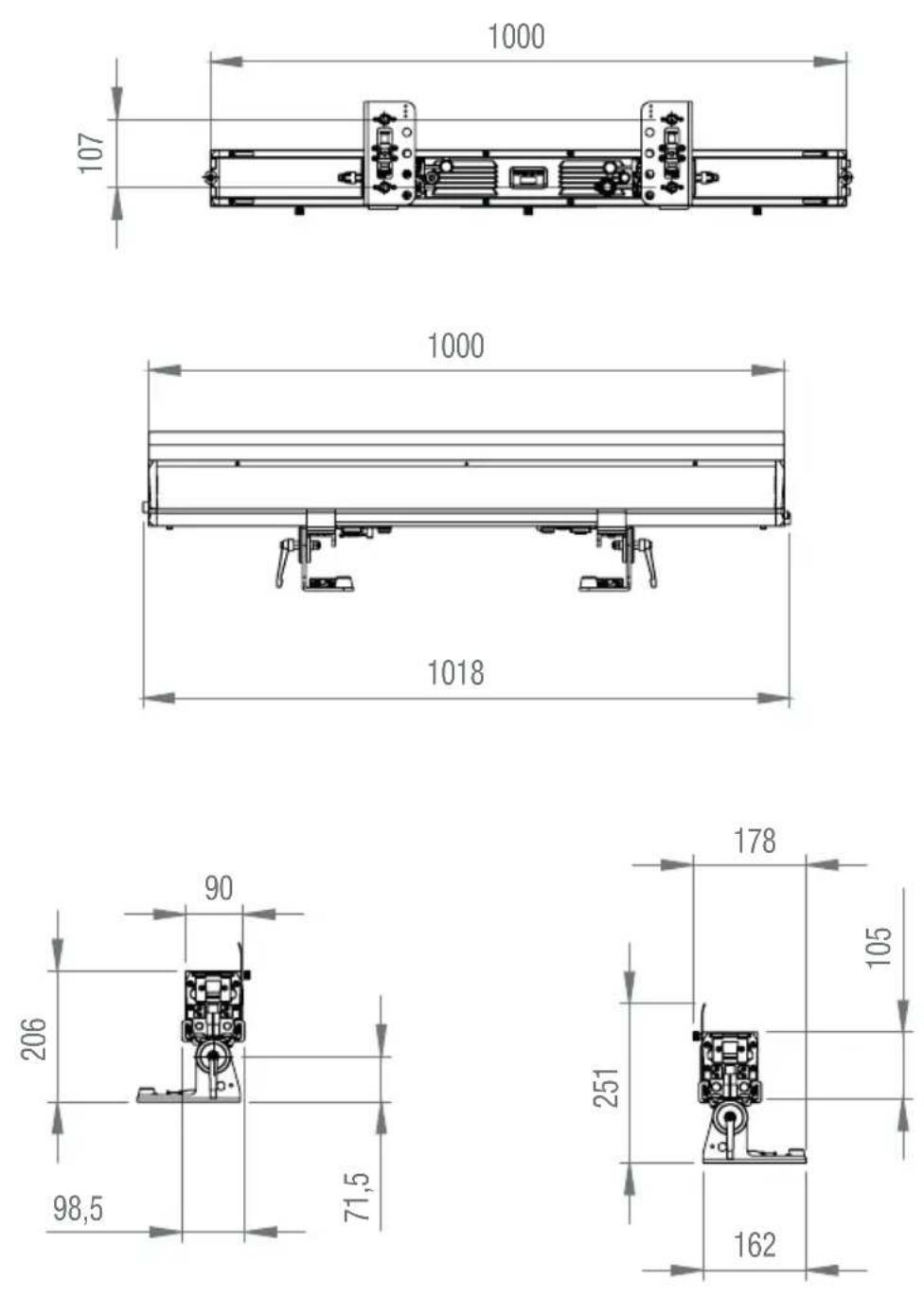

DIMENSIONS 30

TECHNICAL SPECIFICATIONS 31

EXPLANATION OF IP PROTECTION CLASS 32

MINIMUM DISTANCE TO ILLUMINATED SURFACE 33

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 33

DISPOSAL 33

MANUFACTURER'S DECLARATIONS 34

DEUTSCH

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

The product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability is exempted when damage and third-party damage to persons and property is caused by inappropriate use!

The product is not suitable for:

• Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOL EXPLANATIONS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately dangerous situations or conditions for life and limb.

2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially dangerous situations or conditions for life and limb.

3. CAUTION: The word CAUTION, possibly in combination with a symbol, is used to indicate situations or conditions that may lead to injury.

4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, refers to situations or conditions that can lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol identifies hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates a device in which there are no user-replaceable parts.

This symbol indicates additional information on the operation of the product.

SAFETY INSTRUCTIONS

DANGER:

1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it or if it has been damaged in any other way, switch it off immediately and disconnect it from the mains. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective earth conductor must be connected correctly. Never disconnect the protective earth conductor. Devices of protection class 2 do not have a protective earth conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device must not be used if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the power cable of the device is damaged, do not operate the device.
4. Permanently connected power cables may only be replaced by a qualified person.

ATTENTION:

1. Do not switch on the device if it has been exposed to extreme temperature fluctuations (for example, following transport). Moisture and condensation can damage the device. Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains supply correspond to the values indicated on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Use only suitable power cables.

1. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the device.
2. Make sure that the fuse used corresponds to the type printed on the device.
3. Make sure that appropriate measures have been taken against overvoltage (e.g. lightning strike).
4. Observe the specified maximum output current on devices with Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
5. Only replace pluggable mains cables with equivalent cables that correspond to the cable originally supplied. The cross-section must not fall below the cross-section of the original cable.
6. Connect the device only to compliant, tested and undamaged power outlets.

DANGER:

1. Choking hazard! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that all applicable safety regulations are observed.

WARNING:

1. Use the device only in the manner intended.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, e.g. due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.
6. Always observe the minimum distance to the illuminated surface specified on the device!

CAUTION:

1. Moving components such as mounting brackets pose a jamming hazard.
2. In the case of devices with motor-driven components, there is a risk of injury from the movement of the device. Sudden movement of the device can cause shock reactions.
3. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work and charging etc.

ATTENTION:

1. Do not install or use the device in the vicinity of radiators, accumulators, stoves, or other heat sources. Ensure that the device is always installed in such a way that it can be sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Vents must not be covered and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be continuously further developed. In the event of deviating information on operating conditions, performance or other device properties between the user manual and the device labelling, the information on the device always takes priority.
8. The device is not suitable for tropical climates and for operation at elevations higher than 2000 m above sea level.
9. Unless explicitly stated, the unit is not suitable for operation in marine conditions.

PLEASE NOTE:

For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the instructions included.

CAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.
2. Never look into the beam of light using optical devices such as a magnifying glass.
3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
4. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. In the event of a fault, please contact your distribution partner.

SIGNAL TRANSMISSION AND CONTROL BY RADIO

(e.g. W-DMX or audio radio systems, Bluetooth):

The quality and performance of wireless signal transmissions generally depends on the ambient conditions.

For example, the following factors can impact range and signal stability:

Shielding (e.g. masonry, metal structures, water)

High volumes of radio traffic (e.g. powerful wireless LAN networks)

Interference

Electromagnetic radiation (e.g. LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference! The operation of transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (e.g. radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potentially detrimental interactions. These include:

• Hospitals, health centres or other healthcare facilities that provide patient treatment with skilled personnel and equipment.
  • Hazardous areas Class I, II and III
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

TRANSMISSION VIA W-DMX

WARNING: In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or traverse structures, DMX-controlled motors/lifts or lifting devices for operating DMX-operated platform lifts, hydraulic systems or comparable moving components.

Furthermore, wireless DMX transmission must not be used to trigger flame or pyrotechnic devices, explosion-driven effects, or to control gas or liquid effects. These include e.g. CO2 cannons, confetti shooters, water effects or similar.

NOTES ON PORTABLE OUTDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent structural installation – particularly outdoors – can impair the function, surfaces and seals and accelerate material fatigue.
3. Damage to the surface coating can impair the corrosion protection of the appliance; a damaged surface coating (e.g. scratches) must be restored promptly using suitable measures.

PACKAGING CONTENT

Remove the product from the packaging and remove all packaging material. Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content includes:

1 x PIXBARD IP65 G2 LED Bar

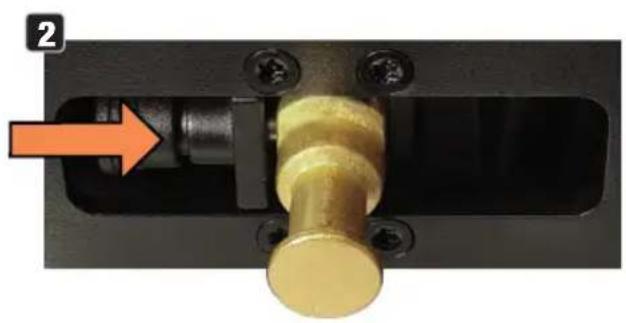

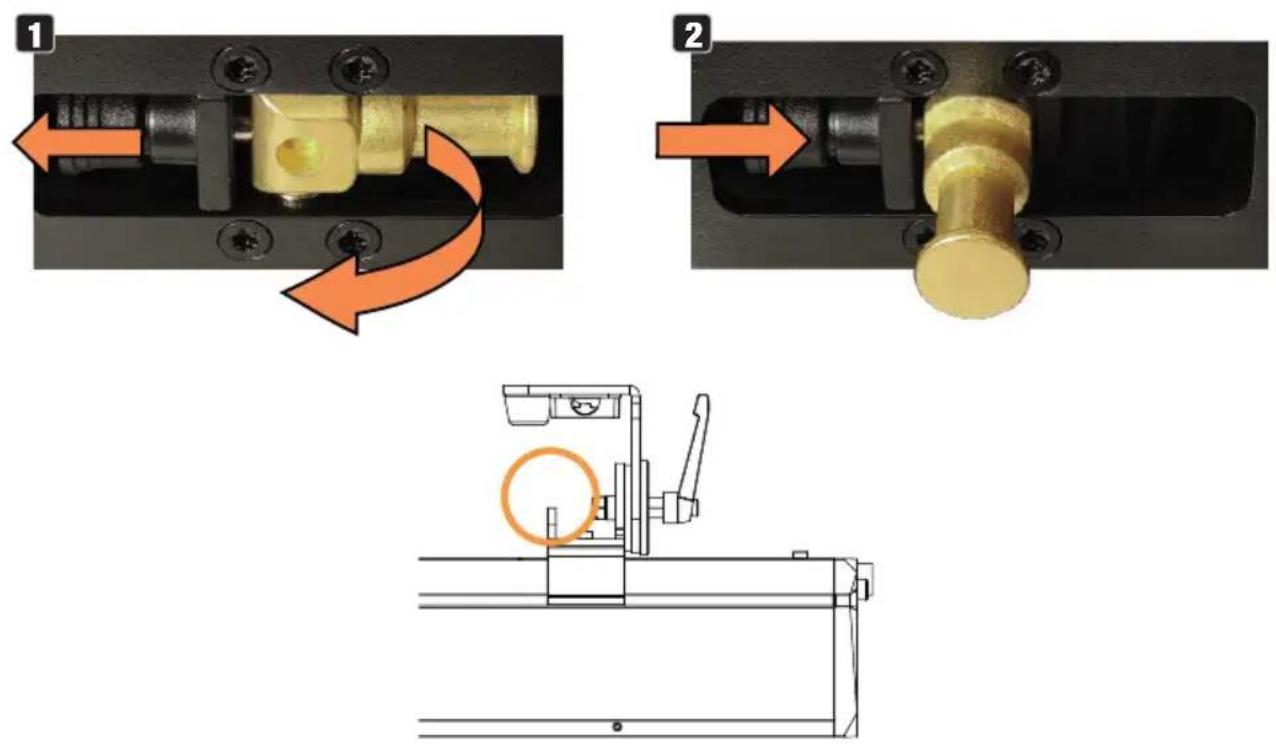

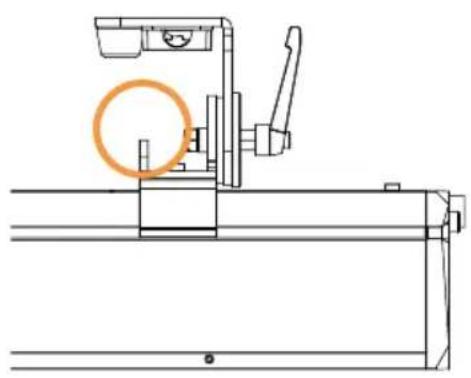

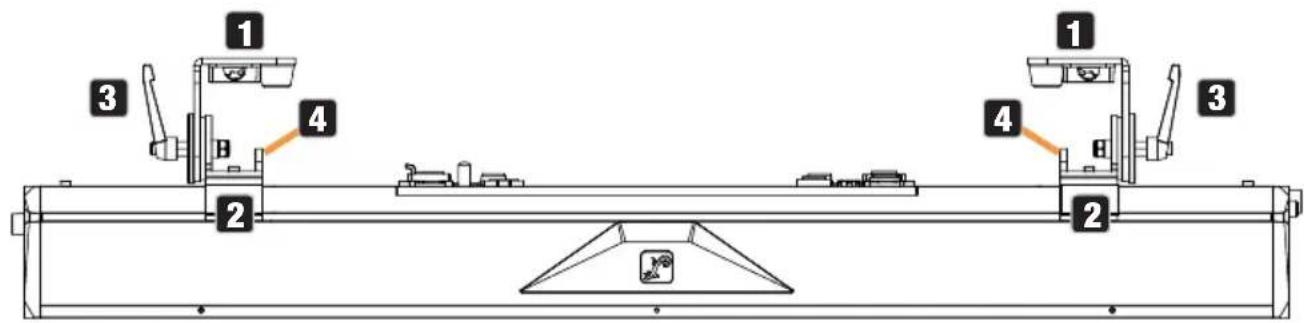

▶ 2 x Sliding mounting feet with folding SPIN16® mounting spigot (pre-assembled)

▶ 1 x Standard frost filter

▶ 1 x Glare shield

▶ 1 x Power cable

▶ 1 x Operating instructions

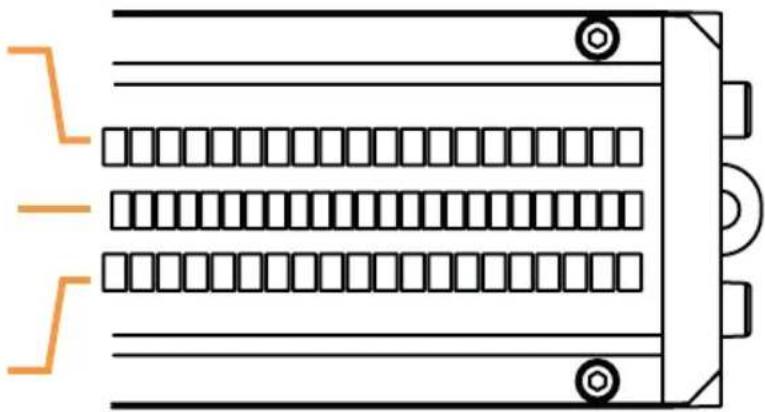

INTRODUCTION

PIXBAR® SMD G2 OUTDOOR LED BAR

CLPBSMDIPG2 with 2 x 160 3-in-1 RGB SMD LEDs and 192 cool white SMD LEDs

Top: 160 3-in-1 RGB SMD LEDs

(16 segments can be controlled separately)

Centre: 192 cold white SMD LEDs

(16 segments can be controlled separately)

Bottom: 160 3-in-1 RGB SMD LEDs

(16 segments can be controlled separately)

Pure electrical circuit lines without any symbols

CONTROL FUNCTIONS

6-channel Direct, 9-channel Strobe, 13-channel Direct, 23-channel Pattern, 29-channel Pattern, 51-channel Strobe RGB Pixel, 64-channel Pixel, 68-channel Pixel Strobe, 73-channel Pixel Strobe, 99-channel Strobe RGB Pixel, 112-channel Pixel, 116-channel Pixel Strobe, 121-channel Pixel Strobe, D7-channel Strobe and D8-channel Strobe DMX control

RDM

W-DMX™

Master/Slave modes

Stand-alone functions

FEATURES

• Protection class IP65
• Convection cooling
  • Operating voltage: 100 - 240 VAC

The LED Bar is equipped with the RDM standard (Remote Device Management). This remote device management enables the status query and configuration of RDM end devices via an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE). The Cameo UNICON also allows access to the entire spotlight menu.

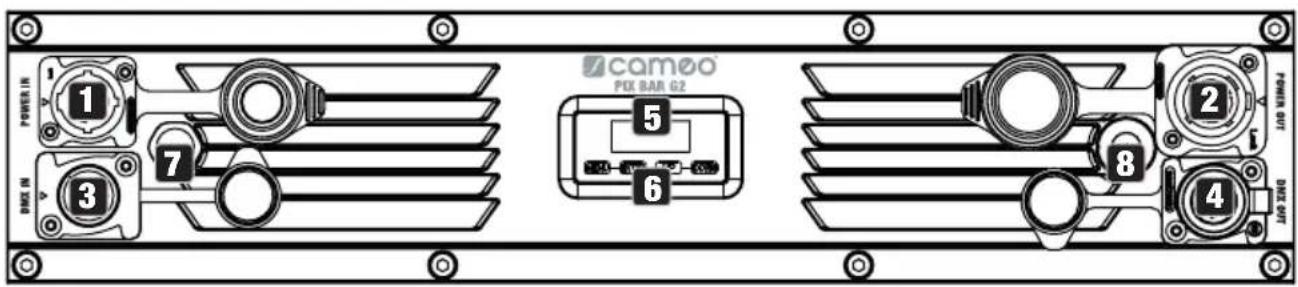

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

camoo PCI BAN G2 POWER IN 1 7 5 6 8 4 POWER IN DINCE IN

1 POWER IN

IP65 mains input socket with rubber sealing cap (TRUE1 compatible). Operating voltage 100 - 240 VAC / 50 - 60 Hz. Connection via supplied power cable (when not in use, always close with the rubber sealing cap).

2 POWER OUT

IP65 mains output socket with rubber sealing cap (TRUE1 compatible). Facilitates power supply to other CAMEO spotlights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close with the rubber sealing cap).

3 DMX IN

Male IP65 5-pin XLR socket for connecting a DMX control device (e.g. DMX console, when not in use always close with the rubber sealing cap).

4 DMX OUT

Female IP65 5-pin XLR socket for forwarding the DMX control signal (when not in use, always close with the rubber sealing cap).

5 OLED DISPLAY

The OLED display shows the currently activated operating mode or the current DMX address (main display), the menu items in the menu and the numerical value or operational status in certain menu items.

6 TOUCH-SENSITIVE CONTROL PANELS

MENU- Press MENU to access the main menu. Press again or repeatedly to return to the main screen.

UP and DOWN – Select the menu items in the main menu (DMX address, operating mode, etc.) and in the sub-menus using UP and DOWN. Change value or status in a menu item, e.g. DMX address. To quickly change a value, such as the DMX start address, press and hold UP or DOWN.

ENTER – Press ENTER to access the menu level to make value or status changes, and to access one of the sub-menus. Confirm value or status changes by pressing ENTER.

NOTES:

• Before navigating the unit menu, make sure that the control panel is dry and clean so that its functionality is not impaired.
• Water on the control unit can lead to incorrect operation of the spotlight, e.g. in outdoor operation. Therefore, after configuring the spotlight, activate the lock function to prevent incorrect operation by water (Settings -> Display -> Autolock). Deactivate the lock function: Press UP and DOWN simultaneously for approx. 5 seconds.

7 PRESSURE EQUALISATION ELEMENT

Pressure equalisation element to prevent condensation inside the housing. In order to ensure its proper function, the element must be protected from dirt.

8 W-DMX™ ANTENNA

Antenna for W-DMX ^TM control.

CAUTION: To ensure IP65 splash resistance for the DMX and network sockets, the special input and output sockets must be correctly sealed with the IP65 special plugs or the rubber sealing caps must be used for sealing. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT sockets are protected from water sprays in accordance with IP65.

OPERATION

NOTE

• As soon as the spotlight is correctly connected to the power supply, the following are displayed in succession: “Update wait ...” (for service purposes only), “Welcome to Cameo”, the model name and the software version. After this process, the spotlight is ready for operation and the previously activated operating mode is launched.
• If there is no input for approx. 30 seconds, the display automatically returns to the main display.
• Note on the main display in the operating modes with external control: As soon as the control signal is interrupted, the characters in the display start flashing; if the control signal is present again, the flashing stops.
• Briefly pressing UP when in the main display rotates the display by 180°.

SETTING DMX START ADDRESS (DMX address)

Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to select the menu item DMX Address and confirm with ENTER. Using the UP and DOWN buttons, configure the desired DMX start address and press ENTER to confirm (highest value dependent upon activated DMX mode).

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

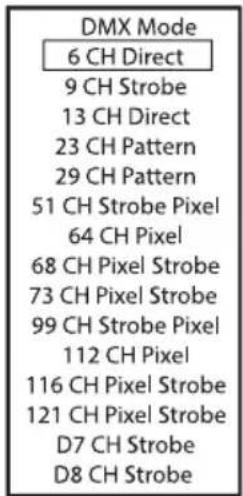

CONFIGURING DMX MODE (DMX Mode)

Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to select the menu item DMX Mode and confirm with ENTER. Now select the desired DMX mode using UP and DOWN and confirm the selection with ENTER. DMX operating modes with DMX delay channel and group selection (Group 0 - 24) are marked with "D". Tables with the channel assignments can be found in these instructions under DMX CONTROL.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

DMX Mode 6 CH Direct 9 CH Strobe 13 CH Direct 23 CH Pattern 29 CH Pattern 51 CH Strobe Pixel 64 CH Pixel 68 CH Pixel Strobe 73 CH Pixel Strobe 99 CH Strobe Pixel 112 CH Pixel 116 CH Pixel Strobe 121 CH Pixel Strobe D7 CH Strobe D8 CH Strobe

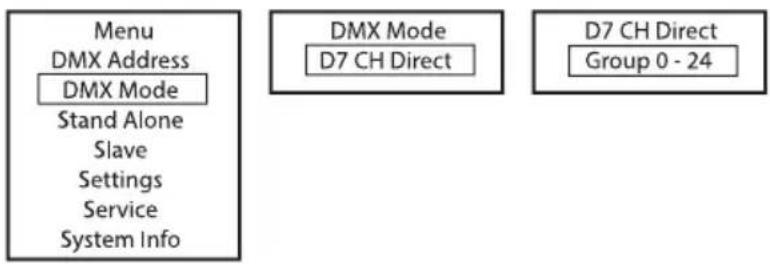

DMX modes with DMX delay channel

The DMX Delay function is a simple way to create a running light effect with a large number of spotlights that are all the same model and that are all running the same software version. This is otherwise only achievable with a suitable DMX controller and time-consuming programming. All the spotlights used (same models, same software version) are set to the same DMX operating mode with DMX delay channel and controlled via the same DMX start address.

Setting the DMX delay: Select one of the DMX operating modes with DMX delay channel and confirm the selection (in the example D7 CH Direct). Assign the spotlights to one of up to 24 groups as required (plus group 0), whereby several spotlights can also be assigned to one group. The group number is also the factor by which the set delay time set in the DMX controller is multiplied. Confirm each entry by pressing ENTER.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info DMX Mode D7 CH Direct D7 CH Direct Group 0 - 24

The delay time (delay time of the DMX signal) is set by means of a DMX controller in the separate DMX delay channel of the corresponding DMX mode (0.0 s to 2.0 s in 0.1 s increments).

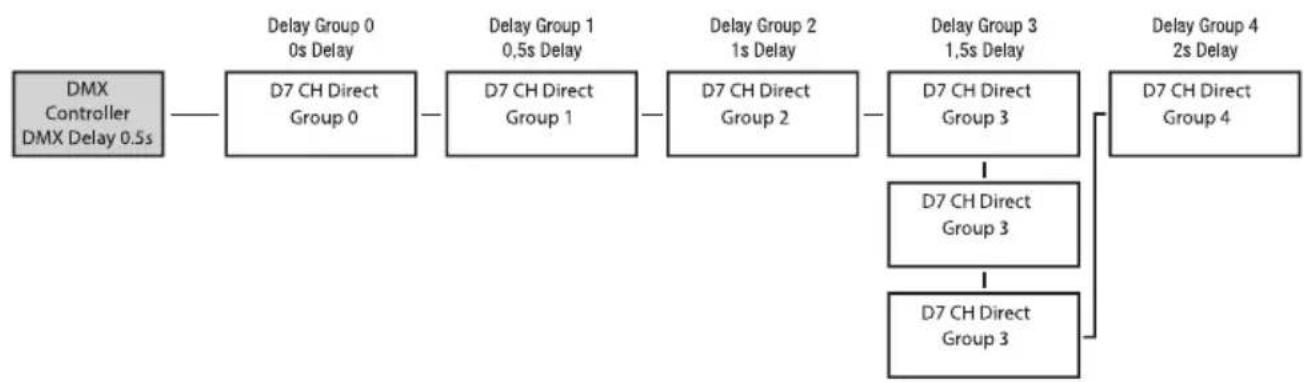

Setup example:

In the stand-alone operating modes Direct LED and Play Scene/Loop, the control signal of the corresponding operating mode can be output to slave units via XLR (DMX OUT) and W-DMX™:

Stand Alone -> Master/Alone -> Master

If the output of the control signal is not desired, the output can be deactivated:

Stand Alone -> Master/Alone -> Alone

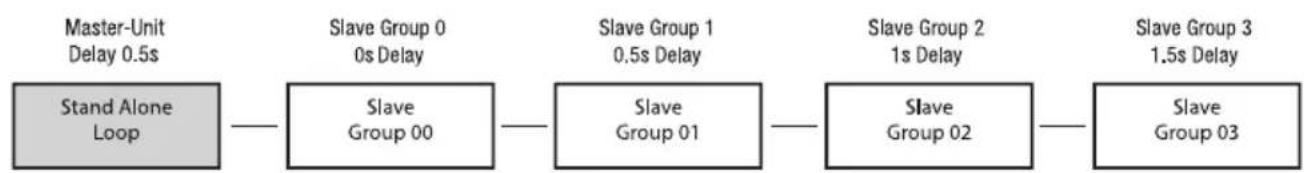

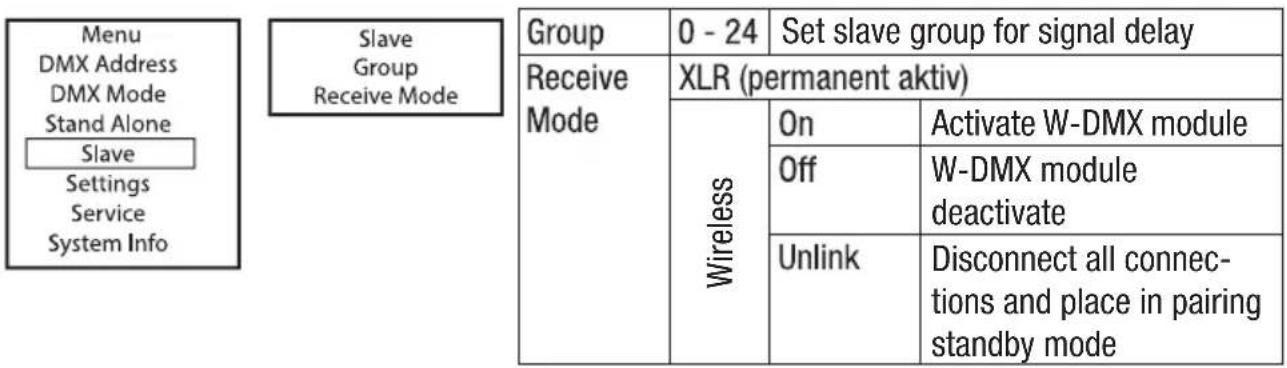

A delay can be set for slave units for the time-delayed output of the control signal of the Play Loop stand-alone operating mode.

Starting from the main display, press MENU to enter the main menu. Now select the Stand Alone menu item, confirm, select Master/Alone and confirm again.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

This will take you to the submenu for configuring the submenu items (see table).

Master gain	Send to XLR Control signal is forwarded via DMX OUT
	Send to W-DMX	On Activate DMX control signal forwarding via W-DMX
		Off Deactivate sending of the DMX control signal via W-DMX
		Force to pair Pairing with ready-to-pair W-DMX devices
		Unlink Disconnect all W-DMX connections
	DMX DELAY Set DMX delay for slave units: Off, 0.1 s - 2.0 s
Alone Do not forward control signal

STAND-ALONE DIRECT LED MODE

The stand-alone Direct LED operating mode allows you to set the dimmer, strobe, R, G, B and W directly on the device, similar to a DMX control unit. In this way, an individual scene can be created without an additional DMX controller.

Starting from the main display, press MENU to enter the main menu. Use UP and DOWN to select Stand Alone, confirm with ENTER, then select Direct LED and confirm again with ENTER. Now select the menu item you want to edit, confirm the selection, set the desired value and confirm the entry.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Direct LED Dimmer 0% - 100% Red 0% - 100% Green 0% - 100% Blue 0% - 100% White 0% - 100% Strobe 0Hz - 20Hz

(scene 1 - 8 / 8-step colour sequences 1 - 8)

Both the 8 available scenes and the 8 available loops are pre-programmed at the factory, but can be customised in the Edit Scene or Edit Loop menu item.

Starting from the main display, press MENU to enter the main menu. Use the UP and DOWN buttons to select the Stand Alone menu item, confirm with ENTER, then select the Play Scene/Loop submenu item and confirm again. Now select Scene or Loop, confirm, select the desired scene or loop and confirm the selection. Set the desired brightness under Dimmer and confirm the entry.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

TIMER FUNCTION

The timer function allows the stand-alone mode Static to be timer controlled in such a way that the fade-in time can be set from 0 to 60 minutes, the dwell time from 1 to 24 hours and the fade-out time from 0 to 60 minutes. After activation of the timer function, the timer control will be implemented upon the next system start.

Starting from the main display, press MENU to enter the main menu. Select Stand Alone, confirm the selection, then select Timer and confirm again. Select the setting On under Timer and confirm. For the individual timer control settings, select Fade In, Dwell Time or Fade Out and confirm. You can now set the respective value as desired. Confirm all entries. To deactivate the timer function, select the setting Off under Timer and confirm the entry.

PLEASE NOTE:

The timer function is suitable for use in master/slave operation via cable and W-DMX ^™ .

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Timer Timer ON/OFF Fade In 0-60min Dwell Time 1-24h Fade Out 0-60min

EDIT SCENE (Edit Scene)

The eight scenes available in the Play Scene/Loop stand-alone mode can be individually edited. Starting from the main display, press MENU to enter the main menu. Using UP and DOWN you now select the menu item Stand Alone, confirm with ENTER, then select Edit Loop and confirm once again. Select the desired scene (Scene 1 - 8) and confirm the selection. Now select the menu item you want to edit, confirm the selection, set the desired value and confirm the entry.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Scenex
RGB Dimmer	0 - 100%
Red	0 - 100%
Green	0 - 100%
Blue	0 - 100%
RGB Strobe	0 - 20Hz
Center Dimmer	0 - 100%
Center Strobe	0 - 20Hz

EDIT LOOP (Edit Loop)

Brightness, step duration and fade time can be set separately for all eight loops. Starting from the main display, press MENU to enter the main menu. Using UP and DOWN you now select the menu item Stand Alone, confirm with ENTER, then select Edit Loop and confirm once again. Now select the desired loop for editing and confirm the selection.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

This will take you to the submenu for configuring the submenu items (see table). The settings for each loop are made separately and are retained even after restarting the device.

Step	1 - 8	Step selection
t-Step	t-Step0s - 10s = 0,1s steps10s - 1min = 1s steps1min - 20min = 1min steps	Setting the step duration for the selected step
t-Fade	t-Fade0s - 10s = 0,1s steps10s - 1min = 1s steps1min - 20min = 1min steps	Setting the fade time for the selected step
Scene	Step 1 + 2: Scene 1 - 8 / Blackout	Selection of the scene or blackout for the selected step
	Step 3 - 8: Scene 1 - 8 / Blackout / Skip Step	Select scene or blackout or skip selected step

SLAVE MODE

Standard slave operation: Starting from the main display, press MENU to enter the main menu. Using the UP and DOWN buttons, you now select the menu item Slave confirm with ENTER, select the Slave Group 0 and confirm again with ENTER. Connect the slave and master units (same model, same software version) using a DMX cable or via W-DMX™ and activate one of the stand-alone operating modes (Direct LED, Play Scene/Loop) in the master unit. The slave unit will now follow the master unit.

Extended slave operation: If you want to control the slave units by one of the stand-alone modes Auto Program or Play Loop in master / slave operation, the control signal can be played back with a time delay of up to 24 steps, the delay is set in the Stand Alone menu Master/Alone in the master unit, the delay factor in the slave menu of the corresponding fixture (Group). This is a simple way to create a running light effect with a large number of spotlights that are all the same model and have the same software version. This is otherwise only possible using a suitable DMX controller and time-consuming programming. Connect the slave and master units (same model, same software version) using a DMX cable or via W-DMX™.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info Slave Group Receive Mode Group 0 - 24 Set slave group for signal delay Receive Mode XLR (permanent aktiv) Wireless On Activate W-DMX module Off W-DMX module deactivate Unlink Disconnect all connec- tions and place in pairing standby mode

Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied.

Setup example:

SYSTEM SETTINGS (Settings)

Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Settings and confirm with ENTER.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

This will take you to the submenu for setting the submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER).

SYSTEM SETTINGS (Settings)
Wireless	=	Wireless settings	W-DMX State	On	Activate W-DMX
				Off	W-DMX deactivated
			Operating Mode	Receive	W-DMX mode: Receiver
				Transmit	G3 (G3 transmission standard)
					G4s (transmission standard G4s )
			Linking	Unlink	Uncouple all units and make them ready for coupling
Wireless	=	Wireless settings	Linking	Link/Force to pair	Pair with W-DMX devices. W-DMX must be enabled on all devices, and the pairing with a transmitter be retained (Receive Reset).
			Signal Routing	Send to XLR	Send incoming signal to XLR connector
				Backup by XLR	Using the incoming signal from the XLR con- nector when the W-DMX signal is lost.
				Receive only	No connection between W-DMX signal and XLR connectors
Display	=	Display settings	Reverse	On	Display is rotated by 180° (e.g. for overhead installation)
				Off	No display rotation
			Off Timer	Always On	Display lighting permanently on
				Off after 20s	Deactivation of the display lighting after approx. 20 seconds of inactivity
			Autolock	Off	Function disabled
				On after 60s	The controls and display are locked after approx. 60 seconds without any operation. Unlock: Press UP and DOWN simultaneously for approx. 5 seconds
Dimmer	=	Dimming behaviour and PWM frequency	Curve	Linear	Dimmer curve: The light intensity increases linearly with the DMX value
				Exponential	Dimmer curve: The light intensity can be ad-justed finely in the lower DMX value range and coarsely in the upper DMX value range
				Logarithmic	Dimmer curve: The light intensity can be ad-justed coarsely in the lower DMX value range and finely in the upper DMX value range
				S-Curve	Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values
			PWM Frequency	650 Hz, 1530 Hz, 3600 Hz, 12 kHz, 18.9 kHz, 25 kHz	Select LED PWM frequency
			Response	LED	Light responds abruptly to changes in DMX value
				Halogen	Light behaves like a halogen spotlight with smooth brightness changes

Color Calibration	=	Color Calibration	RAW	R, G, B and W with maximum value 255
			User	Individual colour calibration. Cross-mode brightness setting of R, G, B, A and L with values from 000 - 255
Signal Fail	=	Operational status in the event of control signal interruption	Hold	Last command is retained
			Last Stand Alone	Last activated stand-alone mode is started
			Fade to Black (10s)	10 s fade to blackout
			Blackout	Instant blackout
			Scene 1	Scene 1 is activated (Stand Alone -> Play Scene/Loop)
			Full	Full On
Pixel Mirror	=	Mirror pixel	Off	Function disabled
			Horizontal	Pixels are mirrored horizontally
			Vertical	Pixels are mirrored vertically
			Horizontal & Vertical	Pixels are mirrored horizontally and vertically
Store Default	=	Store all system settings in 3 individual presets	User A	Store with ENTER
			User B	Store with ENTER
			User C	Store with ENTER

SERVICE MENU (Service)

Starting from the main display, press MENU to enter the main menu. Select Service using UP and DOWN and confirm with ENTER.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

Information on the submenu items in the service menu and the corresponding options can be found in the table below (select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER).

SERVICE MENU (Service)
Load Default	Factory	Reset to factory setting
	User A	Reset to User A values(Save user values: Settings -> Store Default)
	User B	Reset to User B values(Save user values: Settings -> Store Default)
Load Default	User C	Reset to User C values(Save user values: Settings -> Store Default)
Reset Service Timer	No	Cancel operation
	Reset now	Reset service operation time
Password	For service purposes only

SYSTEM INFORMATION (System Info)

Starting from the main display, press MENU to enter the main menu. Select System Info using UP and DOWN and confirm with ENTER.

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info

Information on the submenu items in the system info menu and the corresponding options can be found in the table below (select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER).

SYSTEM INFORMATION (System Info)
Firmware	DISP	Vx.x.x	Display of the firmware version of the corresponding component
	...	Vx.x.x
Temperature	LED	xxx °C/°F	Display of the temperature of the corresponding component
	Temperature Unit	°C	Setting the temperature unit
		°F
Runtime	Total	xxxx h : xx m	Total operating time
	Operation	xxxx h : xx m	Usable time
	LED	xxxx h : xx m	Lamp operating time
	Service	xxxx h : xx m	Operating time after resetting the service operating time
RDM-UID	RDM Unique Identifier

INSTALLATION

DANGER:

Installation, especially overhead installation, requires extensive experience, relevant & up-to-date expertise and competence, including the calculation of working load limits, the installation material used and regular safety checks of all installation materials and floodlights! If you do not have these qualifications, do not attempt to carry out an installation yourself, but use the help of appropriately qualified specialist companies! There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death.

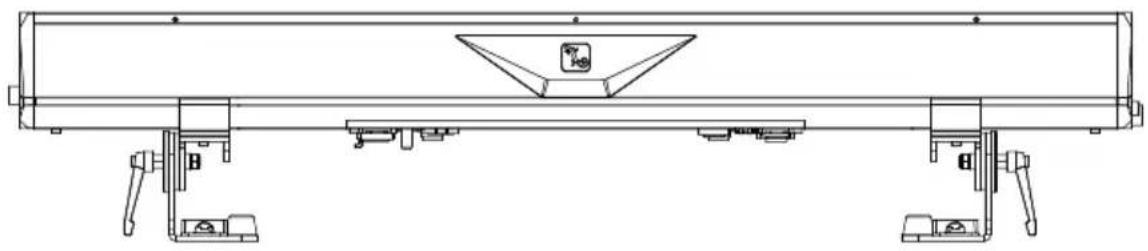

Thanks to the adjustable stand or mounting feet, the PIXBAR ^® G2 can be set up in a suitable position on a flat floor (e.g. as an uplift).

Technical line drawing of a mechanical assembly with supports and a central component (no text or symbols)

Mounting a PIXBAR® on a truss

Mounting on a truss is done using optionally available truss clamps, which are either attached directly to the mounting feet (1), or to optionally available Omega mounting brackets (part number CLOMEGABRACKET1). The mounting feet can be moved on the housing of the PIXBAR® G2. To do this, loosen the middle of the five hexagon socket screws (2), move the foot to the desired position and tighten the screw again. The direction of radiation can be adjusted using the tommy screws (3) on the mounting feet. Ensure that the connections are tight and that the PIXBAR® G2 cannot come loose. When mounting the PIXBAR® G2 overhead, secure it with a suitable safety rope to one of the safety lugs provided (4). When mounting several docked PIXBAR® G2 horizontally overhead, each individual PIXBAR® G2 must be attached separately to the truss with the mounting feet and secured with a suitable safety rope.

Technical diagram of a balance scale with labeled components and directional arrows indicating movement or force directions.

Use SPIN16 TV spigot for mounting

The mounting feet of the PIXBAR® G2 have 16 mm TV spigots that can be extended and retracted without tools. To unfold a TV spigot, pull the spring-loaded locking bolt out of the locking hole in the direction of the arrow (1), fold the TV spigot forwards and let the locking bolt engage in the locking hole offset by 90^ (2). Use suitable truss clamps for mounting. Ensure that the connections are tight and that the headlamp cannot come loose. When mounting the headlamp overhead, secure it with a suitable safety rope to one of the safety lugs provided (see marking).

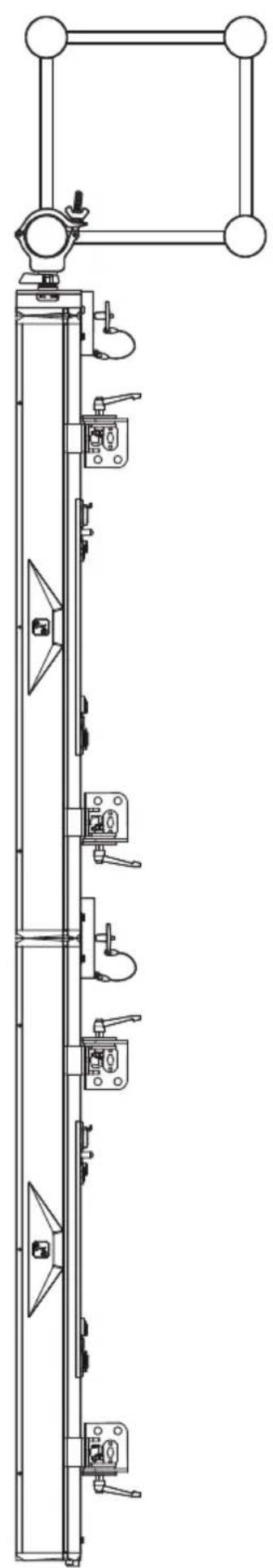

Vertical hanging mounting on a truss

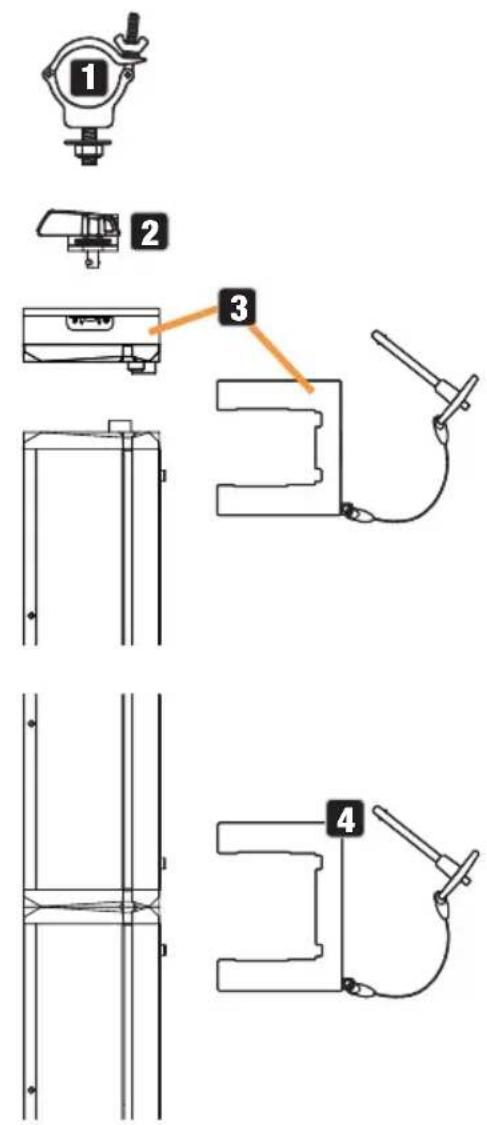

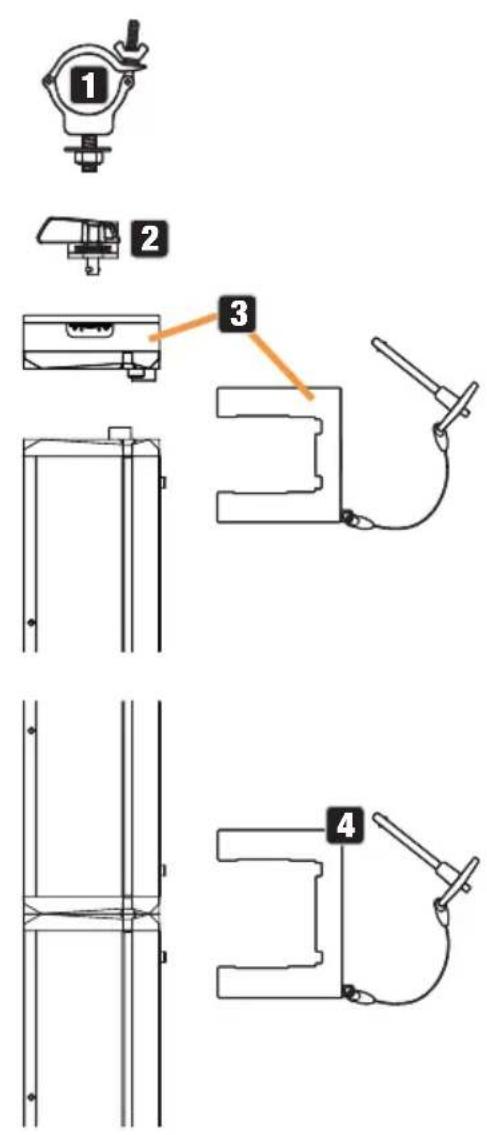

For vertical hanging mounting, up to three PIXBAR® G2 may be connected to each other. The following optionally available products must be used for this:

1 A suitable truss clamp with sufficient load-bearing capacity for the total load (e.g. half coupler).
2 One Omega bracket (article number CLOMEGABRACKET1).
3 One stop set (article number CLPBG2VERTIMOUNT).
4 One or two connecting elements are needed to connect two or three PIXBAR ^® G2 and to secure the connection (item number CLPBG2STACKKIT).

The safety eyelet of the top foot of the top bar serves as a safety point. Make sure that the safety rope used to secure the bars is suitable for the total weight of the bars.

For optical reasons, the mounting feet can be folded to the side of the housing. A rubber buffer prevents the surface from being damaged.

Technical line drawing of a mechanical assembly with multiple components and mounting brackets (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Vertical floor mounting

For vertical floor mounting, a maximum of two PIXBAR ^® G2 may be connected to each other. The following optionally available products must be used for this:

1 One connector (item number CLPBG2STACKKIT).
2 One stop set (article number CLPBG2VERTIMOUNT).
3 One M20 connection set (article number CLPBG2M20ADA).
4 A heavy steel stand with M20 thread and sufficient stability for the total load.

The stability in combination with the stand used must be assessed by the user. No additional loads may be introduced.

For optical reasons, the mounting feet can be folded to the side of the housing. A rubber buffer prevents the surface from being damaged.

Technical diagram showing assembly steps of a mechanical device with labeled components and exploded views

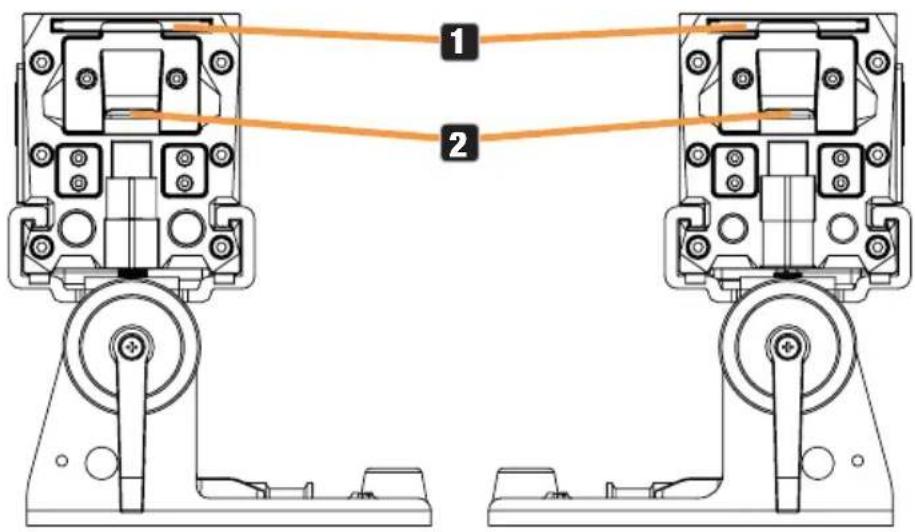

FROST FILTER

A standard frost filter is included in the packaging content of the PIXBAR® G2. To insert the frost filter into the provided holder (1) of the bar, open the sliding latch at one end of the bar (2, slide down the handle). After inserting the frost filter into the holder, close the latch again to prevent the filter from falling out.

Technical diagram of a mechanical device with labeled components and connection lines

Technical diagram of a mechanical component with internal channels and mounting brackets (no text or symbols)

GLARE SHIELD

A glare shield is included in the packaging content of the PIXBAR ^® G2. On both sides of the PIX-BAR ^® G2 there are three threads on the top edge of the housing (1). Mount the glare shield on the desired side of the PIXBAR ^® G2 using the three knurled screws (2).

2 1

CARE, MAINTENANCE AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The servicing requirement depends on the intensity of use and the environment in which it is used.

A visual inspection should be carried out before each commissioning. In particular, all safety-relevant components, such as connecting elements, fuse points, electrical connections and cables, must be taken into account. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (can be performed by the user)

WARNING!

Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment of the device or even its destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (e.g. fans must be blocked in this case, as they could otherwise over-rev.).
3. Air inlets and outlets must be regularly cleaned of dust and dirt.
4. In general, no cleaning agents or abrasive agents may be used, otherwise the surface finish may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.
6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting apertures must be cleaned regularly.

DANGER! There are live components in the device. Even after disconnecting the mains connection, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! There are no user-serviceable assemblies in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified specialist personnel. If in doubt, consult a specialist workshop.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, it is essential to observe the enclosed installation instructions.

OPTIONAL ACCESSORIES

CLPBG2FILTER5555° frost filter	CLPBG2FILTER7070° frost filter	CLPBG2FILTER255525° x 55° Frost filter	CLOMEGABRACKET1Omega mounting bracket
CLPBG2STACKKITConnecting element for the secure mechanical connection of two PIXBAR® G2	CLPBG2VERTIMOUNTStop set for mounting a PIXBAR® G2 on the Omega mounting bracket CLOMEGA-BRACKET1 and for mounting on the connection set CLPBG-2M20ADA	CLPBG2M20ADAConnection set for mounting a PIXBAR® G2 on a stand with M20 thread

DIMENSIONS (mm)

TECHNICAL SPECIFICATIONS

Item number	CLPBSMDIPG2
Product category	Static LED light
Type	LED Bar
Light source	320 x SMD RGB LED (R: 0.36 W; G: 0.5 W; B: 0.5 W) (@ 32 segments); 192 x SMD White 3 W LED (@ 16 segments)
Luminous flux peak (cold)	8051 lm @ full-on; R: 3735 lm; G: 6267 lm; B: 1192 lm; W: 14190 lm
Lense / optic	Acryl bar lens
PWM frequency	650 Hz; 1530 Hz; 3600 Hz; 12000 Hz; 18900 Hz; 25000 Hz
Dimmer resolution	8 / 16 Bit
Dimmer curves	Linear, exponential, s-curve, logarithmic
Halogen simulation	Dimmer response LED; Dimmer response halogen
Strobe	0 Hz - 20 Hz
CRI	White LED: >73; RGB LED: >70
Beam angle / field angle	72° / 94° Full On; 84° / 96° RGB; 70° / 76° White (Centerline)
LED color	Red 636 nm; Green 517 nm; Blue 455 nm; White 6618 K
Color mixing	RGB; separate White
Color control modes	RGB (direct); CCT
CCT	2100 K - 8000 K
Calibration	Raw; user
Control protocols	DMX; RDM; Wireless; Stand-Alone; Master-Slave; EZ-Remote
Data connections	5-Pin XLR in/out IP65; Wireless DMX
DMX modes	6-channel Direct, 9-channel Strobe, 13-channel Direct, 23-channel Pattern, 29-channel Pattern, 51-channel Strobe RGB Pixel, 64-channel Pixel, 68-channel Pixel Strobe, 73-channel Pixel Strobe, 99-channel Strobe RGB Pixel, 112-channel Pixel, 116-channel Pixel Strobe, 121-channel Pixel Strobe, D7-channel Strobe and D8-channel Strobe DMX control
DMX functions	Dimmer; Dimmer fine; Strobe Functions; Strobe Duration; Red; Green; Blue; Color Temperature; Center Dimmer; Center Dimmer fine; Center Strobe; Center Strobe Duration; Center Pattern Selection; Center Pattern Speed; Pattern Selection; Pattern Position & Speed; Background Dimmer; Background Dimmer fine; Background Strobe; Background Strobe Duration; Background Red; Background Green; Background Blue; Background Color Temperature; Device Settings; Red Top 1; Green Top 1; Blue Top 1; ... ; Red Top 16; Green Top 16; Blue Top 16; Red Bottom 1; Green Bottom 1; Blue Bottom 1; ... ; Red Bottom 16; Green Bottom 16; Blue Bottom 16; White 1; ... ; White 16; DMX-Delay
RDM functions	Cameo standard RDM functions
Stand alone	Direct; Play Scene/Loop; Master; Alone; Slave; Timer
System settings	Wireless: State; Signal Routing; Linking; Operation Mode. Display: Reverse; Autolock; Off Timer. Dimmer: Curve; PWM; Response. Signal
System settings	Fail: Hold; Last Stand Alone; Fade to Black; Scene 1; Full. Pixel Mirror: Off; Horizontal; Vertical; Horizontal & Vertical. Store Default: User A; User B; User C
User interface	4-button: MENU; ENTER; UP; DOWN
Display	2 row OLED
IP rating	IP65 for temporary outdoor use
Ambient temperature rating (in operation)	T -20°C - 45°C (unit operational) -10°C - 45°C (display operational)
Humidity	Up to 100% (non condensing)
Cooling system	Passive convection, fanless
Noise level	Noise free
Operation voltage	100 V AC - 240 V AC; 50 Hz - 60 Hz
Max. current	0.77 A @ 230 V; 1.62 A @ 110 V
Inrush current	42 A @ 0.18 ms
Max. power consumption	180 W @ 230 V / 110 V
Standby power	9 W
Power factor	0.99 @ 110V; 0.97 @ 240V
Power connectors	Seetronic IP65 In + Out
Power link	Up to 14 units @ 230 V; up to 6 units @ 110 V
Risk group	2
Minimum distance to the illuminated surface	0.3 m
Minimum distance to normal flammable materials	0.017 m
Housing	String cast aluminium, black powder coated
Dimensions w/h/d	1018 mm (1000 mm when units are linked) x 206 mm x 178 mm
Weight	12.5 kg
RDM UID	0x08A4004F 0000-FFFF

EXPLANATION OF IP PROTECTION CLASS

1. An IP rating only reflects protection from solid objects and water. It does not describe general weather resistance, such as protection from UV radiation and temperature, etc.
2. The first digit indicates protection from dust, solid objects and contact:

IP2X	Protected against solid foreign bodies ≥ 12.5 mm in diameter
IP3X	Protected against solid foreign bodies ≥ 2.5 mm in diameter
IP4X	Protected against solid foreign bodies ≥ 1.0 mm in diameter
IP5X	Protected against dust in harmful quantities and completely protected against contact

IP6X Are dust-tight and completely protected against contact

1. The second digit indicates protection from water:

IPX0 No protection

IPX1 Protection against dripping water

IPX2 Protection against dripping water when the device is tilted up to 15°

IPX3 Protection against falling spray water up to 60° from the vertical

IPX4 Protection against splashing water on all sides

IPX5 Protection against water jets (nozzle) from any angle

IPX6 Protection against strong water jets

IPX7 Protection against temporary immersion

1. In addition, some device-specific measures such as covers and sealing caps are necessary in order to achieve the specified protection class (e.g. protective caps on unused connections).

The IP rating of the product can be found in the technical specifications and is printed on the device.

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with distance information in metres (m) indicates the minimum distance of the luminaire to the illuminated surface. In this example, the distance is 0.5 m. The value valid for this unit can be found in the technical data in this manual and in the imprint on the unit housing!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with distance indication in metres (m) indicates the minimum distance of the device to normally flammable materials. In this example, the distance is 0.5 m. For the value valid for this unit, please refer to the technical data in this manual!

DISPOSAL

PACKAGING:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment as amended. WEEE Directive Waste Electrical and Electronic Equipment. Electronic devices do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!

DEVICE:

1. Observe all disposal laws applicable in your country.
2. As a private customer, you can obtain information on environmentally-friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty & limitation of liability

Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany

E-mail: [e-mail] / +49 (0)6081 / 9419-0

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

For service requests, please contact your distribution partner.

CE conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines (where applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS (2011/65/EU)

RED (2014/53/EU)

EC Declaration of Conformity

Declarations of conformity for products subject to the LVD, EMC, RoHS Directive can be requested from [e-mail]

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/

Subject to misprints and errors, as well as technical or other modifications!

DEUTSCH

Pure electrical circuit lines without any symbols

Stand Alone -> Master/Alone -> Master

Stand Alone -> Master/Alone -> Alone

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Direct LED Dimmer 0% - 100% Red 0% - 100% Green 0% - 100% Blue 0% - 100% White 0% - 100% Strobe 0Hz - 20Hz

STAND-ALONE-BETRIEBSART PLAY SCENE / LOOP

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

TIMER-FUNKTION

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Timer Timer ON/OFF Fade In 0-60min Dwell Time 1-24h Fade Out 0-60min

SZENE EDITIEREN (Edit Scene)

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Scenex
RGB Dimmer	0 - 100%
Red	0 - 100%
Green	0 - 100%
Blue	0 - 100%
RGB Strobe	0 - 20Hz
Center Dimmer	0 - 100%
Center Strobe	0 - 20Hz

LOOP EDITIEREN (Edit Loop)

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Technical line drawing of a mechanical assembly with supports and a triangular component (no text or symbols)

Technical diagram of a balance scale with labeled components and directional arrows indicating movement or force directions.

Mechanical assembly diagram showing a yellow component with orange arrows indicating motion or rotation (no text or symbols)

Close-up of a mechanical component with a yellow cylindrical pin inserted into a black housing, showing a highlighted orange arrow (no text or symbols)

Technical line drawing of a mechanical device with an orange circle highlighting a circular feature (no text or symbols)

Technical line drawing of a mechanical assembly with multiple clamps and a central frame (no text or symbols)

Technical diagram showing mechanical assembly steps with numbered components and labeled parts

Technical diagram showing assembly steps of a mechanical device with labeled components and exploded views

FROSTFILTER

Technical diagram showing two mechanical components with labeled parts and connecting lines

Technical diagram of a mechanical component with two cylindrical components and a horizontal bar, showing internal structure and an orange arrow indicating direction (no text or symbols present)

BLEND SCHUTZ

Technical diagram of a mechanical assembly with labeled components and connection points

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Pure electrical circuit lines without any symbols

FONCTIONS DE CONTRÔLE

6-channel Direct, 9-channel Strobe, 13-channel Direct, 23-channel Pattern, 29-channel Pattern, 51-channel Strobe RGB Pixel, 64-channel Pixel, 68-channel Pixel Strobe, 73-channel Pixel Strobe, 99-channel Strobe RGB Pixel, 112-channel Pixel, 116-channel Pixel Strobe, 121-channel Pixel Strobe, D7-channel Strobe and D8-channel Strobe DMX control

RDM

W-DMX™

Stand Alone -> Master/Alone -> Master

Stand Alone -> Master/Alone -> Alone

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Direct LED Dimmer 0% - 100% Red 0% - 100% Green 0% - 100% Blue 0% - 100% White 0% - 100% Strobe 0Hz - 20Hz

MODE DE FONCTIONNEMENT AUTONOME PLAY SCENE / LOOP

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

FONCTION TIMER (Minuterie)

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Timer Timer ON/OFF Fade In 0-60min Dwell Time 1-24h Fade Out 0-60min

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Scenex
RGB Dimmer	0 - 100%
Red	0 - 100%
Green	0 - 100%
Blue	0 - 100%
RGB Strobe	0 - 20Hz
Center Dimmer	0 - 100%
Center Strobe	0 - 20Hz

ÉDITION DE BOUCLE (Edit Loop)

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Technical line drawing of a mechanical assembly with supports and a central triangular component (no text or symbols)

Technical diagram of a mechanical balance with labeled components and directional arrows

Mechanical assembly diagram showing a yellow component with orange arrows indicating motion or force direction (no text or symbols)

Close-up of a mechanical lock or handle assembly with a yellow component and black housing (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing assembly steps of a mechanical device with labeled components and exploded views

FILTRE FROST

Technical diagram showing two mechanical components with labeled connection points 1 and 2

Technical diagram of a mechanical or electrical component with two vertical-mounted units and a horizontal bar, showing internal grid patterns and an orange arrow indicating direction (no text or symbols present)

ÉCRAN ANTI-ÉBLOUISSEMENT

Technical diagram of a mechanical assembly with labeled components and orange lines indicating alignment or connection points.

ENTRETIEN, MAINTENANCE ET RÉPARATIONS

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Directive CEM (2014/30/UE)

RoHS (2011/65/EU)

RED (2014/53/EU)

▶ 1 x Barra led PIXBASMD IP65 G2

Pure electrical circuit lines without any symbols

MODOS DE CONTROL

6 canales Direct, 9 canales Strobe, 13 canales Direct, 23 canales Pattern, 29 canales Pattern, 51 canales Strobe RGB Pixel, 64 canales Pixel, 68 canales Pixel Strobe, 73 canales Pixel Strobe, 99 canales Strobe RGB Pixel, 112 canales Pixel, 116 canales Pixel Strobe, 121 canales Pixel Strobe, canal D7 Strobe y de control DMX D8 Strobe

RDM

W-DMX ^TM

Modo Maestro/Esclavo

Modos Autónomo

CARACTERÍSTICAS

power in 1 2 3 4 5 6 7 8 camoo PIX BANK GZ POWER IN BNC IN CAMO PDX BANK GZ POWER IN BNC IN

1 POWER IN

Stand Alone > Master/Alone > Master

Stand Alone -> Master/Alone -> Alone

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Direct LED Dimmer 0% - 100% Red 0% - 100% Green 0% - 100% Blue 0% - 100% White 0% - 100% Strobe 0Hz - 20Hz

MODO AUTÓNOMO PLAY SCENE / LOOP

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

TEMPORIZADOR

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Timer Timer ON/OFF Fade In 0-60min Dwell Time 1-24h Fade Out 0-60min

EDITAR ESCENA (Edit Scene)

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Scenex
RGB Dimmer	0 - 100%
Red	0 - 100%
Green	0 - 100%
Blue	0 - 100%
RGB Strobe	0 - 20Hz
Center Dimmer	0 - 100%
Center Strobe	0 - 20Hz

EDITAR BUCLE (Edit Loop)

Technical line drawing of a mechanical assembly with supports and a central triangular component (no text or symbols)

Technical diagram of a mechanical balance with labeled components and directional arrows

Mechanical assembly diagram showing a yellow component with orange arrows indicating motion or force direction (no text or symbols)

Close-up of a mechanical lock or handle assembly with a yellow component and black housing (no visible text or symbols)

Technical line drawing of a mechanical device with an orange circle highlighting a circular feature (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and a bracket (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical diagram showing assembly steps of a mechanical device with labeled components and exploded views

FILTRO FROST

Technical diagram showing two mechanical components with labeled parts and connecting lines

Technical diagram of a mechanical component with two cylindrical components and a horizontal bar, showing internal structure and an orange arrow indicating direction (no text or symbols present)

Technical diagram of a mechanical assembly with labeled components and connection points

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

Pure electrical circuit lines without any symbols

FUNKCJE STEROWANIA

Stand Alone -> Master/Alone -> Master

Stand Alone -> Master/Alone -> Alone

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Direct LED Dimmer 0% - 100% Red 0% - 100% Green 0% - 100% Blue 0% - 100% White 0% - 100% Strobe 0Hz - 20Hz

SAMODZIELNY TRYB PRACY ODTWARZANIE SCENY / PĘTLI

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

FUNKCJA TIMERA

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Timer Timer ON / OFF Fade In 0 - 60min Dwell Time 1 - 24h Fade Out 0 - 60min

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Scenex
RGB Dimmer	0-100%
Red	0-100%
Green	0-100%
Blue	0-100%
RGB Strobe	0-20Hz
Center Dimmer	0-100%
Center Strobe	0-20Hz

EDYCJA PETLI (Edit Loop)

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Technical line drawing of a mechanical assembly with supports and a central triangular component (no text or symbols)

Technical diagram of a balance scale with labeled components and directional arrows indicating movement or force directions.

Close-up of a mechanical component with orange arrows indicating motion or rotation, no visible text or symbols

Close-up of a mechanical lock or latch component with a yellow bolt and black housing, showing a highlighted shaft (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing assembly steps of a mechanical device with labeled components and exploded views

FILTR FROST

Technical diagram showing two mechanical components with labeled parts and connecting lines

Technical diagram of a mechanical or electrical component with two vertical-mounted units and a horizontal bar, showing internal grid patterns and an orange arrow indicating direction (no text or symbols present)

OSŁONA PRZECIWODBLASKOWA

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

1 x Barra LED PIX BARD IP65 G2

Pure electrical circuit lines without any symbols

FUNZIONI DI COMANDO

6-Canale Direct, 9-Canale Strobe, 13-Canale Direct, 23-Canale Pattern, 29-Canale Pattern, 51-Canale Strobe RGB Pixel, 64-Canale Pixel, 68-Canale Pixel Strobe, 73-Canale Pixel Strobe, 99-Canale Strobe RGB Pixel, 112-Canale Pixel, 116-Canale Pixel Strobe, 121-Canale Pixel Strobe, D7-Canale Strobe e D8-Canale Strobe controllo DMX

RDM

W-DMX ^TM

Stand Alone -> Master/Alone -> Master

Stand Alone -> Master/Alone -> Alone

Menu DMX Address DMX Mode Stand Alone Slave Settings Service System Info Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Direct LED Dimmer 0% - 100% Red 0% - 100% Green 0% - 100% Blue 0% - 100% White 0% - 100% Strobe 0Hz - 20Hz

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

FUNZIONE TIMER

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Timer Timer ON/OFF Fade In 0-60min Dwell Time 1-24h Fade Out 0-60min

MODIFICARE SCENA (Edit Scene)

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Scene x RGB Dimmer 0 - 100% Red 0 - 100% Green 0 - 100% Blue 0 - 100% RGB Strobe 0 - 20Hz Center Dimmer 0 - 100% Center Strobe 0 - 20Hz

MODIFICARE LOOP (Edit Loop)

Stand Alone Master/Alone Direct LED Play Scene/Loop Timer Edit Scene Edit Loop

Technical line drawing of a mechanical support structure with mounting brackets and a triangular component (no text or symbols)

Technical diagram of a balance scale with labeled components and directional arrows indicating movement or force directions.

Technical line drawing of a mechanical assembly with multiple components and mounting brackets (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Technical diagram showing assembly steps of a mechanical device with labeled components and exploded views

FILTRO FROST

Technical diagram showing two mechanical components with labeled parts and connecting lines

Technical diagram of a mechanical or electrical component with two vertical components and a horizontal bar, showing internal structure and an orange arrow indicating direction (no text or symbols present)

Technical diagram of a mechanical assembly with labeled components and connection points

6CH Direct	9CH Strobe
Channel Channel Function Values
1 1 Dimmer 000 - 255 0% to 100%
2	2	Strobe Functions	000 - 005 Open
			006 - 010 Closed
			011 - 022 Ramp up/down slow to fast
			023 - 033 Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
			046 - 056 Ramp up random slow to fast
			057 - 068 Ramp down slow to fast
			069 - 079 Ramp down random slow to fast
			080 - 102 Random Strobe effect slow to fast
			103 - 127			Strobe Break effect 5s to 1s (short burst with break)
			128 - 250 Strobe slow to fast (<1Hz to 20Hz)
			251 - 255 Open
	3	Strobe Duration	000 - 255 Flash duration (0ms to 510ms)
3 4 Red 000 - 255 0% to 100%
4 5 Green 000 - 255 0% to 100%
5 6 Blue 000 - 255 0% to 100%
6	7	Center Dimmer	000 - 255 0% to 100%
	8	Center Strobe	000 - 005 Open
			006 - 010 Closed
			011 - 022 Ramp up/down slow to fast
			023 - 033 Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
			046 - 056 Ramp up random slow to fast
			057 - 068 Ramp down slow to fast
			069 - 079 Ramp down random slow to fast

	8	Center Strobe	080 - 102 Random Strobe effect slow to fast
			103 - 127		Strobe Break effect 5s to 1s (short burst with break)
			128 - 250 Strobe slow to fast (<1Hz to 20Hz)
			251 - 255 Open
	9	Center Strobe Duration	000 - 255 Flash duration (0ms to 510ms)

13CH Direct

Channel Function Values Subgroup
1 Dimmer 000 - 255 0% to 100% Dimmer
2	Strobe Functions	000 - 005 Open				Multi-functional Strobe
		006 - 010 Closed
		011 - 022 Ramp up/down slow to fast
		023 - 033 Ramp up/down random slow to fast
		034 - 045 Ramp up slow to fast
		046 - 056 Ramp up random slow to fast
		057 - 068 Ramp down slow to fast
		069 - 079 Ramp down random slow to fast
		080 - 102 Random Strobe effect slow to fast
		103 - 127			Strobe Break effect 5s to 1s (Short burst with break)
		128 - 250 Strobe slow to fast (<1Hz to 20Hz)
		251 - 255 Open
3	Strobe Duration	000 - 255 Flash duration (0ms to 510ms)
4 Red	000 - 255 0% to 100%					Additive Color Mixing
5 Green	000 - 255 0% to 100%
6 Blue	000 - 255 0% to 100%
7	Color Temperature (affects Color Mixing)	000 - 005 Off				CCT
		006 - 006 Warm white
		007 - 046 Warm white to 2700K
		047 - 047 Bulb White (2700K)
		048 - 087 2700K to 3200K
7	Color Temperature (affects Color Mixing)	088 - 088 Halogen White (3200K)	CCT
		089 - 128 3200K to 4000K
		129 - 129 Neutral White (4000K)
		130 - 169 4000K to 5600K
		170 - 170 Studio White (5600K)
		171 - 210 5600K to 6500K
		211 - 211 Daylight White (6500K)
		212 - 251 6500K to Cold white
		252 - 255 Cold white
8	Color Presets (override Color Mixing & Color Temperature)	000 - 005 No function	Color Presets
		006 - 009 46 Dark Magenta
		010 - 013 29 Plasa Red
		014 - 017 26 Bright Red
		018 - 021 127 Smokey Pink
		022 - 025 36 Medium Pink
		026 - 029 19 Fire
		030 - 033 135 Deep Golden Amber
		034 - 037 778 Millennium Gold
		038 - 041 21 Gold Amber
		042 - 045 157 Pink
		046 - 049 110 Middle Rose
		050 - 053 109 Light Salmon
		054 - 057 35 Light Pink
		058 - 061 134 Golden Amber
		062 - 065 17 Surprise Peach
		066 - 069 746 Brown
		070 - 073 105 Orange
		074 - 077 20 Medium Amber
		078 - 081 768 Egg Yolk Yellow
		082 - 085 15 Deep Straw
		086 - 089 767 Nectarine
		090 - 093 101 Yellow
		094 - 097 100 Spring Yellow
		098 - 101 88 Lime Green
		102 - 105 121 LEE Green

8	Color Presets (override Color Mixing & Color Temperature)	106 - 109 738	Jas Green	Color Presets
		110 - 113 89 M	Moss Green
		114 - 117 139	Primary Green
		118 - 121 124	Dark Green
		122 - 125 323	Jade
		126 - 129 354	Special Steel Blue
		130 - 133 116	Medium Blue-Green
		134 - 137 183	Moonlight Blue
		138 - 141 132	Medium Blue
		142 - 145 119	Dark Blue
		146 - 149 716	Mikkel Blue
		150 - 153 71 T	Tokyo Blue
		154 - 157 181	Congo Blue
		158 - 161 799	Special KH Lavender
		162 - 165 707	Ultimate Violet
		166 - 169 343	Special Medium Lavender
		170 - 173 798	Chrysalis Pink
		174 - 177 701	Provence
		178 - 181 797	Deep Purple
		182 - 185 48 R	Rose Purple
		186 - 189 345	Fuchsia Pink
		190 - 193 795	Magical Magenta
		194 - 197 128	Bright Pink
		198 - 201 2 Rose	Pink
		202 - 207 User	Color 1
		208 - 213 User	Color 2
		214 - 219 User	Color 3
		220 - 225 User	Color 4
		226 - 231 User	Color 5
		232 - 237 User	Color 6
		238 - 243 User	Color 7
		244 - 249 User	Color 8
		250 - 255 No function

9	Color Cross-fade (affects CCT and Col-or Presets)	000	005 0s (Off)			Crossfade
		006	105 0,1s		- 10s (0,1s Steps)
		106	214 11s		- 119s (1s Steps)
		215	244 2m		- 4m50s (10s Steps)
		245	255 5m		- 15m (1m Steps)
10	Center Dimmer	000	255 0%		to 100%	Center Dimmer
11	Center Strobe	000	005 Open			Multi-functional Strobe Center LEDs
		006	010 Closed
		011	022 Ramp up/down slow to fast
		023	033 Ramp up/down random slow to fast
		034	045 Ramp up slow to fast
		046	056 Ramp up random slow to fast
		057	068 Ramp down slow to fast
		069	079 Ramp down random slow to fast
		080	102 Random Strobe effect slow to fast
		103	127		Strobe Break effect 5s to 1s (Short burst with break)
		128	250 Strobe slow to fast (<1Hz to 20Hz)
		251	255 Open
12	Center Strobe Duration	000	255 Flash duration (0ms to 510ms)
13	Device settings (all settings executed are after holding value for 3 seconds) (please read remark 1*)	000	057 No function
		058	059 Pixel Mirroring Off			Pixel Mirroring
		060	061 Pixel Mirroring Vertical
		062	063 Pixel Mirroring Horizontal
		064	065 Pixel Mirroring Vertical + Horizontal
		066	073 No function
		074	075 Dimmer Response LED			Dimming076
		078	119 No function
		120	121 PWM 1 (650 Hz)			PWM Frequency
		122	123 PWM 2 (1530 Hz)
		124	125 PWM 3 (3600 Hz)
		126	127 PWM 4 (12000 Hz)

077 Dimr

13	Device settings(all settings executed are after holding value for 3 seconds)(please read remark 1*)	128 + 129 PWM 5 (18900 Hz)				PWM Frequency
		130 + 131 PWM 6 (25000 Hz)
		132 + 139 No function
		140 + 141 Display Always On				Display Functions
		142 + 143 Display Off after 20s
		144 + 163 No function
		164 + 165 Dimmer Curve Linear				Dimmer Curve
		166 + 167 Dimmer Curve Exponential
		168 + 169 Dimmer Curve Logarithmic
		170 + 171 Dimmer Curve S-Curve
		172 + 239 No function
		240 + 241 Load Factory Defaults				Load Default
		242 + 243		Load Factory Defaults (without User Colors & Loops)
		244 + 245 Load User Default A
		246 + 247 Load User Default B
		248 + 249 Load User Default C
		250 + 255 No function

23CH Pattern	29CH Pattern
Channel Channel Function Values Subgroup
1 1 Dimmer 000 - 255						0% to 100% Dimmer
	2 Dimmer fine 000 - 255
2	3	Strobe Functions	000 - 005 Open			Multi-functional Strobe
			006 - 010 Closed
			011 - 022			Ramp up/down slow to fast
			023 - 033			Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
			046 - 056			Ramp up random slow to fast
			057 - 068 Ramp down slow to fast
			069 - 079			Ramp down random slow to fast

2	3	Strobe Functions	080 - 102			Random Strobe effect slow to fast	Multi-functional Strobe
			103 - 127			Strobe Break effect 5s to 1s (short burst with break)
			128 - 250			Strobe slow to fast (<1Hz to 20Hz)
			251 - 255 Open
	4	Strobe Duration	000 - 255			Flash duration (0ms to 510ms)
3 5 Red	000 - 255	0% to 100%					Additive Color Mixing
4 6 Green	000 - 255	0% to 100%
5 7 Blue	000 - 255	0% to 100%
6	8	Color Temperature (affects Color Mixing)	000 - 005 Off				CCT
			006 - 006 Warm white
			007 - 046 Warm white to 2700K
			047 - 047 Bulb White (2700K)
			048 - 087 2700K to 3200K
			088 - 088 Halogen White (3200K)
			089 - 128 3200K to 4000K
			129 - 129 Neutral White (4000K)
			130 - 169 4000K to 5600K
			170 - 170 Studio White (5600K)
			171 - 210 5600K to 6500K
			211 - 211 Daylight White (6500K)
			212 - 251 6500K to Cold white
			252 - 255 Cold white
7	9	Color Presets (override Color Mixing & Color Temperature)	000 - 005 No function				Color Presets
			006 - 009 46 Dark Magenta
			010 - 013 29 Plasa Red
			014 - 017 26 Bright Red
			018 - 021 127 Smokey Pink
			022 - 025 36 Medium Pink
			026 - 029 19 Fire
			030 - 033 135 Deep Golden Amber
			034 - 037 778 Millennium Gold
7	9	Color Presets (override Color Mixing & Color Temperature)	038 - 041 21 Gold Amber	Color Presets
			042 - 045 157 Pink
			046 - 049 110 Middle Rose
			050 - 053 109 Light Salmon
			054 - 057 35 Light Pink
			058 - 061 134 Golden Amber
			062 - 065 17 Surprise Peach
			066 - 069 746 Brown
			070 - 073 105 Orange
			074 - 077 20 Medium Amber
			078 - 081 768 Egg Yolk Yellow
			082 - 085 15 Deep Straw
			086 - 089 767 Nectarine
			090 - 093 101 Yellow
			094 - 097 100 Spring Yellow
			098 - 101 88 Lime Green
			102 - 105 121 LEE Green
			106 - 109 738 Jas Green
			110 - 113 89 Moss Green
			114 - 117 139 Primary Green
			118 - 121 124 Dark Green
			122 - 125 323 Jade
			126 - 129 354 Special Steel Blue
			130 - 133 116 Medium Blue-Green
			134 - 137 183 Moonlight Blue
			138 - 141 132 Medium Blue
			142 - 145 119 Dark Blue
			146 - 149 716 Mikkel Blue
			150 - 153 71 Tokyo Blue
			154 - 157 181 Congo Blue
			158 - 161 799 Special KH Lavender
			162 - 165 707 Ultimate Violet
			166 - 169 343 Special Medium Lavender
			170 - 173 798 Chrysalis Pink
7	9	Color Presets (override Color Mixing & Color Temperature)	174 - 177 701 Provence				Color Presets
			178 - 181 797 Deep Purple
			182 - 185 48 Rose Purple
			186 - 189 345 Fuchsia Pink
			190 - 193 795 Magical Magenta
			194 - 197 128 Bright Pink
			198 - 201 2 Rose Pink
			202 - 207 User Color 1
			208 - 213 User Color 2
			214 - 219 User Color 3
			220 - 225 User Color 4
			226 - 231 User Color 5
			232 - 237 User Color 6
			238 - 243 User Color 7
			244 - 249 User Color 8
			250 - 255 No function
8	10	Color Cross-fade (affects, CCT and Col-or Presets)	000 - 005 0s (Off)				Color Crossfade
			006 - 105 0,1s - 10s (0,1s Steps)
			106 - 214 11s - 119s (1s Steps)
			215 - 244 2m - 4m50s (10s Steps)
			245 - 255 5m - 15m (1m Steps)
9	11	Center Dimmer	000 - 255			0% to 100%	Center Dimmer
	12	Center Dimmer fine	001 - 255
10 13		Center Strobe	000 - 005 Open				Multi-functional Strobe Center LEDs
			006 - 010 Closed
			011 - 022 Ramp up/down slow to fast
			023 - 033 Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
			046 - 056 Ramp up random slow to fast
			057 - 068 Ramp down slow to fast
10 13		Center Strobe	069 - 079			Ramp down random slow to fast	Multi-functional Strobe Center LEDs
			080 - 102			Random Strobe effect slow to fast
			103 - 127			Strobe Break effect 5s to 1s (short burst with break)
			128 - 250			Strobe slow to fast (<1Hz to 20Hz)
			251 - 255 Open
	14	Center Strobe Duration	000 - 255			Flash duration (0ms to 510ms)
11 15		Center Pattern Selection	000 - 005 Off				Center Pattern
			006 - 026 1
			027 - 047 2
			048 - 068 3
			069 - 089 4
			090 - 110 5
			111 - 131 6
			132 - 152 7
			153 - 173 8
			174 - 194 9
			195 - 215 10
			216 - 236 11
			237 - 255 12
12 16		Center Pattern Speed	000 - 005			Center Pattern Speed Stop
			006 - 063			Center Pattern Speed slow to fast (Chase)
			064 - 127			Center Pattern Speed fast to slow (Chase) (back- wards)
			128 - 127			Center Pattern Speed slow to fast (Fade)
			192 - 255			Center Pattern Speed fast to slow (Fade) (back- wards)
13 17		Pattern Selection	000 - 005 Off
			006 - 026 1
			027 - 047 2
			048 - 068 3
			069 - 089 4
			090 - 110 5
			111 - 131 6
			132 - 152 7
			153 - 173 8
			174 - 194 9
			195 - 215 10
			216 - 236 11
			237 - 255 12
			000 - 005 Pattern Speed Stop
			006 - 063	Pattern Speed slow to fast (Chase)
			064 - 127	Pattern Speed fast to slow (Chase) (backwards)
			128 - 127	Pattern Speed slow to fast (Fade)
			192 - 255	Pattern Speed fast to slow (Fade) (backwards)
			000 - 255	0% to 100%
			000 - 255	0% to 100%
			000 - 255	0% to 100%
			000 - 255	0% to 100%
			000 - 255	0% to 100%
14 18		Pattern Position & Speed	000 - 005 Open
15 19		Background Dimmer	006 - 010 Closed
		Background Dimmer fine	011 - 022	Ramp up/down slow to fast	Background Strobe
16 21		Background Strobe	023 - 033	Ramp up/down random slow to fast	Strobe
			034 - 045 Ramp up slow to fast	Ramp up down slow to fast	Strobe
			046 - 056	Ramp up random slow to fast	Strobe
16 21		Background Strobe	069 - 079			Ramp down random slow to fast	Background Strobe
			080 - 102			Random Strobe effect slow to fast
			103 - 127			Strobe Break effect 5s to 1s (Short burst with break)
			128 - 250			Strobe slow to fast (<1Hz to 20Hz)
			251 - 255 Open
	22	Background Strobe Duration	000 - 255			Flash duration (0ms to 510ms)
17 23		Background Red	000 - 255 0% to 100%				Background Color Mixing
18 24		Background Green	000 - 255 0% to 100%
19 25		Background Blue	000 - 255 0% to 100%
20 26		Background Color Temperature (affects Background Color Mixing)	000 - 005 Off				Background CCT
			006 - 006 Warm white
			007 - 046 Warm white to 2700K
			047 - 047 Bulb White (2700K)
			048 - 087 2700K to 3200K
			088 - 088 Halogen White (3200K)
			089 - 128 3200K to 4000K
			129 - 129 Neutral White (4000K)
			130 - 169 4000K to 5600K
			170 - 170 Studio White (5600K)
			171 - 210 5600K to 6500K
			211 - 211 Daylight White (6500K)
			212 - 251 6500K to Cold white
			252 - 255 Cold white
21 27		Background Color Presets (override Background Color Mixing & Background Color Temperature)	000 - 005 No function	Background Color Presets
			006 - 009 46 Dark Magenta
			010 - 013 29 Plasa Red
			014 - 017 26 Bright Red
			018 - 021 127 Smokey Pink
			022 - 025 36 Medium Pink
			026 - 029 19 Fire
			030 - 033 135 Deep Golden Amber
			034 - 037 778 Millennium Gold
			038 - 041 21 Gold Amber
			042 - 045 157 Pink
			046 - 049 110 Middle Rose
			050 - 053 109 Light Salmon
			054 - 057 35 Light Pink
			058 - 061 134 Golden Amber
			062 - 065 17 Surprise Peach
			066 - 069 746 Brown
			070 - 073 105 Orange
			074 - 077 20 Medium Amber
			078 - 081 768 Egg Yolk Yellow
			082 - 085 15 Deep Straw
			086 - 089 767 Nectarine
			090 - 093 101 Yellow
			094 - 097 100 Spring Yellow
			098 - 101 88 Lime Green
			102 - 105 121 LEE Green
			106 - 109 738 Jas Green
			110 - 113 89 Moss Green
			114 - 117 139 Primary Green
			118 - 121 124 Dark Green
			122 - 125 323 Jade
			126 - 129 354 Special Steel Blue
			130 - 133 116 Medium Blue-Green
			134 - 137 183 Moonlight Blue
			138 - 141 132 Medium Blue
21 27		Background Color Presets (override Background Color Mixing & Background Color Temperature)	142 - 145 119 Dark Blue				Background Color Presets
			146 - 149 716 Mikkel Blue
			150 - 153 71 Tokyo Blue
			154 - 157 181 Congo Blue
			158 - 161 799 Special KH Lavender
			162 - 165 707 Ultimate Violet
			166 - 169 343 Special Medium Lavender
			170 - 173 798 Chrysalis Pink
			174 - 177 701 Provence
			178 - 181 797 Deep Purple
			182 - 185 48 Rose Purple
			186 - 189 345 Fuchsia Pink
			190 - 193 795 Magical Magenta
			194 - 197 128 Bright Pink
			198 - 201 2 Rose Pink
			202 - 207 User Color 1
			208 - 213 User Color 2
			214 - 219 User Color 3
			220 - 225 User Color 4
			226 - 231 User Color 5
			232 - 237 User Color 6
			238 - 243 User Color 7
			244 - 249 User Color 8
			250 - 255 No function
22 28		Background Color Cross-fade (affects Background CCT and Background Color Pre-sets)	000 - 005 0s (Off)				Background Color Crossfade
			006 - 105 0,1s - 10s (0,1s Steps)
			106 - 214 11s - 119s (1s Steps)
			215 - 244 2m - 4m50s (10s Steps)
			245 - 255 5m - 15m (1m Steps)
23 29		Device Settings(all settings executed are after holding value for 3 seconds)(please read remark 1*)	000 + 057 No function
			058 + 059 Pixel Mirroring Off			Pixel Mirroring
			060 + 061 Pixel Mirroring Vertical
			062 + 063 Pixel Mirroring Horizontal
			064 + 065		Pixel Mirroring Vertical + Horizontal
			066 + 073 No function
			074 + 075 Dimmer Response LED			Dimming076 - 077
					Dimmer Response Halogen
			078 + 119 No function
			120 + 121 PWM 1 (650 Hz)			PWM Frequency
			122 + 123 PWM 2 (1530 Hz)
			124 + 125 PWM 3 (3600 Hz)
			126 + 127 PWM 4 (12000 Hz)
			128 + 129 PWM 5 (18900 Hz)
			130 + 131 PWM 6 (25000 Hz)
			132 + 139 No function
			140 + 141 Display Always On			Display Functions
			142 + 143 Display Off after 20s
			144 + 163 No function
			164 + 165 Dimmer Curve Linear			Dimmer Curve
			166 + 167		Dimmer Curve Exponen-tial
			168 + 169		Dimmer Curve Logarith-mic
			170 + 171 Dimmer Curve S-Curve
			172 + 239 No function
			240 + 241 Load Factory Defaults			Load Default
			242 + 243		Load Factory Defaults (without User Colors & Loops)
			244 + 245 Load User Default A
			246 + 247 Load User Default B
			248 + 249 Load User Default C
			250 + 255 No function

51CH Strobe RGB Pixel	64CH Pixel
Channel Channel Function Values Subgroup
1		Center Dimmer	000	25	5 0% to 100%	Center Dimmer
2		Center Strobe	000	005	Open	Multi-functional Strobe Center LEDs
			006	010	Closed
			011	022	Ramp up/down slow to fast
			023	033	Ramp up/down random slow to fast
			034	045	Ramp up slow to fast
			046	056	Ramp up random slow to fast
			057	068	Ramp down slow to fast
			069	079	Ramp down random slow to fast
			080	102	Random Strobe effect slow to fast
			103	127	Strobe Break effect 5s to 1s (short burst with break)
			128	250	Strobe slow to fast (<1Hz to 20Hz)
			251	255	Open
3		Center Strobe Duration	000	255	Flash duration (0ms to 510ms)
4 1 Red 1 000 - 255 0% to 100%						Top & Bottom Pixel 1
5 2 Green 1 000 - 255 0% to 100%
6 3 Blue 1 000 - 255 0% to 100%
7 4 Red 2 000 - 255 0% to 100%						Top & Bottom Pixel 2
8 5 Green 2 000 - 255 0% to 100%
9 6 Blue 2 000 - 255 0% to 100%
10 7 Red 3 000 - 255 0% to 100%						Top &BottomPixel 3
11 8 Green 3 000 - 255 0% to 100%
12 9 Blue 3 000 - 255 0% to 100%
13 10 Red 4 000 - 255 0% to 100%						Top &BottomPixel 4
14 11 Green 4 000 - 255 0% to 100%
15 12 Blue 4 000 - 255 0% to 100%
16 13 Red 5 000 - 255 0% to 100%						Top &BottomPixel 5
17 14 Green 5 000 - 255 0% to 100%
18 15 Blue 5 000 - 255 0% to 100%
19 16 Red 6 000 - 255 0% to 100%						Top &BottomPixel 6
20 17 Green 6 000 - 255 0% to 100%
21 18 Blue 6 000 - 255 0% to 100%
22 19 Red 7 000 - 255 0% to 100%						Top &BottomPixel 7
23 20 Green 7 000 - 255 0% to 100%
24 21 Blue 7 000 - 255 0% to 100%
25 22 Red 8 000 - 255 0% to 100%						Top &BottomPixel 8
26 23 Green 8 000 - 255 0% to 100%
27 24 Blue 8 000 - 255 0% to 100%
28 25 Red 9 000 - 255 0% to 100%						Top &BottomPixel 9
29 26 Green 9 000 - 255 0% to 100%
30 27 Blue 9 000 - 255 0% to 100%
31 28 Red 10 000 - 255 0% to 100%						Top &BottomPixel 10
32 29 Green 10 000 - 255 0% to 100%
33 30 Blue 10 000 - 255 0% to 100%
34 31 Red 11 000 - 255 0% to 100%						Top &BottomPixel 11
35 32 Green 11 000 - 255 0% to 100%
36 33 Blue 11 000 - 255 0% to 100%
37 34 Red 12 000 - 255 0% to 100%						Top &BottomPixel 12
38 35 Green 12 000 - 255 0% to 100%
39 36 Blue 12 000 - 255 0% to 100%
40 37 Red 13 000 - 255 0% to 100%						Top &BottomPixel 13
41 38 Green 13 000 - 255 0% to 100%
42 39 Blue 13 000 - 255 0% to 100%
43 40 Red 14 000 - 255 0% to 100%							Top & Bottom Pixel 14
44 41 Green 14 000 - 255 0% to 100%
45 42 Blue 14 000 - 255 0% to 100%
46 43 Red 15 000 - 255 0% to 100%							Top & Bottom Pixel 15
47 44 Green 15 000 - 255 0% to 100%
48 45 Blue 15 000 - 255 0% to 100%
49 46 Red 16 000 - 255 0% to 100%							Top & Bottom Pixel 16
50 47 Green 16 000 - 255 0% to 100%
51 48 Blue 16 000 - 255 0% to 100%
	49 White 1 000 - 255 0% to 100%						White Center Pixel
	50 White 2 000 - 255 0% to 100%
	51 White 3 000 - 255 0% to 100%
	52 White 4 000 - 255 0% to 100%
	53 White 5 000 - 255 0% to 100%
	54 White 6 000 - 255 0% to 100%
	55 White 7 000 - 255 0% to 100%
	56 White 8 000 - 255 0% to 100%
	57 White 9 000 - 255 0% to 100%
	58 White 10 000 - 255 0% to 100%
	59 White 11 000 - 255 0% to 100%
	60 White 12 000 - 255 0% to 100%
	61 White 13 000 - 255 0% to 100%
	62 White 14 000 - 255 0% to 100%
	63 White 15 000 - 255 0% to 100%
	64 White 16 000 - 255 0% to 100%

68CHPixelStrobe

73CHPixelStrobe

Channel	Channel Function Values	Subgroup
1 1 Dimmer	000 - 255				0% to 100%	Dimmer
2 2 Dimmer fine	000 - 255
3	3	Strobe Functions	000 - 005 Open			Multi-functional Strobe
			006 - 010 Closed
			011 - 022		Ramp up/down slow to fast
3	3	Strobe Functions	023	033	Ramp up/down random slow to fast	Multi-functional Strobe
			034	045 Ramp up slow to fast
			046	056	Ramp up random slow to fast
			057	068 Ramp down slow to fast
			069	079	Ramp down random slow to fast
			080	102	Random Strobe effect slow to fast
			103	127	Strobe Break effect 5s to 1s (short burst with break)
			128	250	Strobe slow to fast (<1Hz to 20Hz)
			251	255 Open
	4	Strobe Duration	000	255	Flash duration (0ms to 510ms)
	5	Center Dimmer	000	255	0% to 100%	Center Dimmer
	6	Center Dimmer fine	001	255
	7	Center Strobe	000	005 Open		Multi-functional Strobe Center LEDs
			006	010 Closed
			011	022	Ramp up/down slow to fast
			023	033	Ramp up/down random slow to fast
			034	045 Ramp up slow to fast
			046	056	Ramp up random slow to fast
			057	068 Ramp down slow to fast
			069	079	Ramp down random slow to fast
			080	102	Random STrobe effect slow to fast

	7	Center Strobe	103 - 127			Strobe Break effect 5s to 1s (short burst with break)	Multi-functional Strobe Center LEDs
			128 - 250			Strobe slow to fast (<1Hz to 20Hz)
			251 - 255 Open
	8	Center Strobe Duration	000 - 255			Flash duration (0ms to 510ms)
4	9	Device Settings (all settings executed are after holding value for 3 seconds) (please read remark 1*)	000 - 057 No function
			058 - 059 Pixel Mirroring Off				Pixel Mirroring
			060 - 061 Pixel Mirroring Vertical
			062 - 063 Pixel Mirroring Horizontal
			064 - 065			Pixel Mirroring Vertical + Horizontal
			066 - 073 No function
			074 - 075 Dimmer Response LED				Dimming076 -
						Dimmer Response Halogen
			078 - 119 No function
			120 - 121 PWM 1 (650 Hz)				PWM Frequency
			122 - 123 PWM 2 (1530 Hz)
			124 - 125 PWM 3 (3600 Hz)
			126 - 127 PWM 4 (12000 Hz)
			128 - 129 PWM 5 (18900 Hz)
			130 - 131 PWM 6 (25000 Hz)
			132 - 139 No function
			140 - 141 Display Always On				Display Functions
			142 - 143 Display Off after 20s
			144 - 163 No function
			164 - 165 Dimmer Curve Linear				Dimmer Curve
			166 - 167			Dimmer Curve Exponen-tial
			168 - 169			Dimmer Curve Logarith-mic
			170 - 171 Dimmer Curve S-Curve

4	9	Device Settings(all settings executed are after holding value for 3 seconds)(please read remark 1*)	172	239	No function
			240	241	Load Factory Defaults	Load Default
			242	243	Load Factory Defaults (without User Colors & Loops)
			244	245	Load User Default A
			246	247	Load User Default B
			248	249	Load User Default C
			250	255	no function
5 10	Red 1 000 -	255 0% to 100%				Top & Bottom Pixel 1
6 11	Green 1 000	- 255 0% to 100%
7 12	Blue 1 000	- 255 0% to 100%
8 13	Red 2 000	- 255 0% to 100%				Top & Bottom Pixel 2
9 14	Green 2 000	- 255 0% to 100%
10 15	Blue 2 000	- 255 0% to 100%
11 16	Red 3 000	- 255 0% to 100%				Top & Bottom Pixel 3
12 17	Green 3 000	- 255 0% to 100%
13 18	Blue 3 000	- 255 0% to 100%
14 19	Red 4 000	- 255 0% to 100%				Top & Bottom Pixel 4
15 20	Green 4 000	- 255 0% to 100%
16 21	Blue 4 000	- 255 0% to 100%
17 22	Red 5 000	- 255 0% to 100%				Top & Bottom Pixel 5
18 23	Green 5 000	- 255 0% to 100%
19 24	Blue 5 000	- 255 0% to 100%
20 25	Red 6 000	- 255 0% to 100%				Top & Bottom Pixel 6
21 26	Green 6 000	- 255 0% to 100%
22 27	Blue 6 000	- 255 0% to 100%
23 28	Red 7 000	- 255 0% to 100%				Top & Bottom Pixel 7
24 29	Green 7 000	- 255 0% to 100%
25 30	Blue 7 000	- 255 0% to 100%
26 31	Red 8 000	- 255 0% to 100%				Top & Bottom Pixel 8
27 32	Green 8 000	- 255 0% to 100%
28 33	Blue 8 000	- 255 0% to 100%
29 34	Red 9 000	- 255 0% to 100%				Top & Bottom Pixel 9
30 35	Green 9 000	- 255 0% to 100%
31 36	Blue 9 000	- 255 0% to 100%
32 37	Red 10 000	- 255 0% to 100%				Top & Bottom Pixel 10
33 38	Green 10 000	- 255 0% to 100%
34 39	Blue 10 000	- 255 0% to 100%
35 40	Red 11 000	- 255 0% to 100%				Top & Bottom Pixel 11
36 41	Green 11 000	- 255 0% to 100%
37 42	Blue 11 000	- 255 0% to 100%
38 43	Red 12 000	- 255 0% to 100%				Top & Bottom Pixel 12
39 44	Green 12 000	- 255 0% to 100%
40 45	Blue 12 000	- 255 0% to 100%
41 46	Red 13 000	- 255 0% to 100%				Top & Bottom Pixel 13
42 47	Green 13 000	- 255 0% to 100%
43 48	Blue 13 000	- 255 0% to 100%
44 49	Red 14 000	- 255 0% to 100%				Top & Bottom Pixel 14
45 50	Green 14 000	- 255 0% to 100%
46 51	Blue 14 000	- 255 0% to 100%
47 52	Red 15 000	- 255 0% to 100%				Top & Bottom Pixel 15
48 53	Green 15 000	- 255 0% to 100%
49 54	Blue 15 000	- 255 0% to 100%
50 55	Red 16 000	- 255 0% to 100%				Top & Bottom Pixel 16
51 56	Green 16 000	- 255 0% to 100%
52 57	Blue 16 000	- 255 0% to 100%
53 58	White 1 000	- 255 0% to 100%				White Center Pixel
54 59	White 2 000	- 255 0% to 100%
55 60	White 3 000	- 255 0% to 100%
56 61	White 4 000	- 255 0% to 100%
57 62	White 5 000	- 255 0% to 100%
58 63	White 6 000	- 255 0% to 100%
59 64	White 7 000	- 255 0% to 100%
60 65	White 8 000	- 255 0% to 100%
61 66	White 9 000	- 255 0% to 100%
62 67	White 10 000	- 255 0% to 100%
63 68	White 11 000	- 255 0% to 100%
64 69	White 12 000	- 255 0% to 100%
65 70	White 13 000	- 255 0% to 100%
66 71	White 14 000	- 255 0% to 100%

67 72	White 15 00	0 - 255 0% to	100%				White Center Pixel
68 73	White 16 00	0 - 255 0% to	100%

99CH Strobe RGB Pixel	112CH Pixel
Channel Channel Function Values Subgroup
1		Center Dimmer	000	25	5 0% to 100%	Center Dimmer
2		Center Strobe	000	00	5 Open	Multi-functional Strobe Center LEDs
			006	01	0 Closed
			011	02	2 Ramp up/down slow to fast
			023	03	3 Ramp up/down random slow to fast
			034	04	5 Ramp up slow to fast
			046	05	6 Ramp up random slow to fast
			057	06	8 Ramp down slow to fast
			069	07	9 Ramp down random slow to fast
			080	10	2 Random Strobe effect slow to fast
			103	12	7 Strobe Break effect 5s to 1s (short burst with break)
			128	25	0 Strobe slow to fast (<1Hz to 20Hz)
			251	25	5 Open
3		Center Strobe Duration	000	25	5 Flash duration (0ms to 510ms)
4 1 Red Top 1 000 - 255 0% to 1 00%						Top Pixel 1
5 2 Green Top 1 000 - 255 0% to 1 00%
6 3 Blue Top 1 000 - 255 0% to 1 00%

7 4 Red Top 2 000 - 255 0% to 1 00%							TopPixel 2
8 5 Green Top 2 000 - 255 0% to 100%
9 6 Blue Top 2 000 - 255 0% to 100%
10 7 Red Top 3 000 - 255 0% to 100%							TopPixel 3
11 8 Green Top 3 000 - 255 0% to 100%
12 9 Blue Top 3 000 - 255 0% to 100%
13 10 Red Top 4 000 - 255 0% to 100%							TopPixel 4
14 11 Green Top 4 000 - 255 0% to 100%
15 12 Blue Top 4 000 - 255 0% to 100%
16 13 Red Top 5 000 - 255 0% to 100%							TopPixel 5
17 14 Green Top 5 000 - 255 0% to 100%
18 15 Blue Top 5 000 - 255 0% to 100%
19 16 Red Top 6 000 - 255 0% to 100%							TopPixel 6
20 17 Green Top 6 000 - 255 0% to 100%
21 18 Blue Top 6 000 - 255 0% to 100%
22 19 Red Top 7 000 - 255 0% to 100%							TopPixel 7
23 20 Green Top 7 000 - 255 0% to 100%
24 21 Blue Top 7 000 - 255 0% to 100%
25 22 Red Top 8 000 - 255 0% to 100%							TopPixel 8
26 23 Green Top 8 000 - 255 0% to 100%
27 24 Blue Top 8 000 - 255 0% to 100%
28 25 Red Top 9 000 - 255 0% to 100%							TopPixel 9
29 26 Green Top 9 000 - 255 0% to 100%
30 27 Blue Top 9 000 - 255 0% to 100%
31 28 Red Top 10 000 - 255 0% to 100%							TopPixel 10
32 29 Green Top 10 000 - 255 0% to 100%
33 30 Blue Top 10 000 - 255 0% to 100%
34 31 Red Top 11 000 - 255 0% to 100%							TopPixel 11
35 32 Green Top 11 000 - 255 0% to 100%
36 33 Blue Top 11 000 - 255 0% to 100%
37 34 Red Top 12 000 - 255 0% to 100%							TopPixel 12
38 35 Green Top 12 000 - 255 0% to 100%
39 36 Blue Top 12 000 - 255 0% to 100%
40 37 Red Top 13 000 - 255 0% to 100%							TopPixel 13
41 38 Green Top 13 000 - 255 0% to 100%
42 39 Blue Top 13 000 - 255 0% to 100%
43 40	Red Top 14	000 - 255 0% to 100%				Top Pixel 14
44 41	Green Top 1	4 000 - 255 0% to 100%
45 42	Blue Top 14	000 - 255 0% to 100%
46 43	Red Top 15	000 - 255 0% to 100%				Top Pixel 15
47 44	Green Top 1	5 000 - 255 0% to 100%
48 45	Blue Top 15	000 - 255 0% to 100%
49 46	Red Top 16	000 - 255 0% to 100%				Top Pixel 16
50 47	Green Top 1	6 000 - 255 0% to 100%
51 48	Blue Top 16	000 - 255 0% to 100%
52 49		Red Bottom 1	000 - 255 0% to 100%			Bottom Pixel 1
53 50		Green Bottom 1	000 - 255 0% to 100%
54 51		Blue Bottom 1	000 - 255 0% to 100%
55 52		Red Bottom 2	000 - 255 0% to 100%			Bottom Pixel 2
56 53		Green Bottom 2	000 - 255 0% to 100%
57 54		Blue Bottom 2	000 - 255 0% to 100%
58 55		Red Bottom 3	000 - 255 0% to 100%			Bottom Pixel 3
59 56		Green Bottom 3	000 - 255 0% to 100%
60 57		Blue Bottom 3	000 - 255 0% to 100%
61 58		Red Bottom 4	000 - 255 0% to 100%			Bottom Pixel 4
62 59		Green Bottom 4	000 - 255 0% to 100%
63 60		Blue Bottom 4	000 - 255 0% to 100%
64 61		Red Bottom 5	000 - 255 0% to 100%			Bottom Pixel 5
65 62		Green Bottom 5	000 - 255 0% to 100%
66 63		BlueBottom 5	000 - 255 0% to 100%				BottomPixel 5
67 64		RedBottom 6	000 - 255 0% to 100%				BottomPixel 6
68 65		GreenBottom 6	000 - 255 0% to 100%
69 66		BlueBottom 6	000 - 255 0% to 100%
70 67		RedBottom 7	000 - 255 0% to 100%				BottomPixel 7
71 68		GreenBottom 7	000 - 255 0% to 100%
72 69		BlueBottom 7	000 - 255 0% to 100%
73 70		RedBottom 8	000 - 255 0% to 100%				BottomPixel 8
74 71		GreenBottom 8	000 - 255 0% to 100%
75 72		BlueBottom 8	000 - 255 0% to 100%
76 73		RedBottom 9	000 - 255 0% to 100%				BottomPixel 9
77 74		GreenBottom 9	000 - 255 0% to 100%
78 75		BlueBottom 9	000 - 255 0% to 100%
79 76		RedBottom 10	000 - 255 0% to 100%				BottomPixel 10
80 77		GreenBottom 10	000 - 255 0% to 100%
81 78		BlueBottom 10	000 - 255 0% to 100%
82 79		RedBottom 11	000 - 255 0% to 100%				BottomPixel 11
83 80		GreenBottom 11	000 - 255 0% to 100%
84 81		BlueBottom 11	000 - 255 0% to 100%
85 82		RedBottom 12	000 - 255 0% to 100%				BottomPixel 12
86 83		GreenBottom 12	000 - 255 0% to 100%
87 84		BlueBottom 12	000 - 255 0% to 100%
88 85		RedBottom 13	000 - 255 0% to 100%				BottomPixel 13
89 86		GreenBottom 13	000 - 255 0% to 100%
90 87		BlueBottom 13	000 - 255 0% to 100%
91 88		RedBottom 14	000 - 255 0% to 100%				BottomPixel 14
92 89		GreenBottom 14	000 - 255 0% to 100%
93 90		BlueBottom 14	000 - 255 0% to 100%
94 91		RedBottom 15	000 - 255 0% to 100%				BottomPixel 15
95 92		GreenBottom 15	000 - 255 0% to 100%
96 93		BlueBottom 15	000 - 255 0% to 100%
97 94		RedBottom 16	000 - 255 0% to 100%				BottomPixel 16
98 95		GreenBottom 16	000 - 255 0% to 100%
99 96		BlueBottom 16	000 - 255 0% to 100%
	97 White 1 000 - 255 0% to 100%						WhiteCenter Pixel
	98 White 2 000 - 255 0% to 100%
	99 White 3 000 - 255 0% to 100%
	100 White 4 000 - 255 0% to 100%
	101 White 5 000 - 255 0% to 100%
	102 White 6 000 - 255 0% to 100%
	103 White 7 000 - 255 0% to 100%
	104 White 8 000 - 255 0% to 100%
	105 White 9 000 - 255	0% to	100%		White Center Pixel
	106 White 10 000 - 255	0% to	100%
	107 White 11 000 - 255	0% to	100%
	108 White 12 000 - 255	0% to	100%
	109 White 13 000 - 255	0% to	100%
	110 White 14 000 - 255	0% to	100%
	111 White 15 000 - 255	0% to	100%
	112 White 16 000 - 255	0% to	100%

116CHPixelStrobe	121CHPixelStrobe
Channel Channel Function Values Subgroup
1 1 Dimmer 000 - 255						0% to 100% Dimmer
2 2 Dimmer fine 000 - 255
3	3	Strobe Functions	000 + 005 Open			Multi-functional Strobe
			006 + 010 Closed
			011 + 022			Ramp up/down slow to fast
			023 + 033			Ramp up/down random slow to fast
			034 + 045 Ramp up slow to fast
			046 + 056			Ramp up random slow to fast
			057 + 068 Ramp down slow to fast
			069 + 079			Ramp down random slow to fast
			080 + 102			Random Strobe effect slow to fast
			103 + 127			Strobe Break effect 5s to 1s (short burst with break)
			128 + 250			Strobe slow to fast (<1Hz to 20Hz)
			251 + 255 Open
	4	Strobe Duration	000	255	Flash duration (0ms to 510ms)	Multifunctional Strobe
	5	Center Dimmer	000	255	0% to 100%	Center Dimmer
	6	Center Dimmer fine	001	255
	7	Center Strobe	000	005 Open	Ramp up/down slow to fast	Multi-functional Strobe Center LEDs
			006	010 Closed
			011	022
			023	033
			034	045 Ramp up slow to fast
			046	056
			057	068 Ramp down slow to fast
			069	079
			080	102
			103	127
			128	250
			251	255 Open
	8	Center Strobe Duration	000	255	Flash duration (0ms to 510ms)
4	9	Device Settings (all settings executed are after holding value for 3 seconds) (please read remark 1*)	000	057 No function	No function

4	9	Device Settings(all settings executed are after holding value for 3 seconds)(please read remark 1*)	058 - 059 Pixel Mirroring Off				Pixel Mirroring
			060 - 061 Pixel Mirroring Vertical
			062 - 063 Pixel Mirroring Horizontal
			064 - 065			Pixel Mirroring Vertical + Horizontal
			066 - 073 No function
			074 - 075 Dimmer Response LED				Dimming076 -
						Dimmer Response Halogen
			078 - 119 No function
			120 - 121 PWM 1 (650 Hz)				PWM Frequency
			122 - 123 PWM 2 (1530 Hz)
			124 - 125 PWM 3 (3600 Hz)
			126 - 127 PWM 4 (12000 Hz)
			128 - 129 PWM 5 (18900 Hz)
			130 - 131 PWM 6 (25000 Hz)
			132 - 139 No function
			140 - 141 Display Always On				Display Functions
			142 - 143 Display Off after 20s
			144 - 163 No function
			164 - 165 Dimmer Curve Linear				Dimmer Curve
			166 - 167			Dimmer Curve Exponen-tial
			168 - 169			Dimmer Curve Logarith-mic
			170 - 171 Dimmer Curve S-Curve
			172 - 239 No function
			240 - 241 Load Factory Defaults				Load Default
			242 - 243			Load Factory Defaults (without User Colors & Loops)
			244 - 245 Load User Default A
			246 - 247 Load User Default B
			248 - 249 Load User Default C
			250 - 255 no function
5 10 Red Top 1 000 - 255 0% to 100%				TopPixel 1
6 11 Green Top 1 000 - 255 0% to 100%
7 12 Blue Top 1 000 - 255 0% to 100%
8 13 Red Top 2 000 - 255 0% to 100%				TopPixel 2
9 14 Green Top 2 000 - 255 0% to 100%
10 15 Blue Top 2 000 - 255 0% to 100%
11 16 Red Top 3 000 - 255 0% to 100%				TopPixel 3
12 17 Green Top 3 000 - 255 0% to 100%
13 18 Blue Top 3 000 - 255 0% to 100%
14 19 Red Top 4 000 - 255 0% to 100%				TopPixel 4
15 20 Green Top 4 000 - 255 0% to 100%
16 21 Blue Top 4 000 - 255 0% to 100%
17 22 Red Top 5 000 - 255 0% to 100%				TopPixel 5
18 23 Green Top 5 000 - 255 0% to 100%
19 24 Blue Top 5 000 - 255 0% to 100%
20 25 Red Top 6 000 - 255 0% to 100%				TopPixel 6
21 26 Green Top 6 000 - 255 0% to 100%
22 27 Blue Top 6 000 - 255 0% to 100%
23 28 Red Top 7 000 - 255 0% to 100%				TopPixel 7
24 29 Green Top 7 000 - 255 0% to 100%
25 30 Blue Top 7 000 - 255 0% to 100%
26 31 Red Top 8 000 - 255 0% to 100%				TopPixel 8
27 32 Green Top 8 000 - 255 0% to 100%
28 33 Blue Top 8 000 - 255 0% to 100%
29 34 Red Top 9 000 - 255 0% to 100%				TopPixel 9
30 35 Green Top 9 000 - 255 0% to 100%
31 36 Blue Top 9 000 - 255 0% to 100%
32 37 Red Top 10 000 - 255 0% to 100%				TopPixel 10
33 38 Green Top 10 000 - 255 0% to 100%
34 39 Blue Top 10 000 - 255 0% to 100%
35 40 Red Top 11 000 - 255 0% to 100%				TopPixel 11
36 41 Green Top 11 000 - 255 0% to 100%
37 42 Blue Top 11 000 - 255 0% to 100%
38 43 Red Top 12 000 - 255 0% to 100%				TopPixel 12

39 44	Green Top 1	2 000 - 255 0%	to 100%			Top Pixel 12
40 45	Blue Top 12	000 - 255 0%	to 100%
41 46	Red Top 13	000 - 255 0%	to 100%			Top Pixel 13
42 47	Green Top 1	3 000 - 255 0%	to 100%
43 48	Blue Top 13	000 - 255 0%	to 100%
44 49	Red Top 14	000 - 255 0%	to 100%			Top Pixel 14
45 50	Green Top 1	4 000 - 255 0%	to 100%
46 51	Blue Top 14	000 - 255 0%	to 100%
47 52	Red Top 15	000 - 255 0%	to 100%			Top Pixel 15
48 53	Green Top 1	5 000 - 255 0%	to 100%
49 54	Blue Top 15	000 - 255 0%	to 100%
50 55	Red Top 16	000 - 255 0%	to 100%			Top Pixel 16
51 56	Green Top 1	6 000 - 255 0%	to 100%
52 57	Blue Top 16	000 - 255 0%	to 100%
53 58		Red Bottom 1	000 - 255 0%	to 100%		Bottom Pixel 1
54 59		Green Bottom 1	000 - 255 0%	to 100%
55 60		Blue Bottom 1	000 - 255 0%	to 100%
56 61		Red Bottom 2	000 - 255 0%	to 100%		Bottom Pixel 2
57 62		Green Bottom 2	000 - 255 0%	to 100%
58 63		Blue Bottom 2	000 - 255 0%	to 100%
59 64		Red Bottom 3	000 - 255 0%	to 100%		Bottom Pixel 3
60 65		Green Bottom 3	000 - 255 0%	to 100%
61 66		Blue Bottom 3	000 - 255 0%	to 100%
62 67		Red Bottom 4	000 - 255 0%	to 100%		Bottom Pixel 4
63 68		Green Bottom 4	000 - 255 0%	to 100%

64 69		BlueBottom 4	000	255 0% to 100%			BottomPixel 4
65 70		RedBottom 5	000	255 0% to 100%			BottomPixel 5
66 71		GreenBottom 5	000	255 0% to 100%
67 72		BlueBottom 5	000	255 0% to 100%			BottomPixel 6
68 73		RedBottom 6	000	255 0% to 100%
69 74		GreenBottom 6	000	255 0% to 100%
70 75		BlueBottom 6	000	255 0% to 100%
71 76		RedBottom 7	000	255 0% to 100%			BottomPixel 7
72 77		GreenBottom 7	000	255 0% to 100%
73 78		BlueBottom 7	000	255 0% to 100%
74 79		RedBottom 8	000	255 0% to 100%			BottomPixel 8
75 80		GreenBottom 8	000	255 0% to 100%
76 81		BlueBottom 8	000	255 0% to 100%
77 82		RedBottom 9	000	255 0% to 100%
78 83		GreenBottom 9	000	255 0% to 100%			BottomPixel 9
79 84		BlueBottom 9	000	255 0% to 100%
80 85		RedBottom 10	000	255 0% to 100%			BottomPixel 10
81 86		GreenBottom 10	000	255 0% to 100%
82 87		BlueBottom 10	000	255 0% to 100%
83 88		RedBottom 11	000	25	5 0%	to 100%	BottomPixel 11
84 89		GreenBottom 11	000	25	5 0%	to 100%
85 90		BlueBottom 11	000	25	5 0%	to 100%
86 91		RedBottom 12	000	25	5 0%	to 100%	BottomPixel 12
87 92		GreenBottom 12	000	25	5 0%	to 100%
88 93		BlueBottom 12	000	25	5 0%	to 100%
89 94		RedBottom 13	000	25	5 0%	to 100%	BottomPixel 13
90 95		GreenBottom 13	000	25	5 0%	to 100%
91 96		BlueBottom 13	000	25	5 0%	to 100%
92 97		RedBottom 14	000	25	5 0%	to 100%	BottomPixel 14
93 98		GreenBottom 14	000	25	5 0%	to 100%
94 99		BlueBottom 14	000	25	5 0%	to 100%
95 100		RedBottom 15	000	25	5 0%	to 100%	BottomPixel 15
96 101		GreenBottom 15	000	25	5 0%	to 100%
97 102		BlueBottom 15	000	25	5 0%	to 100%
98 103		RedBottom 16	000	25	5 0%	to 100%	BottomPixel 16
99 104		GreenBottom 16	000	25	5 0%	to 100%
100 105		BlueBottom 16	000	25	5 0%	to 100%
101 106	White 1 000	- 255 0% to	100%				WhiteCenter Pixel
102 107	White 2 000	- 255 0% to	100%
103 108	White 3 000	- 255 0% to	100%
104 109	White 4 000 - 255 0% to	100%				White Center Pixel
105 110	White 5 000 - 255 0% to	100%
106 111	White 6 000 - 255 0% to	100%
107 112	White 7 000 - 255 0% to	100%
108 113	White 8 000 - 255 0% to	100%
109 114	White 9 000 - 255 0% to	100%
110 115	White 10 000 - 255 0% to	100%
111 116	White 11 000 - 255 0% to	100%
112 117	White 12 000 - 255 0% to	100%
113 118	White 13 000 - 255 0% to	100%
114 119	White 14 000 - 255 0% to	100%
115 120	White 15 000 - 255 0% to	100%
116 121	White 16 000 - 255 0% to	100%

D7CH Strobe	D8CH Strobe
Channel Channel Function Values Subgroup
1 1 Dimmer 000 - 255 0% to 100 % Dimmer
2	2	Strobe Functions	000 - 005 Open			Multi-functional Strobe
			006 - 010 Closed
			011 - 022			Ramp up/down slow to fast
			023 - 033			Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
			046 - 056			Ramp up random slow to fast
			057 - 068 Ramp down slow to fast
			069 - 079			Ramp down random slow to fast
			080 - 102			Random Strobe effect slow to fast
			103 - 127			Strobe Break effect 5s to 1s (short burst with break)

2	2	Strobe Functions	128 - 250			Strobe slow to fast (<1Hz to 20Hz)	Multi-functional Strobe
			251 - 255 Open
3 3 Red 000 - 255 0% to 100%							Additive Color Mixing
4 4 Green 000 - 255 0% to 100%
5 5 Blue 000 - 255 0% to 100%
6	6	Center Dimmer	000 - 255 0% to 100%				Center Dimmer
	7	Center Strobe	000 - 005 Open				Multi-functional Strobe Center LEDs
			006 - 010 Closed
			011 - 022			Ramp up/down slow to fast
			023 - 033			Ramp up/down random slow to fast
			034 - 045 Ramp up slow to fast
			046 - 056			Ramp up random slow to fast
			057 - 068 Ramp down slow to fast
			069 - 079			Ramp down random slow to fast
			080 - 102			Random Strobe effect slow to fast
			103 - 127			Strobe Break effect 5s to 1s (short burst with break)
			128 - 250			Strobe slow to fast (<1Hz to 20Hz)
			251 - 255 Open
7 8 DMX Delay			000 - 005 Off (no Delay)				DMX Delay
			006 - 255 0,1s to 2,0s

EN: (1*) After the adjustments have been made, set the value to 000 to avoid disturbance by endless function call.

DE: (1*) Nachdem die Einstellungen vorgenommen wurden, stellen Sie den Wert auf 000 ein, um Störungen durch endlosen Funktionsaufruf zu vermeiden.

FR: (1*) Une fois les ajustements effectués, réglez la valeur sur 000 pour éviter les perturbations par appel de fonction sans fin.

ES: (1*) Después de realizar los ajustes, establezca el valor en 000 para evitar perturbaciones mediante una llamada de función sin fin.

PL: (1*) Po dokonaniu ustawień ustaw wartość na 000, aby uniknąć zakłóceń przez nie-kończące się wywołanie funkcji.

IT: (1*) Dopo aver effettuato le regolazioni, impostare il valore su 000 per evitare disturbi causati da una chiamata a funzione infinita.
