USER MANUAL BCBFLWiFi01 Be Cool

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

FÉLICITATIONS! MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

QR code image containing encoded data, no visible human-readable text

VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS POURRAIT ENTRAÎNER DES DOMMAGES CORPORELS ET/OU MATÉRIELS ET/OU LA PERTE DU DROIT À LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT ET LE RACCORDEMENT ÉLECTRIQUE.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Utilisation prévue

BE COOL

Simple line drawing of a circular object with a small protrusion on top (no text or symbols)

BE COOL

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

1. signal sonore ON/OFF

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

CONGRATULAZIONI! GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

QR code image containing encoded data, no visible human-readable text

LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI PERSONALI E/O DANNI MATERIALI E/O LA PERDITA DELLA COPERTURA DELLA GARANZIA!

IMPORTANTI INFORMAZIONI SULLA SICUREZZA, L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

Three black-and-white warning symbols: no hand, warning triangle with exclamation mark, and triangular hazard symbol.

Uso previsto

BE COOL

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

BE COOL

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

GEFELICITEERD! BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

QR code image containing encoded data, no visible human-readable text

LEES DEZE INSTRUCTIES ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK LETSEL EN/OF MATERIËLE SCHADE EN/OF VERLIES VAN DE GARANTIEDEKKING!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Beoogd gebruik

BE COOL

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

BE COOL

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

QR code image containing encoded data, no visible human-readable text

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Uso previsto

BE COOL

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

QR code image containing encoded data, no visible human-readable text

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE TENTO NÁVOD. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRÁNÍTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE MÍT ZA NÁSLEDEK ZRANĚNÍ OSOB A/NEBO POŠKOZENÍ MAJETKU A/NEBO ZTRÁTU ZÁRUČNÍHO KRYTÍ!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Three black-and-white warning symbols: no hand, warning triangle, and lightning bolt symbol

Zamýšlené použití

Illustration of a cylindrical mechanical device with a base and shaft (no text or symbols)

Motor ventilátoru

Simple line drawing of a circular ring with internal segments (no text or symbols)

Simple line drawing of a cylindrical object with vertical ridges (no text or symbols)

Vzduchový filtr

Dálkové ovládání

Stojanové potrubí

Three technical illustrations of mechanical fasteners: a bolt, a screw, and a pin (no text or symbols present)

Line drawing of a small electric motor with a coiled cable (no text or symbols)

Napájecí

Simple line drawing of a circular object with a small protrusion on top (no text or symbols)

Základna

BE COOL

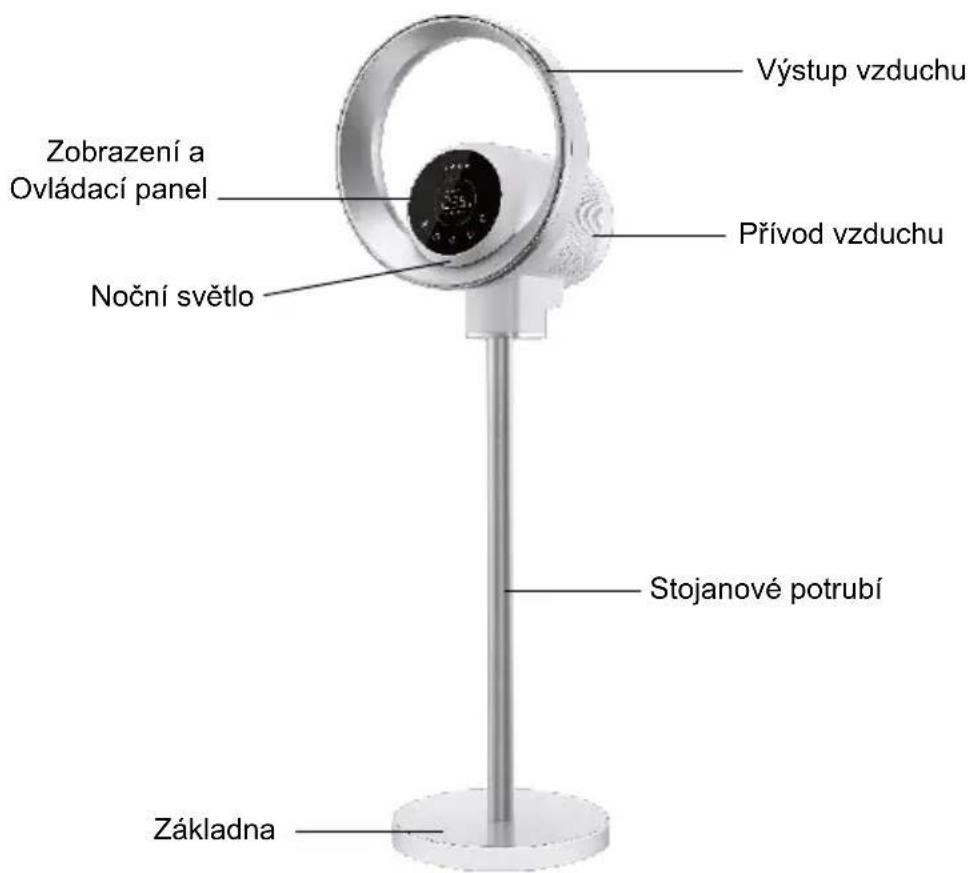

Popis produktu

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

NÁVOD NA OBSLUHU BCBLWiFi01

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

QR code image containing encoded data, no visible human-readable text

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE TIETO POKYNY. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE MAŤ ZA NÁSLEDOK ZRANENIE OSÔB A/ALEBO POŠKODENIE MAJETKU A/ALEBO STRATU ZÁRUČNÉHO KRYTIA!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Zamýšl'ané použitie

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

FELICITĂRI! VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS BE COOL.

QR code image containing encoded data, no visible human-readable text

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACESTE INSTRUCTIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTRETINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR AR PUTEA DUCE LA VĂTĂMĂRI CORPORALE ȘI/SAU DAUNE MATERIALE ȘI/SAU PIERDEREA ACOPERIRII GARANȚIEI!

INFORMAȚII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA ȘI CONECTAREA ELECTRICĂ.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

GRATULACJE! DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

QR code image containing encoded data, no visible human-readable text

PRZED ROZPOCZEĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ. NALEŻY CHRONIĆ SIEBIE I INNYCH POPRZEZ PRZESTRZEGANIE INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SKUTKOWAĆ OBRAŻENIAMI CIAŁA I/LUB USZKODZENIEM MIENIA I/LUB UTRATĄ GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI I POŁĄCZEŃ ELEKTRYCZNYCH.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Przeznaczenie

BE COOL

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

NAVODILA ZA UPORABO BCBLWiFi01

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

ČESTITAMO! HVALA, KER STE IZBRALI IZDELEK BE COOL.

Aktualna navodila za uporabo in drugi jeziki

QR code image containing encoded data, no visible human-readable text

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE TA NAVODILA. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNEM PRIKLJUČKU.

Three black-and-white warning symbols: no hand, warning triangle with exclamation mark, and triangular hazard symbol.

Predvidena uporaba

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

BE COOL

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI BE COOL PROIZVOD.

Aktualni korisnički priručnici i drugi jezici

Preuzmite aktualne upute za uporabu na raznim jezicima putem poveznice www.becool.at/downloads ili skenirajte prikazani QR kod. Slijedite upute na web stranici.

QR code image containing encoded data, no visible human-readable text

MOLIMO VAS PROČITAJTE OVE UPUTE PAŽLJIVO PRIJE UGRADNJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI I ELEKTRIČNOM POVEZIVANJU.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Namjena

Ventilator je namijenjen isključivo za ventilaciju suhih prostorija.

BE COOL

Namijenjen je isključivo za privatnu uporabu i nije prikladan za komercijalnu uporabu.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

BE COOL

1. Zvučni signal ON/OFF

OPERATING INSTRUCTIONS BCBLWiFi01

Modern stainless steel air conditioner with circular top and stand (no visible text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE!

IMPORTANT SAFETY, LOCATION AND ELECTRICAL CONNECTION INFORMATION.

Intended use

BE COOL

The fan is designed exclusively for the ventilation of dry rooms.

It is intended for private use only and is not suitable for commercial use.

Only use the fan as described in these operating instructions.

1. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.

2. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact the service centre or your dealer.

3. Keep children away from packaging materials. There is a danger of choking if swallowed!

4. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre in order to avoid all possible risks.

5. Before connecting the appliance to the mains, check that the type of current and mains voltage correspond to the specifications on the appliance type plate.

6. The electrical socket in which you connect the unit must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.

7. Avoid using an extension cord as it could overheat and cause a fire.

8. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).

BE COOL

1. If the unit has a defect, switch it off and contact your dealer or the customer hotline.

2. Always and only contact customer service centres authorised by the manufacturer for any repairs to the appliance, mains plug or cable. You can find the service centres online at www.becool.at.

3. Children under the age of 8 and persons with reduced physical, mental, sensory or intellectual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

4. Do not operate the unit unattended. If you leave the room, always switch off the unit.

5. Children must not play with the appliance.

6. Do not twist or bend the mains cable.

7. Do not use the appliance with wet hands.

8. Do not use the unit outdoors.

9. Never operate the unit in rooms where gas, oil or sulphur are present.

10. Do not use the unit near water or high humidity, e.g. in damp basements, next to swimming pools, bathtubs or showers. Make sure that no water enters the unit.

11. Do not place any objects on the unit.

12. Place the unit on a stable and level surface.

13. Never cover the unit.

14. Never insert fingers, pens or other objects into the unit and make sure that the air inlet and outlet are never blocked.

BE COOL

1. Always switch off the appliance before unplugging it from the mains.
2. Do not pull on the mains cable to disconnect the appliance from the mains power. Always pull on the plug to unplug the mains cable.
3. Do not handle the plug with wet hands to avoid electric shock.
4. Unplug the appliance when you are not using it, before cleaning it, when it needs maintenance or when it is moved from one place to another.
5. Keep the unit in good condition by maintaining and cleaning the unit. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.
6. Keep and store the appliance in a safe, dry place out of reach of children when not in use.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For further information, please contact your dealer or the local authorities. Directive 2012/19/EU
	BATTERY DISPOSALIn accordance with Legislative Decree 188 of 20 November 2008 transposing Directive 2006/66/EC on batteries, accumulators and related waste, the crossed-out wheeled bin symbol on the battery indicates that it is prohibited to dispose of waste batteries in household waste.Batteries and accumulators contain highly polluting substances. The user is obliged to dispose of used batteries at the collection points in the municipality or in the appropriate containers. The service is free of charge. In this way, the legal requirements are met and the environment is protected.You will find these signs on batteries:Li = battery contains lithium , Al = battery contains alkaliMn = battery contains manganeseCR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

Technical information

If the fan has to be stored for a long time and is not used regularly, place the fan in its original packaging in a dry place. When using it for the first time after a long period of inactivity, make sure that the fan is clean and the motor blades are unrestricted (unit not powered).

Scope of delivery: these operating instructions and:

Simple line drawing of a cylindrical device with a base and top, no text or symbols present.

Fan motor

Simple line drawing of a circular ring with internal segments (no text or symbols)

Fan outlet ring

Simple line drawing of a cylindrical object with vertical ridges (no text or symbols)

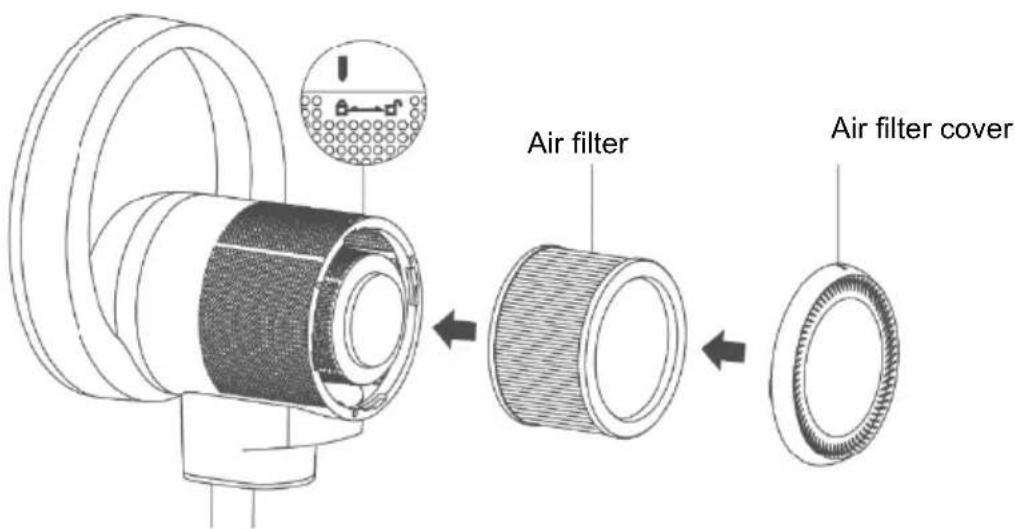

Air filter

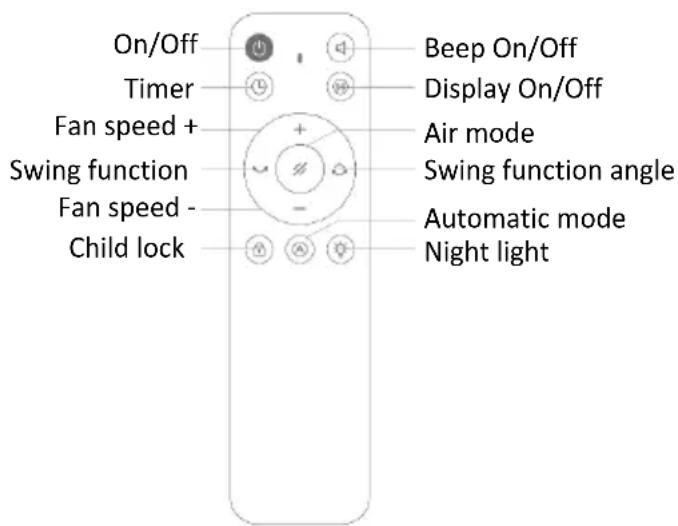

Remote control

Standpipe

Three technical illustrations of mechanical fasteners: a bolt, a screw, and a pin (no text or symbols present)

1x screw 1x bolt for base 1xlmbus key

Line drawing of a small electric motor with a coiled cable and terminal block (no text or symbols)

Power supply

Simple line drawing of a circular object with a small protrusion on top (no text or symbols)

Base

BE COOL

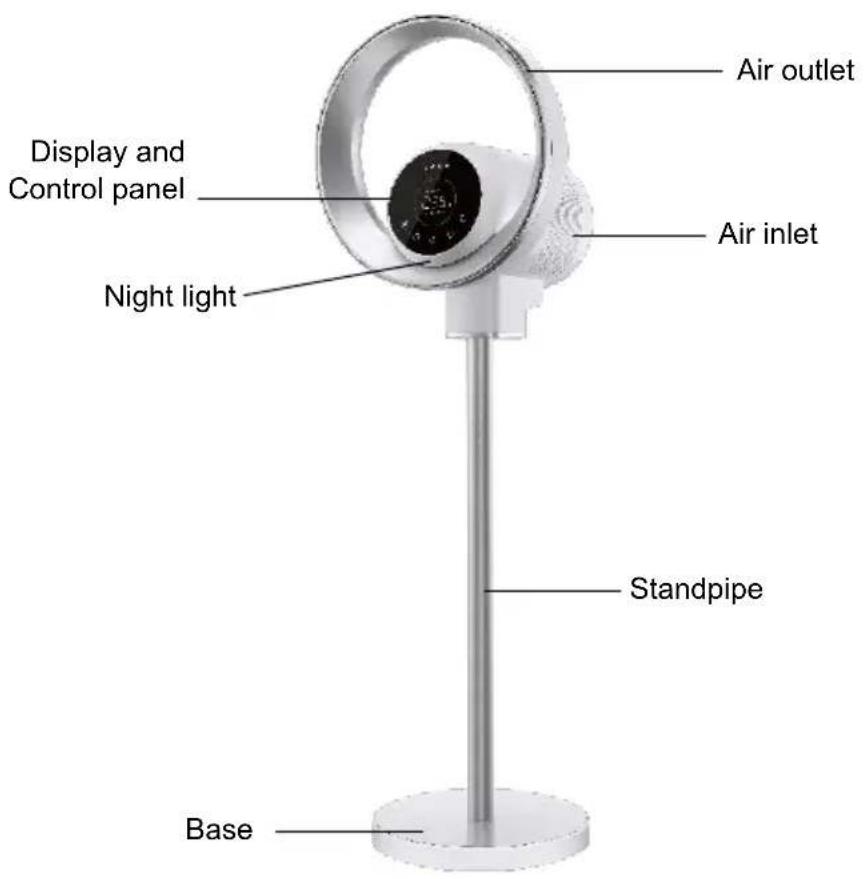

Product description

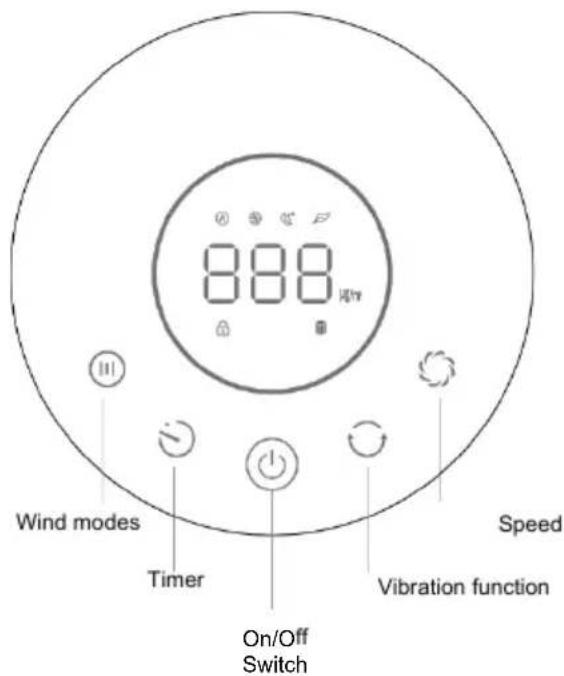

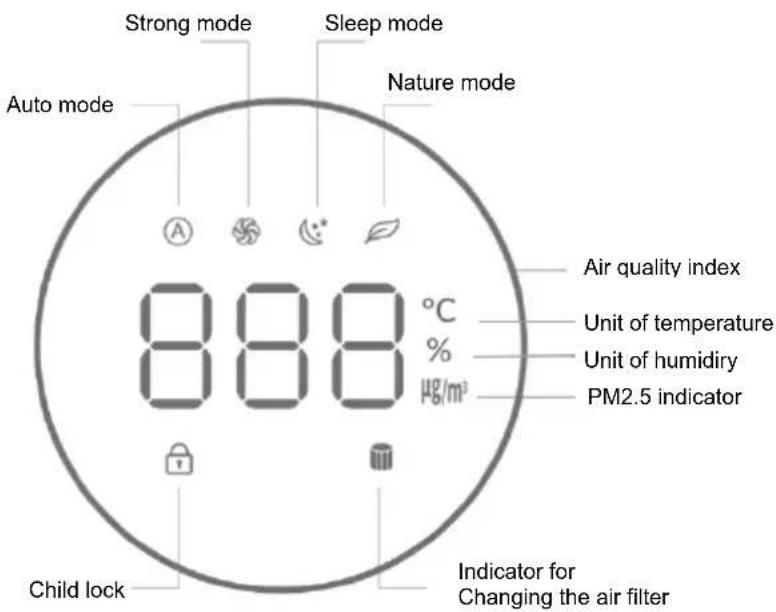

Air outlet Display and Control panel Air inlet Night light Standpipe Base

INSTALLATION

Preparation

• Estimated assembly time: 30 minutes
- Required tools for assembly: Allen key (included in delivery).

Assembly

After unpacking, first check the condition of the fan body and whether there are any defects and make sure that the entire scope of delivery is included.

If anything is missing from the scope of delivery, please contact our service centre.

BE COOL

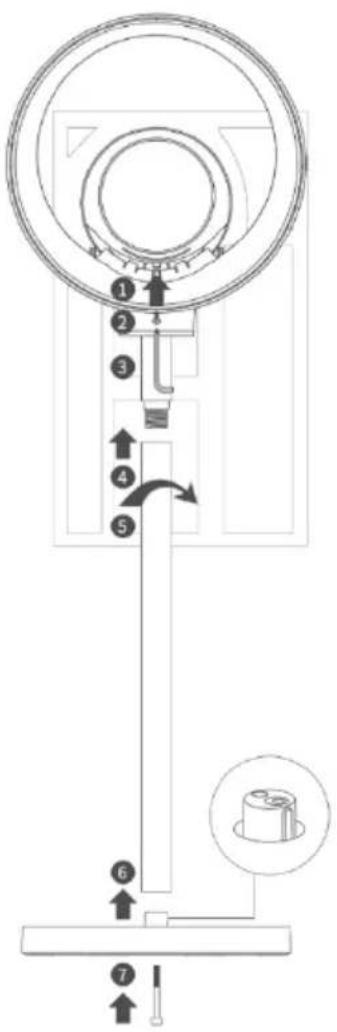

Assembling the fan

First place the main body on the foam as shown. Remove the plastic wrappings from the parts.

Step 1: Installing the air outlet ring

Install the air outlet ring on the main body of the fan.

Insert the fan air outlet ring screw into the hole at the bottom of the air outlet ring.

Use the spanner to tighten the air outlet ring screw clockwise.

Step 2: Installing the column

Insert the aluminium support of the fan into the bottom of the main body of the fan.

Turn the aluminium support clockwise until it is securely attached to the lower part of the main body.

Step 3: Installing the base

Install the aluminium support on the fan base as shown in the illustration. Make sure that the connecting part on the base is aligned with the groove inside the aluminium support.

Insert the fan base bolt into the hole at the bottom of the base.

Tighten the base bolt clockwise with the spanner.

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular diagram with a rectangular object inside and an arrow pointing to it, surrounded by small squares (no text or symbols)

BE COOL

Installing the air filter

Air filter Air filter cover

This product is equipped with a filter that can purify the air. The filter must be inserted into the main housing before use.

Installing the filter

• Turn the air filter cover anticlockwise to remove it.
• Place the air filter in the main housing as shown in the illustration.
• Replace the cover and turn it clockwise to secure it.

Filter cleaning reminder

This product is equipped with an air purification filter that should be inserted into the motor filter to purify the air before use. This product has a reminder function. After 720 hours of operation, the filter replacement indicator is turned on. After replacing the air filter, you can press and hold the On/Standby button on the remote control for 5 seconds to turn off the reminder and the operating time will accumulate again.

BE COOL

Control panel and display

888 Wind modes Timer On/Off Switch Vibration function Speed

Strong mode Sleep mode Nature mode Auto mode 888 °C % μg/m³ Air quality index Unit of temperature Unit of humidity PM2.5 indicator Child lock Indicator for Changing the air filter

BE COOL

Please observe the following instructions for the safe operation of the fan:

• Make sure that the fan is placed on a flat and stable surface. Placing it on an inclined surface may cause damage.
• Never block the air inlet or outlet of the fan as this may affect performance.
• Make sure that there are no obstacles within a distance of 30 cm in front of the air outlet so as not to obstruct the air circulation.

You can adjust the direction of the airflow to your liking by gently pushing the upper part of the fan's air outlet ring forwards or backwards. This allows the air to be directed either upwards or downwards.

Plug the fan into a power outlet and check that the voltage on the rating plate matches the voltage in your home. When the fan is properly connected, a single beep will sound and it will be in standby mode.

15° 15°

1. Switch on / off

When the fan is in standby mode, press the on / off button to switch the fan on in normal mode at the preset fan speed. When the fan is in operation, press the On / Off button again to switch it off.

1. Air mode

Press the air mode button to switch between four airflow modes. The indicator for the current mode lights up.

(A) Automatic mode: The fan automatically adjusts the airflow speed according to the PM2.5 level detected in real time.

PM2.5 value	0 - 35	36 - 70	71 - 120	121 - 999
Airflow velocity	01	03	05	09
Display colour	Green	Yellow	Orange	Red

BE COOL

Strong mode: The airflow speed is set to the highest level.

Sleep mode: The airflow speed and noise level are reduced to the lowest level.

Nature mode: The airflow speed alternates between 3, 4 and 5 in accession.

If the fan is in "Nature" mode, pressing it again will cancel any mode setting. You can also press the air speed button to exit the current mode.

3. Timer

A timer can be set to switch the fan OFF automatically. The timer can be set in 1-hour intervals up to 8 hours: 0→1→2...→8. You can adjust the timer setting by pressing the timer button repeatedly. The current timer setting is displayed. Each press increases the timer by 1 hour; if the timer setting is 8 hours, pressing once resets the setting to 0.

When the fan is OFF, the timer setting is cancelled.

4. Swivel function

Press this button to set the horizontal swing angle. There are four angle options that are changed with each press: 30^ , 60^ , 90^ , 120^ . The current swivel angle is displayed. A fifth press stops the swivel movement.

5. Air speed

Press this button to switch between 9 air speed levels from 1 to 9.

Press and hold this button for 2 seconds to enter strong mode where the air speed remains set at the highest level.

Using the remote control

1. After taking the remote control out of the packaging, remove the battery cover and insert 2 AAA batteries to use it directly.
2. When using the remote control, the transmitter of the front part of the remote control must be aligned with the reception window of the product.

BE COOL

Note: The reception window is located on the front of the Housing, above the button

1. The remote control can normally be used at a distance of about 3-5 metres from the front of the product and within a range of 30 degrees.
2. Avoid direct sunlight on the reception window so as not to impair the reception effect.
3. Store the remote control safely to avoid shocks and falls.
4. When inserting the battery, pay attention to the correct polarity. Never insert the wrong way round. (Use 2 AAA batteries)
5. If the unit is not used for a long time, please remove the battery and store it in an airtight place to avoid damage to the remote control and reduce battery consumption.

Functions and operation

On/Off Timer Fan speed + Swing function Fan speed - Child lock Beep On/Off Display On/Off Air mode Swing function angle Automatic mode Night light

1. Switch on / off

When the fan is in standby mode, press the on / off button to switch the fan on in normal mode at the preset fan speed. When the fan is in operation, press the On / Off button again to switch it off.

1. Air mode

BE COOL

Press the air mode button to switch between four airflow modes:

"Automatic", "Strong", "Sleep", "Natural". Press again when the fan is in "Natural" mode to cancel any mode setting. The mode setting is also cancelled when the air speed is adjusted. For more details on the different modes, see the "Air mode" section under "Operation".

1. Tilt function ON/OFF

Press this button to switch the horizontal swivel movement of the fan ON/OFF.

1. Swivel angle

When the fan's swivel movement is switched on, press this key to switch between the four horizontal swivel angles 30^ , 60^ , 90^ and 120^ . The current swivel angle is displayed. Please note that there is no reaction when the fan's swivel movement is switched off.

1. Timer

A timer can be set to switch the fan OFF automatically. The timer can be set in 1-hour intervals up to 8 hours: 0→1→2...→8. You can adjust the timer setting by pressing the timer button repeatedly. The current timer setting is displayed. Each press increases the timer by 1 hour; if the timer setting is 8 hours, pressing once resets the setting to 0.

When the fan is OFF, the timer setting is cancelled.

1. Air speed +/-

Press the +/- button to increase/decrease the air speed. There are 9 speed levels.

1. Beep ON/OFF

Press this button to turn the beep on/off when pressing the buttons.

1. Display ON/OFF

BE COOL

Press this button to turn the display screen illumination on/off. When the backlight is off, only the PM2.5 value and the on/off button are displayed.

9. Child lock

Press this key to switch the child lock on/off. When the child lock is activated, all buttons except the on/off button and the child lock button are invalid.

10. Automatic mode

Press this button to switch the automatic mode on or off. In this mode, the airflow speed is automatically adjusted according to the PM2.5 value detected in real time. For more details on the mode, see the section "Air Mode - Automatic" under "Operation".

11. Nightlight

Press this button to switch the nightlight on or off.

INTEGRATING THE UNIT INTO THE NETWORK

To successfully connect your device to the network, you need the detailed instructions in our manual. You can get them in two easy ways:

1. Download the app: Scan the QR code below or simply search for the "Smart Life" or "Tuya" app in the Apple App Store or the Google Play Store. Download the official app to help you connect your device to the network.
2. Download instructions: The detailed instructions for integrating your unit into the network are available as a PDF. Visit the instructions link to download the instructions. www.becool.at/downloads

APP

INSTRUCTION

BE COOL

Follow the steps in the instructions and in the app to easily connect your device to your network.

CLEANING

NOTE:

Always disconnect the mains plug from the socket before cleaning the appliance.

1. DO NOT immerse the unit in water or spray it with other liquids.
2. DO NOT use solvents or other chemical products for cleaning. Store the fan in a dry place when not in use.
3. When you stop using the fan at the end of the season, wipe off the dust to keep it in good condition for the next season. If necessary, dismantle the grille and remove the fan; clean it with a soft, damp cloth.

Cleaning the air filter

To clean the filter, use a hoover with a soft brush attachment. The brush should be passed gently over the filter to loosen any deposits.

The air filter should not be washed with water or other liquids as this may damage it.

BE COOL

Technical information
Rated voltage	24VDC, 1,5A
Nominal power	35 Watt
Sound level	57.4 dB(A)
Dimensions	380×1162×358 mm
Weight	7.0 kg
Information requirements of Regulation (EU) No. 206/2012
Article	BCBFLWiFi01
Rated	24VDC
Protection	II
Power consumption when switched off (POFF)	-
Seasonal electricity consumption (Q)	9.6 kWh/a
Designation	Symbol	Value	Unit
Maximum volume flow	F	9.7	m3/min
Fan power consumption	P	27.8	W
Service ratio	SV	0.35	(m3/min)/W
Power consumption in standby mode	PSB	0.6	W
Fan sound power level	LWA	57.4	dB(A)
Maximum air velocity	c	2.6	m/s
Measurement standard for determining the service ratio	IEC 60879:2019
Contact addresses for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] - 0www.becool.atFB-No: 236974 t / FB-Court: Vienna

BE COOL

GUARANTEE

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BECOOL appliance we grant a guarantee period of 2 years from the date of purchase, valid in Austria!

If, contrary to expectations, service work should nevertheless be necessary on your appliance during this period, we hereby guarantee to repair it free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a current value credit note.

In the case of air conditioners, please contact the customer hotline as a first step (see sticker on the unit or cover page of the operating instructions), in the case of fans, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

• We do not accept any liability for consequential damage in the event of improper use.
• Repair or replacement of parts due to normal wear and tear
• Damage due to non-observance of the operating instructions
• Devices that are used - even only partially - for commercial purposes
• equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
• Equipment that has been improperly handled
• Units that have not been opened by our authorised service workshop.
- Damage caused as a result of improperly closed condensation drain valves of air conditioners or improperly inserted water tank.
• Consumer expectations not met.
• Damage caused by force majeure, water, lightning, overvoltage.
• Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
• Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the warranty certificate, only the legal warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy your BE COOL appliance!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation: ....

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over to the authorised service centre together with the unit.

DECLARATION OF CONFORMITY

This declaration of conformity is issued under the sole responsibility of the manufacturer.

(1)

Schuss Home Electronic GmbH

Scheringgasse 3

1140 Wien, AUSTRIA

(II)

Declares, that the product

Hersteller

Producer

BE COOL

Bezeichnung

Description

Standventilator

Modell Nr.

Model No.

BCBLWifi01

is conformity with following directives, norms and/or regulations:

(III)

ErP Richtline / ErP directive 2009/125/EC

of 16 April 2014 amending Directives 2003/71/EC and 2009/138/EC and Regulations (EC) No 1060/2009,

(EU) No 1094/2010 and (EU) No 1095/2010 in respect of the powers of the European Supervisory Authority

(European Insurance and Occupational Pensions Authority) and the European Supervisory Authority

(European Securities and Markets Authority)

Article 3.2 Radio:

EN 300 328 V2.2.2 (2019-07)

Article 3.1(b) EMC:

EN 301 489-1 V2.2.3(2019-11); EN 301 489-17 V3.2.4(2020-09)

EN IEC 55014-1:2021; EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021

Article 3.1(a) Health:

EN 62311:2008, EN 50665:2017

EN 62233:2008

Article 3.1(a) Safety:

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-80:2003+A1:2004+A2:2009

EN 60335-2-65:2003+A1:2008+A11:2012

DECLARATION OF CONFORMITY

RoHS Directive: 2011/65/EU Directive of the European Parliament and of the Council of 8 June 2011

on the restriction of the use of certain hazardous substances in electrical and electronic equipment;

Official Journal of the EU L174, 1/07/2011, p. 88–110

Place and date of issue:

Vienna, 2025-07-28

SCHUSS HOME ELECTRONIC GMBH 1140 Wiel, Soleringesse 3 Tel. [phone], Fax 02-222 www.schuss-home.at

Authorized representative of manufacture

Scharl, Alexander

Senior product and purchasing manager i.V....

Name, Funktion / name, function

Unterschrift / signature

Declaration reference:

SCHUSS HOME ELECTRONIC GMBH

Scheringgasse 3, 1140 Wien, AUSTRIA
