USER MANUAL ESN530 RAPID

Technical diagram of a mechanical device with labeled parts A, D, I, H and directional arrows indicating motion or flow.

E F B

Illustration of hands installing or adjusting a device component with a tool (no text or symbols visible)

Diagram illustrating a hand holding a saw blade and cutting a component, with step 1 indicating the process.

Illustration of a hand inserting a device into a device with a cable, showing internal components (no text or symbols)

Hand holding a portable air conditioner with a hand pressing down, showing internal airflow direction (no text or symbols)

Technical line drawing of a mechanical component with labeled point G (no text or symbols beyond label)

Illustration of hands installing a device component with an arrow indicating the process (no text or symbols present)

Pure mechanical component diagram without any text, numbers, or symbols

Technical diagram of a mechanical component with internal structure and mounting features (no text or symbols)

Illustration of hands installing or adjusting a device casing with a tool (no text or symbols visible)

Illustration of a hand using a handheld device to press or install a device with a cable, showing internal components and a downward arrow (no text or symbols)

Diagram of a mechanical component with forceps and a numbered label (11), showing no text or symbols on the main subject.

Illustration of a hand pouring liquid into a device casing (no text or symbols)

GB Instructions 5

Complies to relevant EU directives

GENERAL POWER TOOLS SAFETY WARNINGS

WARNING!! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep your work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not

use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective

equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction

and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

TACKER SAFETY WARNINGS Always assume that the tool contains fasteners. Careless

handling of the tacker can result in unexpected firing of fasteners and personal injury.

Do not point the tool towards yourself or anyone nearby.

Unexpected triggering will discharge the fastener causing an injury.

Do not actuate the tool unless the tool is placed firmly against the work piece. If the tool is not in contact with the work piece, the fastener may be deflected away from your target.

Disconnect the tool from the power source when the fastener jams in the tool. While removing a jammed fastener, the tacker may be accidentally activated if it is plugged in.

Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition.

Do not use this tacker for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards.

The machine shall be used in a covered and dry area. The ambient temperature shall be included between 15°C and 30°C. The humidity level shall be less than 60%.

TECHNICAL SPECIFICATION

Model Number ESN530 ESN1	14
Staple type Rapid 53 Rapid 140
Staple length 6-14 mm 6-14 mm
Magazine capacity staple, max	157 pcs 90	pcs
Brad type, length Rapid T8, 15mm
Magazine capacity brad, max 90 pcs
Tool weight 0.94 kg
Voltage 220~240 V, 50Hz
Current 2A, fuse minimum 10A
Speed, maximum continuous 20 shots/min

NOISE EMISSION

A-weighted sound pressure level LpA=91.7 dB(A), uncertainty K=3 dB(A)

A-weighted sound power level LwA=102,7 dB(A), uncertainty K=3 dB(A)

Recommendation for the operator to wear hearing protection.

VIBRATION

Vibration total value=6,7 m/s2, uncertainty K=1.5 m/s2

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another.

The declared vibration total value may also be used in a preliminary assessment of exposure.

WARNING

The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used.

It's needed to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

ASSEMBLY

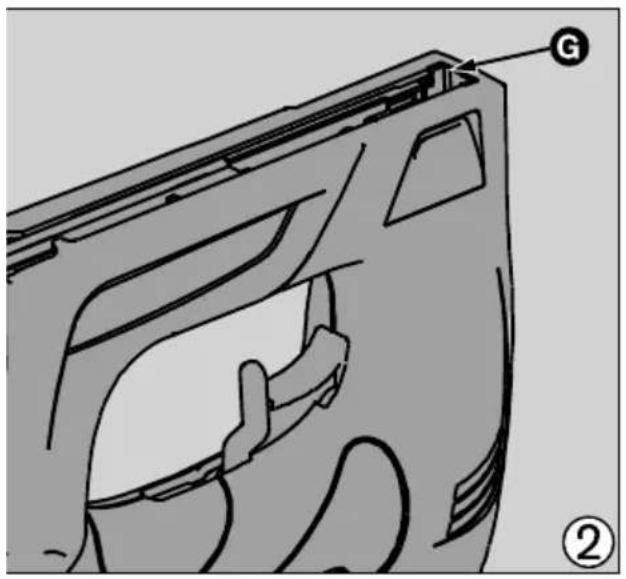

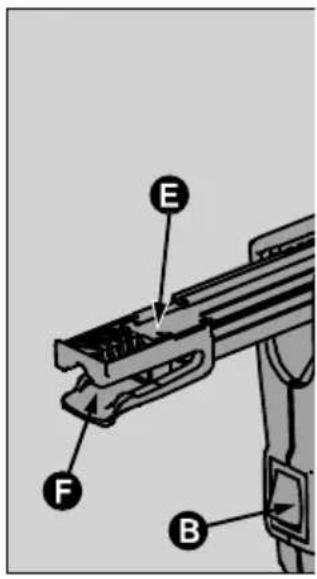

DEFINITIONS FIGURE 1 AND 2

Power Cord
B On/Off power switch
© Trigger Switch
D Trigger Safety Lock
Feeder unit
F Magazine Latch
G Staple output
H Work piece
① Specification label

LOAD STAPLES/BRADS INTO THE MAGAZINE

1. Turn off the power switch and unplug the tacker

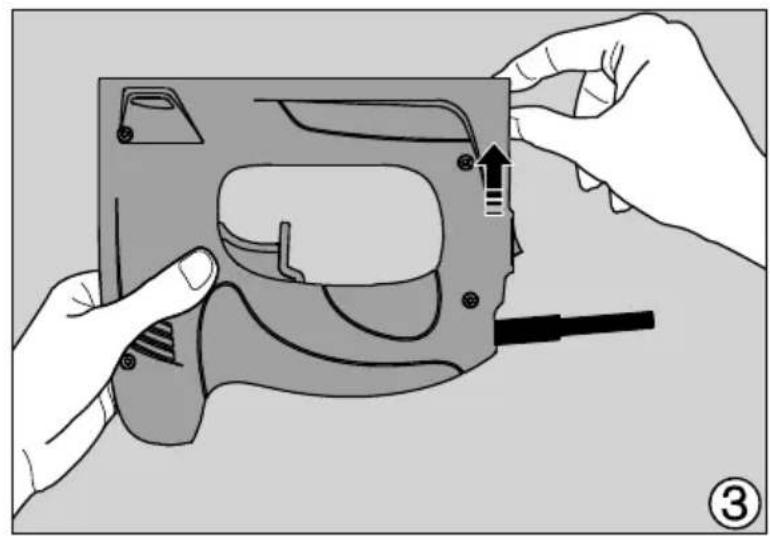

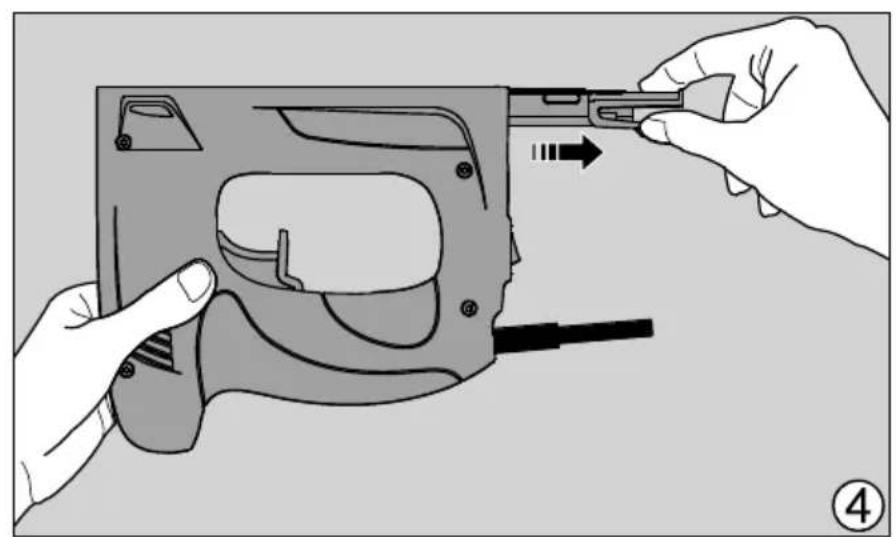

2. Hold tool upside down, squeeze latch and slide magazine open. Fig 3-4

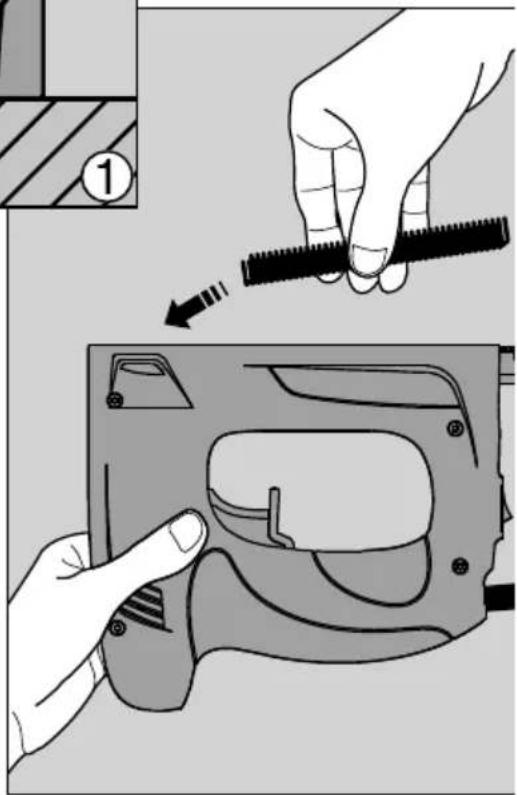

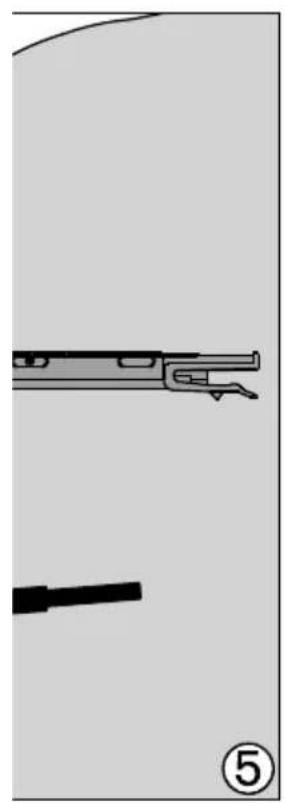

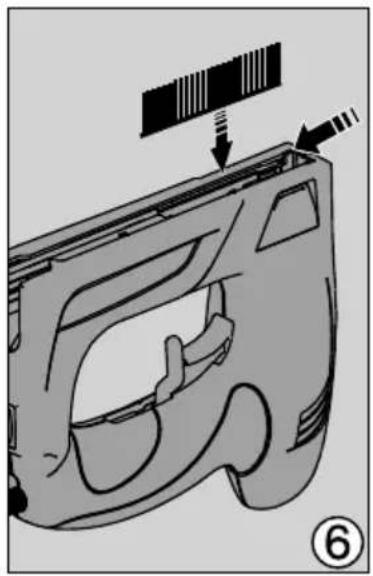

3. Put staples or brads in magazine, legs facing upward

and close magazine. Ensure brad strip stays upright in magazine. Fig 5 or 6

Use only recommended staples or brads

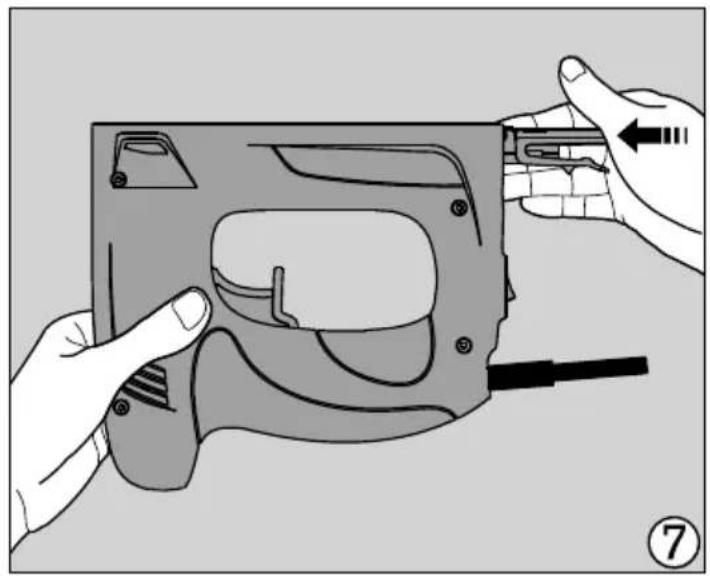

1. Close magazine and make sure it is securely locked. Fig 7

REMOVE STAPLES/BRADS FROM THE MAGAZINE

1. Turn off the power switch and unplug the tacker
2. Hold tool upside down, squeeze latch and pull out magazine.
3. Remove the staples / brads from the magazine
4. Close magazine.

OPERATION

STAPLING/NAILING

1. Plug stapler into a 220-240V, 50Hz power outlet.
2. Turn on the power switch.
3. Make sure the tool is in good working condition.

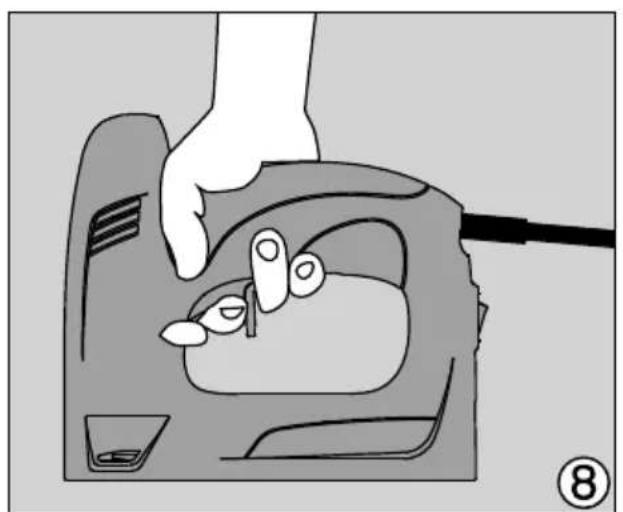

4. Hold the tacker firmly with the staple output fl at against the work piece. Fig 8

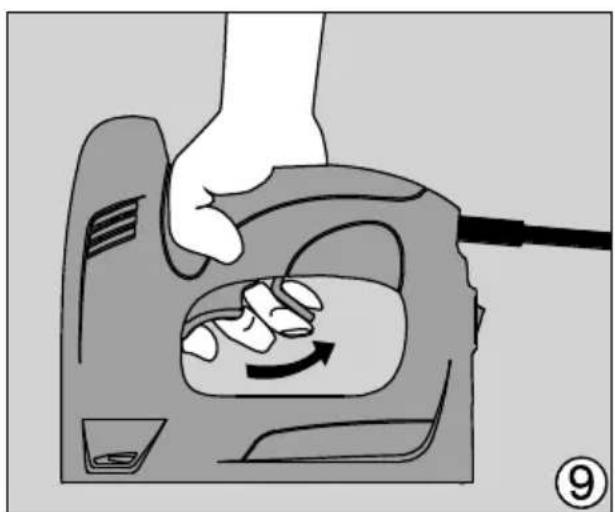

5. Squeeze Trigger Safety Lock and Trigger to fire the tacker. Fig 9-10.
6. Unplug tacker, turn off Power switch and set Trigger Safety Lock after use

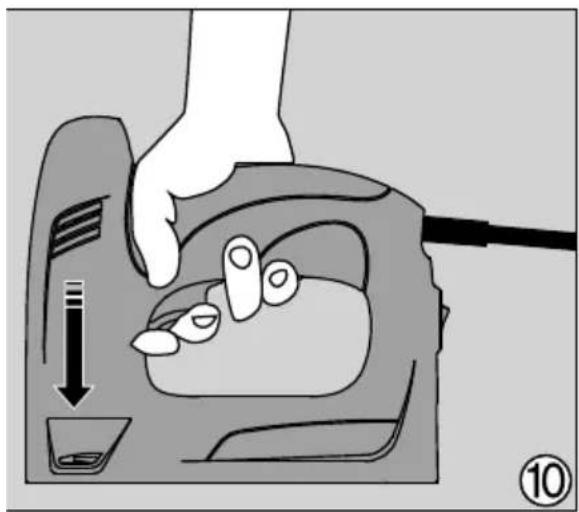

NOTE: For better performance press the tool against the work piece Fig 10

NOTE: In case of jammed staple or brad, read the maintenance section. DO NOT re-fi re the tool in order to clear the jam as this may damage the tool.

NOTE: During operation, the tool may feel warm. This is normal but if the tool starts to feel hot use shall be discontinued until it cools down.

NOTE: The tacker should be used only for the intended purposes. It is designed for use on wood or similar materials in indoor environment

GUIDELINES FOR USING EXTENSION CORDS

Recommended Minimum Wire Area (mm ^2 ) for Extension Cords

Up to 10m: 1,5 mm ^4

Up to-25m: 2,5mm ^4

Over 25m: not suitable

MAINTENANCE

STANDARD MAINTENANCE

1. Unplug tacker before any maintenance
2. Inspect all screws and tighten if necessary.
3. Keep all vents free from dust and dirt
4. Clean tool by a dry or damp cloth. NEVER use any solvent.
5. Keep the magazine channel clean.

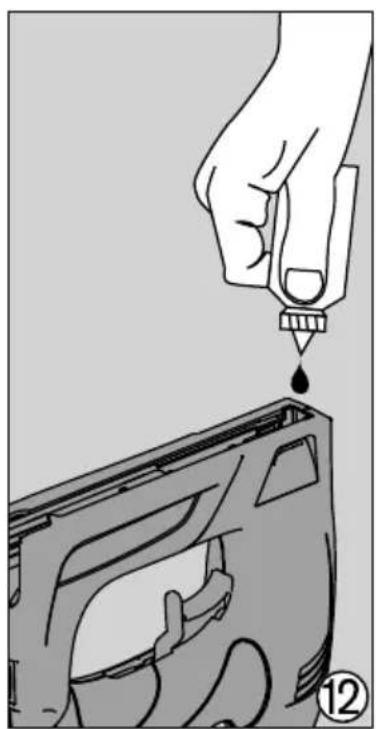

6. Lubricate staple output area with ONE drip of oil. Fig 12.

7. Be sure the tacker is not damaged. Replace or repair prior to use.

CLEARING A JAMMED STAPLE / BRAD

1. Turn off the power switch and unplug the tacker
2. Hold tool upside down, squeeze latch and pull out magazine.
3. Take out the loose staples / brads from the magazine

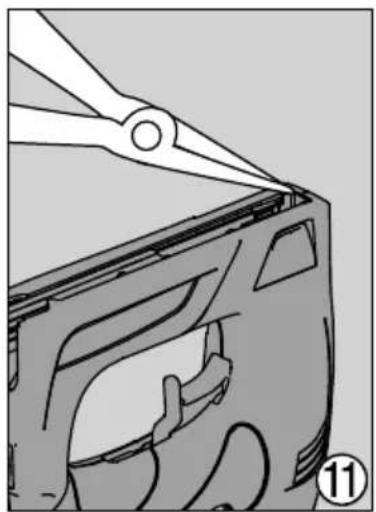

4. Use a small plier to remove the jammed staples. Fig 11

WARNING!!

DO NOT alter or parts on this tacker or attach special fixtures. This can lead to personal injury.

If the replacement of the supply cord is necessary this has to be done by a qualified service center in order to avoid a safety hazard.

ENVIRONMENT

Separate Collection. Do not dispose power tools into household waste! According to the European Directive 2012/19/EC on waste of electrical and electronic equipment

When the tool needs to be replaced, or if it is of no further use it should be brought to a separate collection centre for recycling.

ELEKTROTACKER

VEILIGHEIDSWAARSCHU- WINGEN VOOR TACKERS

LADDA KLAMMER/DYCKERT I MAGASINET

TA BORT KLAMMER/DYCKERT SOM HAR FASTNAT

INDF∅R HÄEFTEKLAMMER/DYKKERE I MAGASI-NET

FYLLE MAGASINET MED STIFTER/DYKKERTER

1. Slå av av/på-knappen og trekk ut ledningen på stiftemaskinen ut fra veggkontakten
2. Hold maskinen opp-ned, trykk på låsen og skyv ut magasinet. Fig. 3-4
3. Legg stifter eller dykkerter i magasinet med bena pekende opp, og lukk magasinet Pass på at dykkertremsen står loddrett i magasinet. Figur 5 eller 6 Bruk kun anbefalte stifter eller dykkerter.
4. Lukk magasinet og kontroller at det er forsvarlig låst. Fig. 7

FJERNE STIFTER/DYKKERTER FRA MAGASINET

STANDARD VEDLIKEHOLD

FJERNE EN STIFT / DYKKERT SOM HAR KILT SEG FAST
