Product Type	Thermal imager for iOS devices
Brand	Klein Tools
Model	TI222
Dimensions	27.2 × 54.0 × 18.5 mm
Weight	30.7 g
Sensor Resolution	10,800 pixels
Temperature Range	-20 °C to 400 °C (-4 °F to 752 °F)
Thermal Accuracy	±2 °C or ±2 % (whichever is greater)
Adjustable Emissivity	0.01 to 0.99 (default: 0.95)
Color Palettes	Iron, Rainbow, Grayscale
iOS Compatibility	iOS 11 or later, Lightning connector
Main Functions	Photos, videos, time-lapse videos, temperature alarms, differential temperature, selectable temperature
Drop Protection	2 m (6.6 ft)
Operating Altitude	2000 m (6562 ft)
Relative Humidity	< 95 % non-condensing
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature	-10 °C to 60 °C (14 °F to 140 °F)
Field of View	50°
Refresh Rate	9 Hz
Thermal Sensitivity	< 60 mK at 25 °C
Image/Video Format	JPG / MP4
Power Supply	Via iOS device (Lightning connector)
Maintenance and Cleaning	Wipe with a lint-free cloth without solvent
Safety	Eye protection recommended, do not open, do not expose to sunlight
Spare Parts and Repairability	No user-serviceable parts
General Information	Warranty: www.kleintools.com/warranty, Customer Service: 1 800 553-4676

Frequently Asked Questions - TI222 Klein Tools

How to connect the TI222 thermal imager to my iPhone?

Insert the Lightning connector of the imager into your iPhone's port. The Klein Tools Thermal Imager app opens automatically. Allow communication between the device and the app by tapping Allow.

What is the measurable temperature range?

The imager can measure temperatures from -20 °C to 400 °C (or -4 °F to 752 °F). The resolution is 0.1 °C/0.1 °F.

How to set the emissivity?

In the app settings, set the emissivity between 0.01 and 0.99. The default value is 0.95. Use the provided emissivity table or the app's FAQ for typical values.

Is the thermal imager waterproof?

No, it is not waterproof. Avoid exposure to excessive humidity. It supports relative humidity < 95 % non-condensing.

What to do if the app does not open automatically?

Check that your iPhone is running iOS 11 or later. Make sure the Klein Tools Thermal Imager app is installed from the App Store. If the problem persists, disconnect and reconnect the imager.

How to take a thermal photo?

In live view mode, point the camera at the subject and press the photo button (camera icon) in the app. The first photo requires photo access permission.

How to record a video?

Press the video recording button (video camera icon) in live view mode. The app will request microphone access for the first video. Tap OK to allow.

How to use temperature alarms?

In camera settings, enable high and low temperature alarms and set thresholds between -20 °C and 400 °C. When the temperature exceeds or falls below these thresholds, the imager sounds an alarm.

How to clean the imager?

Disconnect the imager from the iPhone. Wipe it with a clean lint-free cloth. Do not use abrasive cleaners or solvents.

Where to find the full manual?

The full manual is available in PDF format at notice-facile.com or on the Klein Tools website: www.kleintools.com. You can also download it for free from our page.

USER MANUAL TI222 Klein Tools

Thermal Imager for iOS Devices

• OVER 10,800 PIXELS TO TROUBLESHOOT HOT AND COLD SPOTS
• CAPTURE, STORE, AND SHARE IMAGES, VIDEO, AND TIME-LAPSE VIDEO
• DIFFERENTIAL AND TOUCH SCREEN TEMPERATURE
• HIGH AND LOW TEMPERATURE ALARMS
- SELECTABLE COLOR PALETTES
• COMPATIBLE WITH IOS 11 OR HIGHER

-4^-752^

-20^-400^

2m

ESPAÑOL pg. 13

FRANÇAIS p. 25

KLEIN TOOLS®

Made for

iPhone

CE UK CA

GENERAL SPECIFICATIONS

The Klein Tools TI222 Thermal Imager allows easy capture, storage, and sharing of images and video, including time-lapse video, for instant troubleshooting on your iOS device. Excellent resolution of 10,800 pixels, with your choice of color palettes. The meter features differential temperature, touch-point temperature, and high and low temperature alarms.

TI222 is compatible with iOS devices 11 or higher with Lightning connectors. The camera output is displayed on the iOS device using the Klein Tools Thermal Imager app, available for free from the App Store.

• Environment: Indoor or outdoor
- Operating Altitude: 6562 ft. (2000 m)
• Relative Humidity: <95% non-condensing
- Operating Temp: 32° to 122°F (0° to 50°C)
• Storage Temp: 14° to 140°F (-10° to 60°C)
- Sensor Resolution: 10800 pixels
- Pixel size: 17 m
• Spectral Response: 8 to 14μm
• Field of View (FOV): 50°
- Frame Rate: 9 Hz
• Sensitivity: <60 mK at 25°C
• Temperature Range: -4° to 752°F (-20° to 400°C)
• Temperature Resolution: 0.1°F, 0.1°C
• Temperature Accuracy: +/-2° or 2% (whichever is greater) NOTE: Not calibrated below 14°F (-10°C)
- Temperature Display: Differential temperature, high, center, and low crosshairs, and user-selectable temperature
• Temperature Settings: °F / °C
- Emissivity: 0.1 to 0.99 adjustable (0.95 default)
• Color Palettes: Ironbow, Rainbow, Grayscale
- Mobile Device: iOS 11 or higher
- Mobile App: App Store supported
- Image Format: JPG
• Video Format: MP4
- Dimensions: 1.07" × 2.13" × 0.73" (27.2 × 54.0 × 18.5 mm)
• Weight: 1.08 oz. (30.7 grams)
- Pollution degree: 2
- Drop Protection: 6.6 ft. (2m)

Specifications subject to change.

App Store, iPhone, and Lightning are registered trademarks of Apple Inc., registered in the U.S. and other countries.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used by Apple, Inc. under license.

⚠️ WARNINGS

To ensure safe operation and service, follow these instructions.

• Read the instructions to ensure safe operation.
  • Always wear approved eye protection.
• Do not use if the housing is damaged in any way.
• DO NOT use if the Lightning connector/adapter is damaged in any way.
• There are no user-serviceable parts inside. DO NOT open or attempt to repair.
  NOTE: Do not point the camera at the sun or any other strong energy source. This can affect the accuracy of the camera or cause damage to the sensor.

CAUTION

- Burn Hazard. Reflective materials may have a higher actual temperature than the measured temperature. Set emissivity to match the object being measured (see Emissivity section).

SYMBOLS ON TESTER

Warning or Caution

Read Instructions

European Economic Area directives

UKCA - United Kingdom Conformity Assessment

Do not place equipment and its accessories in the trash

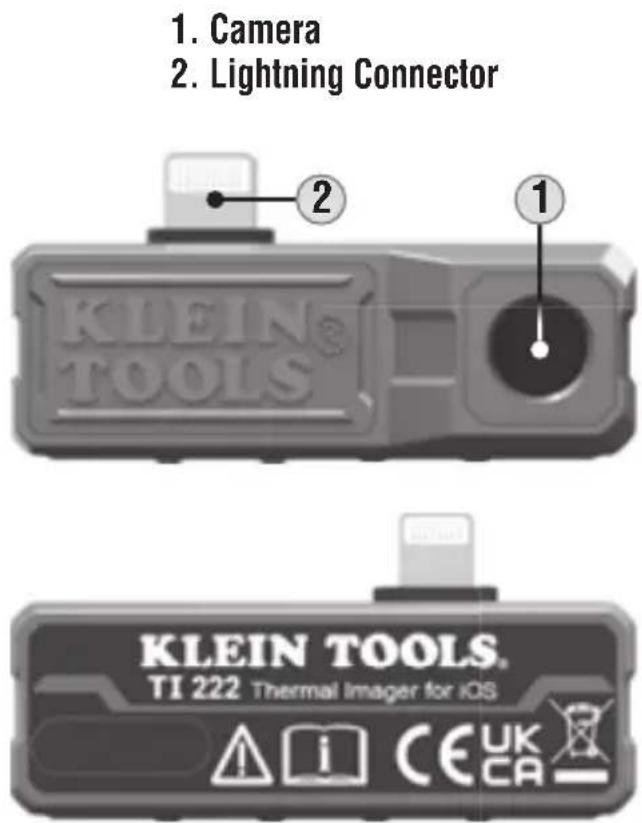

FEATURE DETAILS

FIG. A

1. Camera
2. Lightning Connector

DISPLAY DETAILS

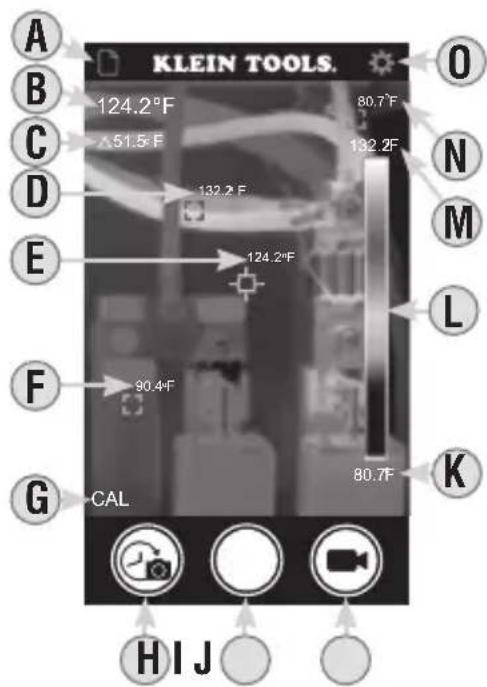

FIG. B

LIVE MODE SCREEN

KLEIN TOOLS. A B 124.2°F C 51.5°F D 132.2°F E 124.2°F F 90.4°F G CAL H I J O N M L K

A. Photo/Video Gallery
B. Center Point Temperature
C. Differential Temperature
D. Red Marker (High Temperature)
E. White Marker (Center Point Temperature)
F. Gray Marker (User-Selectable Temperature)
G. Calibrating Icon
H. Time-Lapse Video Capture Button
I. Photo Capture Button
J. Video Capture Button
K. Lowest Temperature
L. Live Temperature Color Palette
M.Highest Temperature
N. Green Marker (Low Temperature)
O. Settings

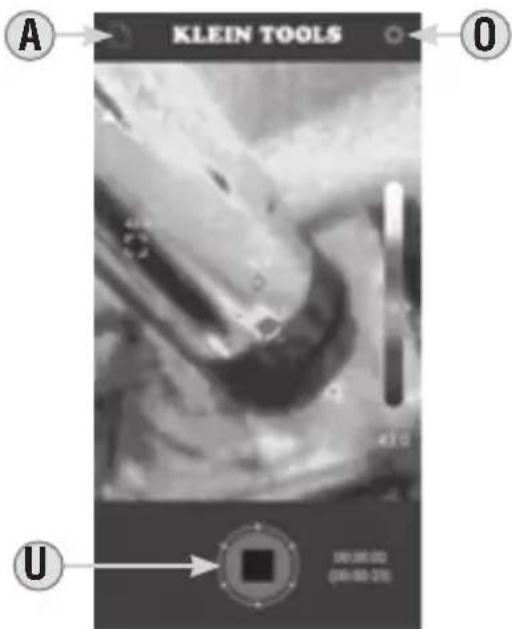

FIG. C

TIME-LAPSE MODE SCREEN

KLEIN TOOLS A O U 00:00:00 (00:00:25)

A. Photo/Video Gallery
0. Settings
U. Stop Button

DISPLAY DETAILS

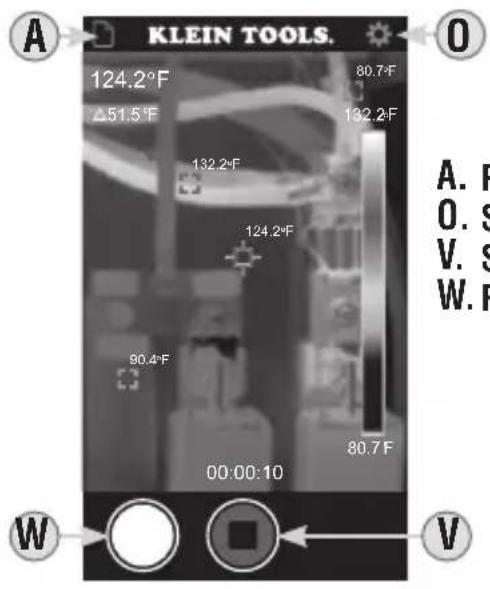

FIG. D
VIDEO MODE SCREEN

KLEIN TOOLS. 124.2°F 80.7°F Δ51.5°F 132.2°F 132.2°F 124.2°F 90.4°F 80.7°F 00:00:10 W V A. P O. S V. S W. F

A. Photo/Video Gallery

1. Settings

V. Stop Button

W. Photo Capture Button

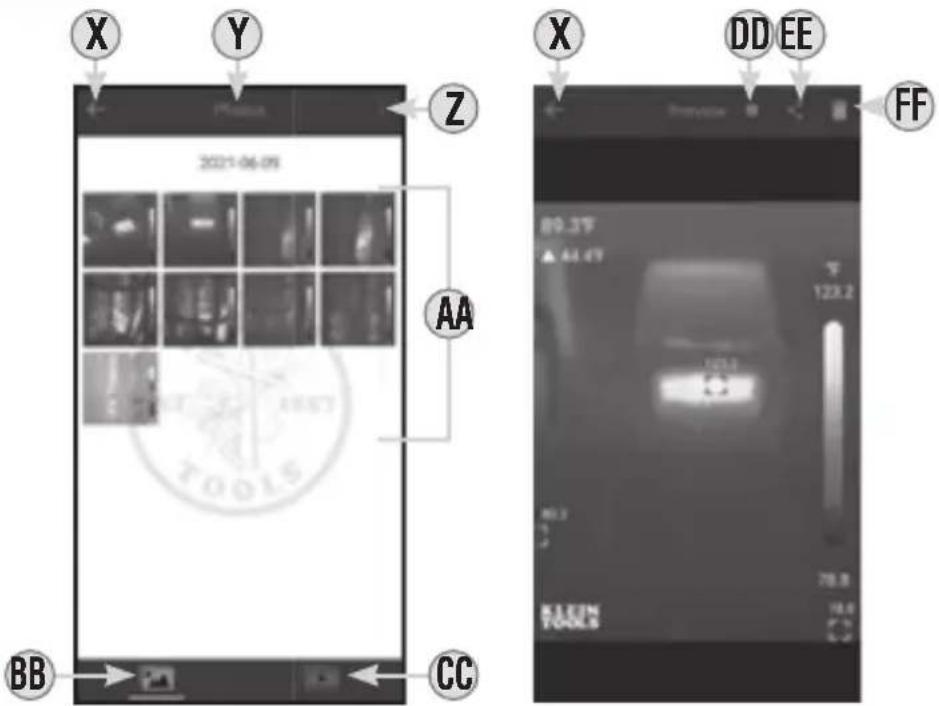

FIG. E
GALLERY MODE SCREENS

X Y Z 2021-06-09 AA BB CC X DD EE FF

X. Previous Screen Icon

Y. Active Menu (Photo or Video Gallery)

Z. More Selection Options

AA. Files

BB. Photo Gallery

CC. Video Gallery

DD. File Information

EE. Copy/Share Selected File(s)

FF. Delete Selected File(s)

DISPLAY DETAILS

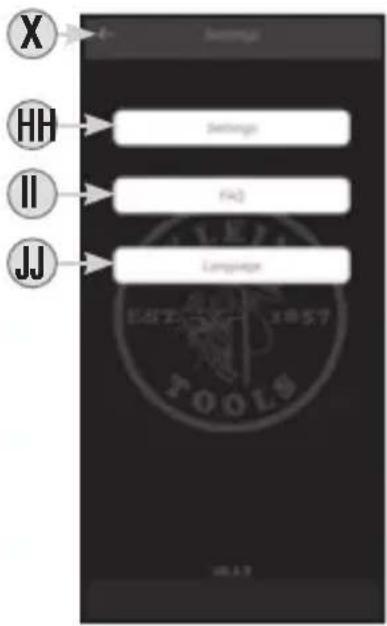

FIG. F

SETTINGS SCREEN

X. Previous Screen Icon

HH. Camera Settings Button

II. Frequently Asked Questions Button

JJ. Language Button

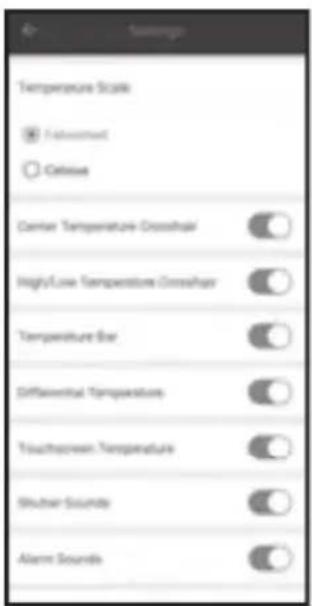

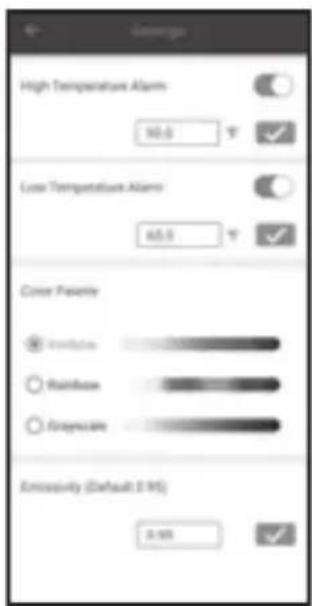

CAMERA SETTINGS SCREENS HH

Temperature Scale: ● Radiocond ○ Optise Center Temperature Crosshair High/Low Temperature Crosshair Temperature Bar Differential Temperature Touchscreen Temperature Blutter Sounds Alarm Sounds

High Temperature Alarm 90.0 ° Low Temperature Alarm 65.0 ° Cover Panel ✓ Infiltrate ○ Reinforce ○ Grayscale Emissivity (Default 0-RS) 2.0%

Tissue Capture Setting Show (3x fps) Medium (20 fps) Float (1% fps)

OPERATING INSTRUCTIONS

DOWNLOADING THE APP

The Klein Tools Thermal Imager app is required for functionality. The app is available for free from the App Store, or by scanning the QR code below.

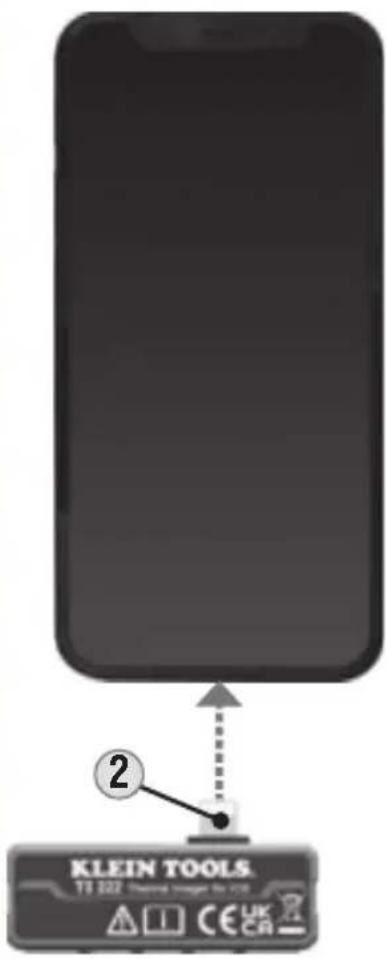

CONNECTING YOUR DEVICE

1. Turn on your iOS device.
2. Insert the Lightning connector ② directly into your device (FIG. G). NOTE: Fits phone cases up to 1/16" (1.5 mm) thick. Phone cases thicker than 1/16" (1.5 mm) may require removal of case for secure connection.
3. Connecting your device will automatically open the app, and a popup will ask for confirmation: Klein TI222 would like to communicate with the Klein Tools Thermal Imager for iOS Devices." Tap "Allow" (FIG. H).

FIG. G

2 KLEIN TOOLS. 13.022 (Standard design for use) CE UK CA

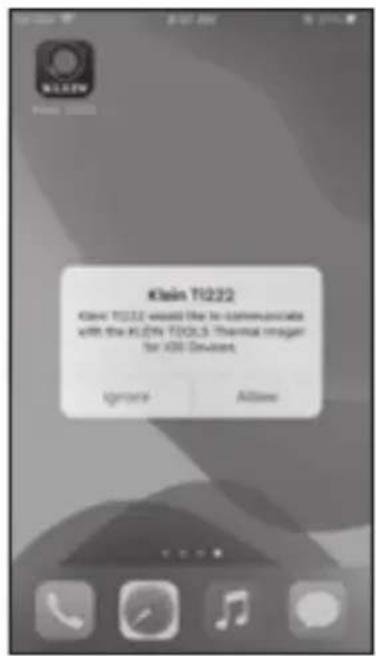

FIG. H

Klein Ti222 Klein Ti222 would like to communicate with the iOS FIOS.5 Thermal Image for iOS Devices. Ignore Allbox

Scan QR code for free download of the Klein Tools TI222 app

QR code image containing encoded data, no visible human-readable text

OPERATING INSTRUCTIONS

PHOTO CAPTURE

While in Live View mode (see FIG. B), aim the Camera ① at the subject to be photographed and tap the Photo Capture button ① to take a photo.

NOTE: When the first photo is captured, the app will ask permission, "Klein TI222 would like to access your photos". Tap "Allow Access to All Photos" (FIG. 1).

TIME-LAPSE VIDEO CAPTURE (FIG. C)

1. While in live view mode (see FIG. B), aim the Camera ① at the subject to be recorded.
2. Tap the Time Lapse Video Button Ⓗ to begin recording time-lapse video capture.
3. To stop recording and exit Time Lapse mode, tap the Stop Button U.

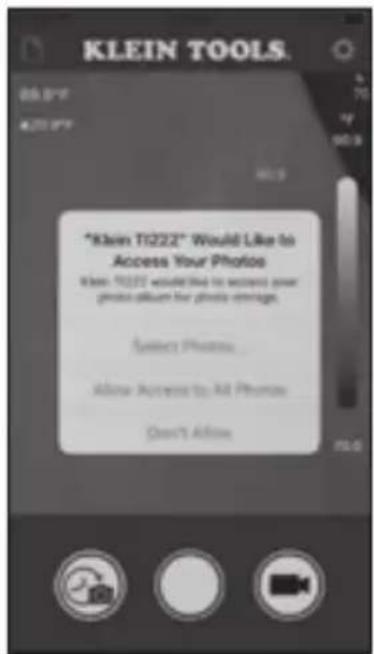

FIG. I

"Klein Ti222" Would Like to Access Your Photos Klein Ti222 would like to access your photos album for photos storage. Select Photos Allow Access to All Photos Don't Allow

OPERATING INSTRUCTIONS

VIDEO CAPTURE (FIG. D)

1. While in Live View mode (see FIG. B), aim the Camera ① at the subject to be recorded and tap the Video Capture button J. NOTE: Before the first video is captured, the app will request permission, "Klein TI222 Would like to Access the Microphone". Tap "OK" (FIG. J).
2. Tap the Photo Capture Button ^W while recording is active to capture still images of the subject.
3. To stop recording and Exit Video Capture mode, tap the Stop button v.

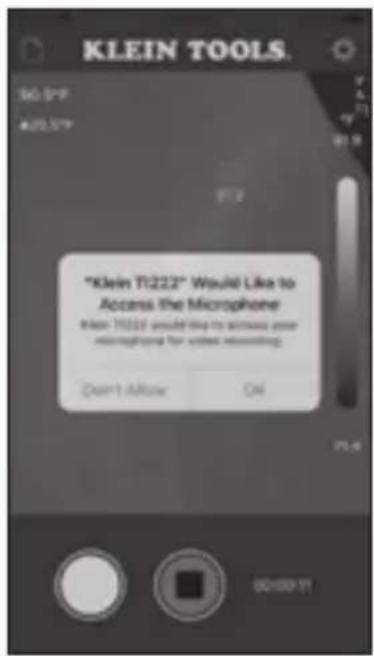

FIG. J

"Klein T1222" Would Like to Access the Microphone When T1222 would like to access your microphone for video recording. Don't Allow OK 00:00:17

VIEWING AND MANAGING PHOTOS AND VIDEO FILES

To access the photo and/or video galleries, tap the Photo/Video Gallery icon A, then select the Photo Gallery BB or Video Gallery CC. To select multiple files or all files at once, tap the "More Selection Options" button Z. Tap on a file AA to view. Once a file is selected, you can tap the "File Information" icon DD to show additional information about the file, the "Share" icon EE to view your device's options for file sharing, or the "Delete" button FF to delete the file. Touch and hold a file AA to enable multiple selections. To exit the Photo/Video mode, tap the "Previous" icon X to return to Live View mode.

OPERATING INSTRUCTIONS

ADJUSTING SETTINGS (FIG. F)

While in Live View mode (see FIG. B), tap the Settings icon 0 and tap one of the buttons to view/adjust the following settings:

Camera Settings HH:

• Temperature Scale: Select °F or °C (default is °F)
  • High/Low Temperature Crosshair: On/Off (default is On)
• Center Temperature Crosshair: On/Off (default is On)
• Temperature Bar: On/Off (default is On)
• Differential Temperature: On/Off (default is On)
• Touchscreen Temperature: On/Off (default is On)
• Shutter Sounds: On/Off (default is On)
• Alarm Sounds: On/Off (default is On)
• High/Low Temperature Alarm: Select Temperature, On/Off, enter temperature from -4 to 752°F (-20 to 400°C)
  • Color Palette: Select Ironbow, Rainbow, or Grayscale (default is Ironbow)
• Emissivity: Enter emissivity from 0.01 to 0.99 (default is 0.95)
• Time Lapse: Change capture interval by selecting either slow (4 fps), medium (8 fps), or fast (16 fps) (default is medium (8 fps)).

Frequently Asked Questions (FAQ) Ⅱ:

- Helpful tips for using the Thermal Imager

Language JJ:

- Select English, Spanish, or French

EMISSIVITY

Emissivity is a measure of the ability of a surface to emit thermal energy by radiation. Different types of surfaces (metals, masonry, wood, etc.) emit thermal energy through radiation at different efficiencies. Accordingly, these materials have different emissivity coefficients which must be considered in order to make accurate measurements with an infrared thermometer.

Emissivity on the TI222 may be adjusted from 0.01 to 0.99 to enable accurate measurement of the temperature of most types of materials. Generally speaking, shiny bright surfaces such as chrome, white boards, etc. exhibit lower emissivity than flat black materials.

For guidance only, the chart on the next page may be used to estimate emissivity for many different types of materials. However, the emissivity of surfaces is dependent upon many parameters such as surface finish, temperature, shape of the object, etc.

OPERATING INSTRUCTIONS

This chart should be used for guidance only.

Material Emissivity
Asphalt 0.93
Red brick 0.93
Gray brick 0.75
Porcelain ceramic 0.92
Fired clay 0.91
Rough concrete 0.94
Cotton cloth 0.77
Smooth glass 0.92 - 0.94
Granite 0.45
Gravel 0.28
Smooth ice 0.97
Smooth white marble 0.56
Black paint 0.96
Hard rubber 0.94
Wood 0.80 - 0.90
Matte copper	0.22
Commercial sheet aluminum	0.09
Cold rolled steel	0.75 - 0.85

Find a comprehensive list of emissivity values in the app's FAQ section or visit www.kleintools.com/emissivity.

CLEANING

Be sure unit is not connected to a device and wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents.

STORAGE

Do not expose to high temperatures or humidity. After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow unit to return to normal operating conditions before using.

FCC & IC COMPLIANCE

See this product's page at www.kleintools.com for FCC compliance information

Canada ICES-003 (B) / NMB-003 (B)

WARRANTY

Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov/recycle for additional information.

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-800-553-4676

[e-mail]

www.kleintools.com

KLEIN TOOLS A O U 00:00:00 (24:00:21)

X Y 2021-06-09 Z AA BB CC X DD EE FF

Temperature Scale ● Radio/USB ○ Cell/Bus Carrier Temperature Crosshair High/Low Temperature Crossbar Temperature Bar Differential Temperature Touchscreen Temperature Shutter Sounds Alarm Sounds

George High Temperature Alarm 90.0 °F Low Temperature Alarm 65.0 °F Color Pattern White Rainbox Greycoat Emissurity (Default: 0.95) 3.0%

Tunnel Lagoon Setting Show (3x fps) Maximum (3x fps) Reset (3x fps)

KLEIN TOOLS. 17.022 Brand logo for PC CE UK CA

FIG. H

Klein T1222 Know T1222 would like to communicate with the KLEZ's TOOLS Thermal Image for XRS-Deviant Ignore All OK

QR code image containing encoded data, no visible human-readable text

"Klein T1222" Would Like to Access Your Photos Klein T1222 would like to access your photo album for privacy storage. Select Photo... Allow Access to All Photos Don't Allow

"Klein T1222" Would Like to Access the Microphone When "T1222" would like to access your microphone for video recording. Don't Allow: OK 00:00:11

VER Y GESTIONAR ARCHIVOS DE FOTOS Y VIDEOS

X Y 2021-06-09 Z AA BB CC X DD EE FF

Temperature Scale Radioreset Cohise Center Temperature Crosshatch High/Low Temperature Crosshatch Temperature Bar Differential Temperature Touchscreen Temperature Shutter Sounds Alarm Sounds

High Temperature Alarm 90.0 °F Low Temperature Alarm 65.0 °F Color Preference Vinblast Rainbase Greycoat Emission (Default: 0 MHz) 3.0%

Tune Cupout Setting ○ Shine (30 fps) ● Maximum (20 fps) ○ Float (15 fps)

INSTRUCTIONS D'UTILISATION

TÉLÉCHARGEMENT DE L'APPLICATION

2 KLEIN TOOLS. 13.022 (Standard image to PC) CE UK CA

FIG. H

Klein Ti222 Kwin Ti222 would like to communicate with the iOS FIOSL3 Thermal Image for iOS Devices. Ignore Allure

QR code image containing encoded data, no visible human-readable text

INSTRUCTIONS D'UTILISATION

PRISE DE PHOTOS

"Klein Ti222" Would Like to Access Your Photos Klein Ti222 would like to access your photo adsq for photo storage. Save Photos... Allow Access to All Photos. Don't Allow

INSTRUCTIONS D'UTILISATION

ENREGISTREMENT VIDÉO (FIG. D)

"Klein Ti222" Would Like to Access the Microphone Klein Ti222 would like to access out microphone for video recording. Don't Allow On 00:00:01

VISUALISATION ET GESTION DE PHOTOS ET DE VIDÉOS
