Product Type	Thermal imager for Android devices
Brand	Klein Tools
Model	TI220
Dimensions	27.2 × 54.0 × 18.5 mm (1.07 × 2.13 × 0.73 in)
Weight	30.7 g (1.08 oz)
Power supply	Via Android device (USB-C or micro USB connector)
Sensor resolution	10,800 pixels
Temperature range	-20 °C to 400 °C (-4 °F to 752 °F)
Thermal accuracy	±2 °C or ±2 % (whichever is greater)
Temperature resolution	0.1 °C (0.1 °F)
Spectral response	8 to 14 µm
Field of view	50°
Refresh rate	9 Hz
Color palettes	Iron, rainbow, grayscale
Main functions	Photo, video, interval video; differential temperature; temperature reticles; high/low alarms; adjustable emissivity
Compatibility	Android 6.0 or later; free app on Google Play
Connectivity	USB-C and micro USB (adapter included)
Drop protection	2 m (6.6 ft)
Operating temperature	0 °C to 50 °C (32 °F to 122 °F)
Storage temperature	-10 °C to 60 °C (14 °F to 140 °F)
Relative humidity	< 95% non-condensing
Maintenance and cleaning	Wipe with a clean, lint-free cloth; do not use abrasive cleaners or solvents
Safety	Do not open the housing; do not point at the sun; eye protection recommended
Spare parts and repairability	No user-serviceable parts; do not open
General information	Warranty and recycling: www.kleintools.com/warranty

Frequently Asked Questions - TI220 Klein Tools

How to connect the TI220 thermal imager to my Android phone?

Connect the USB-C connector directly to your Android device (or use the included micro USB adapter if needed). The app opens automatically. Allow the app to access photos and media on first use.

What color palettes are available?

Three palettes are available: Iron, Rainbow, and Grayscale. You can select them in the camera settings menu.

How to adjust emissivity?

Emissivity can be adjusted from 0.01 to 0.99 in the camera settings. The default is 0.95. Use the emissivity table provided in the manual or app to choose the correct value for the material.

Can I use the TI220 without the app?

No, the Klein Tools thermal imager app, available for free on Google Play, is necessary to display images and use all features.

How to take a thermal photo?

In real-time display mode, point the camera at the subject and press the on-screen photo button. Photos are stored in the app's gallery.

What to do if the image does not display?

Check that the Android device is on and the connector is fully inserted. Make sure the app is installed and up to date. If the problem persists, restart the device and try again.

How to clean the thermal imager?

Unplug the device, then wipe it with a clean, lint-free cloth. Do not use abrasive cleaners or solvents.

Is the imager waterproof?

No, the device is not waterproof. Avoid exposure to water or excessive humidity. Maximum relative humidity is 95% non-condensing.

What do the temperature indicators on the screen mean?

The indicators display the temperature at the center point (white), the highest temperature (red), the lowest (green), a differential temperature (Δ), and a user-selectable point (gray). You can enable/disable these options in settings.

How to share a photo or video?

In the app's gallery, select a file, then tap the share icon to use your device's sharing options (email, social media, etc.).

USER MANUAL TI220 Klein Tools

Klein Tools TI220 Thermal Imager allows easy capture, storage, and sharing of images and video, including time-lapse video, for instant troubleshooting on your Android® device. Excellent resolution of over 10,800 pixels, with your choice of color palettes. The meter features differential temperature, touch-point temperature, and high and low temperature alarms.

TI220 has USB-C and micro-USB connections for most Android ^® smart phones and devices. The camera output is displayed on the Android ^® device using the Klein Tools Thermal Imager App, available for free from Google Play ^™ store.

• Environment: Indoor or outdoor
- Operating Altitude: 6562 ft. (2000 m)
• Relative Humidity: <95% non-condensing
- Operating Temp: 32^ to 122^ (0° to 50°C)
• Storage Temp: 14° to 140°F (-10° to 60°C)
- Sensor Resolution: 10800 pixels
- Pixel size: 17 m
• Spectral Response: 8 to 14μm
• Field of View (FOV): 50°
- Frame Rate: 9 Hz
• Sensitivity: <60 mK at 25°C
• Temperature Range: -4^ to 752^ F ( -20^ to 400^ C)
• Temperature Resolution: 0.1°F, 0.1°C
- Temperature Accuracy: +/-2^ or 2% (whichever is greater) NOTE: Not calibrated below 14^ (-10^)
- Temperature Display: Differential temperature, high, center, and low cross hairs, and user-selectable temperature
• Temperature Settings: °F / °C
- Emissivity: 0.1 to 0.99 adjustable (0.95 default)
• Color Palettes: Ironbow, Rainbow, Grayscale
- Mobile Device: Android ^® 6.0 or higher
- Mobile App: Google Play supported
- Image Format: JPG
• Video Format: MP4
- Dimensions: 1.07" × 2.13" × 0.73" (27.2 × 54.0 × 18.5 mm)
• Weight: 1.08 oz. (30.7 grams)
- Pollution degree: 2
- Drop Protection: 6.6 ft. (2m)

Specifications subject to change.

Android ^® a is a registered trademark of Google LLC. Google Play ^™ store is a trademark of Google LLC.

⚠️ WARNINGS

To ensure safe operation and service, follow these instructions.

• Read the instructions to ensure safe operation.
  • Always wear approved eye protection.
• Do not use if the housing is damaged in any way.
• DO NOT use if the USB-C connector, micro-USB connector/adapter is damaged in any way.
• There are no user-serviceable parts inside. DO NOT open or attempt to repair.
  NOTE: Do not point the camera at the sun or any other strong energy source. This can affect the accuracy of the camera or cause damage to the sensor.

CAUTION

- Burn Hazard. Reflective materials may have a higher actual temperature than the measured temperature. Set emissivity to match the object being measured (see Emissivity section).

SYMBOLS ON TESTER

Warning or Caution

Read Instructions

European Economic Area directives

UKCA - United Kingdom Conformity Assessment

Do not place equipment and its accessories in the trash

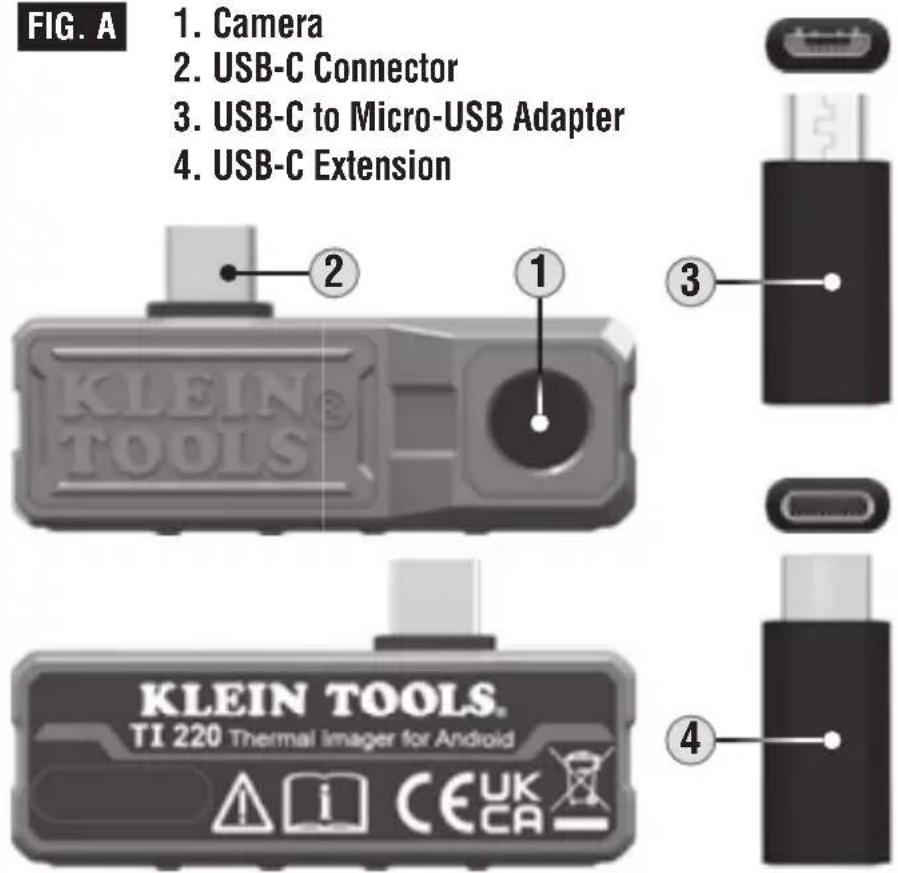

FEATURE DETAILS

FIG. A 1. Camera 2. USB-C Connector 3. USB-C to Micro-USB Adapter 4. USB-C Extension KLEIN TOOLS® TI 220 Thermal Imager for Android CEUK CA

DISPLAY DETAILS

FIG. B

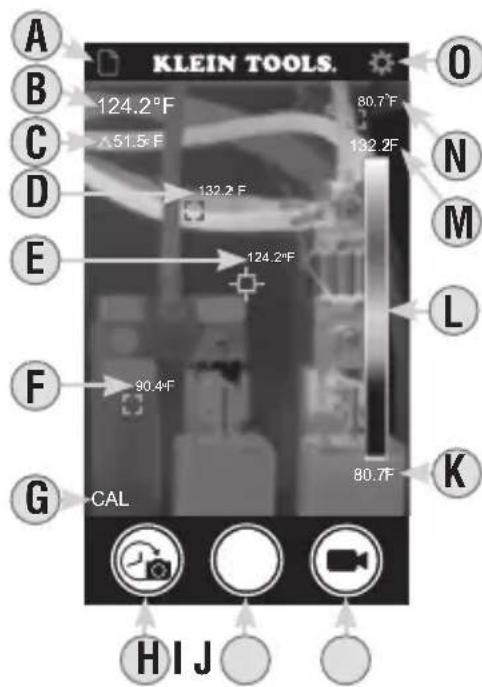

LIVE MODE SCREEN

KLEIN TOOLS. A B 124.2°F C 51.5°F D 132.2°F E 124.2°F F 90.4°F G CAL 80.7°F O N M L K HI J

A. Photo/Video Gallery
B. Center Point Temperature
C. Differential Temperature
D. Red Marker - High Temperature
E. White Marker - Center Point
F. Gray Marker (User-Selectable)
G. Calibrating Icon
H. Time-Lapse Video Capture Button
I. Photo Capture Button
J. Video Capture Button
K. Lowest Temperature
L. Live Temperature Color Palette
M.Highest Temperature
N. Green Marker - Low Temperature
O. Settings

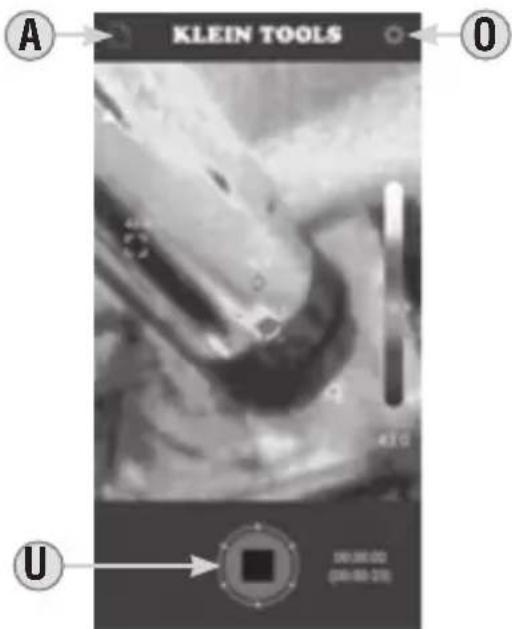

FIG. C
TIME-LAPSE MODE SCREEN

KLEIN TOOLS O A U 00:00:00 (00:00:25)

A. Photo/Video Gallery
0. Settings
U. Stop Button

DISPLAY DETAILS

FIG. D

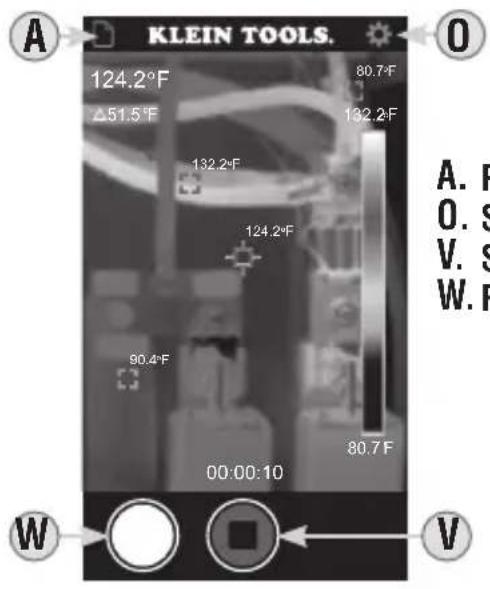

VIDEO MODE SCREEN

KLEIN TOOLS. 124.2°F 80.7°F Δ51.5°F 132.2°F 132.2°F 124.2°F 90.4°F 80.7°F 00:00:10 W V A. F O. S V. S W. F

A. Photo/Video Gallery

1. Settings

V. Stop Button

W. Photo Capture Button

FIG. E

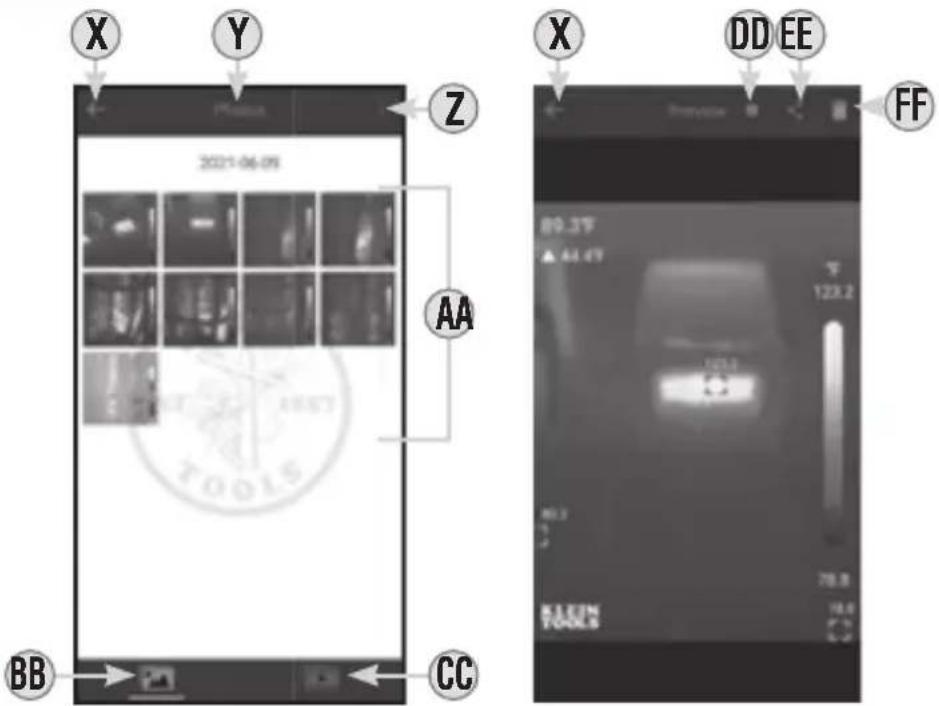

GALLERY MODE SCREENS

X Y Z 2021-06-09 AA BB CC X DD EE FF

X. Previous Screen Icon

Y. Active Menu (Photo or Video Gallery)

Z. More Selection Options

AA. Files

BB. Photo Gallery

CC. Video Gallery

DD. File Information

EE. Copy/Share Selected File(s)

FF. Delete Selected File(s)

DISPLAY DETAILS

FIG. F

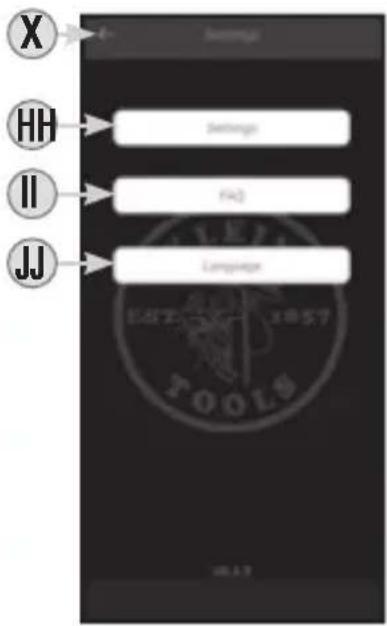

SETTINGS SCREEN

X. Previous Screen Icon

HH. Camera Settings Button

II. Frequently Asked Questions Button

JJ. Language Button

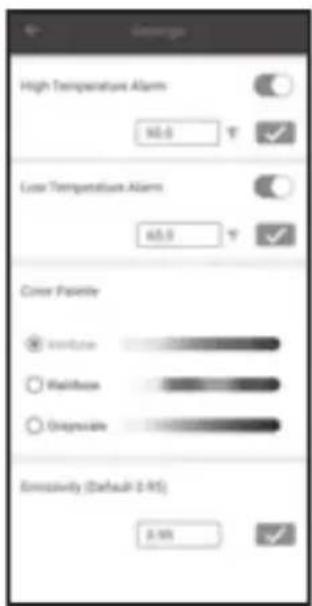

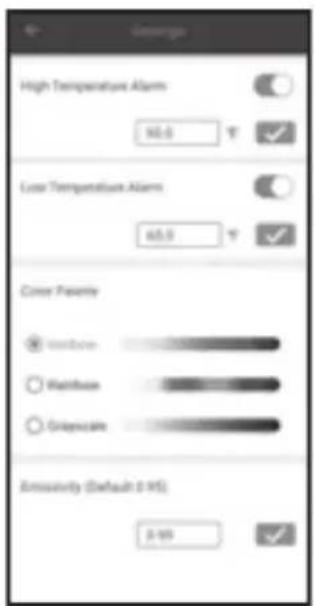

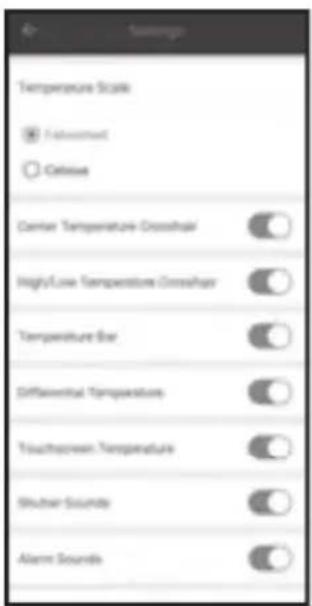

CAMERA SETTINGS SCREENS HH

Temperature Scale: ● Radiocond ○ Optise Center Temperature Crosshair High/Low Temperature Crosshair Temperature Bar Differential Temperature Touchscreen Temperature Blutter Sounds Alert Sounds

High Temperature Alarm 90.0 ° Low Temperature Alarm 65.0 ° Cover Panel ✓ Infiltrate ○ Reinforce ○ Grayscale Emissivity (Default 0-RS) 2.0%

Tune Cuppie Setting Show (3x fps) Maximum (3x fps) Float (1x fps)

OPERATING INSTRUCTIONS

DOWNLOADING THE APP

The Klein Tools Thermal Imager app is required for functionality. The app is available for free from the Google Play™ store, or by scanning the QR code below.

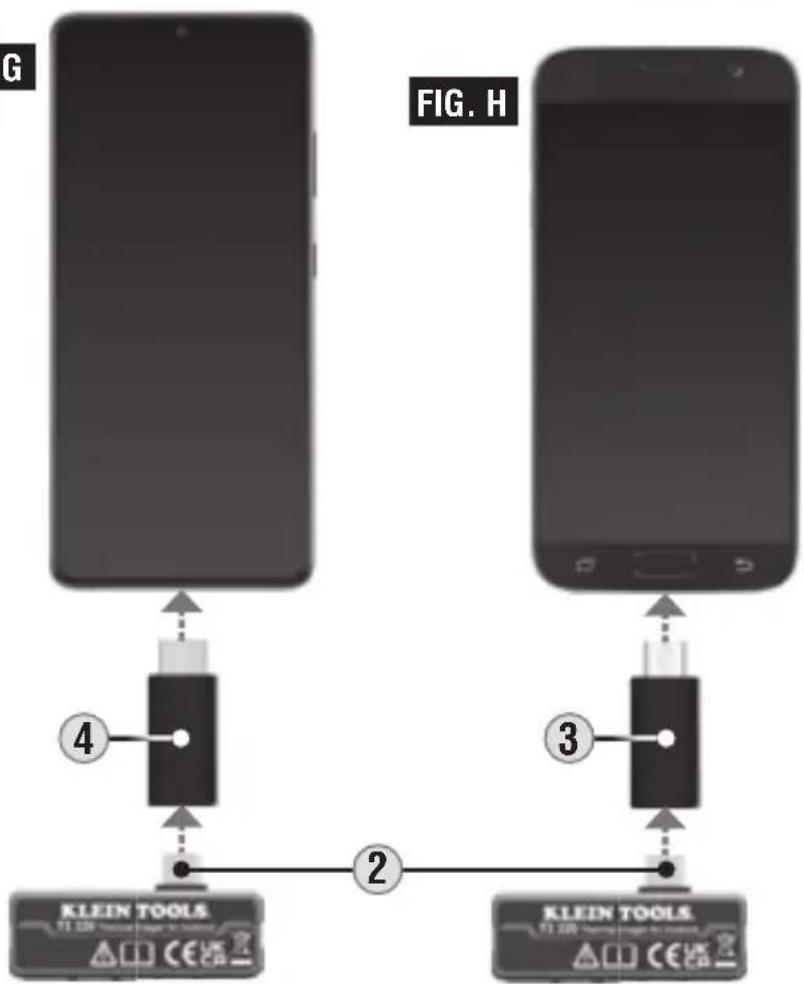

CONNECTING YOUR DEVICE

1. Turn on your Android ^® device.

2. Connect the Thermal Imager to your device:

3. If your device uses a USB-C connector, insert the USB-C connector ② directly into your device (FIG. G). If a phone case interferes with the connection, attach the USB-C Extension ④ to the USB-C connector ②, making sure it is fully seated, then insert into your device.

4. If your device uses a micro-USB connector, make sure the USB-C to micro-USB Adapter ③ is fully seated over the USB-C connector ②, then insert into your device (FIG. H).

5. Connecting your device will automatically open the app, and a popup will ask for confirmation: "Open Klein Thermal to handle Klein Tools TI220?" Tap "OK" or "CANCEL". Optionally, check the box to select "Always open Klein Thermal when Klein Tools TI220 is connected."

Scan QR code for free download of the Klein Tools TI220 app

QR code with embedded circular logo in center, likely linking to a website or digital content

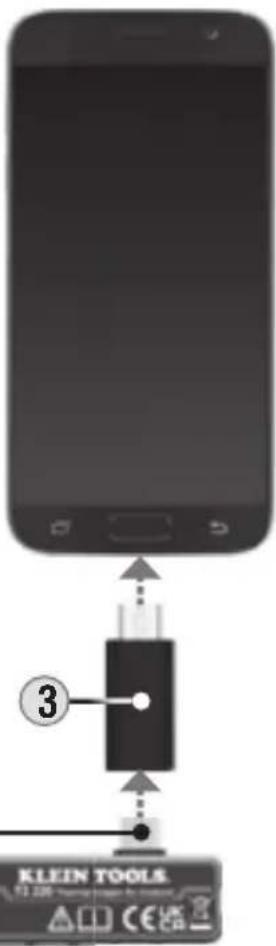

FIG. G

OPERATING INSTRUCTIONS

PHOTO CAPTURE

While in Live View mode (see FIG. B), aim the Camera 1 at the subject to be photographed and tap the Photo Capture button 1 to take a photo. NOTE: When the first photo is captured, the app will ask permission, "Allow Klein Thermal to access photos and media on your device?" "Allow" "Deny". Tap "Allow" to store images to your device.

TIME-LAPSE VIDEO CAPTURE (FIG. C)

1. While in live view mode (see FIG. B), aim the Camera ① at the subject to be recorded.
2. Tap the Time Lapse Video Button Ⓗ to begin recording time-lapse video capture.
3. To stop recording and exit Time Lapse Video mode, tap the Stop button ⓤ.

VIDEO CAPTURE (FIG. D)

1. While in Live View mode (see FIG. B), aim the Camera 1 at the subject to be recorded and tap the Video Capture button J. NOTE: When the first video is captured, the app will ask permission, "Allow Klein Thermal to access photos and media on your device?" "Allow" "Deny". Tap "Allow" to store video to your device. A popup will ask, "Allow Klein Thermal to record audio?" Responses are: "While using the app", "Only this time", or "Deny". Tap to make selection. To update this selection later, change the setting in your device's Settings menu.

2. Tap the Photo Capture Button W while recording is active to capture still images of the subject.

3. To stop recording and Exit Video Capture mode, tap the Stop button v.

VIEWING AND MANAGING PHOTOS AND VIDEO FILES

To access the photo and/or video galleries, tap the Photo/Video Gallery icon A, then select the Photo Gallery BB or Video Gallery CC. To select multiple files or all files at once, tap the "More Selection Options" button Z. Tap on a file AA to view. Once a file is selected, you can tap the "File Information" icon DD to show additional information about the file, the "Share" icon EE to view your device's options for file sharing, or the "Delete" button FF to delete the file. Touch and hold a file AA to enable multiple selections. To exit the Photo/Video mode, tap the "Previous" icon X to return to Live View mode.

ADJUSTING SETTINGS (FIG. F)

While in Live View mode (see FIG. B), tap the Settings icon 0 and tap one of the buttons to view/adjust the following settings:

Camera Settings HH:

• Temperature Scale: Select °F or °C (default is °F)
• High/Low Temperature Crosshairs: On/Off (default is On)
- Center Temperature Crosshairs: On/Off (default is On)
• Temperature Bar: On/Off (default is On)
- Differential Temperature: On/Off (default is On)
- Touchscreen Temperature: On/Off (default is On)
- Shutter Sounds: On/Off (default is On)
- Alarm Sounds: On/Off (default is On)
- High/Low Temperature Alarm: Select Temperature, On/Off, enter temperature from -4 to 752°F (-20 to 400°C)
• Color Palette: Select Ironbow, Rainbow, or Grayscale (default is Ironbow)
- Emissivity: Enter emissivity from 0.01 to 0.99 (default is 0.95)
- Time Lapse: Change capture interval by selecting either slow (4 fps), medium (8 fps), or fast (16 fps) (default is medium (8 fps)).

OPERATING INSTRUCTIONS

Frequently Asked Questions (FAQ) Ⅱ:

- Helpful tips for using the Thermal Imager

Language JJ:

- Select English, Spanish, or French

EMISSIVITY

Emissivity is a measure of the ability of a surface to emit thermal energy by radiation. Different types of surfaces (metals, masonry, wood, etc.) emit thermal energy through radiation at different efficiencies. Accordingly, these materials have different emissivity coefficients which must be considered in order to make accurate measurements with an infrared thermometer.

Emissivity on the TI220 may be adjusted from 0.01 to 0.99 to enable accurate measurement of the temperature of most types of materials. Generally speaking, shiny bright surfaces such as chrome, white boards, etc. exhibit lower emissivity than flat black materials.

For guidance only, the chart below may be used to estimate emissivity for many different types of materials. However, the emissivity of surfaces is dependent upon many parameters such as surface finish, temperature, shape of the object, etc.

This chart should be used for guidance only.

Material Emissivity
Asphalt 0.93
Red brick 0.93
Gray brick 0.75
Porcelain ceramic 0.92
Fired clay 0.91
Rough concrete 0.94
Cotton cloth 0.77
Smooth glass 0.92 - 0.94
Granite 0.45
Gravel 0.28
Smooth ice 0.97
Smooth white marble 0.56
Black paint 0.96
Hard rubber	0.94
Wood	0.80 - 0.90
Matte copper	0.22
Commercial sheet aluminum	0.09
Cold rolled steel	0.75 - 0.85

Find a comprehensive list of emissivity values in the app's FAQ section or visit www.kleintools.com/emissivity.

CLEANING

Be sure unit is not connected to a device and wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents.

STORAGE

Do not expose to high temperatures or humidity. After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow unit to return to normal operating conditions before using.

FCC & IC COMPLIANCE

See this product's page at www.kleintools.com for FCC compliance information

Canada ICES-003 (B) / NMB-003 (B)

WARRANTY

Do not place equipment and its accessories in the trash. Items must be properly disposed of in accordance with local regulations. Please see www.epa.gov/recycle for additional information.

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-800-553-4676

[e-mail]

www.kleintools.com

3D rendered image of a gray plastic electronic device with no visible text or symbols

• CAPTURE, ALMACENE Y COMPARTA IMÁGENES, VIDEOS Y VIDEOS POR INTERVALOS
• TEMPERATURA DIFERENCIAL Y EN PANTALLA TÁCTIL
• ALARMAS DE TEMPERATURA ALTA Y BAJA
- OPCIONES DE PALETAS DE COLORES
- COMPATIBLE CON LA MAYORÍA DE DISPOSITIVOS ANDROID®*

KLEIN TOOLS A O U 04:08:00 (04:08:25)

X Y Z 2021-06-09 AA BB CC X DD EE FF

Temperature Scale ● Radio/USB ○ Cell/Bus Carrier Temperature Crosshair High/Low Temperature Crossbar Temperature Bar Differential Temperature Touchscreen Temperature Weather Sounds Alarm Sounds

George High Temperature Alarm 90.0 ° Low Temperature Alarm 65.0 ° Color Pattern White Rainbox Greycoat Emissurity (Default: 0.95) 3.95

Tunnel Lagoon Setting Show (3x fps) Maximum (3x fps) Reset (3x fps)

QR code image with a central circular logo, likely linking to a digital resource or website.

FIG. G

3 KLEIN TOOLS

KLEIN TOOLS A O U 00:00:00 (00:00:25)

X Y 2021-06-09 Z AA BB CC X DD EE FF

Temperature Scale: ● Fourier ○ Optise Carrier Temperature Crosshale High/Low Temperature Crosshale Temperature Bar Differential Temperature Touchscreen Temperature Shutter Sounds Alarm Sounds

George High Temperature Alarm 98.0 ° Low Temperature Alarm 65.0 ° Color Preference Wireless Wireless Greycale Ammosivity (Default 0-MS) 0-95

Tune Logwin Setting Show (3x fps) Maximum (3x fps) Float (1x fps)

INSTRUCTIONS D'UTILISATION

TÉLÉCHARGEMENT DE L'APPLICATION

QR code image with a central logo, likely linking to a digital resource or website.

FIG. G

INSTRUCTIONS D'UTILISATION

PRISE DE PHOTOS
