AVVERTENZE IMPORTANTI

LEGGERE QUESTE ISTRUZIONI PRIMA DELL'USO.

When using an electrical appliance, basic safety precautions should always be followed, including the following:

1. Make sure your electricity supply is the same as the one shown on the lower side of the appliance.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. The temperature of accessible surfaces may be very high when the appliance is operating.

6. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

7. Metallic objects such as knives, forks, spoons, and lids should not be placed on the hotplate since they can get hot.

8. Household and indoor use only.

9. When the appliance is not in use and before cleaning, unplug the appliance from the outlet firstly.

10. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

11. The appliance is only intended for the purpose described in User Manual. Do not use appliance or any part of the appliance out of the intended use to avoid risk.

12. The use of attachments which are not recommended or sold by the Manufacturer of the appliance may cause a risk of injury to persons.

Caution, hot surface.

1. Do not touch hot surfaces. Use handles or knobs.

2. To protect against electrical shock do not immerse cord, plugs, or the whole unit in water or other liquid.

3. Close supervision is necessary when any appliance is used by or near children.

4. Unplug from outlet when not in use and before cleaning. Allow to cool down before putting on or taking off parts.
5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
6. The use of accessory attachments not recommended by the Manufacturer of the appliance may cause injuries.
7. Do not use outdoors.
8. Do not let cord hang over edge of table or counter, or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or in a heated oven.
10. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
11. Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "OFF", then remove plug from wall outlet.
12. Do not use the appliance for other than intended use.
13. Do not use a broken cooktop. Should the cooktop be broken, cleaning solutions and spillovers may penetrate it and create a risk of electric shock.
14. Clean the cooktop with care. If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid burns. Furthermore, some cleaners may produce noxious fumes if applied to hot surfaces.
15. A shorter power supply cord is supplied to reduce risks resulting from becoming entangled in or tripping over a longer cord. Longer extension cords are available and may be used if care is exercised in their use.
16. If a long extension cord is used:
17. The marked electrical rating of the extension cord should correspond to the electrical rating of the appliance.
18. A longer cord should be arranged so that it will not drape over the surface where it can be pulled on by children or tripped over unintentionally.
19. This appliances is intended to be used in household and similar applications such as:
20. staff kitchen areas shop, offices and other working environments;
21. farm houses;
22. farm houses and by clients in hotels, motels and other residential type environments;
    • bed and breakfast type environments.

31. Material required:

• Steel, cast iron, enamelled iron, stainless steel, flat-bottom pans/pots with bottom diameter from 12 cm to 25 cm.
• It is advisable the use of the required pot, do not try to use other types instead, especially with pressure sensors.

Stainless steel pot

Iron blast pan

Magnetic stainless iron pan

Magnetic stainless iron pan

Iron board pan

1. Please kindly according to the below requirement if necessary to use a container that is not supplied.

2. Pan/pot must be suitable for induction cooktop.

3. Pan/pot should be tried out if bought separately to see if there are abnormal phenomena.

4. Pan/pot bought separately should be flat and equipped with lid with vapour vent.

5. The appliance must not be energised with external timers or separate remote controls.

ALWAYS KEEP THESE INSTRUCTIONS

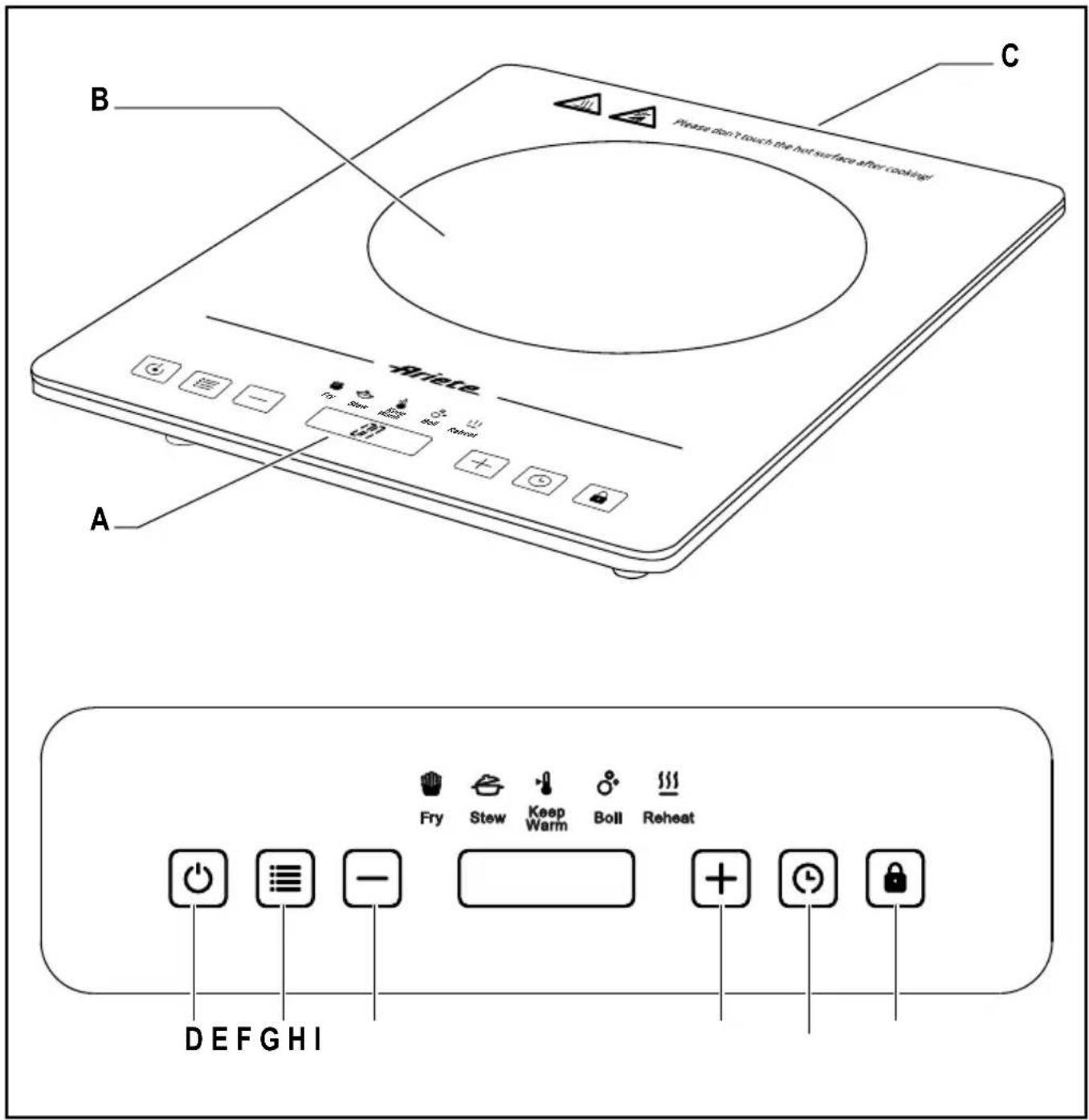

APPLIANCE DESCRIPTION (Fig. 1)

A Control panel
B Ceramic plate
C Air intake
D ON/OFF button
E Button FUNCTIONS
F DECREASE value button
G INCREASE value button
H TIMER button
I CHILD LOCK button

OPERATING INSTRUCTIONS

• Place an cookware suitable for induction cooking on the glass plate.
• Connect the power plug to a safe and secure power source. The appliance will emit a “beep” sound, the LED display will show “C” to indicate that the appliance is connected to a power source.

ON/OFF button

Once having connected power supply, press "ON/OFF", the display will turn on show "ON". The cooker will be in standby mode.

In standby mode, the appliance will stop if no function is selected within 30 seconds.

FUNCTIONS button

Press the FUNCTIONS button, the light of the "STEW" program will turn on. The appliance will start in "STEW" mode. Every time the button is pressed, the light of the program will move to the left.

Program with the default settings as shown below:

		Default powerDefault Adjusted power range
		1600 W120 min.STEW W - 2000 W at intervals of 200 W
		1800 W120 min.FRZ00 W - 2000 W at intervals of 200 W
		2000 W25 min.BOIL Power not adjustable
		1000 W120 min.REZW - 1600 W at intervals of 200 W
		200 W120 min.KEEP PARler not adjustable

TIMER button

User can set the cooking time when specific cooking mode (STEW and FRY) is selected. Press the TIMER button once to access the timer function, the "Timer" indicator will light up.

Display will show the default time [0:00], user can press the buttons "+" (Value increase) or "-" (Value decrease) to set the required time; such buttons allow to adjust the minutes by 1 minute at a time.

By holding the “+” or “-” button, the minutes can be adjusted by 10 minutes at a time. The time can be adjusted from 1 minute to 180 minutes.

After setting, user can press the TIMER button once to confirm or wait until the display stops flashing. After the "Beep" signal, the appliance will stop the operation and change to standby mode automatically at the end of the countdown. To cancel this function, user can either press the ON/OFF button to return to standby mode or hold the TIMER button to resume the required operation.

Child Lock Function

To prevent children from turning the cooktop on accidentally or changing the cooking settings, hold the LOCK button for a few seconds. The “Lock” indicator will light up and the appliance will not react to changes of the timer or functions. The LOCK button can be pressed either when the cooktop is operating, or when is turned off.

When the "Lock" function is on, the ON/OFF button is the only one that works. To cancel the child lock, press the relevant button for at least 3 seconds, the light will go out and the function will be cancelled.

CLEANING AND MAINTENANCE

• Unplug the appliance before proceeding with cleaning. Allow the surface to cool down before proceeding with cleaning.
• Glass plate, panel and shell:
• Soft cloth for slight stain.
• For greasy dirt, wipe by using a damp cloth with mild detergent.
• While the fan is working, dust and dirt would remain on the air intake, therefore clean it via a brush or cotton stick on a regular basis.
• Do not wash the appliance with water directly to avoid damage.
• To protect the induction cooktop, make sure there is a proper contact between the plug and socket before using.
• Do not pull out the power cord directly during operation. To extend the appliance life, press the ON/OFF button first, then pull out the power cord.
• In order to make operating time longer, if the fan is still working for cooling the plate, it is advisable to allow the fan to stop before unplugging the appliance.
• Please pull out the power cord and put it away when not used for a long time.

TROUBLESHOOTING GUIDE

		SolutionCheckingProble
supply and pressing the “ON/OFF” button, the appliance does not go on.		Use after restoring power supply.Is the electri
	Has the fuse blown?	Check the root causes carefully. If the problem cannot be fixed, please contact Service Centre for checking and repairing.
	Is the plug connected firmly?
Heating being interrupted in normal use and a “Beep” is heard.	Is the cookware unsuitable or is there no cookware on the cooktop?	Replace compatible cookware for the induction cooktop.
	Is the cookware not considerably placed at the centre of the heating zone?	Place the cookware at the centre of the defined heating zone.
	Is the cookware being heated but continually being removed?	Place a cookware inside the heating zone.
No operation during the heating being in use.	Is the cookware empty or the temperature too high?	Please check whether the appliance is being misused.
	Is the air intake clogged or dirt has accumulated?	Remove the stuff clogging the air intake/exhaust vent. Operate the appliance again after cooling down.
	Is the cooker working over 2 hours without any external instruction?	Reset cooking modes or use timer function.SolutionCheckingProblem
Presence of error codes	E0: IGBT overheatE1: No cookware or use of incompatible cookwareE2: UndervoltageE3 OvervoltageE4: The top plate sensor does not workE6: no water in the cookwareE7: IGBT sensor open circuitE8: IGBT sensor short circuitE9: Top plate sensor open circuitEE: Top plate sensor short circuitH: Top plate high temperature	When showing error signal E1, E6 and H, please check whether the cookware is not suitable, or switch on the appliance again after has been cooled down naturally. When showing other codes please contact the Service Centre for checking and repairing.
