USER MANUAL Beat Box Prixton
Thank you for purchasing BEAT BOX waterproof 6W LED light portable speaker. Please read this user manual carefully before operating and keep these instructions for future reference.
BEAT BOX is a unique designed IPX5 waterproof 6W LED light portable speaker, which support V5.3 bluetooth agreement, it is compatible with Smart cellphone/Laptop/Tablet and other equipments with audio function. BEAT BOX can let you get rid of wire limited and enjoy music freely. Besides, this speaker also support TF card.
Packaging includes:
1.BEAT BOX portable speaker
2.Type C charging Cable
3.User Manual
Specifications
- Bluetooth Version: JL V5.3
2.Working Range: Up to 10 meters
- Dimension: 85*85*115mm
4.Speaker: 52mm
5.Loudspeaker Output: 6W
6.Speaker frequency: 60HZ-18KHZ
7.Battery Voltage/Capacity: 1200mAh
8.Battery Charging current: 5V 0.5A
9.Battery Charge Time: 2-3hours
- Playing time: 6-8hours


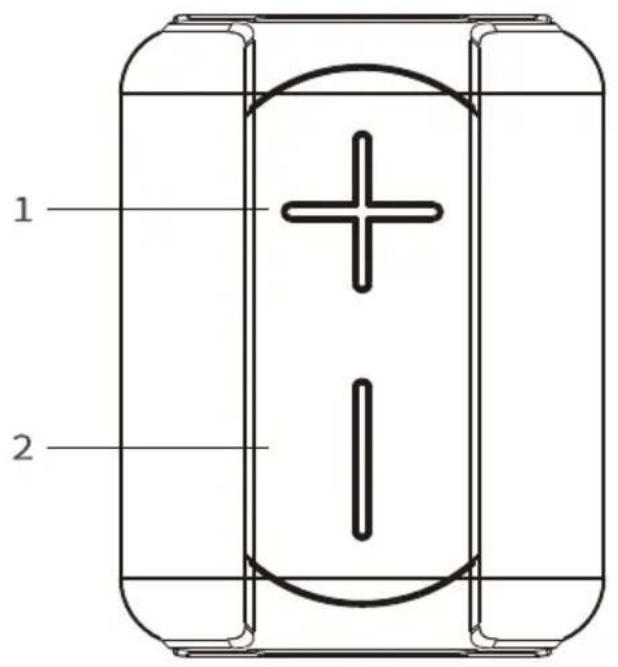

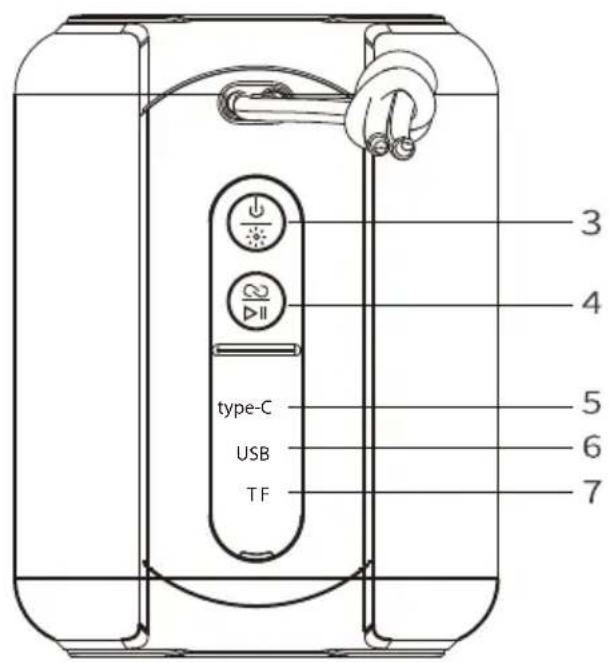

type-C USB TF 3 4 5 6 7Figure description
- Function Key: Volume increase/Next song
- Function Key: Volume decrease/Previous song
- ON/OFF button/LED light mode switch
- Function Key: Play/Pause, Answer/Hang up, Last number redialing, Mode switch, TWS connection, Bluetooth disconnecting/connecting
- Type C charging port
- USB Playing
- Micro SD card slot
Operation
- Long press ON/OFF button until the LED light indicator starts flashing.
- Active bluetooth connectivity in your device, which you want to connect with the speaker.
- Search for a new device, choose the speaker "BEAT BOX PRIXTON" on the list.
- Connect with the speaker( enter password 0000 if required).
- When sounds with a voice message, the speaker is connected successfully.
Note: Portable speaker will connect to the last paired device automatically.
TWS connection
- Activate two portable speakers.
- Press twice TWS connection button on one of the speaker until you hear a sound indicator.
- Release the TWS connection button. Connection of two speakers may take several seconds.
- Activate bluetooth function in the device, select "BEAT BOX PRIXTON" speaker name from the list and pair the devices.
Press twice TWS connection button to disconnect TWS connection.
Functions
- When playing music, short press ⑧▶Ⅱ for pause or play.
- Long press +/- for key next song or last song, short press +/- key for volume increase or decrease.
- For incoming call, short press 2|| for answer/end a call, long press 2|| for 2s to reject an incoming call. Press 2|| three times to call last dialed number.
- Long press ▶ key for mode change: BT-TF-USB-FM.
- Short Press 12 to switch light mode when speaker turns on.
Charging
Connect charging cable to portable speaker's Type C port, red light flashes indicates charging status, light will turn off when fully charged.
Tips
Turn the portable speaker off when not in use to save power or for storage. To ensure long term performance of battery, please avoid using product under high temperature, and do not use portable speaker when charging.
Warranty policy
This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.
These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.
Simplified EU Declaration Of Conformity
We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:
| BRAND | MODEL NAME DESCRIPTION | CATEGORY |
| Prixton | BEAT BOX | Speaker |
Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.
The complete text of the UE Declaration of conformity is available anytime at this website address:
www.prixton.com
LA TRASTIENDA DIGITAL
