USER MANUAL Light Wood Prixton

Line drawing of a smartphone mounted on a circular stand, no text or symbols present

ALTAVOZ LÁMPARA CON CARGADOR INALÁMBRICO

SPEAKER LIGHT WITH WIRELESS CHARGER

Diagram of a circular electronic device with labeled pins and a lightning bolt symbol indicating electrical hazard.

⑤ ⑥ ⑦ ⑧ ⑨

10 11

2. Carga

Line drawing of a device with a dome-shaped base connected to a power outlet via cable (no text or symbols)

Thank you for purchasing SPEAKER LIGHT Product: Wireless Charger, Bluetooth Speaker, LED Lamp, Phone Holder. Please read this user manual carefully before operating and keep these instructions for future reference.

Packaging includes:

1.4 IN 1 Product
2. Type C Charging Cable
3. Aux Cable
4. User Manual

Specification:

1. Bluetooth Version: V5.1
2. Working Range: Up to 10metes
3. Dimension: 207*192*50 mm
4. Speaker: 66mm
5. Loudspeaker Output: 10W
6. Speaker frequency: 20HZ-18KHZ
7. Battery Voltage/Capacity: 1500mAh
8. Battery Charging current: 5V 1A

9. Battery Charge Time: 2-3hours

10. Playing time: 3-4hours

11. Wireless Charging Output: 10W Max( Power Input is 5V 3A/9V 2A output is 10W. Power Input is 5V 2A, output is 5W)

12. Wireless charging compatible device: iPhone 8 & UP; Samsung GalaxyS7 & Up; Huawei Mate RS & UP; Xiaomi MIX2S, MIX3 & Up;

Instructions:

1. Bluetooth Mode:

1) Press turn on/off switch to on, after turned on, there will be a sound indicator, and enter into pairing mode automatically.
2) Enable bluetooth function of your device, and search for the portable speaker.
3)Choose speaker" SPEAKER PRIXTON" to connect(enter password 0000 if required).
4) When sound with a beep, it is successfully connected to your device.

Note: portable speaker will connect to the last paired device automatically.

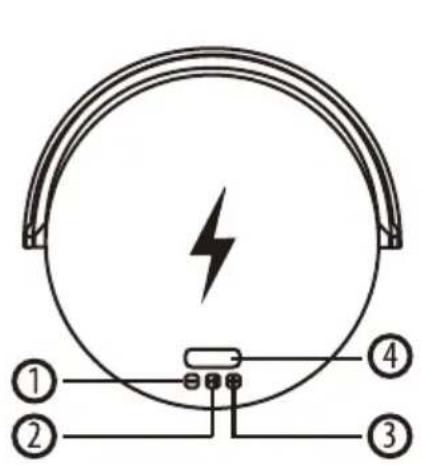

1. Short press for volume decrease, long press to previous song.
2. Short press for Pause/Play, press twice to disconnect bluetooth pairing
3. Short press for volume increase, long press to next song.
4. Phone Holder

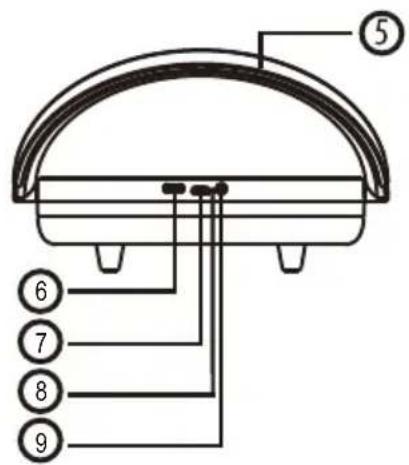

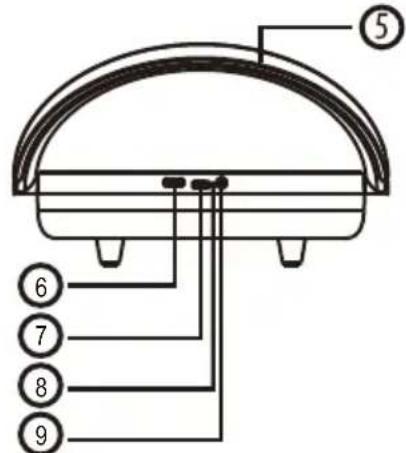

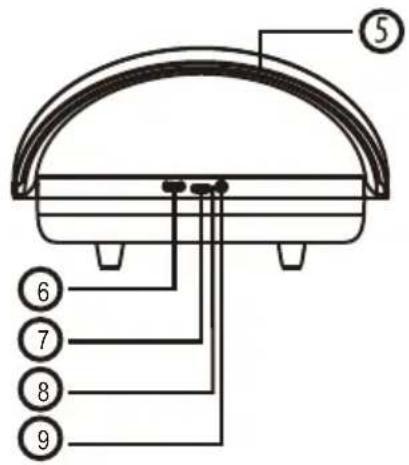

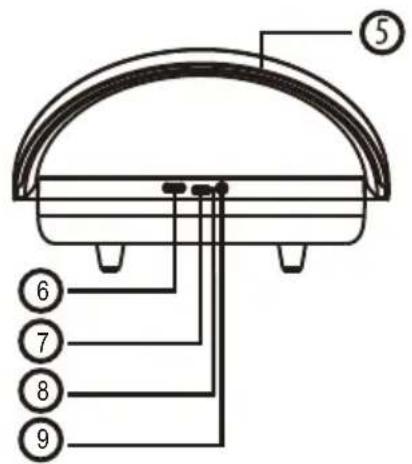

5. Touch Light
6. Turn ON/OFF Switch
7. Type C Charging Port
8. Status Indicator
9. AUX

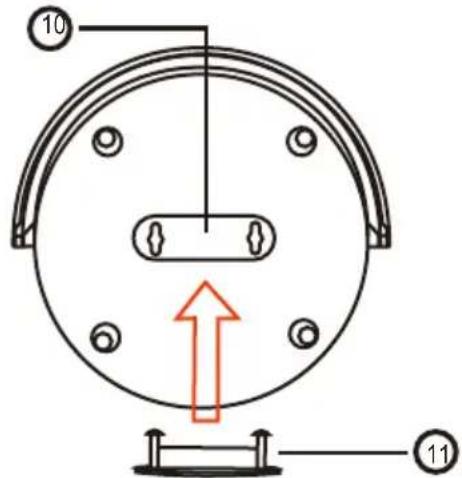

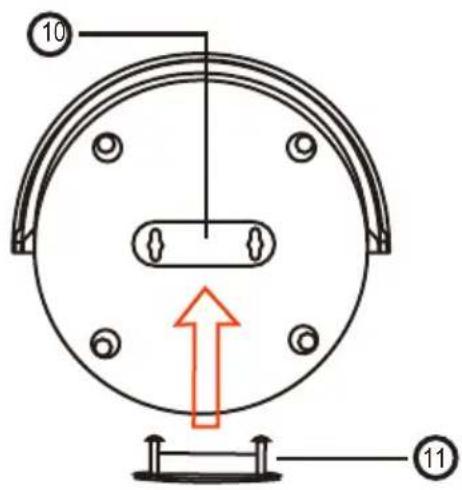

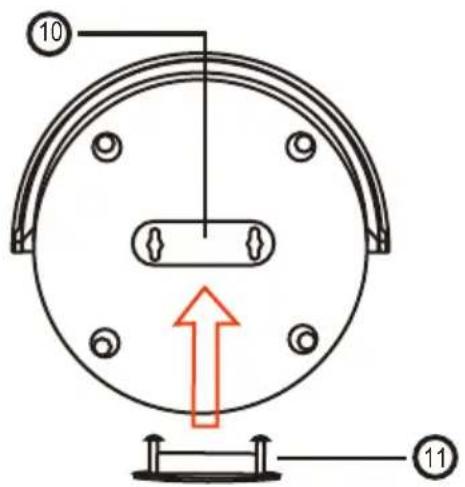

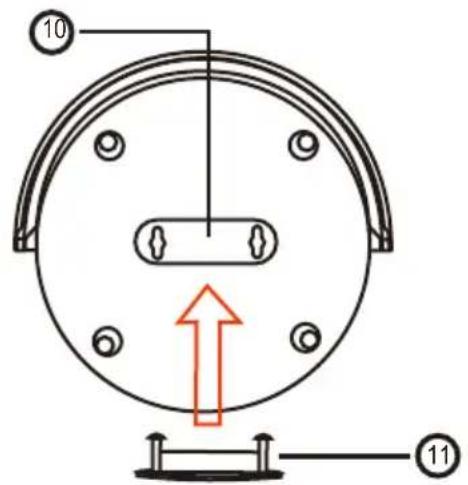

10. Rear side with holes
11. Wall hook

Diagram of a circular device with labeled pins and a lightning bolt symbol, likely representing an electrical or diagnostic component.

⑤ ⑥ ⑦ ⑧ ⑨

10 11

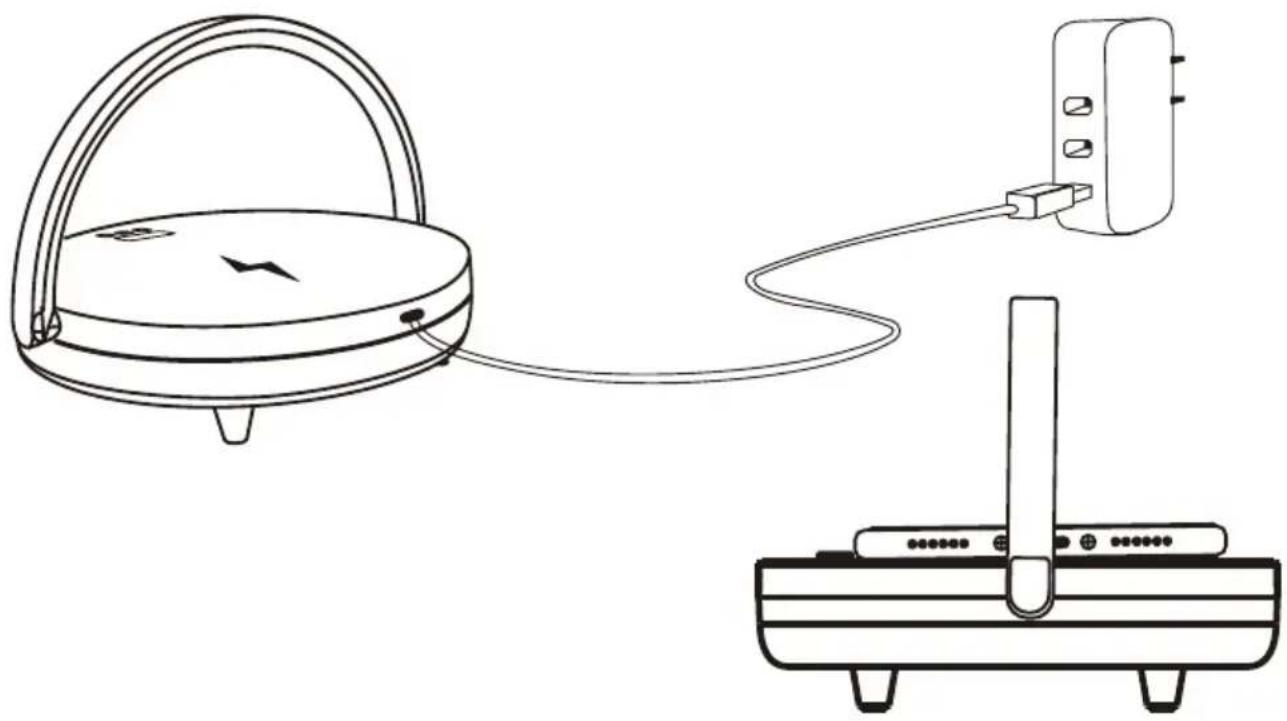

2. Charging Operation

1) Connect USB to 9V/2A power adapter, connect the other end to the Type-C charging port.
2) After connecting the wireless charger to power, press switch on/off button to on.
3) Place your smartphone on the wireless charger. The charger will detect the smartphone and begin charging it automatically.
4) Once your smartphone is fully charged, remove it from wireless charger.

Line drawing of a device with a dome-shaped base connected to a power outlet via cable (no text or symbols)

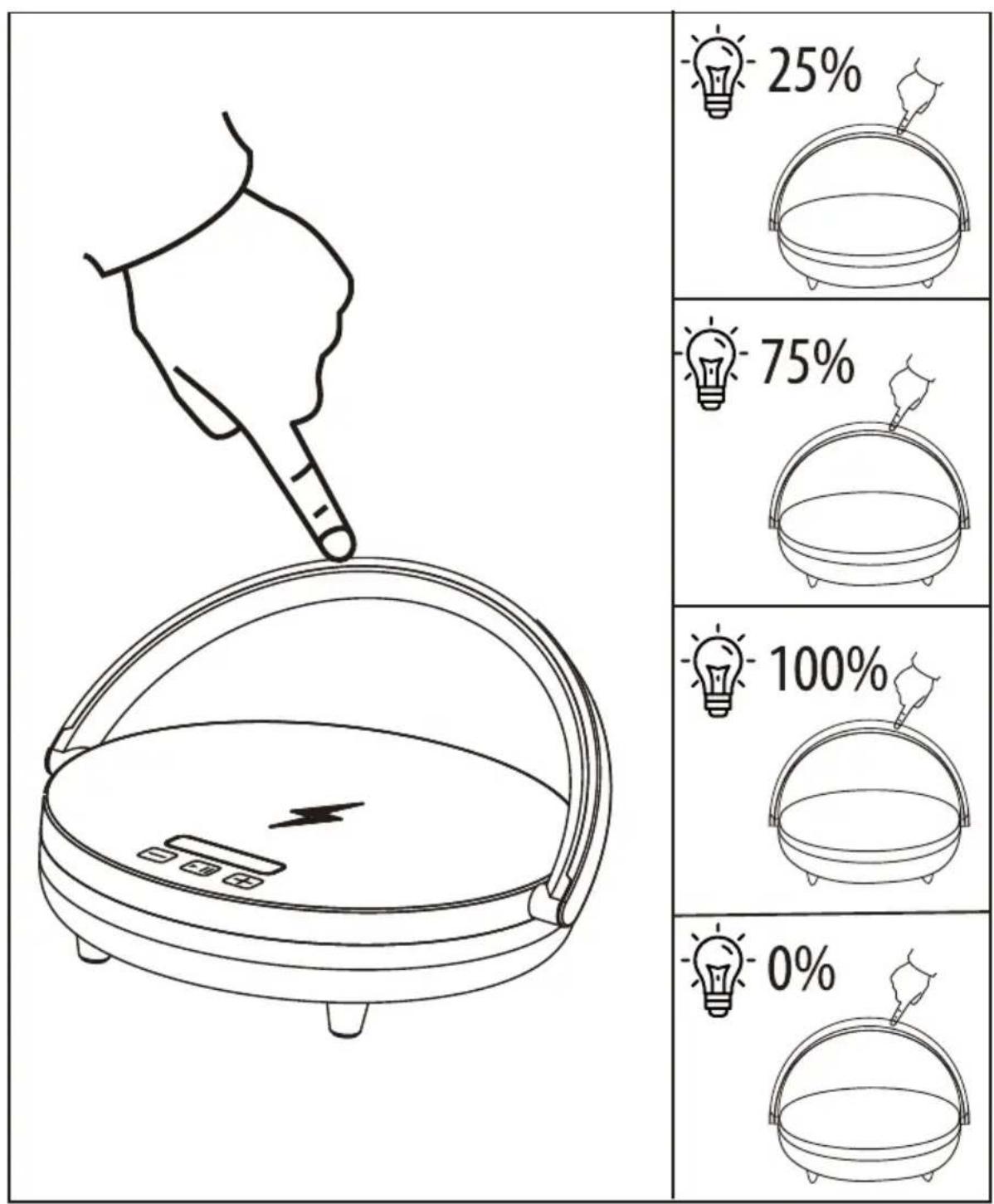

3. Light operation

There are three levels of brightness. Level 1 starts at 25% brightness. Level 2 jumps to 75% brightness, Level 3 to 100% respectively. A long press of the pole will turn the lights OFF.

Warranty policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration Of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION		CATEGORY
Prixton	SPEAKER LIGHT	Speaker Light with wireless charger	Audio

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

Diagram of a circular device with labeled components and a lightning bolt symbol indicating electrical hazard.

⑤ ⑥ ⑦ ⑧ ⑨

10 11

2. Chargement

Line drawing of a device with a dome-shaped base connected to a power outlet via cable (no text or symbols)

Line drawing of a device with a dome-shaped base connected to a power outlet via cable (no text or symbols)

Diagram of a circular electronic device with labeled pins and a lightning bolt symbol indicating electrical hazard.

⑤ ⑥ ⑦ ⑧ ⑨

10 11

2. Aufladen

Line drawing of a device with a dome-shaped base connected to a power outlet via cable (no text or symbols)

Line drawing of a device with a dome-shaped base connected to a power outlet via cable (no text or symbols)

Política de garantia

Line drawing of a device with a dome-shaped base connected to a power outlet via cable (no text or symbols)

Garantie beleid

MERK MODEL BESCHRIJVING			CATEGORIE
Prixton	SPEAKER LIGHT	Speaker Light with wireless charge	Audio

DECLARATION OF CONFORMITY

This declaration of conformity is issued under the sole responsibility of the manufacturer, La Trastienda Digital SL, owner of the Prixton trademark, located at Avenida Cervantes 49, modulo 25, Basauri 48970, Bizkaia, declares that the type of radio equipment described below:

Brand	MODEL NAME	DESCRIPTION	Main features	Serial Numbers
PRIXTON	SPEAKER LIGHT White	Speaker light with wireless charger	Audio	SPEAKERLIGHTW0225000001.....SPEAKERLIGHTW0225001500

is fully in conformity with the essential requirements of the following EU Directive or other normative documents. We hereby declare that the items listed above comply with all relevant European standards and regulations, and do not contain any banned substances as detailed in the REACH Regulation (EC) No 1907/2006 and its amendments. The products do not contain any substance with higher concentration than 0,1% weight by weight in the REACH candidate list of Substances of Very High Concern SVHC.

This declaration is based on the full compliance of the products with the following European standards:

European Directive	Standard detail and/or measurement reference
Low Voltage Directive (LVD) (2014/53/EU)	Audio, Video—Safety—EN IEC 62368-1:2020 + A11:2020 Low Voltage Directive 2014/35/EUThis declaration has been made under our sole responsibility based on:LVD Certificate of conformity No.: CTL2305092121-W and testing report No.: CTL2305092121-WS
Electromagnetic Compatibility Directive (EMC) (2014/53/EU)	Audio, Video —EMC—ETSI EN 301 489-1 V2.2.3 (2019-11)ETSI EN 301 489-17 V3.2.4 (2020-09)ETSIEN301 489-3 V2.1.1(2019-03 )Electromagnetic Compatibility Directive (EMC) (2014/53/EU)This declaration has been made under our sole responsibility based on:EMC Certificate of conformity No.: CTL2305092121-W and testing report No.: CTL2305092121-WE
Health (2014/53/EU)	Audio, Video —Health—EN 50065: 2017This declaration has been made under our sole responsibility based on:Health Certificate of conformity No.: CTL2305092121-W and testing report No.: CTL2305092121-WH
Radio (2014/53/EU)	Audio, Video—Radio—ETSI EN 300 328 V2.2.2 (2019-07)ETSI EN 303 417 V1.1.1 (2017-09)This declaration has been made under our sole responsibility based on:Radio Certificate of conformity No.: CTL2305092121-W and testing report No.: CTL2305092121-WR01 & CTL2305092121-WR02
RoHS Directive 2011/65/EU and its subsequent amendments Directive (EU) 2015/863	RoHS Directive 2011/65/EU and its subsequent amendments Directive (EU) 2015/863- Lead, Mercury, Cadmium, Hexavalent Chromium, Mercury(Hg)- Polybrominated biphenyls (PBB)- Polybrominated diphenyl ethers (PBDE)- Bis (2-ethylhexyl) phthalate (DEHP)- Butyl benzyl phthalate (BBP)- Dibutyl phthalate (DBP)- Diisobutyl phthalate (DIBP)This declaration has been made under our sole responsibility based on:RoHS testing report No.: U01304230627612E

Signed for and on behalf or YOURS SINCERELY

Luis González Escribano General manager
