Dance Box - Speaker Prixton - Free user manual and instructions

Product type	Portable wireless speaker
Brand	Prixton
Model	Dance Box
Bluetooth version	JL V5.3
Bluetooth range	Up to 15 meters
Power	10 W
Frequency response	60 Hz - 18 kHz
Battery capacity	1800 mAh
Playback battery life	8-10 hours
Charging time	2-3 hours
Power supply	5 V / 1 A (USB Type-C)
Dimensions	108 x 108 x 113 mm
Speaker diameter	57 mm
Water resistance	Yes (splash resistant)
Supported formats	Bluetooth, micro SD card, Aux input
Main functions	Play/Pause, volume control, track skip, hands-free calling, TWS pairing, LED lighting
Package contents	Speaker, Type-C cable, auxiliary cable, lanyard, user manual
Care and cleaning	Clean with a soft, dry cloth. Avoid excessive moisture.
Safety	Do not expose to high temperatures. Do not let it fully discharge. Do not use while charging.
Repairability	Spare parts not specified. Contact customer support via www.prixton.com

Frequently Asked Questions - Dance Box Prixton

How to turn on and pair the Dance Box Prixton speaker?

Press and hold the ON/OFF button until the LED indicator flashes. Turn on Bluetooth on your device, search and select 'DANCE BOX PRIXTON' from the list. Enter the password '0000' if required. A voice prompt confirms the connection and the blue light stays on.

How to charge the speaker and what is the battery life?

Plug the supplied Type-C cable into the charging port. The red light flashes during charging and turns off when the battery is full. Charging time is 2 to 3 hours for a playback time of 8 to 10 hours.

How to use the TWS (stereo pairing) function?

Turn on two Dance Box speakers. Double-press the ON/OFF button on one speaker until you hear a beep. The blue light flashes. Once they are connected to each other, activate Bluetooth on your device and select 'DANCE BOX PRIXTON'. The light on the main speaker flashes, the other stays solid.

Is the speaker water resistant?

Yes, the Dance Box speaker is splash resistant. It can withstand light water splashes, but is not designed to be submerged. Avoid exposing it to excessive moisture.

How to switch between modes (Bluetooth, TF card, Aux)?

Briefly press the 'Volume down/previous track' button (⬇ button) to cycle between BT (Bluetooth), TF (micro SD card), and AUX (auxiliary input) modes.

What to do if the speaker does not connect to my phone?

Make sure the speaker is on and in BT mode. On your phone, forget the device 'DANCE BOX PRIXTON' in Bluetooth settings, then restart the search. If the problem persists, simultaneously press the + and - buttons to unpair the speaker and try again.

How to answer or reject a call with the speaker?

To answer an incoming call, briefly press the function button (⚠). To hang up, briefly press again. To reject a call, hold the button for 2 seconds. Double-press redials the last number called.

How to adjust volume and change tracks?

Briefly press the + (volume up) or - (volume down) buttons. Hold the buttons to skip to the next track (+ button) or go back to the previous track (- button).

Can a memory card be used with the speaker?

Yes, insert a micro SD card into the designated slot (under the cover). The speaker will automatically play the audio files. Use the mode switch button to switch to TF mode if needed.

How to turn off the speaker and save battery?

Press and hold the ON/OFF button until the light turns off. To extend battery life, avoid letting the speaker fully discharge and do not use it while charging.

USER MANUAL Dance Box Prixton

Line drawing of a cylindrical electronic device with labeled buttons and indicators (no text or symbols beyond basic markings)

ALTAVOZ SPEAKER

INDEX

ES 3

EN 6

FR 9

IT 12

DE 15

PT 18

NL 21

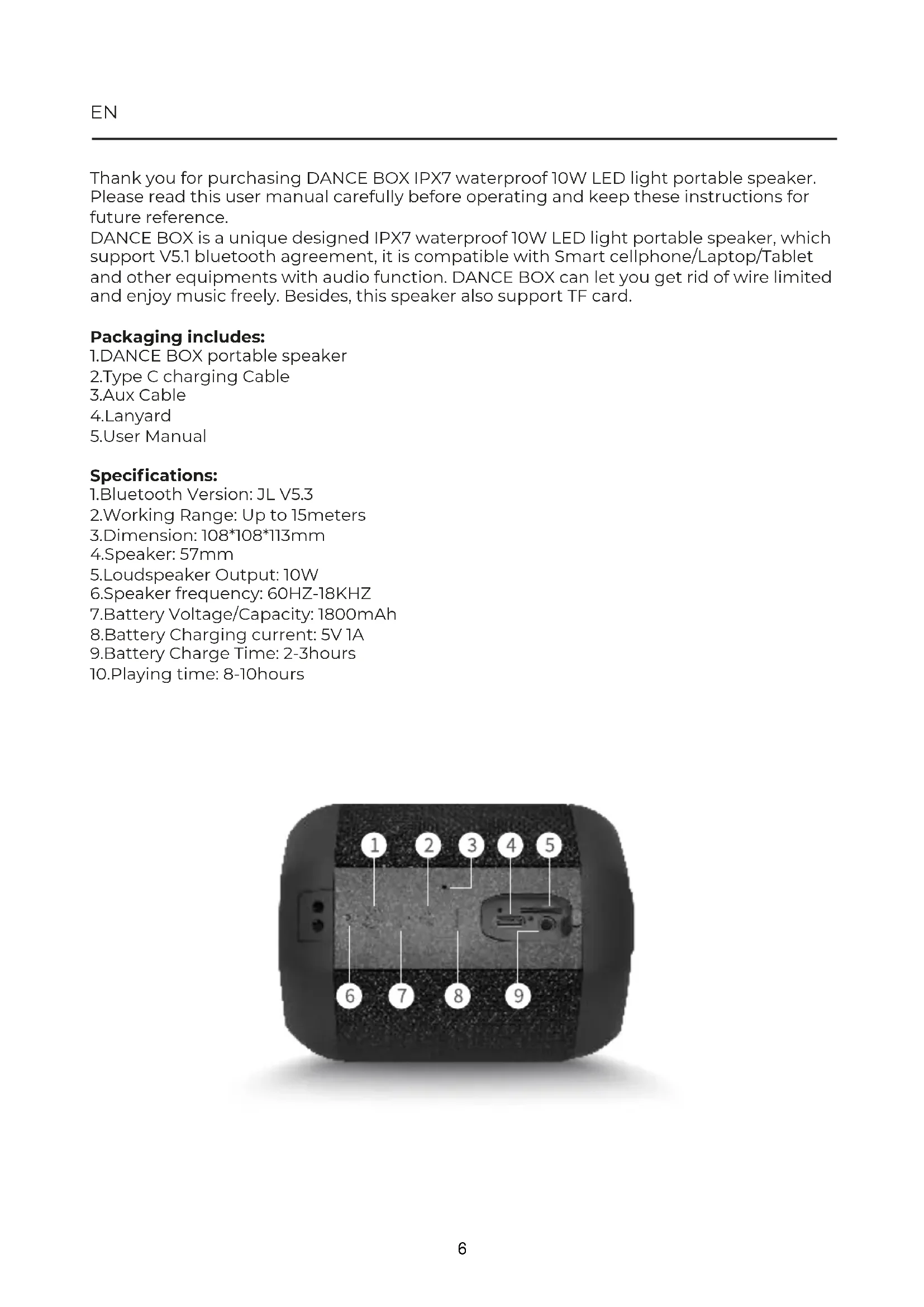

Thank you for purchasing DANCE BOX IPX7 waterproof 10W LED light portable speaker. Please read this user manual carefully before operating and keep these instructions for future reference.

DANCE BOX is a unique designed IPX7 waterproof 10W LED light portable speaker, which support V5.1 bluetooth agreement, it is compatible with Smart cellphone/Laptop/Tablet and other equipments with audio function. DANCE BOX can let you get rid of wire limited and enjoy music freely. Besides, this speaker also support TF card.

Packaging includes:

1.DANCE BOX portable speaker
2.Type C charging Cable
3.Aux Cable
4.Lanyard
5.User Manual

Specifications:

1. Bluetooth Version: JL V5.3
   2.Working Range: Up to 15 meters
   3.Dimension:108*108*113mm
   4.Speaker: 57mm
   5.Loudspeaker Output:10W
   6.Speaker frequency: 60HZ-18KHZ
   7.Battery Voltage/Capacity: 1800mAh
   8.Battery Charging current: 5V 1A
   9.Battery Charge Time: 2-3hours
   10.Playing time: 8-10hours

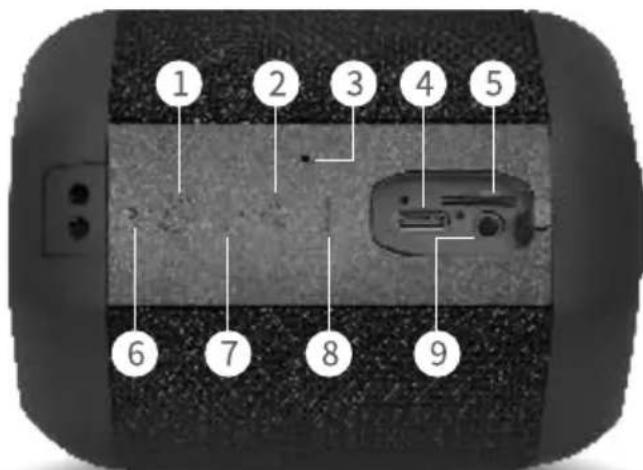

Figure description

1.ON/OFF button/TWS connection/Mode Switch
2. Function Key: Play/Pause, Answer/Hang up/Last number redialing/ LED light mode switch
3.Microphone
4.Type C charging port
5. Micro SD card slot
6. Indicator light
7.Function Key: Volume increase/Next song
8.Function Key: Volume decrease/Previous song
9.Aux in

Operation

1.Long press ON/OFF button until the LED light indicator starts flashing.
2. Active bluetooth connectivity in your device, which you want to connect with the speaker.
3. Search for a new device, choose the speaker "DANCE BOX PRIXTON" on the list.
4. Connect with the speaker( enter password 0000 if required).
5. When sounds with a voice message, the speaker is connected successfully, and blue light is always on.

Note: Portable speaker will connect to the last paired device automatically.

TWS connection

1. Activate two portable speakers.
2. Press twice turn on/off button on one of the speaker until you hear a sound indicator. At this time, blue light starts flashing.
3. Release the turn on/off button. Connection of two speakers may take several seconds.
4. Activate bluetooth function in the device, select "DANCE BOX PRIXTON" speaker name from the list and pair the devices. After paired successfully, blue light of main speaker flashes, other speaker blue light is always on.

Press twice turn on/off button to disconnect TWS connection.

Functions

1. When playing music, short press △ for pause or play. Long press △ to switch light mode when speaker turns on.
2. Long press +/- key for next song or last song, short press +/- key for volume increase or decrease.
3. For incoming call, short press △ for answer/end a call, long press △ 2s to reject an incoming call. Press △ twice to call last dialed number.
4. Short press ↓ key for mode change: BT- TF-AUX.
5. Press +/- together to disconnect bluetooth pairing.

Charging

Connect charging cable to portable speaker's Type C port, red light flashes indicates charging status, light will turn off when fully charged.

Tips

Turn the portable speaker off when not in use to save power or for storage. To ensure long term performance of battery, please avoid using product under high temperature, and do not use portable speaker when charging.

Warranty policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration Of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION	CATEGORY
Prixton	DANCE BOX	Speaker

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL
