USER MANUAL CP 137105 Orbegozo

Black and white photo of a ceiling fan with three blades, no text or symbols visible

CP 137105

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

QR code image containing encoded data, no visible human-readable text

Scan this QR code in order to access to more information about this ceiling fan, including installation details. Or enter www.orbegozo.com and look for the model number in the website.

Technical diagram of a mechanical assembly with two vertical components and upward arrows indicating force or movement (no text or symbols present)

Technical diagram of a mechanical bracket with mounting holes and force arrows indicating upward movement (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a kitchen sink with a funnel and lid, showing directional arrows indicating motion (no text or symbols)

Line drawing of a lamp with a hanging lamp and base, showing internal wiring (no text or symbols)

Diagram of a lamp with a base and indicator lights, showing mechanical components without any text or symbols.

Technical line drawing of a mechanical device with a conical base and cylindrical top, showing a downward force arrow (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Ranura Lengüeta

Technical diagram of a mechanical component with a blue arrow indicating rotation (no text or symbols)

2

Simple line drawing of a cylindrical object with a curved top and circular base, labeled 'ok' (no text or symbols on the object itself)

③

Line drawing of a ceiling-mounted air conditioner with a dome-shaped top and internal circuitry (no text or symbols)

Two technical line drawings of a ceiling lamp with internal components, shown from different angles (no text or symbols)

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance

must never be carried out by children without supervision.

1. Children should be supervised to ensure that they do not play with the appliance.
2. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
3. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
4. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
5. Never pull on the cord when unplugging.
6. Do not use the unit with a damaged cord or plug, or if it is not working properly.
7. Do not handle the appliance with wet hands.
8. Never immerse the appliance in water or any other liquid.
9. Make sure the appliance has been unplugged before cleaning.
10. This appliance must be installed following the national regulations for electrical installations.
11. This appliance is for household use only.

12. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

13. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

1. The method of disconnection from the mains supply must incorporate a switch or isolator with a minimum contact separation of 3 mm.on all poles.
2. Make sure that when the fan is fitted in the chosen position, there is no possibility of the rotating blades coming into contact with any object. Blades should be at least 2.30 m from floor when fan is hung.
3. If you are installing more than one ceiling fan make sure that you do not mix fan blade sets, even though they are from the same ceiling fan model.
4. Before beginning, disconnect power by removing fuse or turning off circuit breaker.
5. Once fan installation is completed make sure that all connections are secure to prevent fan from falling.

6. Fan must be turned off and stopped before reversing fan direction.

7. Check that the means of fitting the fan to the ceiling is capable of supporting the weight of the fan when in operation. (Minimum 50Kg.).

FAN COMPONENTS

Canopy Support bar	Long support bar
Roof support	Coupling cover	Motor
Difusser	LED Panel	Remote + Controller
Instalation bag

FAN INSTALLATION

WARNING

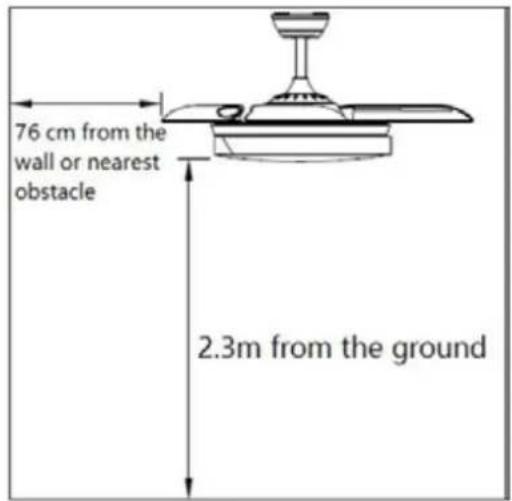

The fan should be hung with at least 230 cm of clearance from the floor to the blades and 76 cm from any wall or obstacle.

76 cm from the wall or nearest obstacle 2.3m from the ground

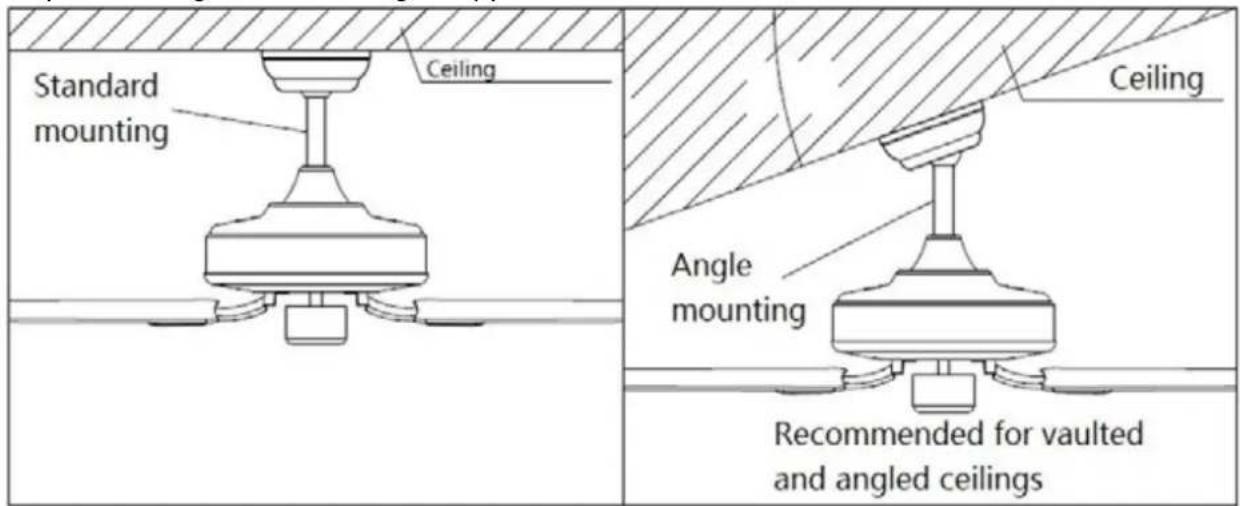

ROOF TYPES

This fan can be mounted on a normal or slightly inclined ceiling. You can increase the suspension length with the longer support bar.

Standard mounting Ceiling Ceiling Angle mounting Recommended for vaulted and angled ceilings

FAN INSTALLATION

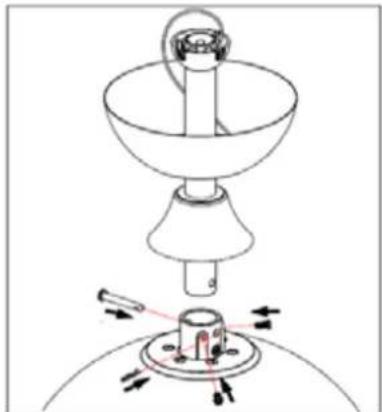

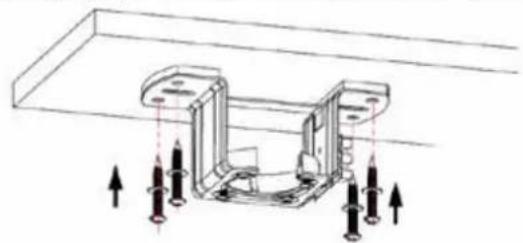

1. Position the roof support with the two screws and plugs (depending on the type of roof)

Technical diagram of a mechanical assembly with two components and directional arrows indicating force or movement (no text or symbols present)

On concrete ceilings, drill two 8mm holes and insert the screw. Align the bracket with the hole, and then tighten the nut.

Technical line drawing of a mechanical assembly with mounting holes and force arrows (no text or symbols)

On wooden ceilings, fasten the bracket using the 4 screws.

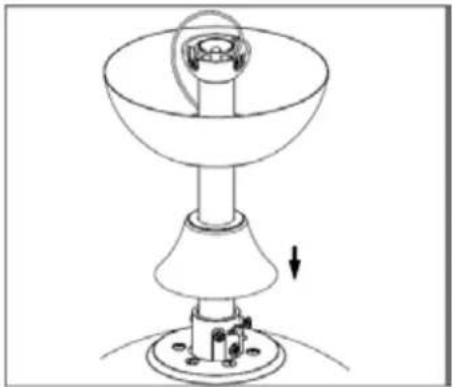

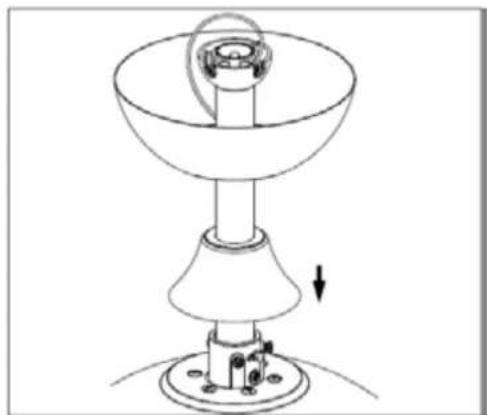

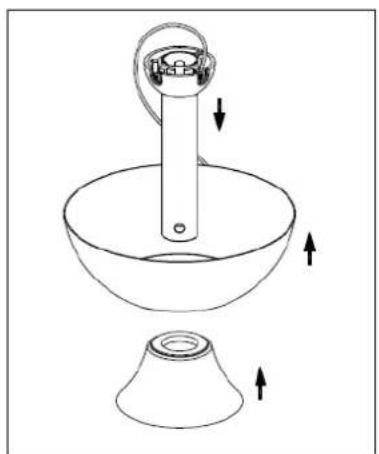

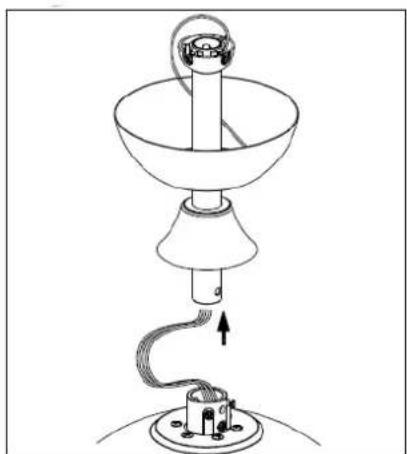

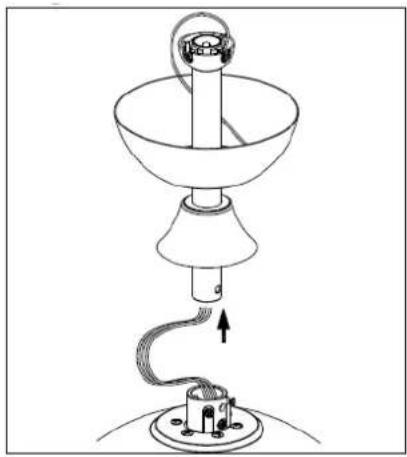

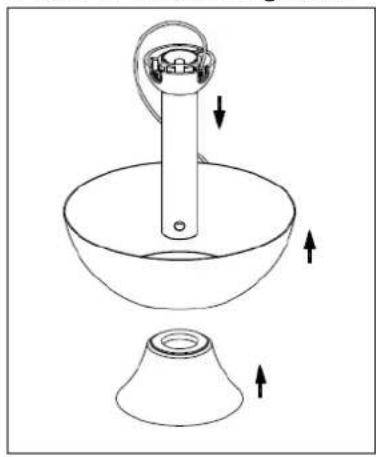

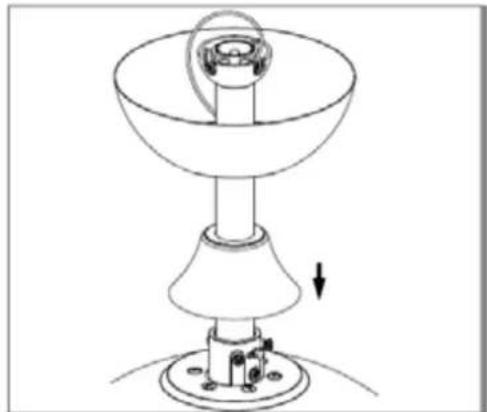

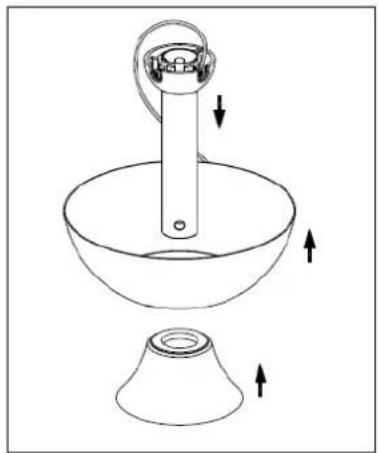

1. Pass the support bar through the hole in the docking cover

Technical diagram of a mechanical device with no visible text or symbols

Diagram of a kitchen sink with a funnel and a side view showing directional arrows (no text or labels)

Line drawing of a lamp with a conical shade and attached cable, no text or symbols present

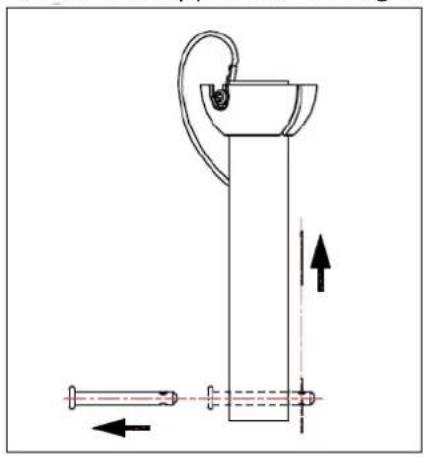

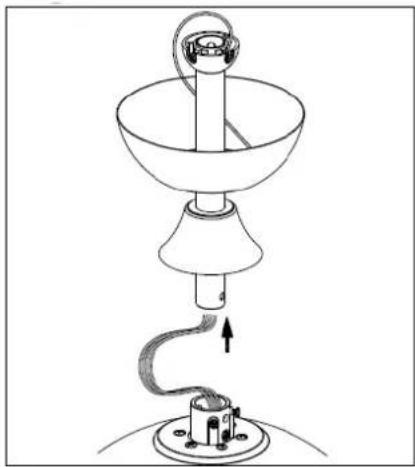

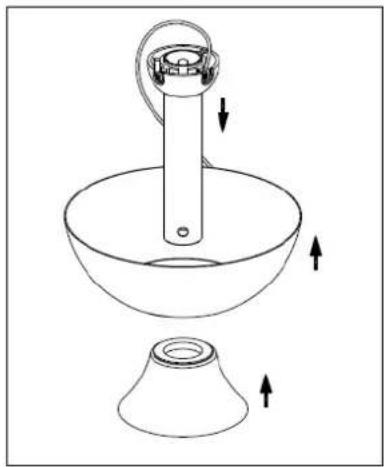

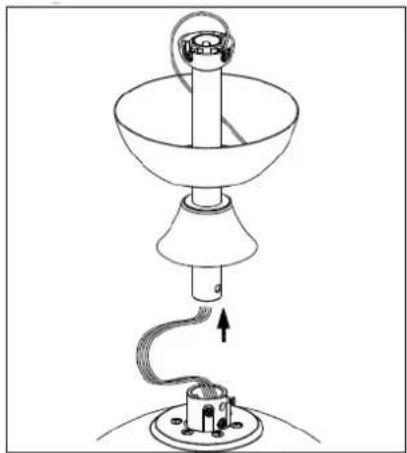

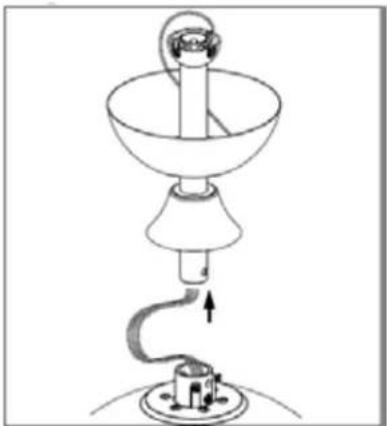

1. Loosen the motor joint bolts and attach the bar with cover to the motor using the flanged pin and bolts

Line drawing of a lamp with a base and clamped components, no text or symbols present

Line drawing of a mechanical device with a conical base and cylindrical top, showing a downward force arrow (no text or symbols)

ATTENTION: It is very important to ensure that the flanged pin is correctly installed and secured. Poor fixing of the pin can result in the fall of the fan.

HOW TO HANG THE FAN

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

SLOT TAB

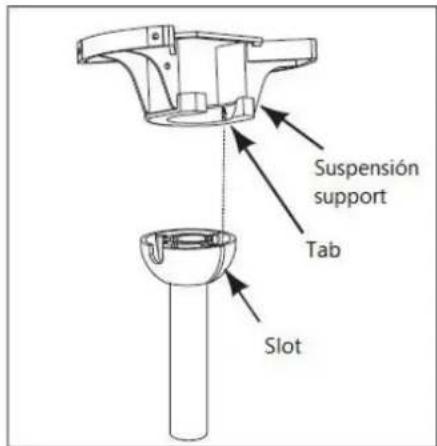

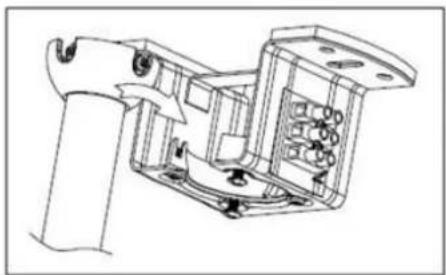

Carefully lift the fan and place the tilt support bar on the suspension bracket attached to the ceiling. Make sure the slot in the ball is properly aligned with the tab on the support bar.

WARNING

The fan must be hung with at least 230 cm of free space from the ground to the blades.

Suspensión support Tab Slot

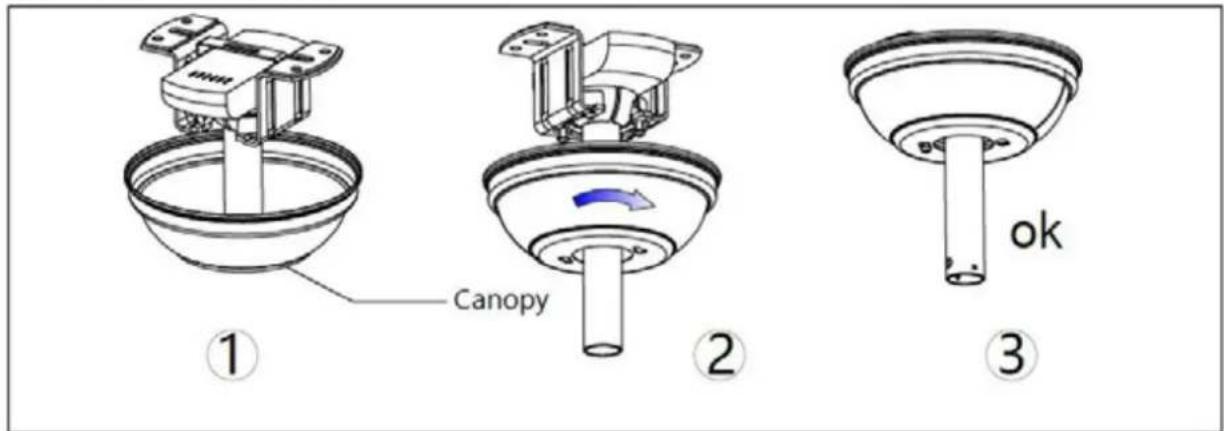

REMOTE CONTROL CONNECTION

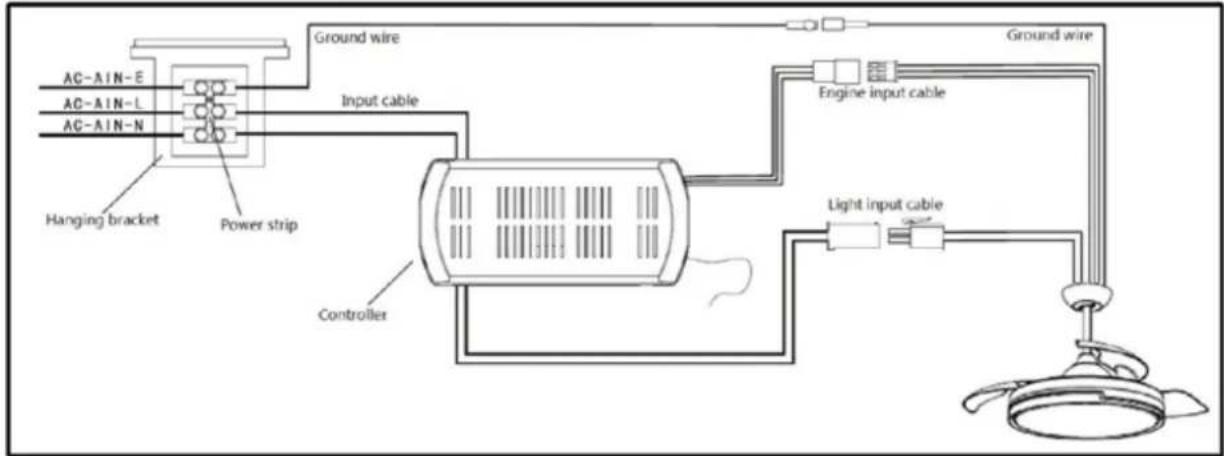

To make the electrical connection you must ensure that the corresponding thermal in the home's automatic panel has been lowered; do not make any connection if you are not sure of the absence of electric current.

Ground wire AC-AIN-E AC-AIN-L AC-AIN-N Hanging bracket Power strip Controller Input cable Engine input cable Ground wire Light input cable

ASSEMBLY OF THE BOWL

Canopy ① ② ③ ok

Once all electrical connections have been made, lift the cup onto the ceiling support, aligning the previously loosened screws with the holes in the cup.

Turn the cup to lock.

Secure all screws with a screwdriver.

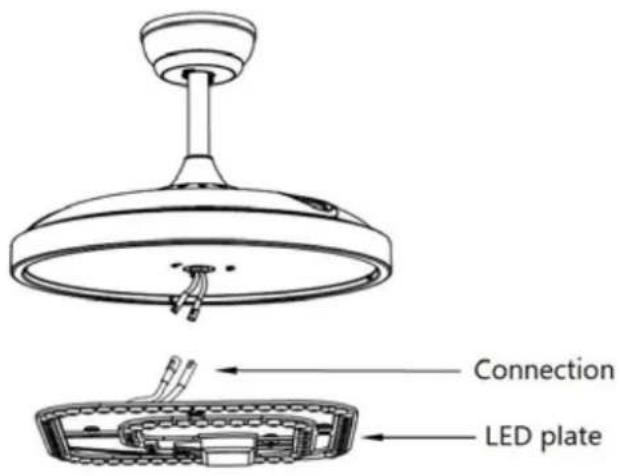

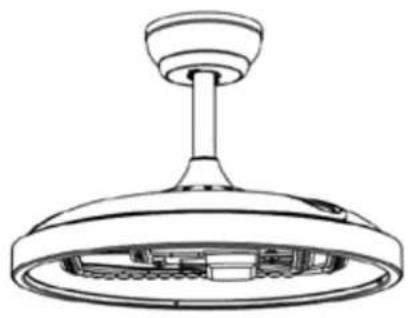

LAMP INSTALLATION

Connect the LED panel by matching the two cables on the panel with those on the motor body, respecting the color of each cable.

Next, attach the LED panel using the magnets.

Connection LED plate

Line drawing of a ceiling-mounted showerhead with internal compartments (no text or symbols)

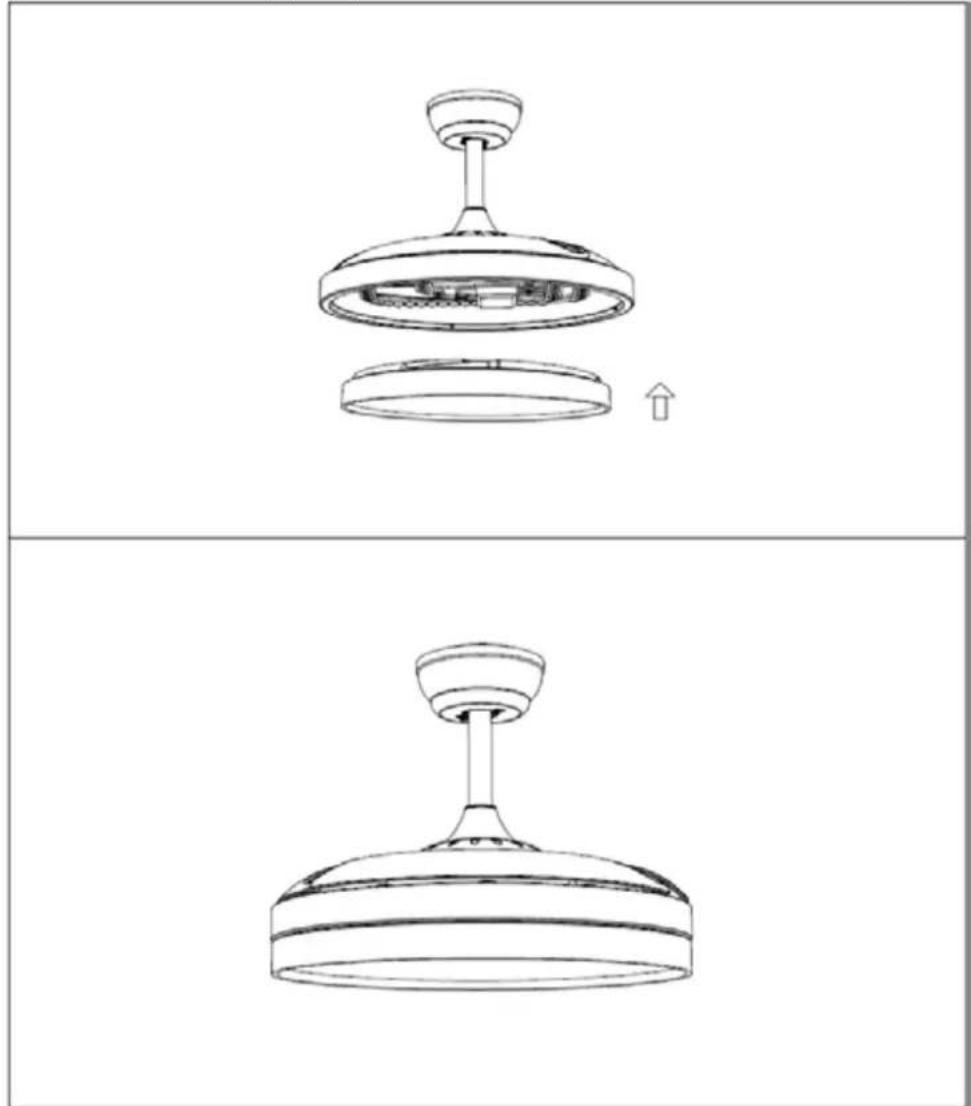

DIFFUSER PLACEMENT

Insert the diffuser into the lamp panel, turn it counterclockwise until it clicks into place.

Two technical line drawings of a ceiling lamp, showing top and side views with no text or symbols.

FAN BALANCING

Keep in mind that all ceiling fans are not created equal, even on the same model!

Some may move more or less than others. Movement of a couple of centimeters is quite acceptable and does not imply that the fan will fall over.

Although all blades are weighted and grouped by weight, it is impossible to completely eliminate wobble. This should not be considered a problem. Ceiling fans tend to move during operation because they are generally not rigidly mounted.

BALANCING KIT

A balancing kit has been supplied to help reduce wobble. Keep the kit as it may come in handy if the fan wobbles in the future.

The kit includes instructions on how to use it.

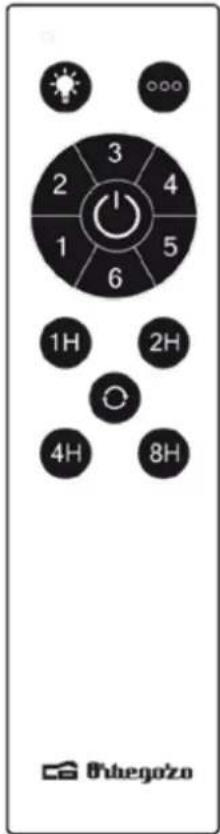

OPERATING THE FAN

In order to turn on the fun press one of the speeds, 1/2/3/4/5/6, being 1 the lowest and 6 the highest one. You can change the speed anytime by pressing the desired level.

Turn off the ceiling fan

Turn on or off the light

Change the light mode. Neutral, White, Warm

This button changes the direction of rotation of the blades. In winter, select the upward rotation, as they will direct warm air trapped near the fan downward throughout the room. When it's hot, select the down spin and the blades will create a breeze that will spread throughout the room.

Press 1H: the fan and light will turn off automatically after 1 hour.
Pulse 2H: the fan and light will turn off automatically after 2 hours.
Pulse 4H: the fan and light will turn off automatically after 4 hours.
Pulse 8H: the fan and light will turn off automatically after 8 hours.

Ohnegozo

MAINTENANCE AND CLEANING

- Change the battery by opening the battery compartment cover on the remote control, put in 2 AAA batteries and make sure the battery polarity matches the compartment diagram (Note: Battery is not included). Replace the compartment cover.

- Always make sure that the battery compartment has been properly closed.

- Do not expose the remote control to direct sunlight

- Do not try to recharge exhausted batteries. There are special rechargeable batteries, in which case it is clearly specified.

- Do not throw batteries into fire; there is a risk of explosion.

- Clean the fan with a soft, dry cloth. Never use scourers, abrasives or chemical cleaners. Avoid condensation coming into contact with electrical components.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
