Contents Page	GB
Illustration of Parts 5
Points of Safety 12
Assembling the Appliance 6
Assembly Instructions 13
Wet and dry vacuuming	14
Operating the spray-extraction system	15-16
Maintenance and care	17
If unexpected difficulties arise	17
For the sake of the environment	17
Customer Service	17
Guarantee	66

By-pass suction control

Suction tubes · Tuyaux

Buizen · Tubo aspirante

tubo de aspiração

merev szívócső

Emme borusu

Rura ssawna

Всасывающая трубка

Spray diffusor control

Pistolet diffuseur

Ventielhouder

Válvula de cierre

válvula de bloqueio

nyomószelep

Kapatma ventili

Zawór zamykający

Запорный клапан

18=Teppich-Sprüh-

extraktions-Düse

Spray-extraction carpet

shampoo nozzle

Spray-extraction upholstery

shampoo nozzle

Suceur injection-extraction

pour fauteuils

Adaptor for hard floors

Adapteur-radette

Carpet + floor nozzle

Brosse tapis/sols durs

Tapijtborstel

Tobera de alfombras

bocal de tapete

szönyegporszívó fej

Hali için başlık

Szczotka dywanowa

Extraction liquid tank

Fine particle textile filter

Labeled diagram of a vacuum cleaner with numbered parts and corresponding product images

Montage/Assembling the Appliance / Montage / Montage / Ilustraciones de montaje / Montagem / Szerelési és kezelési ábrák / Montaj / Ilustracje do montażu / Монтаж

Please read through the information contained in this instructions booklet carefully. It gives important advice on the safety, assembly, use and maintenance of the THOMAS SUPER 30 S Aquafilter. Retain the instructions booklet in a safe place for future reference and, if applicable, pass it on to the subsequent owner of the appliance.

The manufacturer will not be liable if the instructions specified below pare not observed. Do not put the THOMAS SUPER 30 S Aquafilter to improper use, i.e. do not use the appliance other than for the purposes it is meant for. It is intended for household use only.

• The voltage data on the appliance's rating plate must conform to the power supply.
• Do not operate the appliance if:
• the mains cable is damaged
• the appliance shows clear signs of damage
• the motor block has been dropped.
• Check the appliance for any damages which may have occurred during transport.
• Dispose of the packaging in accordance with local regulations.
• Never leave the appliance unattended when switched on.
• Never operate the appliance in rooms where inflammable materials are stored or where gases have formed.
• Store the appliance and its attachments in a dry, clean and enclosed space.
• Extreme care is required when vacuuming stair carpets with your appliance. Ensure that the vacuum cleaner stands firmly on the step and take care that the flexible hose is not stretched beyond its actual length. When using the vacuum cleaner on stairs, always ensure that you hold the appliance steady with one hand.
• Do not use the washing vacuum cleaner for dry vacuuming it the filter system is not fitted in accordance with the instructions.
• Warning! This vacuum cleaner is not suitable for vacuuming noxious substances.
• Do not vacuum solvent liquids, such as paint thinner, oil, petrol or corrosive liquids.
• Do not leave the appliance in the open and do not expose directly to moisture.
• Do not allow nozzles and tubes (when the appliance is switched on) to come within the proximity of the head - danger for eyes and ears, for example.

- This appliance can be used by children who are over 8 and by those with reduced physical, sensory or mental capabilities or lacking experience and/or knowledge given that they have been supervised or instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be undertaken by children who are not subject to supervision.

• Never unplug the appliance by pulling at the cable, but only by removing the plug directly from the socket.
• Ensure that the mains cable is not exposed to either heat or chemical substances, nor that it is pulled across sharp edges or surfaces.
• If the connecting cable of this equipment unit is damaged, it must be replaced by the manufacturer or by his customer service department or by other similarly qualified persons in order to prevent risks.
• Do not store the appliance next to a hot stove or heater.
• Never repair the SUPER 30 S yourself, but have all repairs carried out by an authorised customer service station only.
• Pull out the plug
• if the appliance malfunctions during operation
• before cleaning and maintenance
• after use
• when changing the filter.

- Before disposal of the SUPER 30 S, cut off the mains cable.

- Never point the jet of cleaning solution at plug sockets or electrical appliances.

- Chemicals (spray-extraction cleaning solution) do not belong in the hands of children.

- Important! Correct functioning of the appliance and cleansing efficiency can be ensured only when the original THOMAS cleaning solution has been used.

- Avoid direct contact with the cleaning solution if you have sensitive skin.

- Before carrying out any work whatsoever on the appliance, turn the control knob to the "off" position and pull out the plug.

- If the cleaning concentrate comes in contact with mucous membranes (eyes, mouth, etc), immediately rinse with water.

Congratulations on your new purchase!

Enjoy your appliance to the full through correct usage.

Applications

You are now the owner of one of the most efficient and versatile appliances available, which can easily be adapted for any one of its four cleaning functions. The THOMAS SUPER 30 S Aquafilter can be used as a vacuum cleaner for cleaning carpets, upholstery, smooth floors and for regular household care; it can vacuum dirt as well as liquids, e.g. it can clear blocked sinks and drains. With only a few simple accessories, it can be used for shampooing your carpets or upholstery.

The THOMAS SUPER 30 S Aquafilter is a multi-purpose product. In conjunction with the cleaning solution, the spray-extraction function enables you to clean carpets, upholstery and hard floors. The window-cleaning nozzle also renders it suitable for cleaning windows.

The wet vacuuming mode is suitable for picking up water-based liquids only and it should never be used for vacuuming inflammable liquids. As a vacuum cleaner, it is intended for the removal of dry dirt and dust from carpets, floors, furniture and curtains.

Unpacking the appliance

Unpack the appliance from the carton, remove any packaging and identify the following parts and functions in the diagrams at the beginning of this booklet to gain a better understanding of the instructions given below.

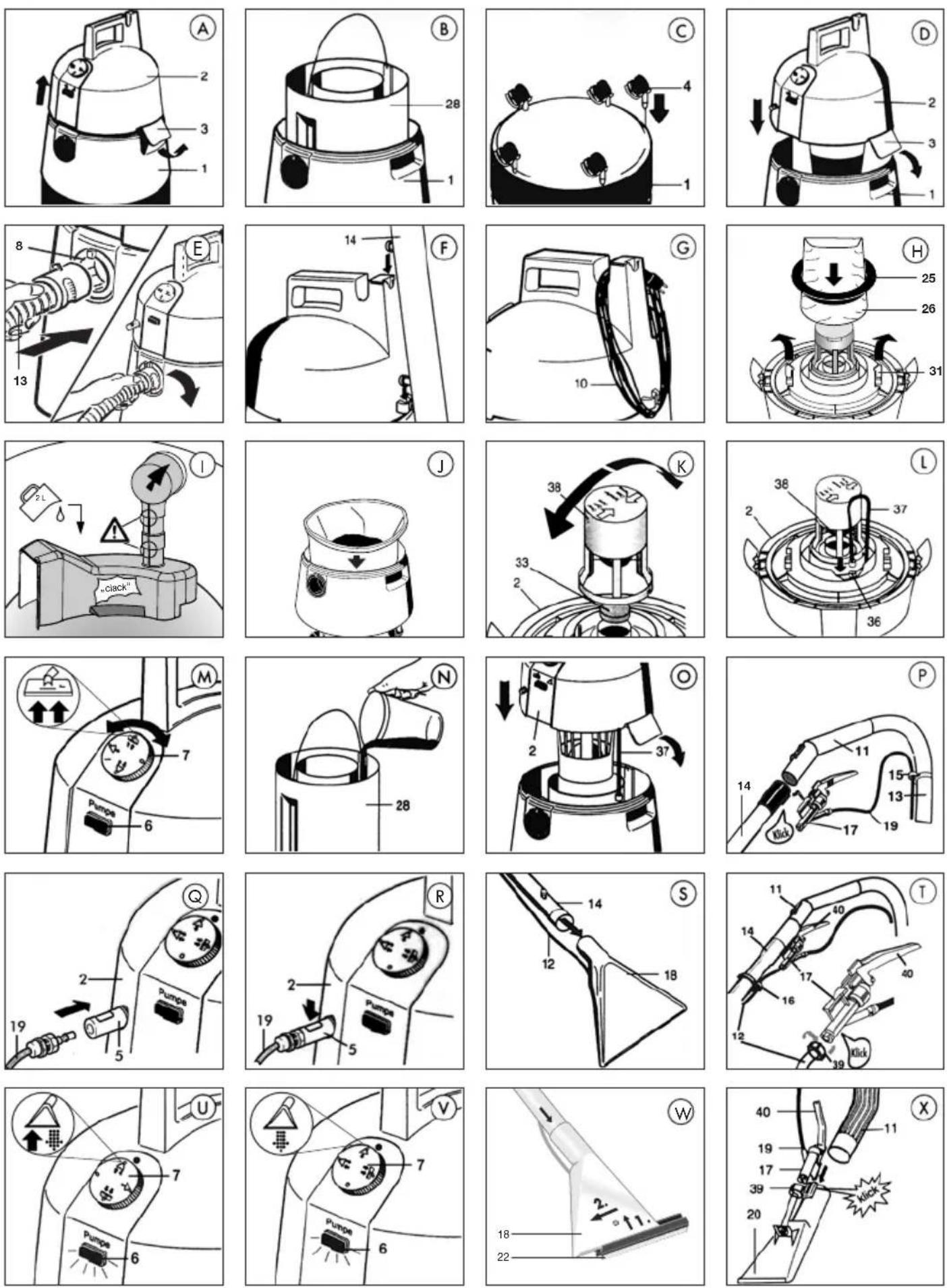

The letters indicated below refer to the diagrams on pages 4 and 6.

Assembly instructions

The parts required for the chassis are to be found loosely packed in the carton.

Assembling the castor wheels

(A) Undo the snap-on fasteners (3) and lift off the motor block (2).
(B) Take out the extraction liquid tank (28) and cleaning solution. Turn the collecting bin (1) upside down, i.e. with the opening facing the floor.
© Press down the steering castors (4) with bolts firmly into the bottom of the container (1) up to the stop.
Place the container (1) with the fitted steering castors (4) on the rollers and test for function.

Fitting the motor block

(D) Place the motor block (2) on the collecting bin (1), making sure that the surfaces of both parts correspond. Secure the motor block (2) by means of both snap-on fasteners (3).

Connecting the flexible hose

E Insert the flexible hose (13) in the suction socket (8) in such a manner that the markings on both the suction socket and the hose connecting piece correspond and the button clicks into place. Then attach the desired accessories. Remove the hose by turning the hose connecting piece and slowly with drawing the hose.

Suction tube holder

F The suction tubes (14) complete with accessories and flexible hose (13) can be hooked into the fixtures at the back of the appliance.

Cable storage

G After use, the mains cable (10) can be wound loosely in the hand and hung over the notch in the carrying handle, as shown in the illustration.

Motor protection filter

K After each wet suction and spray extraction process, check the motor protection filter (33) for contaminations and clean if required. For this, open the float valve (38) in the direction of the arrow, and take the motor protection filter from the suction opening.

Replace the cleaned or new filter and then put the float valve back in place.

Concentrated cleaning solution

Your THOMAS SUPER 30 S Aquafilter contains 0.5 l of Protex cleaning concentrate. Please see bottle label for instructions for use and dosage.

Dry vacuuming

Never use your AQUAFILTER appliance in dry vacuum mode without the Aquafilter, the fine particle textile filter, tissue filter and an appropriate water level. Do not vacuum up large quantities of particle dust, e.g. flour, cocoa powder, cement, etc.

Preparation

A Remove the motor head (2) with the cable disconnected from the mains plug.
B Remove fresh water tank (28).
L Press the suction hose (37) fitted to the motor head (2) in the holder (36) provided for this purpose.
(H) Fit tissue filter (26) by means of the clamping ring (25) and fasten with turning clips (31).

① Connect up the three-piece AQUA filter, pushing it together until the two parts fit snugly, and push it firmly onto the suction socket.

Note the marker guides!

The AQUA filter has to snap into place on the floor of the suction canister and has to lie there evenly.

Fill 2 litres of clear water into the collecting bin.

J Place the fine particle filter on the rim of the suction tank.
(D) Mount motor head (2). The rotary switch on the appliance must be set to "0".
© Connect up mains connection cable (10).

To put into operation

Switch on appliance

M The rotary knob (7) must be set to the carpet nozzle symbol when dry vacuuming.

The pilot lamp (6) should not be lit up.

Appliance is ready to use.

Cleaning and care of the AQUA filter system

For reasons of hygiene, empty, clean and dry the AQUAFILTER system and the collecting bin after each use. Dirty water and damp parts will promote the growth of bacteria and mildew.

Clean the fine particle filter – according to how dirty it is – with a dry or damp cloth. If it is very dirty, clean it out with clear water, without adding any detergents or cleaning fluids. Please make sure that the filter is completely dry before next using the vacuum cleaner.

Wet vacuuming

Assembly

(A) Remove the motor head (2) after connection cable has been disconnected from the mains plug.
Caution! Remove the filter unit (26, 27 + 30) before vacuuming liquids.

(L) Always ensure that the float (38) is kept clean and in good condition. It acts as a safety device and automatically interrupts the flow of air when the collecting bin is full.

(D) Put the motor block (2) back in position. The control knob on the appliance must be set at „0“.

G Plug the appliance into a mains socket.

Switching on the appliance

M When using the appliance in the wet vacuuming mode, the control knob (7) must be set at the „carpet + floor nozzle" symbol.

The pilot lamp (6) should not be lit up.

The appliance is ready for use.

Liquids can be directly vacuumed out of containers with either the vacuum hose or the hose with a section.

Take care when vacuuming liquids from high-sided containers or basins, where the quantity level exceeds the liquid capacity of the collecting bin. Remember that, in such a case, the liquid will continue to flow from the container even if the collecting bin is full and the float has stopped the suction flow of the appliance.

Therefore, vacuum only small quantities of liquid at a time and empty the collecting bin before switching on again.

Always lift the suction tube out of the liquid before switching off the motor.

Warning! If petrol, paint thinner, fuel oil etc. are allowed to mix with the suction air flow, explosive fumes or compounds may be formed.

Acetone, acids and solvents may attack the materials on your appliance. It is quite safe to vacuum water which contains ordinary household cleaning agents.

After vacuuming liquids, the collecting bin and all accessories used should be wiped clean and left to dry.

Operating the spray-extraction system

Before spray-extraction cleaning

Make sure that what is to be cleaned by spray-extraction is suitable for this purpose.

Do not use the appliance for delicate, hand-woven or non-fast carpets.

Test the colour-fastness of your carpet by pouring a little cleaning solution onto a white cloth and rubbing this onto a normally hidden section of the carpet. If there are no traces of dye on the cloth, it can be assumed that the carpet is colour-fast.

However, if dye comes off onto the cloth, do not clean the carpet by spray-extraction.

If you are in doubt, contact a specialist dealer.

Before shampooing your carpet, vacuum-clean the whole area thoroughly.

Ensure that the room is well-aired during and after spray-extraction cleaning to enable the carpet to dry quickly.

Carpet shampooing

(A) Pull out the plug and lift off the motor block (2).

When using the appliance in the spray-extraction mode, ensure that the extraction liquid tank (28) is inserted in the collecting bin.

N Pour the cleaning concentrate into the sprayer tank (28) and fill up with water. (Observe the dosing instructions on the lable of the Protex bottle.)

Use lukewarm water (max. 30°C) only. Higher temperatures can damage not only the appliance, but also the carpet and upholstery.

L Detach the cleaning solution tube (37) from its fixture in the motor block (2).

While putting the motor block (2) back on the collecting bin, let the cleaning solution tube (37) dangle down into the cleaning solution.

(D) Secure the motor block on the collecting bin by means of both snap-on fasteners (3).

Connecting the flexible hose and delivery tube

P Push the shut-off valve (17) in the mount on the suction tube. Afterwards push the hand grip (11) in the suction tube (14). Now fasten the pressure hose (19) to the suction hose (13) with the hose clips (15).

E Then insert the flexible hose (13) in the suction socket (8) in such a manner that the markings on both correspond and the button audibly clicks into place.

☐ Subsequently, insert the delivery tube (19) firmly into the coupling piece (5) on the motor block (2). Now attach the second suction tube (the one with fixture studs) to the suction tube which is already mounted.

(S) Attach the spray-extraction carpet shampoo nozzle (18).

⑦Mount the pressure hose (12), fasten to the nozzle with the coupling (39) in the shut-off valve (17) and turn to lock in position. Afterwards fasten the pressure hose (12) to the suction tube by means of the smaller tube clips (16).

The control knob on the appliance must be set at "0".

© Plug the appliance into a mains socket.

The appliance is now ready for use.

Switching on the appliance

⑧Turn the control knob (7) to the „spray-extraction" symbol.

The pilot lamp (6) should now be lit up.

The spray-extraction system:

• spray pressurised jets of cleaning solution
- breaks down dirt and cleanses deep into the fibres
• extracts dirty water powerfully and lifts up carpet pile.

All in a single operation.

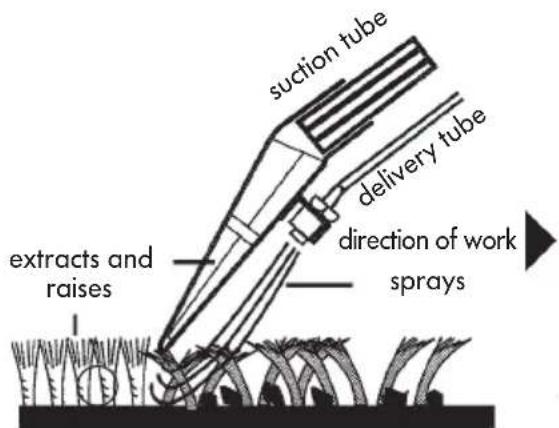

suction tube delivery tube direction of work sprays extracts and raises

dissolves and cleanses

T Place the spray-extraction carpet shampoo nozzle on the carpet in a corner of the room. Press the control trigger (40) on the handgrip (11) until cleaning solution sprays onto the carpet. Then slowly draw back the upright nozzle in a straight line over the carpet.

On completion of a lane or when interrupting operation, release the trigger to stop the jet spray flow of cleaning solution. When the sprayed on liquid has been vacuumed off, raise the nozzle and, with a slight overlap, begin a new lane.

In this way, the entire area can be covered strip by strip.

If there are still traces of liquid on the cleaned strip of carpet, these areas can be vacuumed over again, but make sure that the trigger control (40) is released!

As the upper part of the nozzle is transparent, you can judge for yourself by the colour of the extracted water when to end the spray-extraction process.

V Badly soiled areas can be pre-treated by turning the control knob to the „spray only" position. Aim the nozzle at the area to be treated and press the trigger control to emit a jet spray of cleaning solution. Leave to work in for a short time, then spray-extract as described above (remember to turn the control knob back to the „spray-extraction" position U).

Take care not to spray too much fluid onto the carpet as this can result in ripples or lumps forming, which only disappear again after a prolonged drying period. When vacuuming liquids, avoid spilling the residual liquid in the vacuum hose or tube by holding the hose or tube up with the motor still running, and then switch off.

Important!

• If the carpet has been shampooed before, there may occur a stronger foam development during the first use of your spray-extraction system. Should foam emerge from the air outlet, switch off the appliance and empty the collecting bin. To avoid further development of foam, add one cup of vinegar into the collecting bin.
  Increased development of foam is impossible after having used the THOMAS SUPER 30 S Aquafilter with its Original Thomas ProTex cleaning solution for one time, since it includes a special foam stopper.
• Do not walk on the carpet while it is still damp.

Washing hard floors

W Slide the hard floor adaptor (22) onto the spray-extraction carpet shampoo nozzle (18).

Now you can wash and dry smooth ceramic, stone, synthetic or wooden floors in one single operation.

Never wet clean parquet and laminate floors. In the case of moist cleaning of floor coverings the cleaning instructions of the manufacturer of the floor coverings must be observed without fail.

Upholstery shampooing

☒ To shampoo upholstery or car seats, use the spray-extraction upholstery shampoo nozzle (20).
Take care not to apply too much fluid to upholstery as, depending on the type of padding, a lengthy drying period can be expected.
The spray-extraction upholstery shampoo nozzle (20) is fitted directly onto the spray diffusor control (17). The delivery tube is secured at the valve by turning the coupling piece (39).
Detach the delivery tube (12) by turning the coupling piece (39).
Operate as described under "Carpet shampooing".

After spray-extraction cleaning

Pull out the plug.

R Before removing the motor block (2), detach the delivery tube (19). Press the release button on the quick-action coupling (5). The connecting rod is ejected automatically.
(A) Remove the vacuum cleaner's motor head (2) and place onto shallow container to avoid getting the intended surface dirty from residual water.
(B) Take out the extraction liquid tank (28) and empty. (Any unused cleaning solution can be stored in a suitable receptacle.) Empty the collecting bin (1) and wash out thoroughly.
☐ Care for the pump and valves by filling the extraction liquid tank with clear water, putting it in the collecting bin and replacing the motor block (2).
Operate the spray-system on a smooth floor or over the sink.
Subsequently, clean both receptacles and leave the dismantled parts to dry thoroughly.

Care and maintenance

Before cleaning always disconnect the connection cable from the mains plug!

Never immerse motor housing in water!

Wipe over motor housing and tank with moist cloth and rub dry.

Tank and used accessories have to be cleaned with warm soapy water every time the appliance is used for wet vacuuming, more especially after removing sticky liquids.

If unexpected difficulties arise

Before contacting your dealer, check whether the fault is due to one of the following minor causes:

Dust escaping from suction socket:

• Has the filter system been fitted in accordance with the instructions?
• Has an original water filter/tissue filter been used?

Gradual reduction in suction power:

• Is the collecting bin full?
- Are the pores of the filter clogged up by dust or soot?
- Is there a blockage in the nozzle, extension tube, flexible hose or aquafilter? (Stretch the flexible hose while the appliance is switched on – this will loosen the obstruction.)
- Is the protective motor filter (33, figure K) dirty?

Sudden reduction in suction power:

- Has the float stopped the flow of air? This can happen if the appliance is standing at a slant or if the appliance falls over. Turn off the vacuum cleaner – the float will fall back into place – the appliance is ready for use again.

The motor does not function:

• Has the fuse blown?
• Is there damage to the mains cable, plug or socket? Pull out the plug before checking!
  • Never open the motor yourself!

Cleaning solution does not flow out:

• Clean the filter mesh at the end of the cleaning solution tube (37).
• Is the pump switched on? (The pilot lamp [6] should be lit up.)
• Is there cleaning solution in the extraction liquid tank?
• Is the cleaning solution tube dangling freely into the extraction liquid tank?
• Is the delivery tube nozzle blocked? (In this case, unscrew the cap nut and place the nozzle in water for a time. Subsequently, blow

vigorously through the nozzle. When replacing the nozzle, ensure that the jet spray opening stands parallel to the suction tube.)

For the sake of the environment, please note:

Do not just throw away packaging material and worn out appliances!

Appliance packaging:

• The packaging carton can be placed in the waste paper collection bin
• The plastic bag made of polyethylene (PE) should be placed in the appropriate disposal bin for recycling.

Appliance disposal at the end of service life:

- Appliance disposal in accordance with the local regulations but before doing so disconnect and cut off the mains plug.

The symbol on the respective product or its packaging indicates that this product must not be disposed of as household waste. Instead, it should be handed into the

collection point for recycling electrical and electronic equipment.

By ensuring the proper disposal of this product, you will help to prevent potential adverse consequences for the environment and human health, which could otherwise be caused by inappropriate disposal of this product.

For more explicit information about recycling of this product, please contact your local town hall, your household waste disposal service or the shop where you purchased the product.

Customer Service

Ask your dealer for the address or telephone number of your nearest THOMAS Customer Service.

Specify model number and type when contacting your dealer - you will find these details on the rating plate located at the back of the appliance.

To maintain the safety of your appliance, you should have repairs, especially on live parts, carried out by a trained electrician only. In the event of a fault, you should therefore approach your dealer or the THOMAS Customer Service directly.

Contact details are on the reverse side.

Right to technical changes reserved.

Avis importants

Irrespective of any guarantee obligations given by the dealer in the sales contract, we undertake to guarantee this appliance on the following conditions:

1. The guarantee is valid for a period of 24 months from the date of delivery to the first retail purchaser. In the case of industrial use or similar employment of the appliance, the guarantee period is reduced to 12 months. Proof of the date of purchase, e.g. presentation of the sales receipt, is required when making a claim on the guarantee.

2. Within the guarantee period, we undertake to remedy all functional defects, which have evidently arisen from faulty workmanship or materials, by repair or replacement of the faulty pans according to our choice. We assume possession of the defective parts thus replaced.

The guarantee does not apply to easily breakable parts, such as glass, plastics, lamps.

Any defects established should be reported to us immediately during the guarantee period.

Neither the replacement parts necessary for the repair of any functional defects occurring during the guarantee period, nor the labour costs incurred thereby, will be charged. If unjustified claims are made on our service department, any costs associated therewith will be charged to the customer.

Demands for repair work to be carried out in the customer's home or wherever the appliance is installed can only be complied with in the case of large appliances. All other appliances are to be submitted to our nearest

service branch or authorized service agent or else sent to the factory.

1. The guarantee does not apply to minor discrepancies, which are immaterial for the value and operating efficiency of the appliance, nor does it apply to damages arising from chemical or electro-chemical reactions with water or in general through anomalous environmental conditions. No claims can be made on the guarantee for damages occurring as a result of normal wear and tear, non-observance of the operating instructions or improper use.

2. The guarantee will be invalidated if modifications or repairs are carried out on the appliance by any persons other than those authorised by us to do so.

3. Repairs and/or replacements carried out under the guarantee do not give rise to the extension or renewal of the guarantee period of either the appliance or the fitted replacement parts: the guarantee period of fitted replacement parts ends at the same time as that of the whole appliance.

4. More extensive orotherclaims, particularly those for compensation for damages arising outside of the appliance, are exclusive, so far as a coercive liability has not been decreed by law.

Our after-sales services are also available after the expiry of the guarantee period. Please contact your dealer or our Customer Service Department directly.

GARANTIE

www.robert-thomas.net

Schweden:

Olsson & Co.

Toms Byväg 42

43033 Fjäras

Tel. +46 (0) 31 - 910085

Fax +46 (0) 31 - 015290

E-mail: [e-mail]

Österreich:

Wukovits

http://thomas.info/servis-warranty.html

Kasachstan:

ИП "ТНОМАS - сервис"

QR code image containing encoded data, no visible human-readable text

www.robert-thomas.net

EAC
