Product type	Cordless impact wrench
Brand	Flex
Model	IW 1/2" 18.0-EC
Nominal voltage	18 V
Battery type	Lithium-ion (AP 18.0)
Battery capacity	2.5 Ah or 5.0 Ah
Maximum torque	250 Nm (mode 3)
No-load speed	1500 / 2000 / 2500 rpm (3 positions)
Impact rate	1300 / 2800 / 3300 bpm
Drive square	1/2" (12.7 mm)
Weight (without battery)	1.1 kg
Battery weight 2.5 Ah	0.4 kg
Battery weight 5.0 Ah	0.7 kg
Sound pressure level LpA	91 dB(A)
Sound power level LWA	102 dB(A)
Vibration (impact screwing)	18.5 m/s² (uncertainty K=1.5)
Weather protection	Do not expose to rain, store in a dry place
Intended use	Professional tightening and loosening of nuts and screws
Maintenance	Clean with dry compressed air, no water
Included accessories	Battery, charger CA 10.8/18.0, belt clip
Charging temperature	0 °C to 55 °C

Frequently Asked Questions - IW 1/2" 18.0-EC Flex

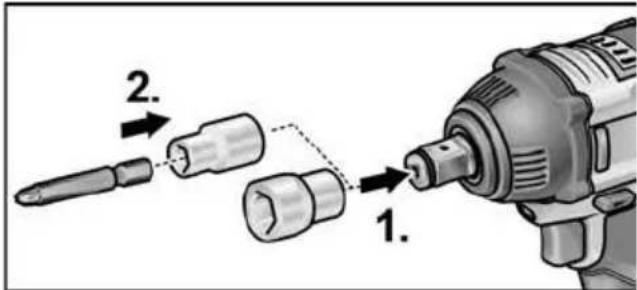

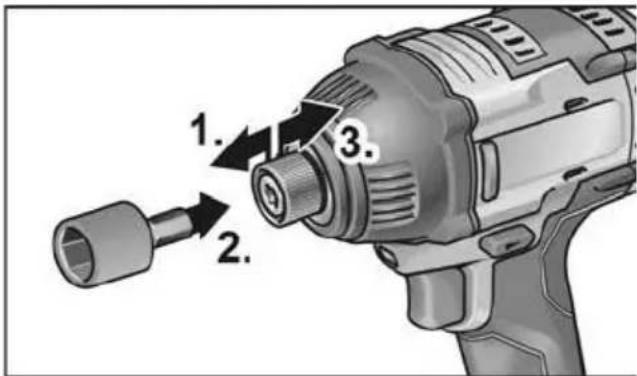

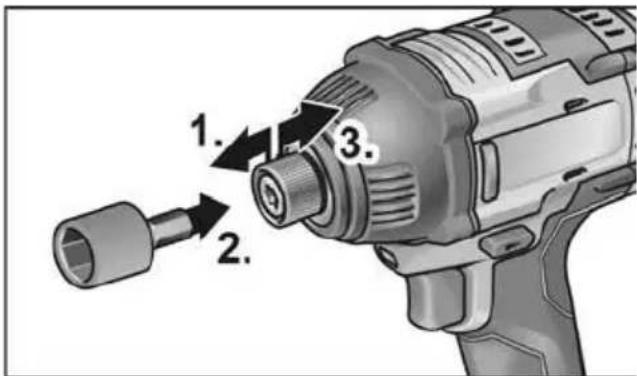

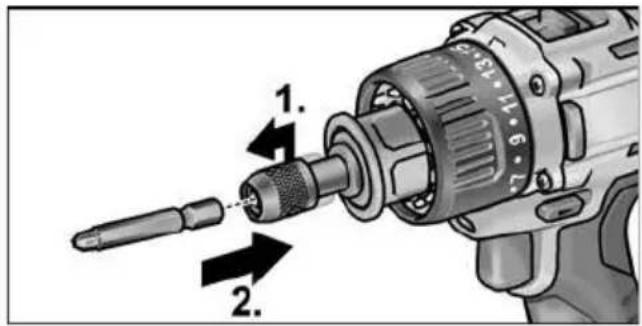

How to install the tool on the impact wrench?

Press the socket onto the drive square, then insert the tool into the wrench. To remove, pull the locking mechanism backward.

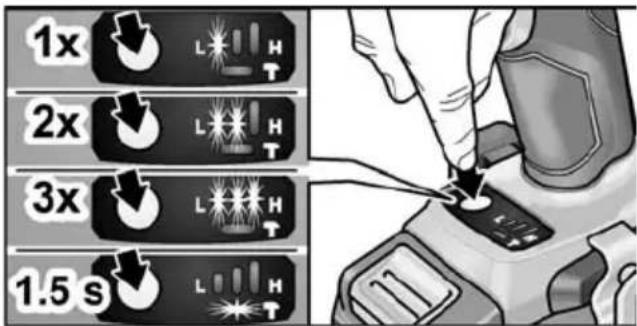

How to adjust the torque and speed?

Briefly press the mode selector (approx. 0.5 s) to scroll through the three levels: 150 Nm / 1500 rpm, 180 Nm / 2000 rpm, 250 Nm / 2500 rpm. The LEDs indicate the active level.

How to switch from single impact mode to impact wrench mode?

Hold down the mode selector for about 1.5 seconds. The mode indicator LED lights up for single impact mode, otherwise the impact wrench mode is active.

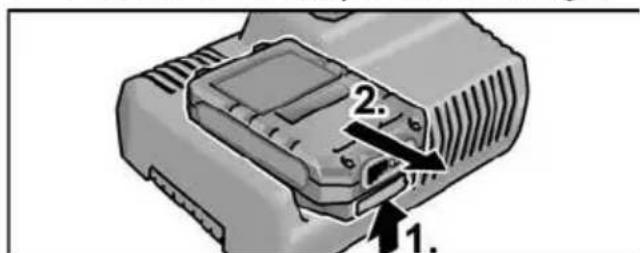

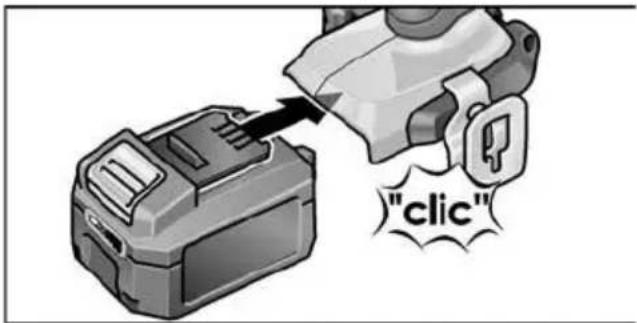

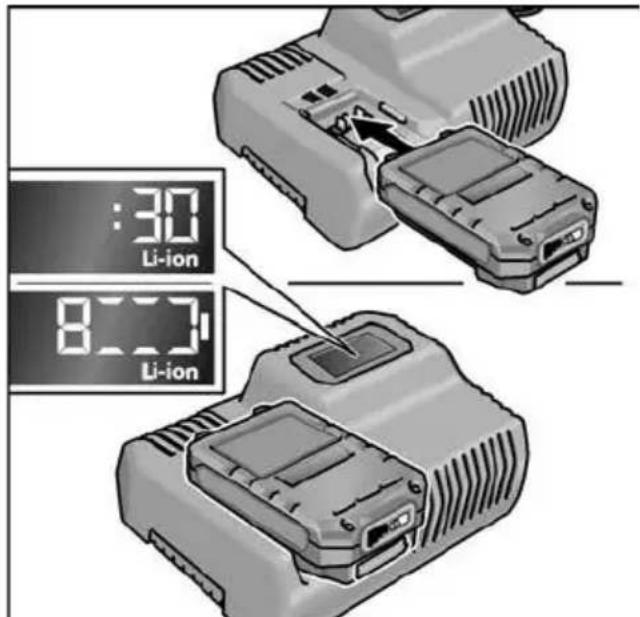

How to charge the battery?

Plug in the charger, insert the battery until it clicks. The display shows the remaining time. The light turns green at 80% charge. Remove the battery once charged.

What to do if the charger screen flashes red?

This indicates a fault. Remove the battery and reinsert it. If the problem persists, the battery or charger is defective; have it checked by a specialist workshop.

What is the weight of the tool without battery?

The weight of the tool alone is 1.1 kg. With a 2.5 Ah battery, total weight is approx. 1.5 kg; with a 5.0 Ah battery, approx. 1.8 kg.

How to clean the impact wrench?

Regularly clean the ventilation slots and the inside of the housing with dry compressed air. Never use water or liquid cleaning products.

Can I use the impact wrench in the rain?

No, the device is not designed for outdoor use in the rain. Protect it from moisture and store it in a dry place.

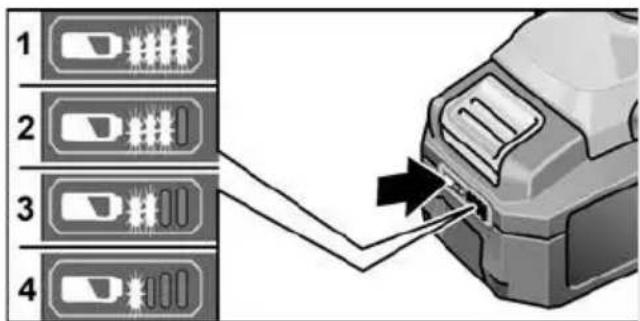

How to check the battery charge level?

Press the button on the battery. The LEDs indicate the level: 4 LEDs = full, 1 flashing LED = needs recharging. If no LED lights up, the battery is defective.

Which accessories are compatible with the angle adapter?

The angle adapter WV 18.0-EC accepts the interchangeable drill chuck BF 18.0-EC and the bit holder adapter BV 18.0-EC. It can be adjusted every 30°.

USER MANUAL IW 1/2" 18.0-EC Flex

Illustration of multiple electric drillers with exploded view, no text or symbols present

Mechanical assembly diagrams showing two views of a tool with pins and clamps (no text or symbols)

i HINWEIS

Technical diagram showing a drill press mechanism with numbered steps for tool application

Technical diagram showing two components of a drill bit with numbered callouts indicating assembly steps.

Demontieren

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontieren

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

Diagram showing a drill bit being adjusted to a tool, with three labeled states (C, X, B) indicating different states of the drill.

Close-up of a drill bit with caliper and adjustment knobs (no visible text or symbols)

Close-up of a drill bit with visible teeth and screw head (no text or symbols)

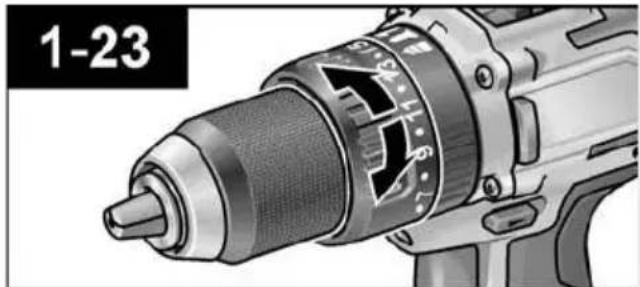

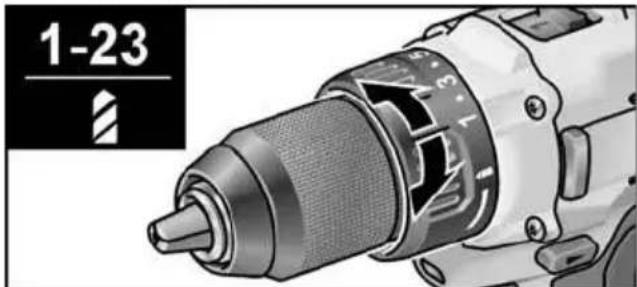

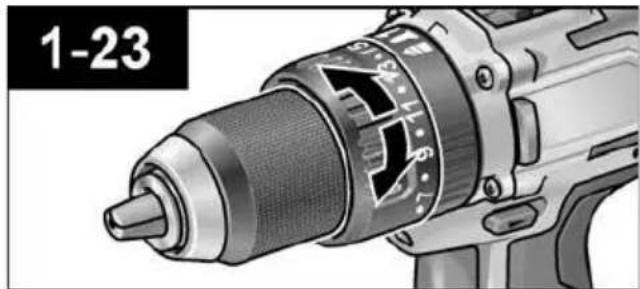

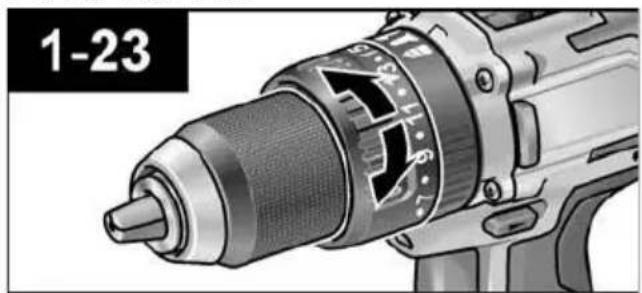

1–23: Schrauben

Bohren

HINWEIS

Close-up of a power drill bit with visible screw and head (no text or symbols)

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

Gerät ausschalten:

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press, showing tool positioning (no text or symbols)

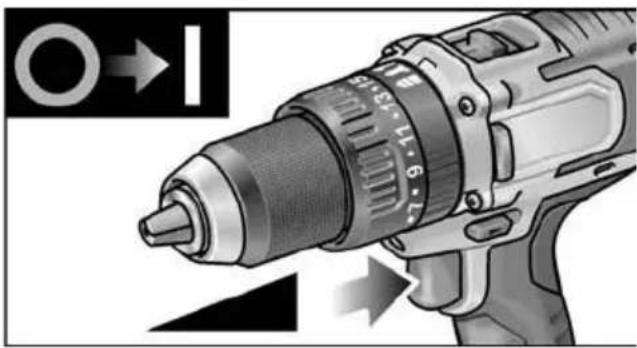

1. Gerät einschalten.

Nach Arbeitsende:

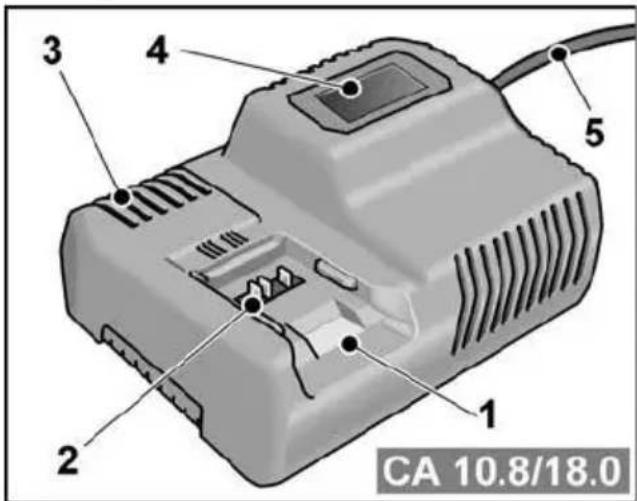

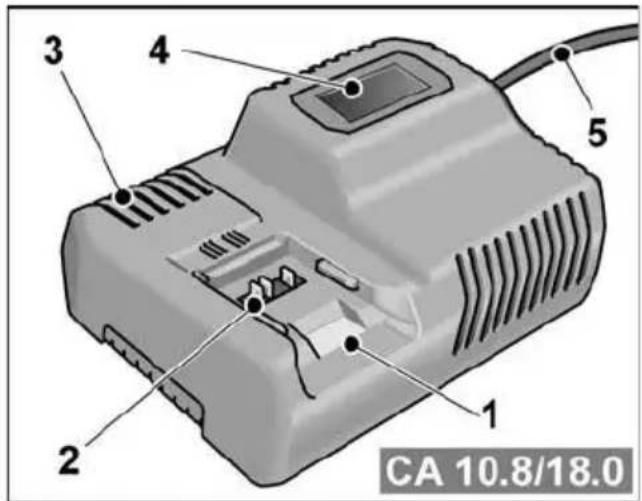

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Symbols used in this manual ..... 17

Symbols on the power tool 17

Important safety information ..... 17

Noise and vibration 19

Technical data 20

Overview 21

Instructions for use 22

Maintenance and care 28

Transport 29

C ∈ conformity 29

Disposal information 29

Exemption from liability 29

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a potentially dangerous situation. Non-observance of this warning may result in injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

Before switching on the power tool for the first time, read the operating manual.

Wear protective goggles.

Short-circuit-proof safety transformer.

Protect the battery against heat, including prolonged sunshine, and fire. Explosion hazard!.

Do not throw the battery into a fire. Explosion hazard!

The tool is only suitable for use indoors. Do not expose the tool to rain. Store power tools and batteries in dry rooms.

Disposal information (see page 29).

Important safety information

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Before using the power tool, please read the following and act accordingly:

– these operating instructions,

- the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet no.: 315.915),

– the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.

The power tool may be operated only if it is

- for its intended use,

- in perfect working order.

Faults which compromise safety must be repaired immediately.

Intended use

The DD 2G 18.0-EC cordless drill driver is intended

– for commercial use in industry and trade,

– for inserting and releasing screws,

– for drilling in wood, metal, ceramic and plastic.

The PD 2G 18.0-EC cordless percussion drill is intended

– for commercial use in industry and trade,
– for inserting and releasing screws,
– for drilling in wood, metal, ceramic and plastic,
– for impact drilling in brick, masonry and stone.

The IW 1/2" 18.0-EC / ID 1/4" 18.0-EC cordless impact driver is intended

– for commercial use in industry and trade,
– for tightening and releasing nuts and screws in the specified dimensions.

Safety instructions for drills and drivers

■ Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory or the screw may contact hidden wiring or its own power cord.
The screw contacting a “live” wire may make exposed metal parts of the power tool “live” and cause an electric shock.
■ Use auxiliary handles if these are supplied with the power tool. The loss of control may result in injuries.
■ Use suitable detectors to detect concealed power supply cables or consult your local supply company. Contact with electric cables may result in a fire and/or electric shock. A damaged gas pipe may cause an explosion. Cutting into a water pipe will cause damage to property.
■ Switch off the power tool immediately when the cutting accessory jams. Be prepared for high reaction torques which cause kickback. The cutting accessory jams when:

– the power tool is overloaded or

- it snags in the workpiece to be machined.

■ Maintain a firm grip on the power tool. High reaction torques can occur briefly when screws are tightened and released.

■ Secure the workpiece. A workpiece is held more securely in a clamping device or vice than by hand.
■ Wait until the power tool has come to a stop before putting it down. The cutting accessory may snag, causing the operator to lose control of the power tool.
■ Use only original batteries with the voltage indicated on the type plate of your power tool. The use of other batteries, e.g. imitations, reconditioned batteries or other makes, increases the risk of injury and damage to property by exploding batteries.

Additional safety instruction for percussion drill (PD ...)

■ Wear ear defenders when impact drilling. The effect of noise may result in loss of hearing.

Safety instructions for handling batteries

■ Do not open the battery. Short-circuiting hazard!
■ Protect the battery against heat, including prolonged sunshine, fire, water and moisture. Explosion hazard!
■ A damaged or incorrectly used battery may result in the emission of fumes.
Ensure a supply of fresh air and consult a doctor in the event of any physical complications. The fumes may irritate the respiratory tracts.
- Liquid may leak out of the battery if the battery is incorrectly used. Avoid contact with such liquid. If contact accidentally occurs, rinse with water. If liquid contacts eyes, seek medical attention.
Liquid discharged from the battery may cause irritation or burns.
■ Recharge batteries only with chargers recommended by the manufacturer.
A charger that is suitable for one type of battery may create a fire hazard when used with another battery.
■ The battery may be damaged by pointed objects such as e.g. nails or screwdrivers or by external application of force. This may give rise to an internal short circuit, causing the battery to burn, smoke, explode or overheat.

Charger

■ Always check whether the mains voltage matches the voltage indicated on the type plate of the charger.
■ The charger plug must fit in the power socket. Never modify the plug in any way. Do not use any adapter plugs together with earthed (grounded) power tools. Unmodified plugs and matching power sockets will reduce the risk of electric shock.
■ Only use the charger in dry rooms and avoid all contact with moisture and rain. The ingress of water into the charger increases the risk of electric shock.
■ Never use the charger if cables, plugs or the device itself are damaged as a result of external influence. Take the charger to the nearest authorised repair shop.
■ Under no circumstances open the charger. In the event of a fault, take it to an authorised repair shop.
■ Do not place any objects on the charger and do not place the charger on soft surfaces. Fire hazard!

Special safety instructions

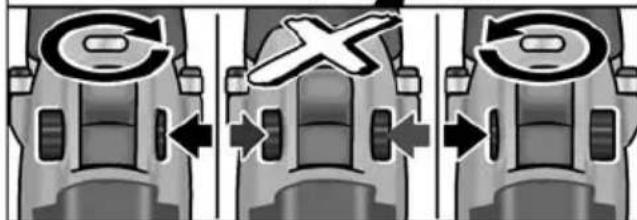

■ Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.
■ Operate the direction preselector switch (2) or torque setting turning dial (5) only when the tool is stopped.
■ Identify the power tool with stickers only. Do not drill any holes into the housing.

Noise and vibration

i NOTE

The noise and vibration values have been determined in accordance with EN 62841. The values are set out in the “Technical data” table.

WARNING!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

i NOTE

The vibration emission level given in this information sheet has been measured in accordance with a measurement method standardised in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The specified vibration emission level represents the main applications of the tool.

However, if the tool is used for different applications, with different cutting accessories or poorly maintained, the vibration emission level may differ.

This may significantly increase the exposure level over the total working period. To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use. This may significantly decrease the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the cutting accessories, keep the hands warm, organisation of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

Technical data

Tool DD 2G		18.0-EC	PD 2G18.0-EC	IW 1/2"18.0-EC	ID 1/4"18.0-EC
Type		Drill driver	Impact drill driver	Impact driver	Impact driver
Battery AP 18.0/2.5		AP 18.0/5.0
Charging time (depending on state of charge)– AP 18.0/2.5– AP 18.0/5.0	min	0–400–45
Torque, max.– Soft screwdriving case– Hard screwdriving case	NmNm	5690	5690	–250	–225
Torque settings 20 24 –
Idling speed– Stage 1– Stage 2– Stage 3	r.p.m.r.p.m.r.p.m.	0...6000...2300–	0...6000...2300–	150020002500	150020002500
Schlagzahl– Stage 1– Stage 2– Stage 3	r.p.m.r.p.m.r.p.m.	–––	0...96000...37000–	130028003300	130028003300
Chuck mm 1.5–13 –
Max. drill diameter– in wood– in steel– in masonry	mmmmmm	601316	601316	–––	–––
Weight according to “EPTA Procedure 01/2003”(without battery)	kg 1.5	1.6 1.1 1.1
Weight battery 2.5 Ah5.0 Ah	kgkg	0.40.7
A-weighted sound pressure level
Sound pressure level L_pA	dB(A) 7	8* 78* /	95** 91***	91***
Sound power level L_WA	dB(A) 8	9*	89* /106**	102***	102***
Uncertainty K	db 3.0
Overall vibration values (vector sum of three directions)
Vibration emission value ah when ....
– drilling in metal	m/s2	<2.5	<2.5	–	–
– impact drilling in concrete	m/s2	–	15.5	–	–
– screwing	m/s2	<2.5	<2.5	18.5***	18.5***
Uncertainty K	m/s2	1.5

* drilling in metal / ** impact drilling in concrete / *** impact driving

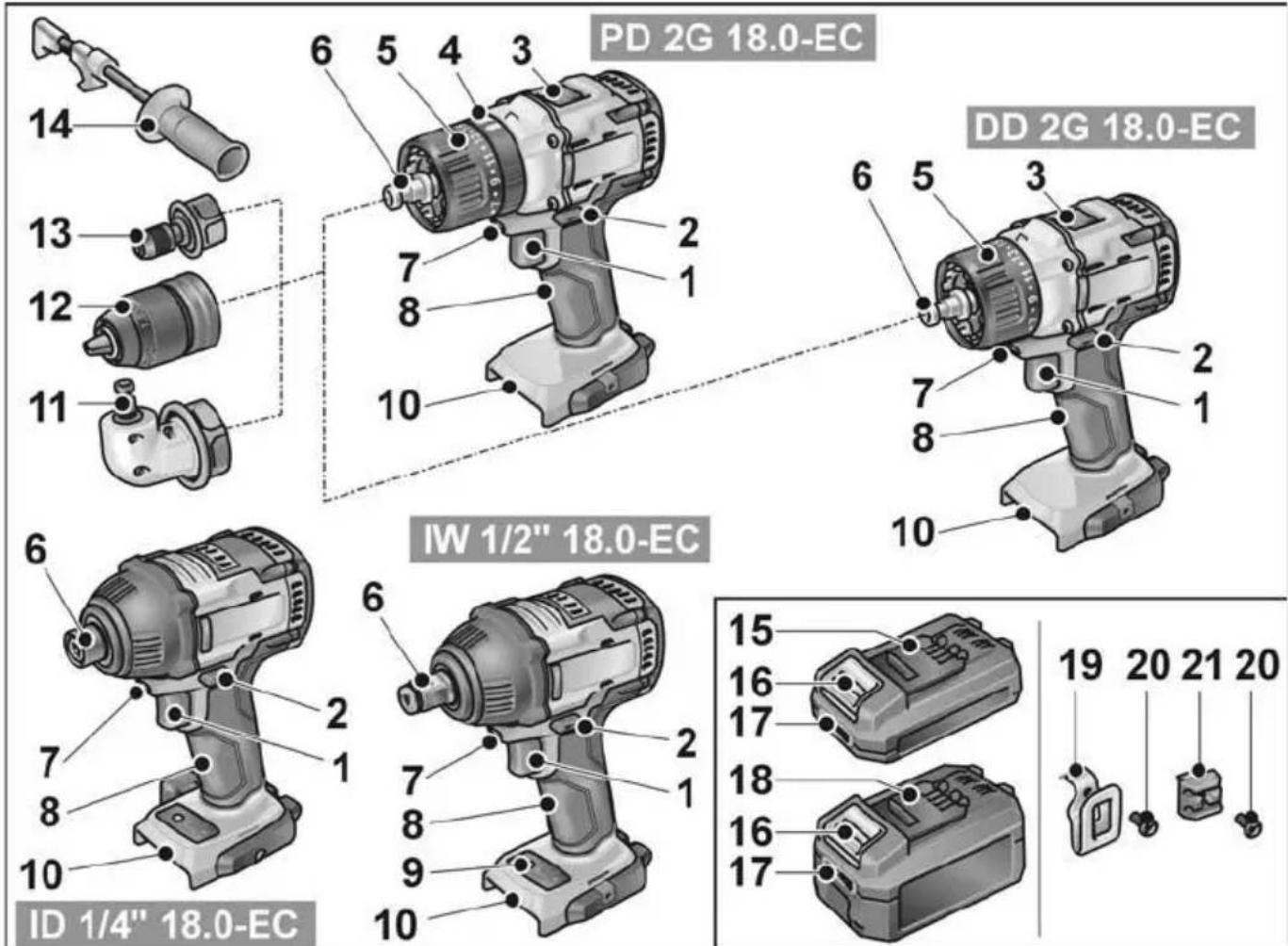

Overview

Different electric power tools are described in these instructions. The illustrated electric power tool may differ in detail from the one which you purchased.

PD 2G 18.0-EC DD 2G 18.0-EC ID 1/4" 18.0-EC IW 1/2" 18.0-EC

1 Trigger switch

For switching on and off and for accelerating up to maximum rotational speed

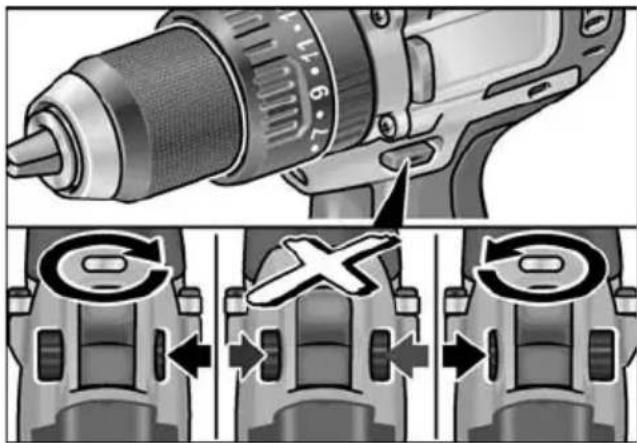

2 Direction preselector switch

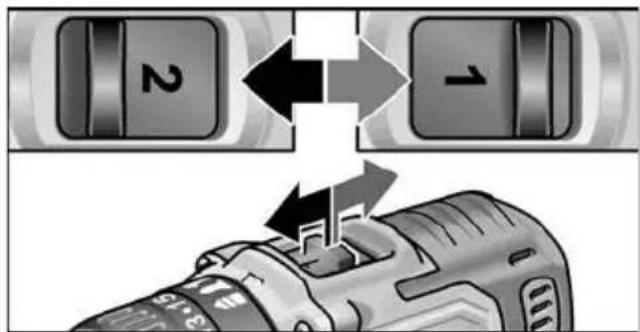

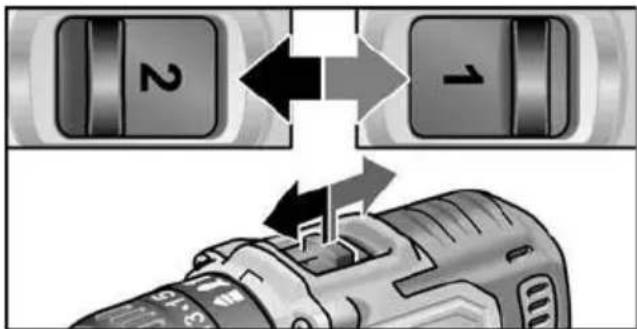

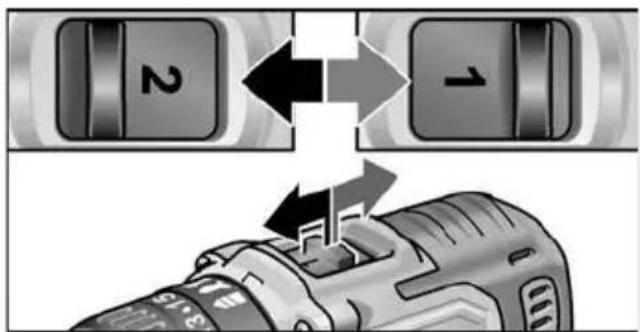

3 Speed selector switch

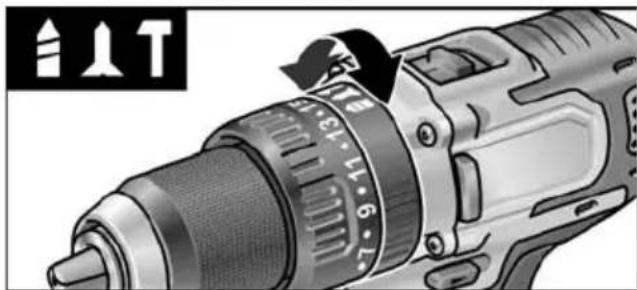

4 Turning dial for operating mode (PD... only)
5 Turning dial for torque setting
6 Tool holder
7 Workplace lighting
8 Handle
9 Speed control panel
10 Insertion slot for battery

11 Angle attachment with release ring

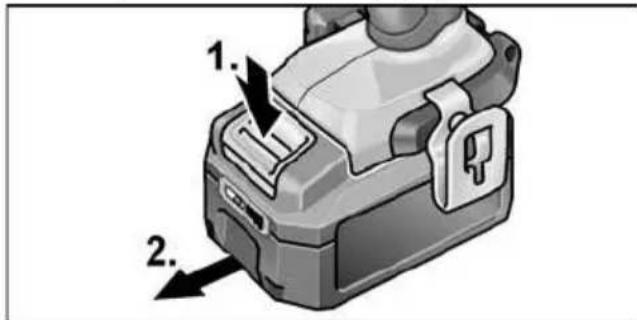

12 Exchange chuck with release ring
13 Bit holder attachment with release ring
14 Auxiliary handle
15 Li-ion battery (2.5 Ah)
16 Release button for battery
17 State of charge indicator
18 Li-ion battery (5.0 Ah)
19 Belt clip
20 Fastening screw
21 Bit bracket

Instructions for use

Before initial operation

■ Unpack the power tool and accessories and check that no parts are missing or damaged.
■ Attach the belt clip and bit holder with the enclosed fastening screw.

Mechanical assembly diagram showing two views of a clamp or bracket device (no text or symbols present)

i NOTE

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. See "Charger/Charging process".

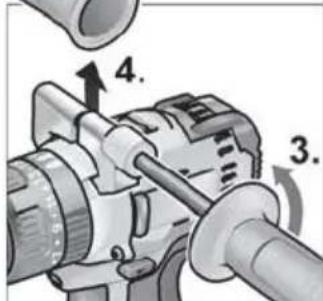

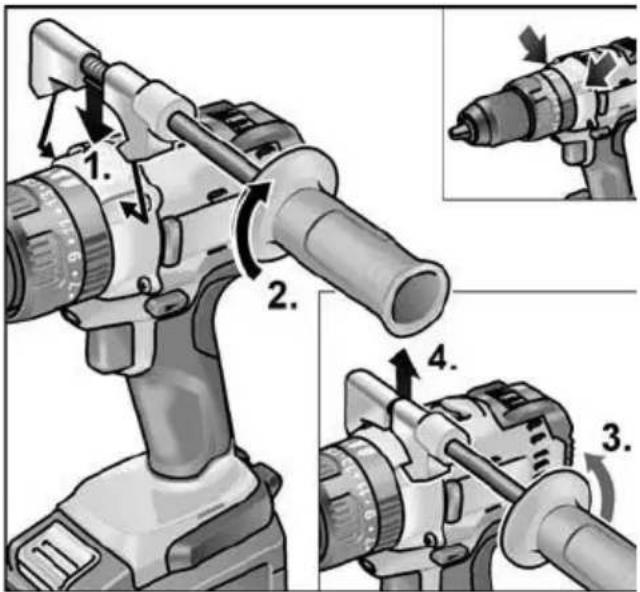

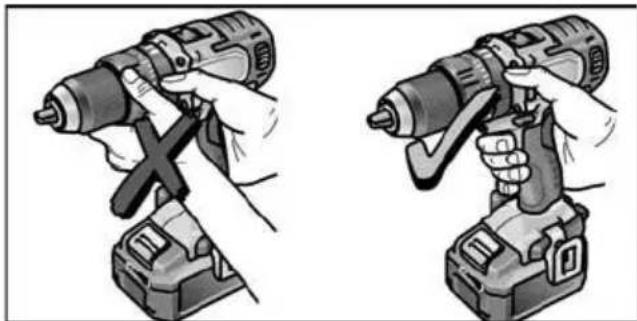

Fitting/removing the auxiliary handle (PD/DD 2G 18.0-EC)

CAUTION!

Use auxiliary handles if these are supplied with the power tool. The loss of control may result in injuries.

Technical diagram showing a drill press tool with numbered steps for assembly or maintenance, including tool positioning and adjustment.

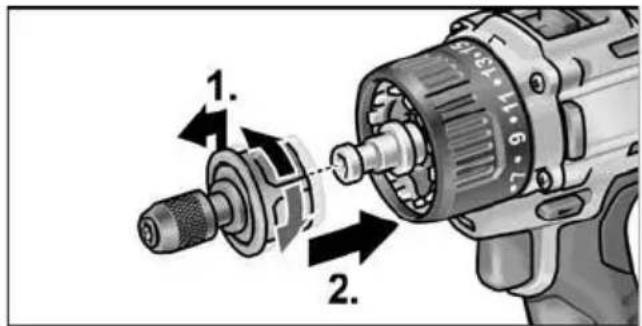

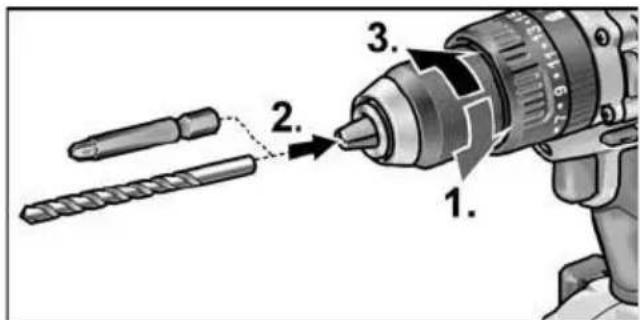

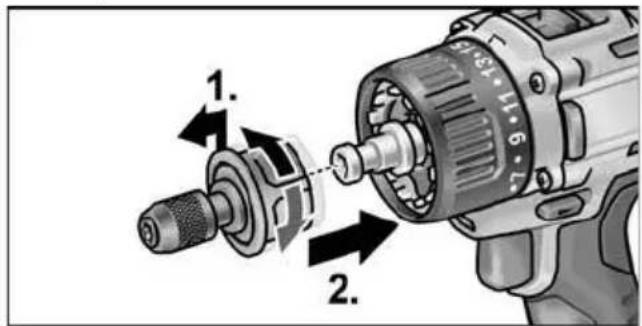

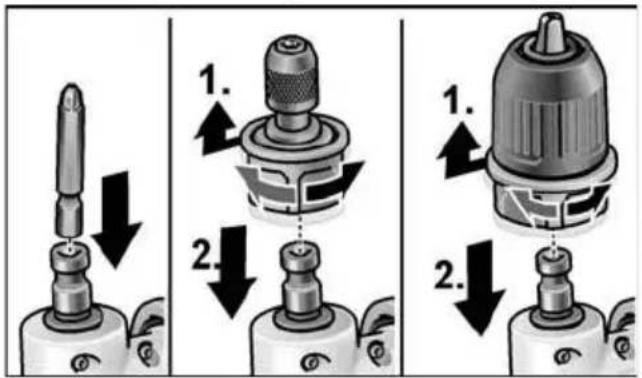

Changeable drill chuck BF 18.0-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

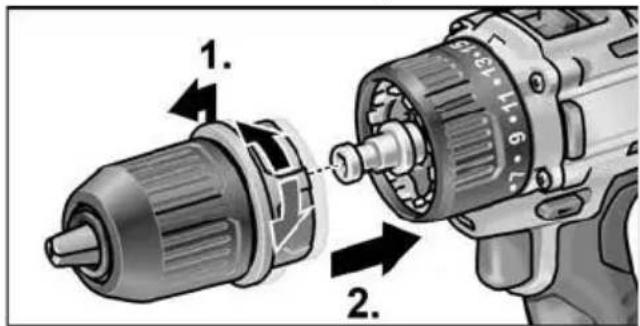

Assemble

■ Pull unlocking ring forwards (1.) and press the drill chuck all the way onto the tool holder (2.).
■ Release unlocking ring. Check that the drill chuck is locked in position.

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Disassemble

■ Pull unlocking ring forwards and remove the drill chuck.

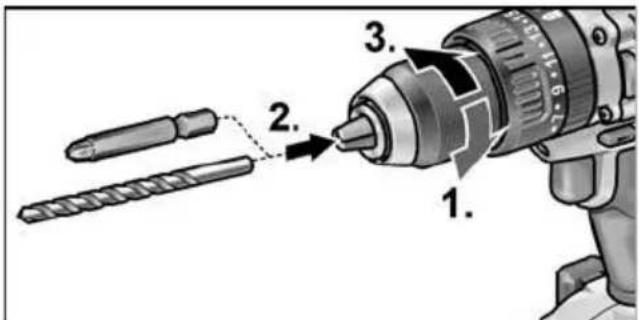

Inserting the tools

Drill bits with a diameter of 1.5–13 mm, 12 " screwdriver bits and 12 " bit holders are securely held in the drill chuck.

■ Grip the power tool firmly with one hand and turn the chuck with the other hand.

– Turn counterclockwise to open the chuck further.
- Turn clockwise to close the chuck.

Diagram illustrating a drill bit insertion process with labeled steps 1, 2, and 3

• Insert the tool.
  ■ Close the chuck fully.

i NOTE

Carry out a test run to check that the tool is chucked in the centre.

Angle attachment WV 18.0-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

The angle attachment facilitates working in places which are difficult to access.

The angle attachment can be locked in different 30^ angular positions.

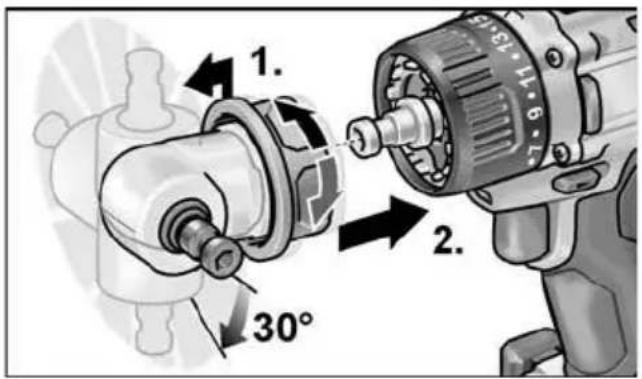

Assemble

■ Pull unlocking ring forwards (1.) and press angle attachment all the way onto the tool holder (2.).
■ Lock angle attachment in the required angular position.
■ Release unlocking ring. Check that the attachment is locked in position.

1. 2. 30°

Disassemble

■ Pull unlocking ring forwards and remove angle attachment.

Inserting the tools

The angle attachment has a 12 " tool holder. Screwdriver bits and bit holders are securely held in the tool holder.

The keyless chuck (see "Changeable drill chuck BF 18.0-EC") or the bit holder (see "Bit holder attachment BV 18.0-EC") can be mounted on the angle attachment.

Diagram illustrating three-step installation of a screwdriver with labeled parts and directional arrows indicating assembly steps.

Bit holder attachment BV 18.0-EC

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

Assemble

■ Pull unlocking ring forwards (1.) and press bit holder attachment all the way onto the tool holder (2.).
■ Release unlocking ring. Check that the bit holder attachment is locked in position.

Technical diagram of a drill bit with numbered instructions for tool manipulation

Disassemble

■ Pull unlocking ring forwards and remove bit holder attachment.

Inserting the tools

The bit holder attachment has a 12 " tool holder. Screw-driver bits are securely held in the tool holder.

■ Pull tool lock forwards (1.) and press in the tool all the way (2.).
■ Release tool lock.

Diagram of a drill bit with numbered instructions for tool insertion

■ To remove the tool, pull tool lock backwards.

Tool change

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

IW 1/2" 18.0-EC:

1. 2.

■ Push adapter on square drive of impact driver (1.).
■ Insert tool in adapter (2.).

ID 1/4" 18.0-EC:

1. 2. 3.

■ Pull tool lock forwards (1.) and press in the tool all the way (2.).
■ Release tool lock.
■ To remove the tool, pull tool lock backwards (3.).

Inserting/replacing the battery

■ Press the charged battery into the power tool until it clicks into place.

"click"

■ To remove, press the release button (1.) and pull out the battery (2.).

1. 2.

CAUTION!

Protect the battery contacts when the battery is not being used. Loose metal parts may short-circuit the contacts – Explosion and fire hazard!

Battery state of charge

■ Press the button to check the state of charge at the state of charge indicator LEDs.

1 2 3 4

The indicator goes out after 5 seconds. If one of the LEDs flashes, the battery must be recharged. If none of the LEDs light up after the button is pressed, the battery is faulty and must be replaced.

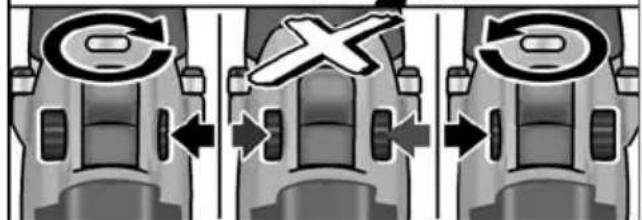

Direction preselection

CAUTION!

Change the direction of rotation only when the power tool is stopped.

Diagram illustrating the process of a power drill, showing tool positioning and state changes with labeled states C, X, and D.

■ Move the direction preselector switch to the required position:

• Left: counterclockwise (remove screws, release screws)
• Right: clockwise (drill, insert screws, tighten down screws)
• Middle: switch-on interlock (tool change, when working on the power tool)

Operating mode

(PD 2G 18.0-EC only)

CAUTION!

Change the operating mode only when the power tool is stopped.

■ Move the operating mode turning dial to the required position.

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

Drilling

Screwing

Impact drilling

Torque preselection

CAUTION!

Change the torque only when the power tool is stopped.

■ Move the torque setting turning dial to the required position.

DD 2G 18.0-EC:

Close-up of a drill bit with visible mesh and adjustment knob (no text or symbols)

1–23: Screwing

Drilling

NOTE

The safety clutch is deactivated in the

Drilling setting

PD 2G 18.0-EC:

Close-up of a power drill bit with visible screw and head (no text or symbols)

Speed preselection

CAUTION!

Change the speed only when the power tool is stopped.

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating movement or interaction.

■ Move the selector switch to the required stage:

1: Low speed, high torque
2: High speed, low torque

Switching on the power tool

To switch the power tool on:

■ Press the trigger switch.

The power tool trigger switch allows the operator to increase the speed in increments up to the maximum speed.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

To switch the power tool off:

■ Release the trigger switch.

i NOTE

• The power tool is equipped with a brake which stops the cutting accessory as soon as the trigger switch is released.
• When using the power tool continuously, the operator should work primarily with the trigger switch fully depressed.

Workplace lamp on/off switch

1. Turn direction of rotation preselector switch (2) to "Forwards" or "Reverse".
2. Press electric tool on/off switch (1)

- Workplace lamp lights up

1. Release electric tool on/off switch (1)

- Workplace lamp goes out automatically after approx. 10 sec.

Speed and torque preselector switch IW 1/2" 18.0-EC / ID 1/4" 18.0-EC

1x 2x 3x 1.5 s

Change speed/torque

1. Activate on/off switch (1)
2. Press mode switch briefly (approx. 0.5 sec.).
3. An LED lights up - torque:

IW 1/2" 18.0-EC: 150 Nm / 1500 rpm

ID 1/4" 18.0-EC: 60 Nm / 1500 rpm

1. Press mode switch briefly
2. Two LEDs light up - torque:

IW 1/2" 18.0-EC: 180 Nm / 2000 rpm

ID 1/4" 18.0-EC: 105 Nm / 2000 rpm

1. Press mode switch briefly
2. Three LEDs light up - torque:

IW 1/2" 18.0-EC: 250 Nm / 2500 rpm

ID 1/4" 18.0-EC: 225 Nm / 2500 rpm

1. Press mode switch briefly
2. An LED lights up - torque switches back to:

IW 1/2" 18.0-EC: 150 Nm

ID 1/4" 18.0-EC: 60 Nm

Torque can be increased again as described. During reverse operation of the electric tool – which only has one speed – the LEDs in the base go out automatically.

Change single impact mode to impact driver mode

■ Press mode switch for approx.

1.5 seconds.
- LED mode indicator lights up - single impact mode active
- LED mode indicator not lit - impact driver mode active.

Working with the power tool

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch (2) to the middle position.

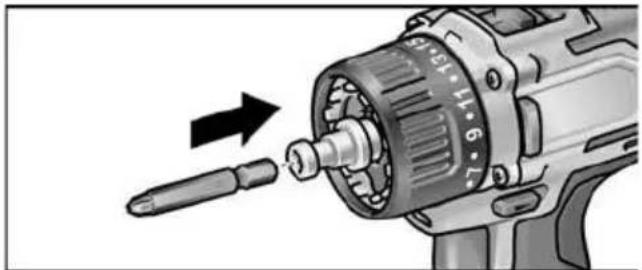

i NOTE

To facilitate handling of the appliance when inserting screws, the screwdriver bit can be inserted directly into the tool holder of the appliance.

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

1. Assemble the tool head (drill chuck, angle attachment, bit holder attachment).
2. Insert the battery.
3. Insert the tool (drill bits, srewdriver bits, bit holders).
4. Set operating mode according to the work item (PD ... only).
5. Set torque preselection to the required setting.
6. Set speed to the required setting.
7. Set the required direction of rotation.

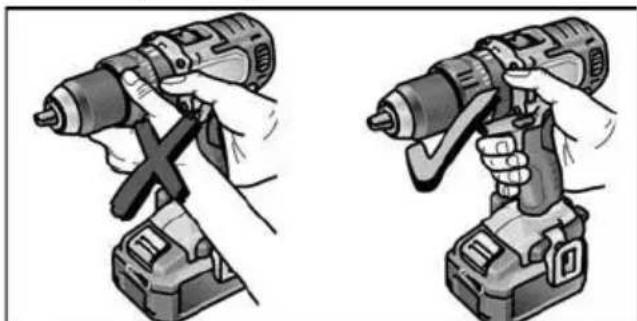

8. Hold the power tool with one hand on the handle and assume the working position. If the power tool is running, never actuate the direction preselector switch or torque setting turning dial.

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Switch on the power tool.

At the end of work:

1. Release the trigger switch.

2. Move the direction preselector switch (2) to the middle position.

Charger

CA 10.8/18.0

1 Insertion slot for battery
2 Contacts
3 Ventilation slots
4 Operating state display
5 Power cord with mains plug
The CA 10.8/18.0 charger is designed to charge FLEX batteries of the following types
- AP 10.8 (2.5 Ah),
- AP 18.0 (2.5 Ah),
- AP 10.8 (5.0 Ah),
- AP 18.0 (5.0 Ah).

Tips for a long battery service life

CAUTION!

• Never charge batteries at temperatures below 0 °C or above 55 °C.
• Do not charge batteries in environments with high air humidity or ambient temperature
• Do not cover batteries and the charger during the charging process.
  – Pull out the charger mains plug at the end of the charging process.

Battery and charger heat up during the charging process. This is perfectly normal! Lithium-ion batteries do not exhibit the established “memory effect”. Nevertheless, a battery should be completely discharged before charging and the charging process should always be fully completed.

If batteries are not used for an extended period of time, store them partially charged in a cool place.

Charging process

CAUTION!

Insert only original batteries in the supplied charger.

■ Insert the charger mains plug. The display backlighting lights up green for 2 seconds and then goes out again. OK is displayed.

:30 Li-ion 8:30 Li-ion

■ Insert the battery fully into the charger until it clicks into place.

• The time remaining in the charging process (until the battery is fully charged) and a graphic representation of the state of charge are shown alternately in the display.
• The display backlighting lights up orange when the battery is charged less than 80%.
• When the battery charge reaches 80% the display lights up green and OK is indicated.

■ The battery is fully charged when the display appears.

The green backlighting goes out after a short time.

■ Remove the battery from the charger.

1. 2.

■ Pull out the mains plug.

NOTE

If the display flashes after the battery is inserted in the charger, there is a fault in the battery or in the charger.

Display flashes slowly. Backlighting orange.

The battery is too hot or too cold. The charging process starts when the battery reaches the charging temperature ( 0^ ...55°C).

Display flashes rapidly. Backlighting red.

Remove the battery from the charger and insert again. If the same display persists, the battery is faulty. Replace the battery or have it checked at an authorised repair shop.

If this error message is displayed again with a different battery, this indicates that there is a fault in the charger. Have the charger checked at an authorised repair shop.

Maintenance and care

Cleaning

WARNING!

If metals are worked over a prolonged period, electroconductive dust may become deposited inside the housing. Clean the power tool and ventilation slots at regular intervals. Frequency of cleaning is dependent on the material machined and the duration of use.

■ Regularly blow out the housing interior and motor with dry compressed air. Keep the power tool running while doing this.

Charger

WARNING!

Before performing any work, pull out the mains plug. Do not use water or liquid detergents.

■ Remove dirt and dust from the housing with a brush or a dry cloth.

Repairs

Repairs may be carried out by an authorised customer service centre only.

Spare parts and accessories

For other accessories, in particular cutting accessories, please refer to the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage: www.flex-tools.com

Transport

The lithium equivalent content of the batteries contained in the scope of delivery is below the relevant limit values. Therefore the battery as a separate component and the power tool with its scope of delivery are not subject to national or international dangerous goods regulations. If several devices containing lithium-ion batteries are transported, these regulations may become relevant and require special safety measures (e.g. for the packaging). In this case acquaint yourself with the regulations that apply to the country of use.

CE conformity

We declare on our sole responsibility that the product described in “Technical data” conforms to the following standards or normative documents:

EN 62841 according to the provisions of Directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Handwritten signature or scribble with partial text and a curved line, likely from a document or form.

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

• mains operated power tool by removing the power cord,
• battery operated power tool by removing the battery.

EU countries only.

Do not dispose of electric power tools in the household waste! In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its incorporation into national law, used power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open disused batteries.

Accumulators/batteries should be collected, recycled or disposed of in an environmentally friendly manner.

EU countries only.

In accordance with the European Directive 2006/66/EC on Waste Electrical and Electronic Equipment and its incorporation into national law, defective or used batteries must be collected separately and recycled in an environmentally friendly manner.

i NOTE

Please ask your dealer about disposal options.

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product. The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.

Table des matières

Mechanical assembly diagram showing two views of a tool with screws and a bracket (no text or symbols)

Diagram illustrating the working principle of a drill press with numbered steps for tool application

Mandrin de perçage interchangeable BF 18.0-EC

PRUDENCE!

Technical diagram showing two components of a drill bit with numbered callouts indicating parts of each.

Démontage

Diagram illustrating the step-by-step process of a drill tool, showing tool positioning and drilling steps.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step assembly with arrows indicating direction.

Adaptateur porte-embout BV 18.0-EC

PRUDENCE!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Démontage

Diagram of a drill bit with numbered instructions for tool insertion

Technical diagram showing a drill bit with labeled components and directional arrows indicating motion or assembly steps.

Close-up of a black-and-white illustration of a drill bit with no visible text or symbols

: perçage

: vissage

Close-up of a mechanical drill bit with visible teeth and screw head (no text or symbols)

1–23 : vissage

: perçage

i REMARQUE

Close-up of a drill bit with visible branding and model number 1-23 (no text or symbols on the tool itself)

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating movement or interaction.

Close-up of a power drill with a circular head indicator and directional arrows (no text or symbols on the drill itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Allumez l'appareil.

CA 10.8/18.0

Diagram of a device component with numbered parts labeled 1 and 2, showing internal structure and connector details.

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing two views of a clamp or bracket device (no text or symbols present)

i AVVERTENZA

Technical diagram showing a drill press mechanism with numbered steps for tool installation

Mandrino intercambiabile BF 18.0-EC

PRUDENZA!

Technical diagram showing two components of a drill bit with numbered callouts indicating assembly steps.

Smontaggio

Diagram illustrating a drill bit insertion process with labeled steps 1, 2, and 3

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Smontaggio

Diagram of a drill bit with labeled parts, showing tool insertion and disassembly steps

Diagram of a device with labeled parts, showing a mechanical component with arrows indicating direction.

PRUDENZA!

Diagram illustrating the process of a drill press tool with labeled states and directional arrows indicating movement.

Close-up of a mechanical power drill with a caliper and adjustment knob (no visible text or symbols)

Foratura

Avvitatura

Close-up of a drill bit with visible teeth and internal components (no text or symbols)

1–23: Avvitatura

Foratura

AVVERTENZA

Close-up of a mechanical power drill bit with visible screw and adjustment dial (no text or symbols)

Close-up of a power drill with a circular head indicator and directional arrows (no text or symbols on the drill itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

Mechanical assembly diagram showing two views of a mechanical clamp or bracket (no text or symbols present)

i NOTA

Technical diagram showing a drill press tool with numbered steps for assembly or maintenance, including disassembly and reassembly.

Portabrocas intercambiable BF 18.0-EC

¡CUIDADO!

Technical diagram showing two disassembled electric drill heads with labeled parts and directional arrows indicating assembly.

Desmontaje

Diagram illustrating a drill bit insertion process with labeled steps 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step assembly with arrows and labels.

Adaptador portabrocas BV 18.0-EC

¡CUIDADO!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Desmontaje

Diagram of a drill bit with numbered callouts indicating tool placement for drilling or disassembly.

Diagram of a device with labeled parts, showing a mechanical component and directional arrows indicating movement or force.

¡CUIDADO!

Diagram showing a drill bit being adjusted to a tool, with three variations of the drill bit and directional arrows indicating movement.

Illustration of a power drill with caliper and buttons (no text or symbols)

: Taladrar

: Atornillar

Close-up of a drill bit with visible teeth and screw head (no text or symbols)

1–23: Atornillar

Taladrar

NOTA

Close-up of a drill bit with visible branding and no readable text or symbols

Close-up of a power drill with a circular head indicator and directional arrows (no text or symbols)

Close-up of a drill bit with a screwdriver inserted, showing mechanical components and an arrow indicating motion (no text or symbols)

Illustration of two hands using a drill press, showing the tool being inserted (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or name with a circular outline and partial text below

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing a clamp and bracket component (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

i INDICAÇÃO

Technical diagram showing a drill press with numbered steps for tool installation

Diagram showing two components of a drill bit being inserted into a motor, labeled with parts 1 and 2.

Desmontar

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

■ Aplicar a ferramenta.
■ Fechar completamente o mandril.

i INDICAÇÃO

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Diagram of a drill bit with labeled parts, showing mechanical assembly and tool path

Desmontar

Diagram of a drill bit with numbered instructions for tool positioning

Diagram illustrating the process of a drill press tool with labeled states and directional arrows indicating movement.

Close-up of a mechanical power drill with visible caliper and adjustment knobs (no text or symbols)

Close-up of a drill bit with visible teeth and internal components (no text or symbols)

1–23: Aparafusar

Furar

i INDICAÇÃO

Close-up of a mechanical power drill bit with visible branding and no readable text or symbols

Diagram showing a device with labeled buttons 1 and 2, connected by directional arrows indicating movement or interaction.

Close-up of a power drill with visible blade and drum, showing tool movement (no text or symbols)

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Ligar o aparelho.

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or scribble on a document, possibly from a form or document.

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

DD 2G 18.0-EC is bestemd

PD 2G 18.0-EC is bestemd

Mechanical assembly diagrams showing two configurations of a clamp or bracket device (no text or symbols present)

Technical diagram showing a drill press mechanism with numbered steps for tool application

Technical diagram showing two disassembled electric drill heads with numbered callouts indicating component alignment.

Demonteren

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step disassembly and mounting instructions.

Diagram of a drill bit with labeled parts, showing how to shift the drill bit into a motor.

Demonteren

Diagram of a drill bit with numbered instructions for tool insertion

Diagram showing a drill bit being inserted into a drill bit, labeled with step 1 and step 2.

Diagram showing a drill bit being adjusted to a tool, with three views of the drill bit labeled C, X, and B.

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

: Boren

: Schroeven

: Slagboren

Close-up of a mechanical drill bit with no visible text or symbols

1–23: Schroeven

Boren

LET OP

Close-up of a power drill bit with visible branding and model number 1-23 (no text or symbols on the drill itself)

Snelheidsselectie

VOORZICHTIG!

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating movement or assembly.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press, showing the correct and incorrect states (no text or symbols present)

CA 10.8/18.0

Handwritten signature or scribble on a document, possibly from a form or document.

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagrams showing two configurations of a clamp or bracket device (no text or symbols present)

i BEMAERK

Technical diagram showing a drill press with numbered steps for tool installation

Vekselpatron BF 18.0-EC

! FORSIGTIG!

Technical diagram showing two disassembled electric drill heads with numbered callouts indicating component alignment.

Afmontering

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pin insertion and adjustment mechanism.

Bitholderforsats BV 18.0-EC

FORSIGTIG!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Afmontering

Diagram of a drill bit with numbered instructions for tool installation

Diagram of a mechanical device with labeled parts and directional arrows indicating movement or force

FORSIGTIG!

Diagram illustrating the process of a drill press tool with labeled states and directional arrows indicating movement.

Close-up of a drill bit with caliper and adjustment knobs (no visible text or symbols)

B o r i n g

: Skruning

: Slagboring

Momentvalg

FORSIGTIG!

Close-up of a drill bit with visible mesh and adjustment knob (no text or symbols)

1–23: Skruning

Boring

BEMAERK

I borestilling er glidekoblingen deaktiveret.

PD 2G 18.0-EC:

Close-up of a power drill bit with visible screw and head (no text or symbols)

Hastighedsforvalg

FORSIGTIG!

Diagram showing a device control interface with labeled buttons and directional arrows indicating movement or interaction.

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

Slukke maskinen:

■ Slip afbryderen.

i

BEMAERK

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Illustration of two hands using a drill press, showing the tool being adjusted (no text or symbols present)

1. Tænd maskinen.

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Anvisninger for lang akku-levetid

FORSIGTIG!

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i HENVISNING

Technical diagram showing a drill press mechanism with numbered steps for tool application

Skiftechuck BF 18.0-EC

FORSIKTIG!

Technical diagram showing two disassembled electric motors with numbered callouts indicating component alignment.

Demontering

Diagram illustrating the process of tool application with labeled steps 1, 2, and 3 for tool manipulation or machining.

Diagram illustrating three-step installation of a screwdriver with labeled parts and directional arrows indicating assembly steps.

Bitsholderforsats BV 18.0-EC

FORSIKTIG!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontering

Diagram of a drill bit with numbered instructions for tool installation

Diagram illustrating the process of a drill bit with labeled states and directional arrows, showing three states: C, X, and B.

Close-up of a black-and-white photo of a power drill with visible caliper and adjustment knobs (no text or symbols)

Boring

: Skruing

T: Slagboring

Dreiemomentforvalg

FORSIKTIG!

Close-up of a mechanical drill bit with visible mesh and internal components (no text or symbols)

1–23: Skruer

Boring

i HENVISNING

I bore-stilling for slure-koblingen deaktivert.

PD 2G 18.0-EC:

Close-up of a power drill bit with visible screw and head (no text or symbols)

Hastighetsforvalg

FORSIKTIG!

Diagram showing a device with two keys labeled '2' and '1', connected by bidirectional arrows indicating interaction or movement.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols)

Illustration of two hands using a drill press, showing tool positioning and usage (no text or symbols)

1. Apparatet slås på.

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Henvisninger for lang batteri-levetid

FORSIKTIG!

Rille Bhat D.1

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

18.12.2017

Mechanical assembly diagrams showing two views of a clamp or bracket mechanism (no text or symbols)

Diagram illustrating the step-by-step installation of a drill press with labeled parts and directional arrows

Snabbchuck BF 18.0-EC

VAR FÖRSIKTIG!

Technical diagram showing two disassembled electric motors with labeled parts and directional arrows indicating assembly.

Demontera

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontera

Diagram of a drill bit with numbered callouts indicating tool placement or disassembly steps

Diagram illustrating the process of a drill press tool with labeled states and directional arrows indicating movement.

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

: Borrning
: Skruvning
T: Slagborrning

Close-up of a drill bit with visible teeth and internal components (no text or symbols)

1–23: Skruvning

Borning

OBS!

Close-up of a power drill bit with visible branding and model number 1-23 (no text or symbols on the drill bit itself)

Diagram showing a device with labeled buttons (1, 2) and directional arrows indicating movement or interaction between components.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols)

Illustration of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols present)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

B. P. Q.-1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing two views of a tool with clamping mechanism (no text or symbols)

i OHJE

Technical diagram showing a drill press mechanism with numbered steps for tool application

Diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Irrotus

Diagram illustrating the process of tool application with labeled steps 1, 2, and 3 for tool manipulation or machining.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing thread insertion and component positioning.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Irrotus

Diagram of a drill bit with numbered instructions for tool insertion or repair

Close-up of a mechanical power drill bit with no visible text or symbols

C X D

Illustration of a drill bit with caliper and screwdriver (no text or symbols)

Poraaminen

Ruuvaaminen

Poraaminen iskulla

Close-up of a drill bit with mesh head and control buttons (no visible text or symbols)

1–23: Ruuvaaminen

Poraaminen

OHJE

Close-up of a power drill bit with visible screw and adjustment dial (no text or symbols)

Nopeuden esivalinta

VARO!

Close-up of a drill bit with a circular indicator and arrow, no visible text or symbols

Koneen pysäytys:

Illustration of a drill bit being inserted into a motor, showing the shaft and rotor (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Käynnistä kone.

Töiden jälkeen:

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

B. 10 - -

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing a clamp and bracket assembly (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket and screw (no text or symbols visible)

i YΠΟΔΕΙΞΗ

Technical diagram showing a drill press tool with numbered steps for assembly or maintenance.

Technical diagram showing two components of a drill bit with numbered callouts indicating parts of each.

Αφαίρεση

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating the step-by-step installation of a screwdriver tool, showing three sequential states with arrows indicating direction.

Diagram of a drill bit with labeled components and directional arrows indicating tool movement

Αφαίρεση

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

Diagram showing a drill bit being adjusted to a mechanical component, with labeled states and directional arrows indicating motion or assembly.

Close-up of a black-and-white photo of a power drill with visible caliper and adjustment knobs (no text or symbols)

Τρύπημα

: Bíδωμα

: Τρύπημα με κρούση

Close-up of a drill bit with visible screw and shaft (no text or symbols)

1–23: Відшма

Τρύπημα

ΥΠΟΔΕΙΞΗ

Close-up of a drill bit with visible screw and handle (no text or symbols)

Close-up of a power drill with visible screw and head, showing tool movement (no text or symbols)

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Mechanical assembly diagram showing a clamp and bracket component (no text or symbols visible)

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

i BİLGİ

Technical diagram showing a drill press tool with numbered steps for assembly or maintenance, including tool positioning and adjustment.

Diagram showing two components of a drill press with numbered parts and directional arrows indicating assembly or operation.

Sökme

Diagram illustrating the step-by-step process of a drill tool, showing tool positioning and cutting steps.

Diagram illustrating the step-by-step installation of a mechanical component with labeled parts and directional arrows.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Sökülmesi

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

Technical diagram showing a drill bit being adjusted for a mechanical component, with labeled states and directional arrows.

Close-up of a black-and-white illustration of a drill bit with a circular dial and control knob (no text or symbols visible)

Delme

Vidalama

Darbeli delme

Tork ön seçimi

DİKKAT!

Close-up of a drill bit with visible screw and shaft (no text or symbols)

1–23: Vidalama

Delme

BİLGİ

Close-up of a power drill bit with visible teeth and control buttons (no text or symbols)

Hız ön seçimi

DİKKAT!

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Cihazı açın.

Çalışma sonunda:

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i WSKAZÓWKA

Technical diagram showing a drill press mechanism with numbered steps for tool application

Wymienny uchwyt wiertarski BF 18.0-EC

OSTROŻNIE!

Diagram showing two mechanical components with numbered parts, likely illustrating a drill or power tool operation.

Demontaż

Diagram illustrating the step-by-step procedure of a drill tool, showing tool positioning and cutting process.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step assembly with arrows and labels.

Technical diagram of a drill bit with numbered instructions for tool manipulation

Demontaż

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

Diagram illustrating the process of tool manipulation with labeled parts and directional arrows

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

: wiercenie

: wkręcanie

: wiercenie udarowe

Close-up of a drill bit with visible screw and shaft (no text or symbols)

1–23: wkręcanie

wiercenie

WSKAZÓWKA

Close-up of a power drill bit with visible teeth and control knob (no text or symbols)

Diagram showing two labeled buttons (2 and 1) interacting with a device, indicating bidirectional or bidirectional interaction.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Close-up of a drill bit with a screwdriver inserted, showing the tool's head and shaft (no text or symbols visible)

Illustration of two hands using a drill press, showing mechanical components and tool positioning (no text or symbols)

1. Włączyć urządzenie.

CA 10.8/18.0

1 Gniazdo na akumulator

2 Kontakty

Handwritten signature or scribble on a document, possibly from a form or document.

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagrams showing two views of a tool with pins and clamps (no text or symbols)

i MEGJEGYZÉS

Technical diagram showing a drill press with numbered steps for tool installation or assembly.

Technical diagram showing two components of a drill bit with numbered callouts indicating assembly steps.

Leszerelés

Diagram illustrating the step-by-step procedure of a drill tool, showing tool positioning and cutting process.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Leszerelés

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

Diagram showing a drill bit being adjusted for mechanical components, with labeled states C, X, and D.

Close-up of a precision drill bit with no visible text or symbols on the device itself

Fúrás

Csavarozás

Ütvefúrás

Close-up of a drill bit with visible screw and shaft (no text or symbols)

1–23: Csavarozás

Fúrás

MEGJEGYZÉS

Close-up of a power drill bit with visible branding and no readable text or symbols

Diagram showing a device with two labeled buttons (2 and 1) connected by bidirectional arrows, indicating a process or operation.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

A gép kikapcsolása:

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press, showing tool positioning (no text or symbols)

CA 10.8/18.0

Klaus Peter Weinper Head of Quality Department (QD)

1. 1. 18.

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

Diagram illustrating the step-by-step installation of a drill press with labeled parts and directional arrows indicating motion.

Technical diagram showing two components of a drill bit with numbered callouts indicating parts of each.

Demontáž

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a mechanical component, showing pin insertion and mounting process.

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a motor.

Demontáž

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

Diagram showing a drill bit being adjusted to a tool, with three states of the process: C, X, and D.

Close-up of a drill bit with visible caliper and adjustment knob (no text or symbols)

: vrtání

: šroubování

Close-up of a drill bit with visible teeth and internal components (no text or symbols)

1–23: šroubování

vrtání

UPOZORNĚNÍ

Close-up of a power drill bit with visible screw and head (no text or symbols)

Předvolba rychlosti

POZOR!

Diagram showing a device with labeled buttons 1 and 2, connected by bidirectional arrows to a device with directional arrows indicating movement or interaction.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

Vypnutí nářadí:

■ Uvolněte spínač.

i UPOZORNĚNÍ

Illustration of a drill bit being inserted into a motor, showing the shaft and rotor (no text or symbols)

Illustration of two hands using a drill press, showing tool positioning (no text or symbols)

1. Zapněte nářadí.

Po ukončení práce:

CA 10.8/18.0

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing a tool interacting with a bracket and mounting bracket (no text or symbols visible)

Close-up of a mechanical clamp or bracket assembly with metal fasteners (no visible text or symbols)

i UPOZORNENIE

Technical diagram showing a drill press mechanism with numbered steps for tool application

Technical diagram showing two components of a drill bit with numbered callouts indicating parts of each.

Demontáž

Diagram illustrating a drill bit insertion process with numbered steps: initial drill, drill bit, and final drill.

Diagram illustrating the step-by-step installation of a screwdriver tool, showing three sequential states with arrows indicating direction.

Nadstavec pre držiak hrotov BV 18.0-EC

POZOR!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontáž

■ Odblokovací krúžok potiahnite dopredu a odoberte nadstavec pre držiak hrotov.

Vloženie nástrojov

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

Diagram showing a drill bit being adjusted to a tool, with labeled states and directional arrows indicating motion or assembly.

Close-up of a drill bit with caliper and screwdriver (no visible text or symbols)

Vrtanie

Skrutkovanie

Príklepové vrtanie

Close-up of a drill bit with visible teeth and screw head (no text or symbols)

1–23: Skrutkovanie

Vítanie

UPOZORNENIE

Close-up of a mechanical power drill bit with no visible text or symbols on the tool itself

Predvoľba rýchlosti

POZOR!

Diagram illustrating a device control interface with labeled buttons and directional arrows indicating movement or operation.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

Vypnutie náradia:

■ Uvoľnite vypínač.

i UPOZORNENIE

Illustration of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols present)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Zapnite náradie.

Po ukončení práce:

1. Uvołnite vypínač.

2. Nastavte prepínač predvolby smeru otáčania (2) do strednej polohy.

Nabíjačka

CA 10.8/18.0

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i NAPOMENA

Prilikom isporuke akumulatori nisu potpuno napunjeni. Prije prvog puštanja u rad napunite do kraja akumulatore. U tu svrhu pogledajte „Punjač/Postupak punjenja“.

Montaža/demontaža dodatne ručke (PD/DD 2G 18.0-EC)

OPREZ!

Technical diagram showing a drill press mechanism with numbered steps for tool application

Technical diagram showing two disassembled electric motors with labeled parts and directional arrows indicating assembly or operation.

Demontiranje

■ Prsten za deblokadu povucite prema naprijed i skinite steznu glavu.

Umetanje alata

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

Diagram illustrating three-step soldering process with labeled steps and directional arrows indicating movement.

Držač nastavka BV 18.0-EC

OPREZ!

Prije svih radova na električnom alatu prekidač za odabir smjera okretanja (2) postavite u srednji položaj.

Montiranje

■ Prsten za deblokiranje povucite prema naprijed (1.) i držač nastavka do graničnika pritisnite u prihvat alata(2.).
■ Otpustite prsten za deblokadu. Provjerite dosjed.

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontiranje

Diagram of a drill bit with numbered instructions for tool insertion

■ Za vađenje alata aretiranje alata povucite prema nazad.

Zamjena alata

OPREZ!

Prije svih radova na električnom alatu prekidač za odabir smjera okretanja (2) postavite u srednji položaj.

IW 1/2" 18.0-EC:

1. 2.

■ Nasadni ključ pritisnite na četverokutni prihvat udarnog izvijača (1.).
■ Umetnite alat u nasadni ključ (2.).

ID 1/4" 18.0-EC:

1. 2. 3.

■ Aretiranje alata povucite prema naprijed (1.) i pritisnite alat do graničnika (2.).
■ Otpustite aretiranje alata.
■ Za vađenje alata aretiranje alata povucite prema nazad (3.).

Diagram illustrating the process of a drill bit with labeled steps and directional arrows indicating movement.

Close-up of a black-and-white photo of a power drill with visible caliper and adjustment knobs (no text or symbols)

Close-up of a drill bit with visible screw and shaft (no text or symbols)

1–23: vijčanje

: bušenje

i NAPOMENA

U položaju za bušenje arlizna spojka je deaktivirana.

PD 2G 18.0-EC:

Close-up of a power drill bit with visible screw and adjustment dial (no text or symbols)

Odabir brzine

OPREZ!

Brzinu možete mijenjati samo kada je električni alat u stanju mirovanja.

■ Prekidač za odabir stavite na potrebni stupanj:

1: mala brzina, visoki okretni moment
2: velika brzina, nizak okretni moment

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols visible)

1. Montirajte nosač alata (zamjenska stezna glava, kutni nastavak, držač nastavka).

2. Umetnite akumulator.

3. Umetnite alat (svrdlo, odvijač, držač nastavka).
4. Način rada podesite sukladno radnom zadatku (samo PD...).
5. Odabir okretnog momenta postavite na potrebni stupanj.
6. Brzinu postavite na potrebni stupanj.
7. Podesite potreban smjer okretanja.
8. Električni alat primite rukom i zauzmite radni položaj.

Kada je motor u radu nikada ne pritišćite prekidač za odabir smjera okretanja odn. postavku okretnog momenta!

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Uključite aparat.

CA 10.8/18.0

1 Otvor za umetanje akumulatora
2 Kontakti
3 Prorezi za ventilaciju
4 Zaslon za prikaz radnog stanja
5 Mrežni kabel s mrežnim utikačem

Punjač CA 10.8/18.0 namijenjen je za punjenje FLEX akumulatora tipa

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

B. P. K. R.

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing two views of a clamp or bracket device (no text or symbols present)

i OPOMBA

Akumulatorske baterije ob dobavi niso popolnoma napolnjene. Pred prvo uporabo akumulatorske baterije popolnoma napolnite. V ta namen glejte poglavje „Polnilnik/Polnjenje“.

Technical diagram showing a drill press mechanism with numbered steps for tool application

Izmenljiva vrtalna glava BF 18.0-EC

POZOR!

Technical diagram showing two disassembled electric motors with labeled parts and directional arrows indicating assembly or operation.

Demontaža

■ Obroč za deblokiranje povlecite naprej in snemite vrtalno glavo.

Vpenjanje nastavkov

V vrtalno glavo je mogoče vpeti svedre s premerom 1,5–13 mm, vijačne nastavke ^1/2 in držala za nastavke ^1/2 .

■ Z eno roko čvrsto držite električno orodje, z drugo pa vrtite vrtalno glavo.
– Z vrtenjem v nasprotni smeri urnega kazalca vrtalno glavo še bolj odprete.
– Z vrtenjem v smeri urnega kazalca vrtalno glavo zaprete.

Diagram illustrating a drill bit insertion process with numbered steps: 1, 2, and 3.

■ Vstavite nastavek.
■ Vrtalno glavo popolnoma zaprite.

i OPOMBA

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pressor insertion and mounting process.

Vpetje za nastavke BV 18.0-EC

POZOR!

Diagram of a drill bit with labeled parts, showing mechanical assembly and tool path

Demontaža

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

■ Da nastavek odstranite, blokado nastavka povlecite nazaj.

Menjava orodja IW

POZOR!

Diagram showing a drill bit being adjusted to a tool, with three variations of the drill bit and directional arrows indicating motion or adjustment.

■ Stikalo za izbiro smeri vrtenja nastavite v želen položaj:

Close-up of a mechanical power drill with caliper and adjustment knobs (no visible text or symbols)

: Vrtanje

: Vijačenje

: Udarno vrtanje

Izbira vrtilnega momenta

POZOR!

Vrtilni moment je dovoljeno spremeniti samo, ko električno orodje miruje.

Close-up of a mechanical drill bit with no visible text or symbols

1–23: Vijačenje

Vrtanje

OPOMBA

Close-up of a power drill bit with visible screw and head (no text or symbols)

Izbira hitrosti

POZOR!

Hitrost je dovoljeno spremeniti samo, ko električno orodje miruje.

Diagram showing a device with labeled buttons (2 and 1) interacting with a device, illustrating bidirectional movement or interaction.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

Izklop orodja:

■ Spustite stikalo.

i OPOMBA

Close-up of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols visible)

Illustration of two hands using a drill press, showing tool positioning and usage (no text or symbols)

1. Vklopite orodje.

Po končanem delu:

1. Spustite stikalo.
2. Stikalo za izbiro smeri vrtenja (2) nastavite v osrednji položaj.

Polnilnik

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or scribble on a document, possibly a signature or official note

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing two views of a mechanical clamp or bracket (no text or symbols present)

i INDICATIE

Technical diagram showing a drill press mechanism with numbered steps for tool application

Technical diagram showing two disassembled electric motors with labeled parts and directional arrows indicating assembly or operation.

Demontarea

Introducerea sculelor

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Introducerea sculelor

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pin insertion and adjustment mechanism.

Cap aplicat cu suport de bituri BV 18.0-EC

PRECAUTIE!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Demontarea

Introducerea sculelor

Diagram of a drill bit with numbered instructions for tool installation

Diagram of a device with labeled parts, showing a switch mechanism and directional arrows.

PRECAUTIE!

Diagram showing a drill bit being adjusted to a mechanical component, with three views labeled C, X, and B indicating different states or states.

Close-up of a drill bit with caliper and adjustment knob (no visible text or symbols)

: Găurire

: Înşurubare

Close-up of a drill bit with visible teeth and screw head (no text or symbols)

1–23: Înşurubare

: Găurire

i INDICATIE

Close-up of a power drill bit with visible branding and model number 1-23 (no text or symbols on the drill itself)

Preselectarea vitezei

PRECAUTIE!

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols)

Illustration of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols)

Illustration of two hands using a drill press, showing tool positioning (no text or symbols)

1. Conectați aparatul.

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Diagram of a device component with numbered parts labeled 1 and 2, showing internal structure and connector details.

EN 62841 conform prevederilor Directivei 2014/30/UE, 2006/42/CE, 2011/65/UE.

Responsabili pentru documente tehnice: FLEX-Elektrowerkzeuge GmbH, R & D Bahnhofstrasse 15, D-71711 Steinheim/Murr

Eckhard Rühle Manager Research & Development (R & D)

Handwritten signature or scribble on a document, possibly a signature or official document

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Close-up of a mechanical clamp or bracket assembly with a screw and pin (no visible text or symbols)

i УКАЗАНИЕ

Technical diagram showing a drill press with numbered steps for tool installation

Technical diagram showing two disassembled electric motors with numbered callouts indicating component alignment.

Демонтиране

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a mechanical component, showing pin insertion and mounting process.

Diagram of a drill bit with labeled parts, showing how to move the drill bit into a motor.

Демонтиране

Diagram of a drill bit with numbered callouts indicating tool positioning and adjustment points

Technical diagram showing a drill bit with labeled components and directional arrows indicating motion or assembly steps.

Illustration of a drill bit with a 13-inch head and control buttons (no text or symbols on the tool itself)

: пробиване
: завинтване
T: ударно пробиване

Close-up of a drill bit with mesh head and control buttons (no readable text or symbols)

1–23: завинтване

пробиване

УКАЗАНИЕ

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Избор на скорост

ВНИМАНИЕ!

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating movement or assembly.

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols present)

Illustration of two hands using a drill press, showing tool positioning and application (no text or symbols)

1. Включете уреда.

CA 10.8/18.0

Klaus Peter Weinper Head of Quality Department (QD)

Mechanical assembly diagram showing two views of a tool with fasteners and mounting brackets (no text or symbols)

i УКАЗАНИЕ

Diagram illustrating the step-by-step installation of a drill press with labeled parts and directional arrows indicating motion.

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Снятие

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a mechanical component, showing pin insertion and mounting process.

Technical diagram of a drill bit with numbered instructions for tool manipulation

Снятие

Diagram of a drill bit with numbered instructions for tool insertion

Diagram showing a drill bit being adjusted to a tool, with three states of the process: C, X, and D.

Close-up of a black-and-white illustration of a drill bit with no visible text or symbols

сверление

заворачивание

ударное сверление

Close-up of a mechanical drill bit with visible teeth and internal components (no text or symbols)

1-23: заворачивание

верление

УКАЗАНИЕ

Close-up of a power drill bit with visible screw and handle (no text or symbols)

Выбор скорости

ВНИМАНИЕ!

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Выключение прибора:

Close-up of a drill bit being inserted into a motor, showing the shaft and gear (no text or symbols visible)

Illustration of two hands using a drill press, showing tool positioning (no text or symbols)

1. Включите прибор.

CA 10.8/18.0

• AP 10.8 (2,5 A*4),
• AP 18.0 (2,5 A*4),
• AP 10.8 (5,0 A*4),
• AP 18.0 (5,0 A*4).

Diagram of a device component with numbered labels pointing to ports or parts, likely for assembly or labeling.

Bolts Q - 1

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

18.12.2017

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

Technical diagram showing a drill press with numbered steps for tool installation or assembly.

Vahetatav padrun BF 18.0-EC

ETTEVAATUST!

Technical diagram showing two disassembled electric drill heads with labeled parts and directional arrows

Eemaldamine

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing pin insertion and adjustment mechanism.

Otsakuhoidikumanus BV 18.0-EC

ETTEVAATUST!

Diagram of a drill bit with labeled parts and directional arrows indicating tool movement

Eemaldamine

Diagram of a drill bit with numbered instructions for tool positioning

Tarviku eemaldamiseks tömmake tarvikufiksaatorit tahapoole.

Tööriistavahetus

ETTEVAATUST!

Close-up of a drill bit with visible screw and adjustment knob (no text or symbols)

Diagram showing three stages of a mechanical or industrial process with labeled arrows and symbols, likely illustrating a sequence or transformation.

Close-up of a drill bit with a 12-inch head and control knob (no visible text or symbols)

: puurimine

: kruvikeeramine

1: löökpuurimine

Close-up of a drill bit with visible teeth and internal components (no text or symbols)

1–23: kruvikeeramine

: puurimine

i MÄRKUS!

Close-up of a power drill bit with visible teeth and control knob (no text or symbols)

Kiiruse eelvalik

ETTEVAATUST!

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating movement or interaction.

Close-up of a power drill with a circular head indicator and directional arrow (no text or symbols on the drill itself)

Close-up of a drill bit being inserted into a motor, showing the shaft and rotor (no text or symbols visible)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Lülitage seade sisse.

CA 10.8/18.0

1 Aku pesa

2 K o n t a k t i

Diagram of a device component with numbered parts and an arrow indicating direction, labeled 1 and 2.

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

Mechanical assembly diagram showing two views of a clamp or bracket mechanism (no text or symbols)

i NURODYMAS

Technical diagram showing a drill press with numbered steps for tool installation

Greito keitimo griebtuvas BF 18.0-EC

ATSARGIA!!

Technical diagram showing two components of a drill bit with numbered callouts indicating parts of each.

Išmontavimas

Diagram illustrating the process of tool application with labeled steps 1, 2, and 3 for tool manipulation or machining.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step assembly with arrows and labels.

Diagram of a drill bit with numbered instructions for tool manipulation

Išmontavimas

Diagram of a drill bit with numbered callouts indicating tool placement for drilling or disassembly.

Diagram illustrating the process of a drill bit with labeled steps and directional arrows indicating movement.

Illustration of a drill bit with control knob and rotary dial (no text or symbols)

grežimas

sukimas

smūginis gręžimas

Sukimo momento parinktis

ATSARGIA!!

Close-up of a mechanical drill bit with visible internal components and a label '1-23' (no text or symbols on the drill bit itself)

1–23: sukimas

grężimas

NURODYMAS

Close-up of a power drill bit with visible screw and head (no text or symbols)

Greičio parinktis

ATSARGIA!!

Greitj keiskite tik sustojus elektriniam jrankiui.

Close-up of a drill bit with a circular head indicator and directional arrows (no text or symbols on the tool itself)

Illustration of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols)

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

1. Prietaiso jjungimas.
   Baigus darba:
2. Jungiklj atleiskite.
3. Sukimosi krypties parinkimo jungiklj (2) nustatykite per vidurj.

Krovimo prietaisas

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or name with a circular outline and partial text below

Eckhard Rühle

Manager Research &

Development (R & D)

Klaus Peter Weinper

Head of Quality

Department (QD)

18 Litija jonu akumulators (5,0 Ah)

19 Siksninas skava

Mechanical assembly diagram showing two views of a mechanical clamp or bracket (no text or symbols present)

i NORĀDE

Diagram illustrating the step-by-step installation of a drill press with numbered instructions for each step.

Technical diagram showing two components of a drill bit with numbered parts and directional arrows indicating assembly or operation.

Demontāža

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step disassembly and mounting instructions.

Technical diagram of a drill bit with numbered instructions for tool manipulation

Demontāža

Diagram of a drill bit with numbered instructions for tool insertion

■ Lai iznemtu instrumentu, pavelciet instrumenta fiksatoru uz aizmuguri.

Instrumenta

UZMANĪBU!

Diagram showing a drill bit being adjusted for a mechanical component, with labeled states and directional arrows indicating motion or assembly.

Close-up of a drill bit with a 12-inch head and control knob, no visible text or symbols on the tool itself.

Urbšana

Skrūvēšana

Urbšana ar triecienu

Close-up of a drill bit with visible screw and head (no text or symbols)

1–23: skrūvēšana

urbšana

NORÃDE

Close-up of a power drill bit with visible screw and adjustment knob (no text or symbols)

Ātruma izvēle

UZMANĪBU!

Diagram showing two labeled buttons (2 and 1) interacting with a device, with arrows indicating direction of interaction.

Close-up of a drill bit with a circular head indicator and directional arrow (no text or symbols on the tool itself)

Ierīces izslēgšana:

■ Atlaidiet slēdzi.

i NORÃDE

Illustration of a drill bit being inserted into a motor, showing the shaft and head (no text or symbols present)

Two illustrations of hands using a drill press, showing the tool being inserted (no text or symbols present)

1. leslēdziet instrumentu.

Pēc darba beigām:

CA 10.8/18.0

• AP 10.8 (2,5 Ah),
• AP 18.0 (2,5 Ah),
• AP 10.8 (5,0 Ah),
• AP 18.0 (5,0 Ah).

Handwritten signature or scribble on a document, possibly a signature or official note

Eckhard Rühle

Manager Research & Development (R & D)

Klaus Peter Weinper

Head of Quality Department (QD)

18.12.2017

B. F. - -

Eckhard Rühle Manager Research & Development (R & D)

Klaus Peter Weinper Head of Quality Department (QD)

Diagram of a device component with numbered parts and an arrow indicating direction, labeled 1 and 2.

Illustration of two hands using a drill press to adjust the drill (no text or symbols present)

CA 10.8/18.0

Close-up of a drill bit with a screwdriver inserted, showing mechanical components and an arrow indicating motion (no text or symbols present)

Close-up of a power drill bit with visible teeth and control knob (no text or symbols)

Close-up of a mechanical component with arrows indicating direction (no visible text or symbols)

Close-up illustration of a drill bit with a circular head indicator and tool handle (no text or symbols)

إيقاف تشغيل الجهاز:

بتم ترك الفتح.

Close-up of a mechanical power drill bit with no visible text or symbols

ثقب

[NO TEXT]

ربط براغي

[NO TEXT]

نقب بالطرق

T

Close-up of a power drill bit with visible branding and model number 1-23 (no text or symbols on the drill bit itself)

23-1 ريط براغي

نَقْب

:

تنبيه!

i

Technical diagram showing a drill bit being adjusted for a mechanical component, with three variations of the drill bit and a close-up view of the tool.

تغير الأداة
احترس!

Technical diagram of a drill bit with numbered instructions for tool installation

التفكيك

Diagram of a drill bit with numbered instructions for tool insertion

WV 18.0-ECtriangle ABC

احترس!

Diagram illustrating three-step assembly steps of a screwdriver tool, showing step-by-step callouts and directional arrows.

Technical diagram showing two components of a drill bit with numbered callouts indicating assembly steps.

التفكيك

Diagram showing a drill bit being inserted into a drill bit, labeled with steps 1 to 3.

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

تنبیه!

Diagram of a mechanical device with numbered parts indicating assembly or positioning steps

Close-up of a mechanical lever or actuator component (no visible text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly steps

نظرة عامة
