USER MANUAL IW 1/2" 750 18.0-EC Flex

Line drawing of a Flex electric drill press with base (no text or symbols on the device body)

en Original operating instructions....14

Line drawing of a mechanical device with directional arrows indicating movement or force (no text or symbols present)

C

Technical diagram of a device with labeled parts, showing two numbered arrows pointing to specific components.

Technical line drawing of a mechanical device with two labeled parts (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

Mechanical assembly diagram showing a cylindrical component being inserted into a housing, with arrows indicating force direction (no text or symbols)

Technical diagram of a mechanical device with rotating components and fasteners (no text or symbols)

Technical line drawing of a mechanical device with two arrows pointing to a button (no text or symbols present)

Line drawing of a DLEX electric drill press with an arrow indicating the component (no text or symbols present)

Technical line drawing of a Flex power tool with a spotlight beam (no text or symbols)

Line drawing of a hand using a Flex motor to lift a cylindrical component (no text or symbols)

The variety of wood density and metal material may affect the final outcome. The user should select appropriate mode based on the application.

NOTE

The LED indicator will turn off approximately 1min after the trigger switch is released.

NOTE

When the tool is next turned on, the working mode will revert to the previous setting.

Switching on the power tool (see figure I)

■ To switch the power tool on: Press the trigger switch 2.

The variable-speed trigger switch delivers higher speed with increased trigger pressure and lower speed with decreased trigger pressure.

■ To switch the power tool off: Release the trigger switch.

LED light (see figure J)

■ The LED light will automatically turn on with a slight squeeze on the variable-speed trigger switch before the tool starts running and will turn off approximately 10 seconds after the variable speed trigger switch is released.

■ The LED light will rapidly flash when the tool and/or battery pack becomes overloaded or too hot, and the internal sensors will turn the tool off. Rest the tool

for a while or place the tool and battery pack separately under air flow to cool them.

■ The LED light will flash more slowly to indicate that the battery is at low-battery capacity. Recharge the battery pack.
■ If the LED fails to light up when you switch on the tool, or it turns off suddenly during your operation, it may be caused by the internal communication error. Please contact customer service or an authorized service center for assistance.

ANMERKUNG

Symbols used in this manual

WARNING!

Denotes impending danger. Non-observance of this warning may result in death or extremely severe injuries.

CAUTION!

Denotes a possibly dangerous situation. Non-observance of this warning may result in slight injury or damage to property.

NOTE

Denotes application tips and important information.

Symbols on the power tool

V

Volts

/min Rotation rate

To reduce the risk of injury, read the operating instructions!

Disposal information for the old machine (see page 19)!

For your safety

WARNING!

Before using the power tool, please read the follow:

• these operating instructions,
• the "General safety instructions" on the handling of power tools in the enclosed booklet (leaflet-no.: 315.915),
  – the currently valid site rules and the regulations for the prevention of accidents.

This power tool is state of the art and has been constructed in accordance with the acknowledged safety regulations.

Nevertheless, when in use, the power tool may be a danger to life and limb of the user or a third party, or the power tool or other property may be damaged.

The cordless impact wrench may be used only –asintended,

- in perfect working order.

Faults which impair safety must be repaired immediately.

Intended use

The cordless impact wrench is intended
– for commercial use in industry and trade,
– for fastening and loosening of bolts, nuts and various threaded fasteners.

Safety instructions for impact wrench

WARNING!

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

- Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Noise and vibration

The noise and vibration values have been determined in accordance with EN 62841.

The A evaluated noise level of the power tool is typically:

– Sound pressure level L_pA : 87,0 dB(A)
- Sound power level L_WA : 98,0 dB(A)
- Uncertainty: K = 3 dB

Total vibration value:

- Emission value a_h : 17,88 m/s

– Uncertainty: K = 1.5 m/s ^2

CAUTION!

The indicated measurements refer to new power tools. Daily use causes the noise and vibration values to change.

NOTE

The vibration emission level given in this information sheet has been measured in accordance with a measurement method standardized in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The specified vibration emission level represents the main applications of the tool.

However, if the tool is used for different applications, with different cutting accessories or poorly maintained, the vibration emission level may differ.

This may significantly increase the exposure level over the total working period.

To make an accurate estimation of the vibration exposure level, it is also necessary to take into account the times when the tool is switched off or running but not actually in use.

This may significantly decrease the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the cutting accessories, keep the hands warm, organization of work patterns.

CAUTION!

Wear ear defenders at a sound pressure above 85 dB(A).

Technical data

Tool IW 1/2" 750 18.0-EC
Type Impact Wrench
Rated voltage	Vdc 18
No-load speed	r.p.m	0-500/0-1300/0-2300
Max. impact rate	bpm 28	00
Max torque N	750
Weight according to"EPTA Procedure 01/2003"(without battery)	kg	1.9
Battery	18V	AP 18.0/2.5AP 18.0/5.0AP 18.0/8.0
Weight of battery	kg	AP 18.0/2.5AP 18.0/5.0AP 18.0/8.0	0.40.71.1
Working temperature	-10~40°C
Storage temperature	< 50°C

Charging temperature	4~40°C
Charger CA 10.8/18.0, CA 18.0-LD

Overview (see figure A)

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 1/2" Square drive
2 Variable-speed trigger switch
3 Speed control panel
4 LED light
5 Direction preselector switch (forward / center-lock /reverse)

6 Strap fixing

For attaching a wrist strap (not included) in order to reduce the chances of dropping your tool.

7 Belt clip

8 Opening

9 Fastening screw

Operating instructions

WARNING!

Remove the battery before carrying out any work on the power tool.

Before switching on the power tool

Unpack the cordless impact wrench and check that here are no missing or damaged parts.

NOTE

The batteries are not fully charged on delivery. Prior to initial operation, charge the batteries fully. Refer to the charger operating manual.

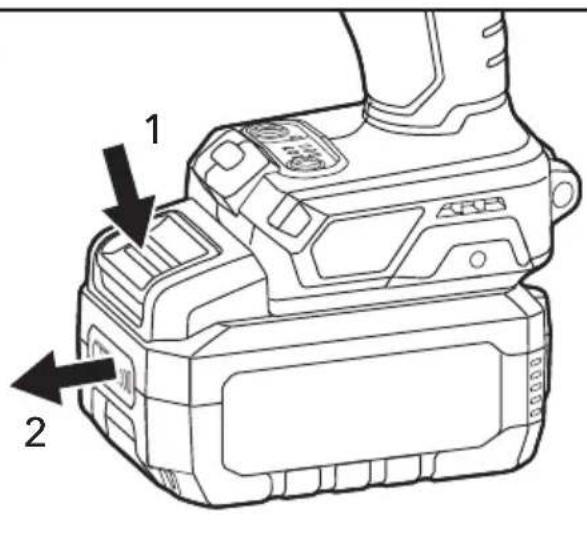

Inserting/replacing the battery

■ Press the charged battery into the power tool until it clicks into place (see figure B).
■ To remove, press the release button and pull out the battery (see figure C).

CAUTION!

When the device is not in use, protect the battery contacts. Loose metal parts may short circuit the contacts; explosion and fire hazard!

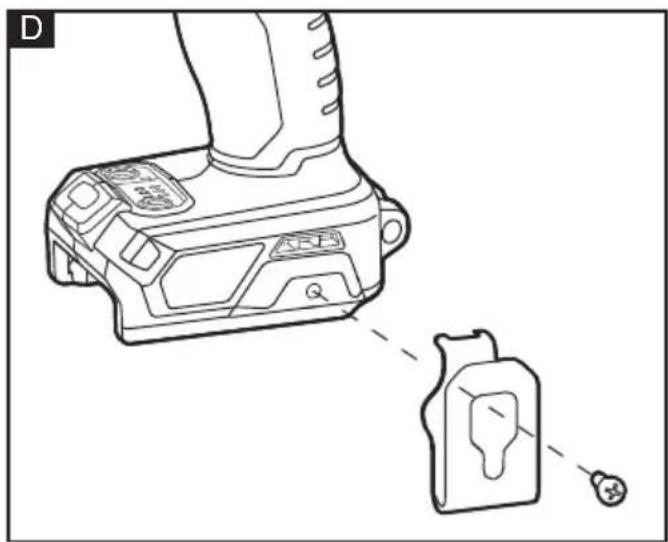

Removable belt clip

Your tool is equipped with a removable belt clip that can be positioned on the side of the tool for convenient transport.

■ Remove the battery pack from the tool.
■ Align the rib and the hole of the belt clip 7 with the opening 8 and the threaded hole on the base of the tool. (see figure D).
■ Insert the fastening screw 9 and securely tighten the screw with a screwdriver (not included).

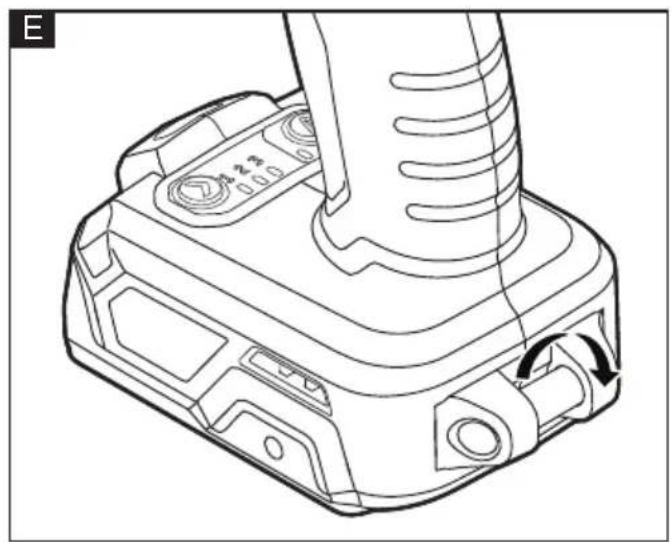

Strap fixing

- Strap fixing is provided to attach a wrist strap (not included) in order to reduce the chances of dropping your tool. Wrap the strip around your hand when carrying the tool (see figure E).

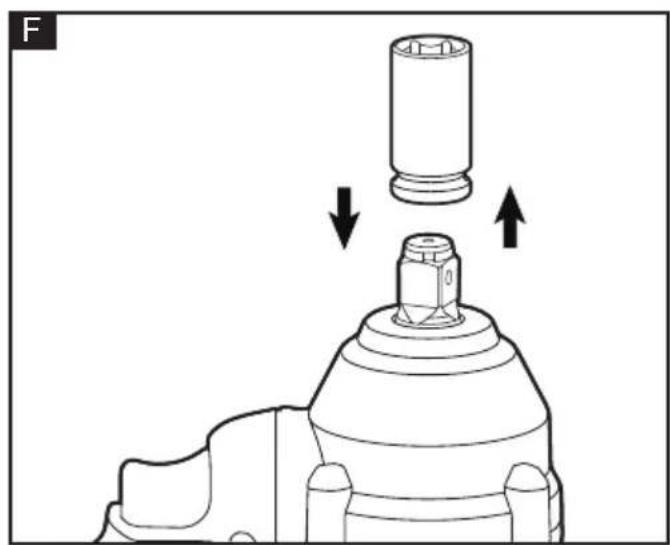

Install and remove the impact socket (see figure F)

CAUTION!

Before carrying out any work on the power tool, move the direction preselector switch 5 to the middle position.

Make sure that the impact socket and the mounting portion are not damaged before installing the impact socket.

■ Align the square of the impact socket with the square drive 1 and push the impact socket onto the square drive as far as it will go.
■ Tap it lightly if required.
■ To remove the impact socket, simply pull it off.

WARNING!

The impact socket may be hot after prolonged use. Use protective gloves when removing the impact socket from the tool, or first allow the impact socket to cool down.

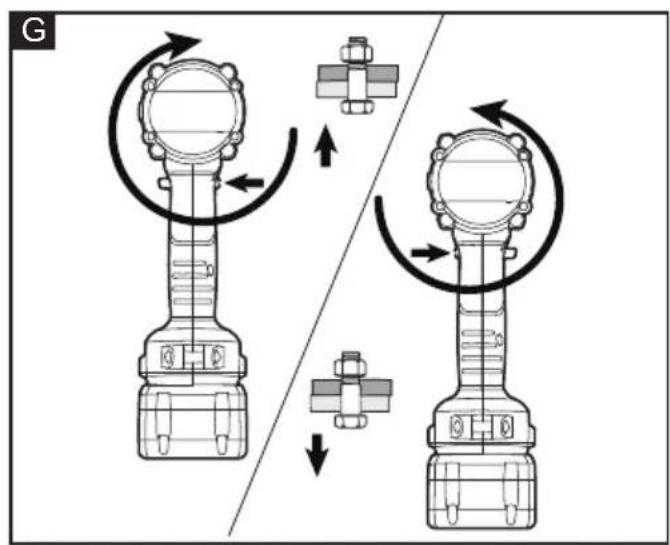

Direction preselection (see figure G)

CAUTION!

Change the direction of rotation only when the power tool is stopped. Move the direction preselector switch 5 to the required position:

■ Position the direction preselector switch to the far left of the tool to tighten bolts/nuts

■ Position the direction preselector switch to the far right of the tool to loosen bolts/nuts.
■ Position the direction preselector switch in the "OFF" (center-lock) position to help reduce the possibility of accidental starting when not in use.

NOTE

The impact wrench will not run unless the direction preselector switch is engaged fully to the left or to the right.

WARNING!

Battery tools are always in operating condition. Therefore, the direction preselector switch should always be locked in the center position when the tool is not in use or when carrying it at your side.

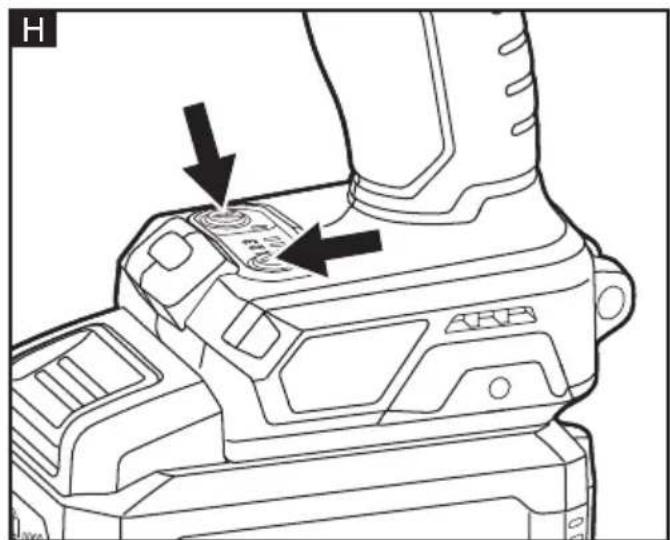

Mode selection (see figure H)

CAUTION!

Your tool is equipped with a speed control panel 3, located on the foot of the tool. It consists of the drive-control button, the "A" button, and LED indicators for working modes.

The drive-control button is used to select among three modes to adjust the torque, rotation-speed (RPM), and impact-speed (IPM) setting for an application. The modes 1, 2, and 3 are the only modes where the speed is controlled by the variable-speed trigger switch.

To select the drive control mode:

- First, check the active mode. Either depress and release the trigger switch or press the drive control button or "A" button directly without touching the trigger switch. The LED indicator below the mode number will illuminate to indicate the active mode setting.

■ Press the drive-control button briefly (less than 0.5 second) to cycle through the 3 modes. Each press changes one torque level. See more details in the chart below.

"A" is a special mode, that is designed to be used both with forward rotation for tightening the bolts or nuts and reverse rotation for loosening the bolts or nuts.

■ Forward: bolt auto stop mode; the tool stops after applying a number of impacts to avoid fasten too tightly.

■ Reverse: bolt removal mode; the tool stops automatically as soon as it has loosened the bolt/nut.

To select the "A" mode:

■ check the active mode: Either depress and release the trigger switch

or press the drive-control button or the "A" button directly without touching the trigger switch.

The LED indicator beside the "A" button will illuminate to indicate the current mode setting. See more details in chart below:

Forward Rotation

LED indicator displayed on panel	Working Mode	Application
	1 Fine-tuned tightening of small bolts and nuts.
	2 When tightening, the torque is moderate.
	3 When tightening, the torque is maximum.
	A Tightening with automatic stop.

Reverse Rotation

LED indicator displayed on panel	Working Mode	Application
	1 Fine-tuned loosening of small bolts and nuts.
	2 When loosening, the torque is moderate.
	3 When loosening, the torque is maximum.
	A Loosening with automatic stop.

WARNING!

Do not change the working mode while the tool is running. Sudden change of torque may cause the loss of control causing possible injury or damage to the tool or workpiece.

NOTE

The variety of wood density and metal material may affect the final outcome. The user should select appropriate mode based on the application.

NOTE

The LED indicator will turn off approximately 1min after the trigger switch is released.

i NOTE

When the tool is next turned on, the working mode will revert to the previous setting.

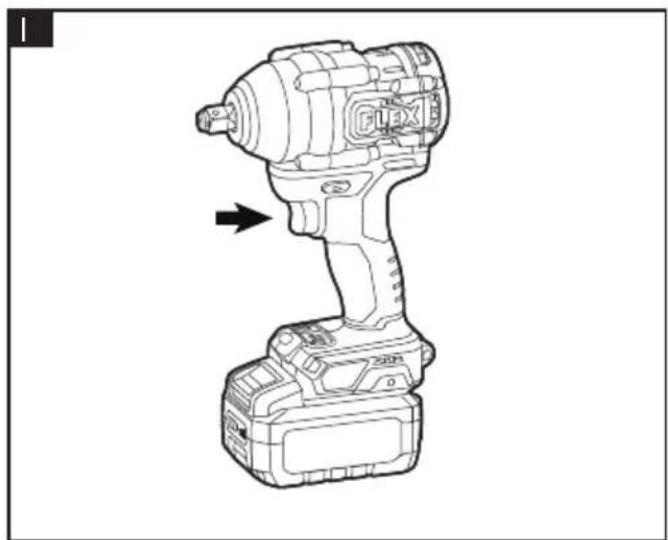

Switching on the power tool (see figure I)

■ To switch the power tool on: Press the trigger switch 2.

The variable-speed trigger switch delivers higher speed with increased trigger pressure and lower speed with decreased trigger pressure.

■ To switch the power tool off: Release the trigger switch.

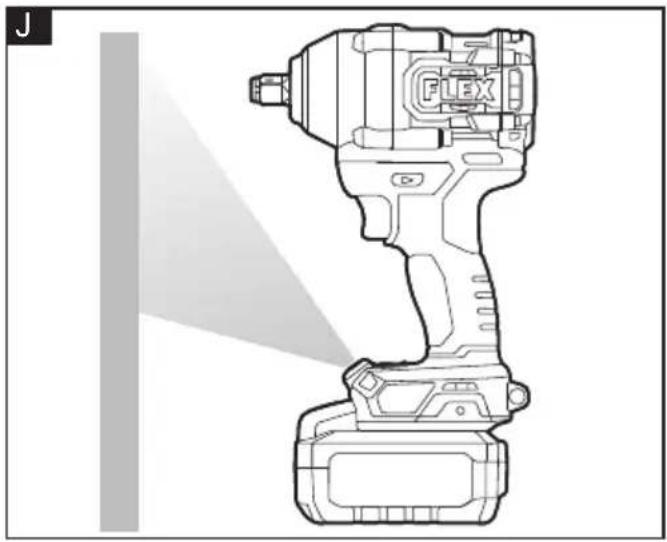

LED light (see figure J)

■ The LED light will automatically turn on with a slight squeeze on the variable-speed trigger switch before the tool starts running and will turn off approximately 10 seconds after the variable speed trigger switch is released.

■ The LED light will rapidly flash when the tool and/or battery pack becomes overloaded or too hot, and the internal sensors will turn the tool off. Rest the tool for a while or place the tool and battery pack separately under air flow to cool them.

■ The LED light will flash more slowly to indicate that the battery is at low-battery capacity. Recharge the battery pack.

■ If the LED fails to light up when you switch on the tool, or it turns off suddenly during your operation, it may be caused by the internal communication error. Please contact customer service or an authorized service center for assistance.

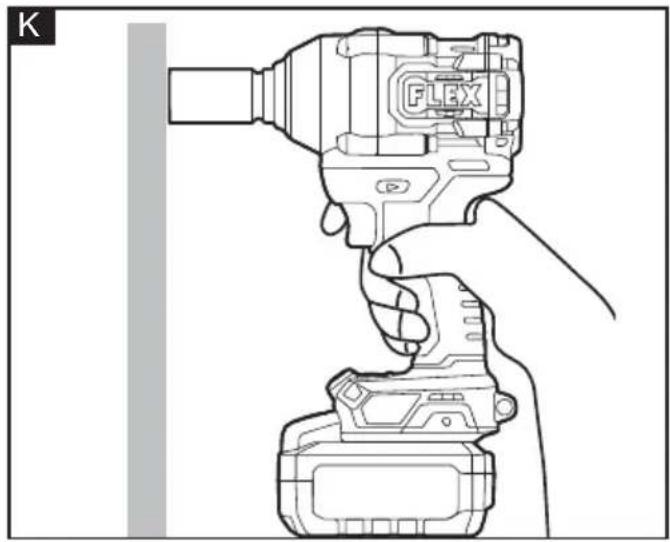

Tighten and loosen nuts and bolts (see figure K)

To tighten nuts and bolts

Use the hex socket that matches the nut or bolt. Select a proper working mode or "A" mode depending on the type or size of the bolt and nut. Before starting your job, always perform a test operation to determine the proper fastening time for your bolt or nut. It is advisable to perform a trial run on a scrap material to determine the best mode selection.

■ Set the direction preselector switch to forward setting.
- Hold the tool firmly and place the socket over the bolt or nut. Ensure that full length of the bolt head or nut is fully engaged into socket.
■ Depress the variable-speed trigger switch to turn the impact wrench on. Start slowly, increasing the speed as the nut or bolt runs downs. Set the nut or bolt snugly by slowing the tool to a stop. If this procedure is not followed, the tool will have a tendency to torque or twist in your hand when the nut or bolt seats.
■ Fasten the bolt or nut to the proper torque.
■ After fastening, always check the torque with a torque wrench. If the fasteners are too tight, reduce the impacting time. If they are not tight enough, increase the impacting time.

NOTICE:

■ Hold the tool straight along the axis of the bolt or nut.
■ Excessive fastening torque may damage the bolt/nut or socket.

To loosen nuts and bolts

Use either mode 1, 2, 3 or "A" mode to loosen nuts and bolts depending on the application. When working overhead or working on car tires, to prevent the loosened fasteners from falling to the ground or into a tight space, it is recommended to use the "A" mode to do this job.

■ Set the direction preselector switch to reverse setting.
■ Hold the tool firmly and place the socket over the bolt or nut. Ensure that full length

of the bolt head or nut is fully engaged into socket.

■ Depress the variable-speed trigger switch to turn the impact wrench on. Once the fastener is loose, the tool will stop running. This tool also allows you to continue to depress the trigger switch for removing the nut from the long bolt, if necessary.

Maintenance and care

WARNING!

Remove the battery before carrying out any work on the power tool.

Cleaning

■ Clean the power tool and grille in front of the vent slots regularly. Frequency of cleaning is dependent on the material and duration of use.
■ Regularly blow out the housing interior and motor with dry compressed air.

Spare parts and accessories

For other accessories, in particular tools and polishing aids, see the manufacturer's catalogues.

Exploded drawings and spare-part lists can be found on our homepage:

www.flex-tools.com

Disposal information

WARNING!

Render redundant power tools unusable:

• mains operated power tool by removing the power cord,
• battery operated power tool by removing the battery.

EU countries only

Do not throw electric power tools into the household waste!

In accordance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and transposition into national law used electric power tools must be collected separately and recycled in an environmentally friendly manner.

Raw material recovery instead of waste disposal.

Device, accessories and packaging should be recycled in an environmentally friendly

manner. Plastic parts are identified for recycling according to material type.

WARNING!

Do not throw batteries into the household waste, fire or water. Do not open used batteries.

EU countries only:

In accordance with Directive 2006/66/EC defective or used batteries must be recycled.

NOTE

Please ask your dealer about disposal options!

CE-Declaration of conformity

We declare on our sole responsibility that the product described in "Technical specifications" conforms to the following standards or normative documents:

EN 62841 in accordance with the regulations of the directives 2014/30/EU, 2006/42/EC, 2011/65/EU.

Responsible for technical documents:

Technical Head Head of Quality

Department (QD)

Declaration of Conformity

We as the manufacturer: FLEX

declare under our sole responsibility, that the product(s) described under „Technical specifications“ fulfills all the relevant provisions of The Supply of Machinery

(Safety) Regulations S.I. 2008/1597 and also fulfills all the relevant provisions of the following UK Regulations:

Electromagnetic Compatibility Regulations S.I. 2016/1091, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations

S.I. 2012/3032 and are manufactured in accordance with the following designated Standards:

BS EN 62841-1:2015,

BS EN 62841-2-2:2014,

BS EN 55014-1:2017,

BS EN 55014-2:2015

Place of declaration: Steinheim, Germany. Responsible person: Peter Lameli, Technical Director - FLEX-Elektrowerkzeuge GmbH

Contact details for Great Britain: FLEX Power Tools Limited, Unit 8 Anglo Office Park, Lincoln Road, HP 12, 3RH Buckinghamshire, United Kingdom.

i.v. P###di B###s Q - r

Peter Lameli Klaus Peter Weinper Technical Head Head of Quality

Department (QD)

15.06.2022

Exemption from liability

The manufacturer and his representative are not liable for any damage and lost profit due to interruption in business caused by the product or by an unusable product.

The manufacturer and his representative are not liable for any damage which was caused by improper use of the product or by use of the product with products from other manufacturers.

- Incertitude: K = 3 dB

The cordless impact wrench is intended
– for commercial use in industry and trade,
- for fastening and loosening of bolts, nuts and various threaded fasteners.

Safety instructions for impact wrench

¡ADVERTENCIA!

Peter Lameli Technical Head

Klaus Peter Weinper Head of Quality Department (QD)

- Negotovost: K = 3 dB

Skupna vrednost vibracij:
- Vrednost emisij a_h : 17,88 m/s
- Negotovost: K = 1,5 m/s ^2

POZOR!

Technical Head Head of Quality

Department (QD)

Technical Head Head of Quality

Department (QD)

Peter Lameli Klaus Peter Weinper Technical Head Head of Quality Department

Peter Lameli Klaus Peter Weinper Technical Head Head of Quality

Department (QD)

Technical Head Head of Quality

Department (QD)

Peter Lameli Klaus Peter Weinper Technical Head Head of Quality Department

(QD)

استخلاصCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoCoO
