Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 26

Installation 28

Operation 31

Installing the Carbon Filter 33

Cleaning and Care 34

Troubleshooting 35

Product Data Sheet 36

Notes on Environmental Protection 44

Disposal Considerations 44

Manufacturer & Importer (UK) 44

TECHNICAL DATA

Item number	10033470, 10033471, 10033472, 10034960, 10034961, 10035185
Power supply 220-240 V ~ 50/60 Hz
Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10033473. Please visit our website: www.hifi-tower.co.uk

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open fl ue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction fl ue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

Preparation

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150 mm).

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 65-75 cm above the cooking plane for best effect.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa (4 x 10-5 Bar).

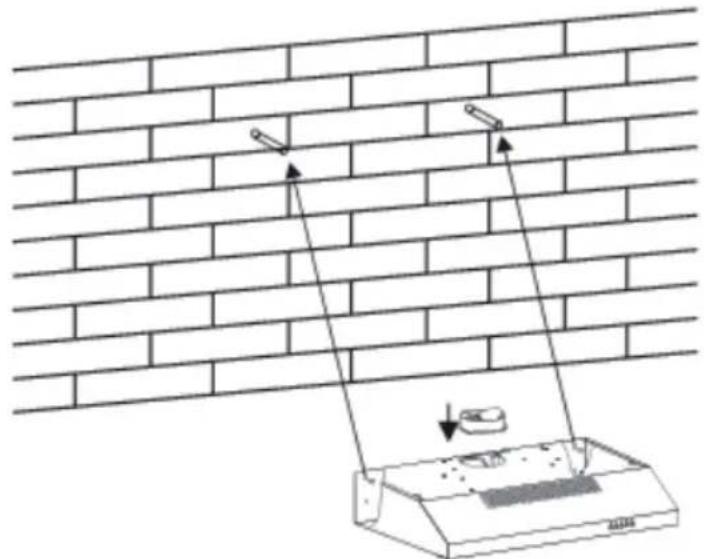

Installation method 1: Wall mounting

• To install onto the wall drill 2 holes of 8 mm on a suitable place according with the centre distant of hole in the back of the cooker hood.
• Insert the nut into the holes.
• Insert the screws into the nuts and tight. Put the cooker hood onto the tighten screws.

Diagram of a brick wall with two hanging tools and a base device, no text or symbols present

• Fix the cooker hood with safety screws. The two safety vents are positioned on the back casting, with diameter of 6 mm.
• Put the one way valve onto the cooker hood.

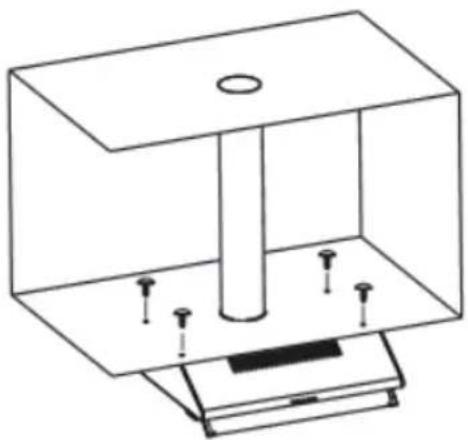

Installation method 2: Built-in mounting

• Drill 4 holes of 6 mm diameter at the bottom of the hanging cupboard
• Put the one way valve on the cooker hood, then install the cooker hood on the bottom of the hanging cupboard, lighten the hood with enclosed 4 screws.

Technical line drawing of a mechanical assembly with a cylindrical component and supporting base (no text or symbols)

Notes:

(1) The extensible pipe are optional accessory, not supplied.
(2) Take off protection film before installation.
(3) There are 2 methods for ventilation, including horizontal ventilation and vertical ventilation. Please pay attention method when installation.

Vertical ventilation (picture A):

Please use the tool to take out the round cover before using, and the air can be vented from the top.

Horizontal ventilation (picture B):

Take out the cover before using, and the air can be vented from the back.

A

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

B

Technical line drawing of a mechanical device with a circular component and directional arrow (no text or symbols)

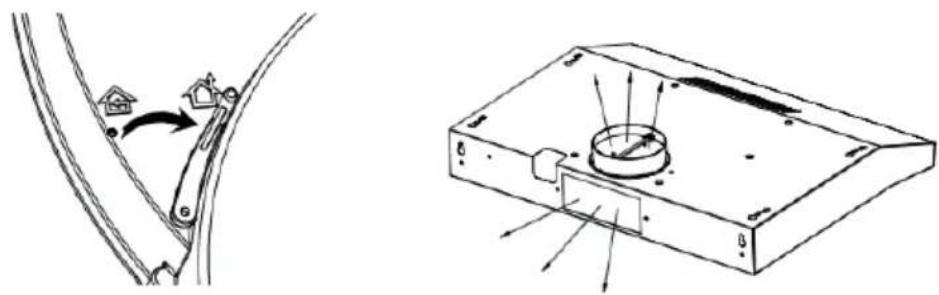

Vent outside

- Turn the adjuster to outdoor position and install the outlet. Turn on the cooker hood, then the air will be vented form the outside outlet.

Technical line drawing showing a mechanical component with arrows indicating motion, alongside a 3D schematic of a device with internal components (no text or symbols)

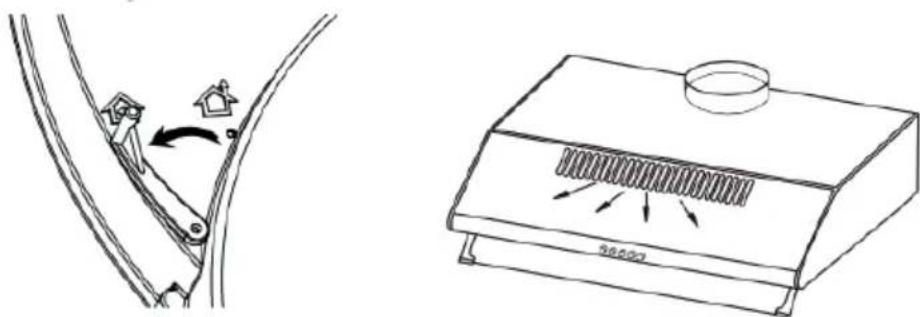

Vent inside with activated carbon filter (recycling mode)

- Turn the adjuster to indoor position and install the outlet cover. Turn on the cooker hood, then the air can be vented from the inside outlet.

Technical line drawing showing a car door handle and its air vent system (no text or symbols)

- The carbon filter is mounted on the back of the grill and must be changed once every three month.

Note: The carbon cannot be washed or recycled. It should be changed at most after 120 hour using. The carbon filter shouldn't be exposed to heat.

OPERATION

Button functions

0	Off:This button is used for turning off the fan.
1	Low Speed:It is suitable for simmering and cooking which do not make much steam.
2	Medium Speed:Airflow speed is ideally for ventilation in standard cooking operation.
3	High Speed:When high density of smoke or steam produced, press high-speed button for highest effective ventilation.
	Light on/off

Touch control (T02)

	Digital display key:Press this key to make power on and off.
	Power down key:On working condition, press this key to decrease the power one level.
	Power up key:On working condition, press this key to increase the power one level.
	Delay key:On stand-by and working condition, press this key for 3 sec, the digital display blinks, we can set the delay power off time from 1 minute to 9 minutes; press the key again to save the setting. If no press is made for 10 sec, then the setting would be saved automatically.When the motor is on and the delay setting is saved, we can still adjust the setting, and the display window all display the countdown time.When the motor is not working, can just set the delay time, does not have countdown function. The delay would turn to countdown time when the motor is working.
	Light key:Press one time for turning the light on, press another to turn the light off.

Note: On working condition, the digital display would off if 2 minutes without pressing, press again, the key lights on.

INSTALLING THE CARBON FILTER

Note: An activated carbon filter is not included. But you can buy it as an extractor hood.

1	2
Activated carbon filter can be used to trap odours.	In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.
3

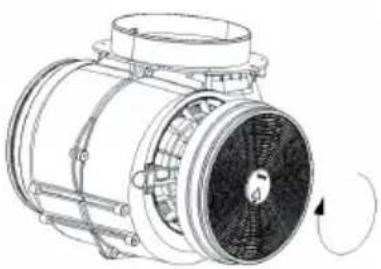

	Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side. Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.

CLEANING AND CARE

Before cleaning switch the unit off and pull out the plug.

Regular Cleaning

Use a soft moistened with hand-warn mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

Monthly Cleaning for Crease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Annual Cleaning for Activated Filter

Apply solely to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

Replacing the LED lamp

1. Switch the unit off and unplug the appliance.
2. Disconnect the terminal between the LED lamp and the main board.
3. Push the LED lamp from the cooker hood.
4. Pull in the new LED lamp (LED lamp max 2 W) and connect the terminal with the main board.

TROUBLESHOOTING

Fault Possible cause Solution
Light on, but fan does not work	The fan blade is jammed. Switch of the until and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work.	Light bulb burn. Replace the bulb with correct rating.
	Power cord looses. Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged. Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch of the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance is not good	Too long distance between the unit and the cooking plane.	Readjust the distance to 65-75 cm.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10033471, 10033472
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	33,6 kWh/Year
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	9,6
Fluid Dynamic Efficiency class E
Lighting Efficiency LE	hood	47 Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFBhood	67,2	%
Grease Filtering Efficiency class		D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		201,6	m^3/h
air flow at intensive or boost setting		-	m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		70	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	-	W
power consumption in standby mode	Ps	0,36	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10033471, 10033472
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	33,6 kWh/Year
Time increase factor f 1,7
Fluid Dynamic Efficiency FDE	hood	9,6
Energy Efficiency Index EEI	hood	73,5
Measured air flow rate at best efficiency point	Q_BEP	95,9 m^3/h
Measured air pressure at best efficiency point	PBEP	192 Pa
Maximum air flow Q	max	201,6 m^3/h
Measured electric power input at best efficiency point	WBEP	53,2	W
Nominal power of the lighting system	W_L	2	W
Average illumination of the lighting system on the cooking surface	Emiddle	94	Lux
Measured power consumption in standby mode	P_o	0,36	W
Measured power consumption off mode	P_s	-	W
Sound power level	L_WA	70	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10034960, 10034970
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	33,6 kWh/Year
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	9,6
Fluid Dynamic Efficiency class E
Lighting Efficiency LE	hood	47 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency GFE	hood	67,2	%
Grease Filtering Efficiency class		D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		201,6	m^3/h
air flow at intensive or boost setting		-	m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		70	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	P_o	0	W
power consumption in standby mode	P_s	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10034960, 10034970
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	33,6 kWh/Year
Time increase factor f 1,7
Fluid Dynamic Efficiency FDE	hood	9,6
Energy Efficiency Index EEI	hood	73,5
Measured air flow rate at best efficiency point	QBEP	95,9 m^3/h
Measured air pressure at best efficiency point	PBEP	192 Pa
Maximum air flow Q	max	201,6 m^3/h
Measured electric power input at best efficiency point	WBEP	53,2	W
Nominal power of the lighting system	WL	2	W
Average illumination of the lighting system on the cooking surface	Emiddle	94	Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0	W
Sound power level	LWA	70	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10034961
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	33,6 kWh/Year
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	9,6
Fluid Dynamic Efficiency class E
Lighting Efficiency LE	hood	47 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency	GFBhood	67,2	%
Grease Filtering Efficiency class		D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		201,6	m^3/h
air flow at intensive or boost setting		-	m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		70	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	-	W
power consumption in standby mode	Ps	0,36	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10034961
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	33,6 kWh/Year
Time increase factor f 1,7
Fluid Dynamic Efficiency FDE	hood	9,6
Energy Efficiency Index EEI	hood	73,5
Measured air flow rate at best efficiency point	QBEP	95,9 m^3/h
Measured air pressure at best efficiency point	PBEP	192 Pa
Maximum air flow Q	max	201,6 m^3/h
Measured electric power input at best efficiency point	WBEP	53,2 W
Nominal power of the lighting system	WL	2	W
Average illumination of the lighting system on the cooking surface	Emiddle	94	Lux
Measured power consumption in standby mode	Po	0,36 W
Measured power consumption off mode	Ps	-	W
Sound power level	LWA	70	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10035185
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	39,0 kWh/Year
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	8,6
Fluid Dynamic Efficiency class E
Lighting Efficiency LE	hood	47 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency	GFBhood	63,6 %
Grease Filtering Efficiency class		E
air flow at minimum and maximum speed in normal use, intensive or boost excluded		199,2	m^3/h
air flow at intensive or boost setting		-	m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		70	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10035185
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	39,0 kWh/Year
Time increase factor f 1,7
Fluid Dynamic Efficiency FDE	hood	8,6
Energy Efficiency Index EEI	hood	78,2
Measured air flow rate at best efficiency point	QBEP	106,4 m^3/h
Measured air pressure at best efficiency point	PBEP	177 Pa
Maximum air flow Q	max	199,2	m^3/h
Measured electric power input at best efficiency point	WBEP	60,8 W
Nominal power of the lighting system	WL	2	W
Average illumination of the lighting system on the cooking surface	Emiddle	94	Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0	W
Sound power level	LWA	70	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
  • Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente,

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with an upward arrow and a downward arrow pointing to a device (no text or symbols present)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Observaciones:

Isometric line drawing of a mechanical component with a central circular feature and an upward arrow (no text or symbols)

B

Technical line drawing of a mechanical device with a circular component and an arrow indicating rotation (no text or symbols)

Extracción exterior

Technical line drawing showing a cable being adjusted to a bracket with a mounted device (no text or symbols present)

Technical line drawing showing a mechanical component with motion arrows and a schematic of its air vent (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with an upward arrow and a downward arrow pointing to a device labeled '2018' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Remarques :

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

B

Technical line drawing of a mechanical device with a circular component and a rectangular base (no text or symbols)

Technical line drawing showing a cable being adjusted to a component with a magnified view of the internal structure (no text or symbols)

Technical line drawing showing a mechanical component with motion arrows and a schematic of its air vent (no text or symbols)

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with an open door and directional arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical assembly with a cylindrical component and mounting base (no text or symbols)

Note:

Technical line drawing of a mechanical component with a central circular feature and an upward arrow (no text or symbols)

B

Technical line drawing of a mechanical device with a circular component and a rectangular base (no text or symbols)

Scarico all'esterno

Technical line drawing showing a cable being adjusted to a component with a magnified view of the internal structure (no text or symbols)

Technical line drawing showing a mechanical component with motion arrows and a schematic of its air vent (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
