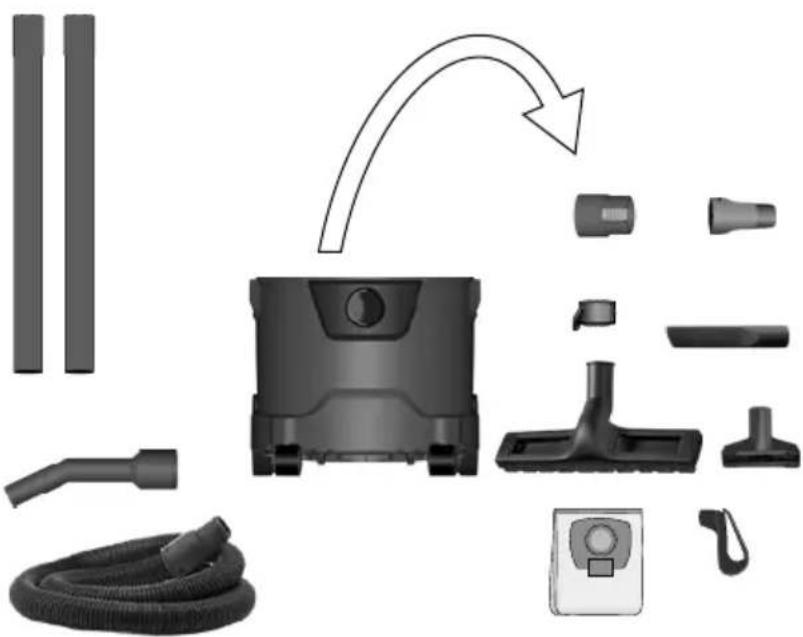

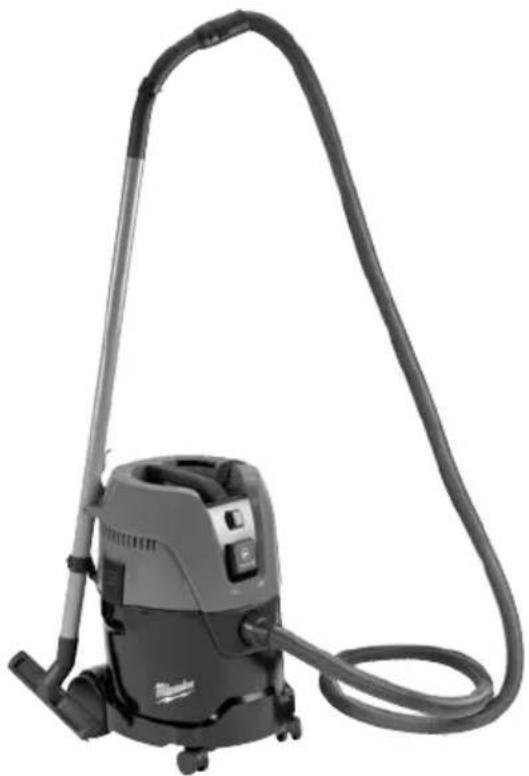

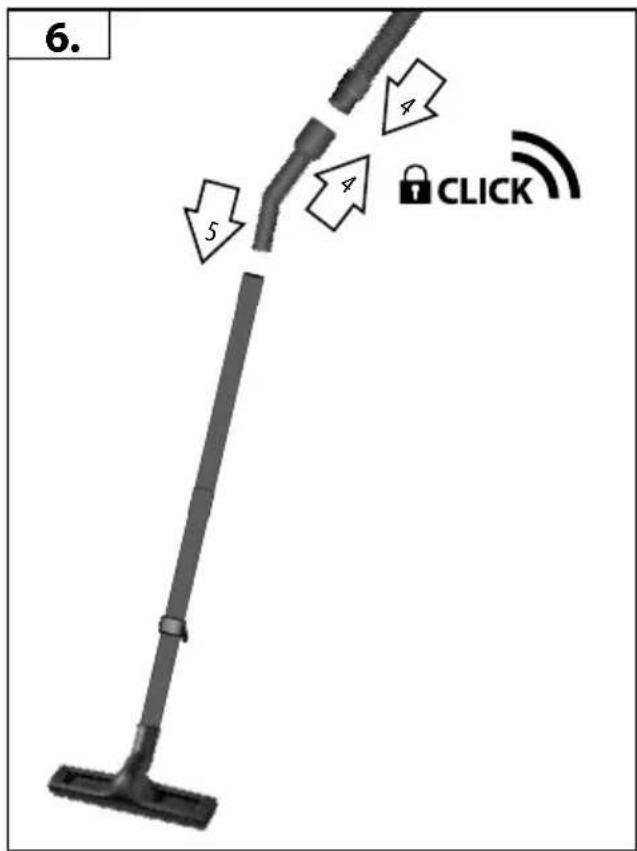

6. 5 4 4 CLICK

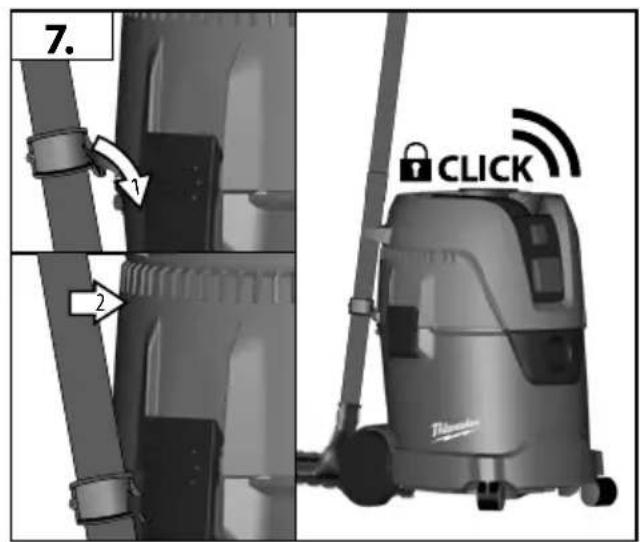

7. 1 2 CLICK

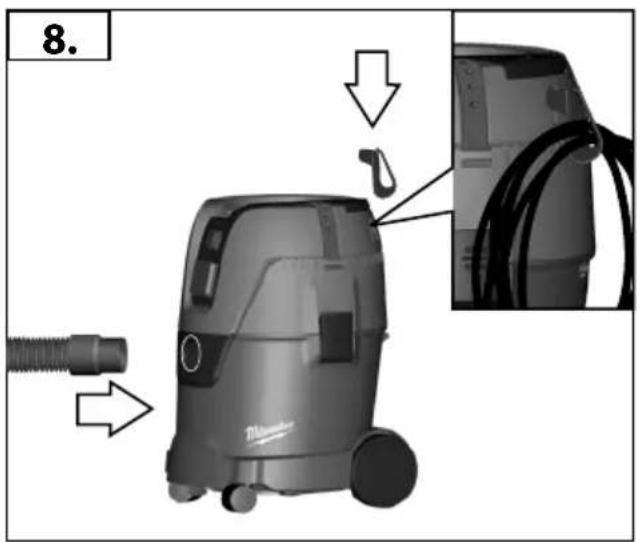

8.

Close-up of a black spray gun with airflow arrows indicating dust or dust distribution (no text or symbols visible)

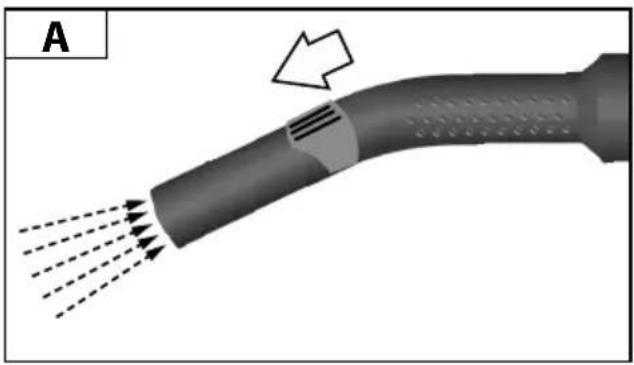

A

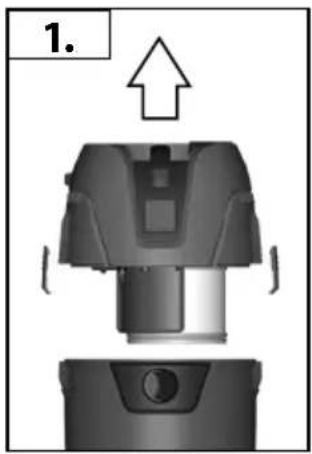

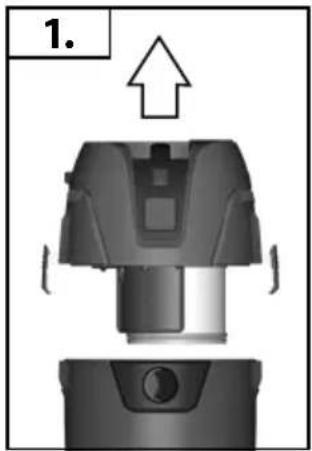

Mechanical component diagram showing a piston assembly with an upward arrow (no text or symbols)

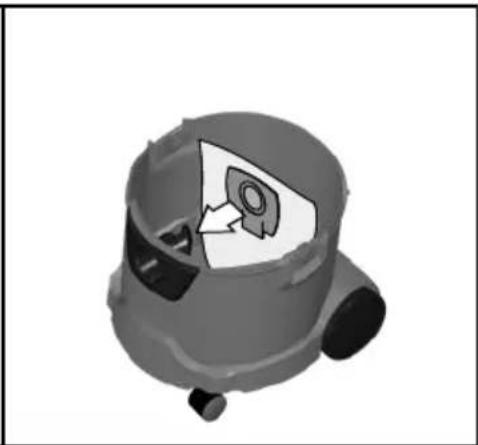

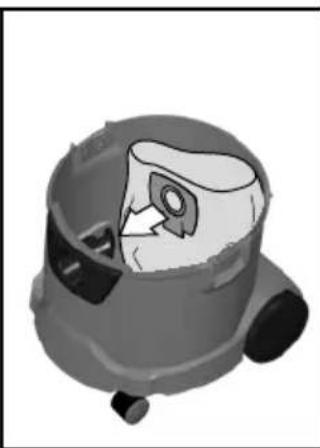

3D rendering of a mechanical component with an arrow pointing to a small object (no text or symbols visible)

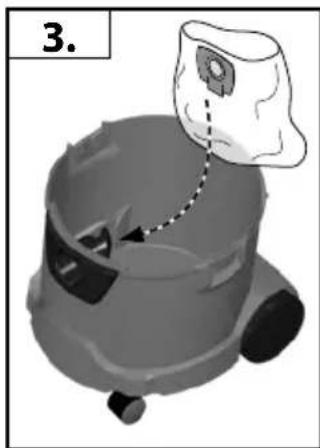

3D rendered mechanical component with a paper label and dashed line indicating a path (no text or symbols)

3D rendered mechanical component with internal cutaway view showing internal features (no text or symbols)

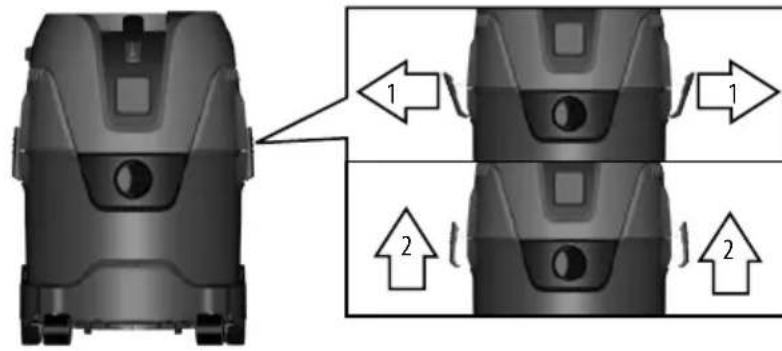

Top-down view of a mechanical device with a highlighted component and arrow indicator (no text or symbols)

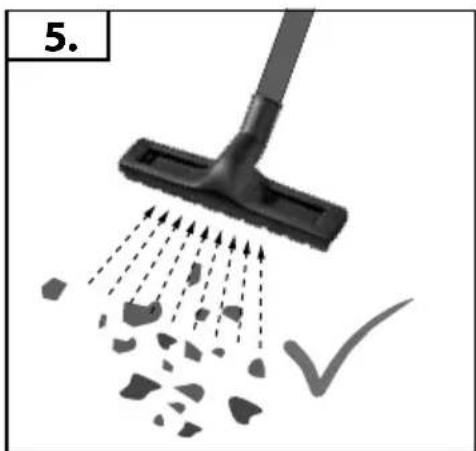

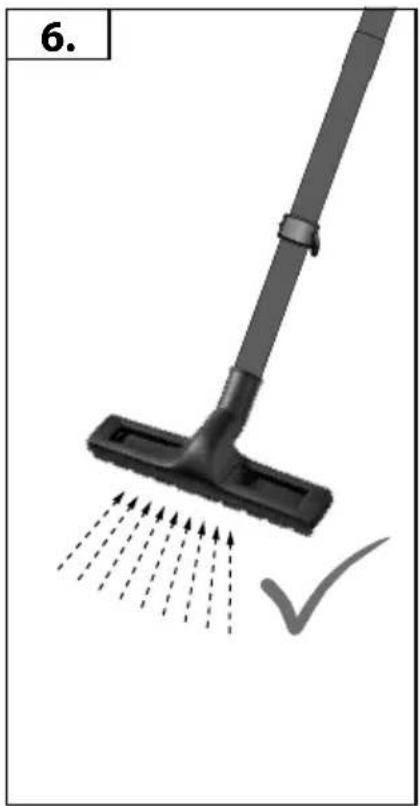

Diagram of a hairdryer with airflow arrows and a checkmark, no text or symbols present

Close-up of a black spray gun with motion lines indicating airflow or movement (no text or symbols visible)

Microscopic view of irregular dark particles on a light background, labeled 'B' in top-left corner (no other text or symbols)

Mechanical component diagram showing a top view with an arrow indicating upward motion (no text or symbols)

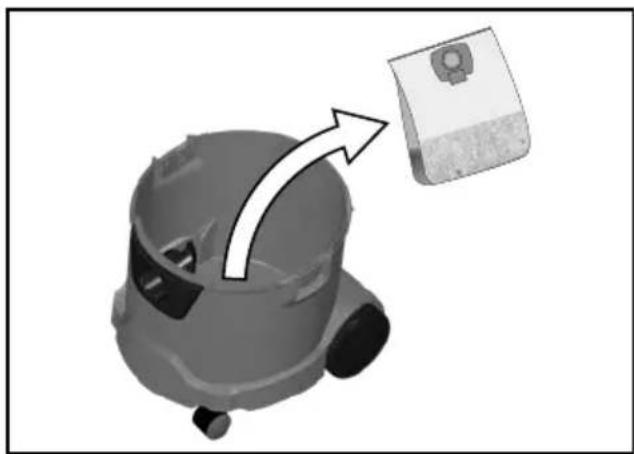

3D rendered mechanical component with an arrow pointing to a small rectangular component (no text or symbols visible)

3D diagram of a mechanical component with an inset showing a close-up of a component (no text or symbols)

3D rendered mechanical component with internal cutaway view (no text or symbols)

Cartoon illustration of a distressed, anthropomorphic object with arrows indicating motion or pressure (no text or symbols)

Top-down view of a mechanical component with a downward arrow indicating a step (no text or symbols present)

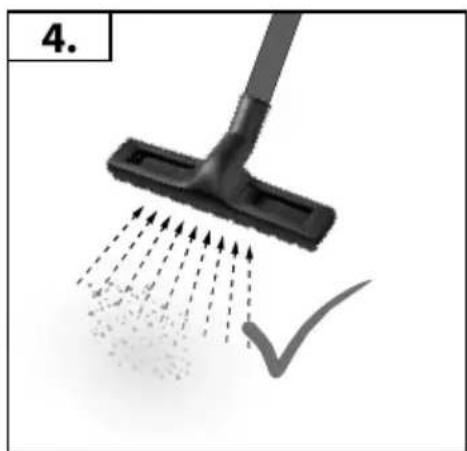

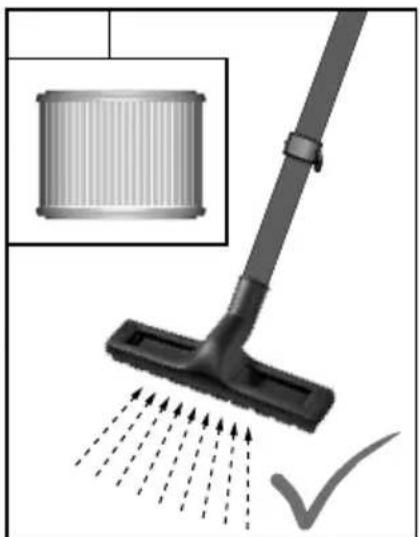

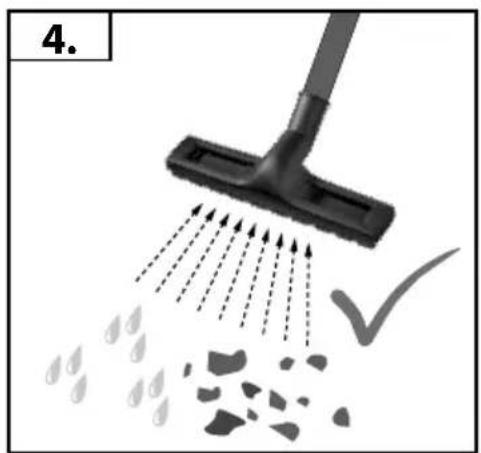

Diagram showing a vacuum cleaner spraying water with particles and a checkmark indicating inspection (no text or symbols)

Close-up of a black spray gun with airflow arrows and a small inset showing droplets (no text or symbols)

Abstract pattern of gray droplet shapes and irregular dark fragments on white background (no text or symbols)

Mechanical component diagram showing a piston-like assembly with an upward arrow, no text or symbols present

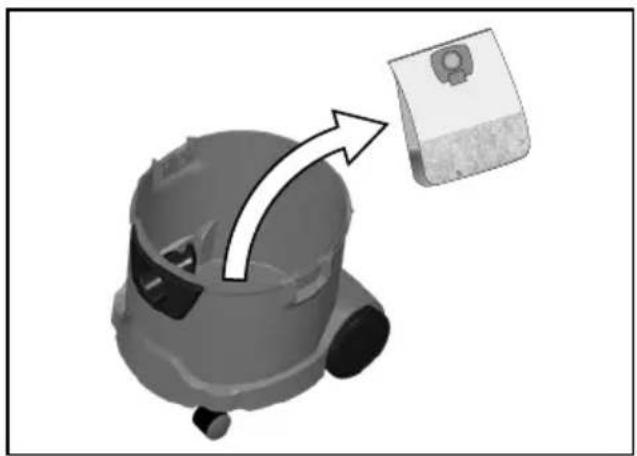

3D rendered mechanical component with an arrow pointing to a small component (no text or symbols visible)

Top-down view of a mechanical device with a labeled component (no text or symbols on the device itself)

Diagram showing a vacuum cleaner spraying water onto a surface with droplet shapes and a checkmark (no text or symbols)

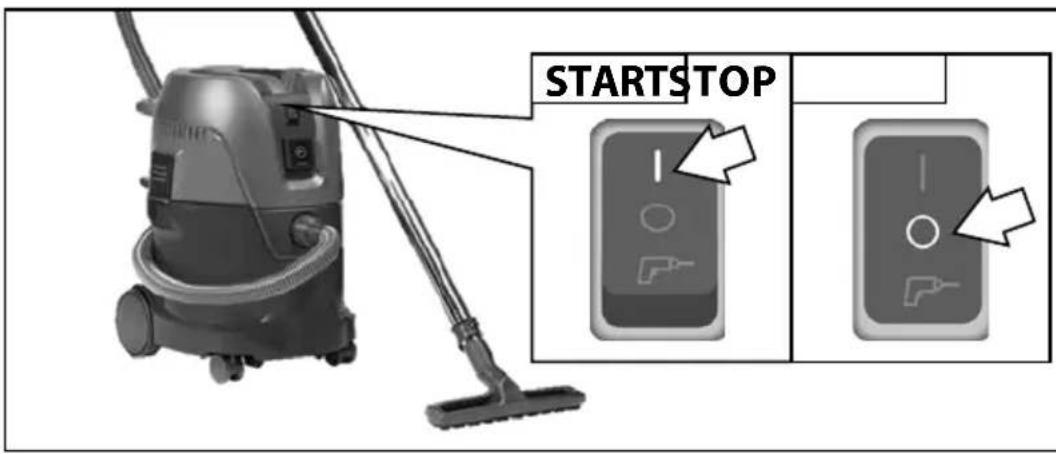

START STOP

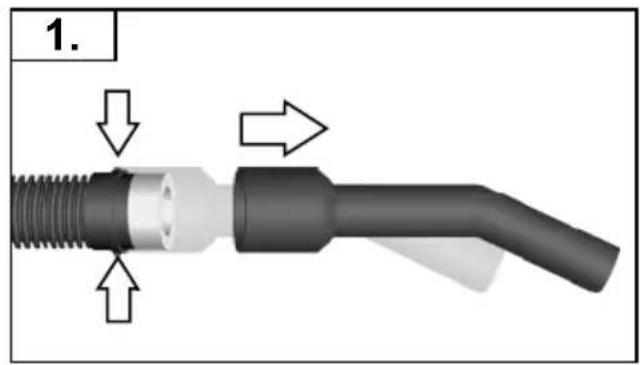

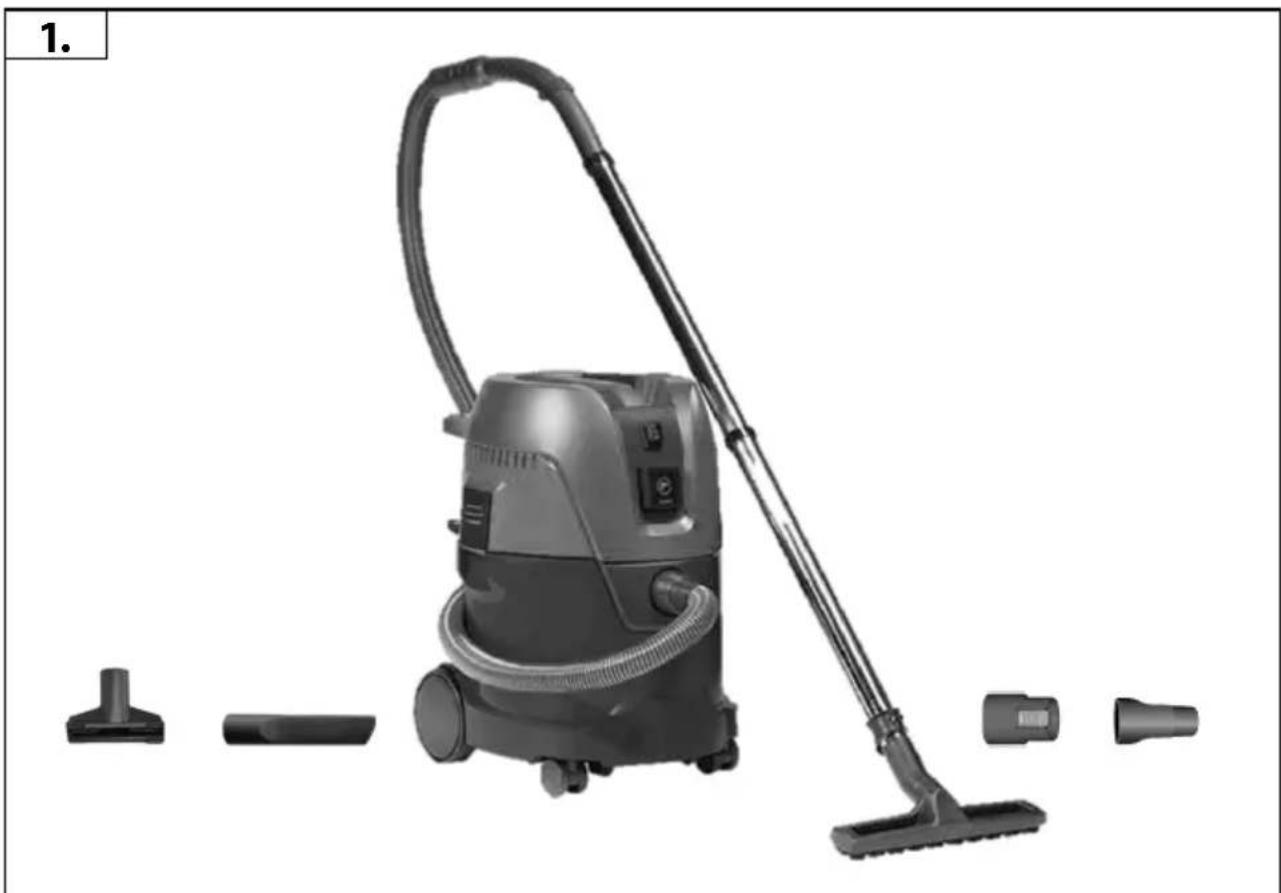

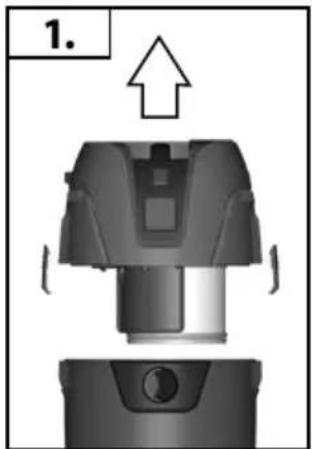

1.

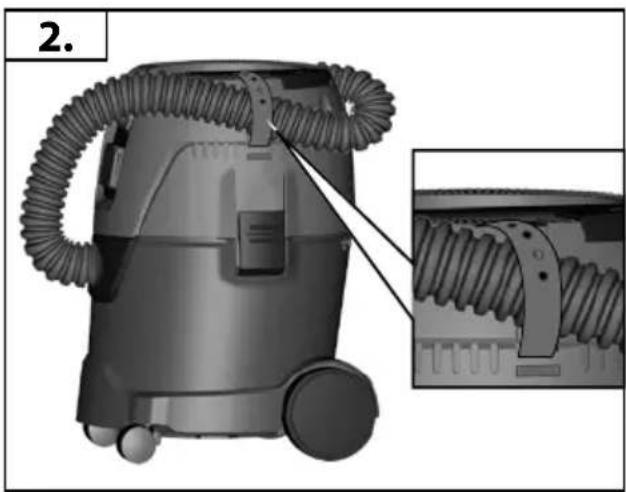

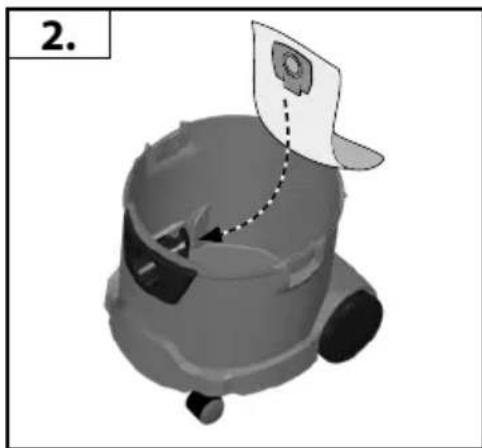

2. A B CLICK

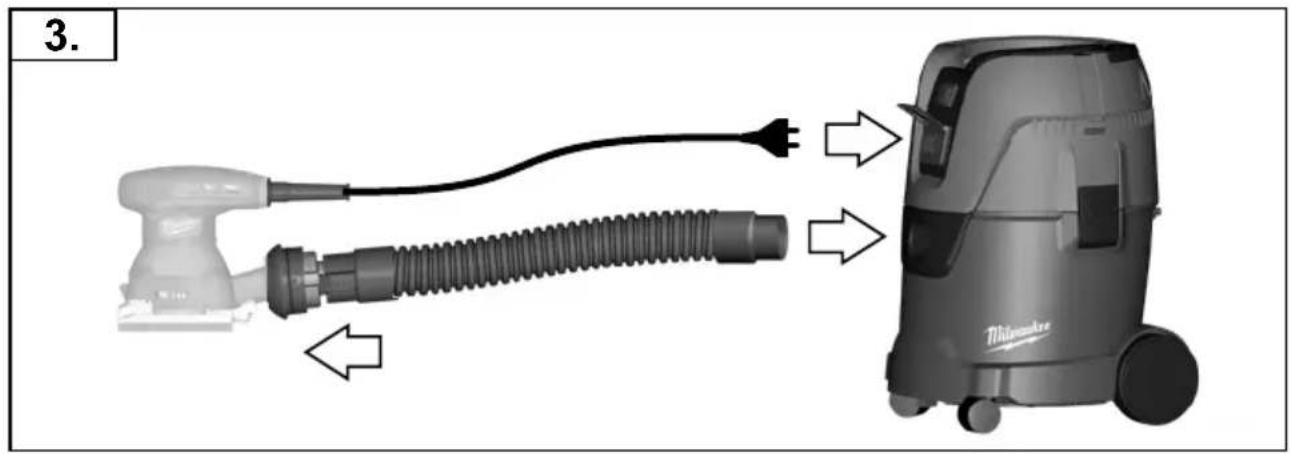

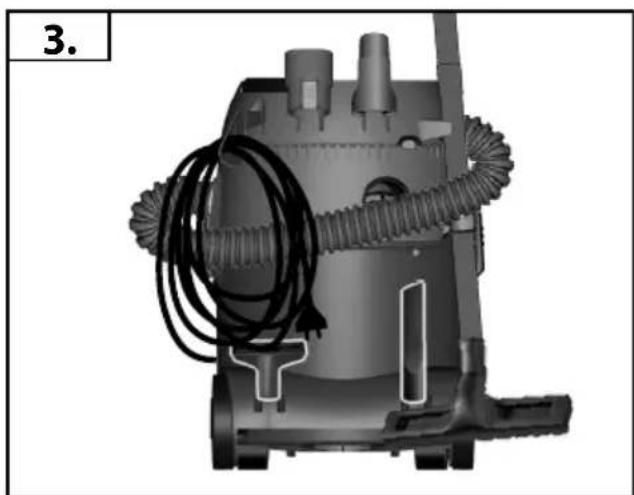

3. Tilvamde Tilvamde

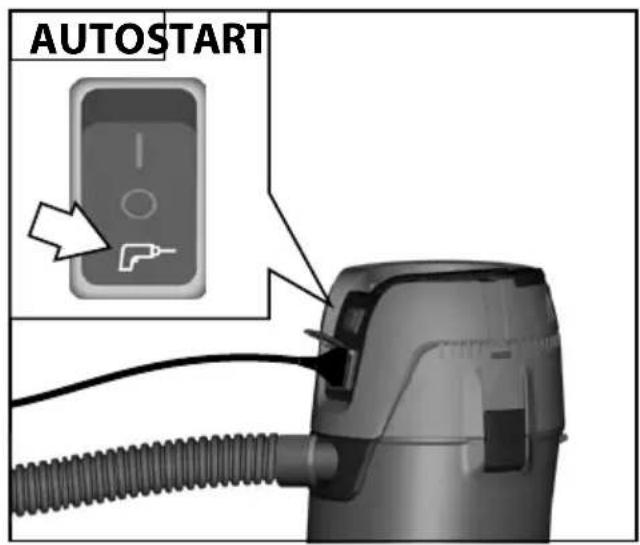

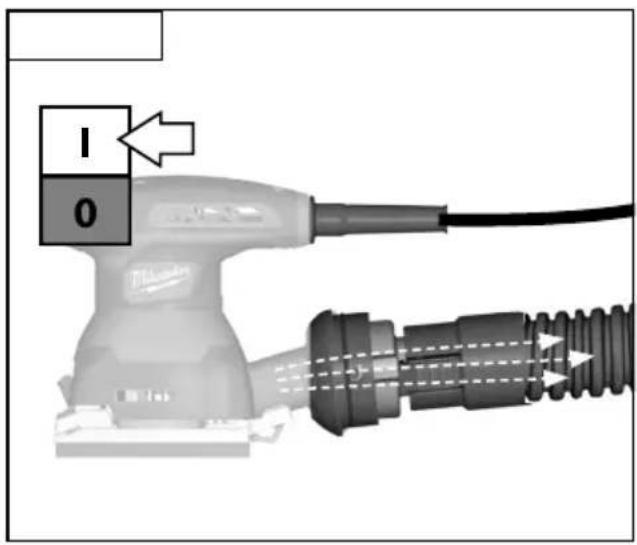

AUTOSTART

I 0

START STOP

STARTSTOP

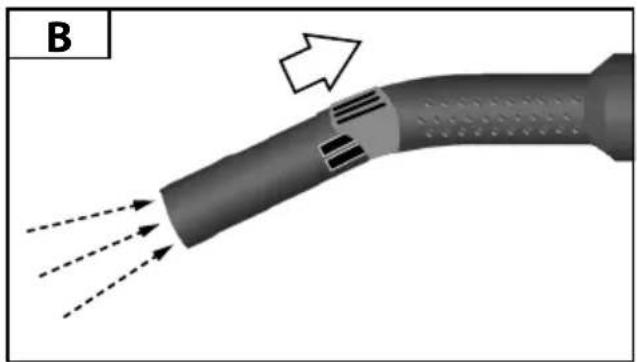

Diagram of a curved pipe with dashed flow lines and an arrow indicating direction (no text or symbols)

Diagram of a curved pipe with dashed arrows indicating flow direction, no text or symbols present

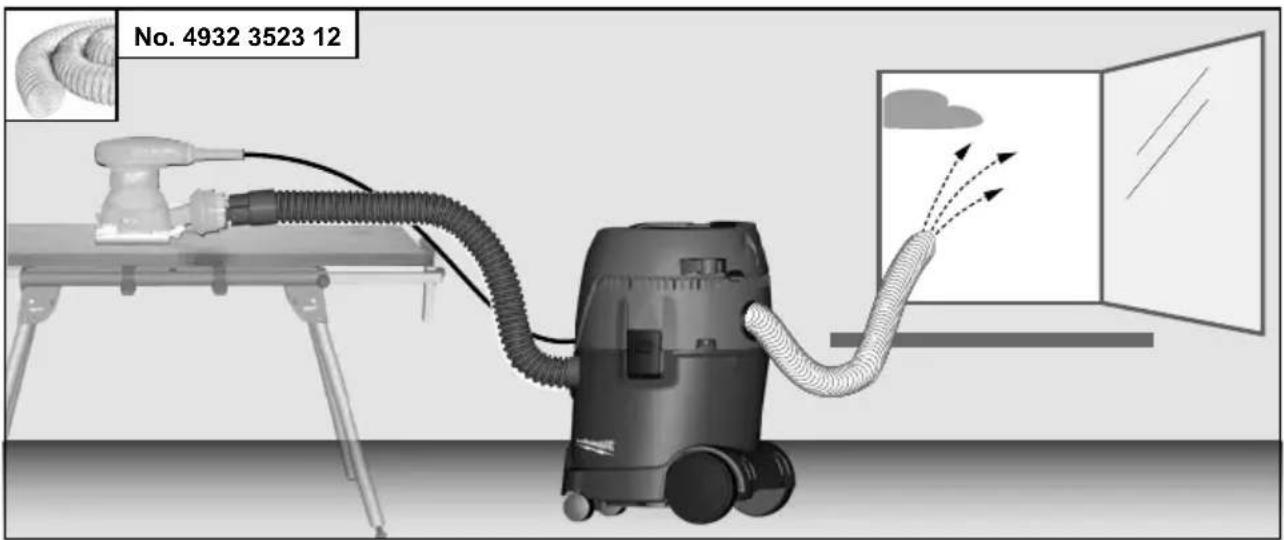

No. 4932 3523 12

Solid gray rectangular shape with no text, symbols, or discernible features.

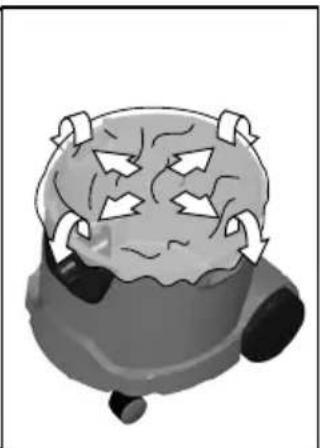

Illustration of a document with a small gender symbol on top (no text or labels)

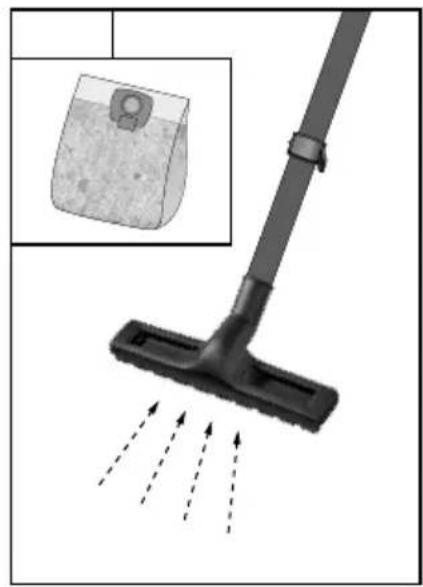

Diagram of a cleaning brush with motion arrows indicating airflow or movement (no text or symbols present)

Two views of a mechanical component with no visible text or symbols, showing top and side views (no text or symbols on the components themselves)


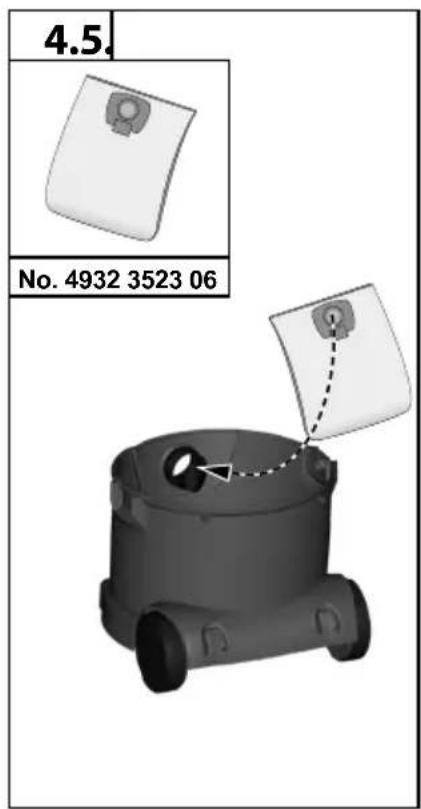

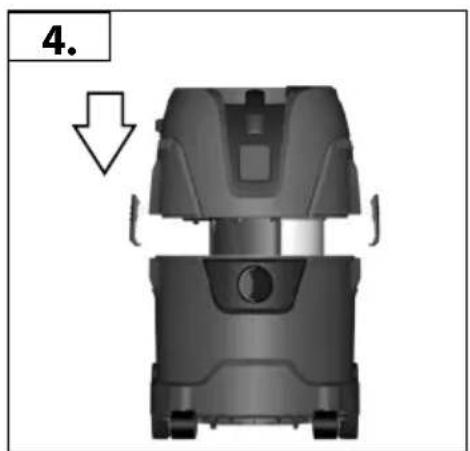

4.5. No. 4932 3523 06

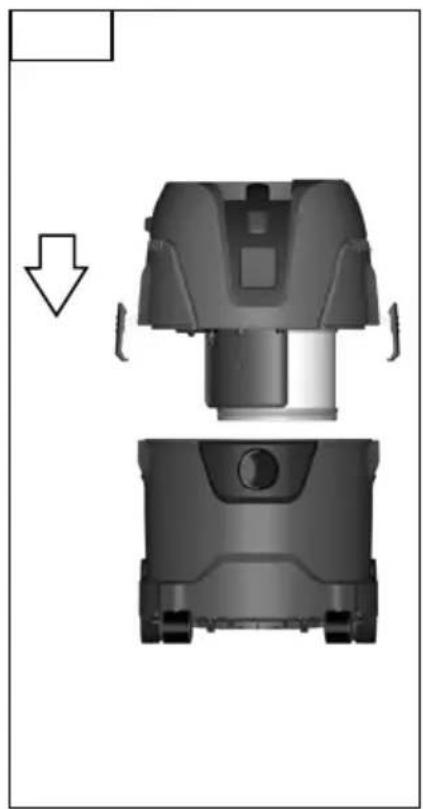

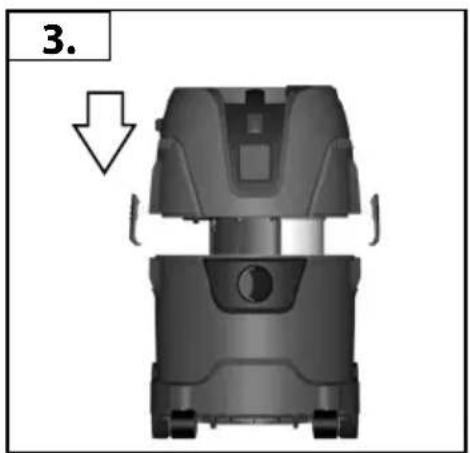

Two views of a mechanical component with a downward arrow indicating transformation (no text or symbols present)

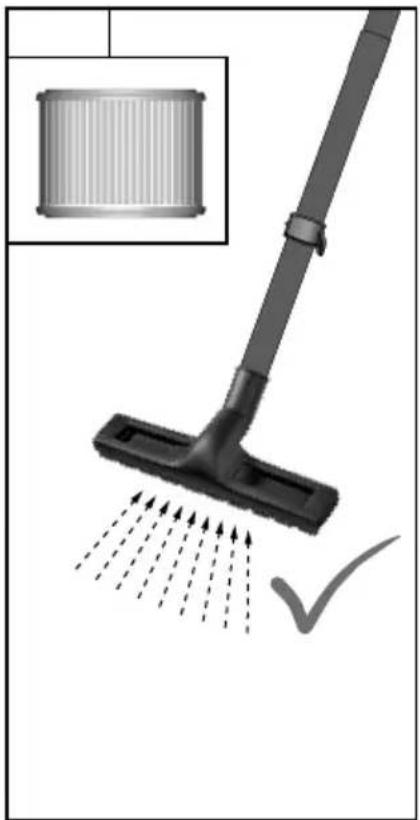

Illustration of a vacuum cleaner with airflow arrows and checkmark (no text or symbols)

3D rendering of a cylindrical mechanical component with ribbed texture (no text or symbols)

Illustration of a cleaning brush with airflow arrows indicating dust or heat distribution (no text or symbols)

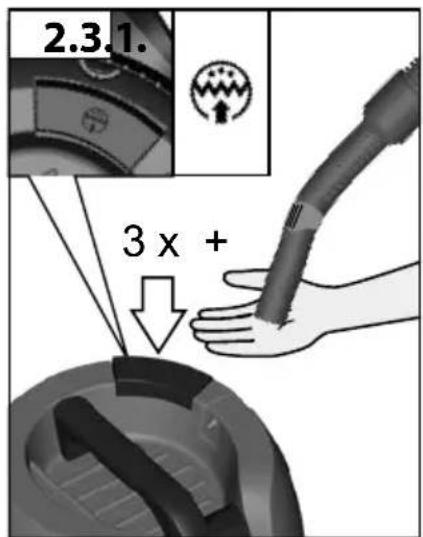

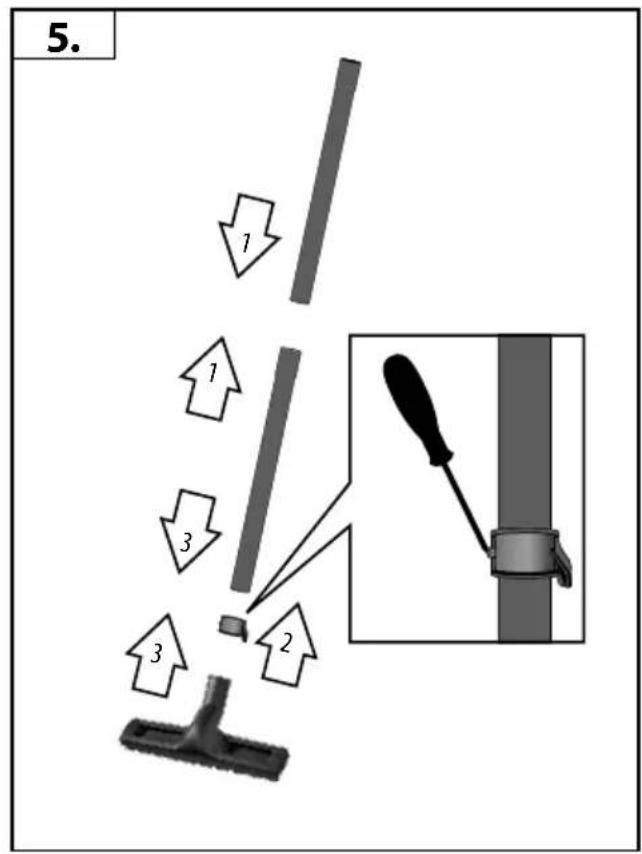

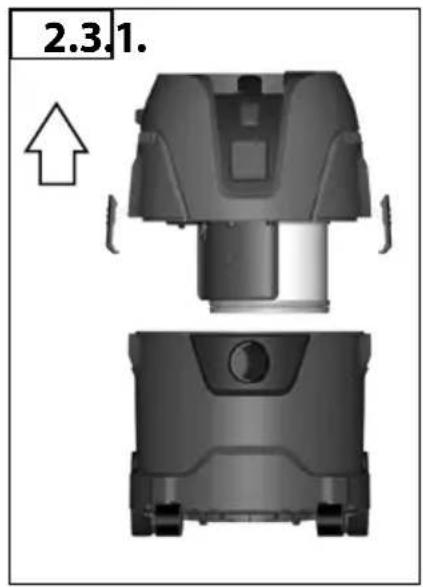

2.3.1. 3 x +

Illustration of a cleaning brush with motion lines indicating airflow or fluid flow (no text or symbols)

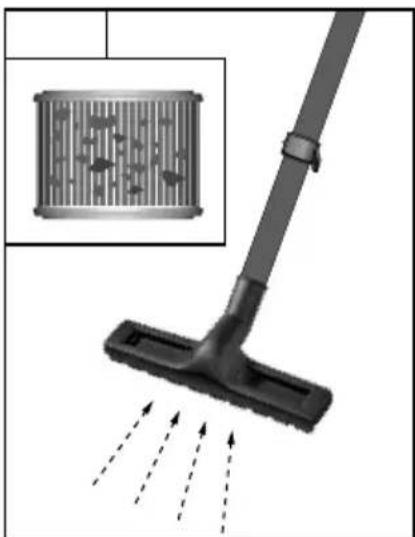

Illustration of a vacuum cleaner with airflow arrows, showing a grid-patterned cover and exhaust (no text or symbols)

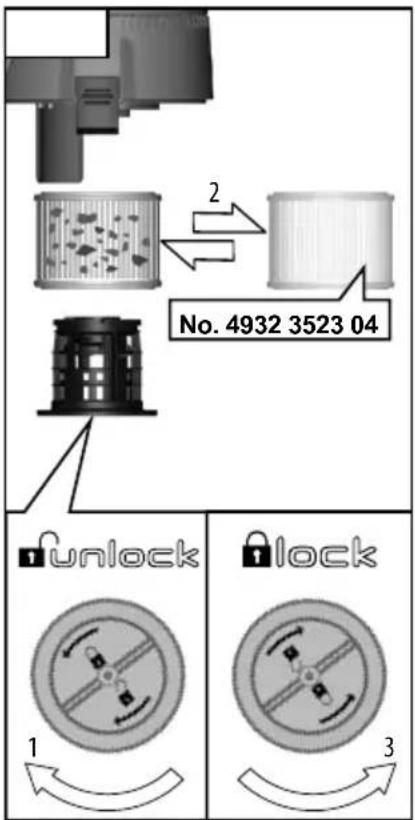

No. 4932 3523 04 1 2 3 unlock lock

Illustration of a vacuum cleaner emitting air with arrows indicating airflow (no text or symbols)

Hand cleaning a circular object with a cloth (no text or symbols visible)

3D mechanical component diagram showing a top view with an upward arrow and a base view (no text or symbols)

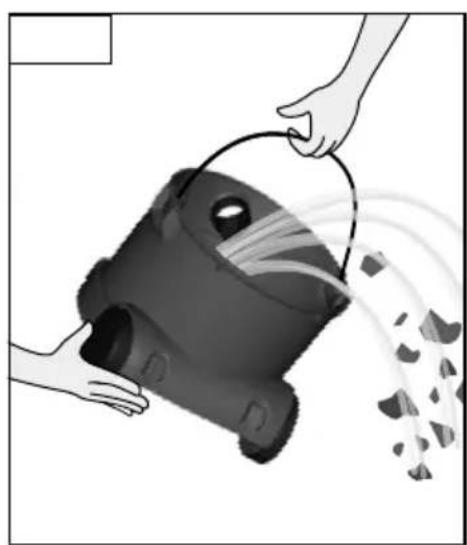

Illustration of hands pouring liquid from a black cylindrical container onto a white surface (no text or symbols)

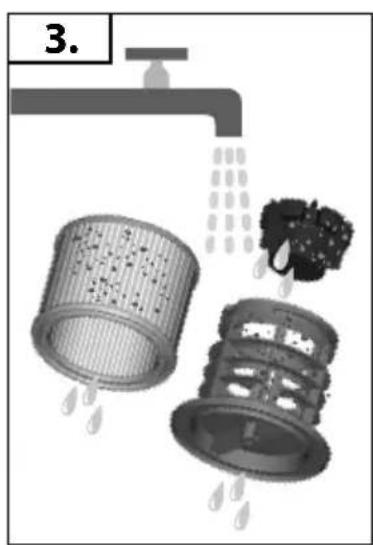

Diagram showing three stages of a water filtration or dust removal process with a faucet and filter structures (no text or symbols)

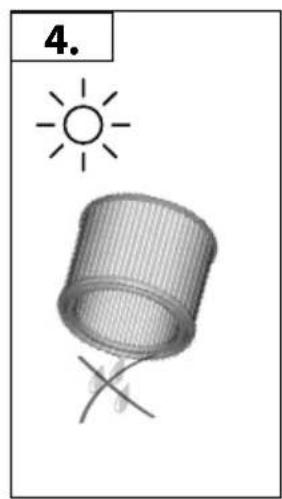

Simple line drawing of a sun and a wire coil with a cross mark, no text or symbols present.

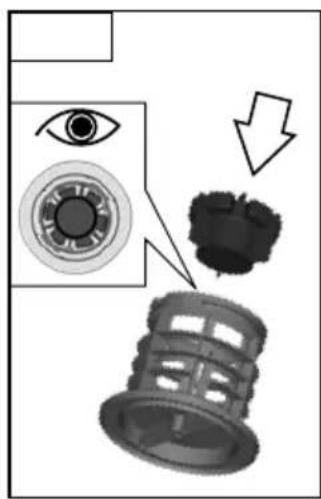

Diagram illustrating eye anatomy and mechanical components with labeled parts and directional arrows

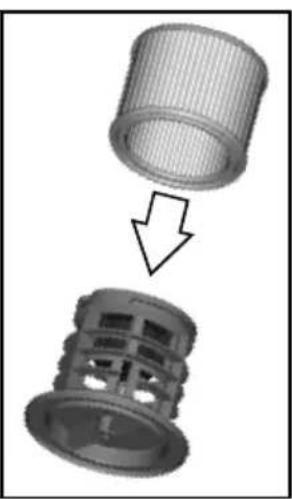

3D mechanical component diagram showing a cylindrical component being processed into a housing (no text or symbols)

Hand cleaning a robotic device with a cloth, no visible text or symbols

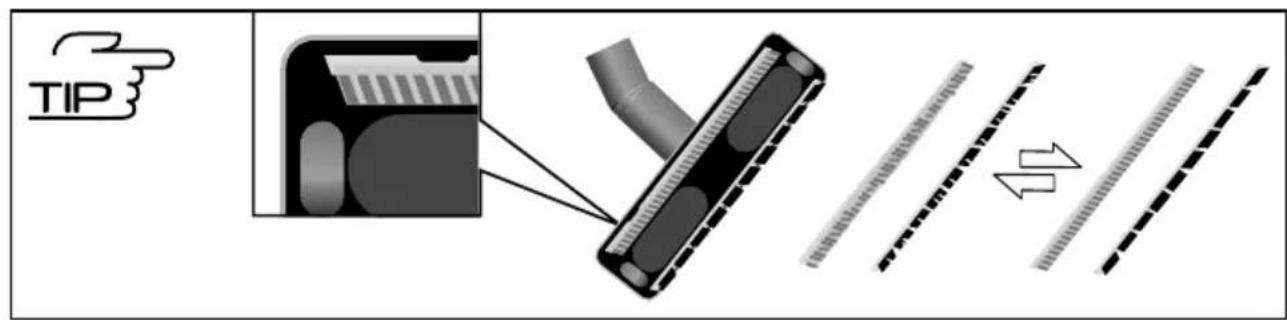

TIP

Mechanical device with hoses and gears, no visible text or symbols

Black and white photo of a vacuum cleaner with attached filter components (no text or symbols visible)

Close-up of a black vacuum cleaner with coiled hose and attached circuit board, shown in two views (no text or symbols)

3D rendering of a vacuum cleaner with coiled tubing and ventilation duct (no text or symbols visible)

TECHNICAL DATADust Extraction	AS 2-250 ELCP AS 2-250 ELCP AS 2-250 ELCP
Production code 4474 81 02...	... 000001-999999	4474 91 02... ... 000001-999999	4522 36 02... ... 000001-999999
Rated input P_iec	1000 W 1000 W 1000 W
Flow rate max. 3600 l/min	216 m ^3 /h	3600 l/min216 m ^3 /h	3600 l/min216 m ^3 /h
Underpressure max. 21 kPa / 210 mbar 21 kPa / 210 mbar 21 kPa / 210 mbar
Capacity:ContainerSolidLiquid	24,6l21l18l	24,6l21l18l	24,6l21l18l
Filter surface 3000 cm ^2 3000 cm ^2 3000 cm ^2
Outlet maximum Accessory Rating	2600 W 2000 W 1400 W
Safety class (Moisture, Dust) IP24 IP24 IP24
Suction hose diameter	32 mm	32 mm	32 mm
Weight according EPTA-Procedure 01/2014	8 kg 8 kg	8 kg
Noise informationMeasured values determined according to EN 60704-1. Typically, the A-weighted noise levels of the tool are:Sound pressure level (Uncertainty K=2dB(A))Sound level / Working sound level (Uncertainty K=2dB(A))Wear ear protectors!	72 dB (A)64 dB A)	72 dB (A)64 dB A)	72 dB (A)64 dB A)
Vibration informationTotal vibration values (vector sum in the three axes) determined according to ISO 5349.Vibration emission value a_h Uncertainty K=	< 1,5 m/s ^2 1 m/s ^2	< 1,5 m/s ^2 1 m/s ^2	< 1,5 m/s ^2 1 m/s ^2

WARNING! Read all safety warnings and all instruc-

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

SAFETY WARNINGS DUST EXTRACTION

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Fire and explosion hazard!

Never suck up into the machine any inflammable or explosive solvents, or liquids like petrol, oil, alcohol, thinners, or small particles (such as metal filings or ash) that may be hotter than 60^ C – otherwise there is danger of explosion or fire!

You are not allowed to use the appliance in the vicinity of inflammable gases or substances.

Do not point the nozzle, hose or tube at people or animals.

SPECIFIED CONDITIONS OF USE

The vacuum cleaners described in this operating manual are suitable for

• sucking up dust and liquids
- commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices and rental businesses.
- for separation of dust with an exposure limit of greater than 1 mg/m ^3 , (dust class L).

The following materials should not be picked up by the vacuum cleaner

• hazardous dust
  • hot materials (burning cigarettes, hot ash, etc.)
• flammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alkalis, etc.)
• flammable, explosive dust (e.g. magnesium or aluminium dust, etc.)

Any national regulations in this regard must be complied with.

MAINS CONNECTION

Connect only to a single-phase AC current supply and only to the mains voltage specified on the rating plate. Must only be used from sockets with earth wire.

Appliances used at many different locations including wet room and open air must be connected via a residual current device (FI, RCD, PRCD) of 30mA or less.

Extension cables to the mains must at least be protected from water spray and contain an earth lead.

Only plug-in when machine is switched off.

If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, to avoid hazardous situations.

WORKING INSTRUCTIONS

Do not direct the air into rooms in an uncontrolled manner.

Before liquids are picked up, always remove the filter bag. Ensure Filter remains fitted for wet operating. Check that the float works and level indicator hose properly. If foam develops or liquid emerges, stop work immediately and empty the dirt tank.

Not suitable for sweeping up liquids which form a large foam.

When using the blower function, always use a clean hose.

Stirred-up dust can be hazardous to health. Do not use the blower function in closed rooms.

Only use the appliance if it is in perfect condition. Never use the dust extractor without a filter, or if the filter is damaged.

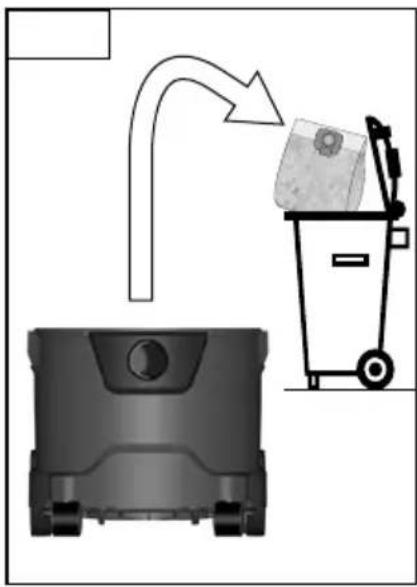

Discard filter elements, filter bags and disposal bags in accordance with the national regulations.

CONNECTING ELECTRICAL APPLIANCES

The plug socket on the appliance may be used only for the purposes defined in the usage instructions.

Before plugging an appliance into the appliance socket:

Switch off the vacuum cleaner. Switch off the appliance to be connected.

CAUTION! Follow the operating instructions that are supplied with appliances that are connected to the auxility outlet. Do not exceed the rated output of the auxiliary outlet.

MAINTENANCE, CLEANING AND REPAIR

Always pull out the mains plug before cleaning and maintenance of the vacuum cleaner.

Only carry out maintenance work described in the operating instructions.

If suction performance drops: Switching on the vacuum cleaner. Close the nozzles or suction hose opening with the palm of your hand. Press the button to start filter cleaning three times. The resulting stream of air removes attached dust from the slats of the filter elements.

The ventilation slots of the machine must be kept clear at all times.

Clean dust and debris from tool. Keep tool handles clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean the tool since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Never use flammable or combustible solvents around tools.

Never spray water on to the upper section of the vacuum cleaner. Danger for persons, risk or short-circuiting.

Before use check machine, cable, and plug for any damages or material fatigue. Repairs should only be carried out by authorised Service Agents.

Use only Milwaukee accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee/service addresses).

If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

Storage: The appliance must be stored in a dry place and protected from frost.

• For user servicing, the machine must be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to the maintenance staff and others. Suitable precautions include decontamination before dismantling, provision for local filtered exhaust ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal protection.
• The manufacturer, or an instructed person, shall perform a technical inspection at least annually, consisting of, for example, inspection of filters for damage, air tightness of the machine and proper function of the control mechanism.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the directives

2011/65/EU (RoHS)

2006/42/EC

2014/30/EU

and the following harmonized standards have been used.

EN 60335-1:2012 + A11:2014

EN 60335-2-69:2012

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997 + A1:2001 + A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 50581:2012

Winnenden, 2016-05-20

Alexander Krug / Managing Director

Authorized to compile the technical file

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

English

GB-DECLARATION OF CONFORMITY

We declare as the manufacturer under our sole responsibility that the product described under „Technical Data“ fulfills all the relevant provisions of the following Regulations

S.I. 2012/3032 (as amended), S.I. 2008/1597 (as amended), S.I. 2016/1091 (as amended) and that the following designated standards have been used:

BS EN 60335-1:2012 + A11:2014

BS EN 60335-2-69:2012

BS EN 55014-1:2006+A1:2009+A2:2011

BS EN 55014-2:1997 + A1:2001 + A2:2008

BS EN 61000-3-2:2014

BS EN 61000-3-3:2013

EN 50581:2012

Winnenden, 2016-05-20

Alexander Krug / Managing Director Authorized to compile the technical file

Techtronic Industries GmbH Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLS

CAUTION! WARNING! DANGER!

Always disconnect the plug from the socket before carrying out any work on the machine.

Please read the instructions carefully before starting the machine.

Provide adequate ventilation.

Accessory - Not included in standard equipment, available as an accessory.

for separation of dust with an exposure limit of greater than 1 mg/m ^3 , (dust class L).

Do not dispose of waste electrical and electronic equipment as unsorted municipal waste.

Waste electrical and electronic equipment must be collected separately.

Waste light sources have to be removed from equipment. Check with your local authority or retailer for recycling advice and collection point.

According to local regulations retailers may have an obligation to take back waste electrical and electronic equipment free of charge.

Your contribution to re-use and recycling of waste electrical and electronic equipment helps to reduce the demand of raw materials.

Waste electrical and electronic equipment contain valuable, recyclable materials, which can adversely impact the environment and the human health, if not disposed of in an environmentally compatible manner.

Delete personal data from waste equipment, if any.

European Conformity Mark

British Conformity Mark

Ukraine Conformity Mark

Australian Conformity Mark

EurAsian Conformity Mark

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLE

DÉCLARATION CE DE CONFORMITÉ

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Français

SYMBOLES

ATTENTION! AVERTISSEMENT! DANGER!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

ATTENZIONE! AVVERTENZA! PERICOLO!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Español

SÍMBOLOS

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLE

ATENÇÃO! PERIGO!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Nederlands

SYMBOLEN

OPGELET! WAARSCHUWING! GEVAAR!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

VIGTIGT! ADVARSEL! FARE!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLER

OBS! ADVARSEL! FARE!

SERVICE, RENGÖRING OCH REPARATIONER

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Svenska

SYMBOLER

OBSERVERA! WARNING! FARA!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLIT

HUOMIO! VAROITUS! VAARA!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

ΣΥΜΒΟΛΑ

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SEMBOLLER

DİKKAT! UYARI! TEHLİKE!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLY

POZOR! VAROVÁN! NEBEZPEČÍ!

CE - VYHLÁSENIE KONFORMITY

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SYMBOLY

POZOR! NEBEZPEČENSTVO!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Polski

SYMBOLE

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SZIMBÓLUMOK

FIGYELEM! FIGYELMEZTETÉS! VESZÉLY!

UPORABA V SKLADU Z NAMEMBNOSTJO

Sesalci, ki so opisani v tem navodilu za uporabo, so primerni

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Slovensko

SIMBOLI

POZOR! OPOZORILO! NEVARNO!

Alexander Krug / Managing Director

Ovlašten za formiranje tehničke dokumentacije.

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLI

PAŽNJA! UPOZORENIE! OPASNOST!

Prije radova na stroju izvući utikač iz utičnice.

Molimo da pažljivo pročitate uputu o upotrebi prije puštanja u rad.

Pobrunuti se za dovoljno provjetravanje.

Oprema - u opsegu isporuke nije sadržana, preporučena dopuna iz promgrama opreme.

za odvajanje svake vrste prašine s ekspozicijskim graničnim vrijednostima većim od 1 mg/m3, (klasa prašine L)

Električni i elektronički stari uređaji se ne smiju zbrinjavati skupa sa kućnim smećem.

Električni i elektronički stari uređaji se moraju odvojeno skupljati i zbrinuti.

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Latviski

SIMBOLI

UZMANĪBU! BĪSTAMI!

Pirms jebkādiem darbiem, kas attiecas uz mašinas apkopi, mašinu noteikti vajag atvienot no kontaktligzdas.

Alexander Krug / Managing Director

lgaliotas parengti techninius dokumentus.

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLIAI

DÉMESIO! |SPÈJIMAS! PAVOJUS!

SPETSIAALSED TURVAJUHISED TOLMU

VÄLJAVEDU

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

Eesti

SÜMBOLID

ETTEVAATUST! TÄHELEPANU! OHUD!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛЫ

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛИ

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

SIMBOLURI

PERICOL! AVERTIZARE! ATENTIE!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМБОЛИ

ВНИМАНИЕ! ПРЕДУПРЕДУВАЊЕ! ОПАСНОСТ!

Alexander Krug / Managing Director

Max-Eyth-Straße 10, 71364 Winnenden, Germany

СИМВОЛИ

Techtronic Industries (UK) Ltd

Parkway

Marlow, SL7 1YL

UK

(02.22)

4931 4250 80
